Description
| Specifications | |
|---|---|

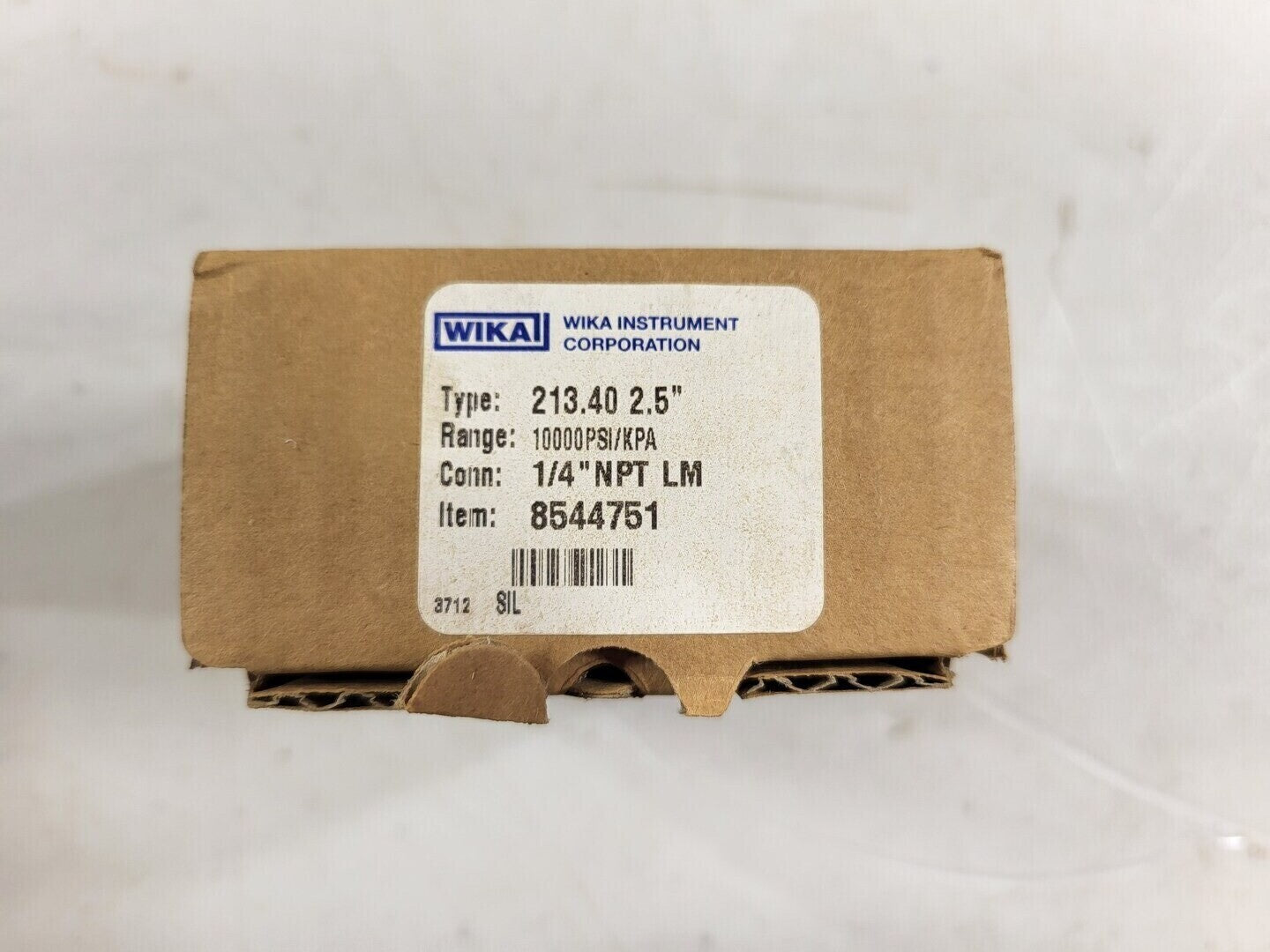

| Model | 8544751 |
| Condition | Surplus New | General |
| Gauge Type | Pressure |
| Filling | Liquid |
| Pressure Rating | 10000 psi | Weight + Dimensions |
| Size | 2-1/2" |

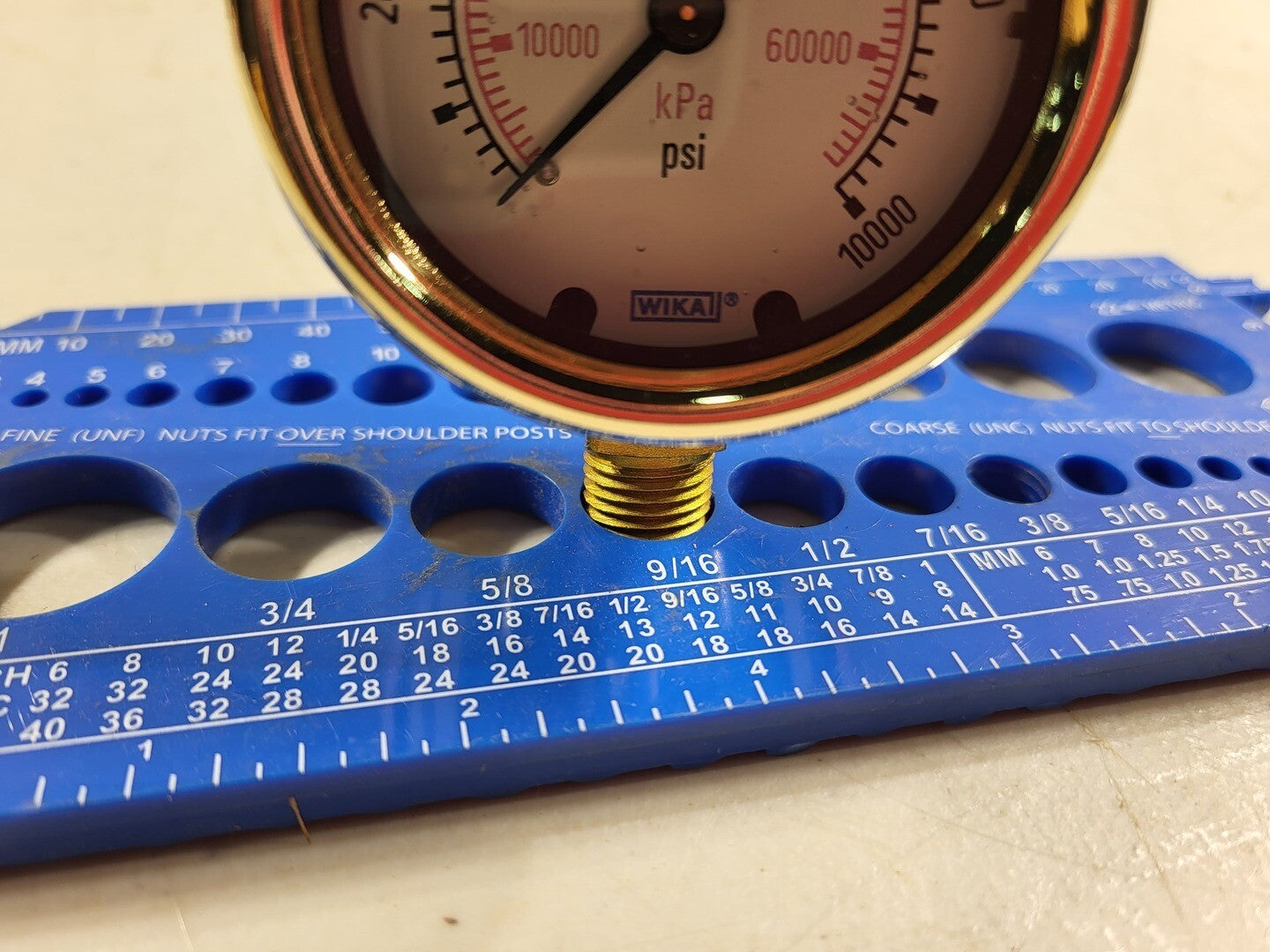

| Thread Size | 1/4" |
| Other Specifications |
|---|
|

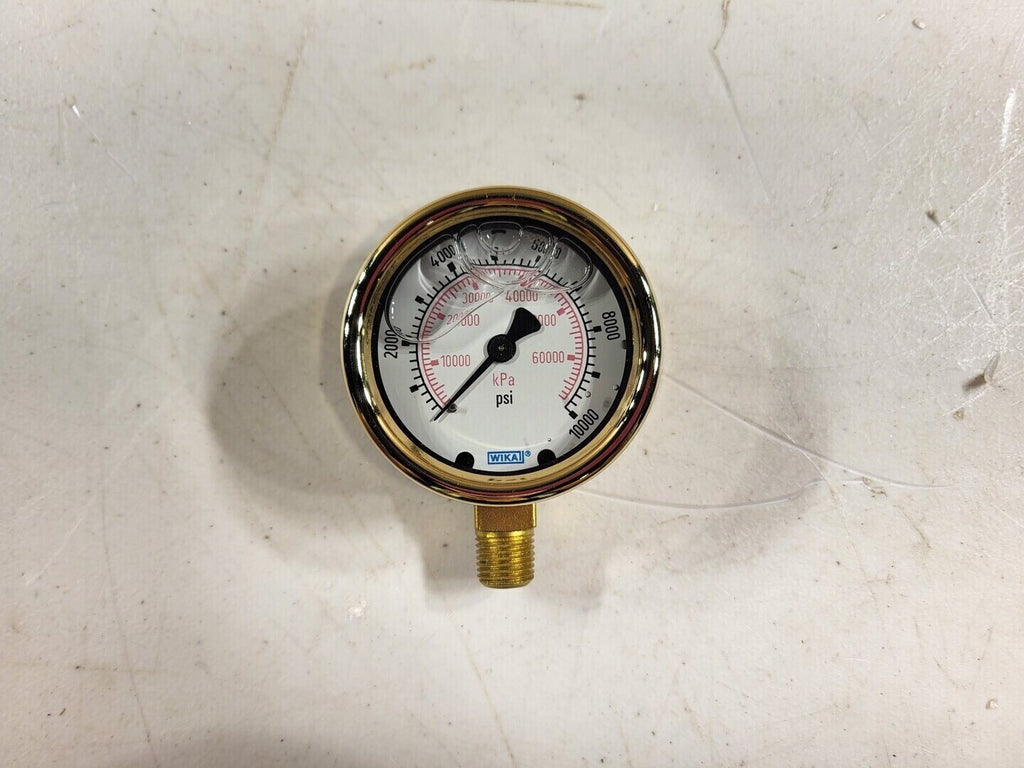

Design: ASME B40.100 & EN 837-1 Size: 2.5" Accuracy Class: +/-2-1/2% of span (ASME B40.100 Grade A) Ranges: 0 to 10000 psi (0 to 60000 kPa) Working Pressure:-
Operating Temperature:-
Enclosure: Weather tight (NEMA 4X/IP) Pressure Connection: Lower Mount (LM) or Center Back Mount (CBM) 1/4" NPT or 1/2" NPT limited to wrench flat area Material: Copper Alloy Temperature Error: Additional error when temperature changes from reference temperature of 68 deg. F (20 deg. C) +/-0.4% of span for every 18 deg. F rising or falling Bourdon Tube: <870 psi (60 bar): C-shape copper alloy, >870 psi (60 bar): Helical copper alloy Dial: White aluminum with black lettering, 2-1/2" with stop pin Pointer: Black Aluminum Case: Gold-Painted forged brass with integral connection and vent plug Bezel Ring: Gold-Plated ABS cover ring Window: Acrylic with Buna-N gasket Case Fill: Glycerine 99.7% |
