Description

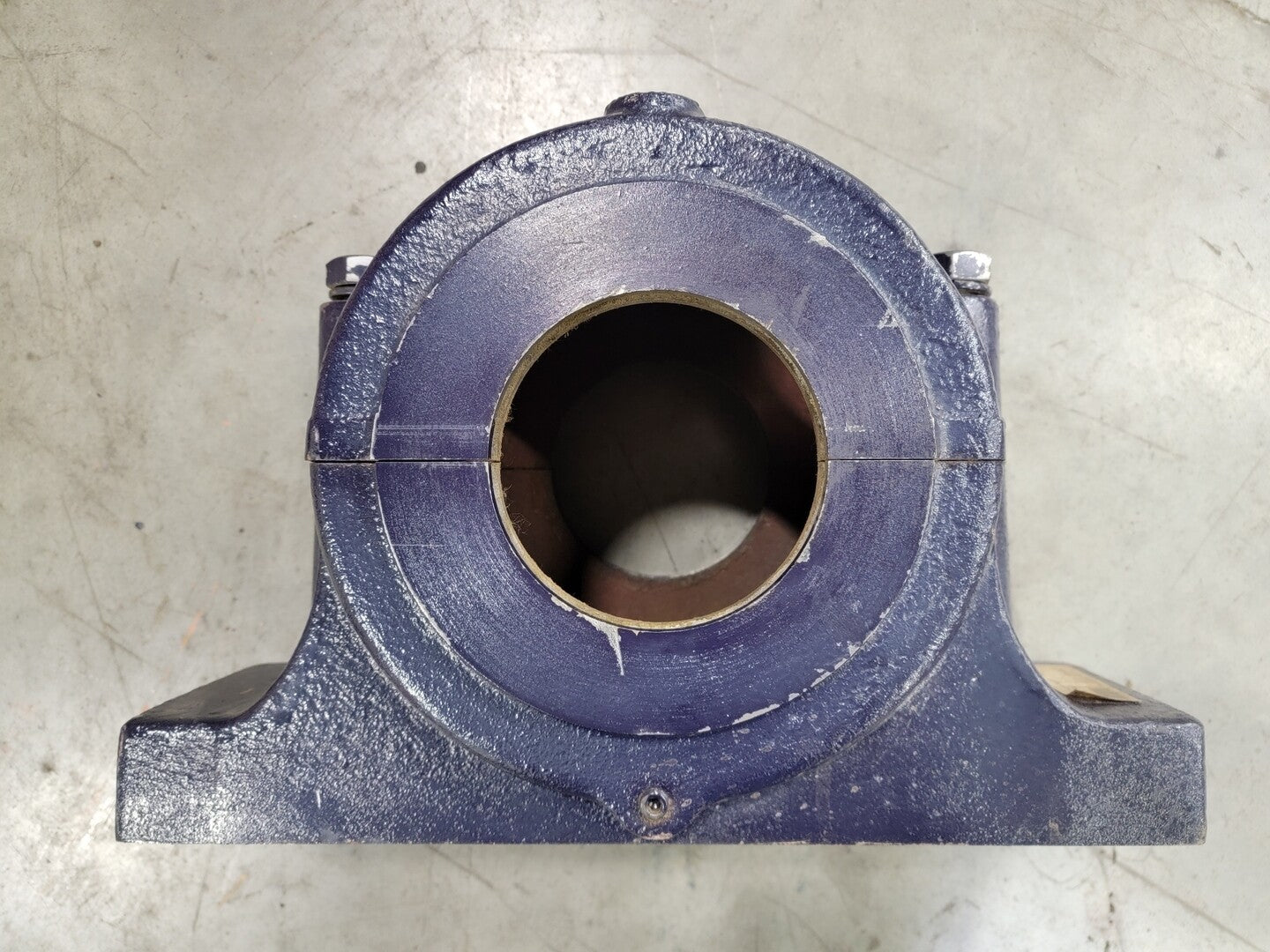

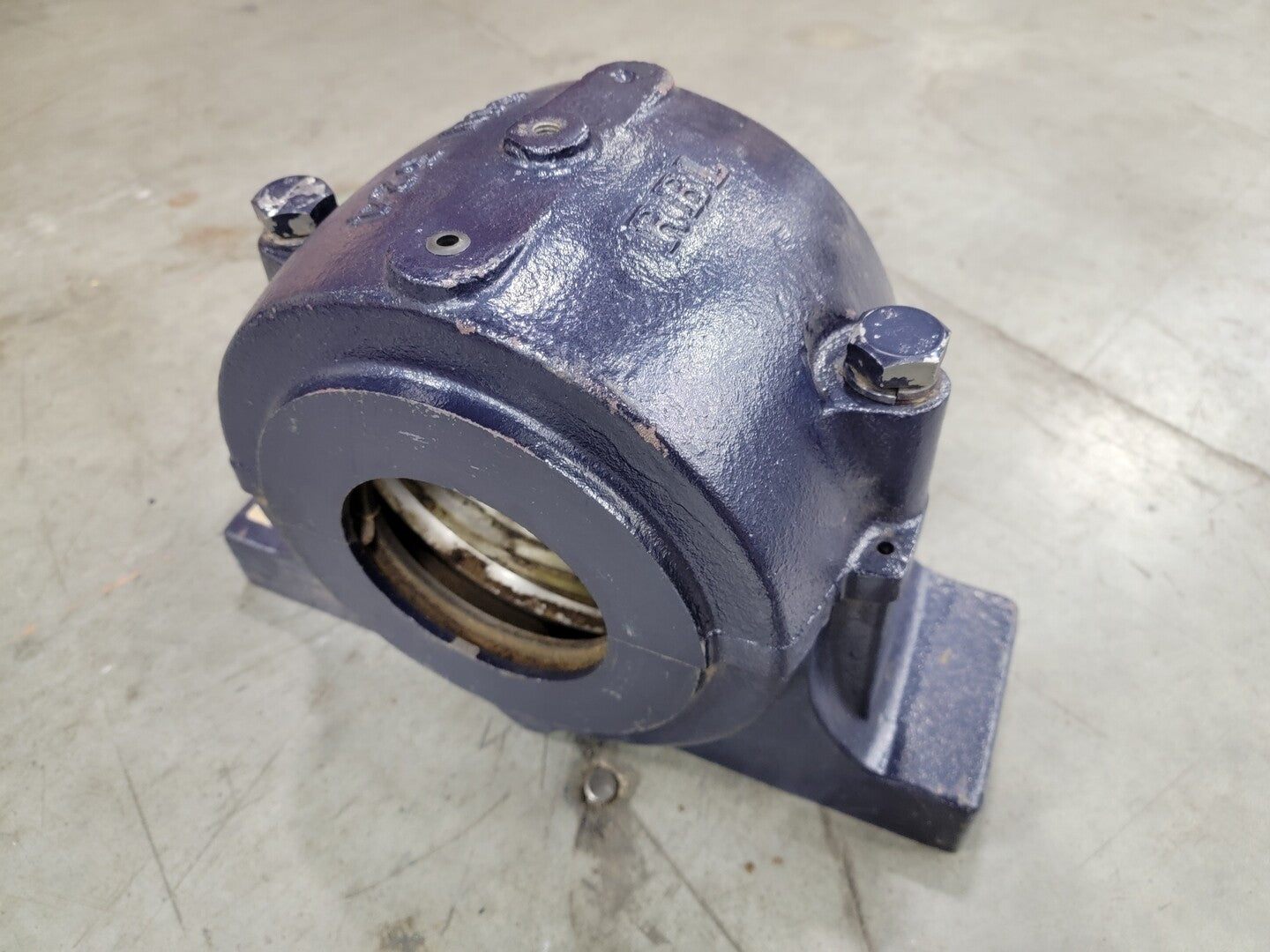

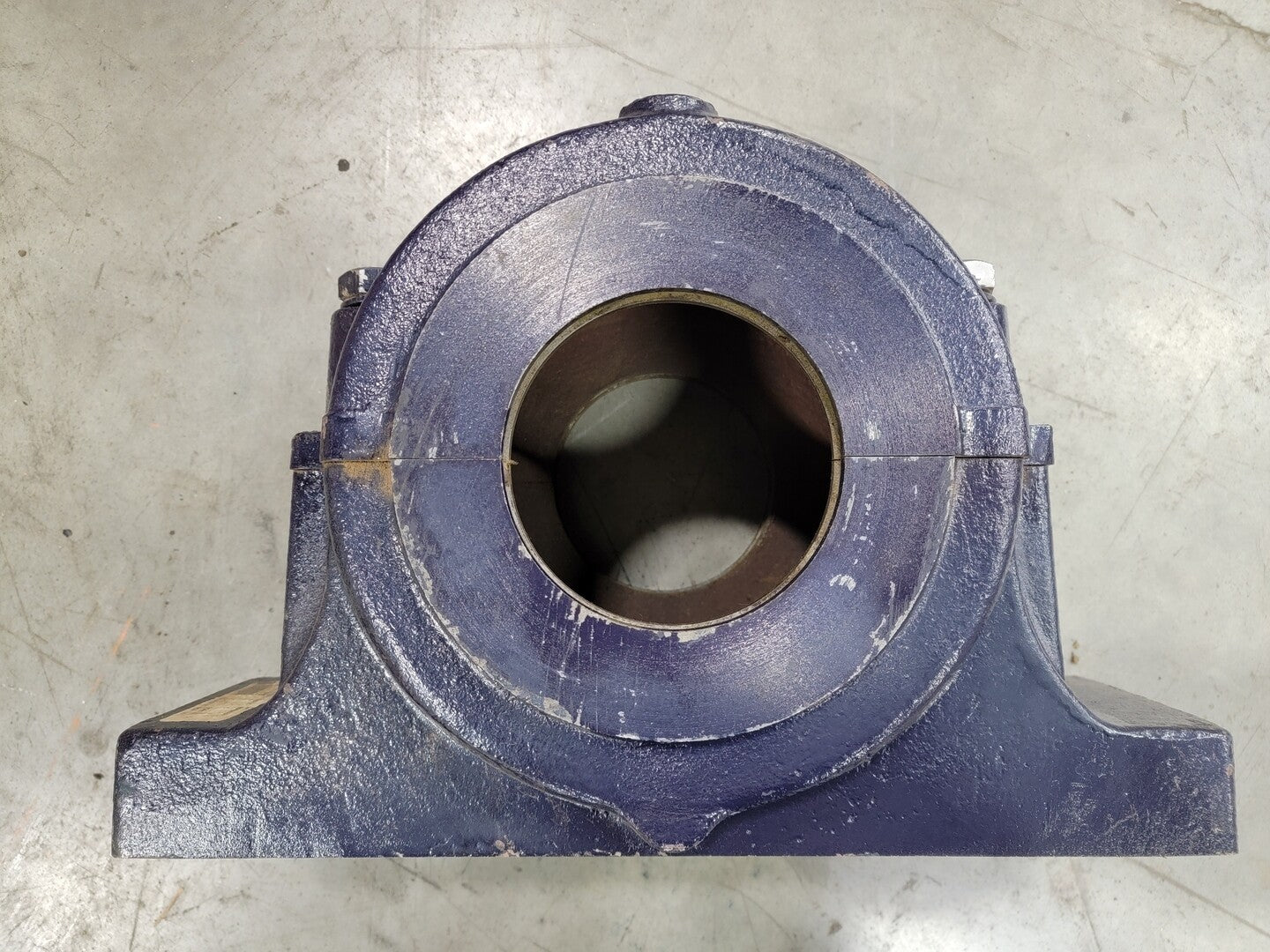

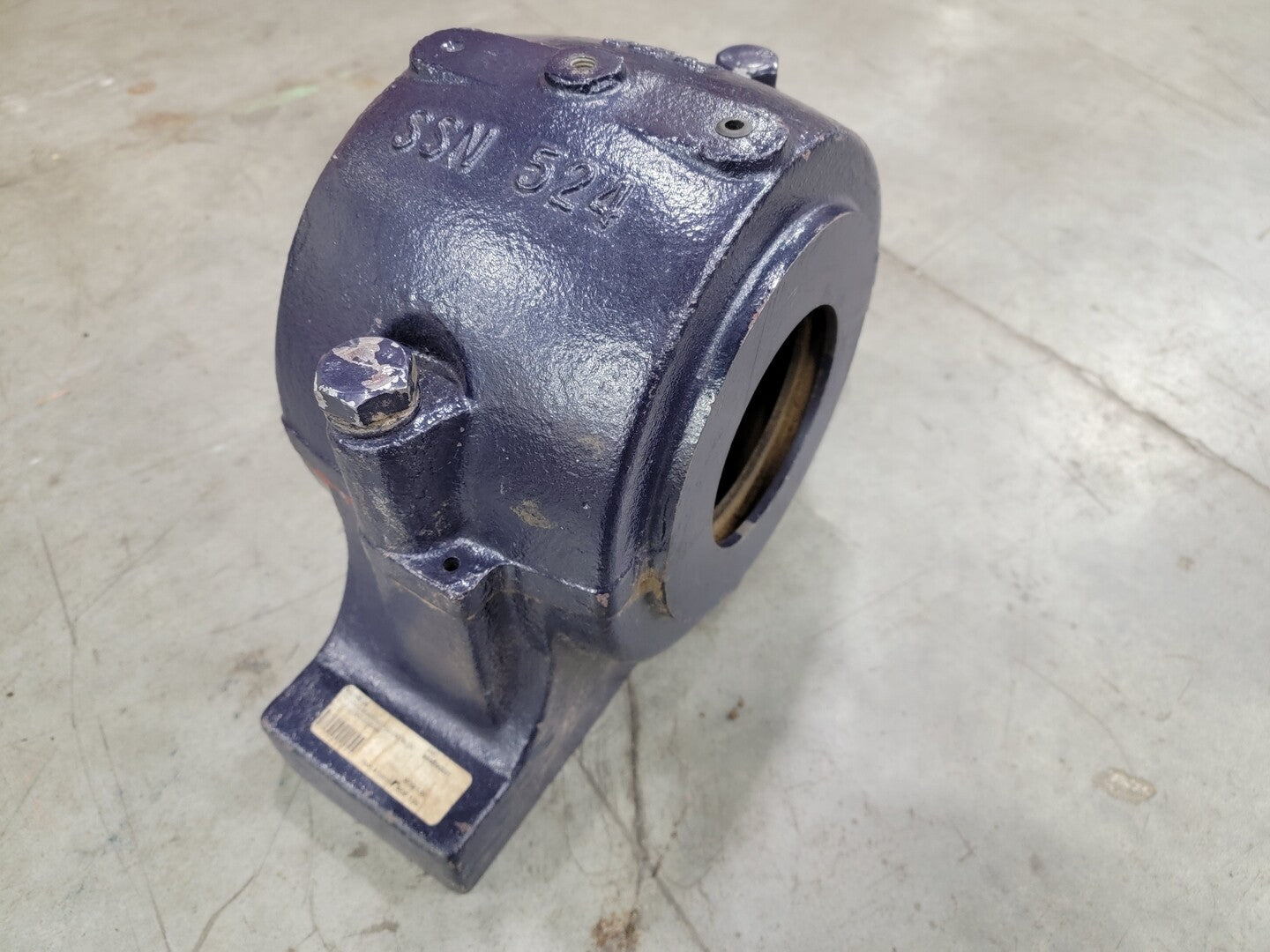

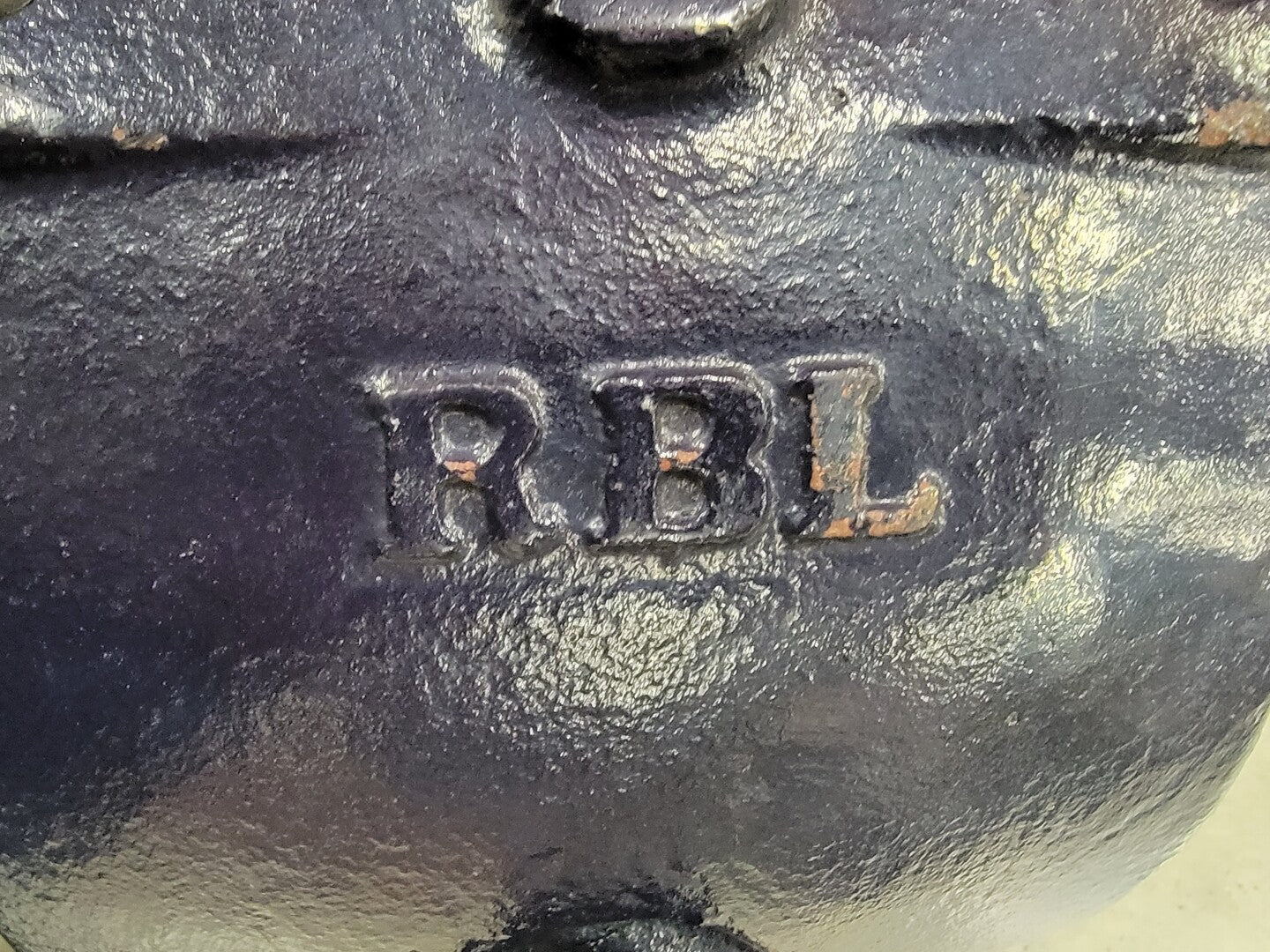

The RBL Split Pillow Block Bearing Housing No. SSN524 is a sturdy and reliable housing designed for a 4-3/16" shaft diameter. It is compatible with the Bearing Series/Part #: 22224-CK and Bearing Types: Spherical Roller. The dimensions of the housing are 8.00 x 11.00 x 16.00 and it weighs 60.00. It features a Type: Pillow Block, with a height of 10.625 in. and an outside length of 16.13 in. The base to bore centerline measures 5.512 in. and the distance between bolts is 13 in. The RBL Split Pillow Block Bearing Housing No. SSN524 offers excellent performance and is available for purchase in a quantity of 1.
| Specifications | |
|---|---|
| Model | SSN524 |
| Condition | Surplus New | General |
| Type | Pillow Block |
| Height | 10.625 in. |
| Outside Length | 16.13 in. |
| Base to Bore Centerline | 5.512 in. |
| Distance Between Bolts | 13 in. |
| Housing Compatible Bore Diameter | 4-3/16 in. |
| Compatible Bearing Series/Part # | 22224-CK |
| Compatible Bearing Types | Spherical Roller |
| Other Specifications |
|---|
|
Compatible:
Bearing: 22224-CK
Adapter Sleeve: HA 3124, HE 3124, H 3124
Locating Ring: 215/14
Mounting: Blank
|
