Description
| Specifications | |
|---|---|
| Model | T3H25T10C3B2A1A,XI=6 |
| S/N: | W010051B4-5 |
| Made In | CANADA |
| Condition | Used | General |
| Bore Diameter | 2-1/2 " |
| Stroke | 10 IN |
| Other Specifications |
|---|
|

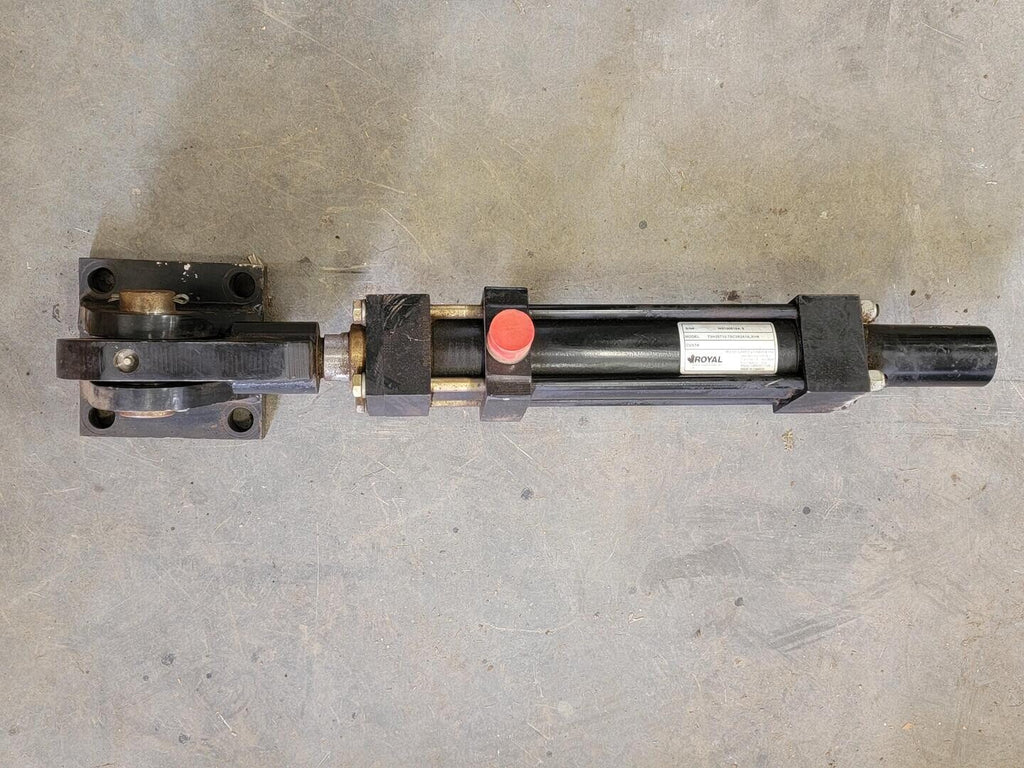

Cylinder Description: Royal T3H Series Positioner Mid-Trunnion (MT4) Trunnion Location XI = 6 2 1/2 in. Diameter Bore 10" Stroke 1 3/4" Diam. Chrome Plated Steel Piston Rod With Oversize Thread, CC=1 1/2-12 Gun Drilled Rod Non Cushioned Microhoned Steel Barrel SAE-08 Port at Position 1 Maximum Electrical Stroke of Probe = contact factory Temposonic Ready Cylinder - Probe not included Transducer Magnet Included Inclusions: Self Aligning Rod Eye - Female Thread Mounting Bracket for Self-Aligning Rod Eye |
