Description
| Specifications | |
|---|---|

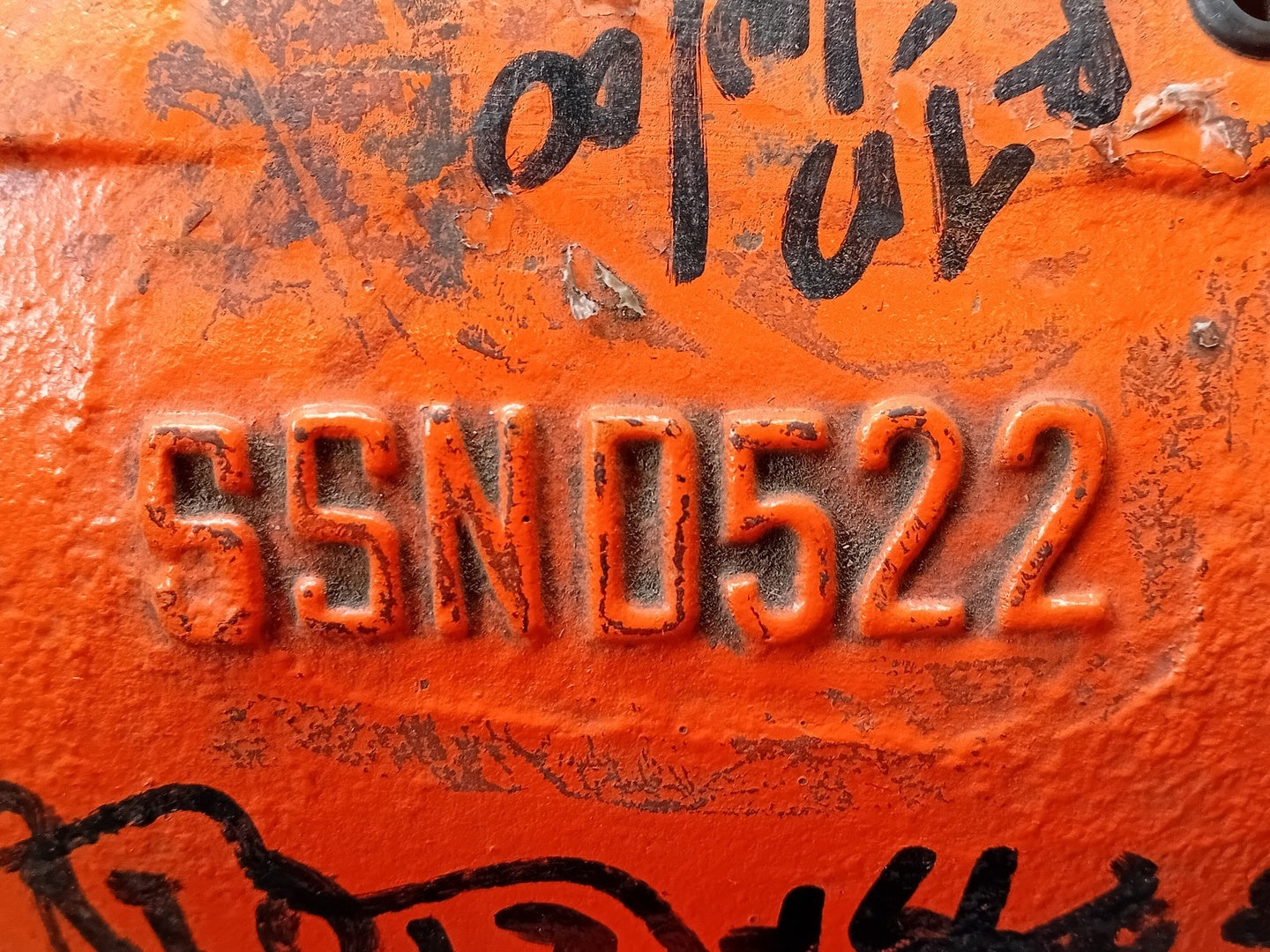

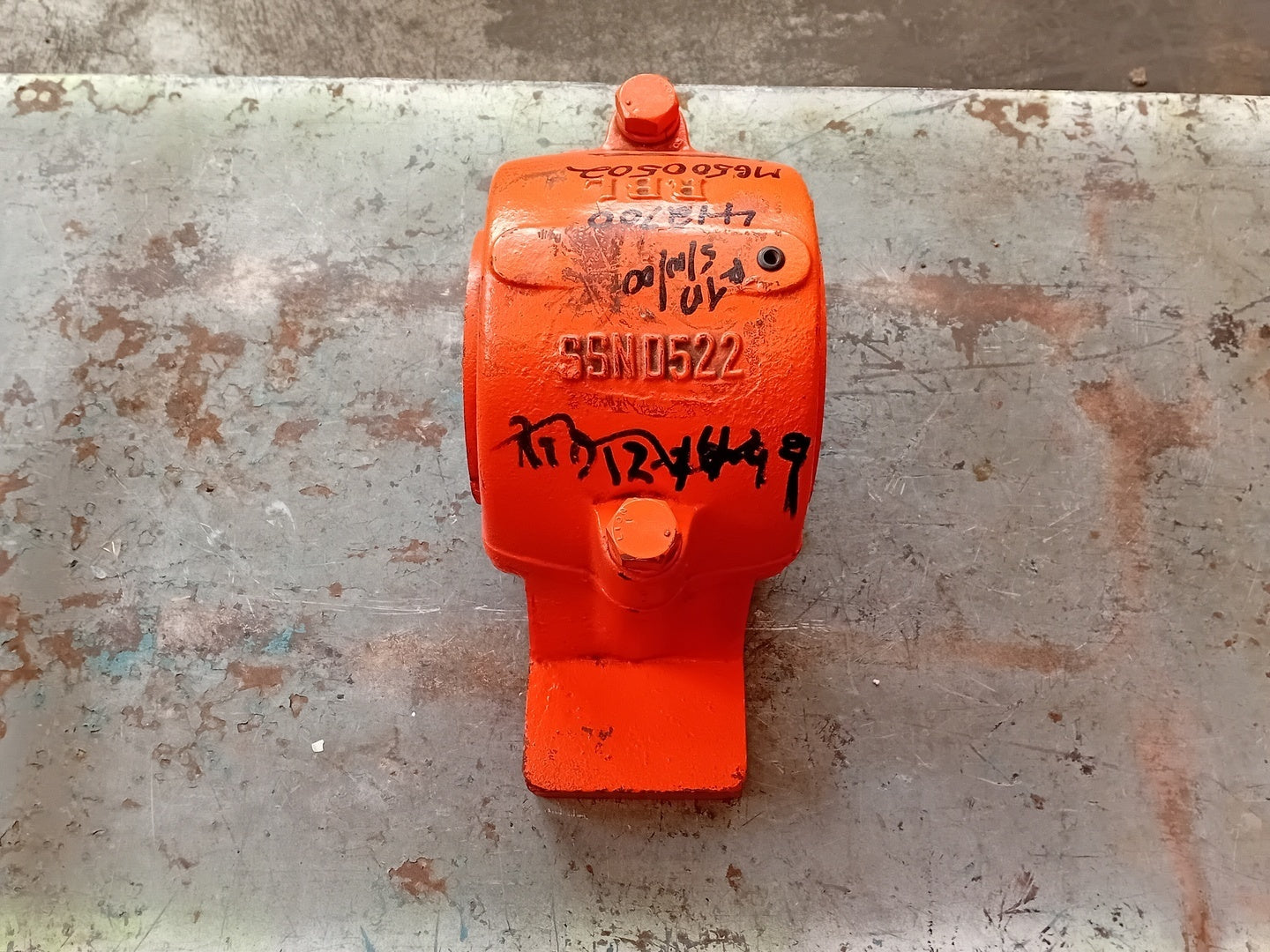

| Model | SSND522 |
| Condition | Surplus New | General |
| Type | Split Plummer Block |
| Height | 240 mm |
| Outside Length | 410 mm |
| Base to Bore Centerline | 125 mm |
| Distance Between Bolts | 350 mm |
| Housing Compatible Bore Diameter | 100 mm |
| Other Specifications |
|---|
|
Diameter of bearing seat: 200 mm Width of bearing seat: 80 mm Housing type: Plummer/pillow block Housing configuration: Two-piece Mounting arrangement: Through shaft/Shaft end Number of bolt holes for fasteners: 2 Material, housing: Cast iron Attachment bolt diameter: 24 mm |
