Description
| Specifications | |
|---|---|
| Model | 910-346-643-00 |
| Condition | Used |
| Other Specifications |
|---|
|

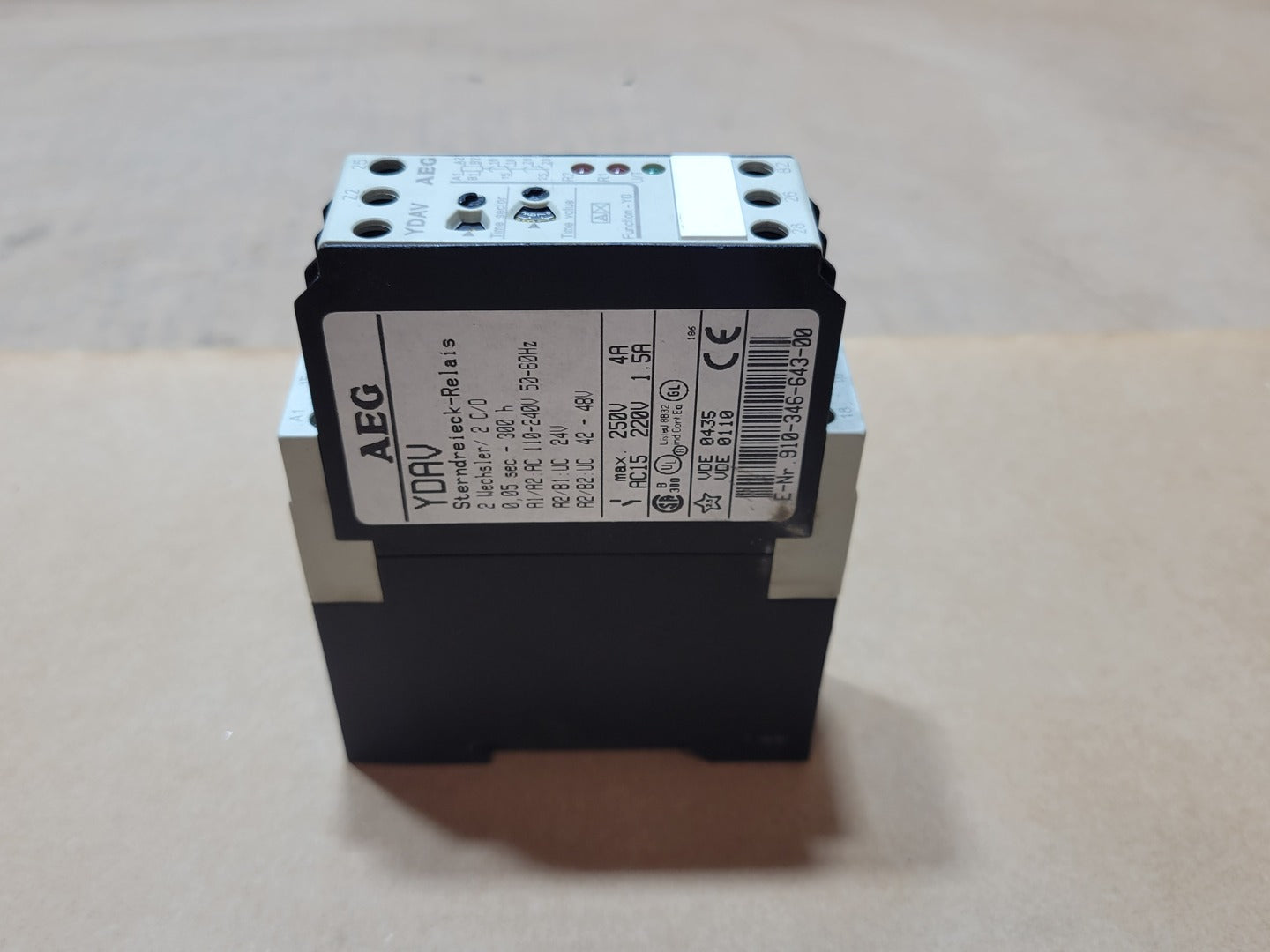

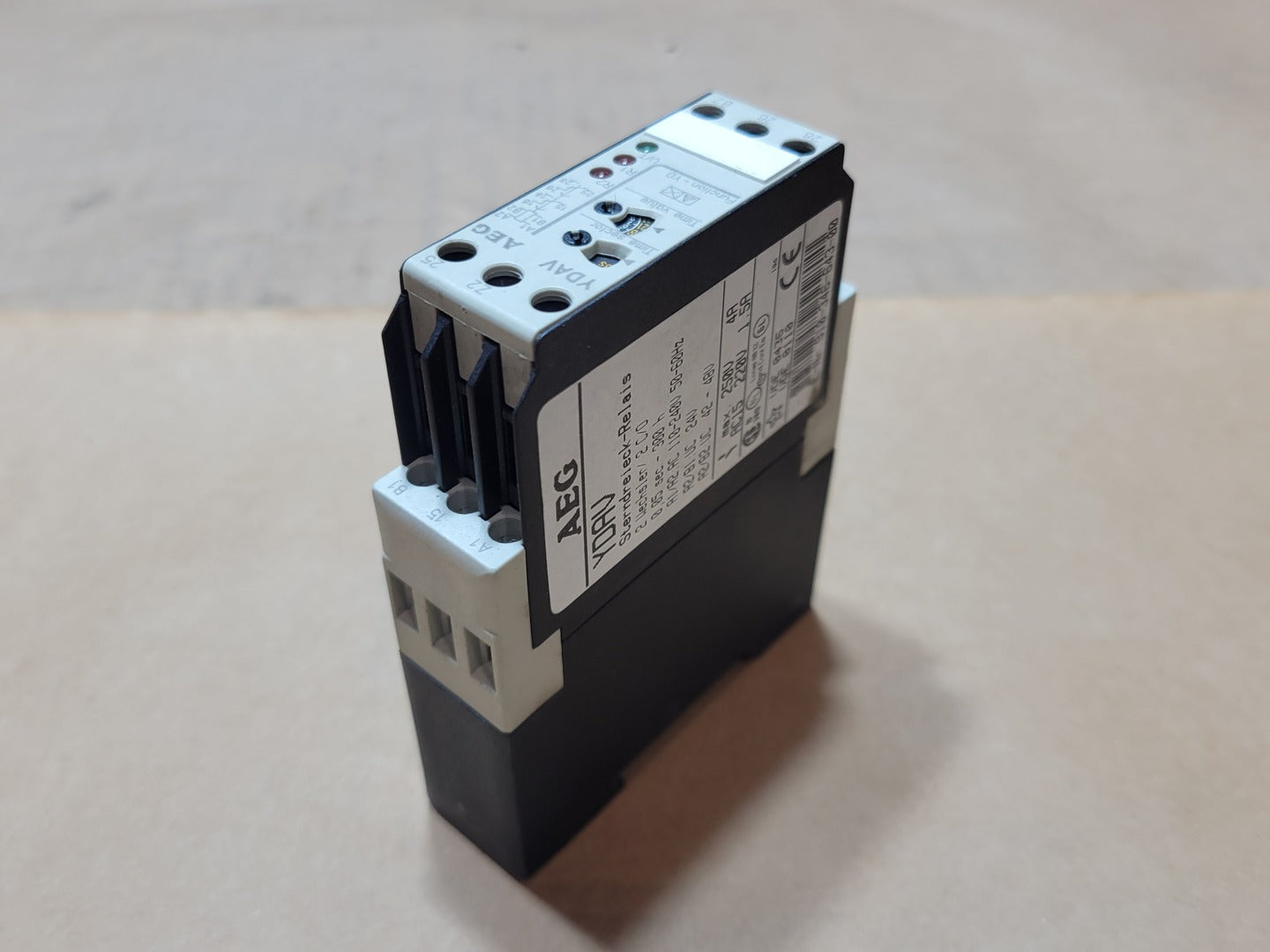

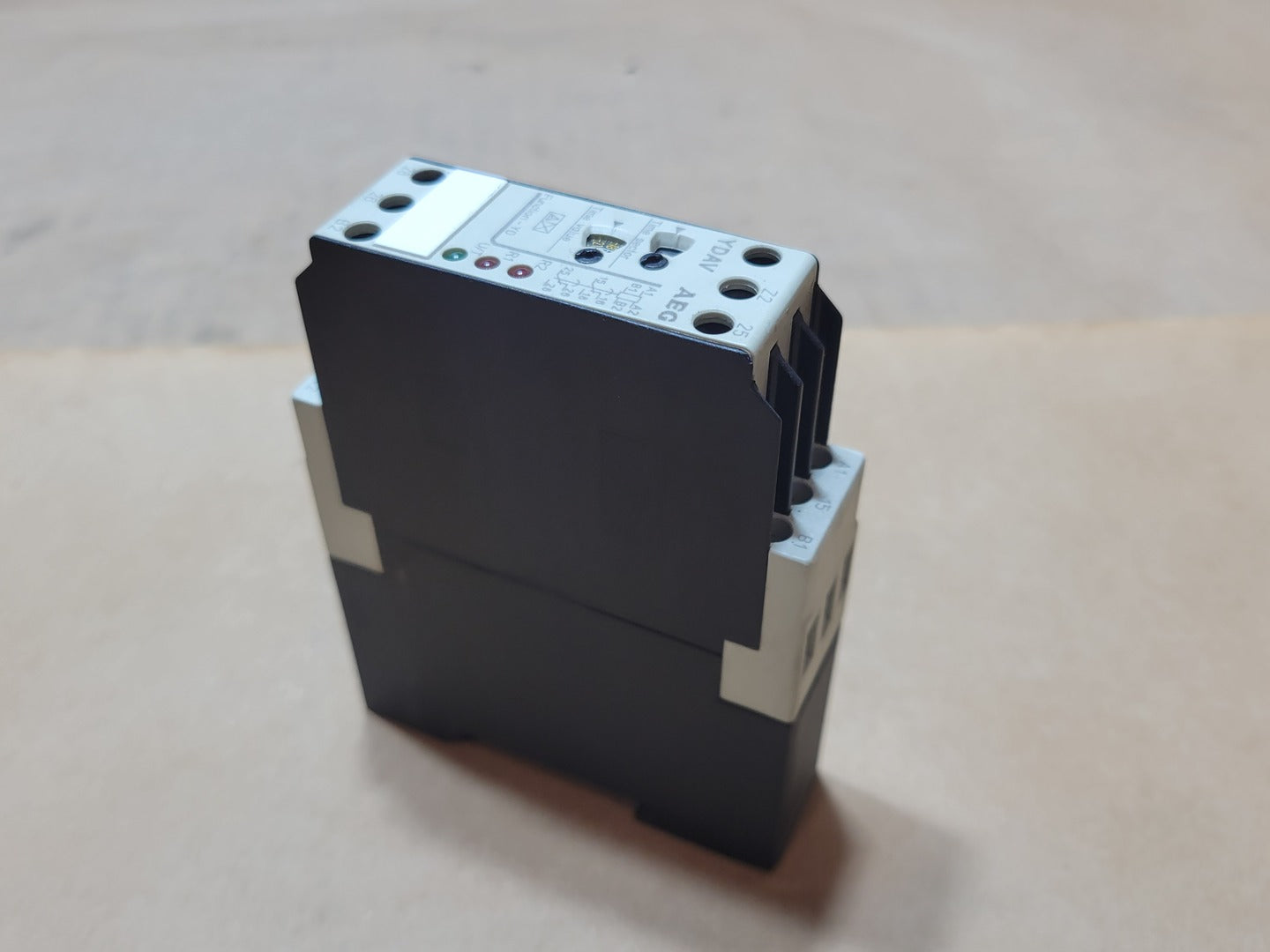

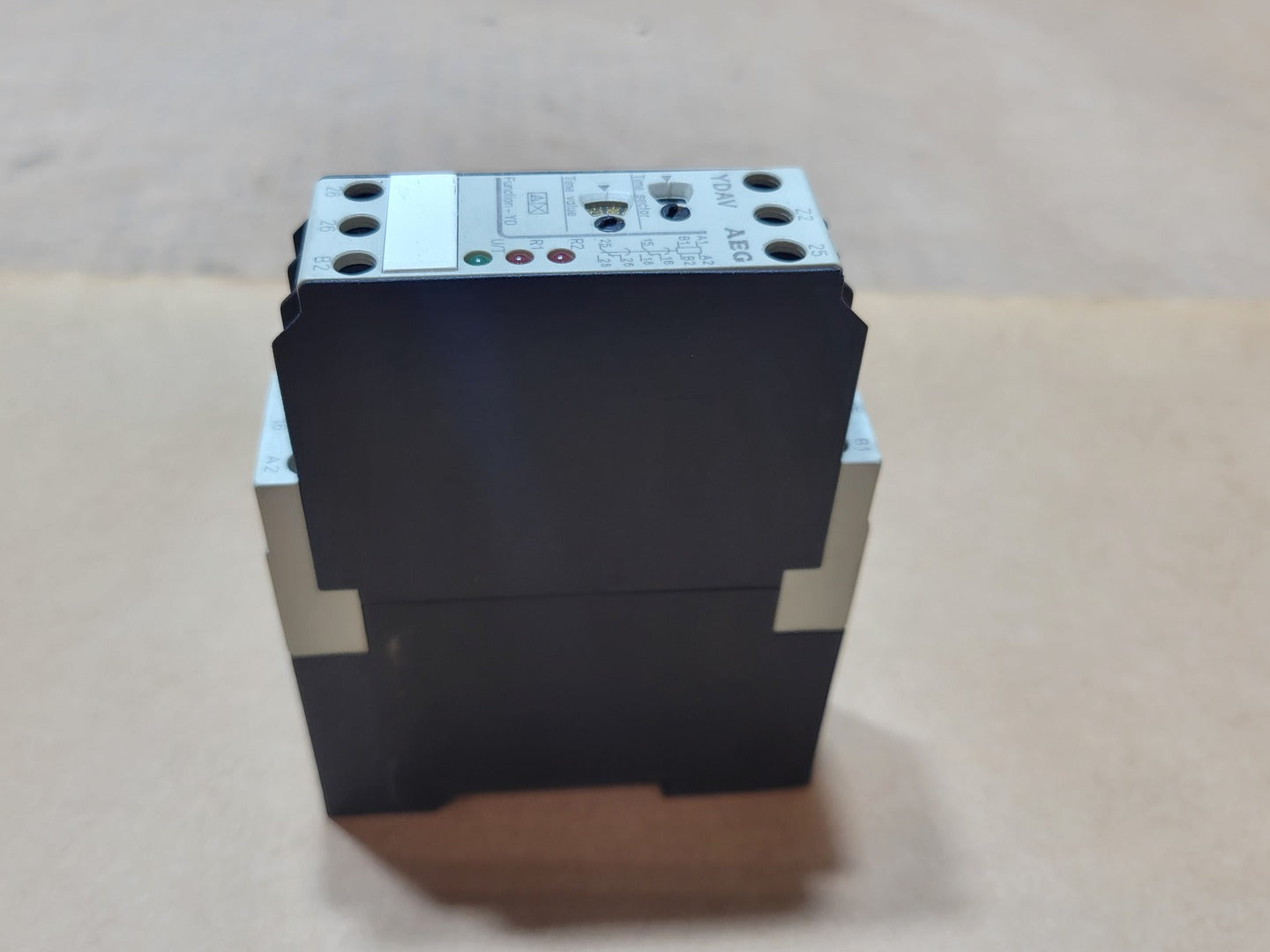

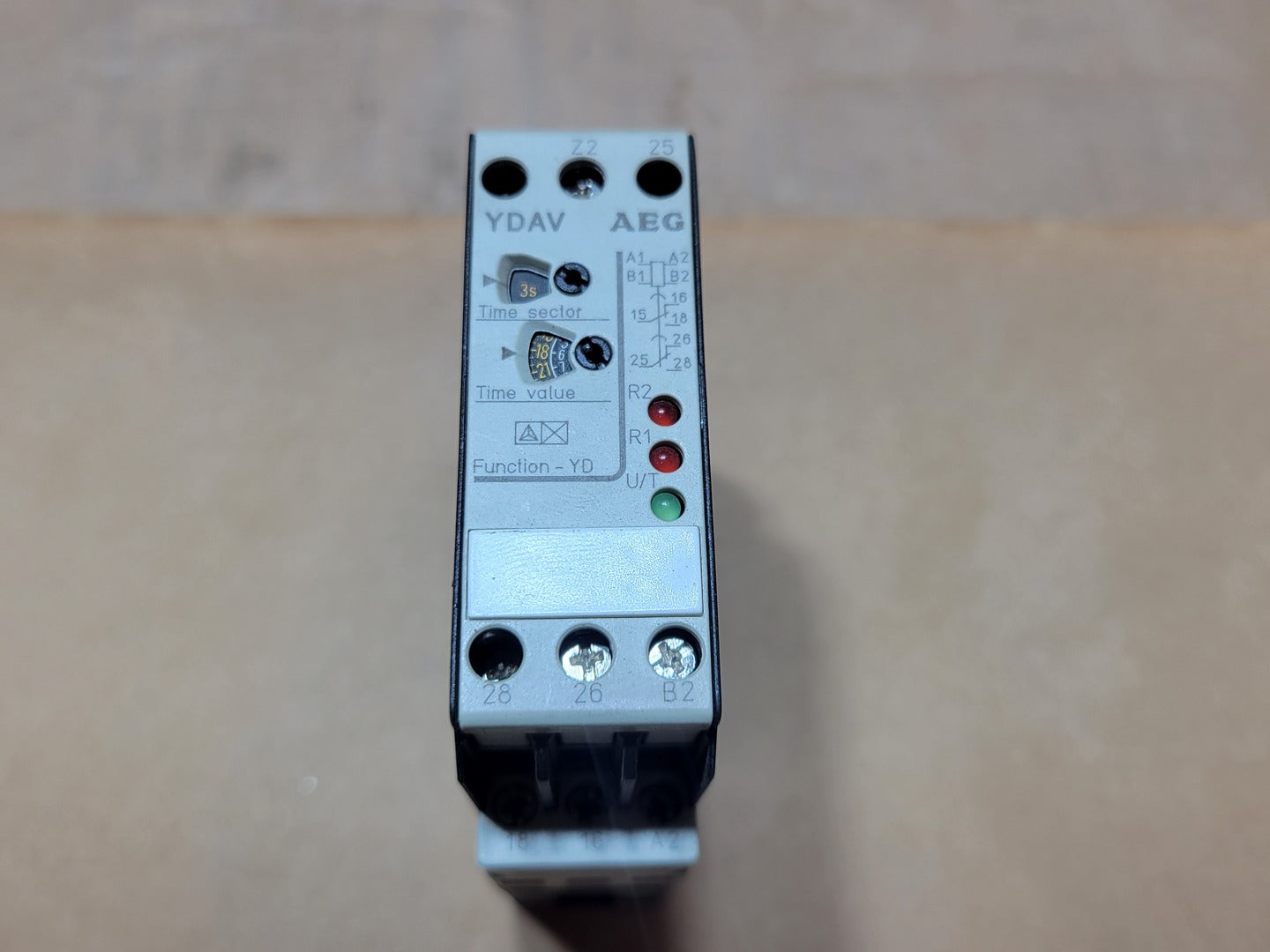

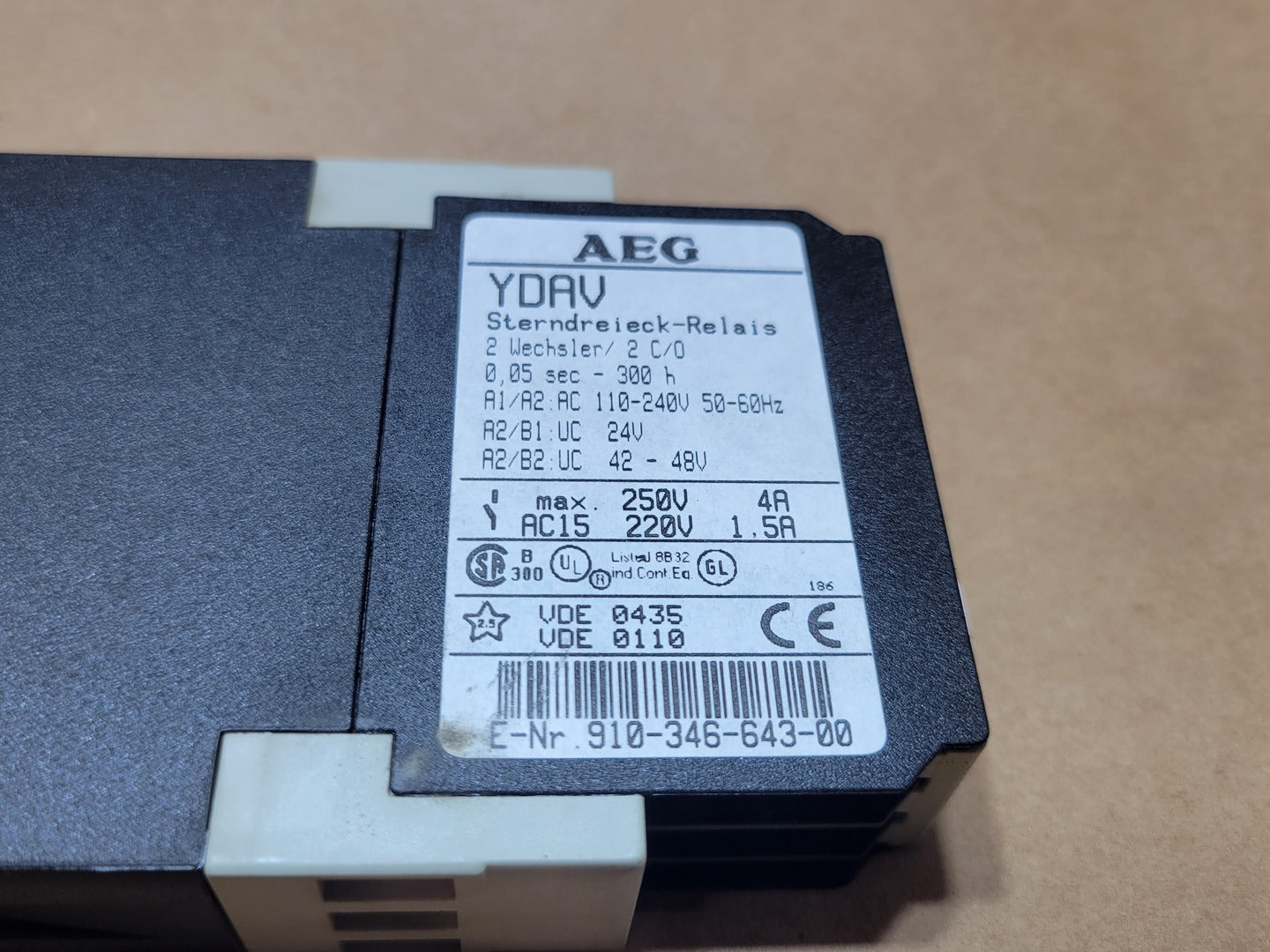

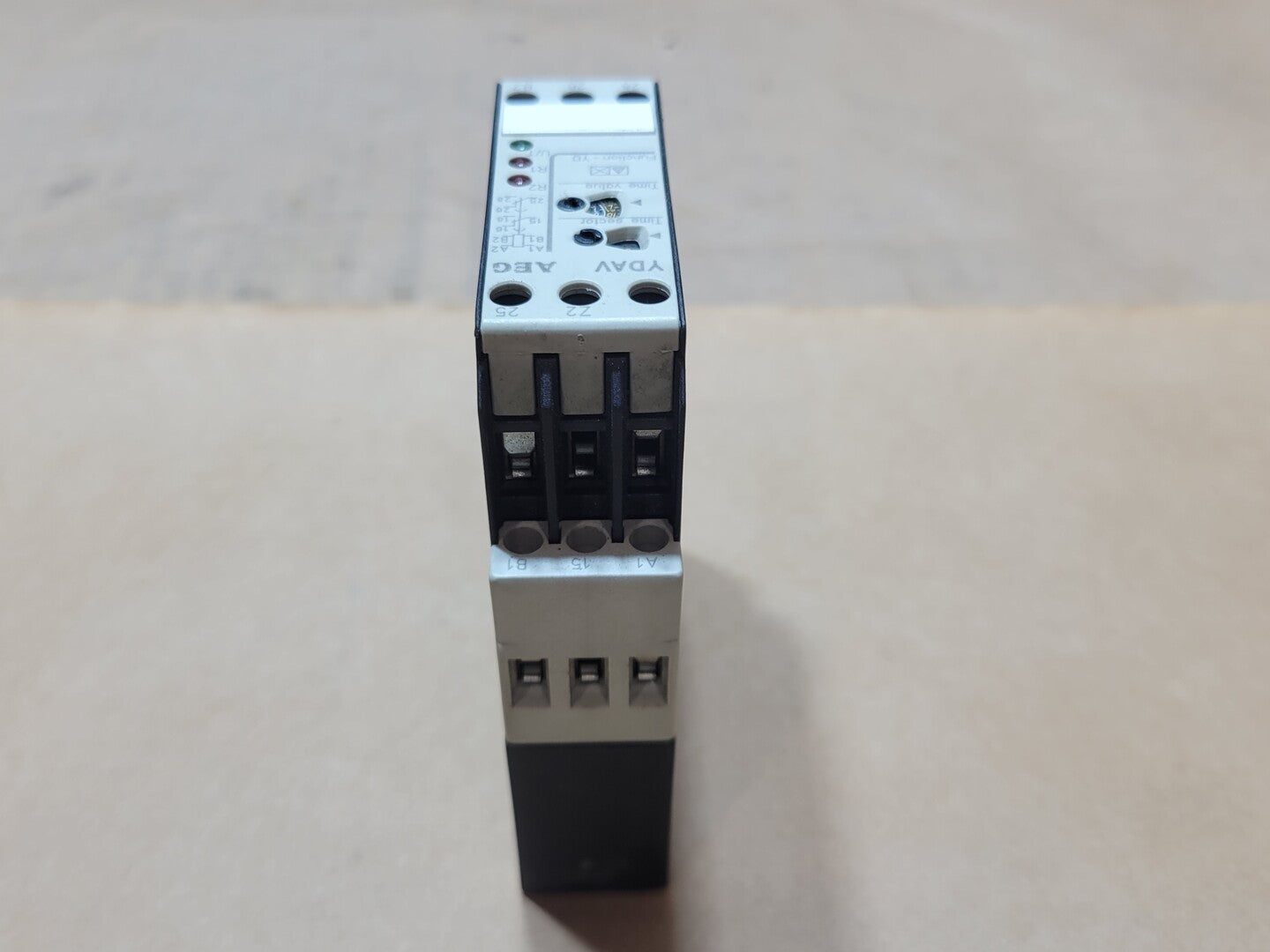

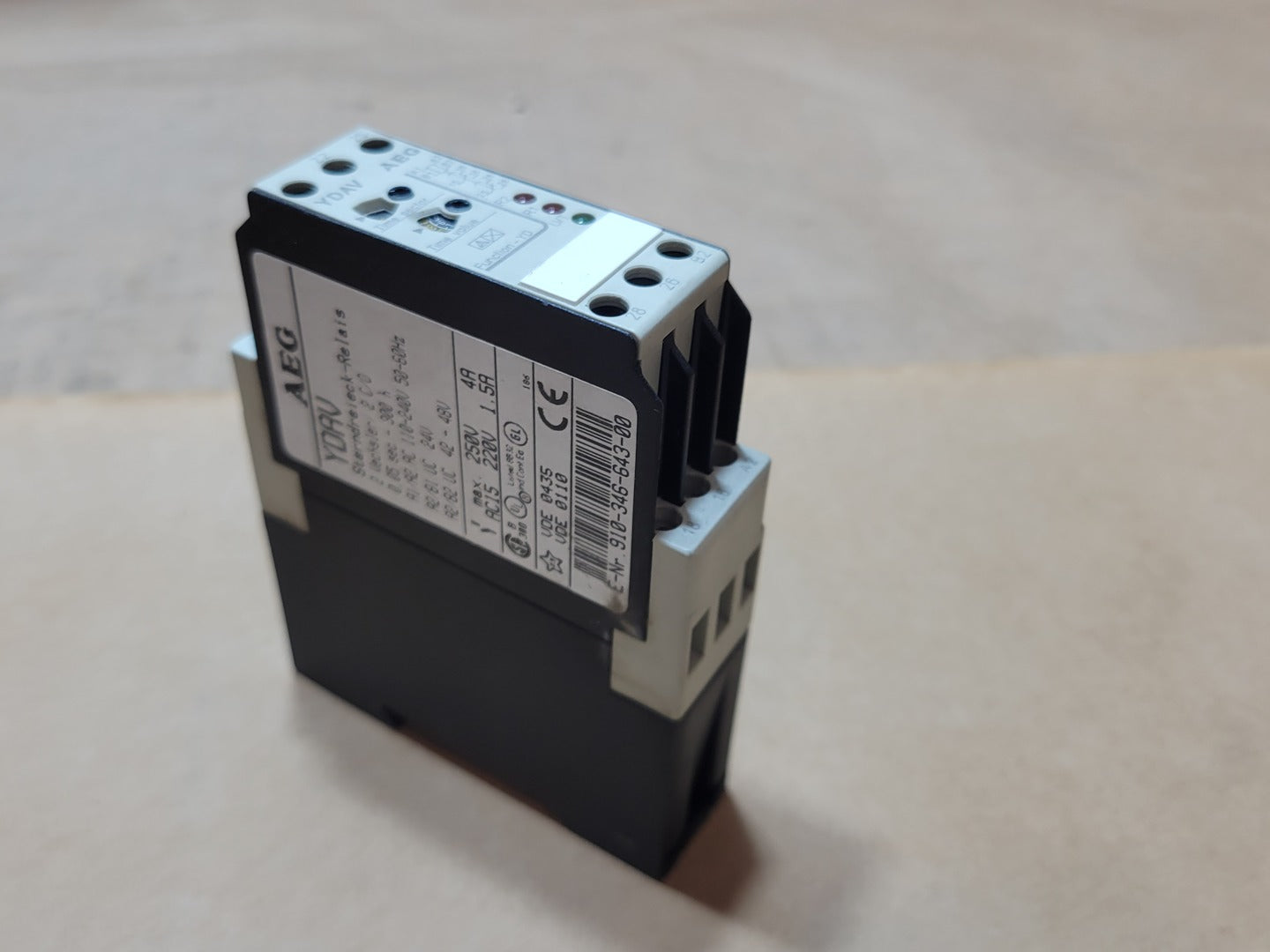

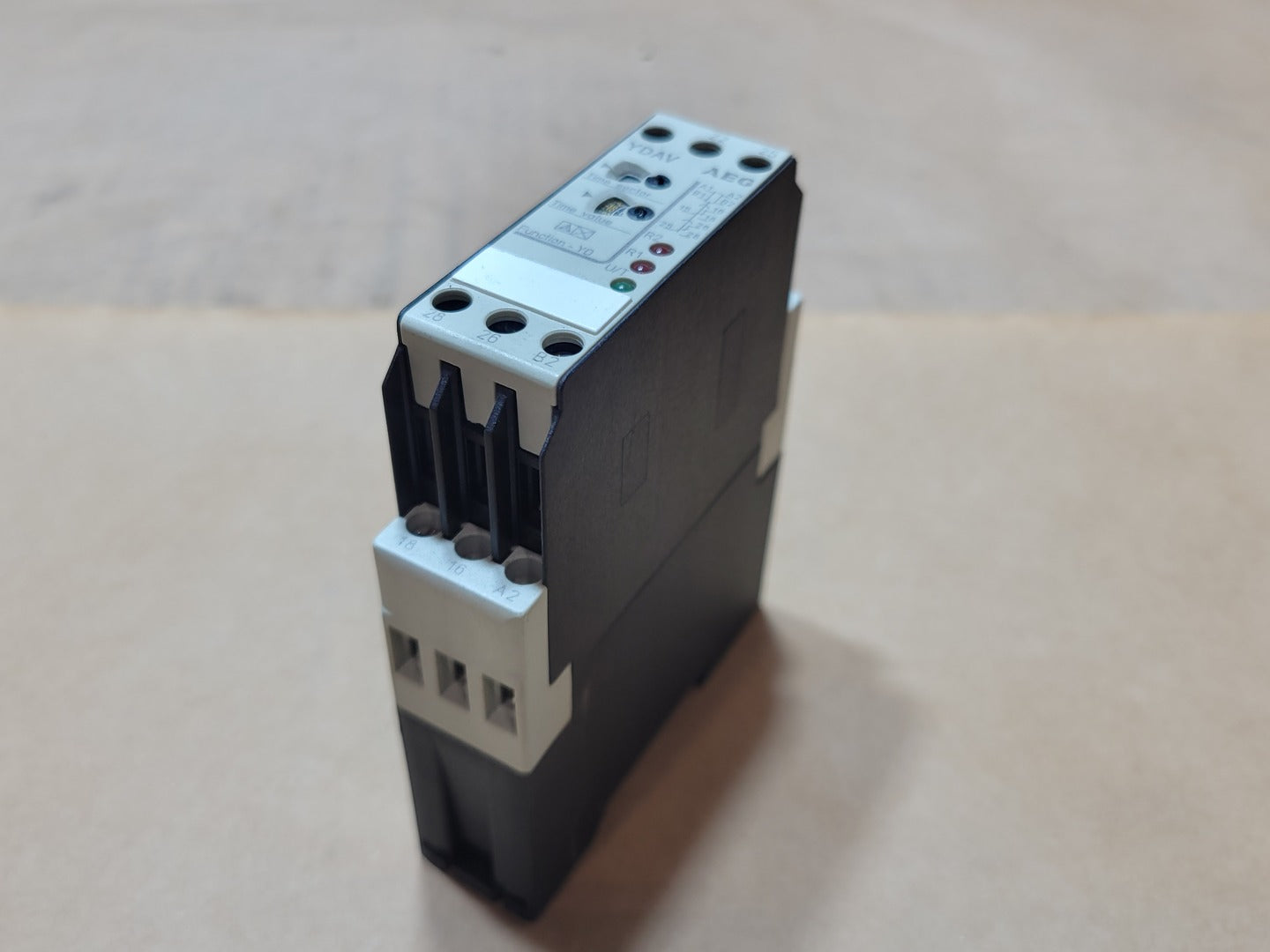

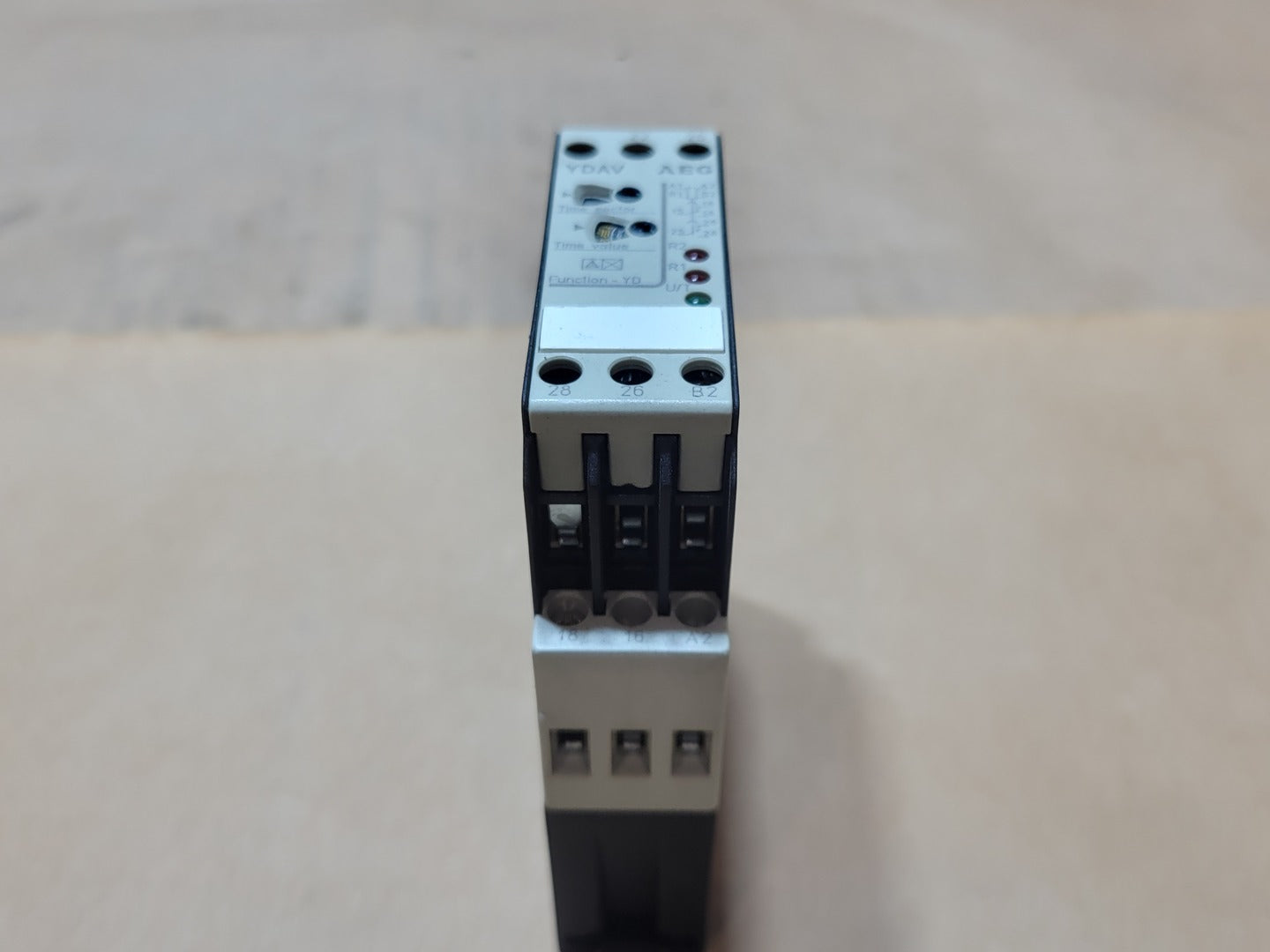

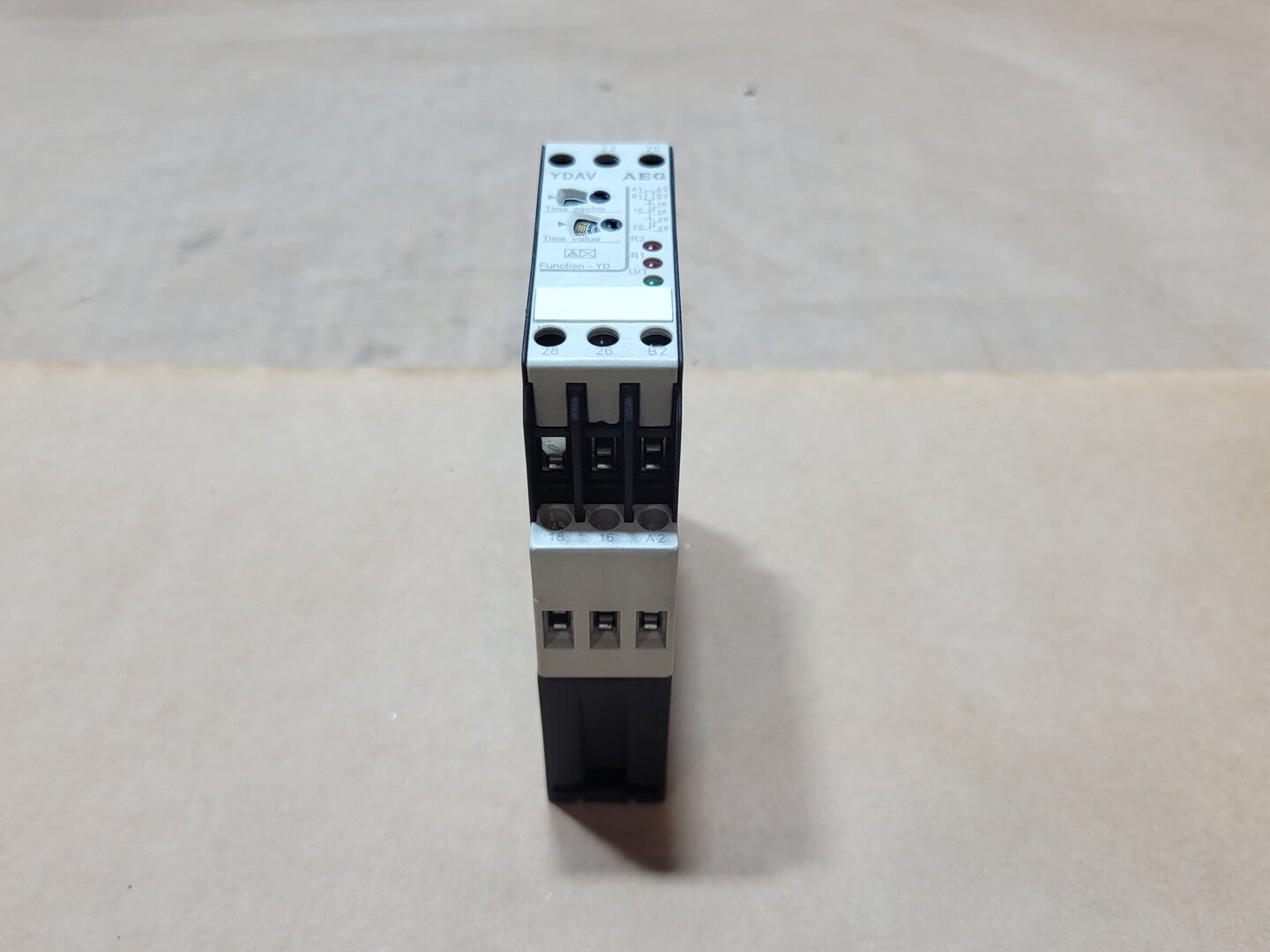

Model: YDAV Part Number: 910-346-643-00 Relay Type: Star-delta timing relay Primary Function: Timed star-to-delta motor-starter transition Timing Operation: Twice-delayed ON operation Adjustable Timing Range: 0.05 seconds to 300 hours Selectable Ranges: Ten ranges in one unit Star-to-Delta Transition Time: Fixed at approximately 50 ms, based on published documentation Output Configuration: Two SPDT / changeover contacts Output Terminals: 15-16-18 and 25-26-28 Supply at A1-A2: 110-240 VAC, 50/60 Hz Supply at B1-A2: 24 VAC/DC Supply at B2-A2: 42-48 VAC/DC Maximum Switching Voltage: 250 V Maximum Switching Current: 4 A AC-15 Rating Marked: 1.5 A at 220 VAC Status Indicators: R1, R2 and U/T Green U/T Indicator: Supply/timing status Red R1 and R2 Indicators: Output-relay status Adjustment: Front time-range selector and time-value dial Installation Position: Any, based on published documentation Mounting: 35 mm DIN rail |
