MARCH PUMPS TE-5.5C-MD Magnetic Drive Pump - 1/3 HP, 3 Phase, 208-230/460V, WEG Motor
MARCH PUMPS

TE-5.5C-MD Magnetic Drive Pump - 1/3 HP, 3 Phase, 208-230/460V, WEG Motor

SKU: 159956
Condition: Used
Price:
$365

Shipping calculated at checkout

Stock:
2 in Stock
Make an Offer

Need An Answer Now?

604-449-1880

Looking for more equipment like this?

All Pumps → All Fluid Handling Equipment → More from MARCH PUMPS →

Description

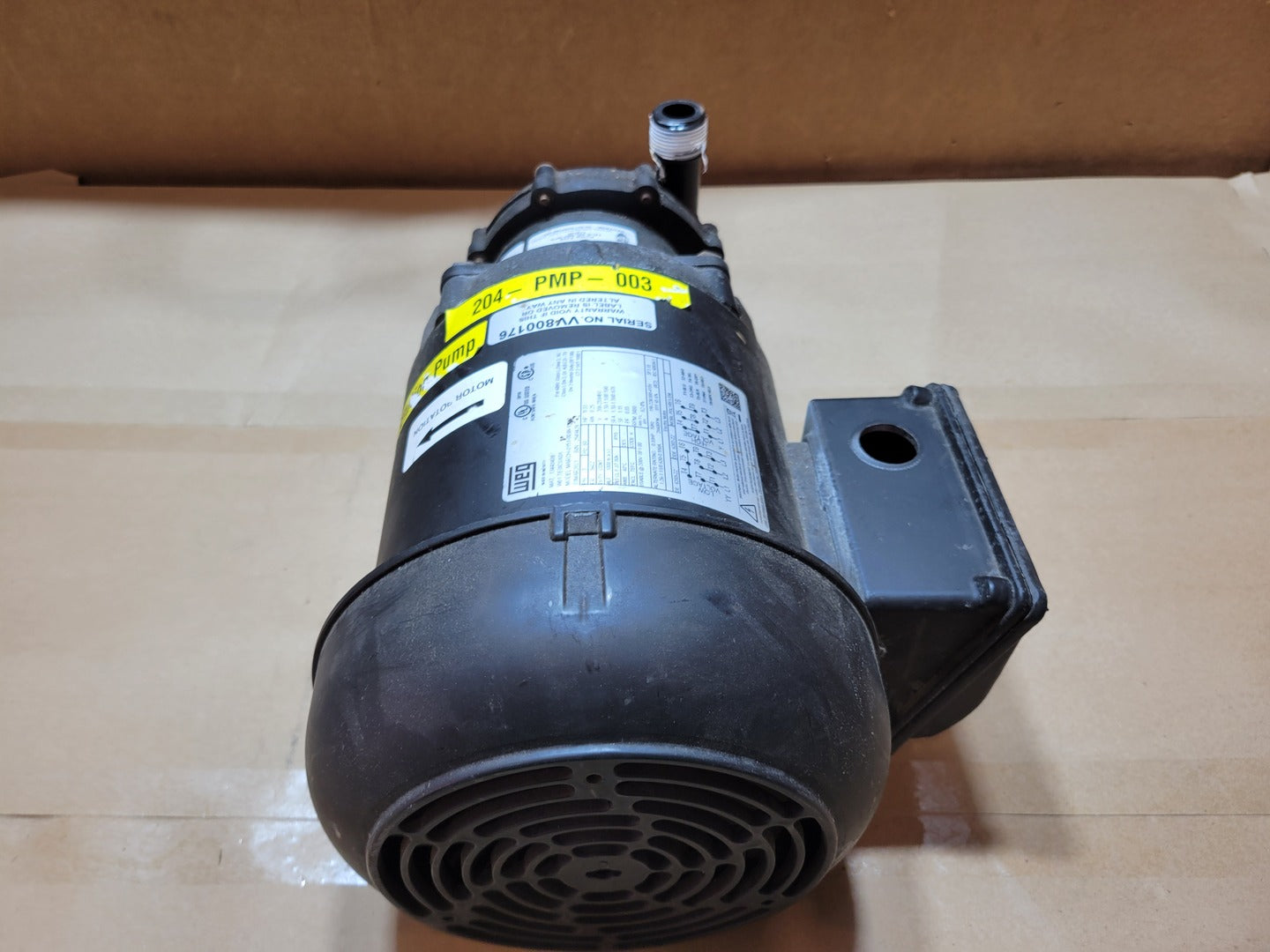

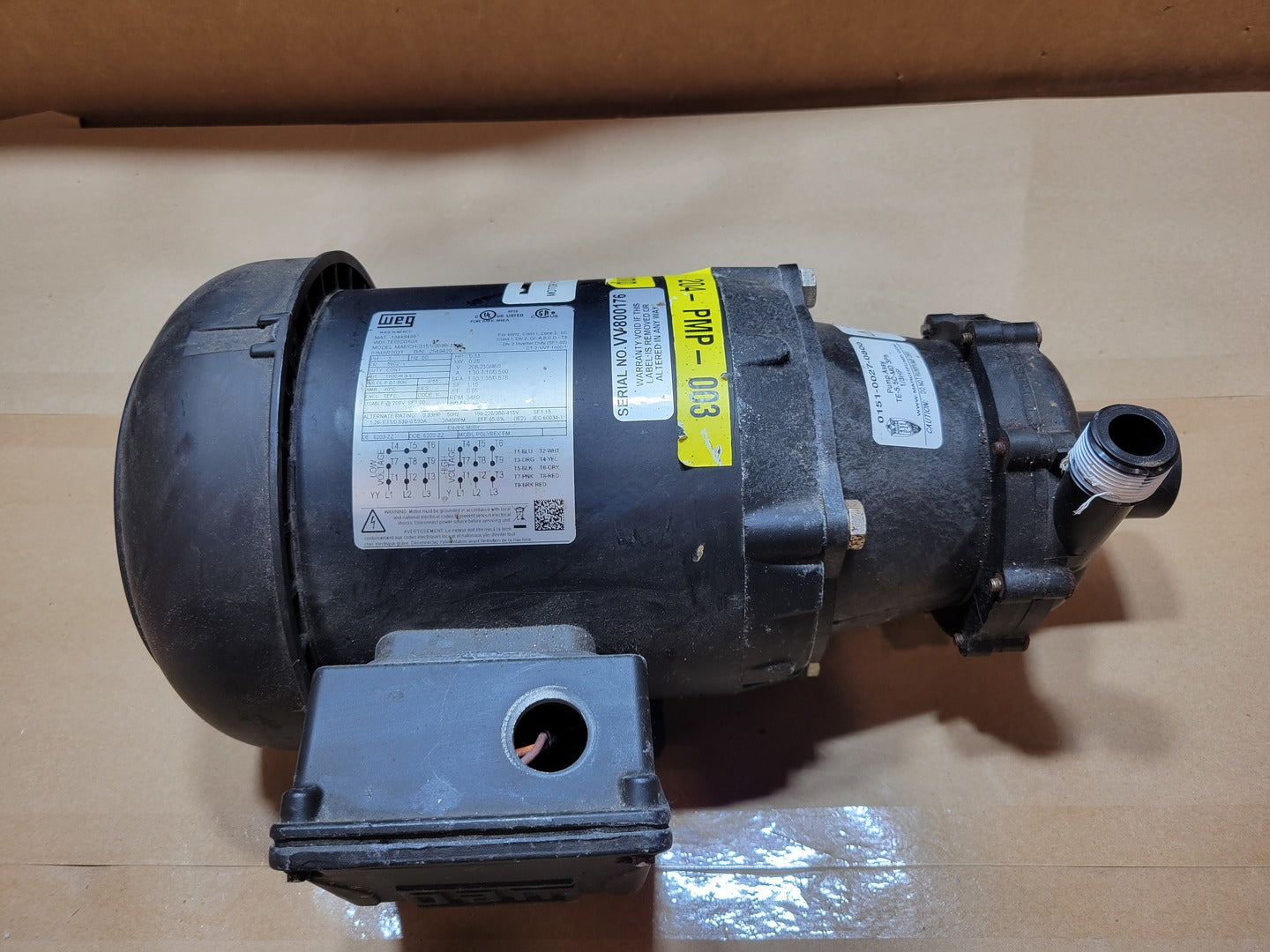

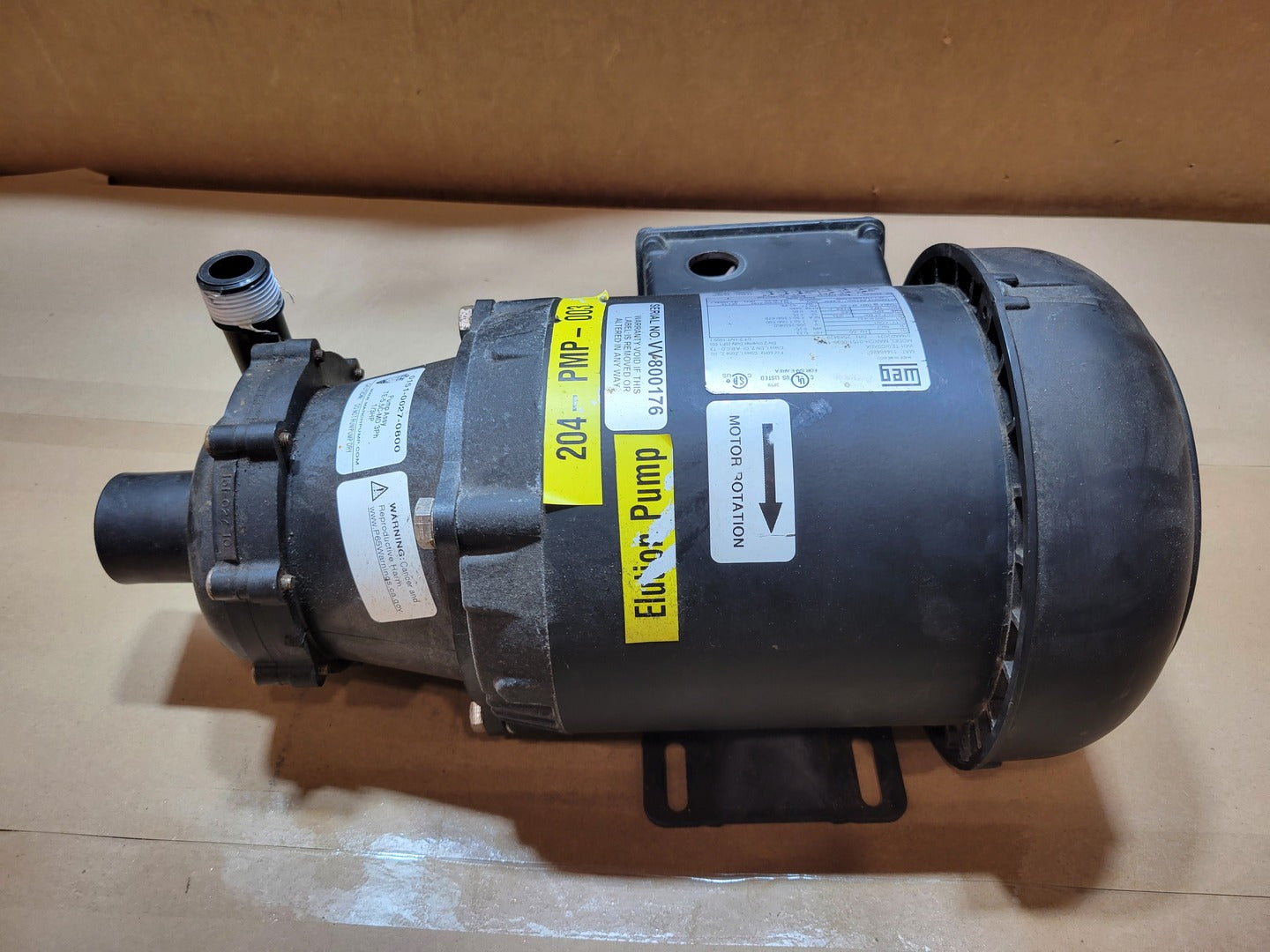

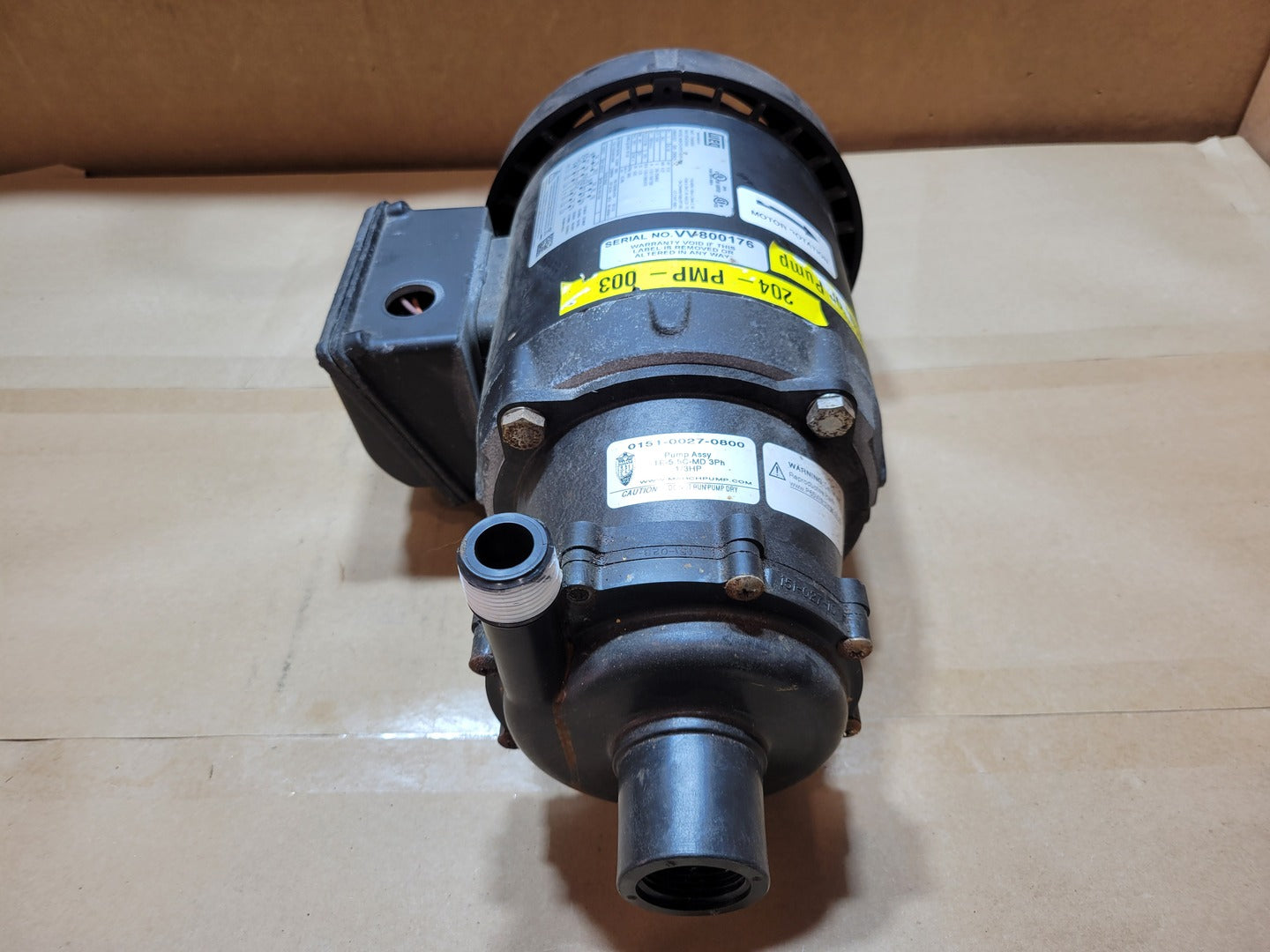

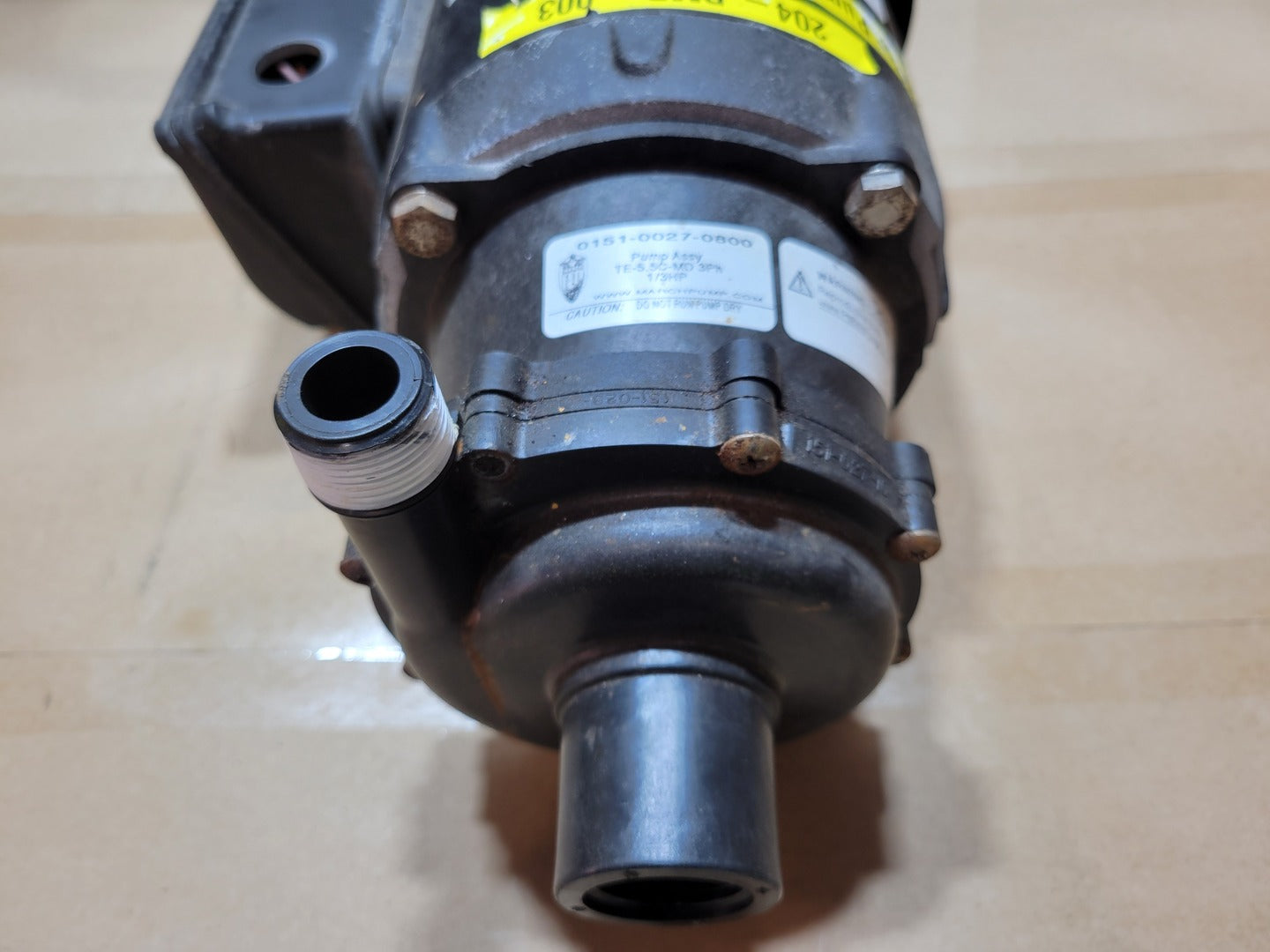

March TE-5.5C-MD magnetic drive centrifugal pump, part number 0151-0027-0800, equipped with a WEG 1/3 HP three-phase TEFC motor. The assembly has threaded suction and discharge connections, an attached terminal box and mounting feet. Previously labeled as an elution pump. Used condition with visible wear; operation and pumping performance have not been verified.
Specifications
Model TE-5.5C-MD
Condition Used
Other Specifications

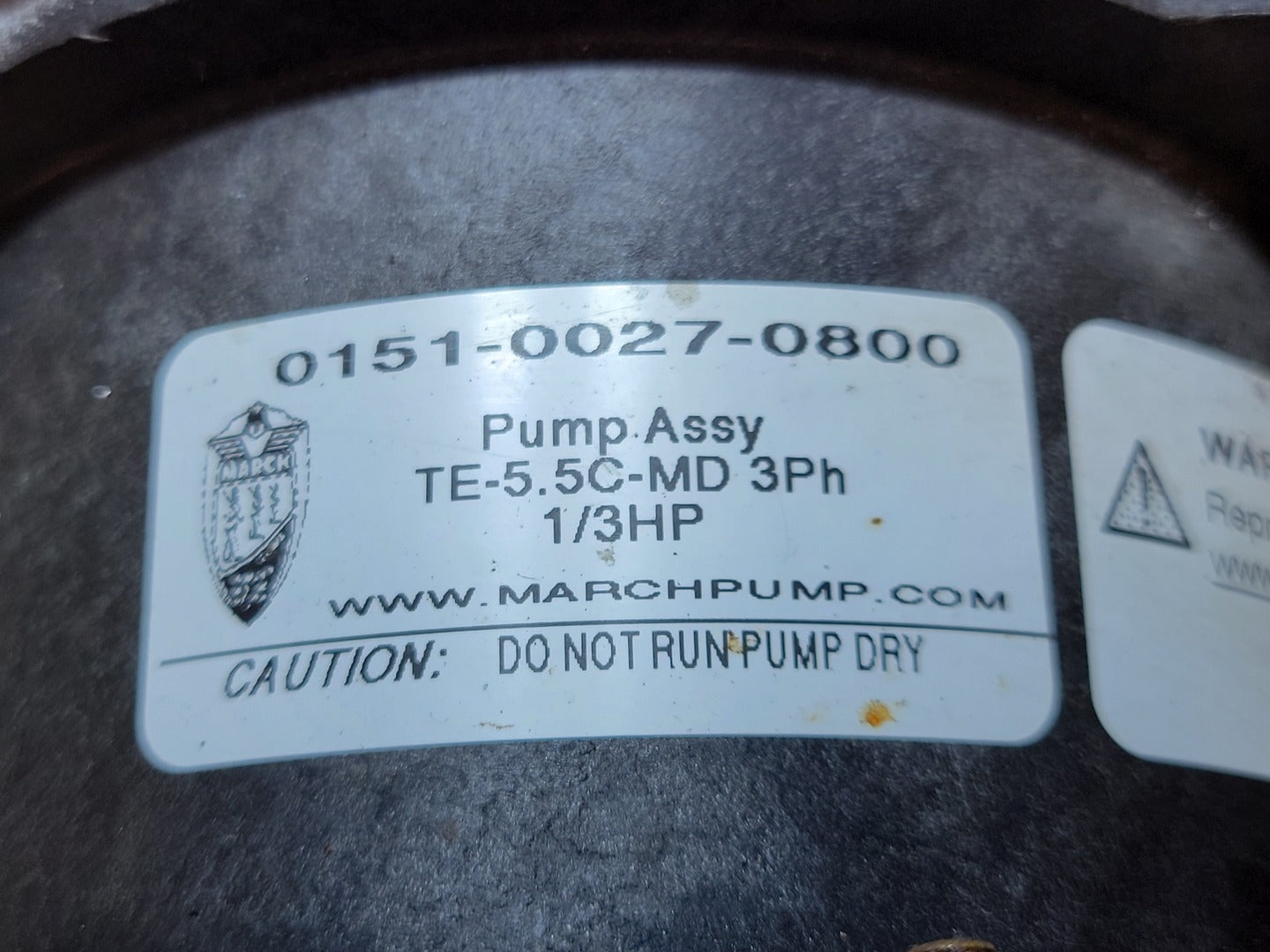

Pump Assembly Part Number: 0151-0027-0800

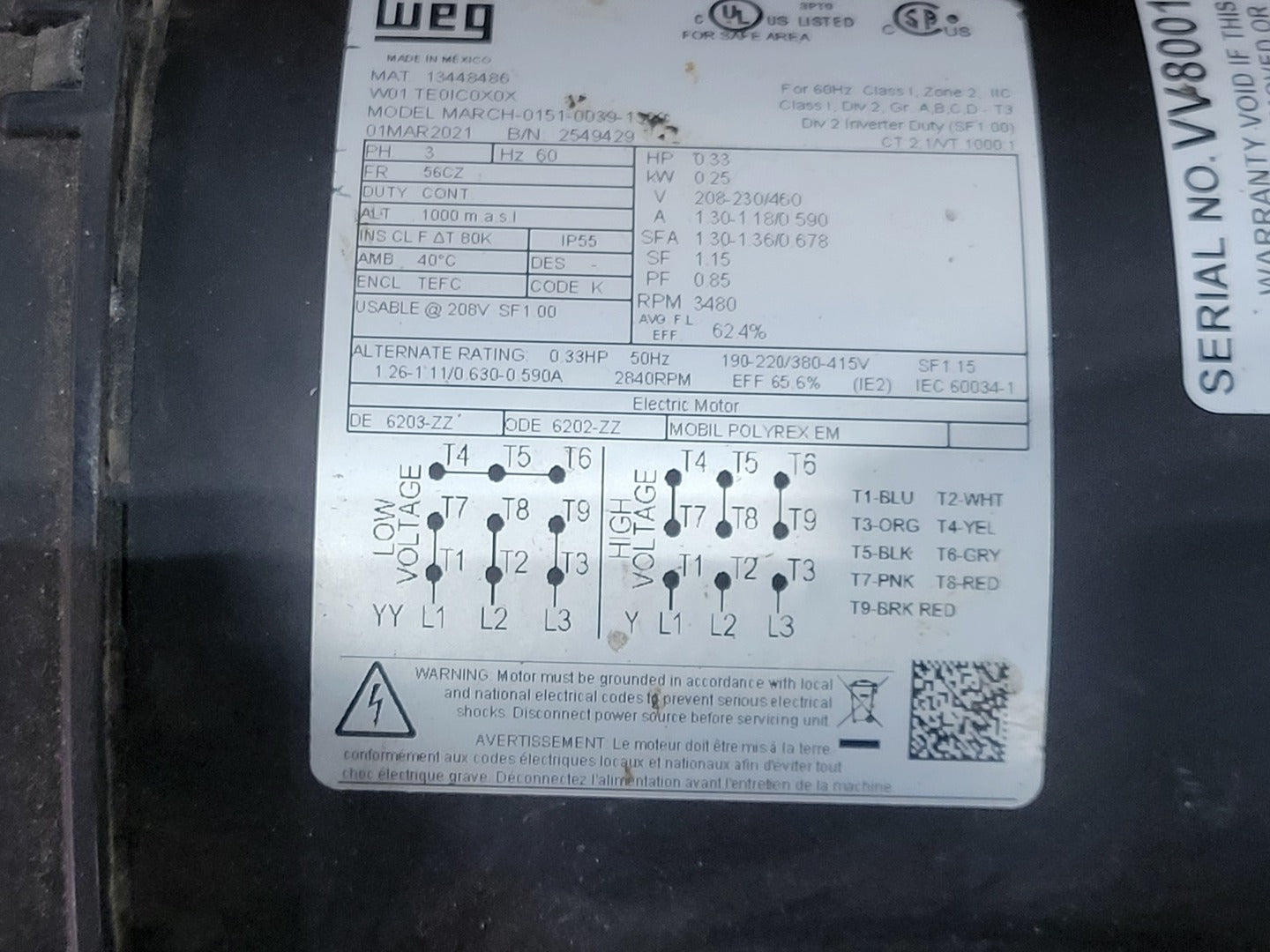

Motor Manufacturer: WEG

Motor Series: W01

Motor Material Number: 13448486

Motor Model Reference: Partially obscured

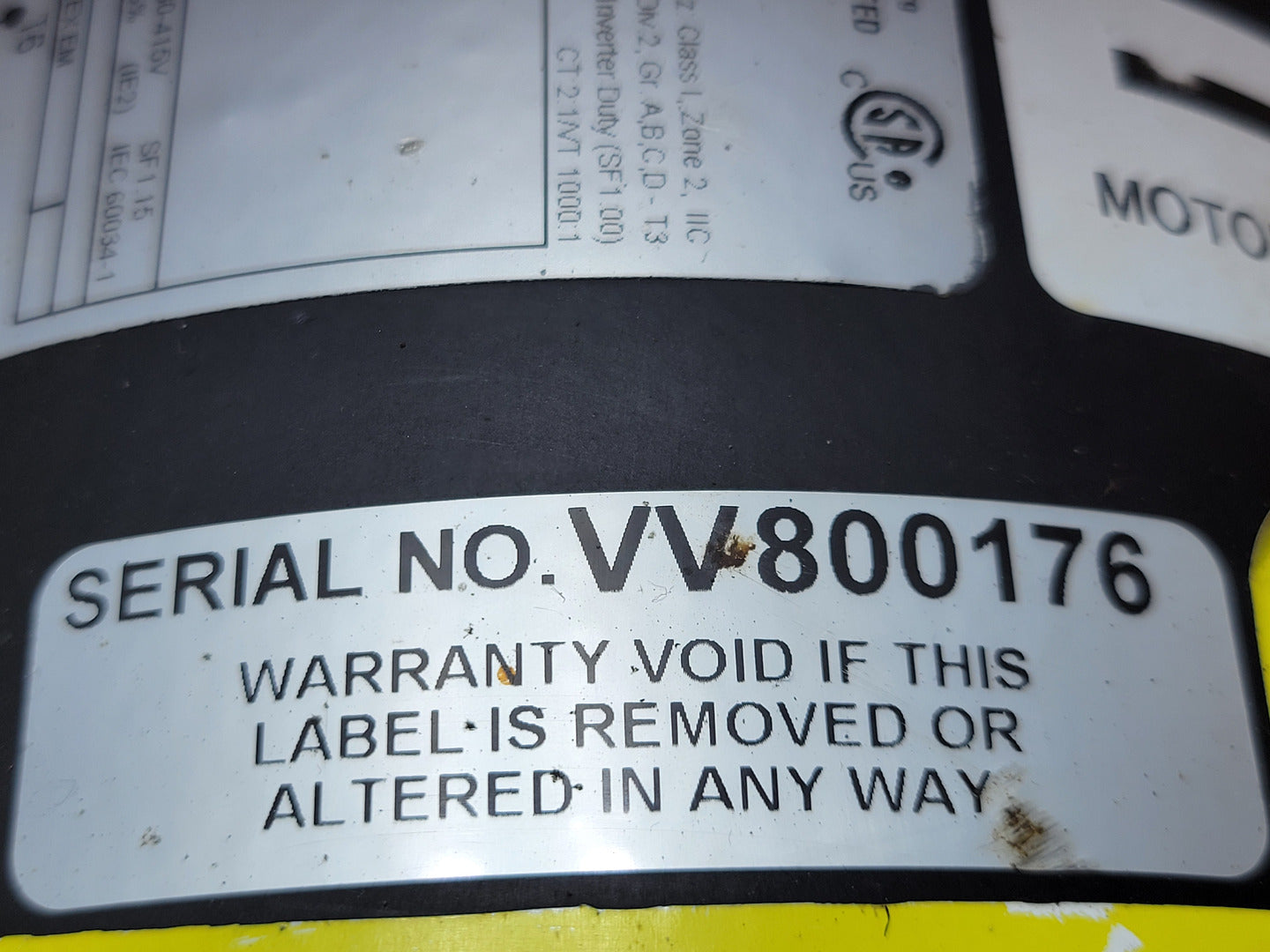

Serial Label: VV800176

Horsepower: 1/3 HP / 0.33 HP

Power: 0.25 kW

Phase: 3

Frequency: 60 Hz, with alternate 50 Hz rating

Voltage at 60 Hz: 208-230/460 VAC

Full-Load Current at 60 Hz: 1.30-1.18/0.590 A

Speed at 60 Hz: 3480 RPM

Voltage at 50 Hz: 190-220/380-415 VAC

Full-Load Current at 50 Hz: 1.26-1.11/0.630-0.590 A

Speed at 50 Hz: 2840 RPM

Motor Frame: 56CZ

Enclosure: TEFC

Protection Rating: IP55

Duty: Continuous

Service Factor: 1.15; 1.00 at 208V

Insulation Class: F

Temperature Rise: 80 K

Ambient Temperature: 40°C
