Description

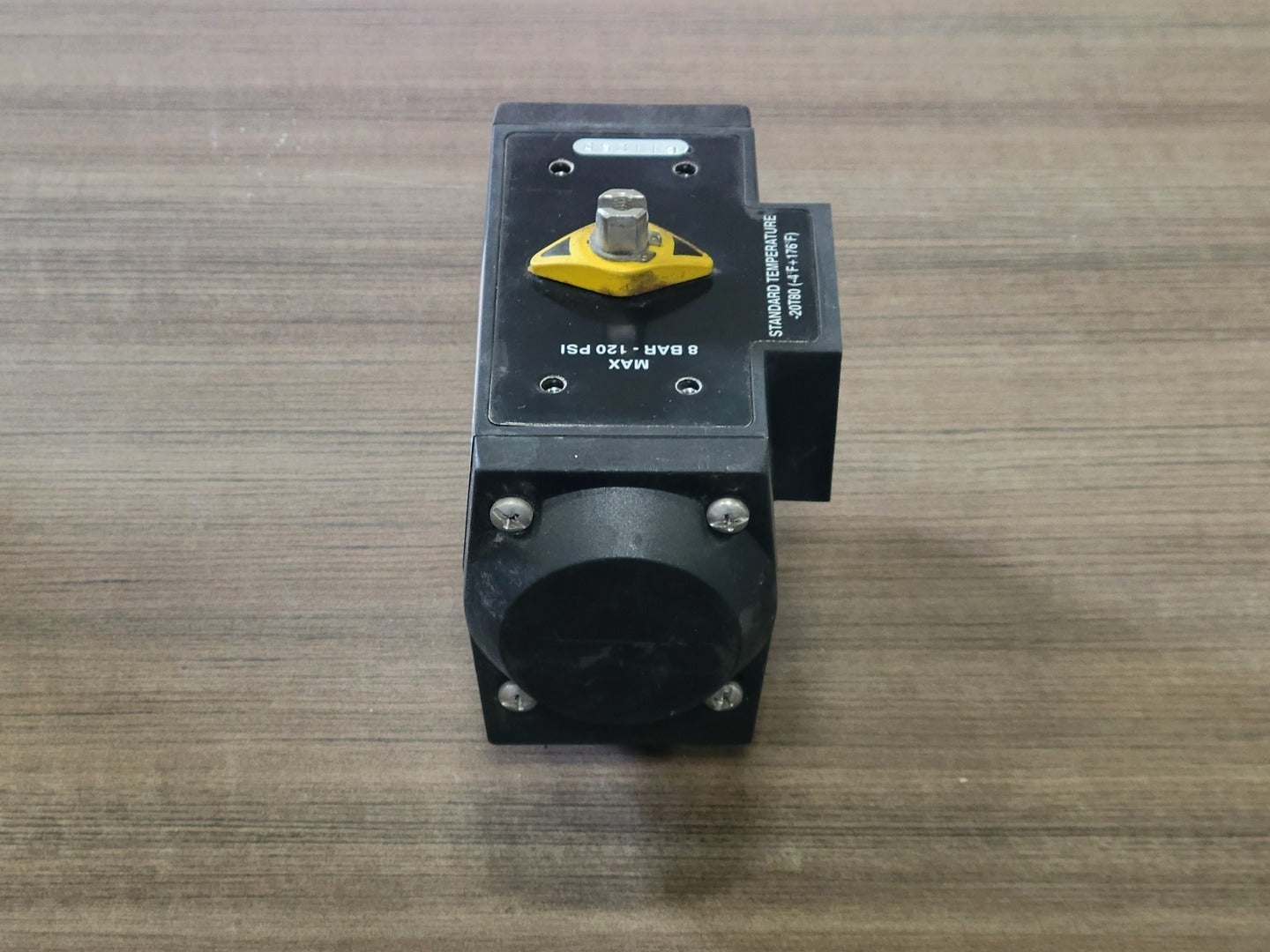

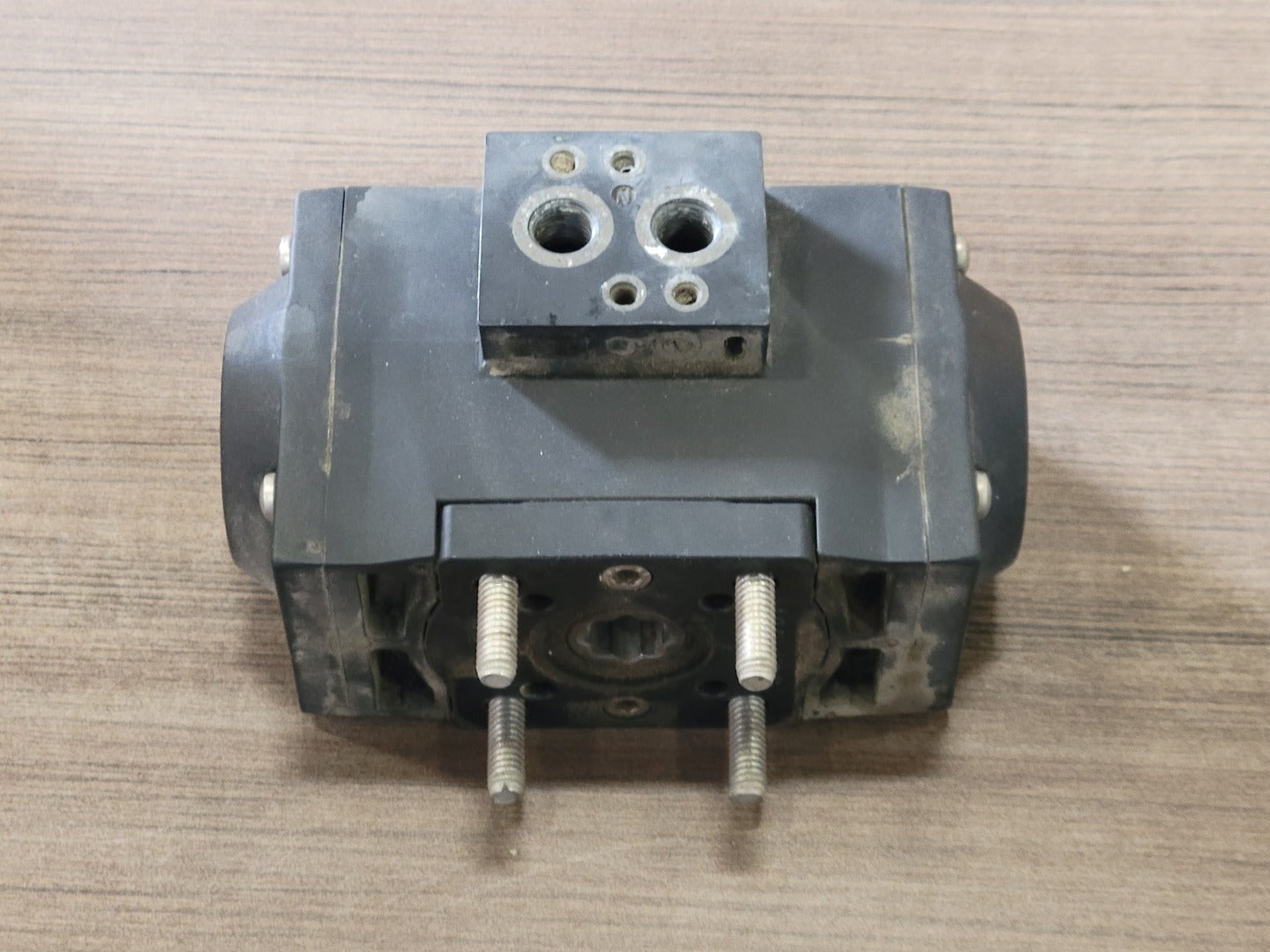

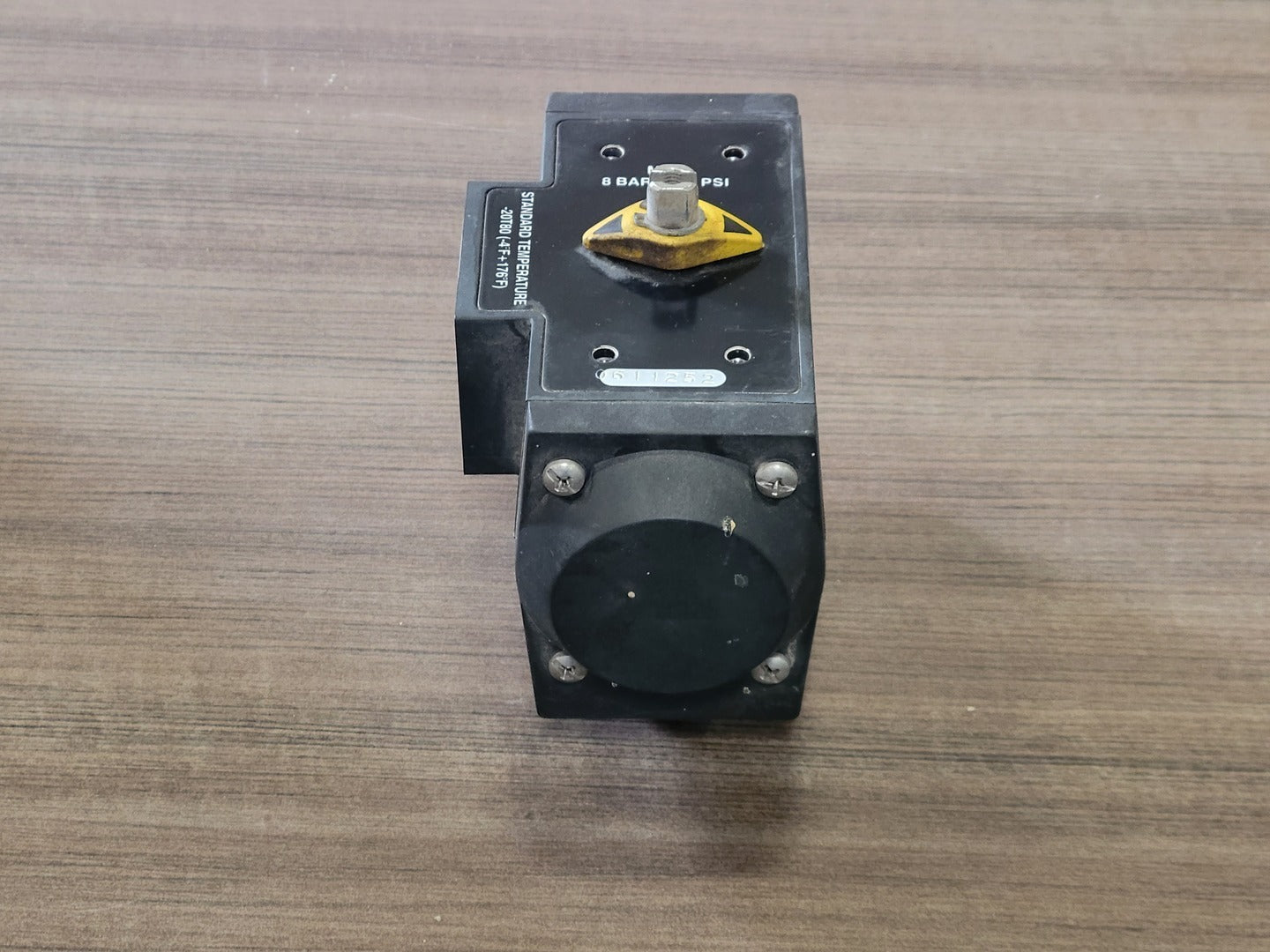

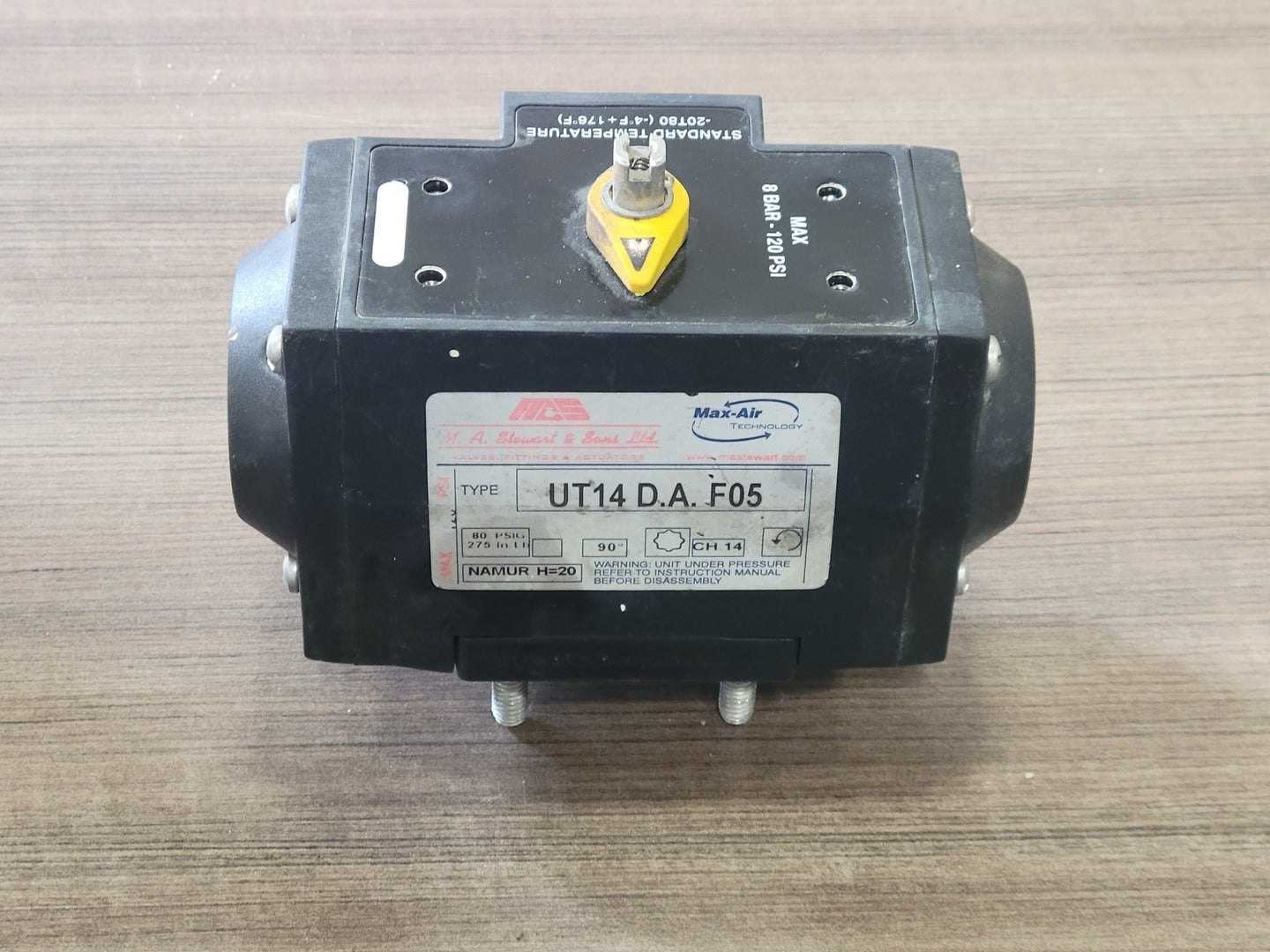

The UT14 D.A. f05 Double-Acting Technopolymer Actuator is a product offered by Max-Air. It has dimensions of 4.00 x 4.50 x 5.50 and weighs 1.80. The actuator has a maximum PSI of 120, a PSIG of 80, and is compatible with NAMUR standards with H=20. It can operate in temperatures ranging from -4°F to 175°F. The UT14 D.A. f05 Double-Acting Technopolymer Actuator is an air accessory and is part of the Actuators collection. It is currently priced at 80.00 and there are 6 pieces available.
| Specifications | |
|---|---|
| Model | UT14 |
| Condition | Used |
| Other Specifications |
|---|
|
Series: UT Size: 14 Configuration: Double Acting Mounting: F05 Torque Range: Up to 500 in-lbs (DA) & 230 in-lbs (SR) Materials: Technopolymer Ambient Temperature: -4 deg. F to 176 deg. F standard Rotation: 90 deg. Spring Return or Double Acting Operation Media: Gas or Low Pressure Hydraulic Fluid Mounting: ISO 5211, NAMUR VDI/VDE 3845 |
