Description
| Specifications | |
|---|---|

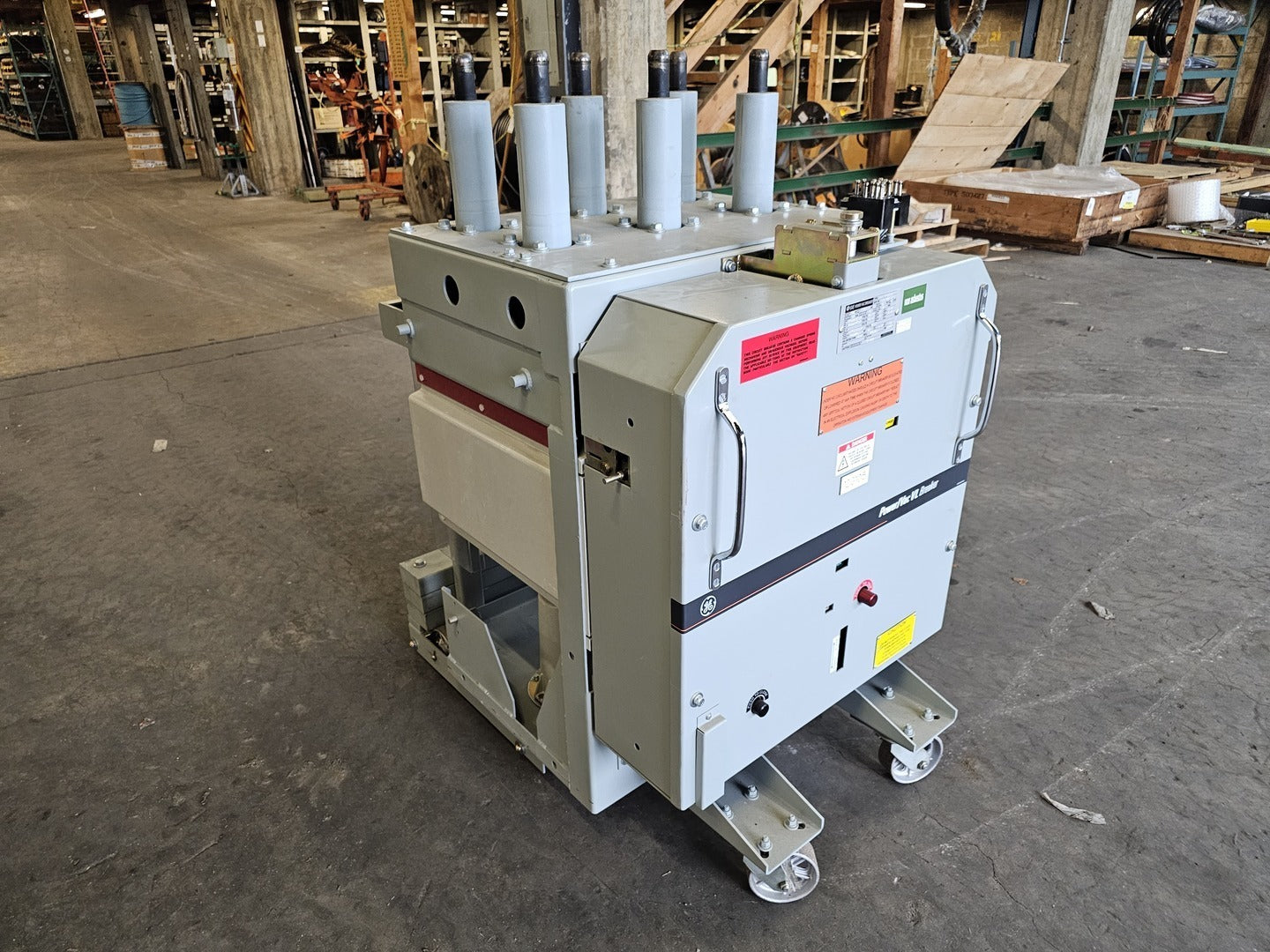

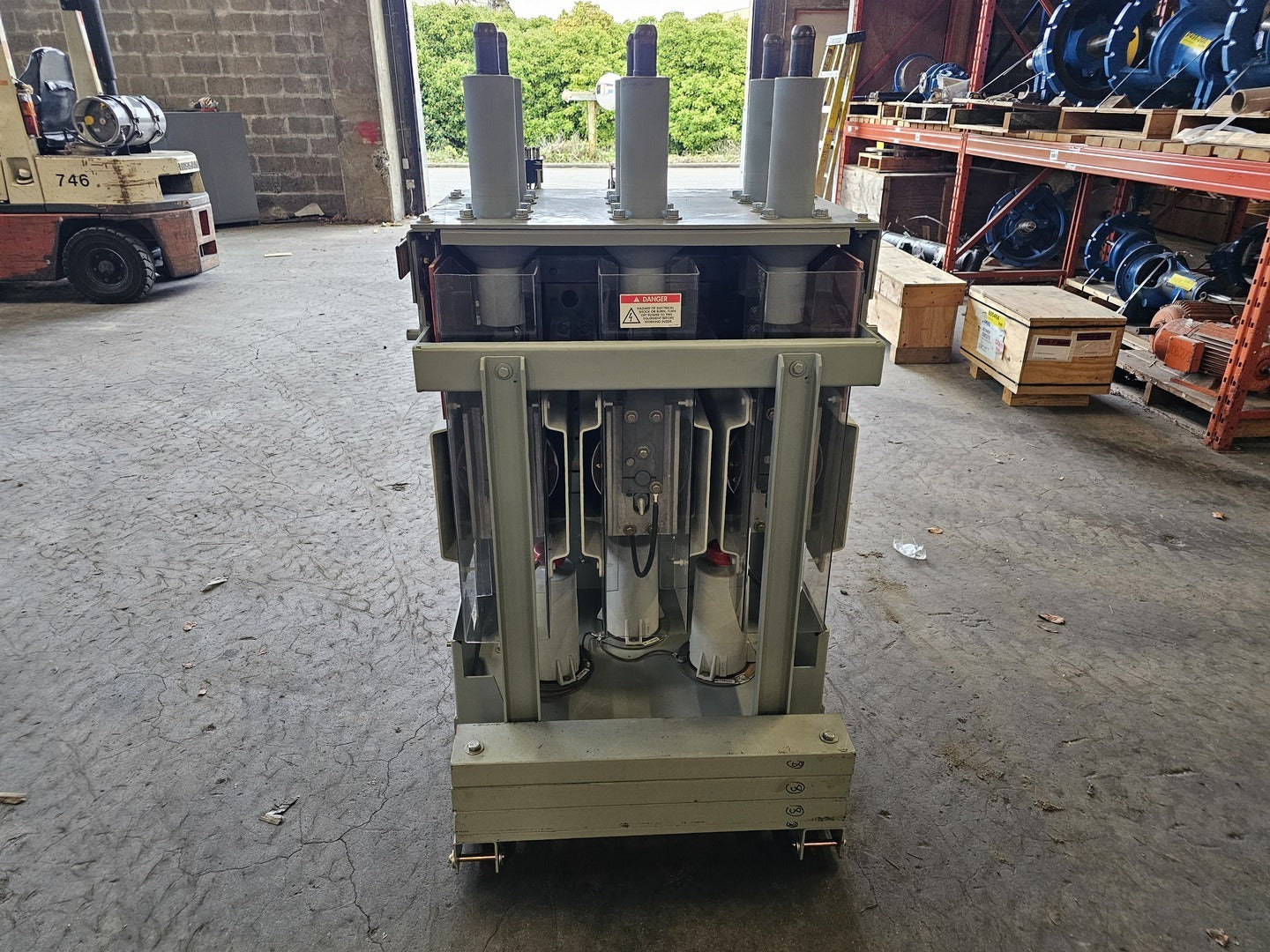

| Model | PWL-7.2-500-3C |
| Condition | Used - Like New | General |
| Amps | 1200 amps |
| Other Specifications |
|---|
|

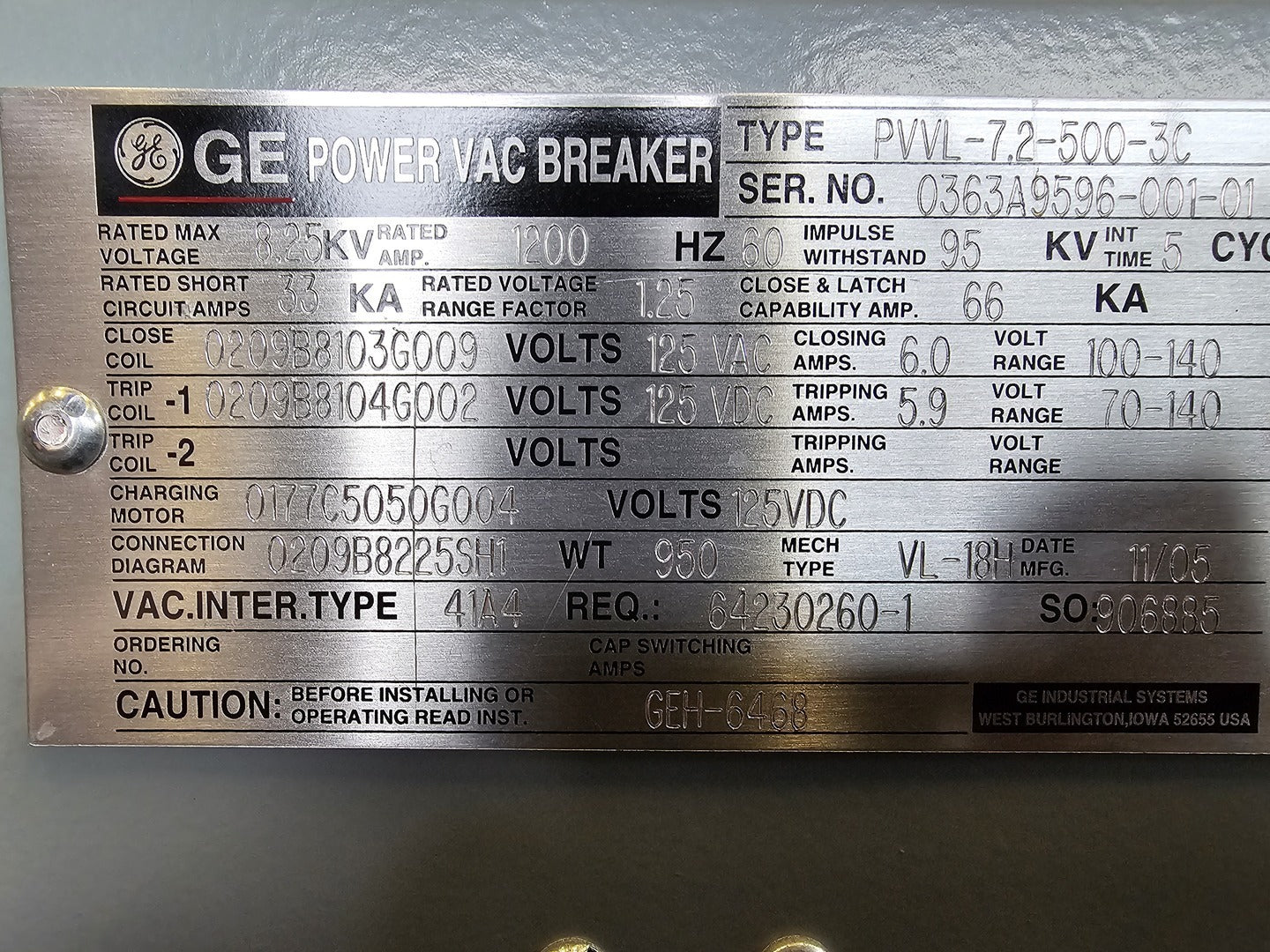

Rated Maximum Voltage: 8.25 kV Rated Amperes: 1200 A Rated Short Circuit Amps: 33 kA Rated Voltage Range Factor: 1.25 Frequency: 60 Hz Impulse Withstand: 95 kV Interrupting Time: 5 cycles Close Coil Voltage: 125 VAC Closing Amps: 6.0 A Close Coil Voltage Range: 100 to 140 V Trip Coil 1 Voltage: 125 VDC Trip Coil 1 Tripping Amps: 5.9 A Trip Coil 1 Voltage Range: 70 to 140 V Charging Motor Voltage: 125 VDC Vacuum Interrupter Type: 41A4 |
