Descripción
| Specifications | |
|---|---|

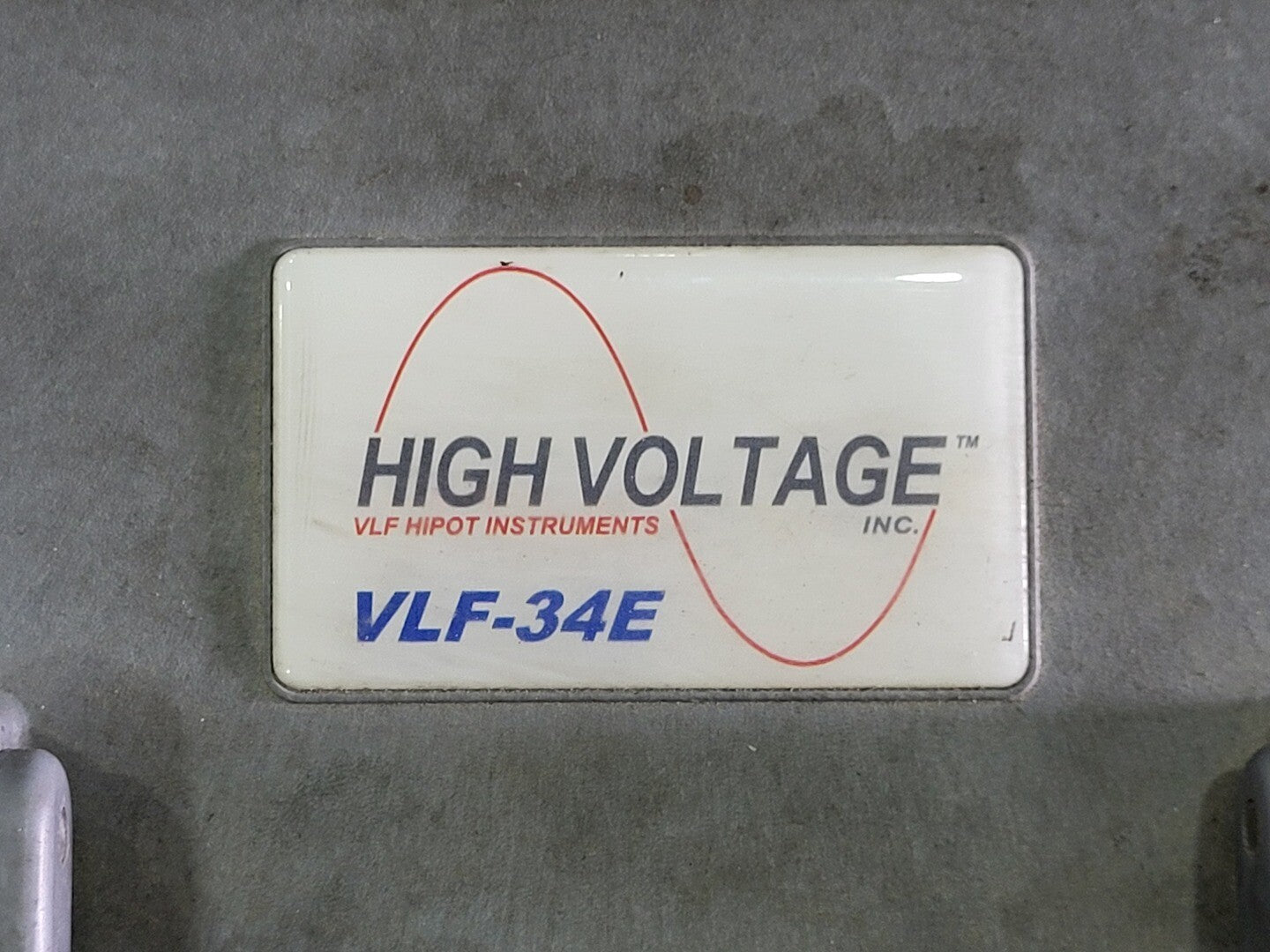

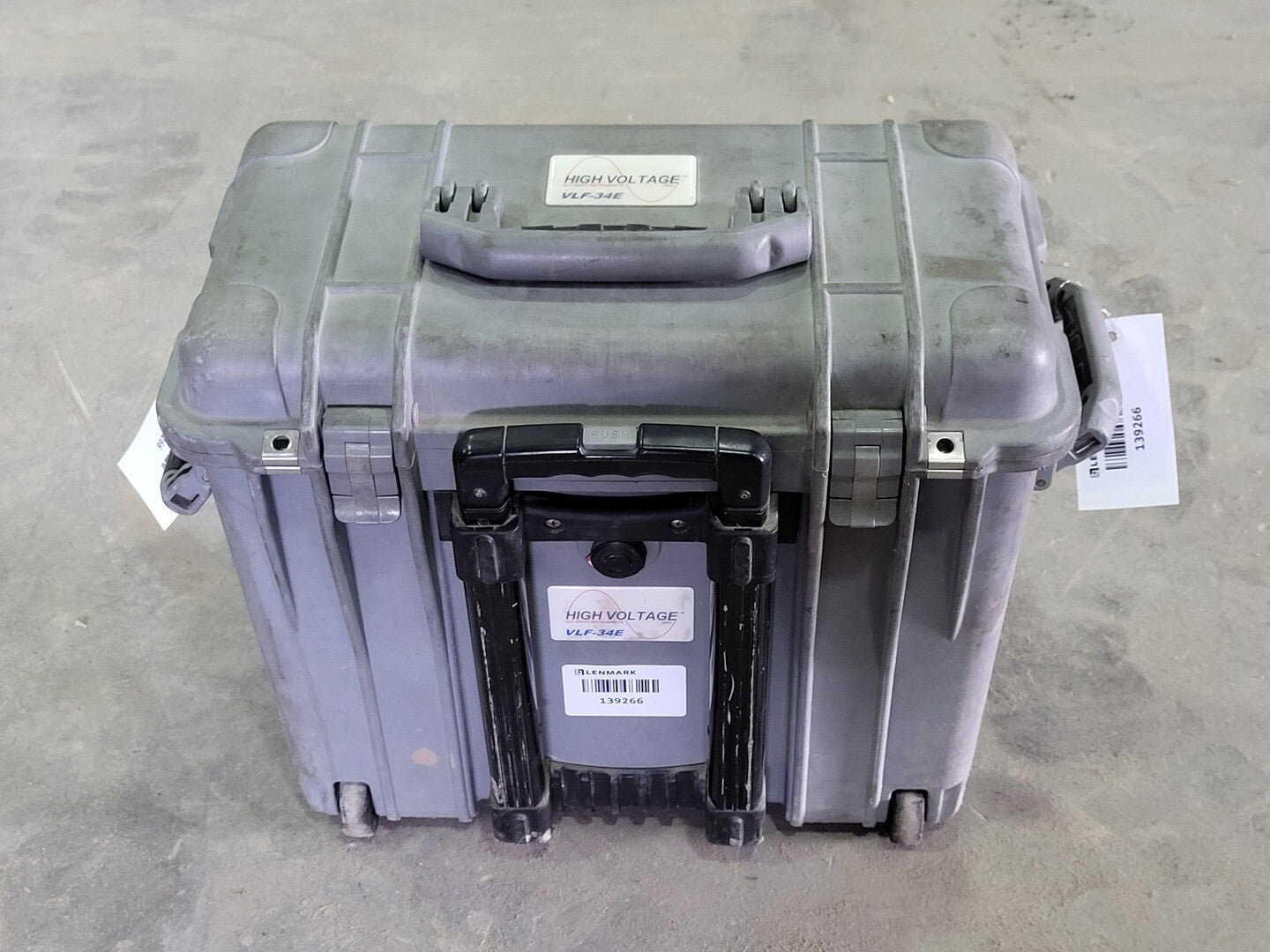

| Model | VLF-34E |

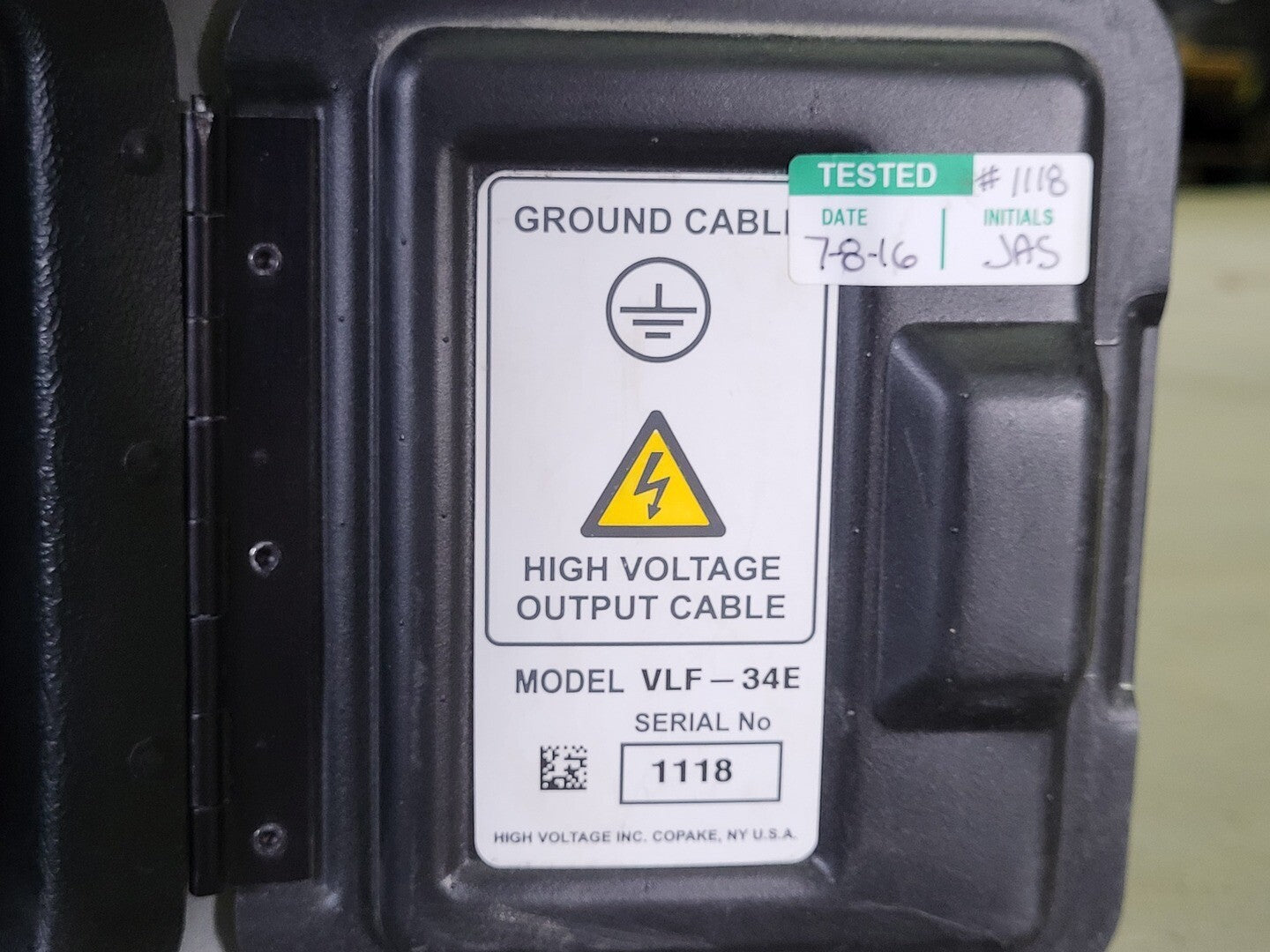

| S/N: | 1118 |
| Condition | Used - Like New |
| Other Specifications |
|---|
|

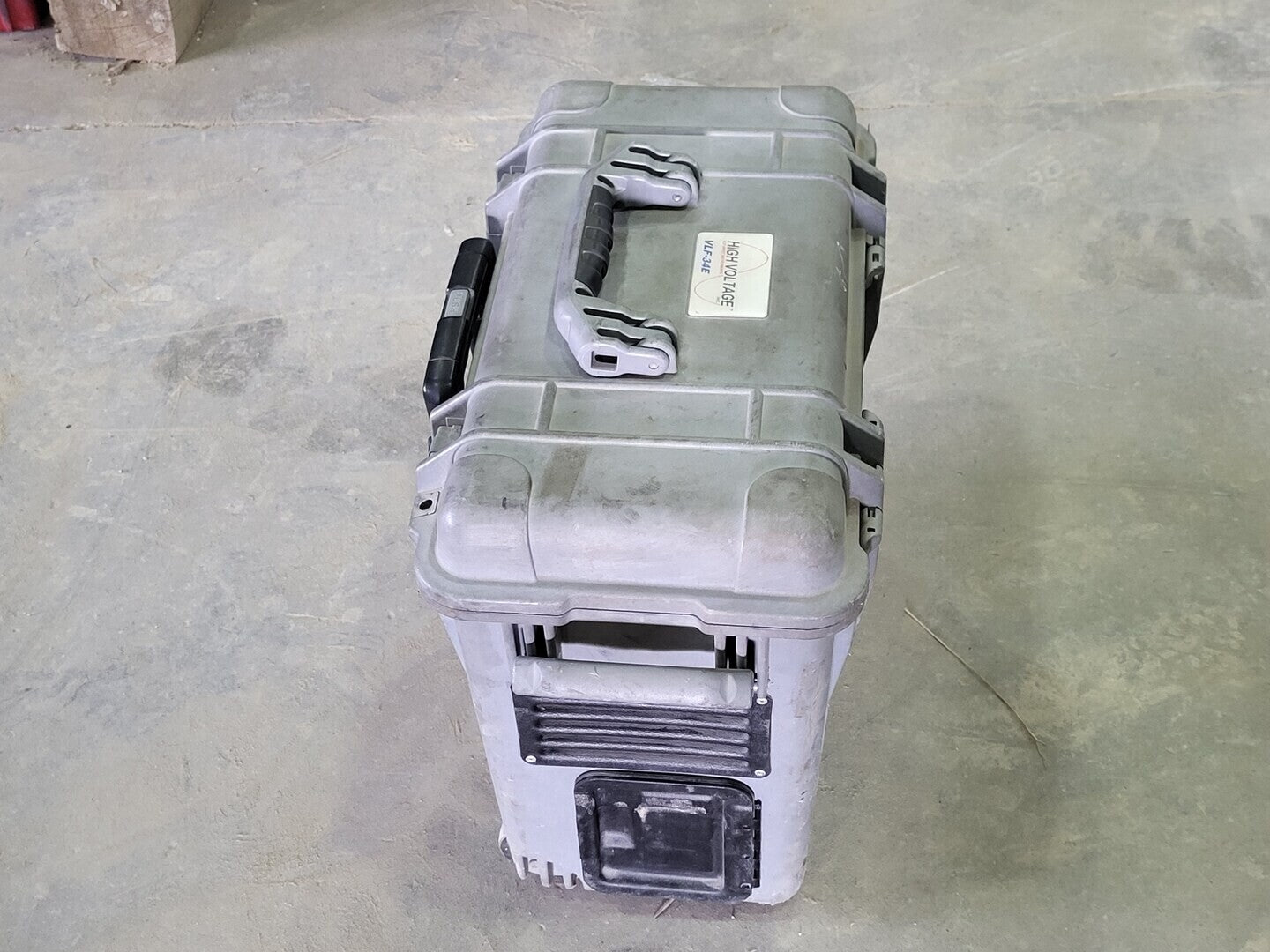

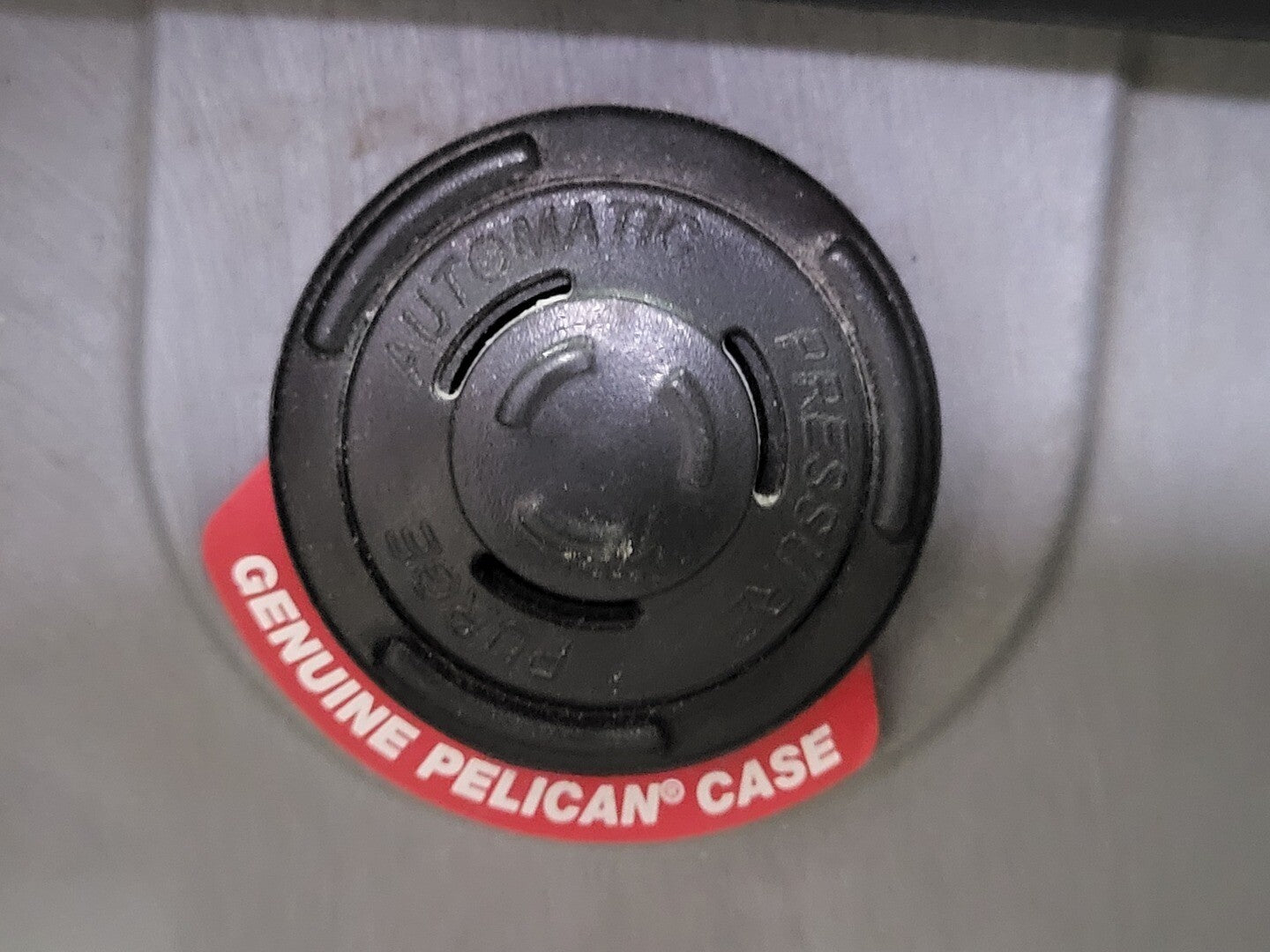

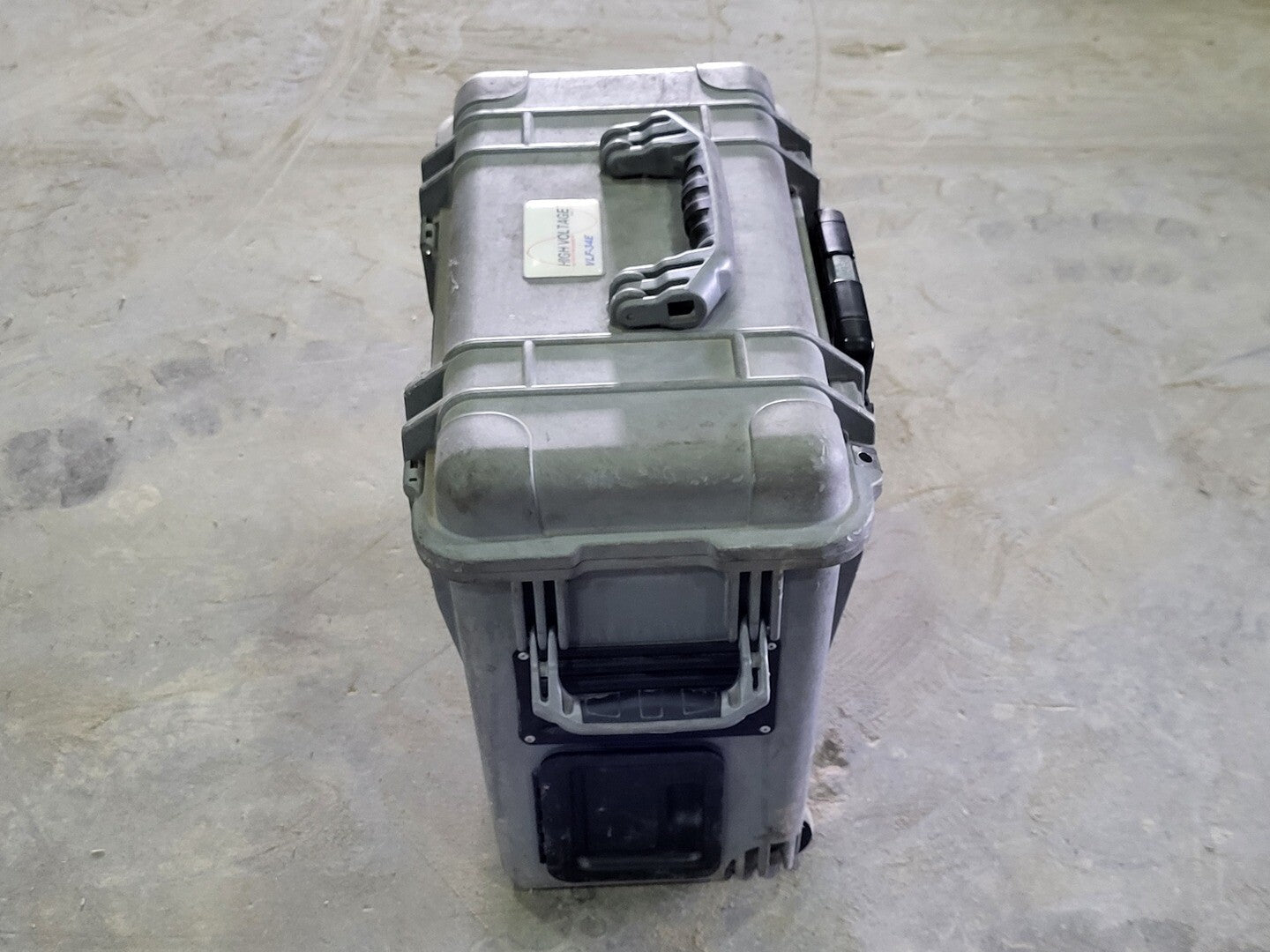

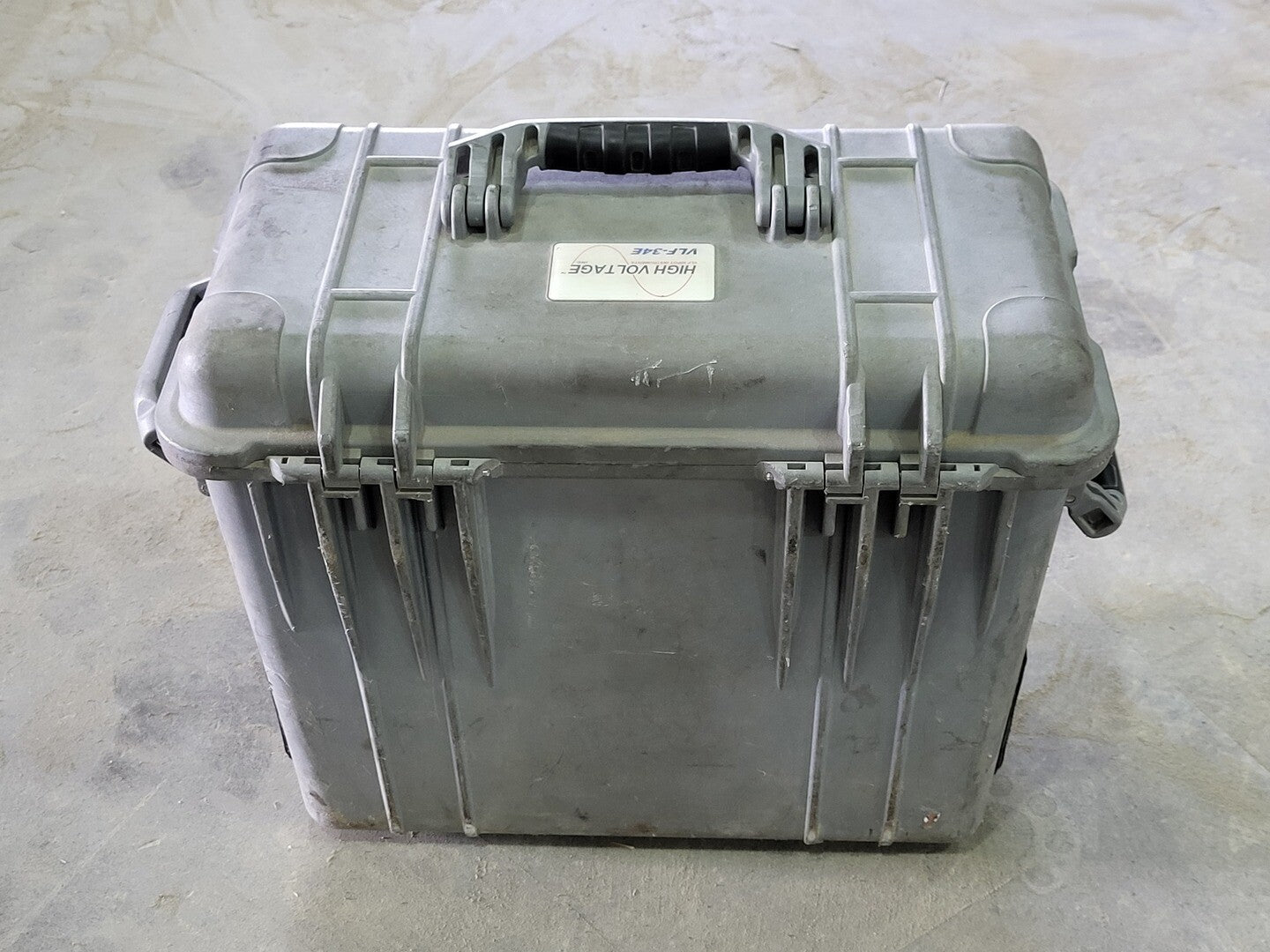

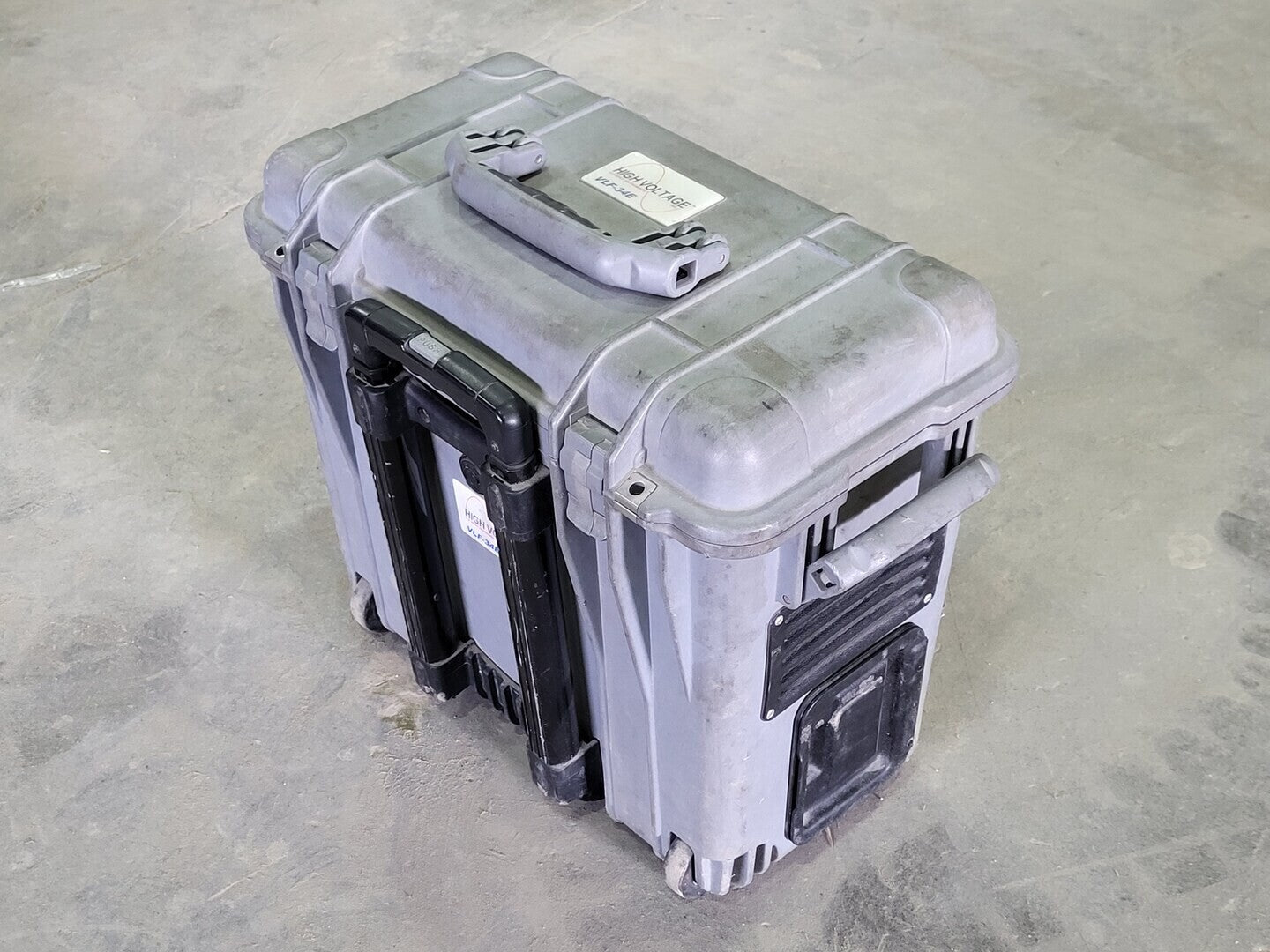

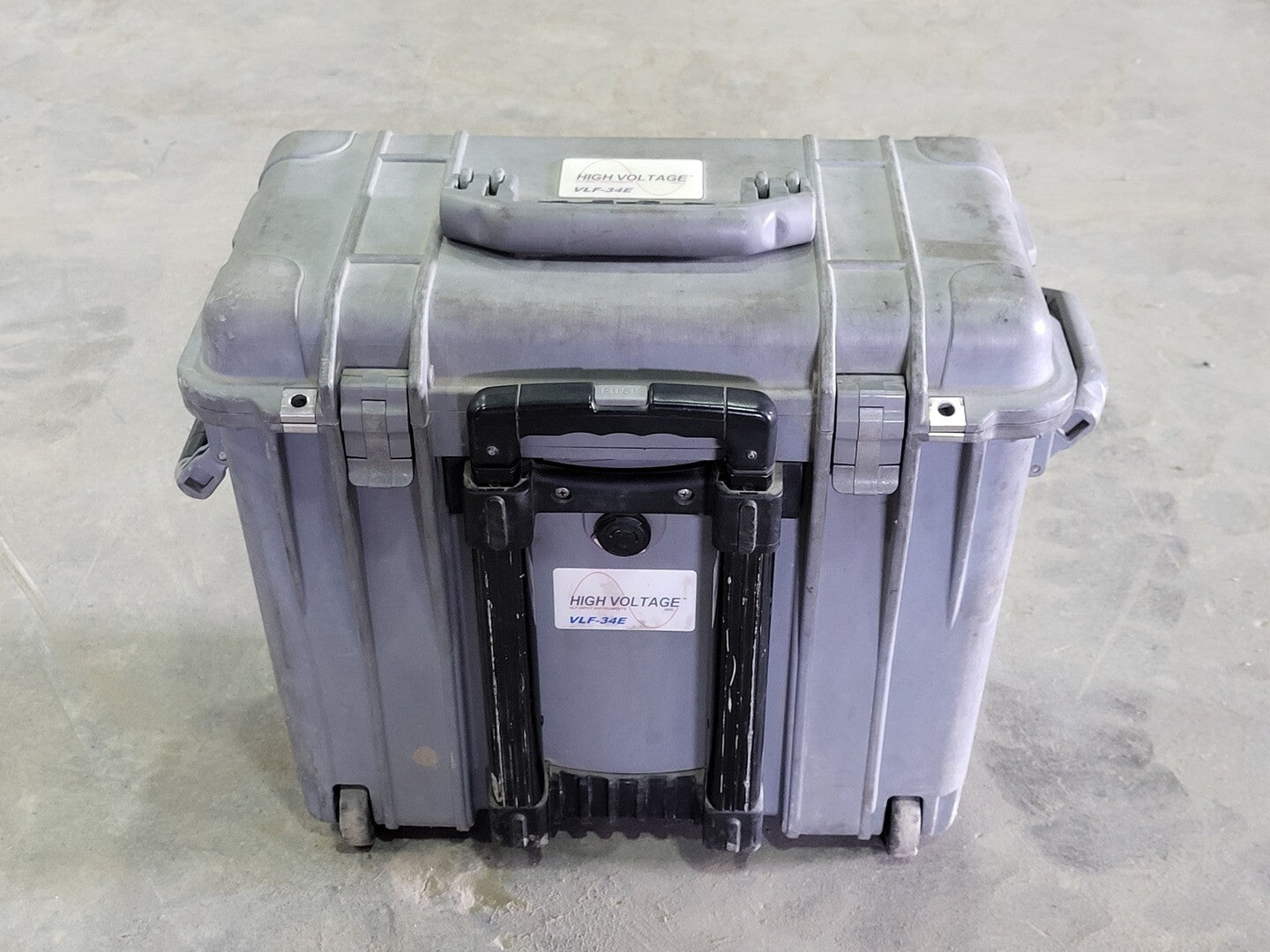

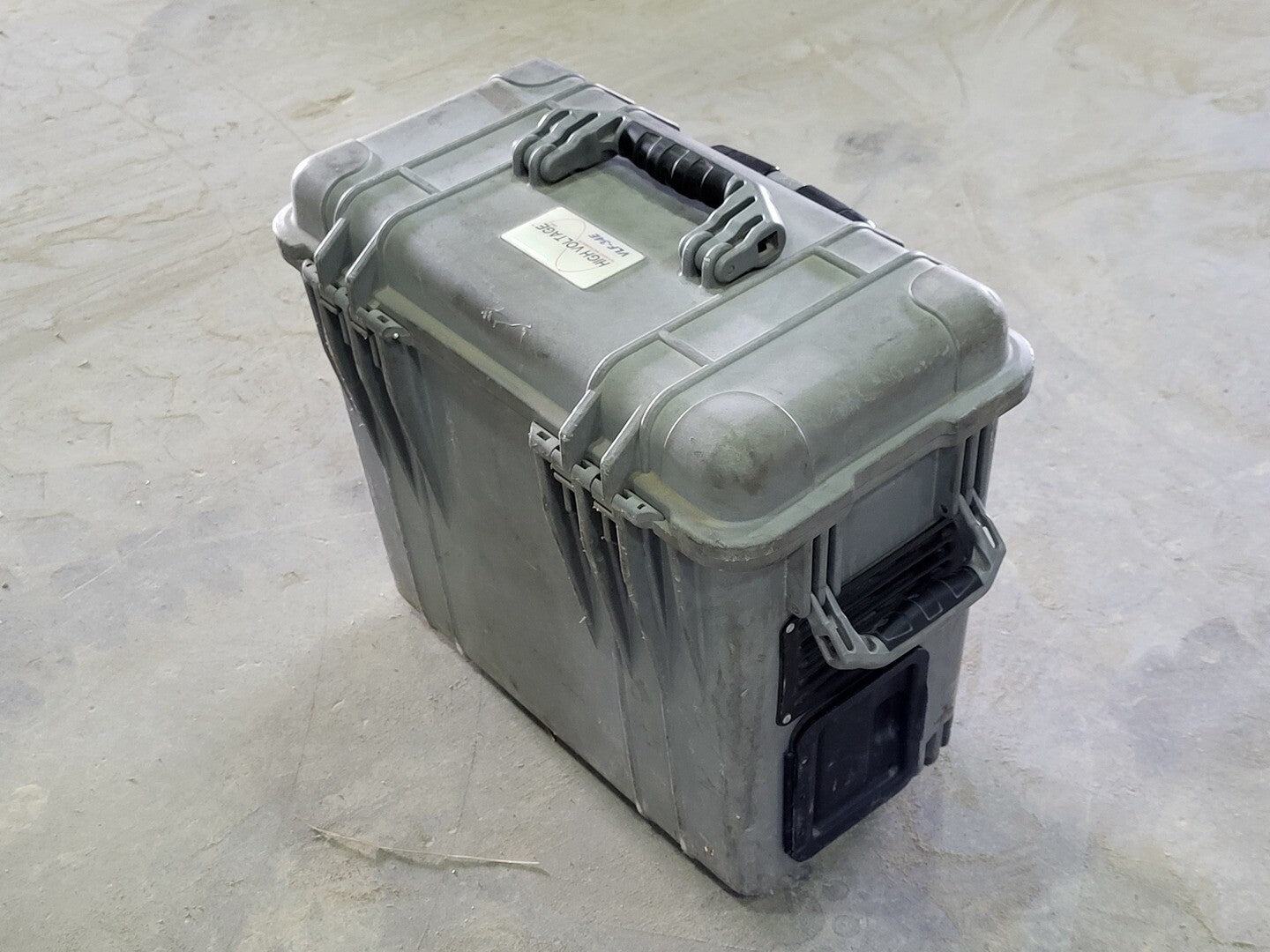

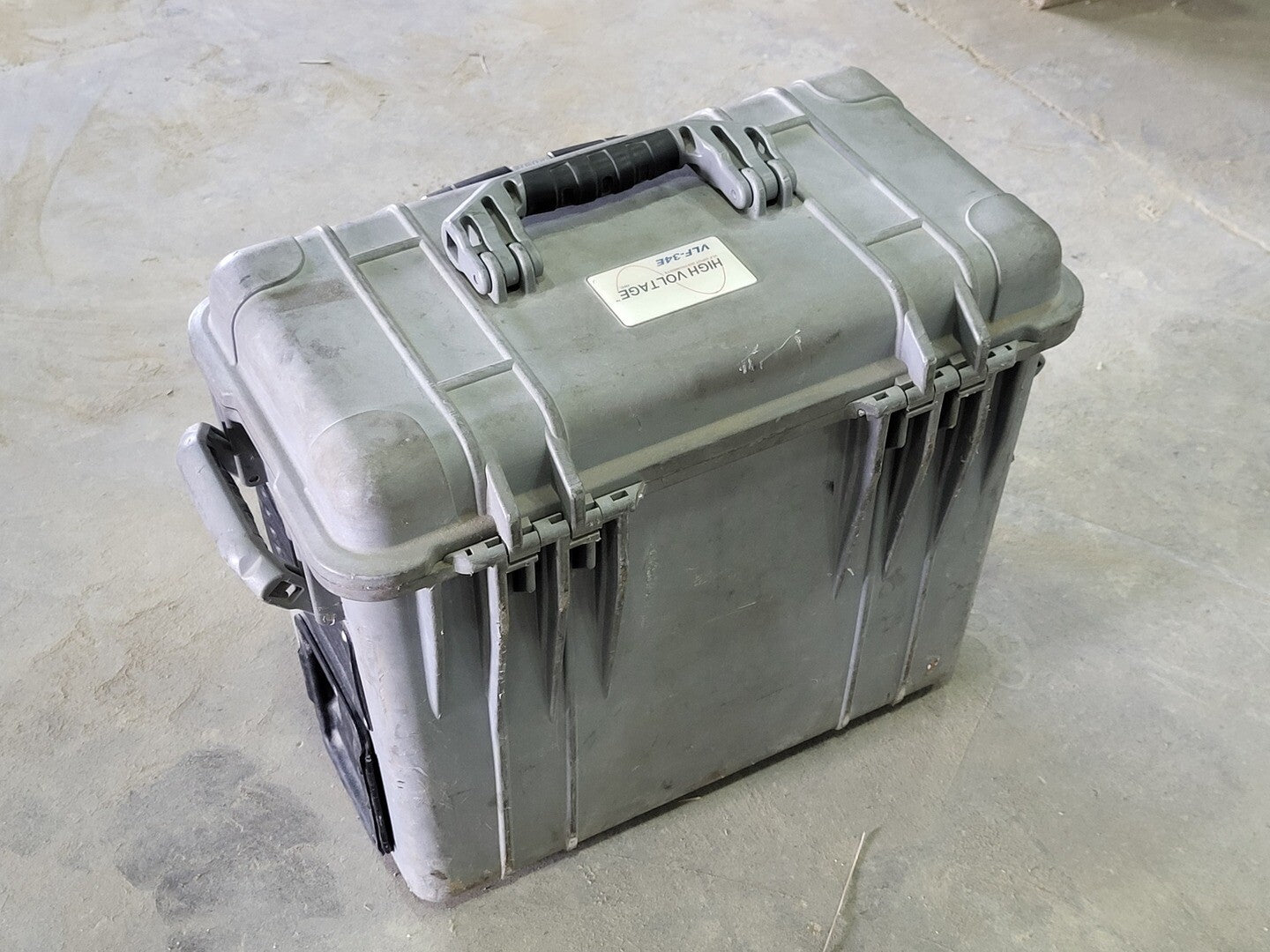

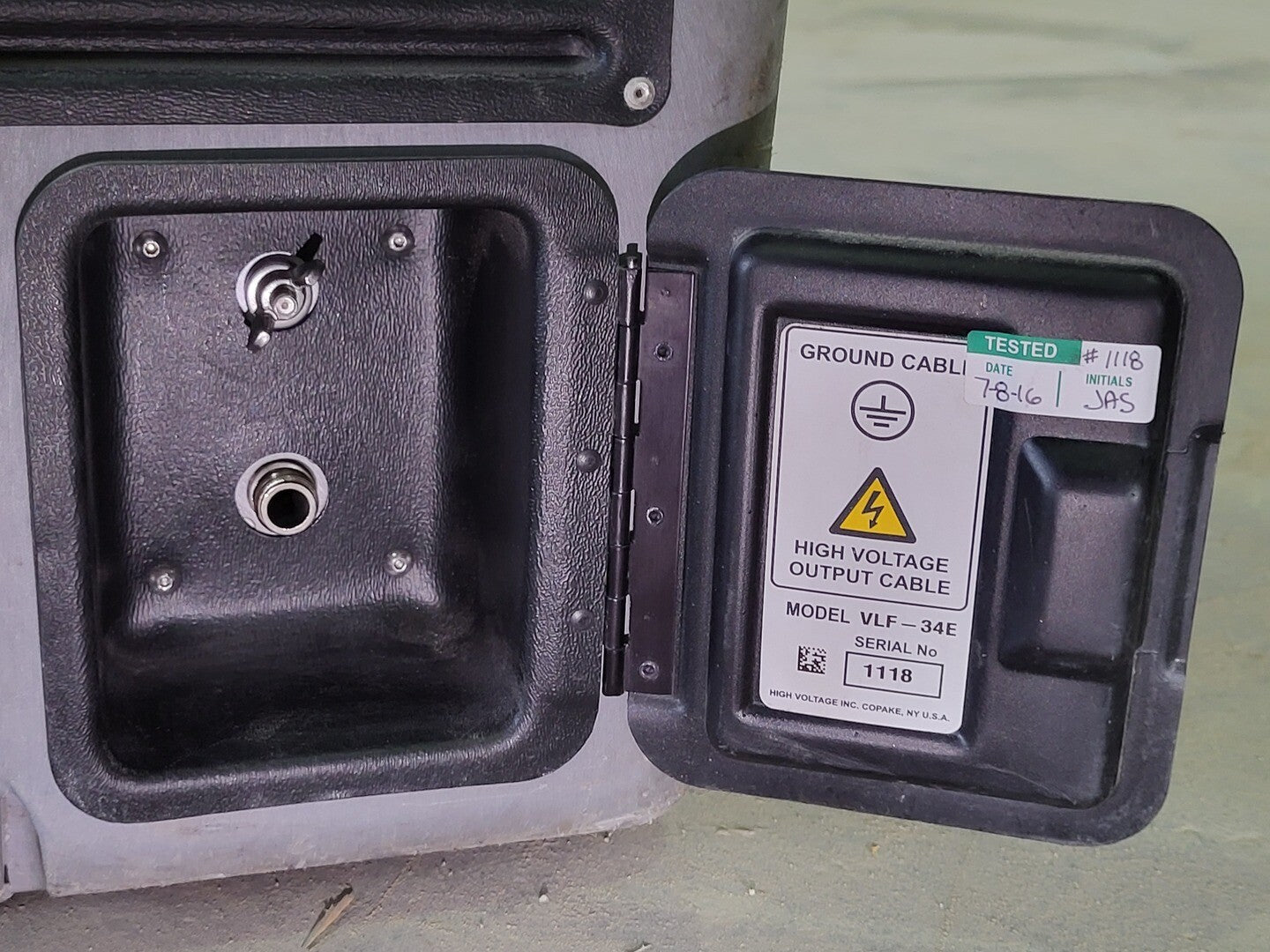

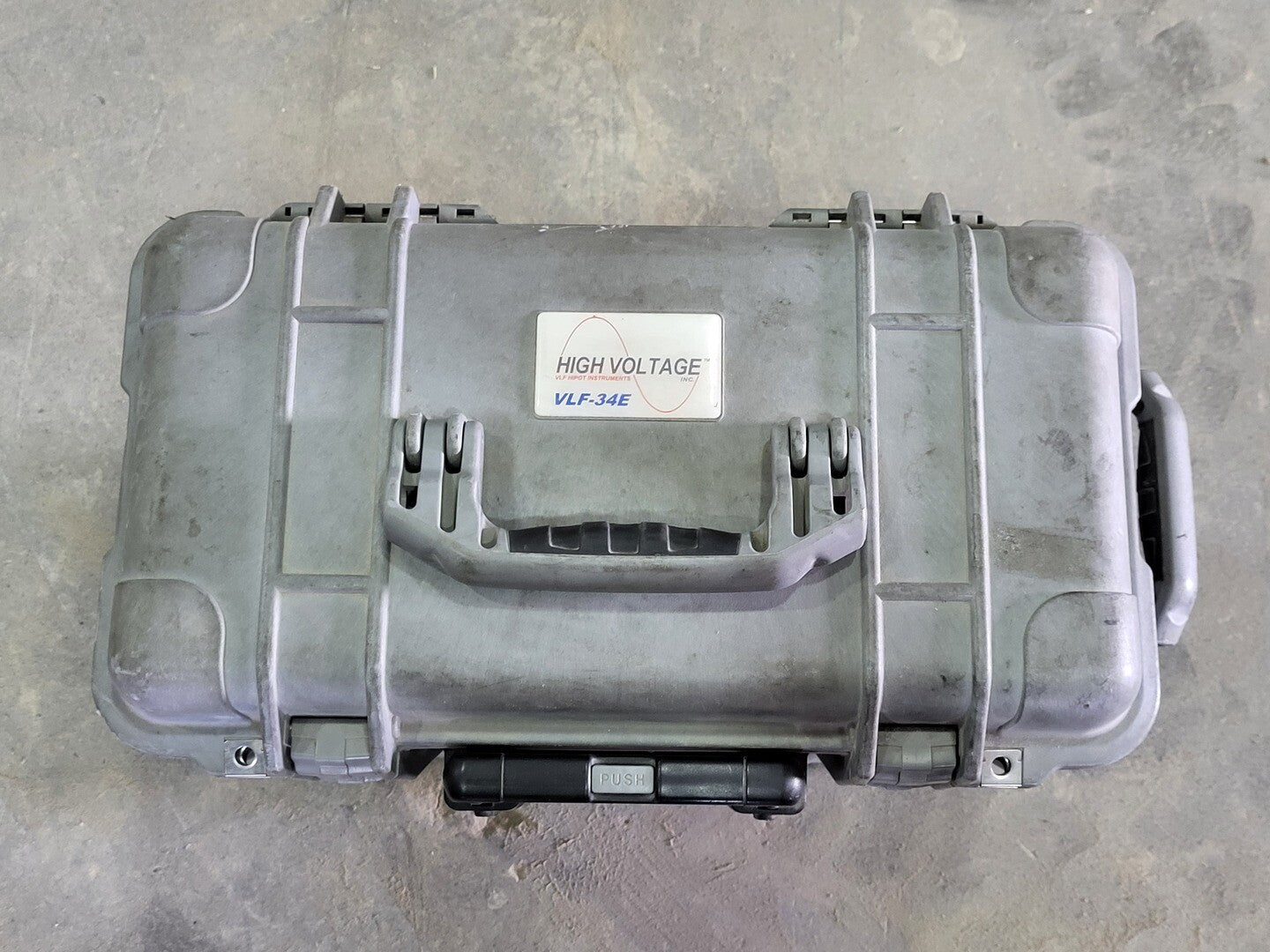

Input: 115 V AC / 230 V AC, 50 Hz/60 Hz, 5 A max Output: 0-34 kV AC peak/0-24 kV AC RMS, sinusoidal DC: +/- 34 kV, square wave: 34 kV sheath tester Duty: Continuous Frequency: 0.1 Hz to 0.01 Hz Load Rating: 0.5 µF @ 0.1 Hz @ 34 kV 1.0 µF @ 0.05 Hz @ 34 kV 5.0 µF @ 0.01 Hz @ 34 kV µF rating increases at lower voltages Ex: 0.77 µF @ 0.1 Hz @ 22 kV peak Metering: Voltage kV peak or RMS Current: mA peak or RMS Calculated: Capacitance, resistance, flash overvoltage, time to failure Case: Hard Pelican-type case with extendable handle and wheels Output Termination: 20' RG8/U, Ground 20' #2 |
