Descripción

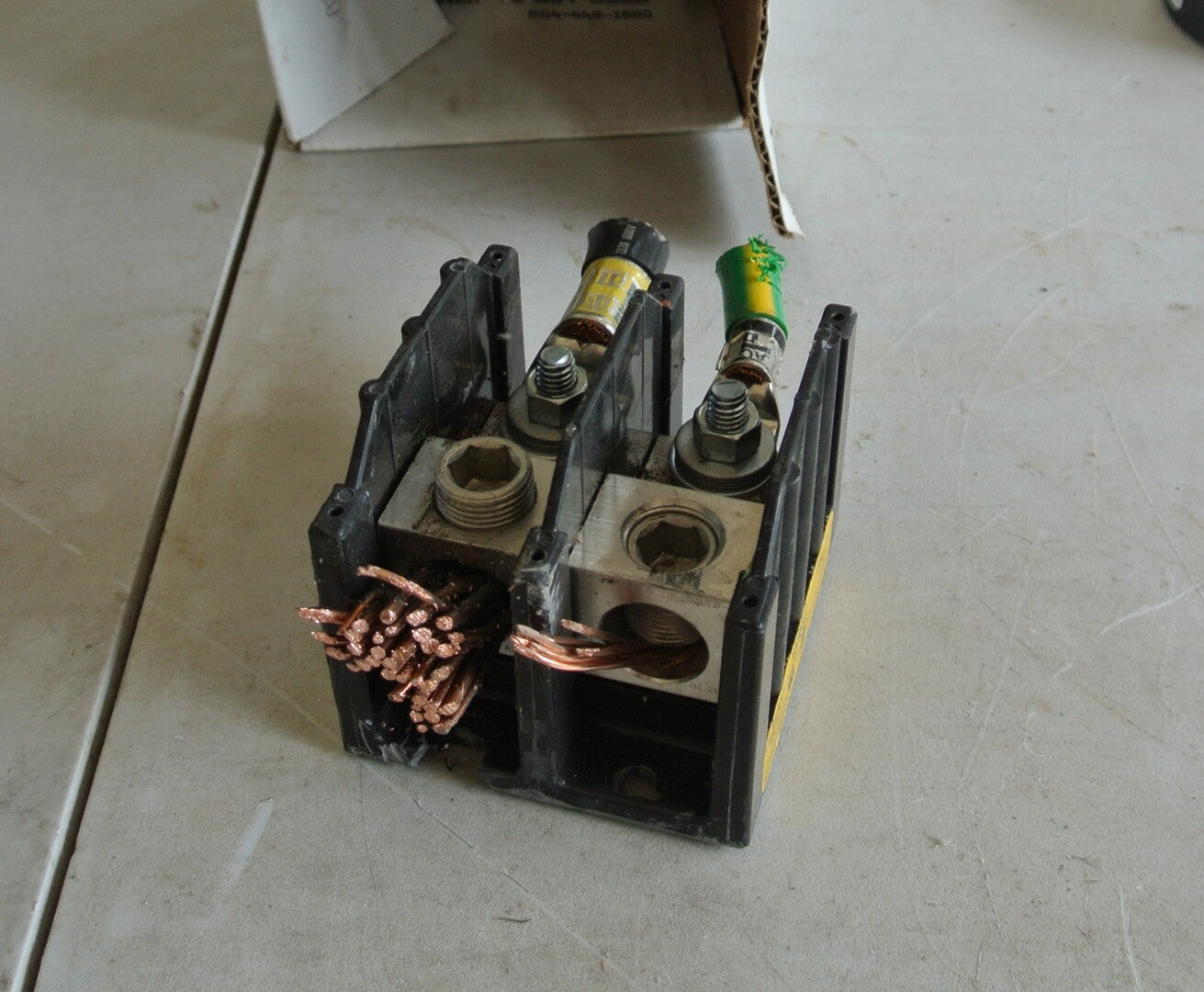

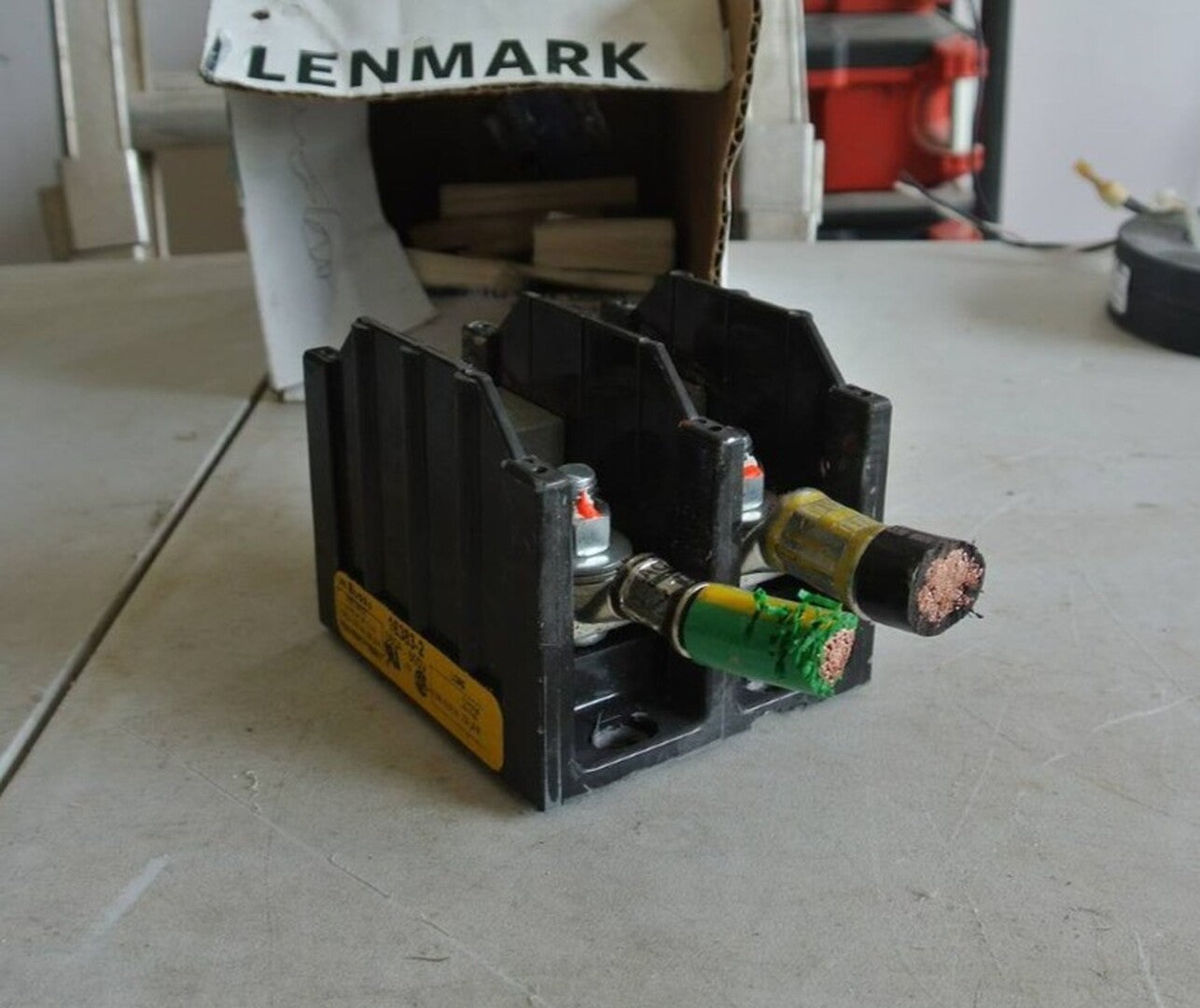

Bussmann 16383-2 two-pole power terminal block rated 380 A and 600 V. Features one screw-clamp line terminal and one load-side stud per pole. Used assembly with attached cable lugs and cut conductor remnants.
| Specifications | |
|---|---|
| Model | 16383-2 |
| Condition | Used |
| Other Specifications |
|---|
|
Model: 16383-2 Series: 163 Component type: Connector-to-stud power terminal block Number of poles: 2 Current rating: 380 A Voltage rating: 600 V Line connection: 1 screw-clamp port per pole Line conductor range: 6 AWG-500 kcmil copper or aluminum Line terminal torque: 500 lb-in Load connection: 1 stud per pole Load stud thread: 3/8-16 Catalog load stud length: 1 in Load terminal torque: 230 lb-in Short-circuit current rating: 10 kA |
