Descripción

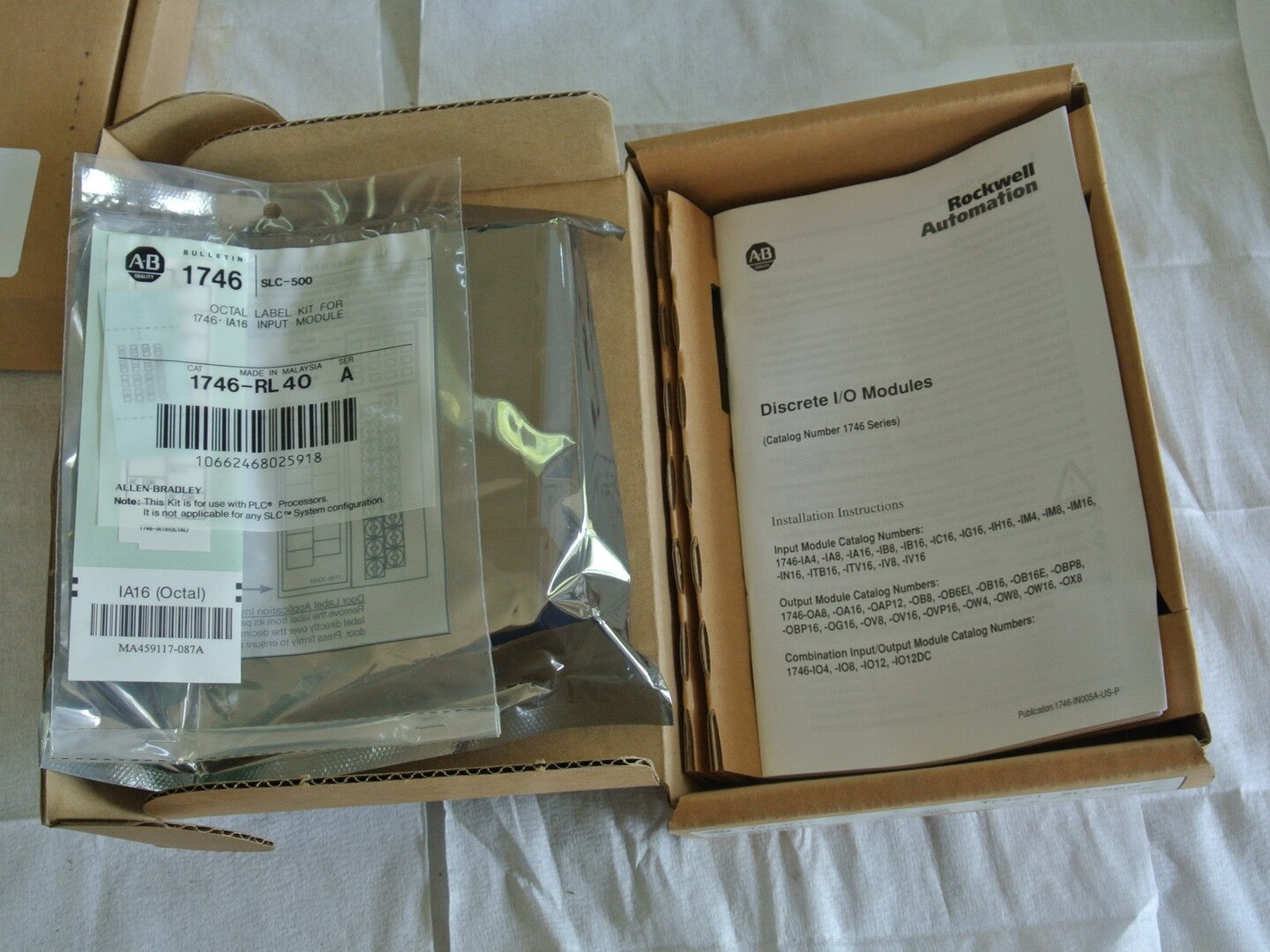

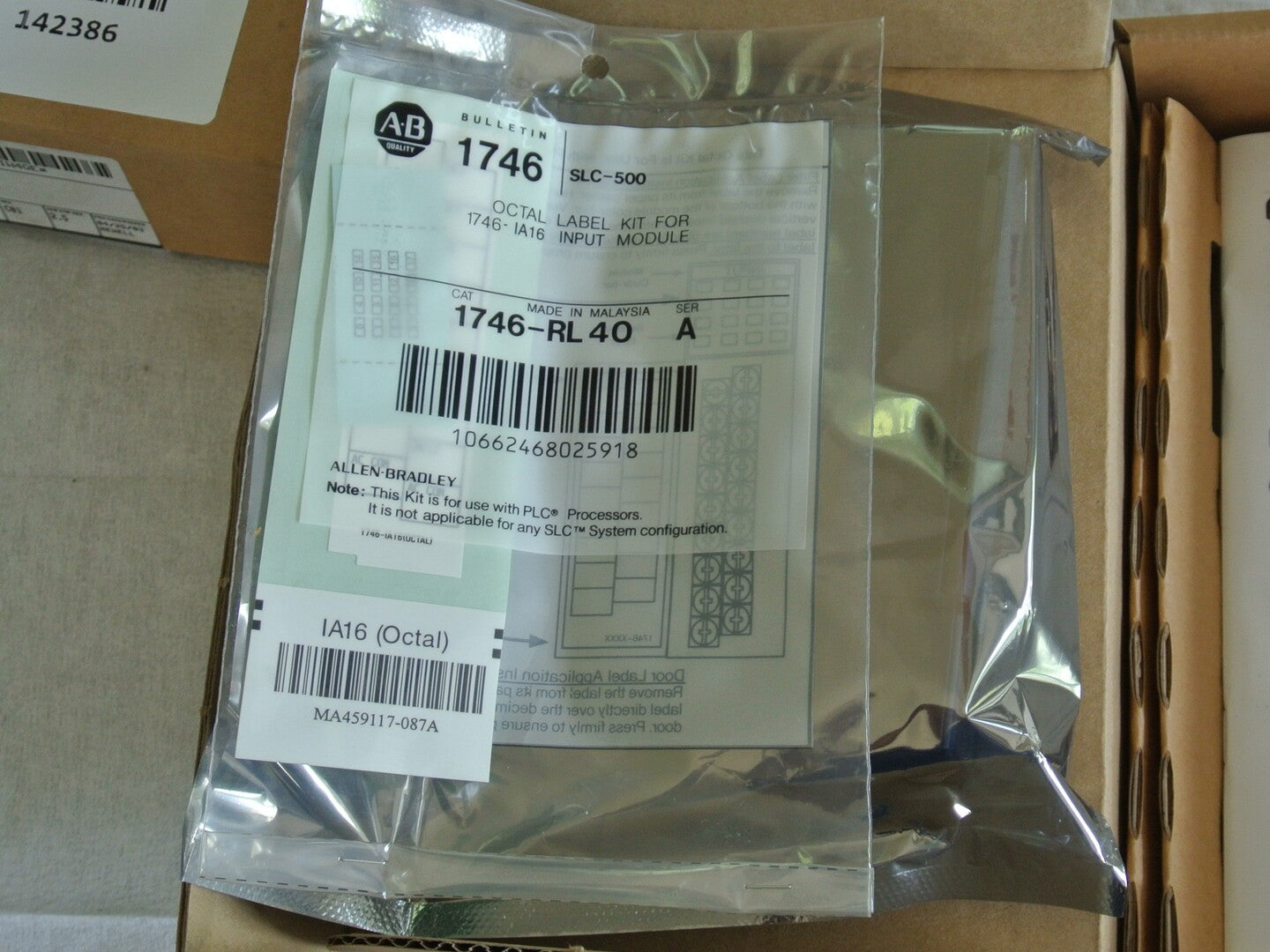

Allen-Bradley 1746-IA16 SLC 500 digital AC input module with 16 input points for 100/120V AC signals. The unit is shown in original Allen-Bradley packaging with documentation and an unopened 1746-RL40 Series A octal label kit. Module operating input range is 85-132V AC at 47-63 Hz.
| Specifications | |
|---|---|
| Model | 1746-IA16 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Product Family: SLC 500 / Bulletin 1746 Module Type: Digital AC Input Module Number of Inputs: 16 Points per Common: 16 Voltage Category: 100/120V AC Operating Voltage: 85-132V AC Operating Frequency: 47-63 Hz Nominal Input Current: 12 mA at 120V AC Maximum Off-State Voltage: 30V AC Maximum Off-State Current: 2 mA Maximum Inrush Current: 0.8 A Maximum Inrush Duration: 0.5 ms Backplane Current at 5V DC: 0.085 A Backplane Current at 24V DC: 0 A Maximum Signal Delay: 35 ms ON / 45 ms OFF Terminal Block: Removable |
