Descripción

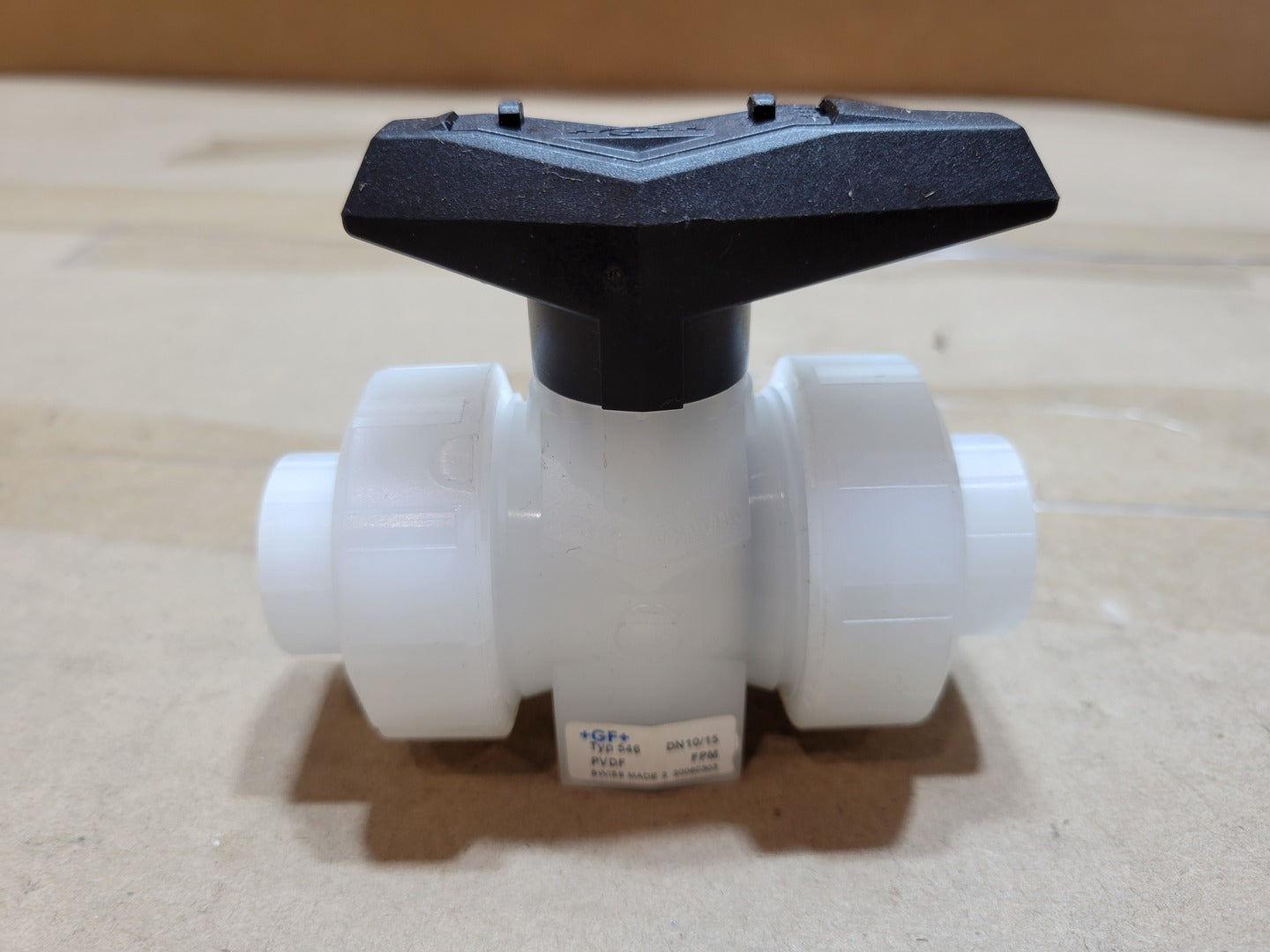

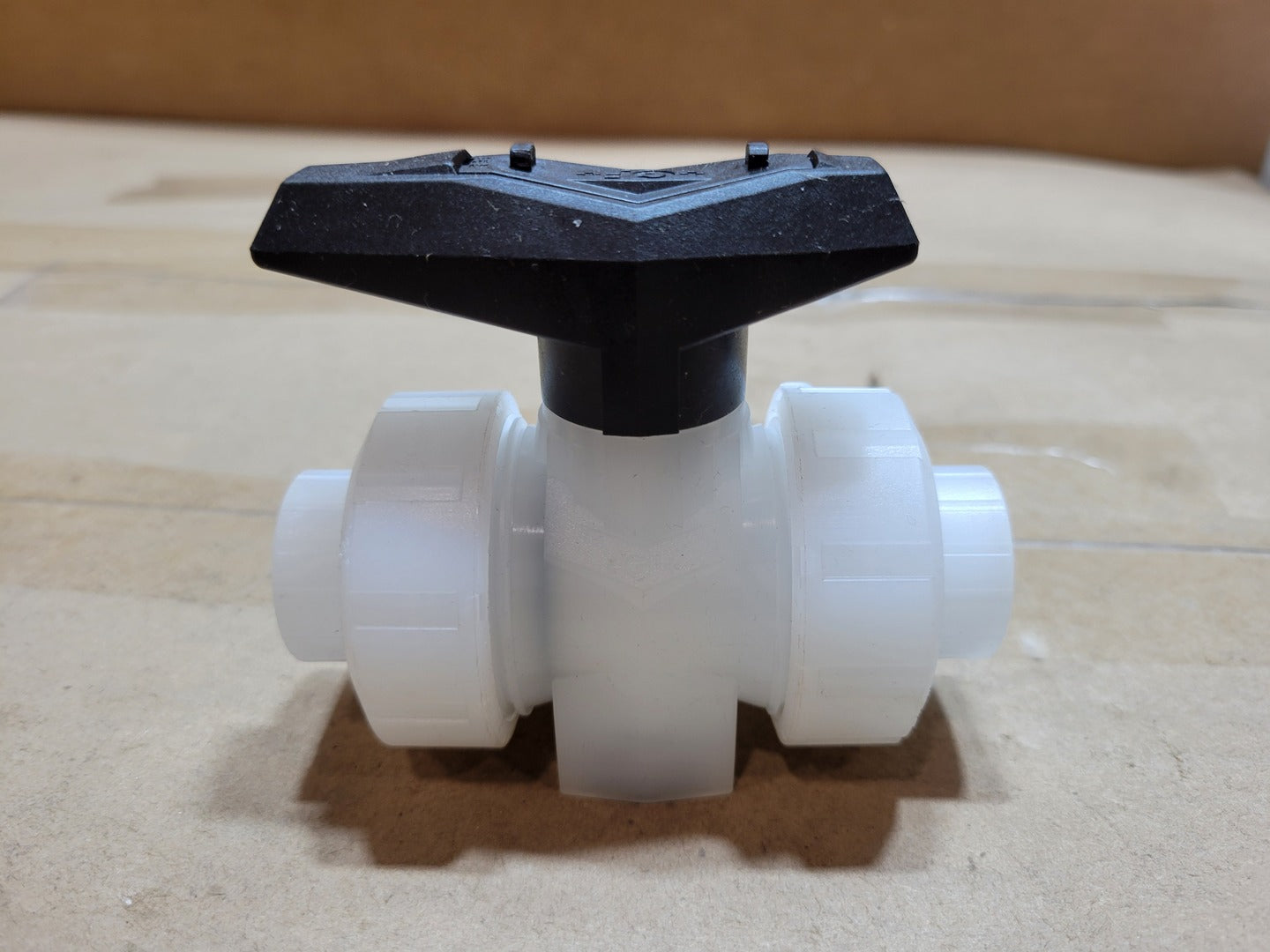

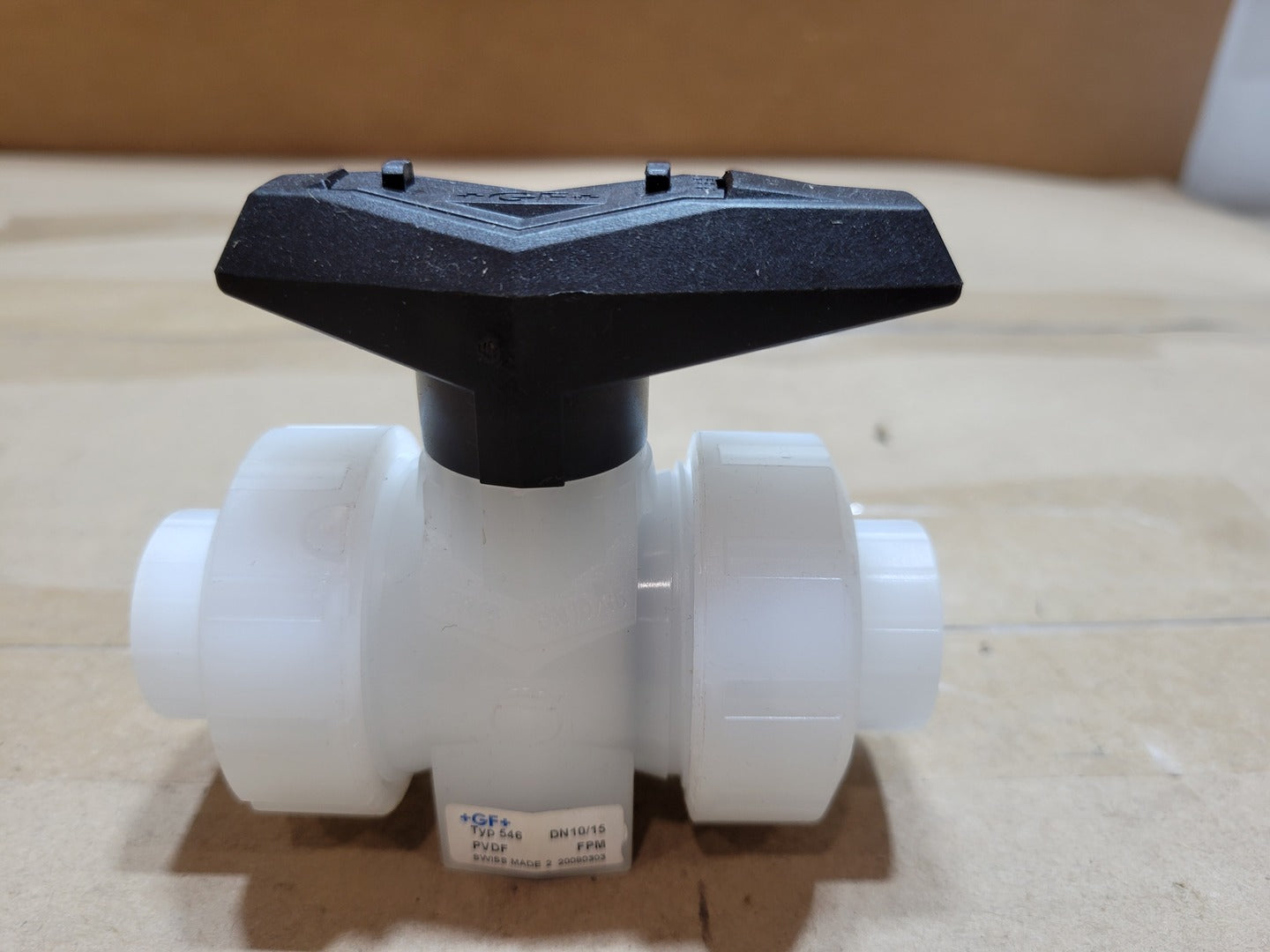

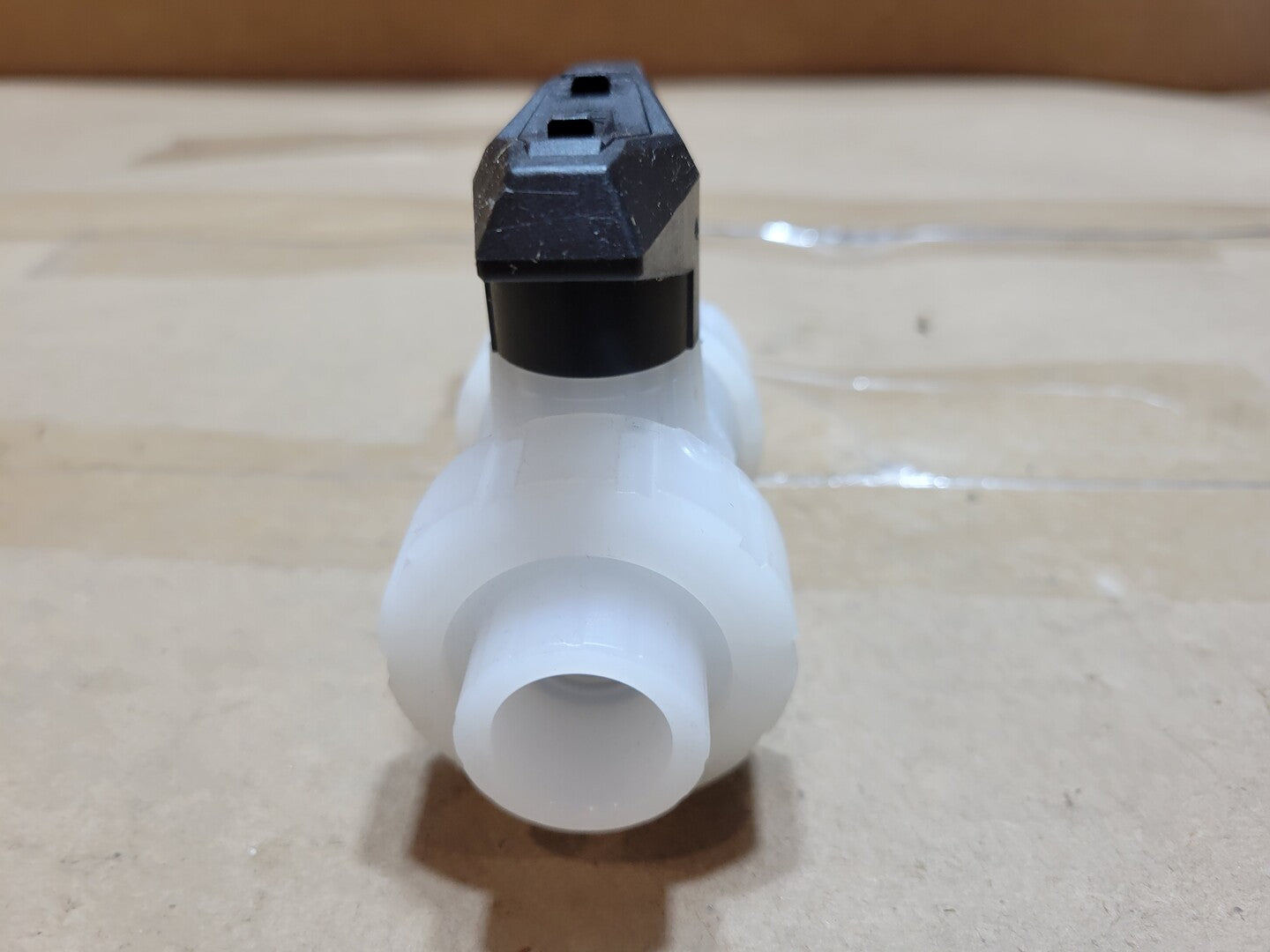

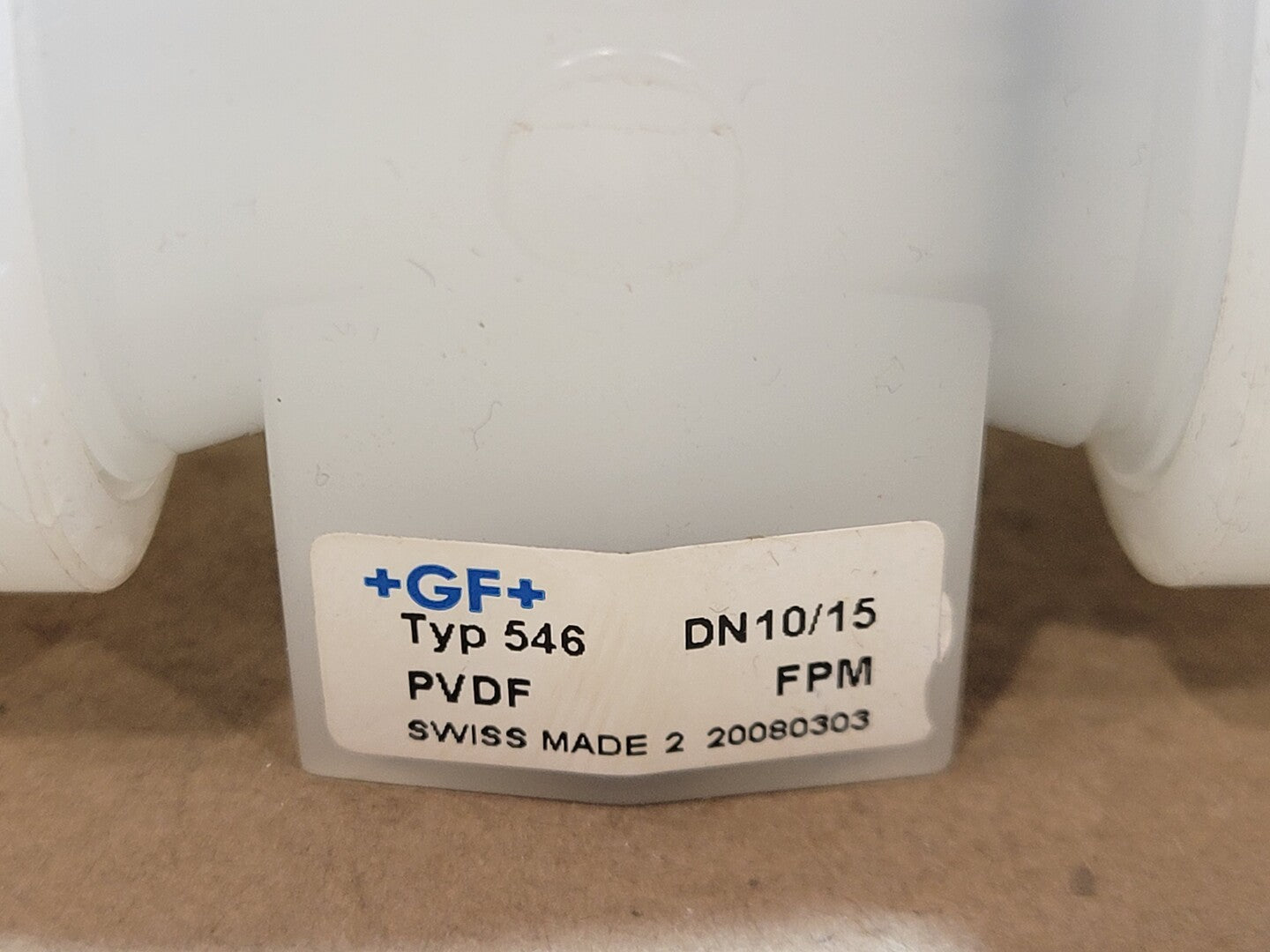

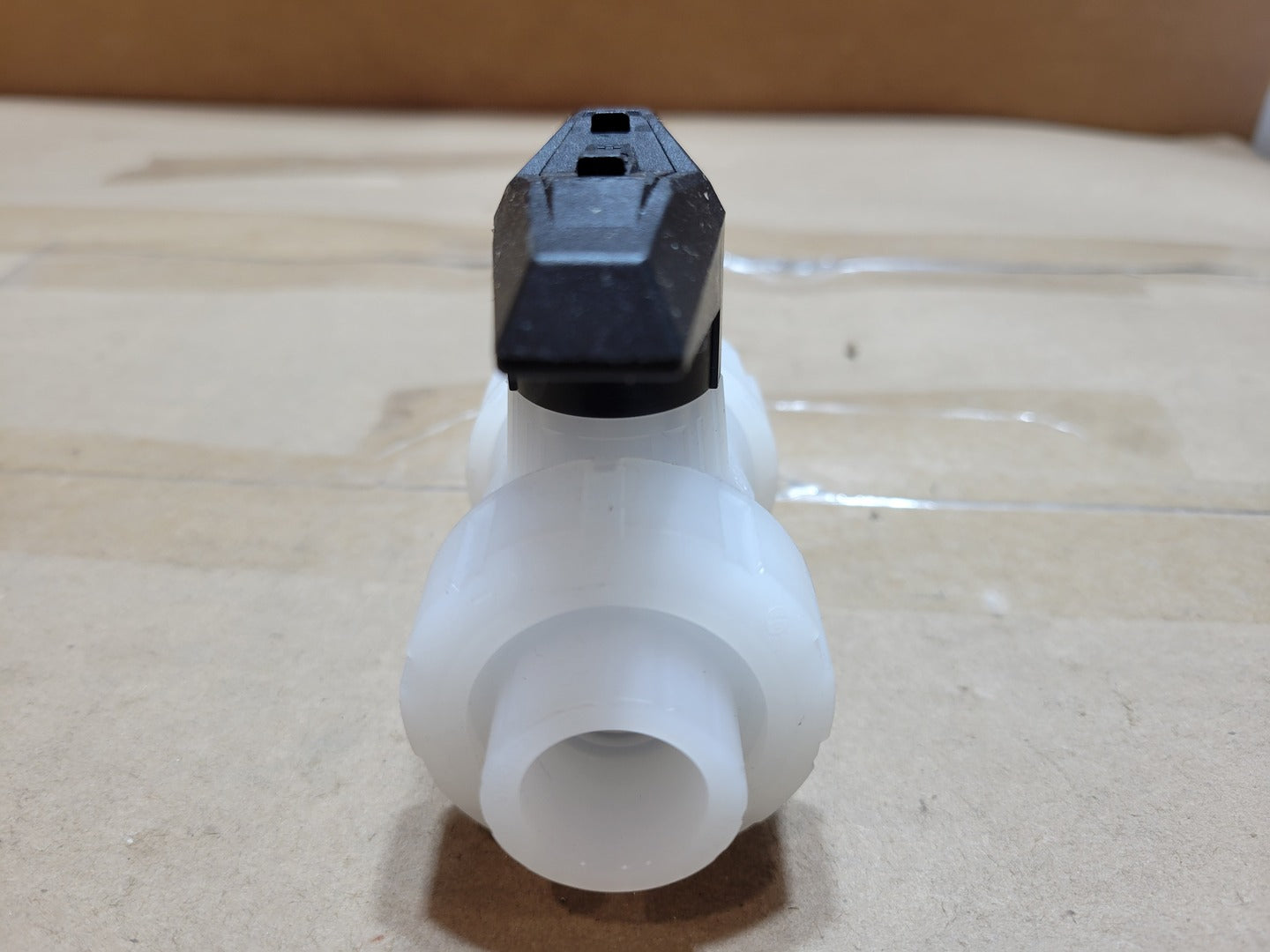

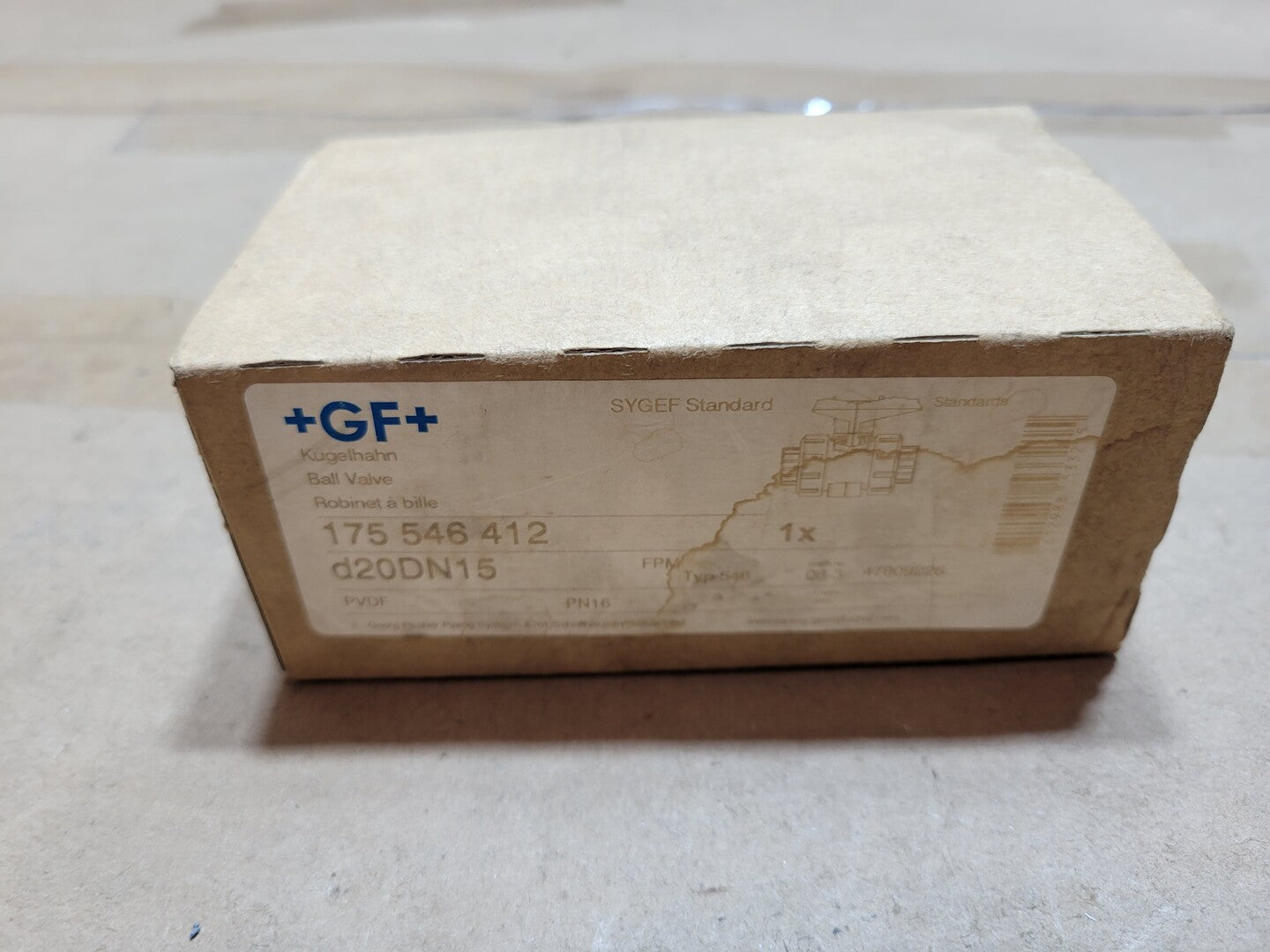

Georg Fischer SYGEF Standard Type 546 manual ball valve, part number 175546412, with PVDF construction, FPM seals and metric socket fusion connections. Sized d20 / DN15 and marked PN16 on the box. Features a black operating handle and two union connections for valve removal and servicing.
| Specifications | |
|---|---|
| Model | 175546412 |
| Condition | Surplus New | General |
| Diameter | DN15 |
| Class | PN16 |
| Valve Style | Ball |
| Other Specifications |
|---|
|
Series: SYGEF Standard Valve type: Type 546 Part number: 175546412 / 175 546 412 Valve configuration: 2-way true-union ball valve Operation: Manual lever Body material: PVDF Seal material: FPM / FKM Ball seat material: PTFE Connection size: d20 / 20 mm metric Connection type: Metric socket fusion Flow coefficient: 185 L/min at 1 bar differential Mounting inserts: Stainless steel, M6 |
