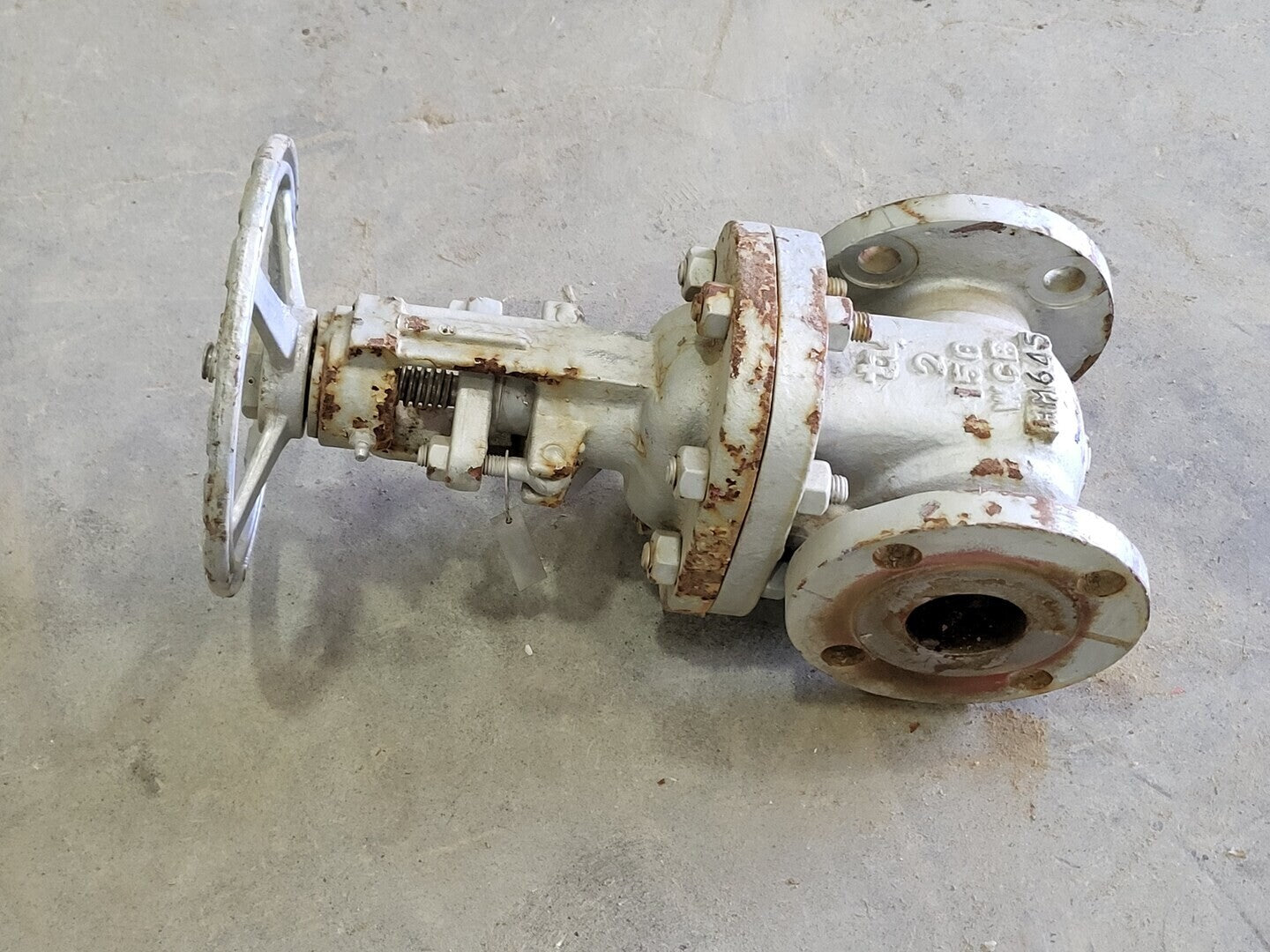

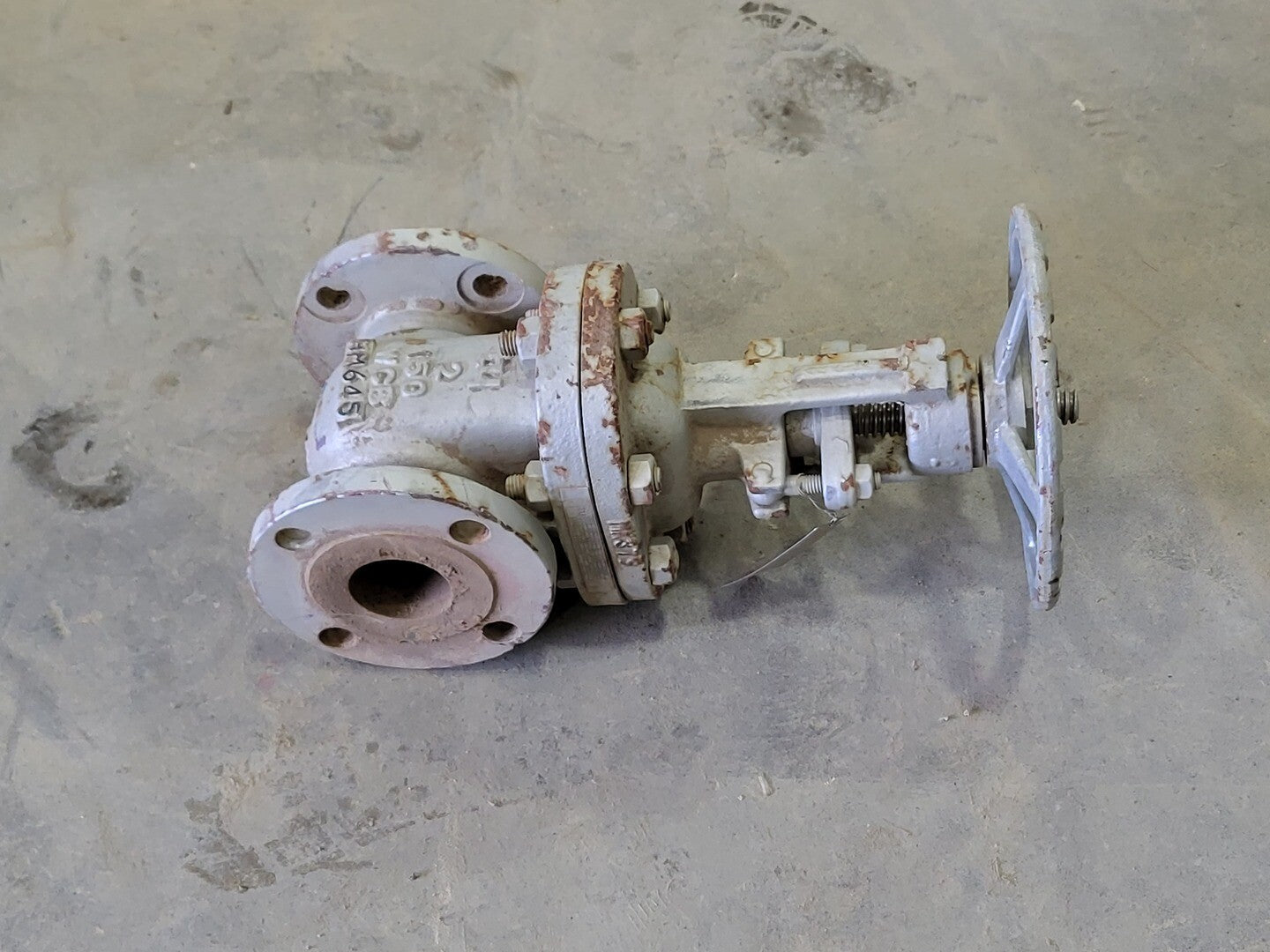

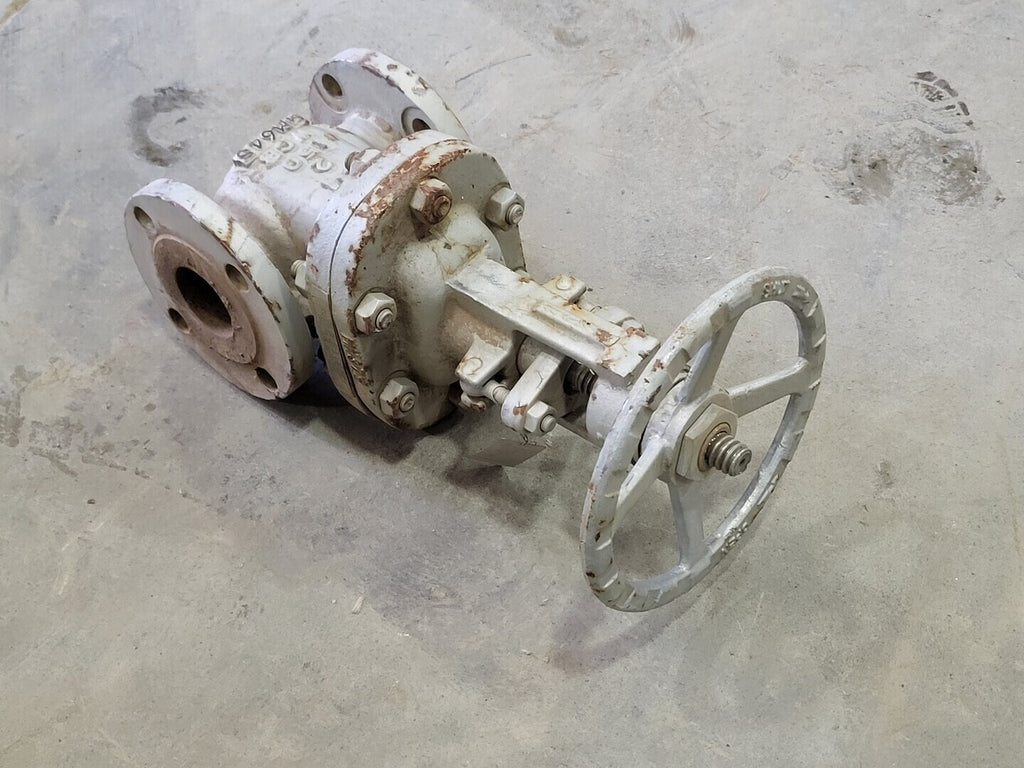

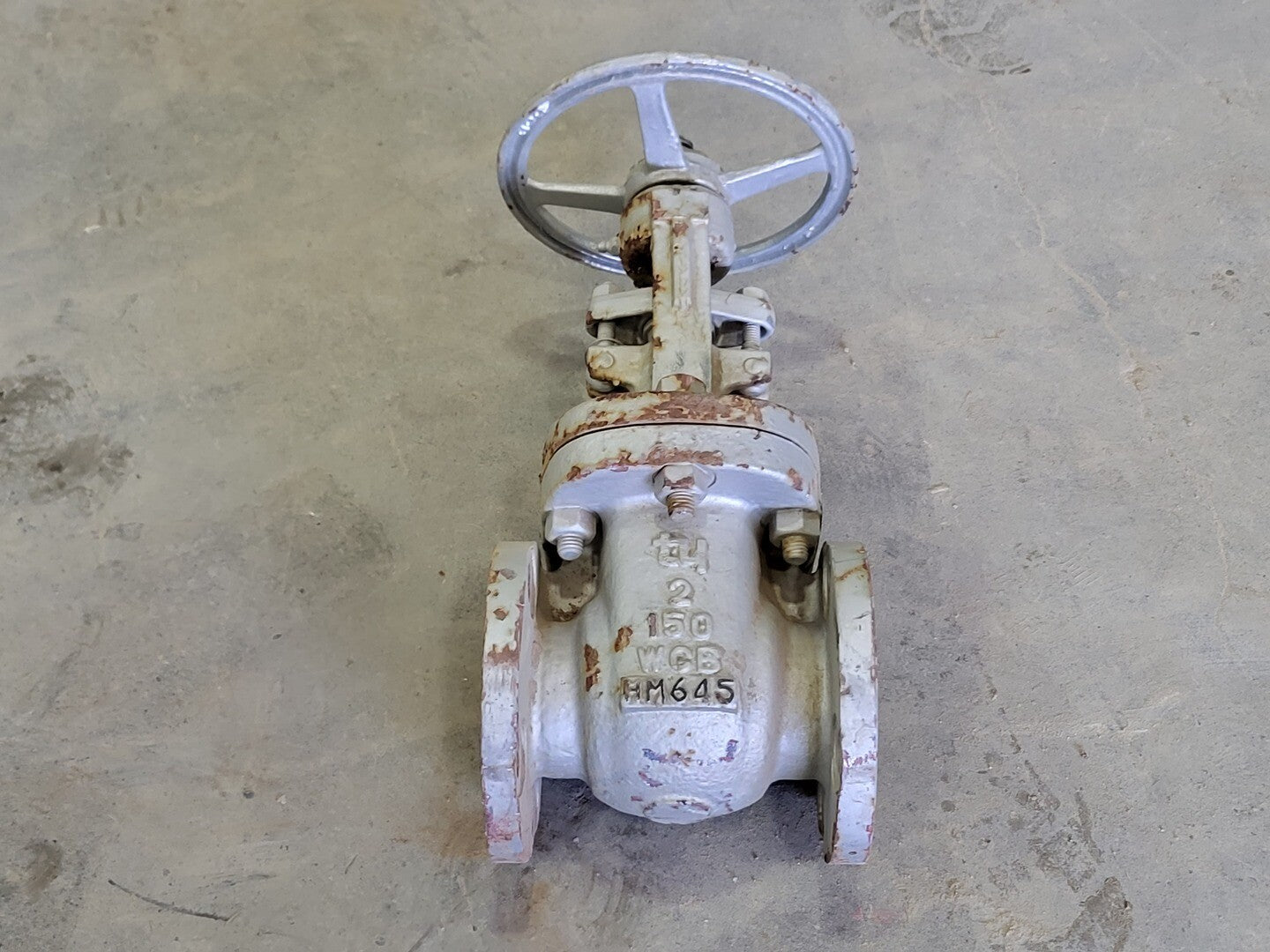

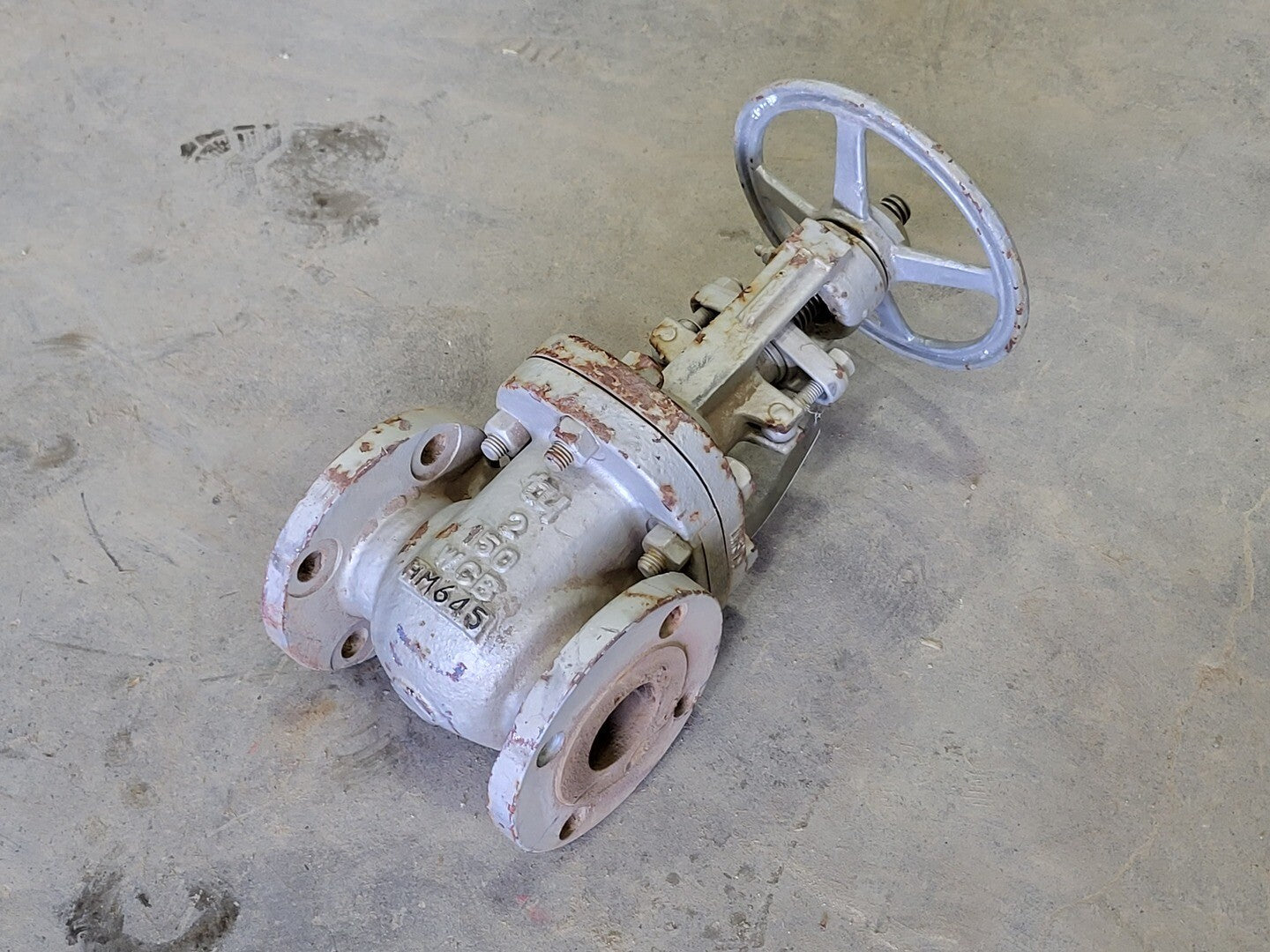

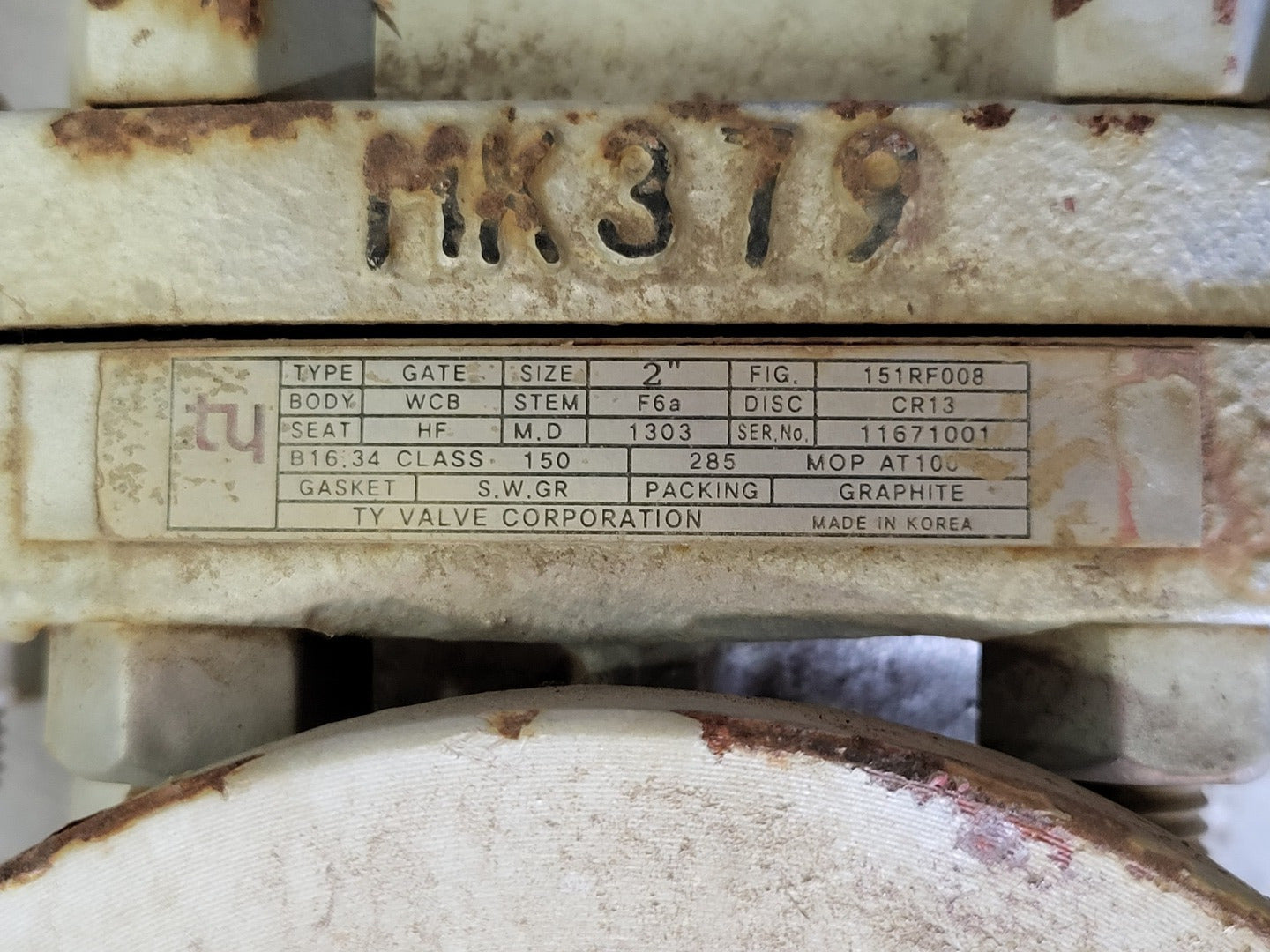

This gate valve is manufactured by TY Valve Corporation, with model number 151RF008. It has a 2" diameter and falls under Class 150. The valve style is a gate valve with flange connection ends. The body is made of WCB carbon steel, and the stem is made of F6a. The maximum duty is 1303, with an operating pressure of 285 @ 100 degrees Fahrenheit. The disc material is CR13, the seat material is HF, and the gasket is S.W.GR. The valve complies with ASME B16.34 standards.
| Specifications | |
|---|---|
| Model | 151RF008 |
| Condition | Used | General |
| Diameter | 2" |
| Class | 150 |
| Valve Style | Gate |
| Connection Ends | Flange |
| ASME | B16.34 |
| Body | WCB Carbon Steel |
| Stem | F6a |
| Other Specifications |
|---|
|
Disc: CR13 Seat: HF Maximum Duty: 1303 Maximum Operating Pressure: 285 @ 100 deg. fahrenheit Gasket: S.W.GR |
