FEDERAL PIONEER 4.76kV 2000A Medium Voltage Switchgear Tie Breaker w/ Square D VR Breaker & SEL Relay
FEDERAL PIONEER

4.76kV 2000A Medium Voltage Switchgear Tie Breaker w/ Square D VR Breaker & SEL Relay

SKU: 152532
Precio:
$24,776

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

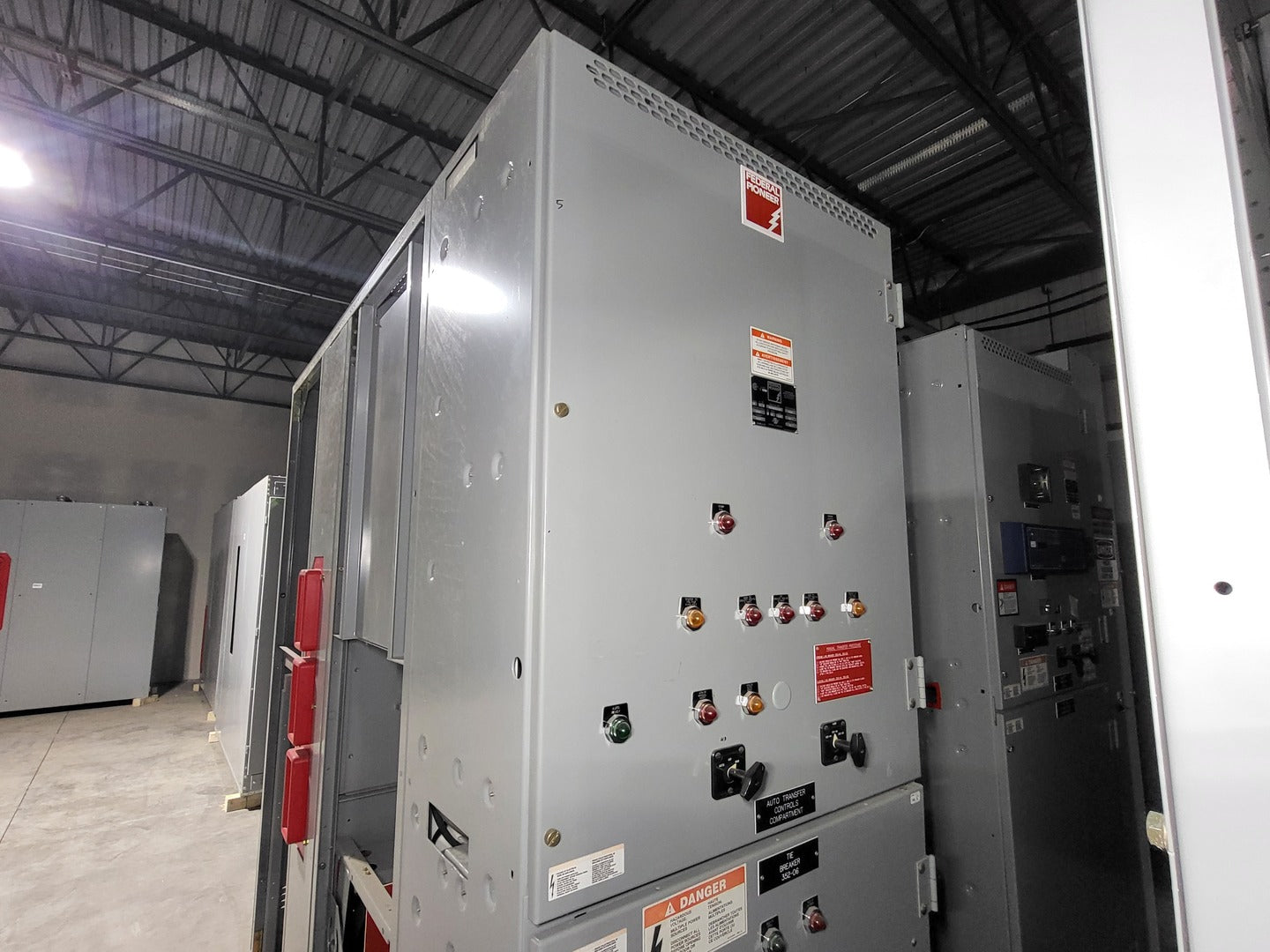

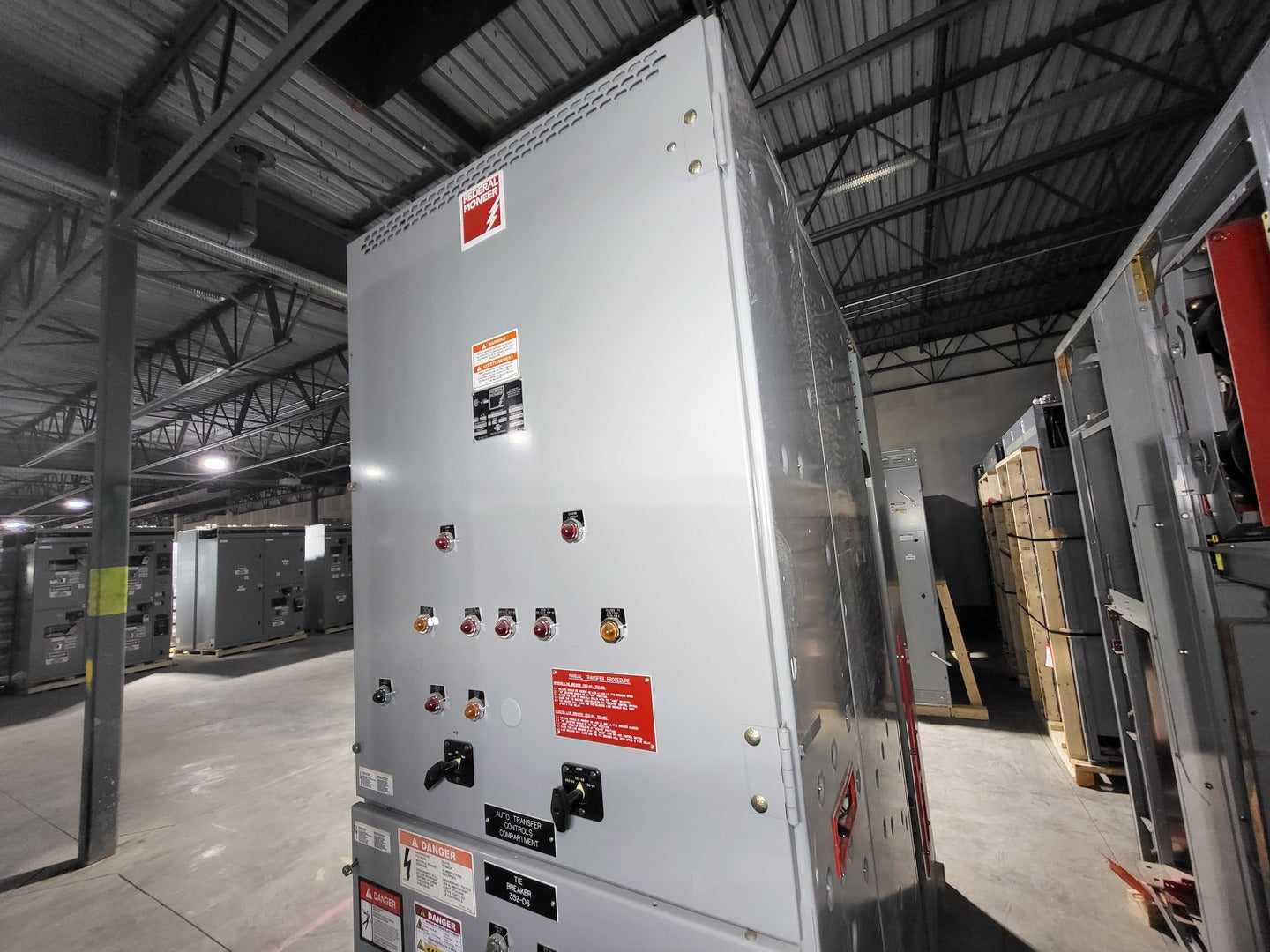

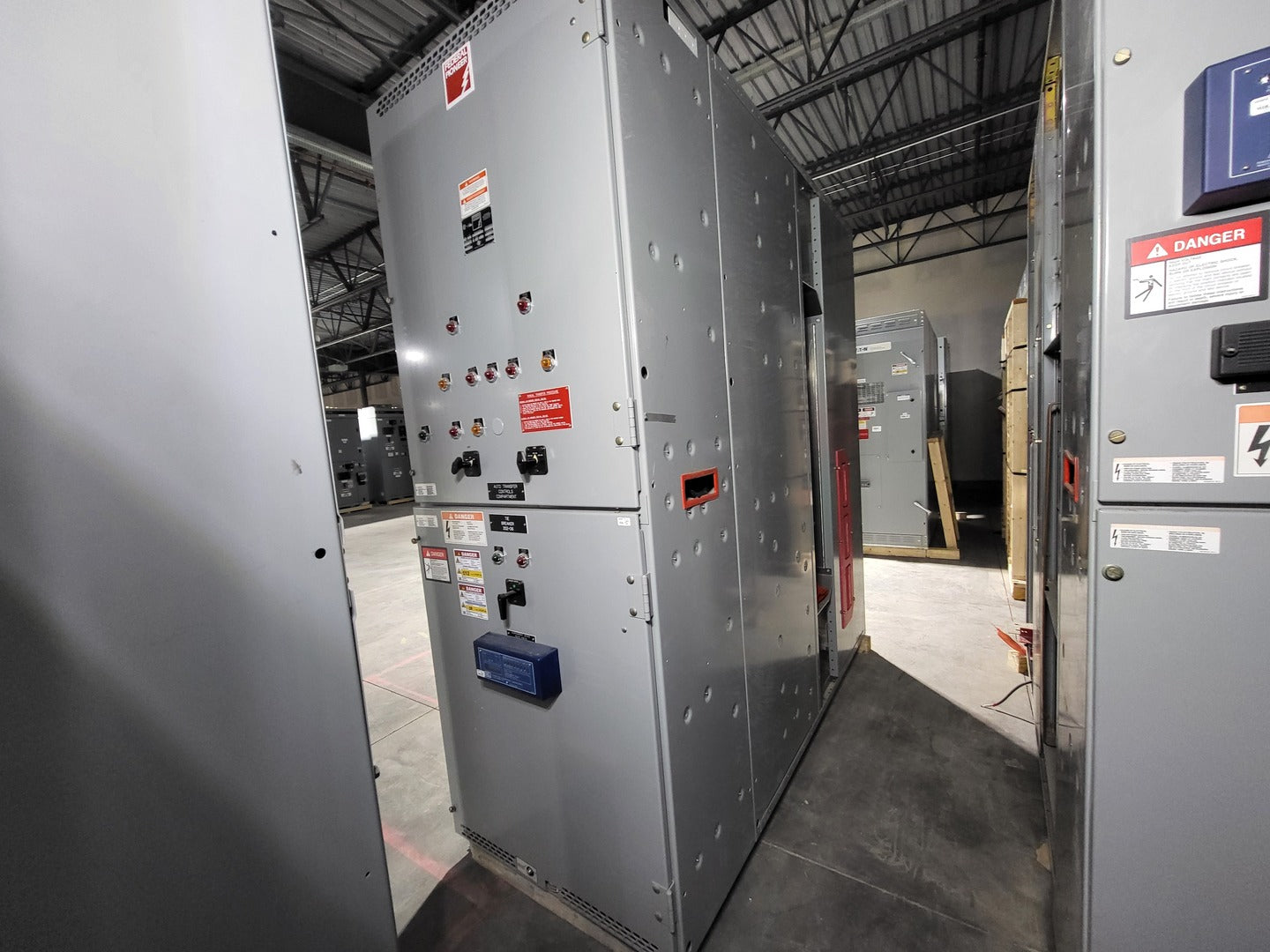

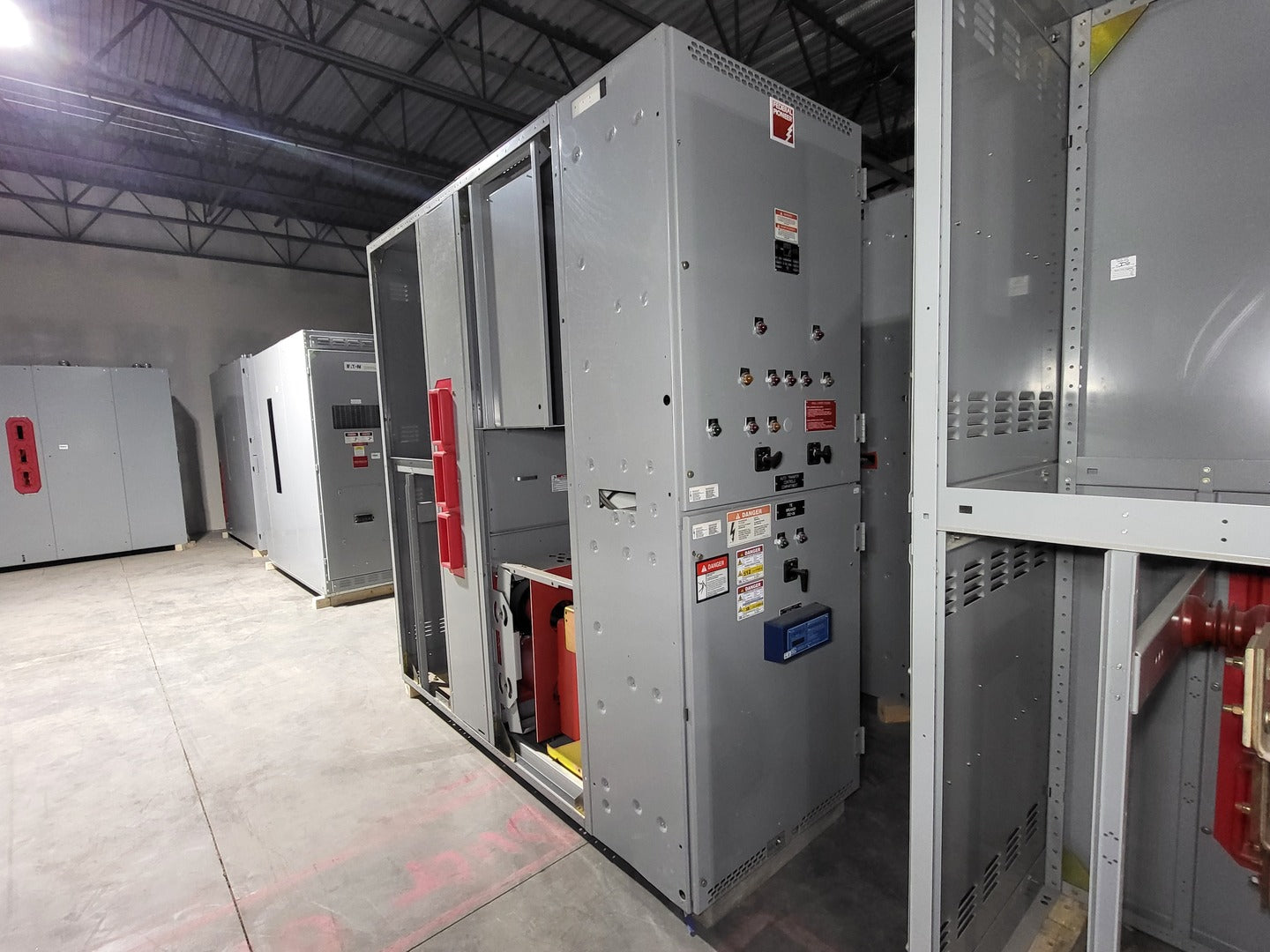

Federal Pioneer / Schneider Electric indoor medium-voltage metal-clad switchgear lineup equipped with Square D VR drawout vacuum circuit breaker, SEL-551 overcurrent relay protection, automatic transfer controls, and integrated control wiring assemblies. Rated 4.76kV, 2000A, 36kA interrupting capacity. Clean decommissioned industrial equipment suitable for utility, industrial, mining, and infrastructure applications.
Year: 2002
S/N: 14005564-002
Condition Used
Electrical
Amps 2000 amps
Phase 3-phase
Other Specifications

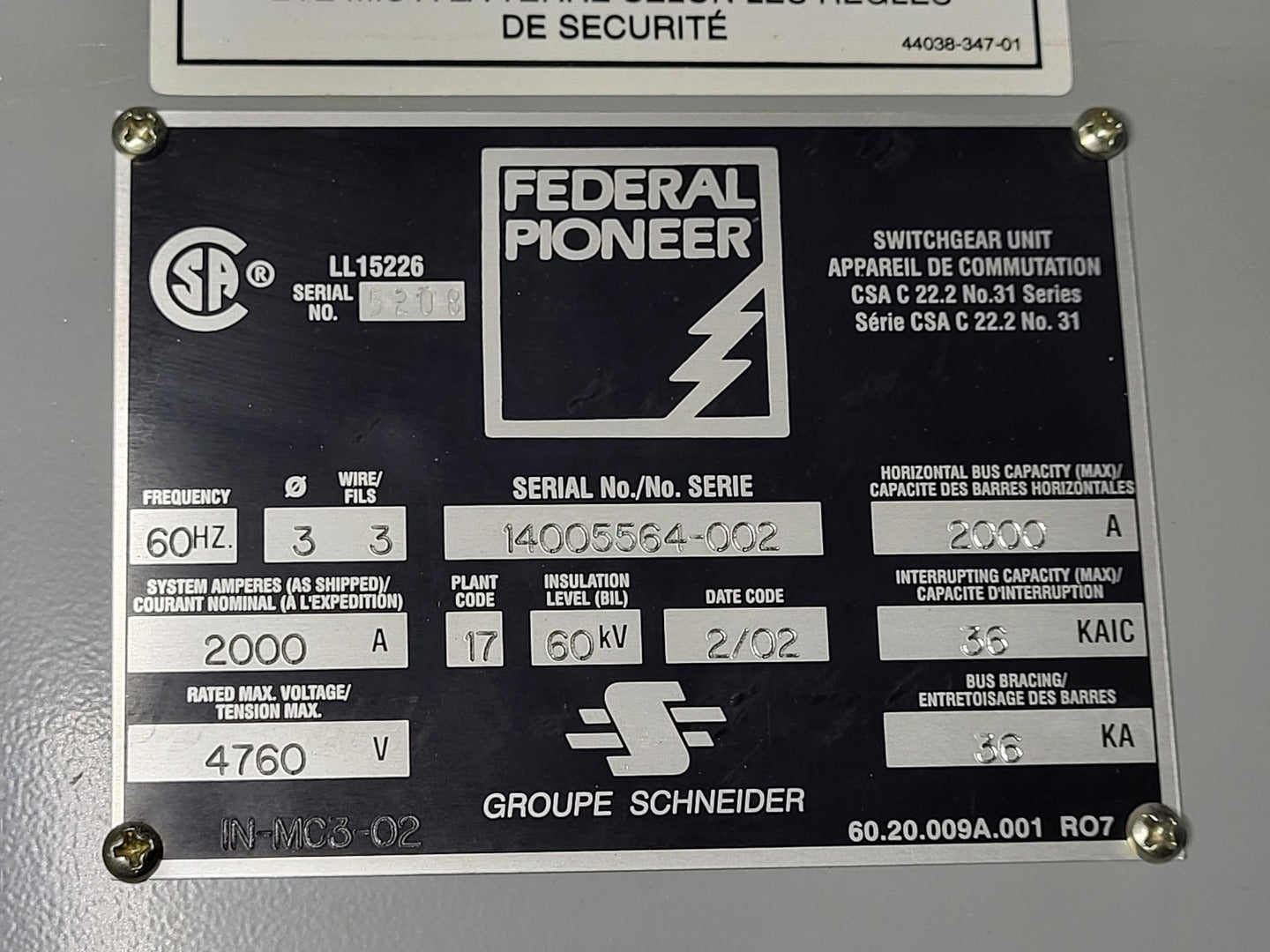

Manufacturer: Federal Pioneer / Groupe Schneider

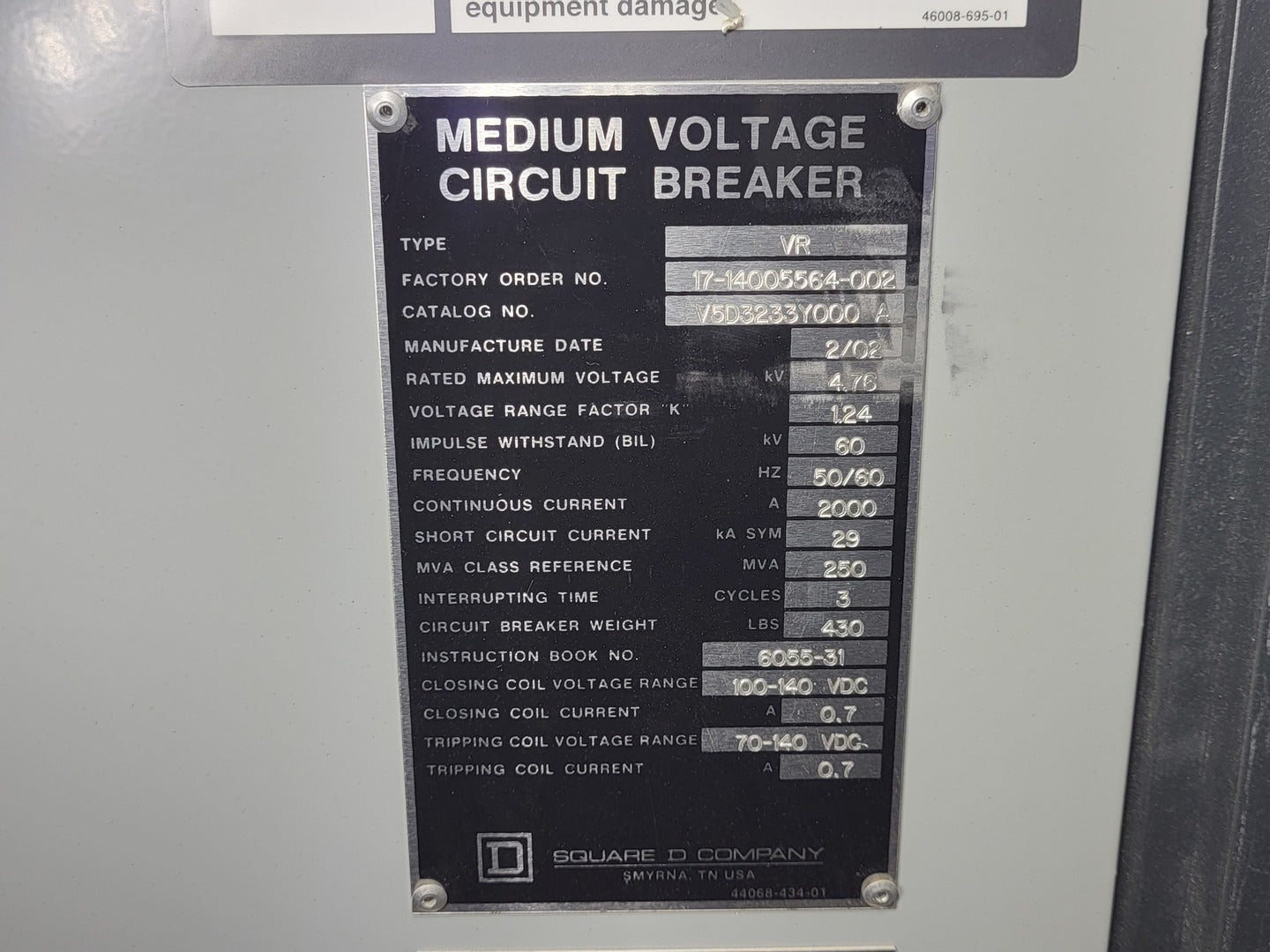

Breaker Manufacturer: Square D Company

Breaker Type: VR Vacuum Circuit Breaker

Switchgear Type: Metal-Clad Indoor Switchgear

Voltage Class: 4.76kV

Frequency: 50/60Hz

Phase: 3

Continuous Current: 2000A

Interrupting Capacity: 36kA

Bus Bracing: 36kA

BIL Rating: 60kV

Breaker Interrupting Time: 3 Cycles

Breaker Weight: 430 lbs

Closing Coil Voltage: 100-140 VDC

Tripping Coil Voltage: 70-140 VDC

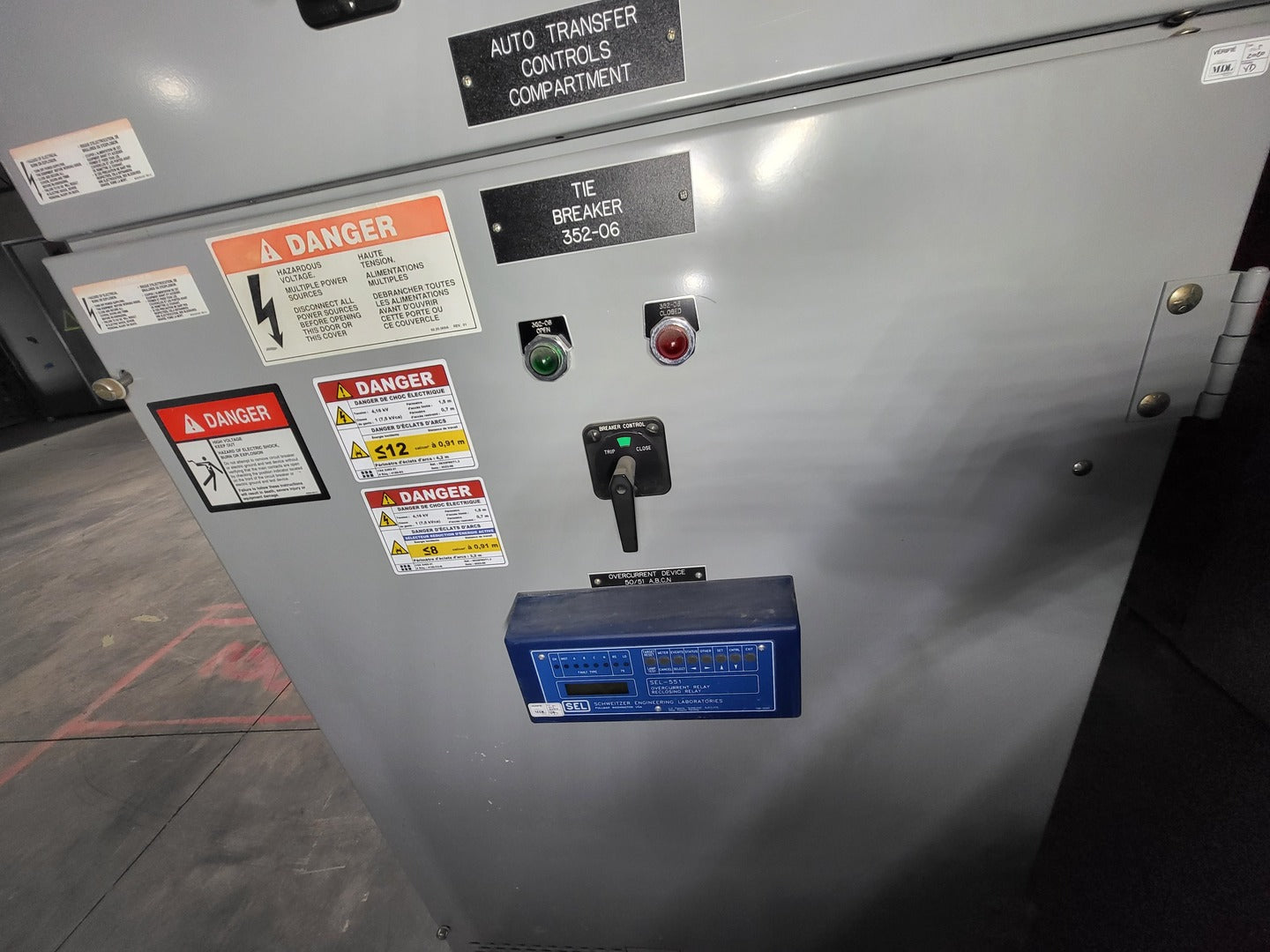

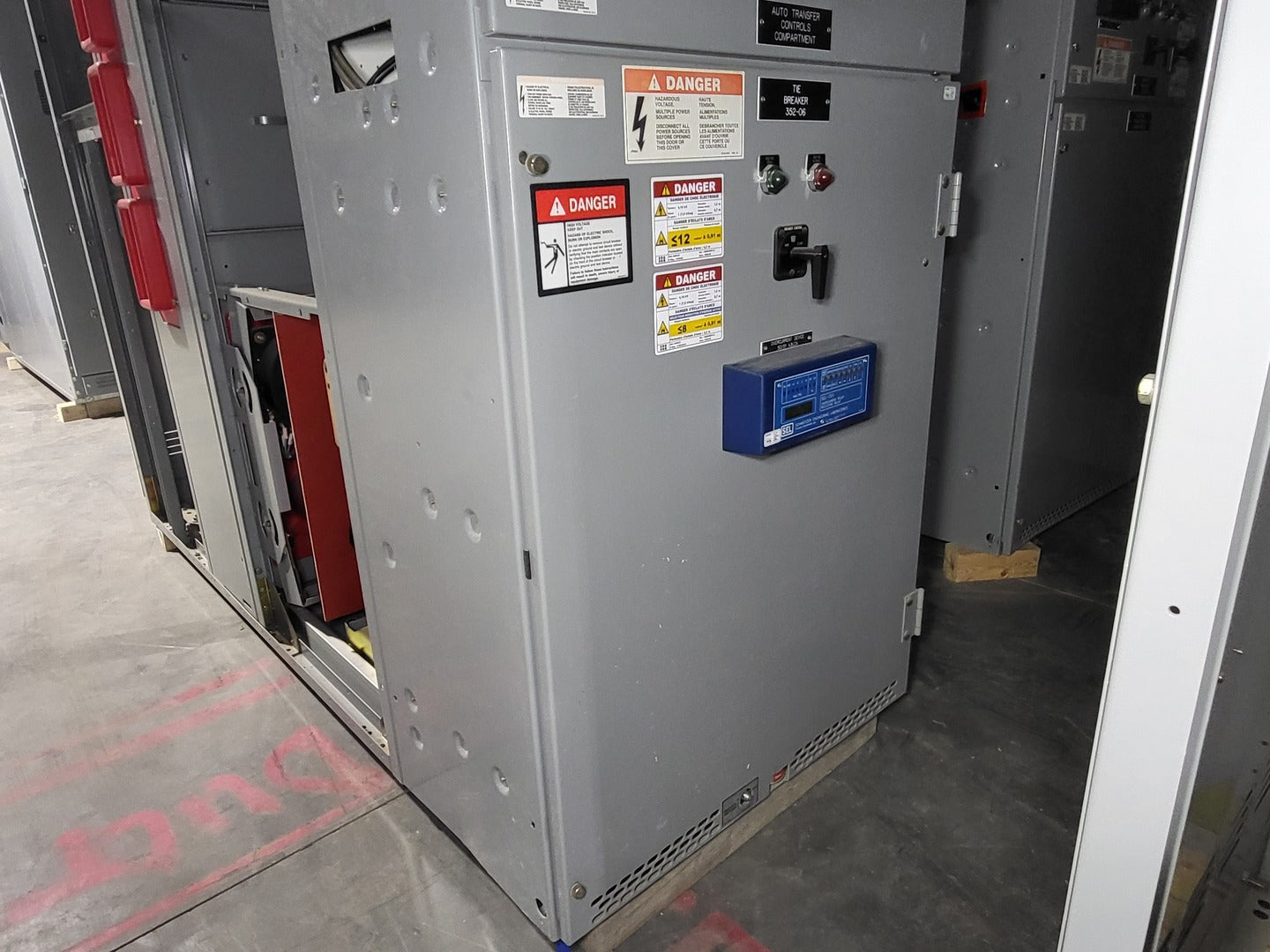

Relay Protection: SEL-551 Overcurrent Relay

Control Section: Auto Transfer Controls

Manufacture Date: 02/2002

Breaker Catalog No.: V5D3233Y000 A

Factory Order No.: 17-14005564-002

Included Components

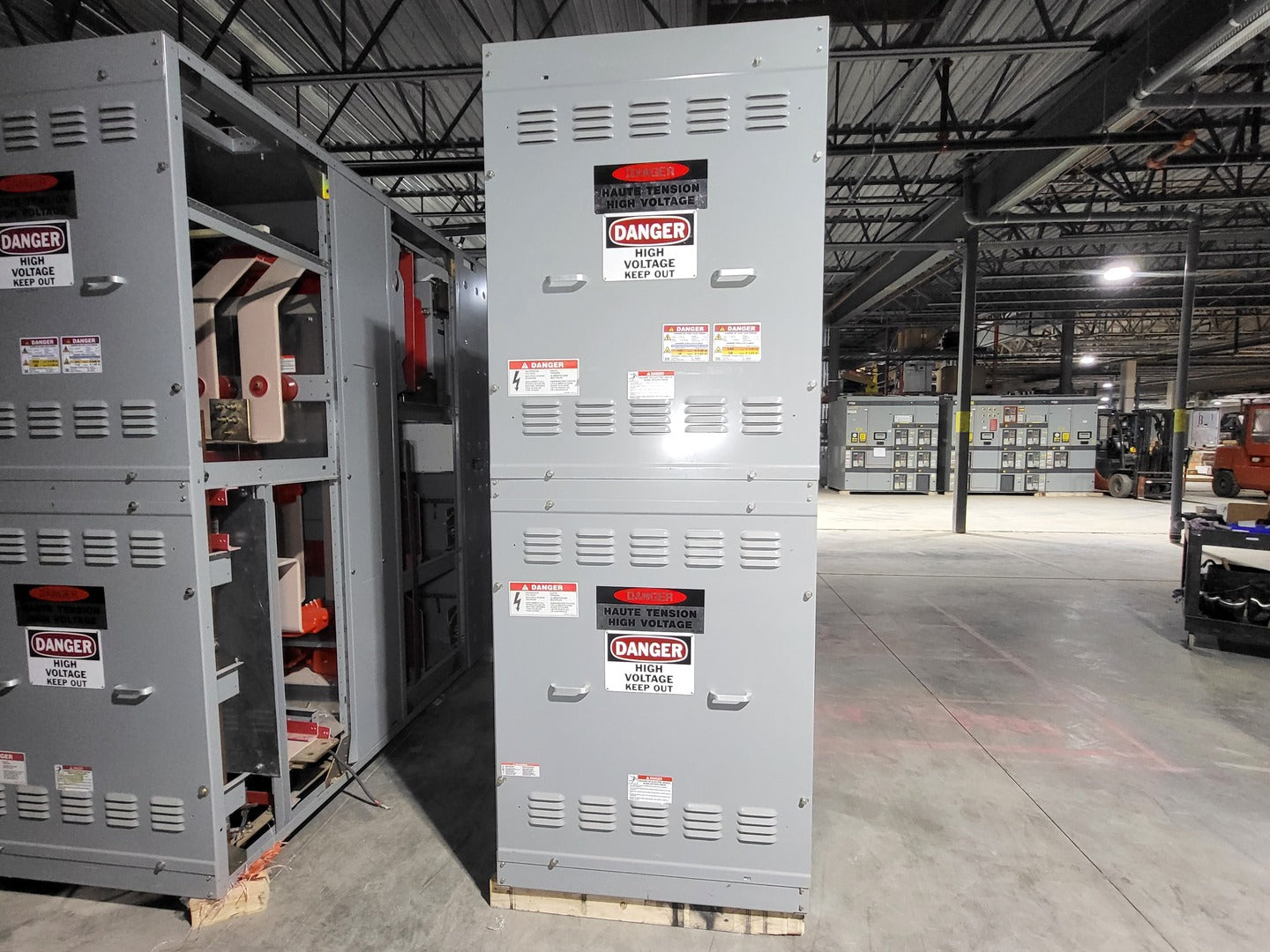

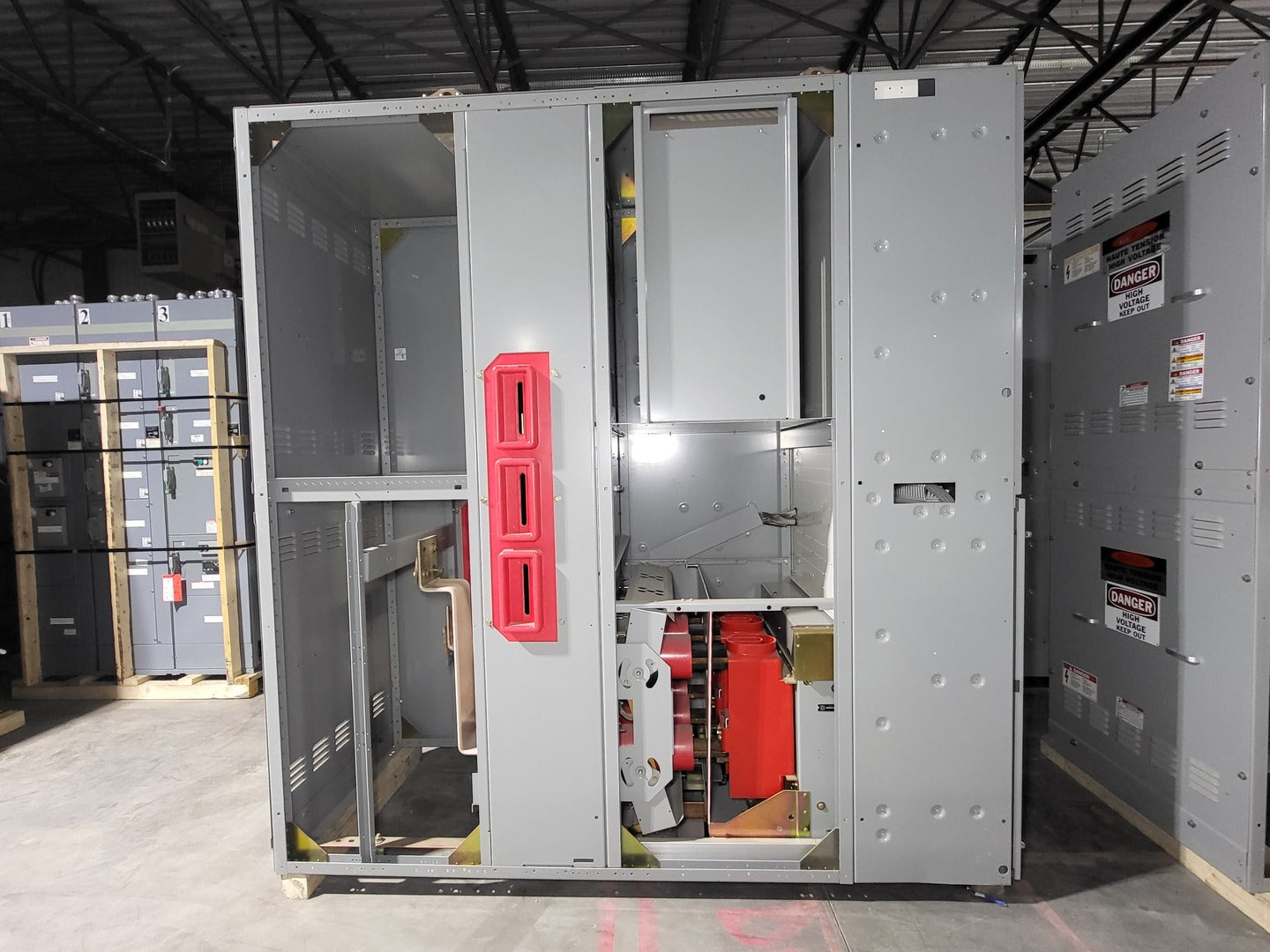

  1. Federal Pioneer metal-clad switchgear enclosure
  2. Square D VR drawout vacuum circuit breaker

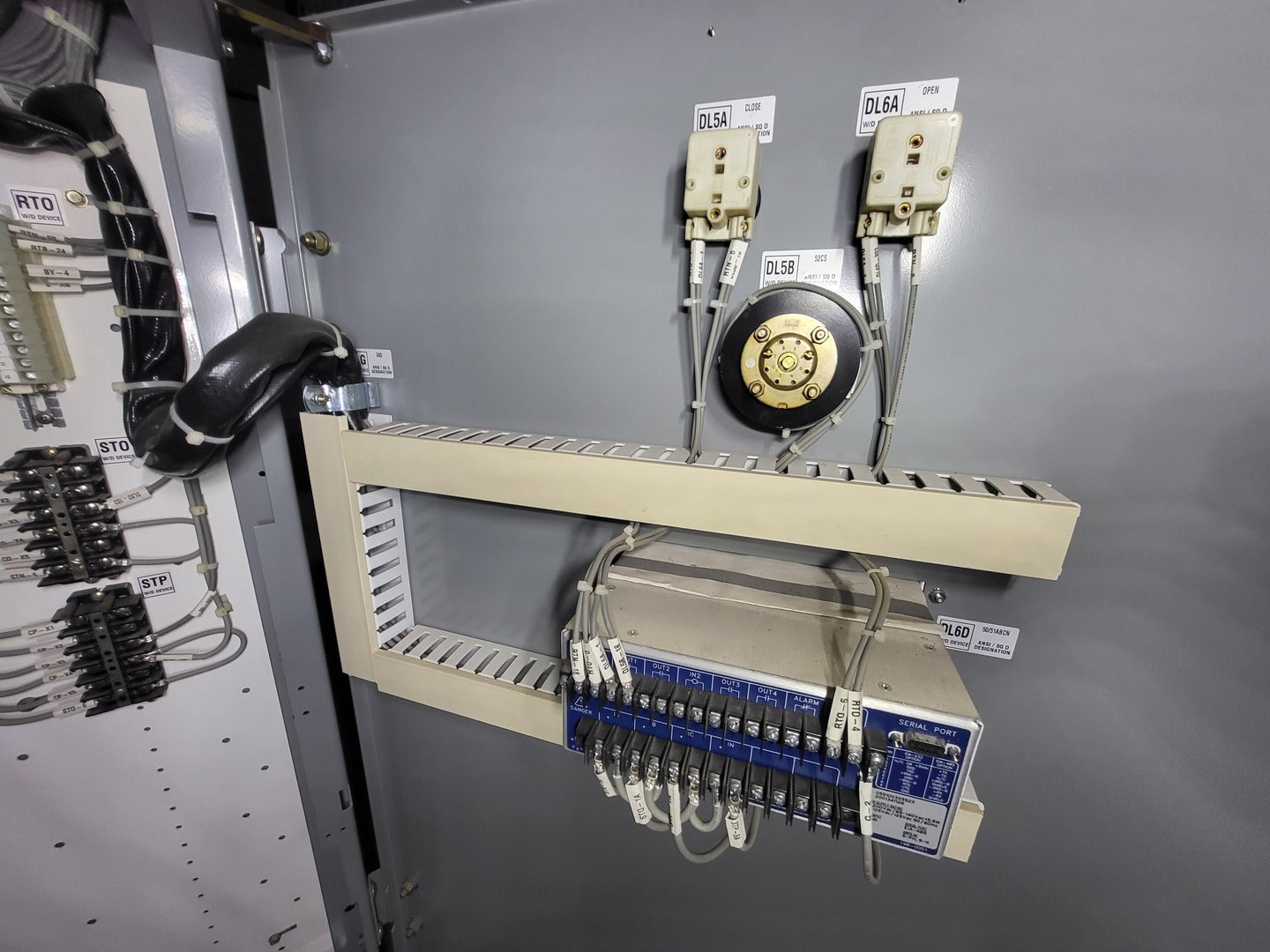

  3. SEL-551 overcurrent protection relay

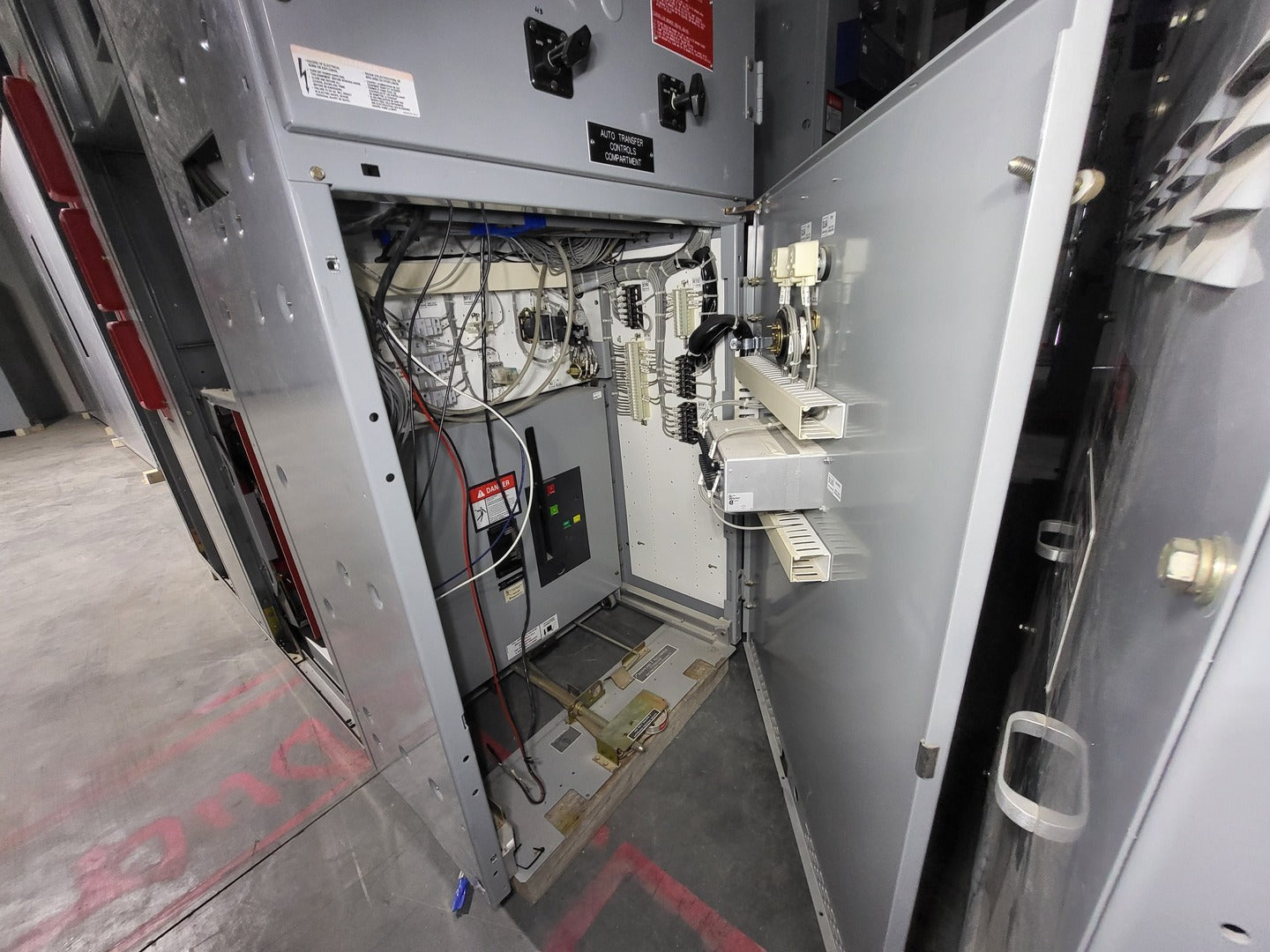

  4. Auto transfer control compartment

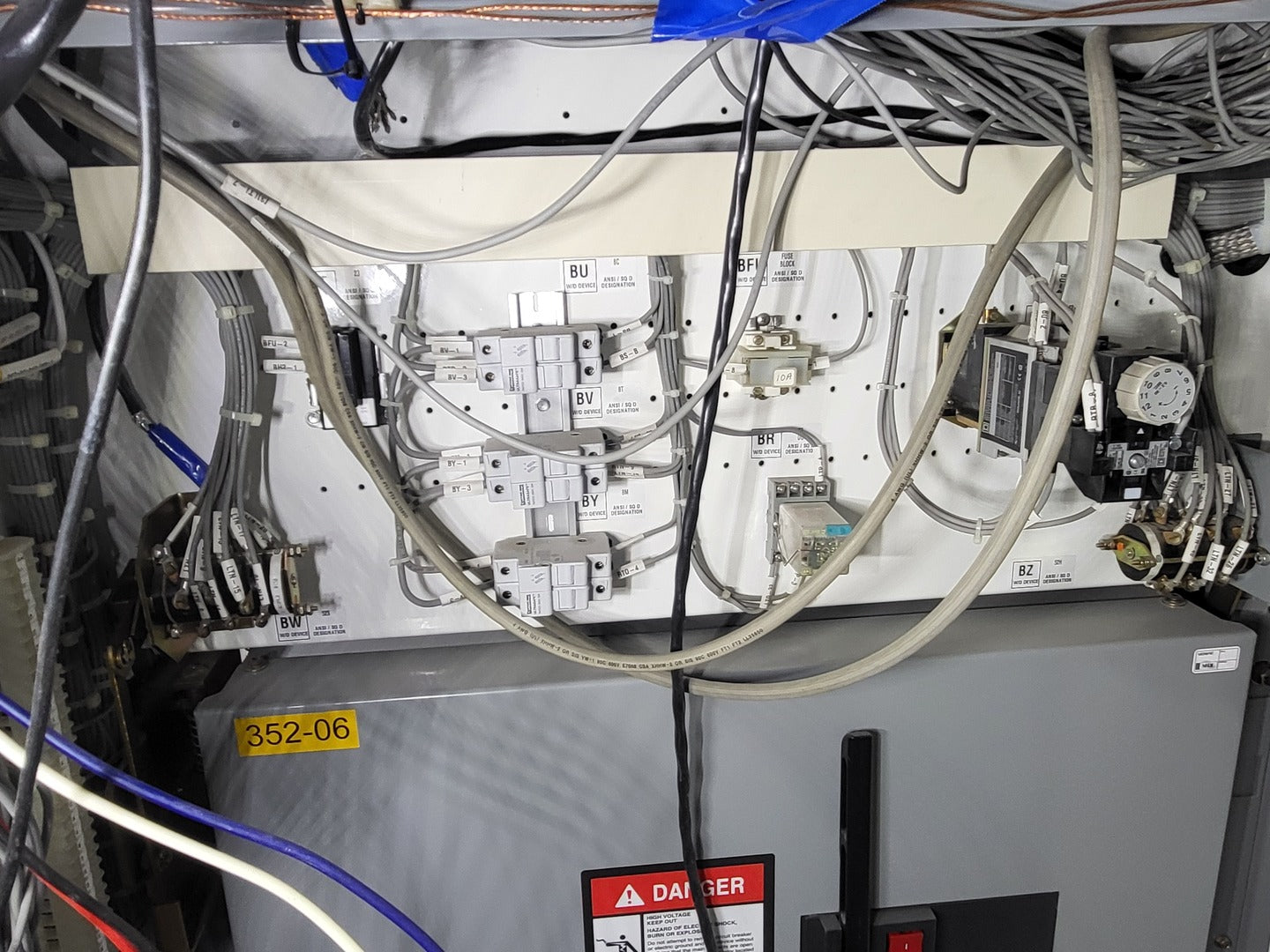

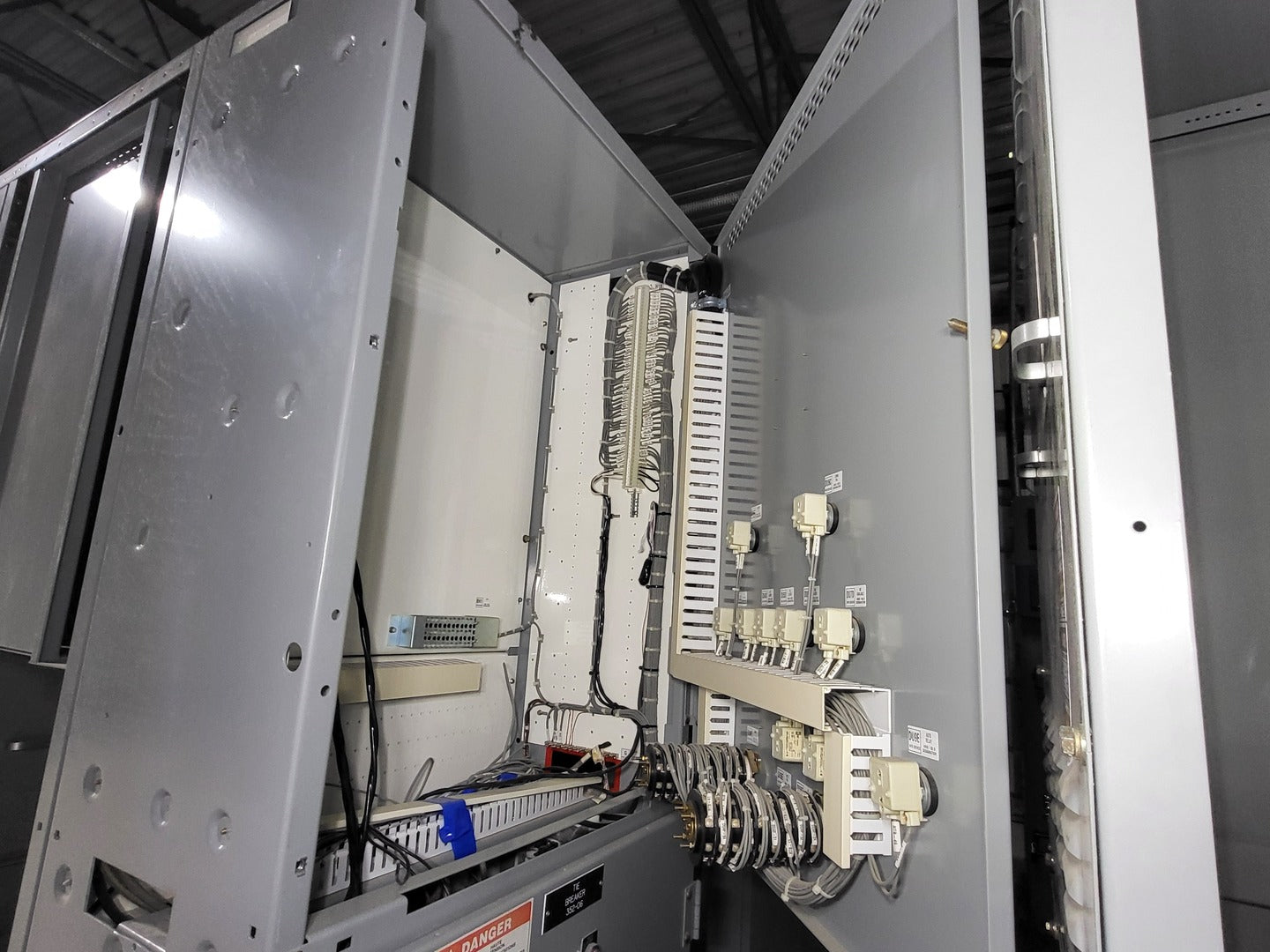

  5. Complete internal control wiring

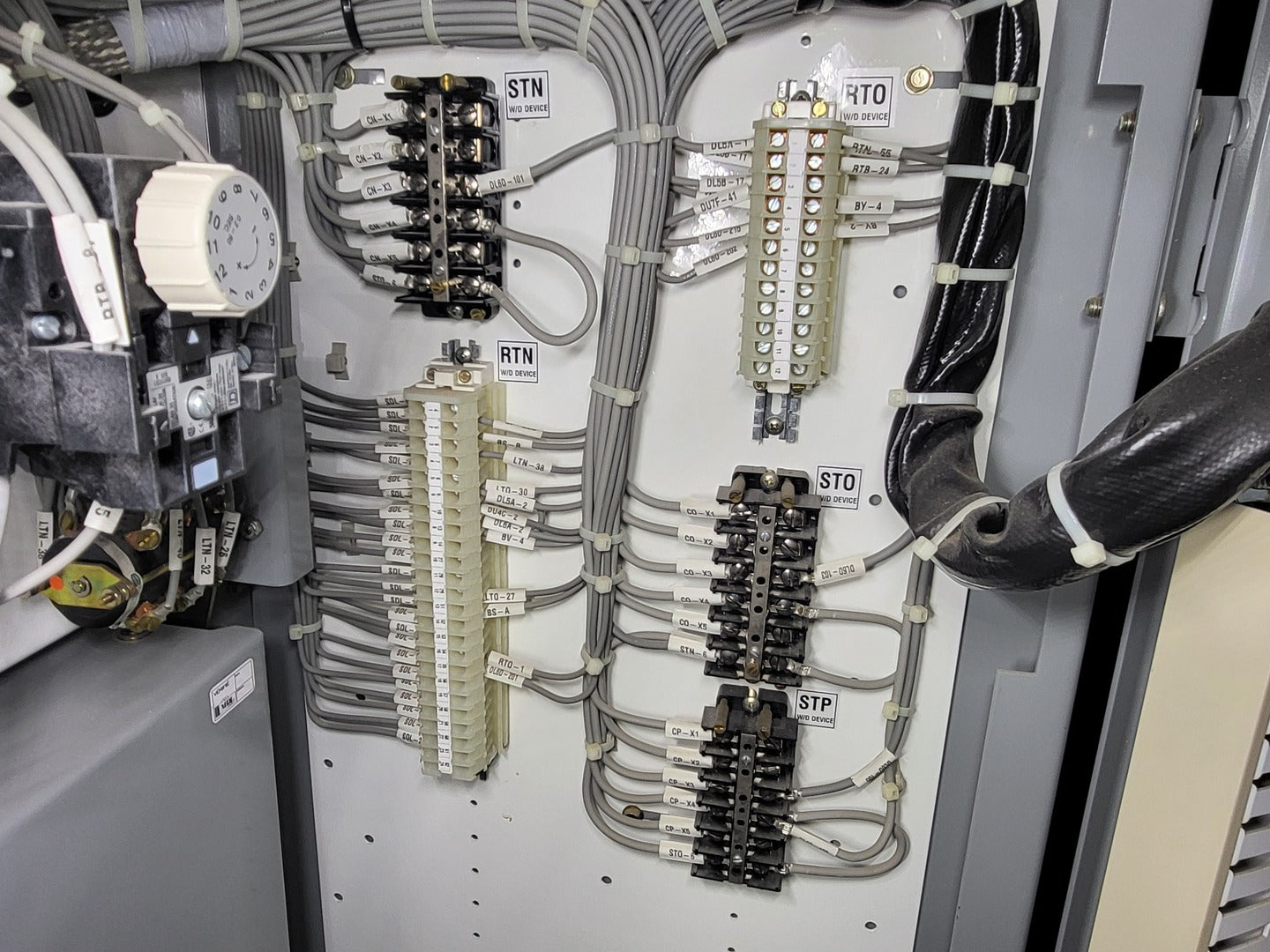

  6. Auxiliary relays and terminal strips
  7. Mechanical interlock/racking assemblies
  8. Bus structure and insulating assemblies

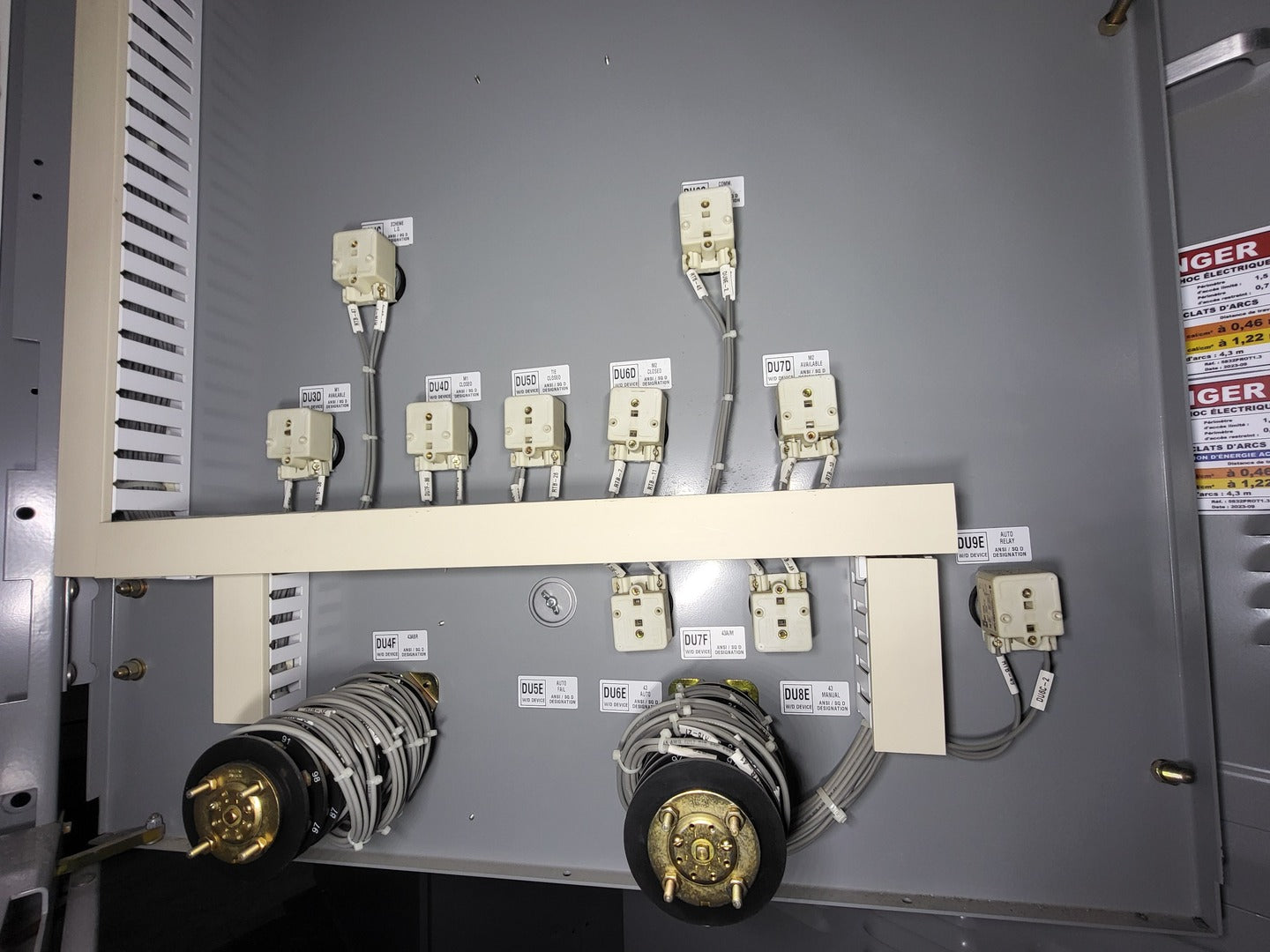

  9. Indicating lights and breaker controls
  10. Rear access compartments
  11. Drawout breaker cradle assembly

Features

  1. Drawout vacuum breaker design
  2. Automatic transfer control system
  3. SEL digital protection relay
  4. Heavy-duty 2000A horizontal bus
  5. Front-access operation
  6. Rear cable/control access
  7. Industrial metal-clad safety construction
  8. Arc-flash labeling installed
  9. Clean, labeled internal wiring
  10. Modular serviceable compartments

Suitable for:

  1. Utility substations
  2. Industrial power distribution
  3. Mining operations
  4. Petrochemical facilities
  5. Data centers
  6. Critical infrastructure
  7. Institutional facilities
  8. Medium-voltage tie breaker systems
  9. Automatic transfer applications
  10. Electrical distribution modernization projects
