Descripción

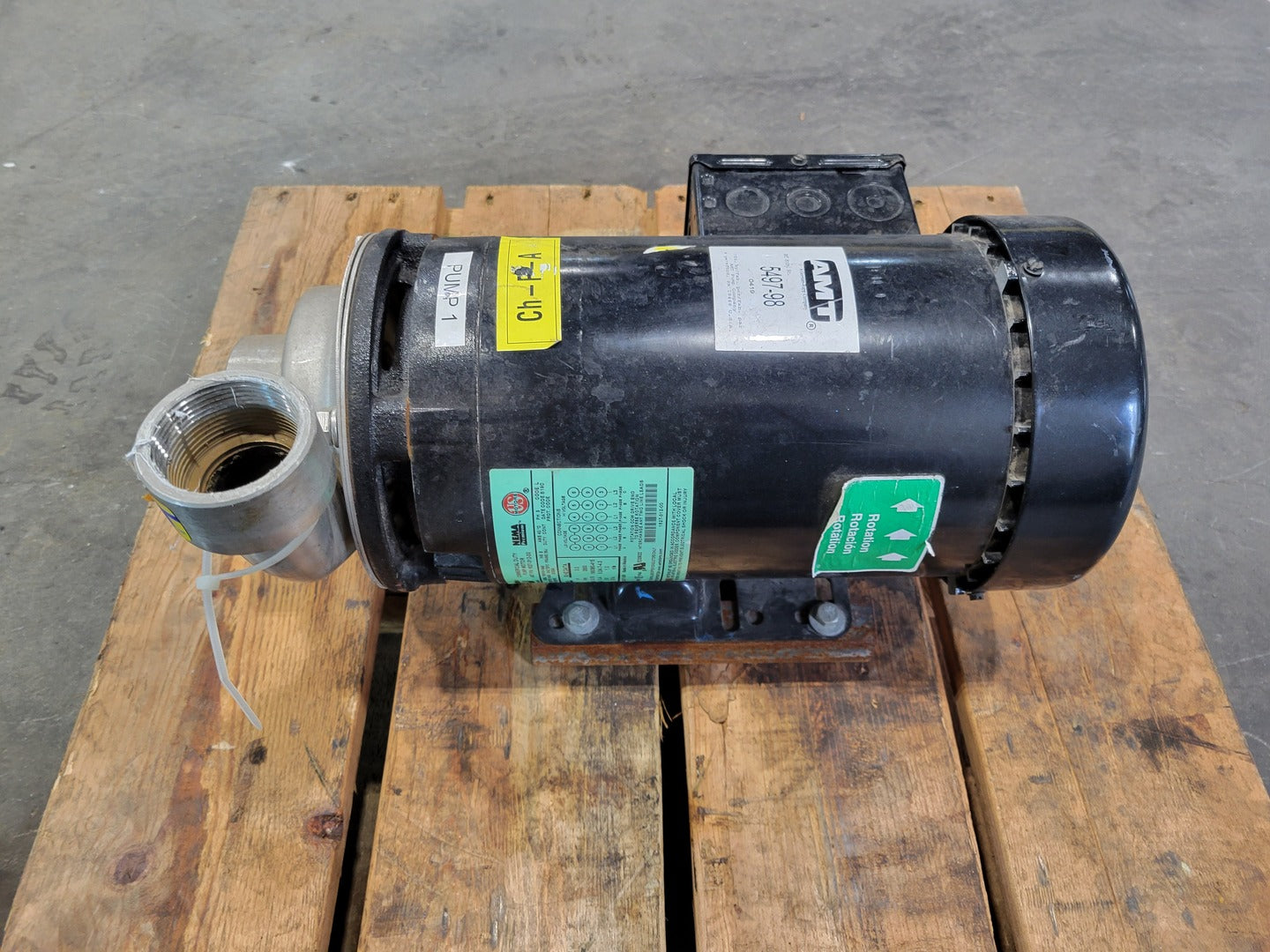

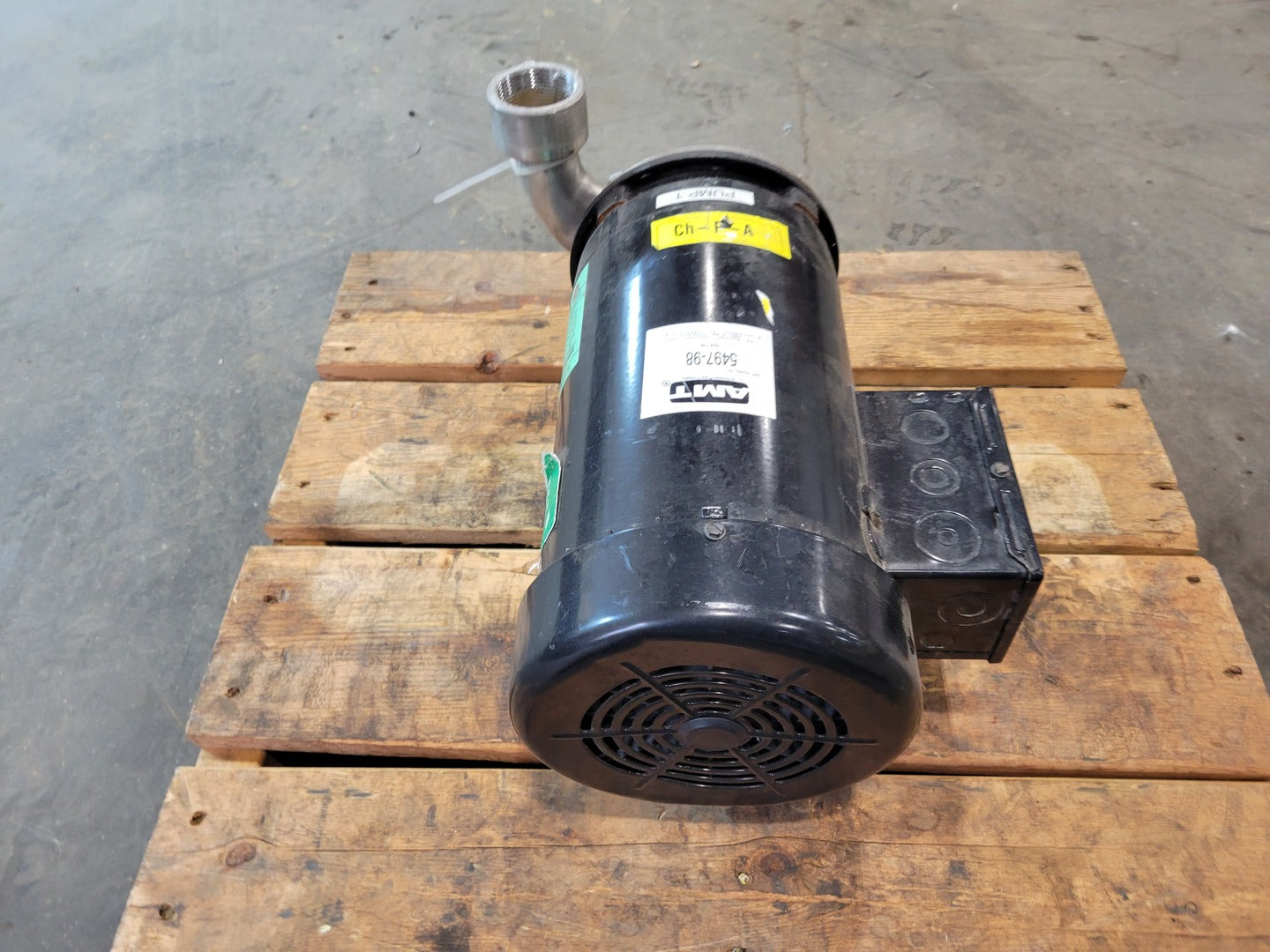

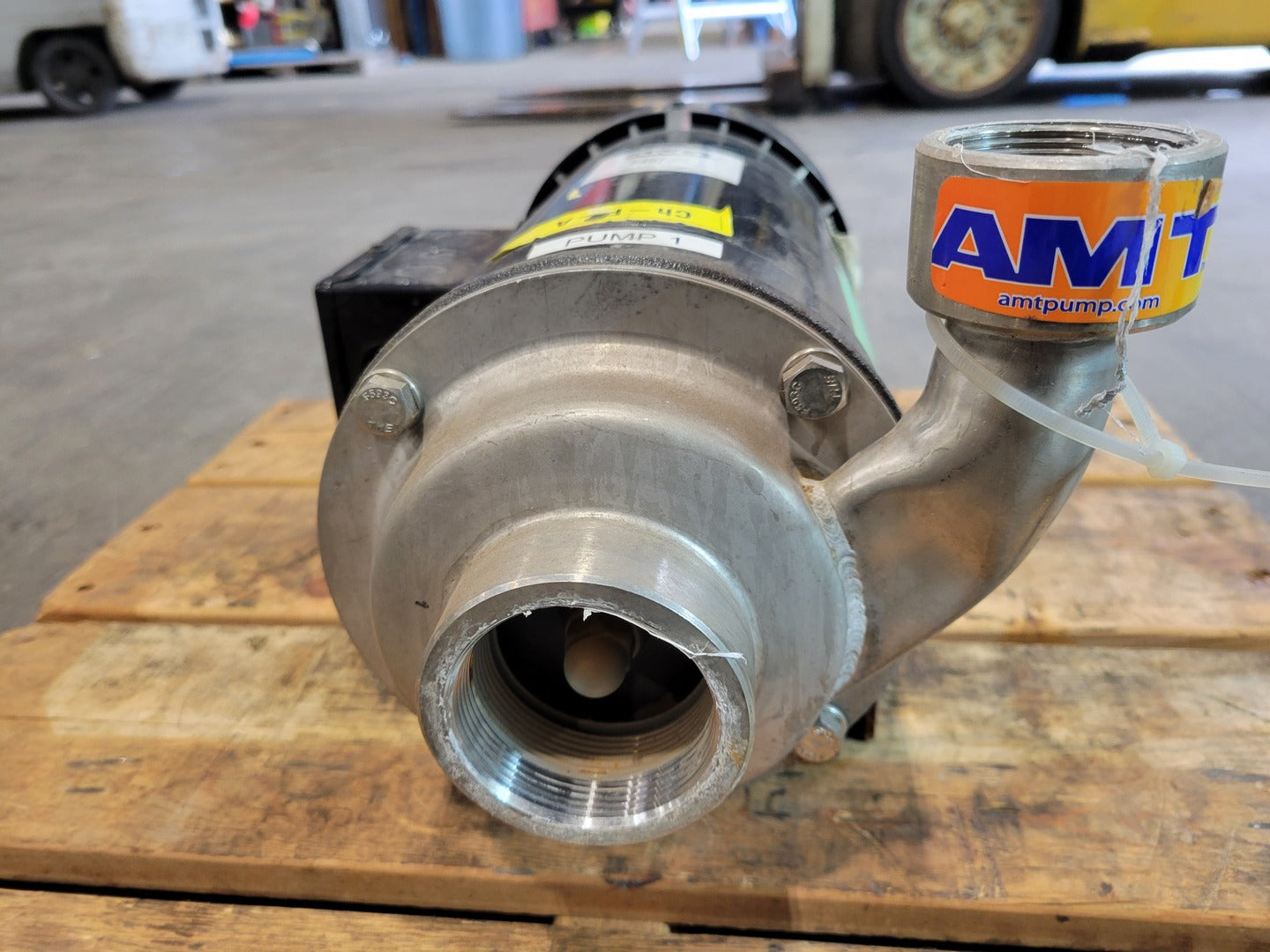

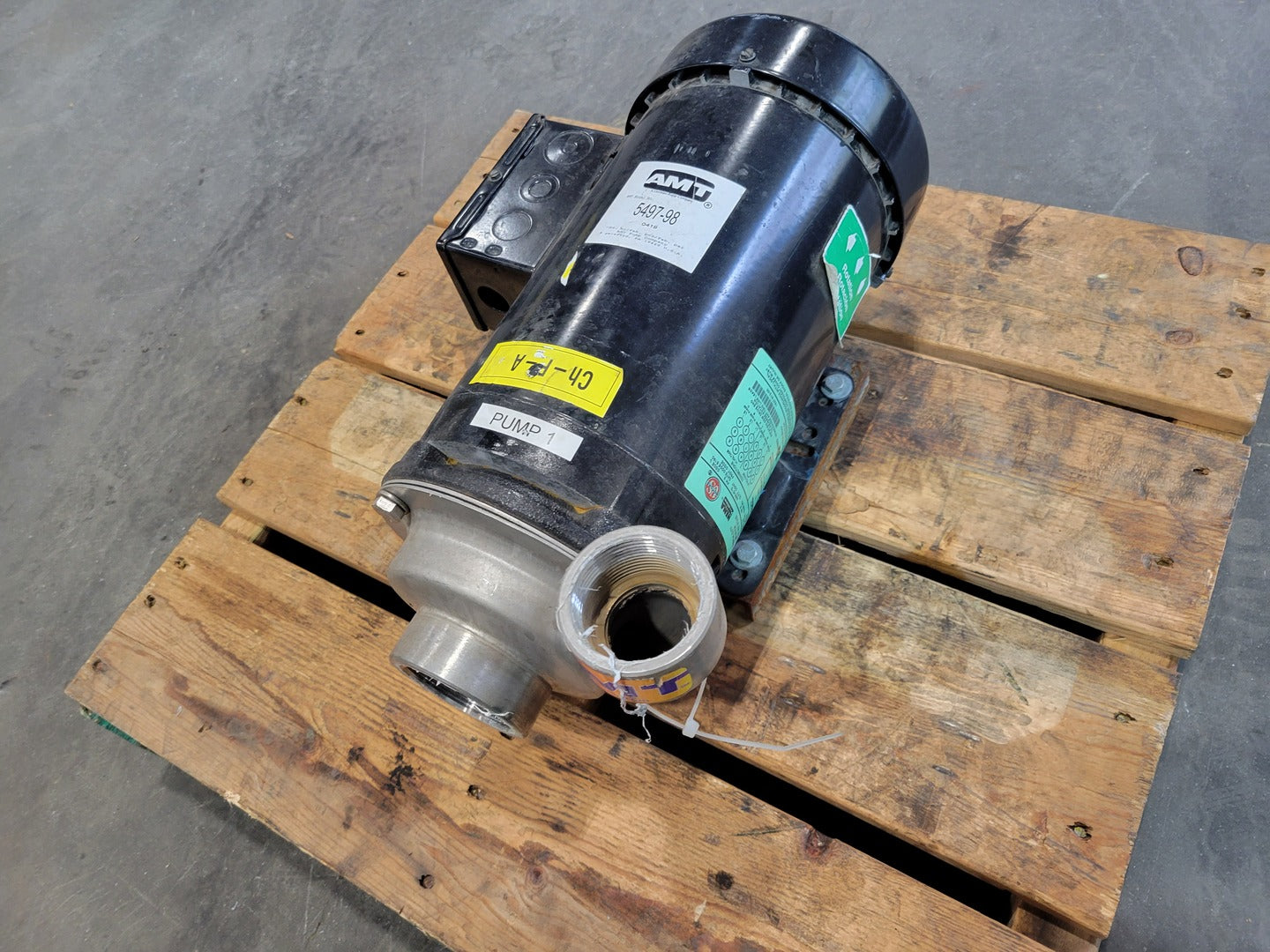

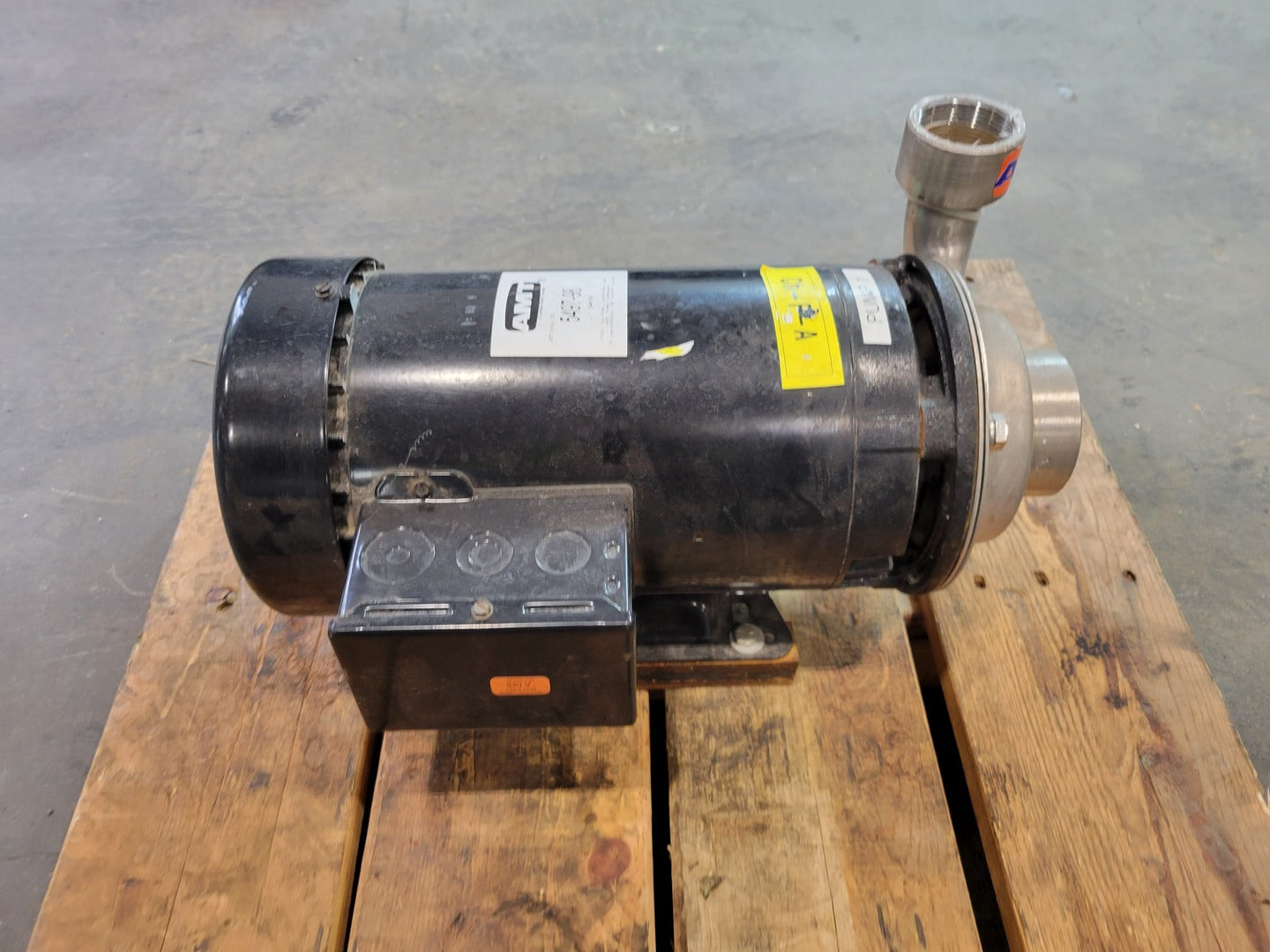

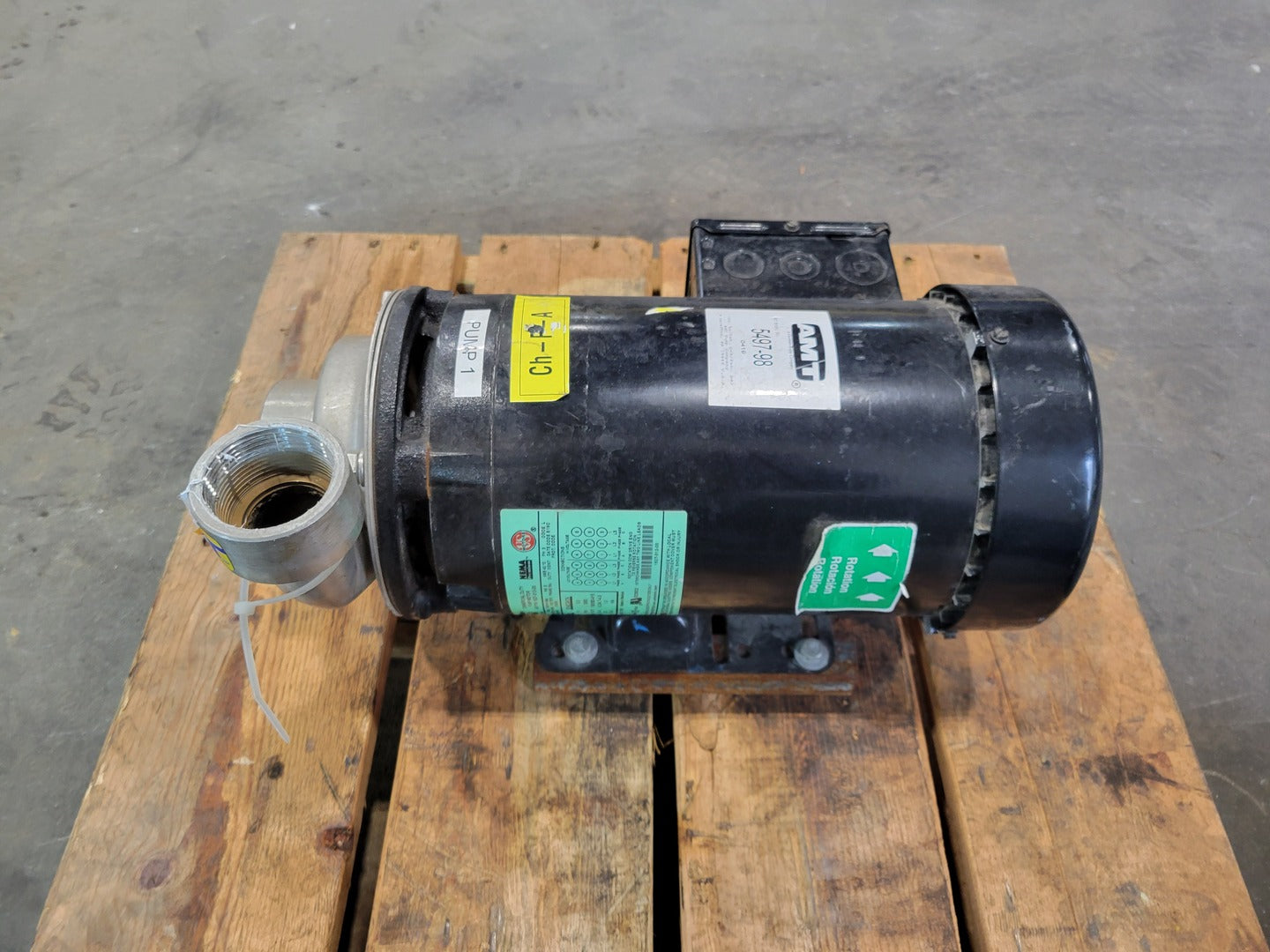

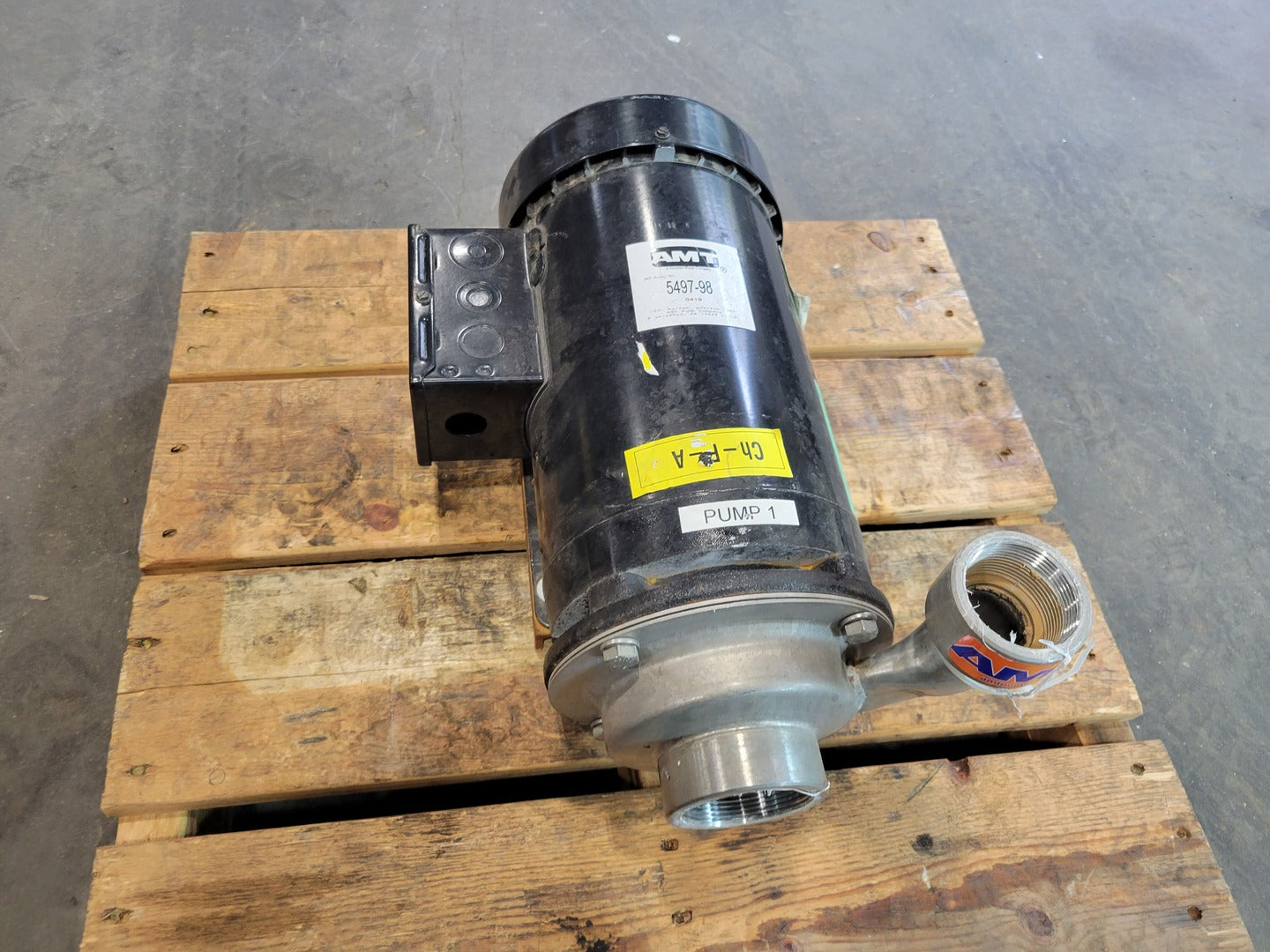

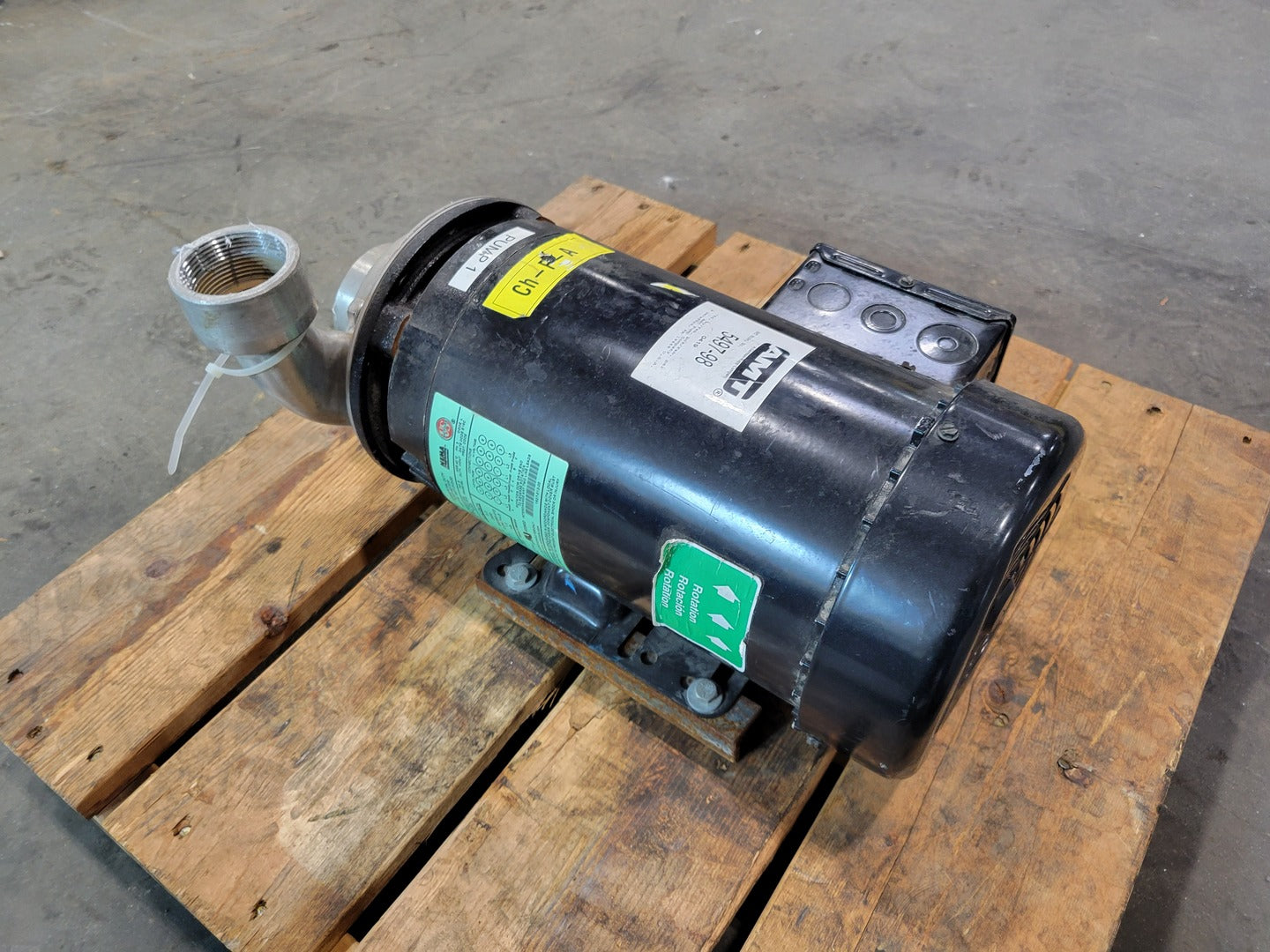

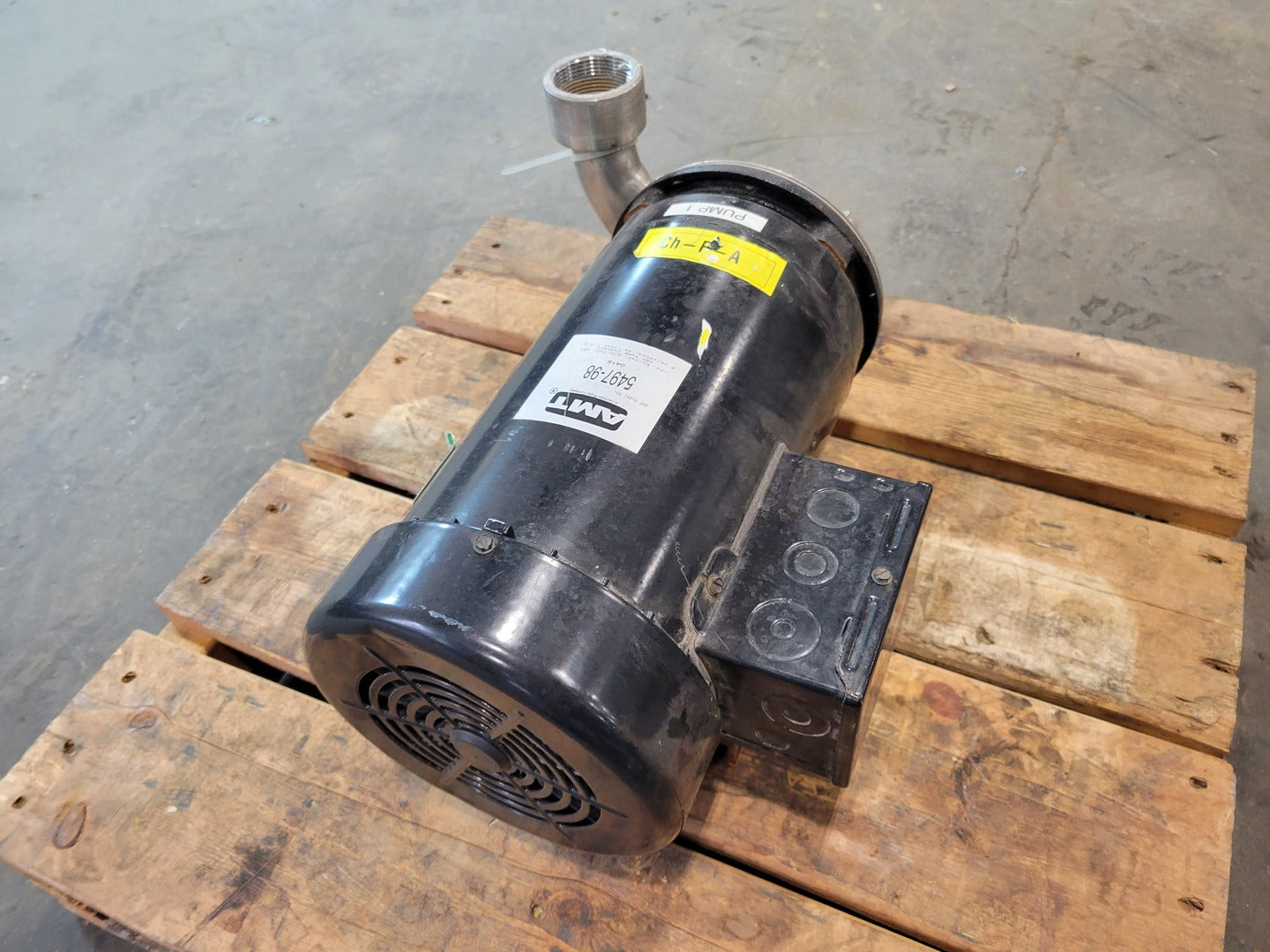

The AMT 5497-98 is a 3 HP high-volume stainless steel centrifugal pump designed for industrial fluid transfer, circulation, pressure boosting and chemical processing applications.
| Specifications | |
|---|---|

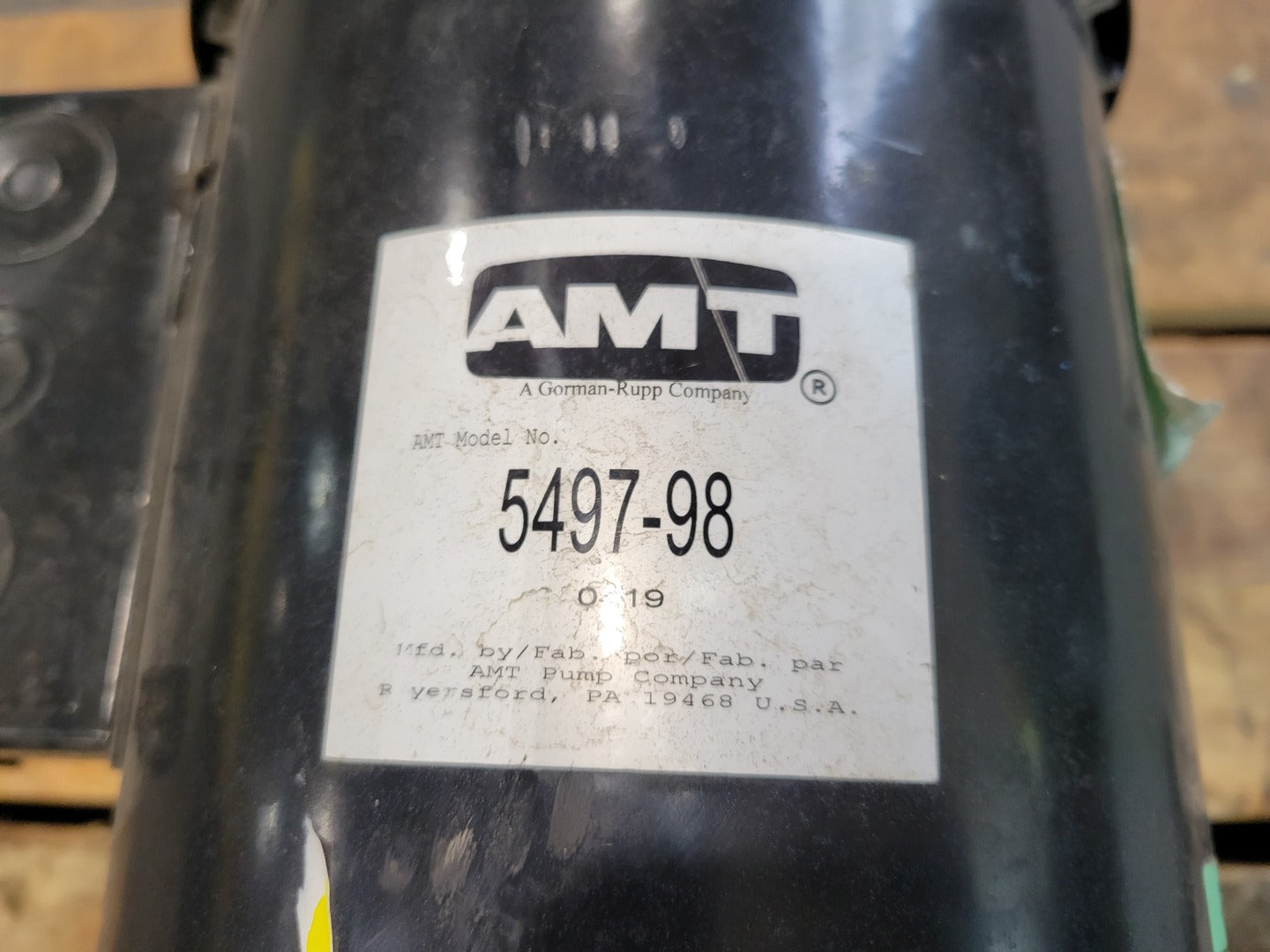

| Model | 5497-98 |
| Condition | Used | General |
| Horsepower | 3 hp |
| GPM | 156 |
| PSI | 150 |
| RPM | 3450 rpm | Electrical |
| Voltage | 230/460 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

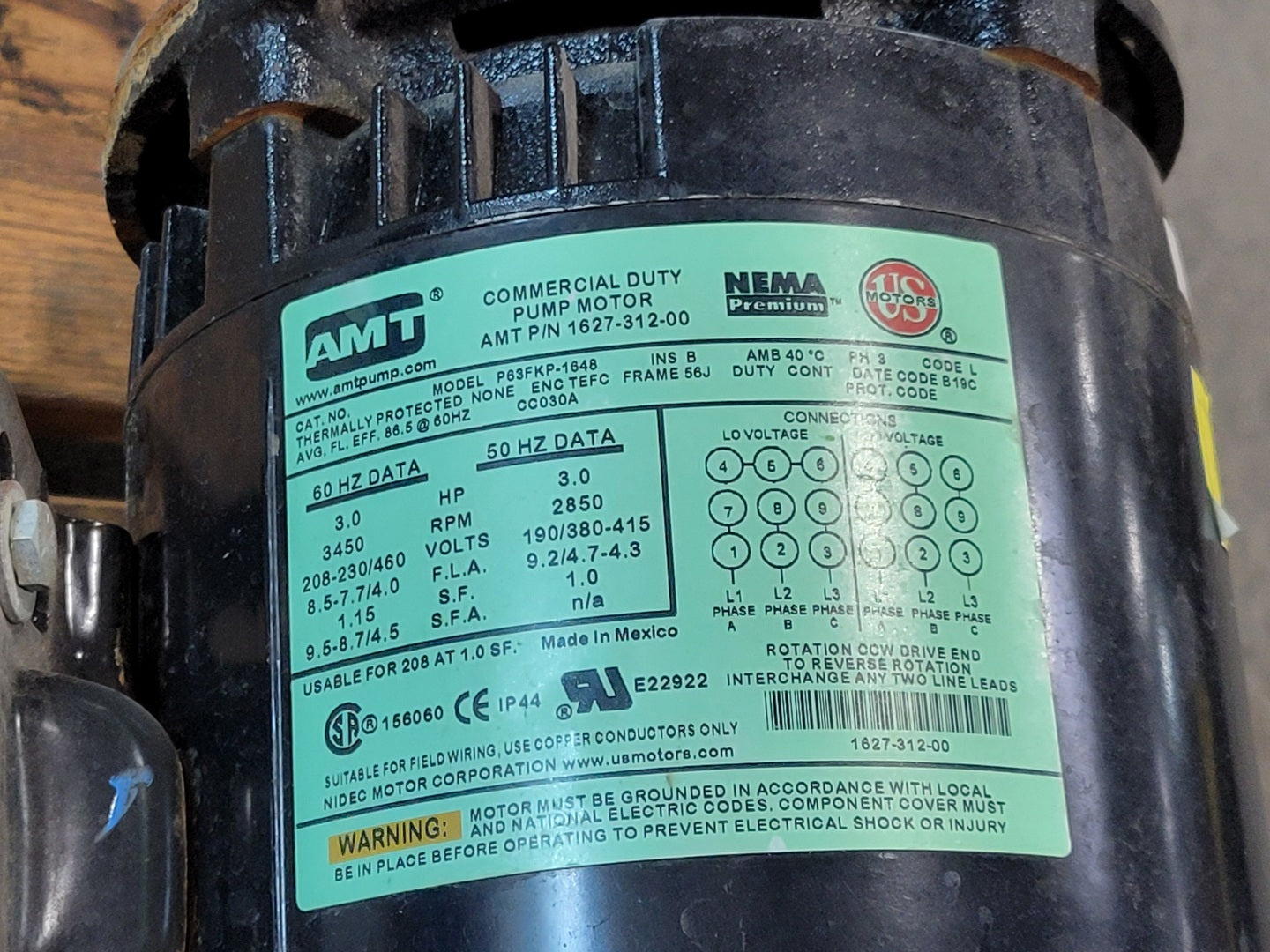

Motor Part Number: 1627-312-00 Motor Model: P63EKP-1648 Voltage: 208-230/460V Frequency: 60 Hz Full Load Amps: 8.5-7.7/4.0A Service Factor: 1.15 @ 60 Hz Motor Frame: 56J Motor Enclosure: TEFC (Totally Enclosed Fan Cooled) Motor Duty: Continuous Insulation Class: B Motor Efficiency: 86.5% @ 60 Hz Pump Casing Material: Stainless Steel Impeller Material: Stainless Steel Seal Material: Viton Mechanical Seal Inlet Size: 2 in. // 50.8 mm Outlet Size: 1.5 in. // 38.1 mm Connection Type: Female NPT Threaded Maximum Liquid Temperature: 200°F // 93°C Maximum Solids Handling: 1/8 in. // 3.18 mm |
