Descripción
| Specifications | |
|---|---|

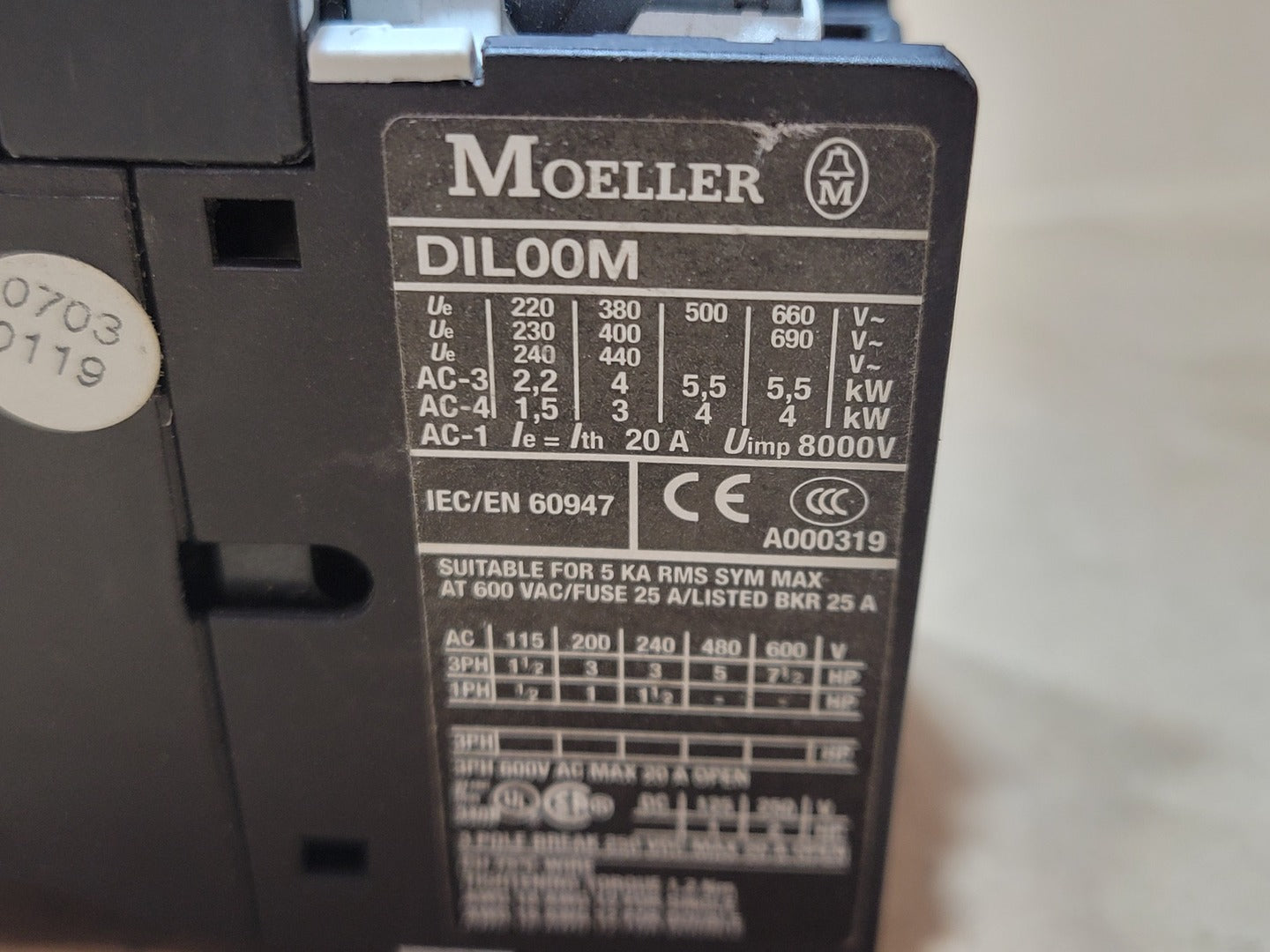

| Model | DIL00M |
| Condition | Used |
| Other Specifications |
|---|
|

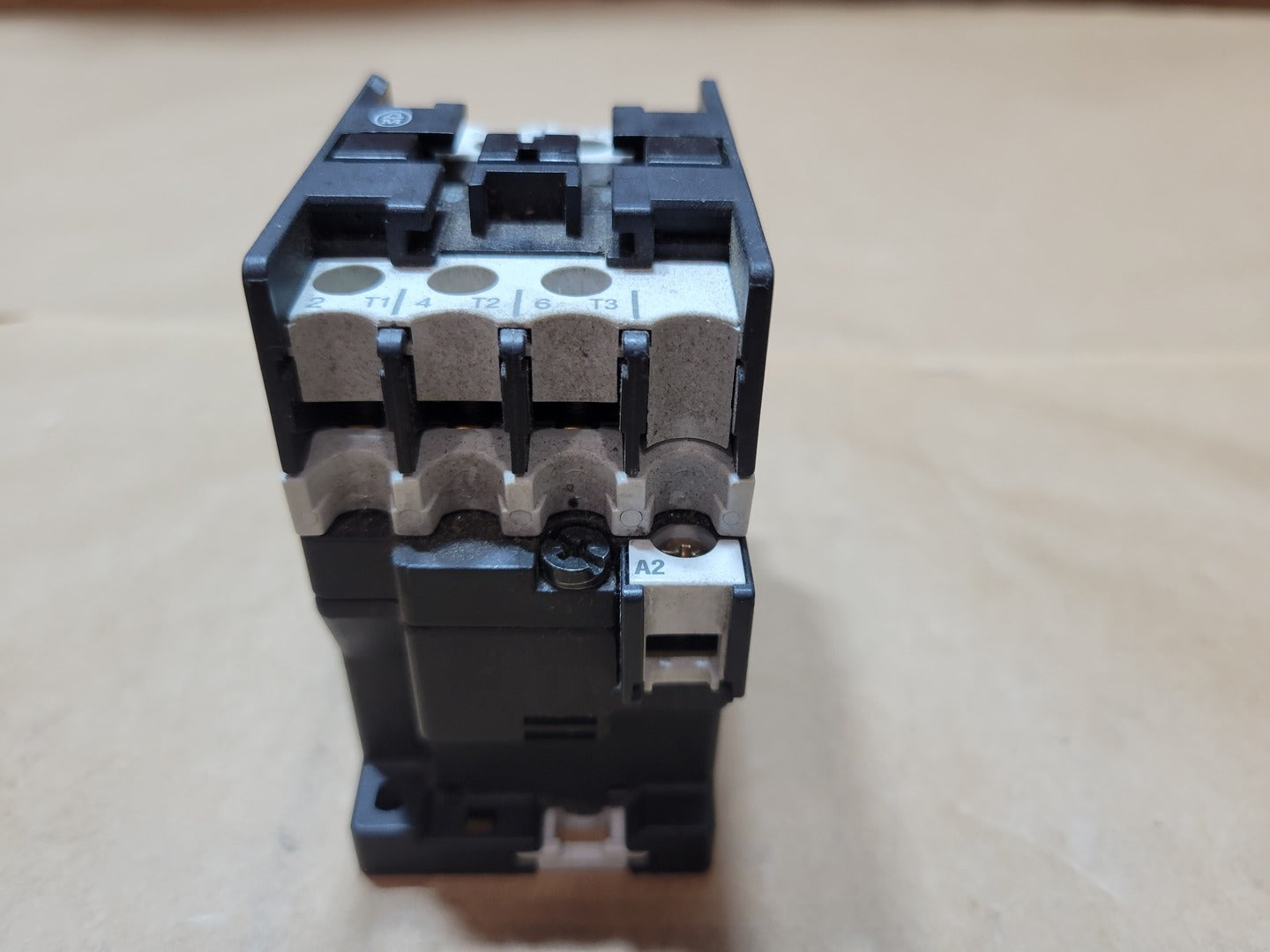

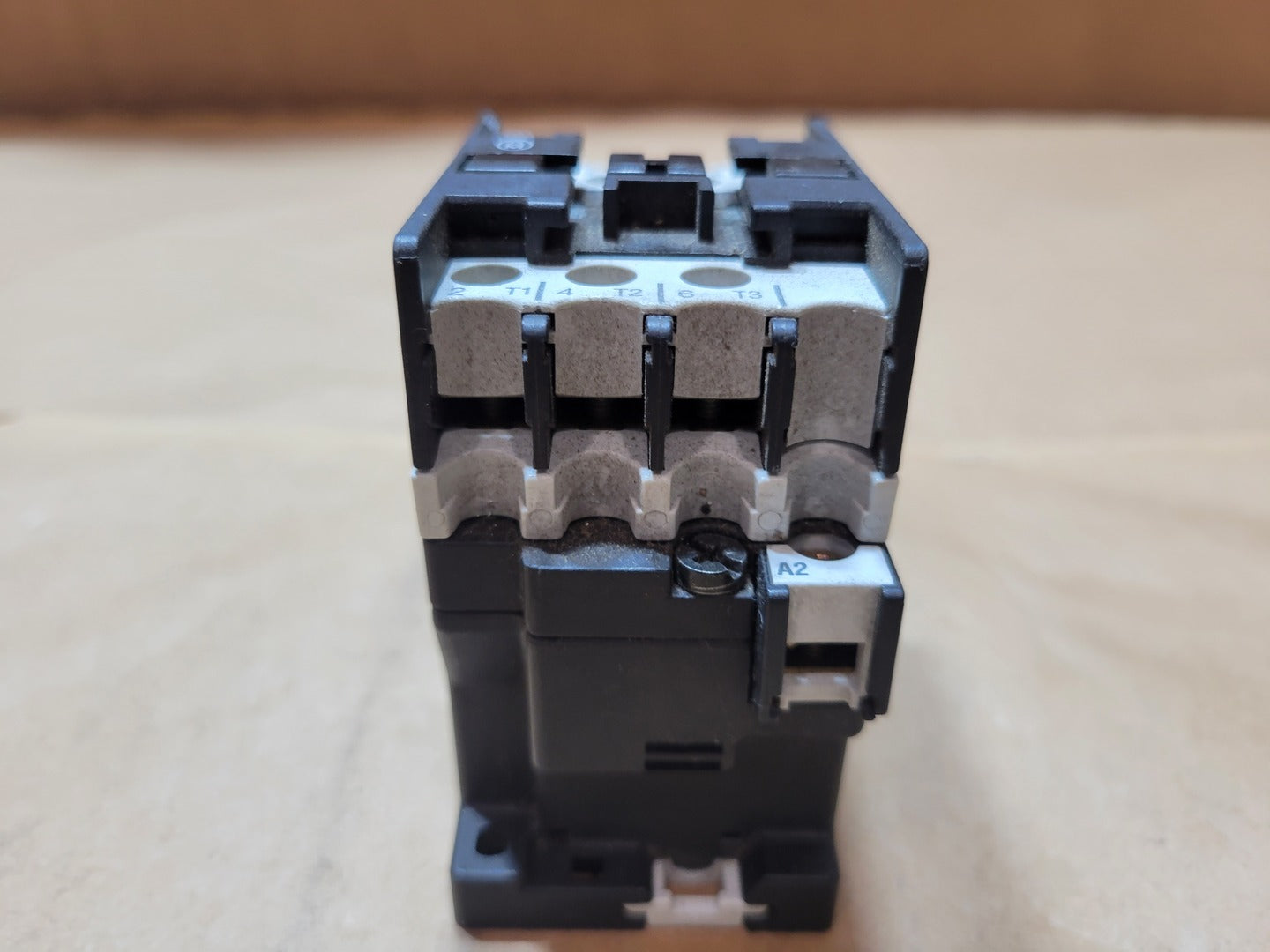

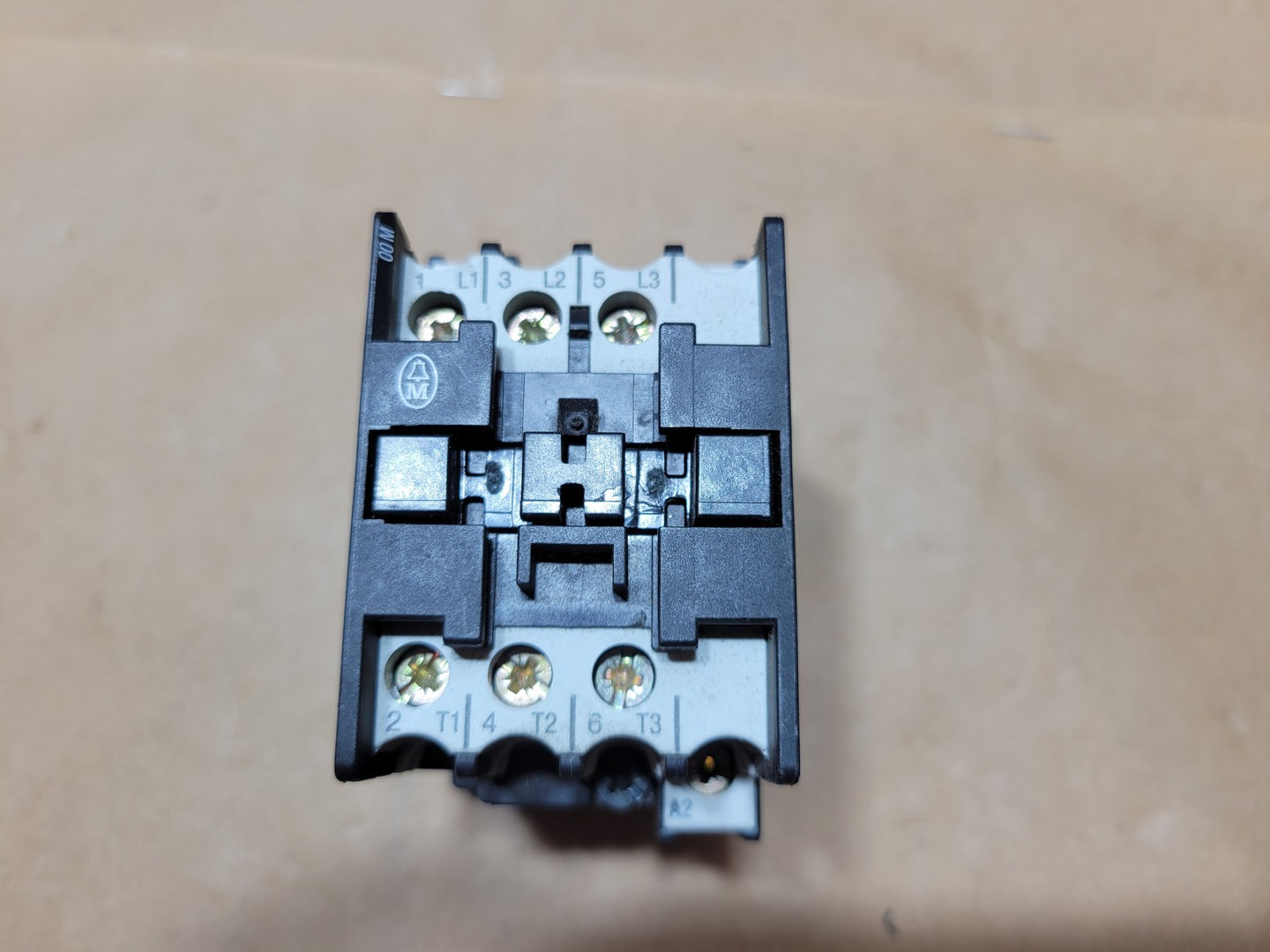

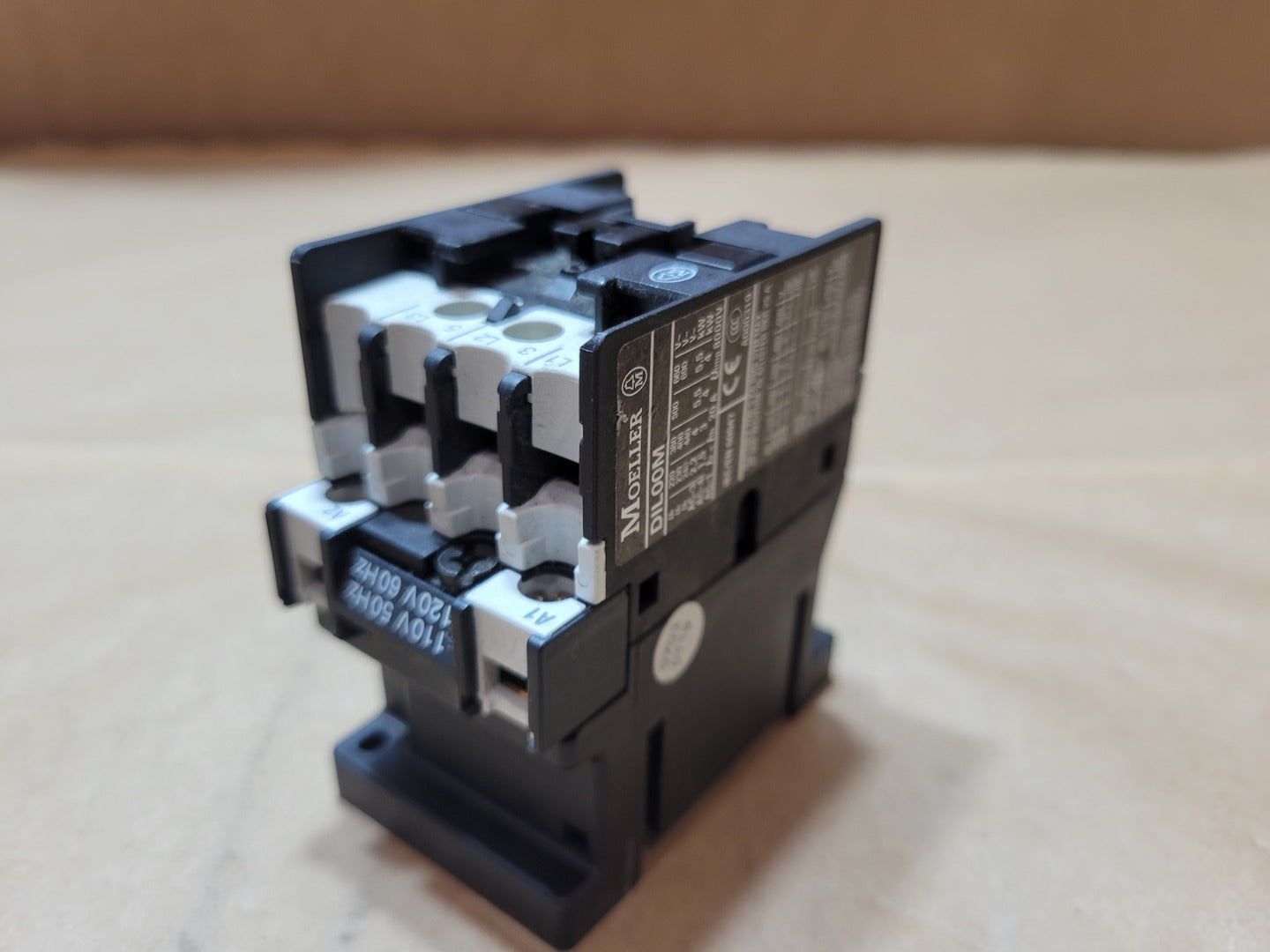

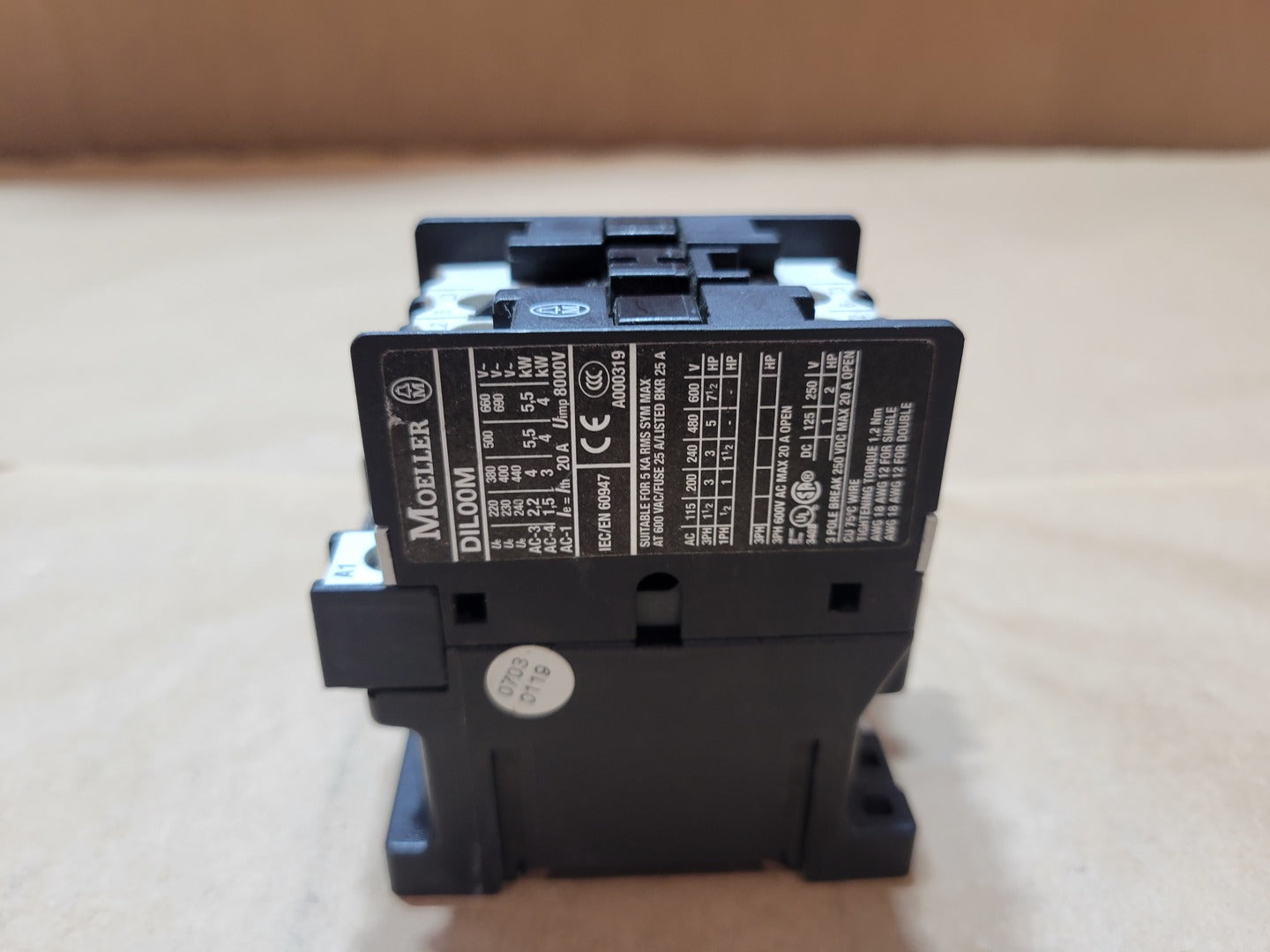

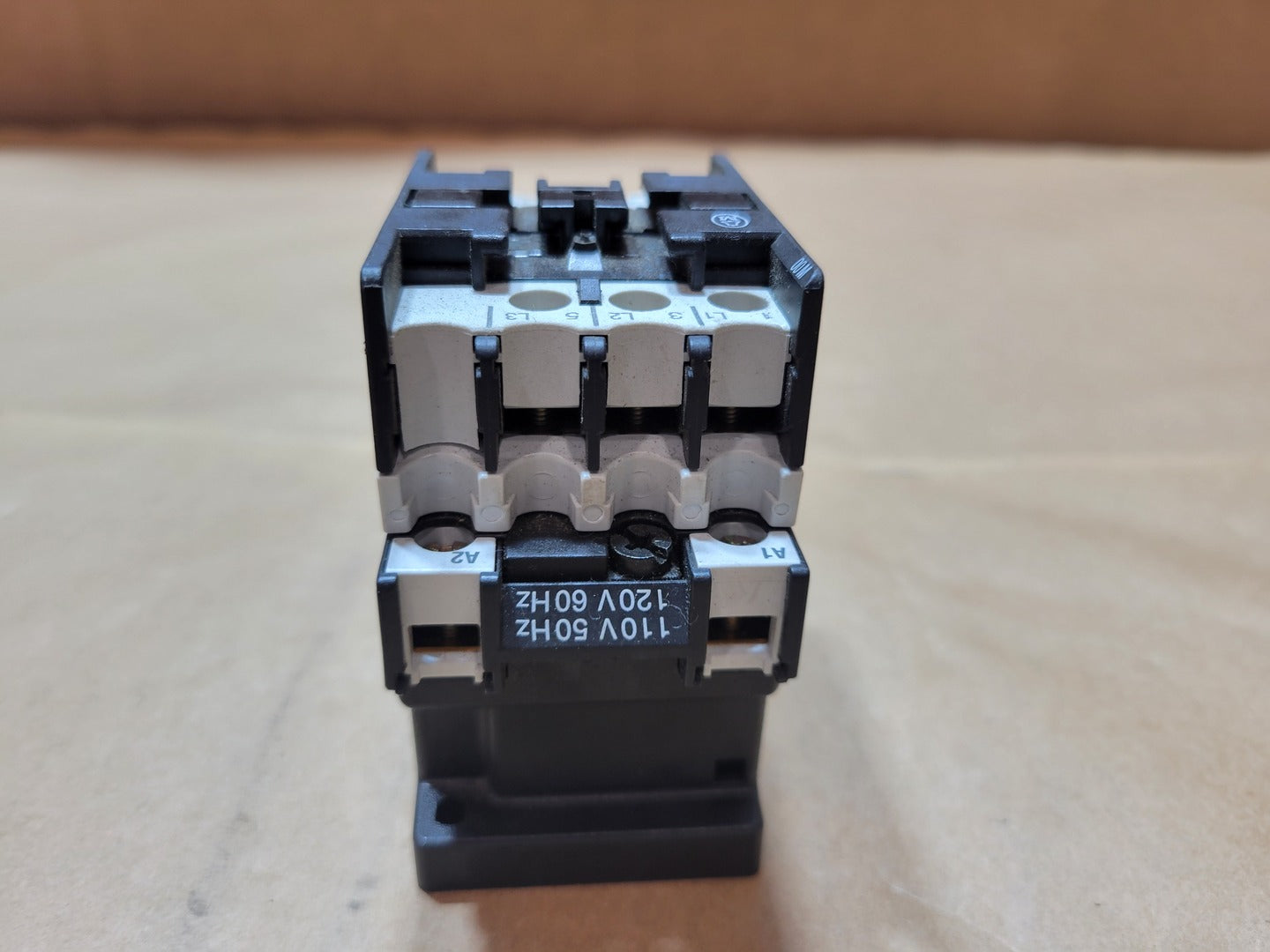

Device type: Electromagnetic IEC contactor Number of main poles: Three Main contact configuration: Three normally open poles Line terminals: 1/L1, 3/L2 and 5/L3 Load terminals: 2/T1, 4/T2 and 6/T3 Coil terminal: A2 visible; A1 expected on opposite side Coil voltage at 50 Hz: 110 VAC Coil voltage at 60 Hz: 120 VAC AC-1 rated current: 20 A Conventional thermal current: 20 A Rated impulse withstand voltage: 8 kV Maximum rated operating voltage: 690 VAC 115 VAC, single-phase: 1/2 HP 200 VAC, single-phase: 1 HP 240 VAC, single-phase: 1-1/2 HP 200 VAC, three-phase: 3 HP 240 VAC, three-phase: 3 HP 480 VAC, three-phase: 5 HP |
