Descripción

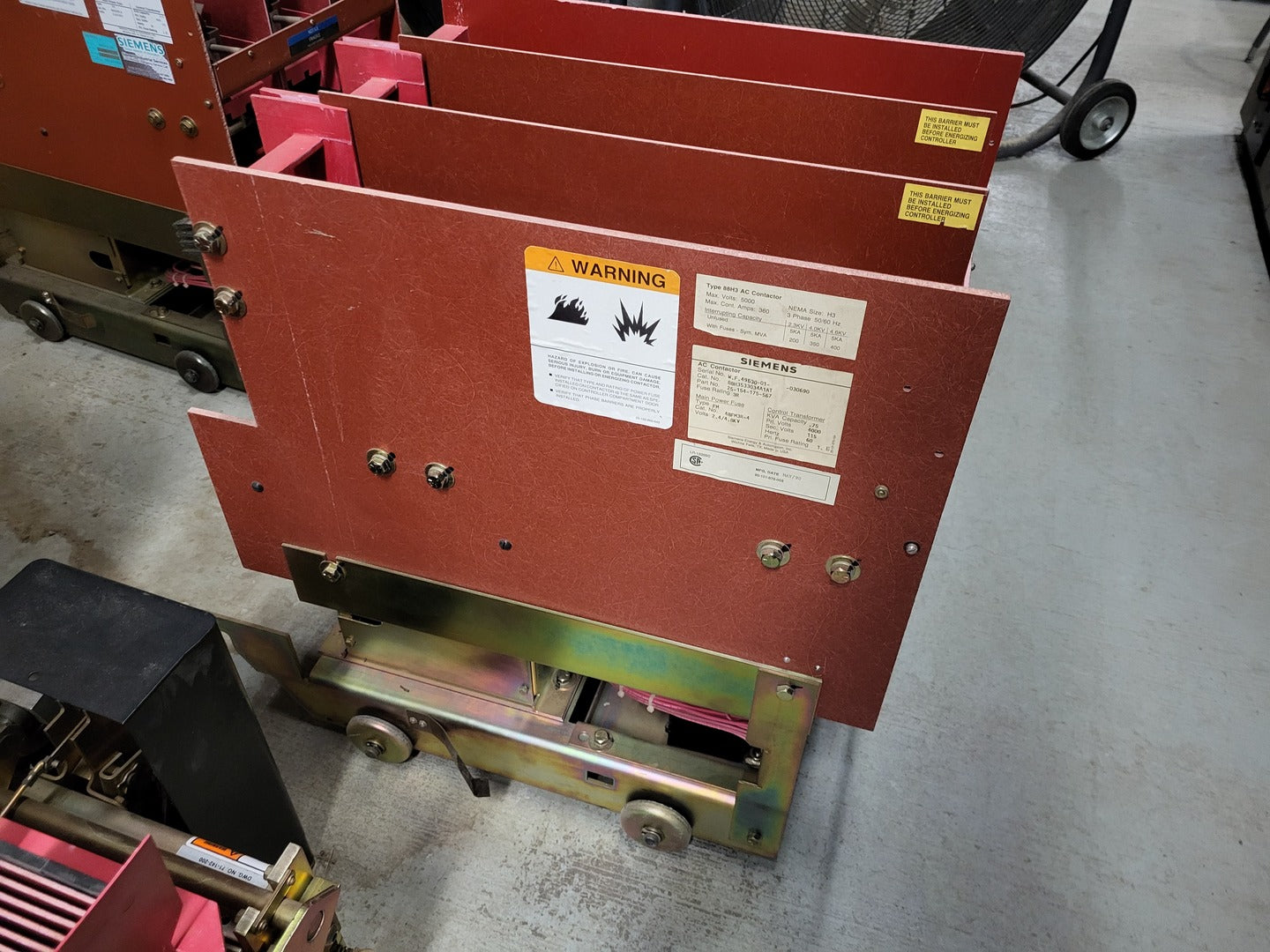

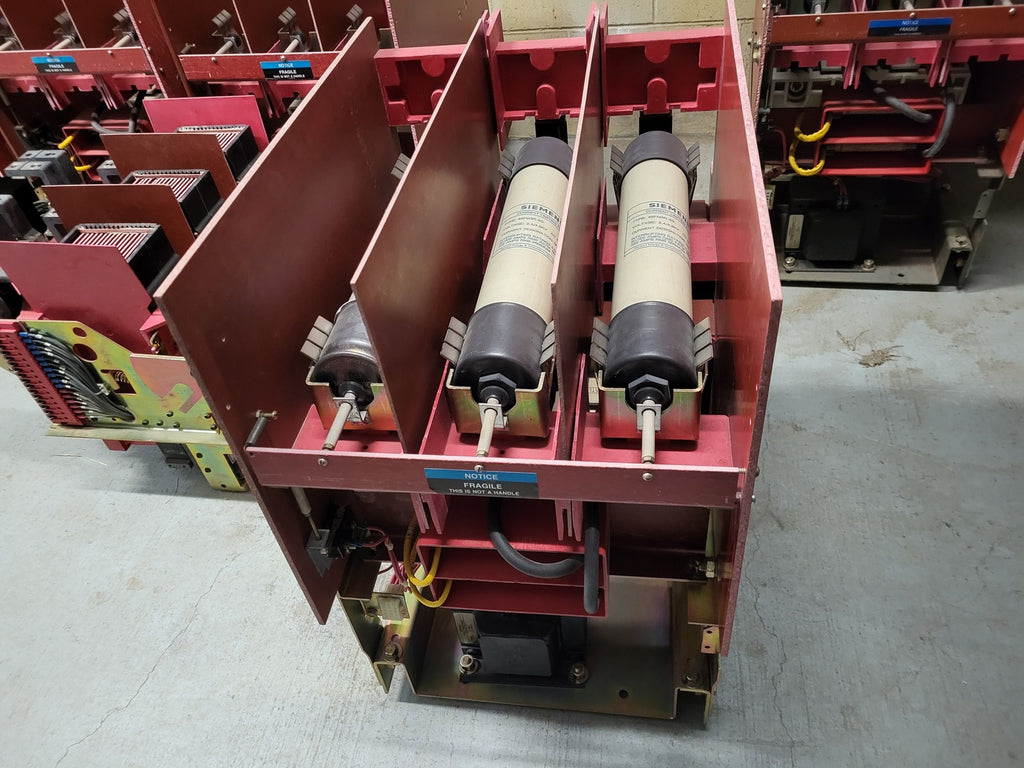

The SIEMENS 88H3533034A1AT NEMA H3 AC Vacuum Contactor Type 88H3 is a 360 Amp, 3 Pole contactor with an insulation voltage of 5.0 kV. It has an interruption capacity of 350 MVA and is designed as a Drawout Contactor. The control transformer for this product has a primary voltage of 4000V and a secondary voltage of 115VAC, with a primary fuse rating of 1.0E. It also includes main power fuse Siemens 48FM3R-4 with a voltage rating of 2.4/4.8 kV. This product is suitable for NEMA 3 applications and is a part of the Contactors collection.
| Specifications | |
|---|---|
| Model | 88H3533034A1AT |
| Condition | Used | Electrical |
| Voltage | 5000 volts |
| Amps | 360 amps | General |
| Includes Fuses | Yes |
| Control Transforms Sometimes | Yes |
| Other Specifications |
|---|
|

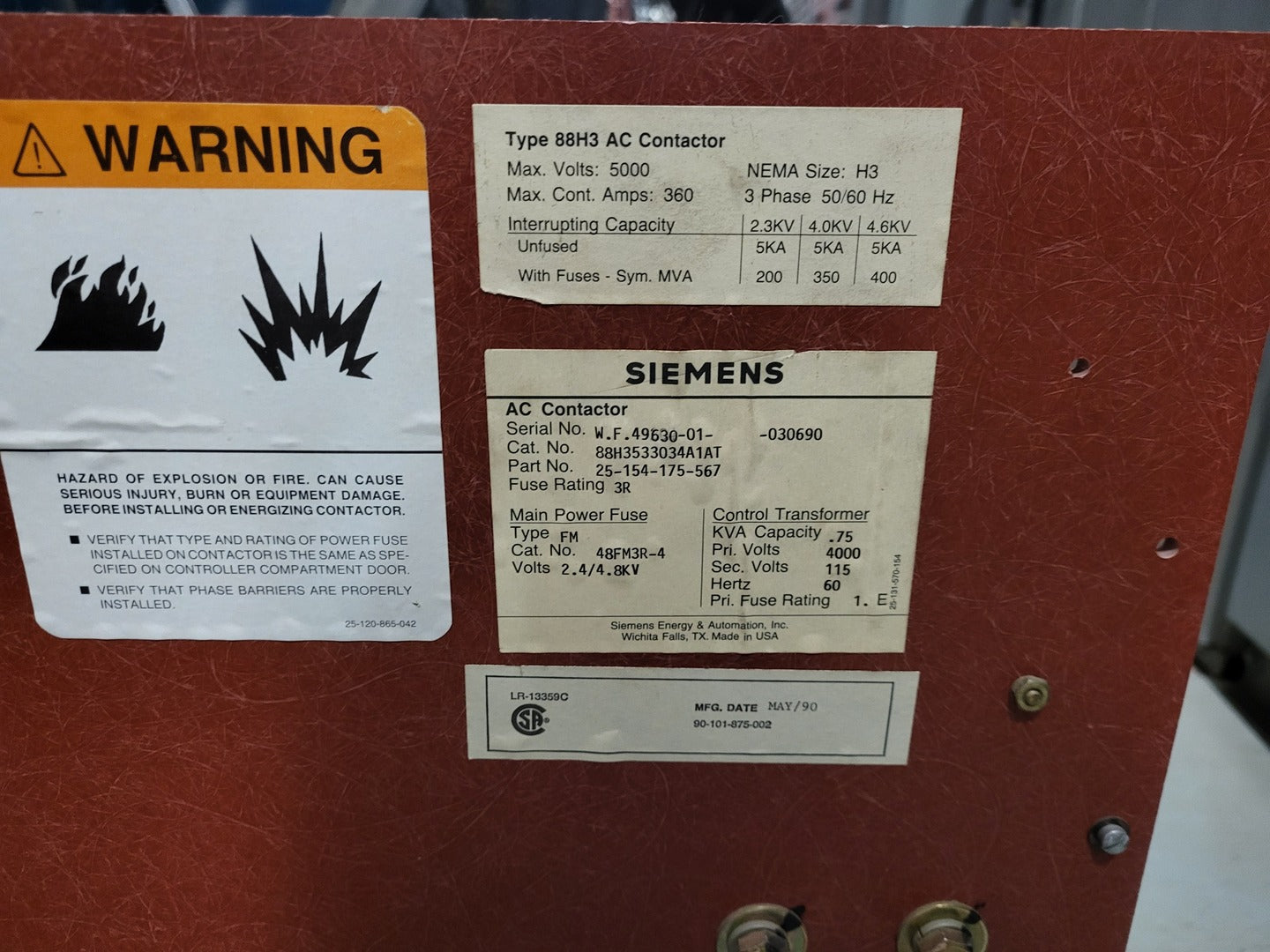

Poles: 3 Insulation Voltage: 5 kV Interruption Capacity: 350 MVA Main Fuse Rating: 3R Contactor Type: Drawout Contactor Size: NEMA 3 Phase: 3 Control Transformer:- CPT Primary Voltage: 4000 V CPT Secondary Voltage: 115 VAC CPT Capacity: 0.75 kVA CPT Primary Fuse Rating: 1.E Main Power Fuse:- Make: Siemens Model: 48FM3R-4 Type: FM Voltage Rating: 2.4/4.8 kV |
