Descripción
| Specifications | |
|---|---|

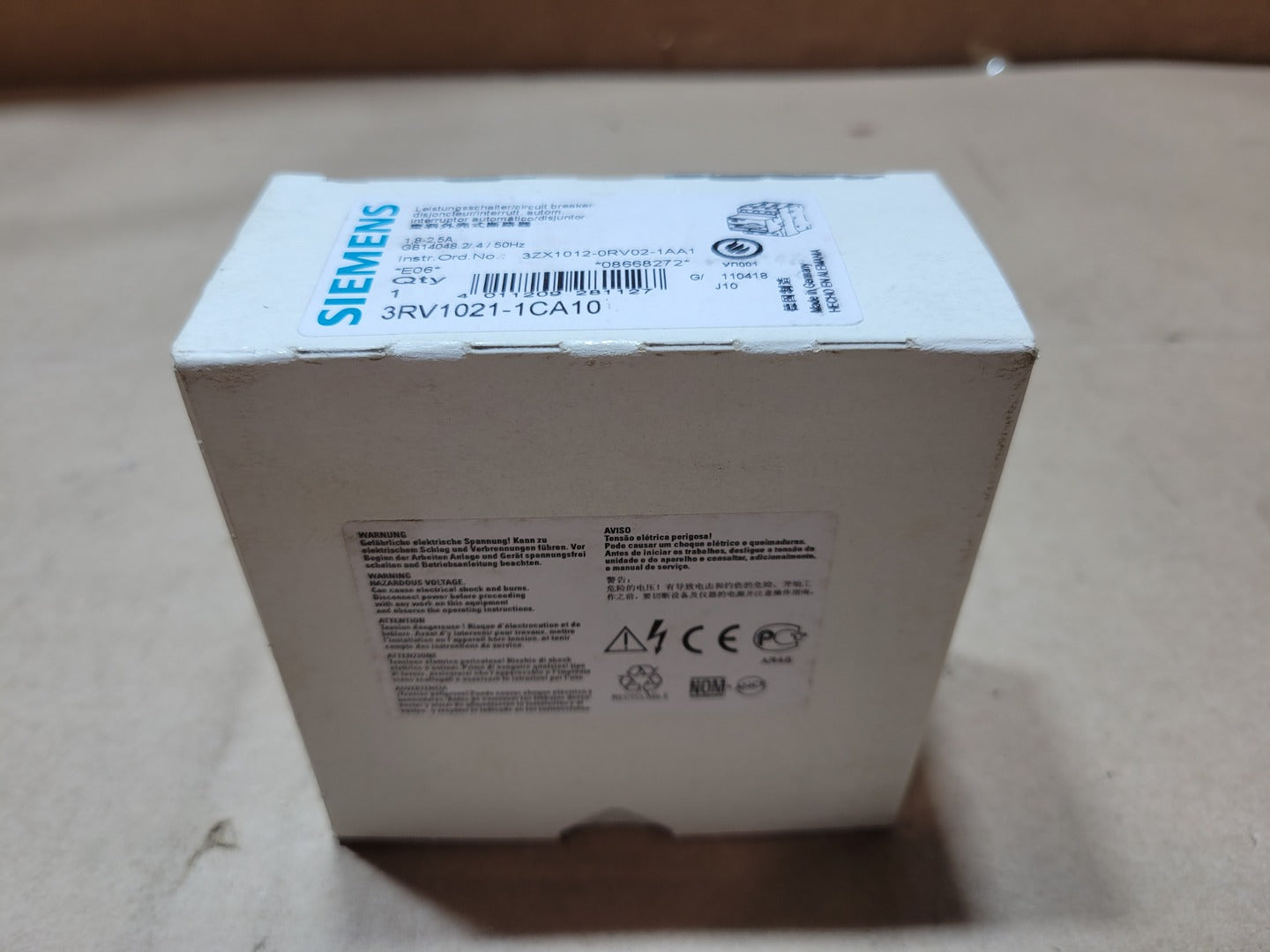

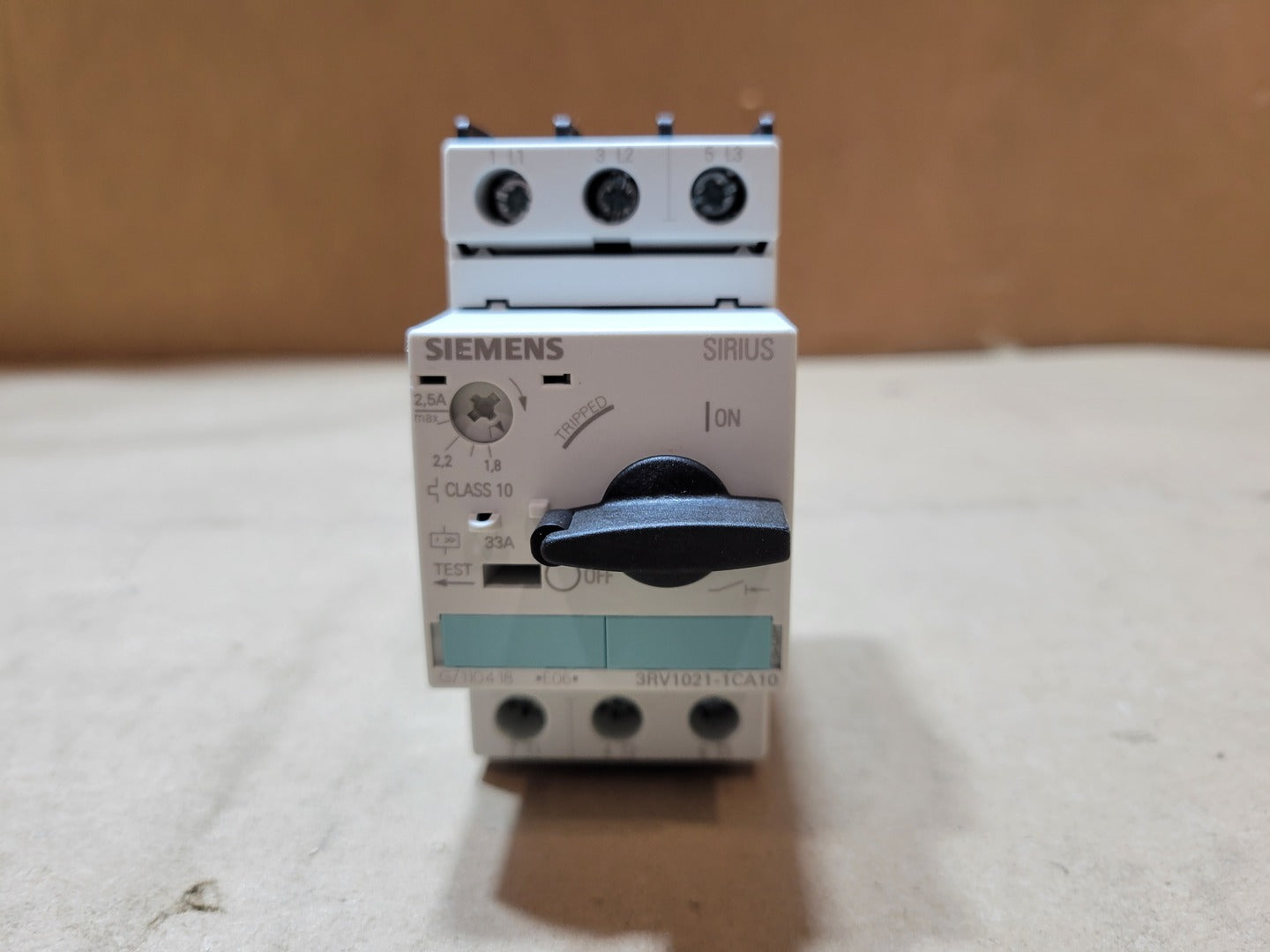

| Model | 3RV1021-1CA10 |
| Made In | GERMANY |
| Condition | Surplus New | General |
| Amps | 2.5 amps |
| # of Poles | 3 |
| Other Specifications |
|---|
|

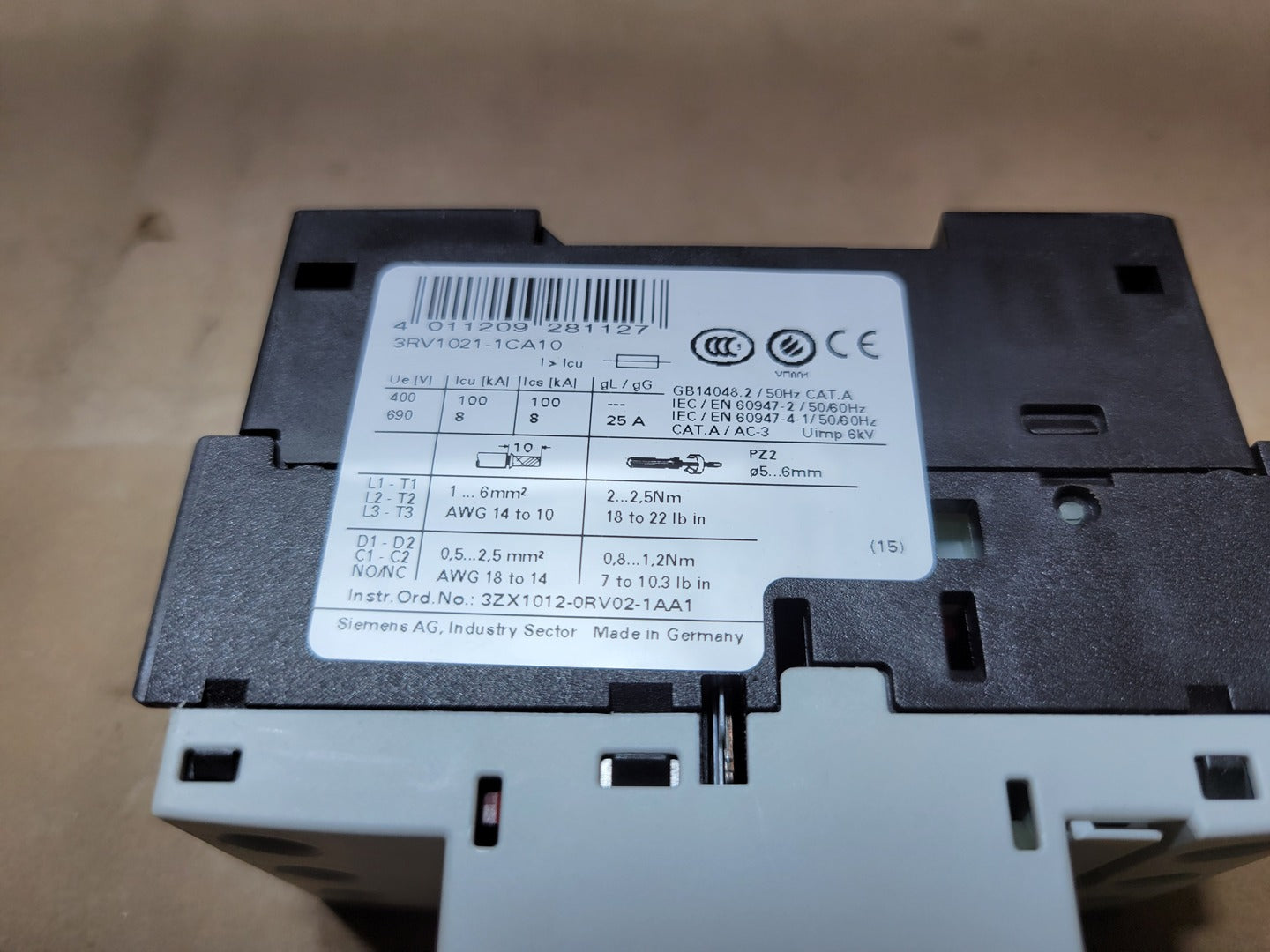

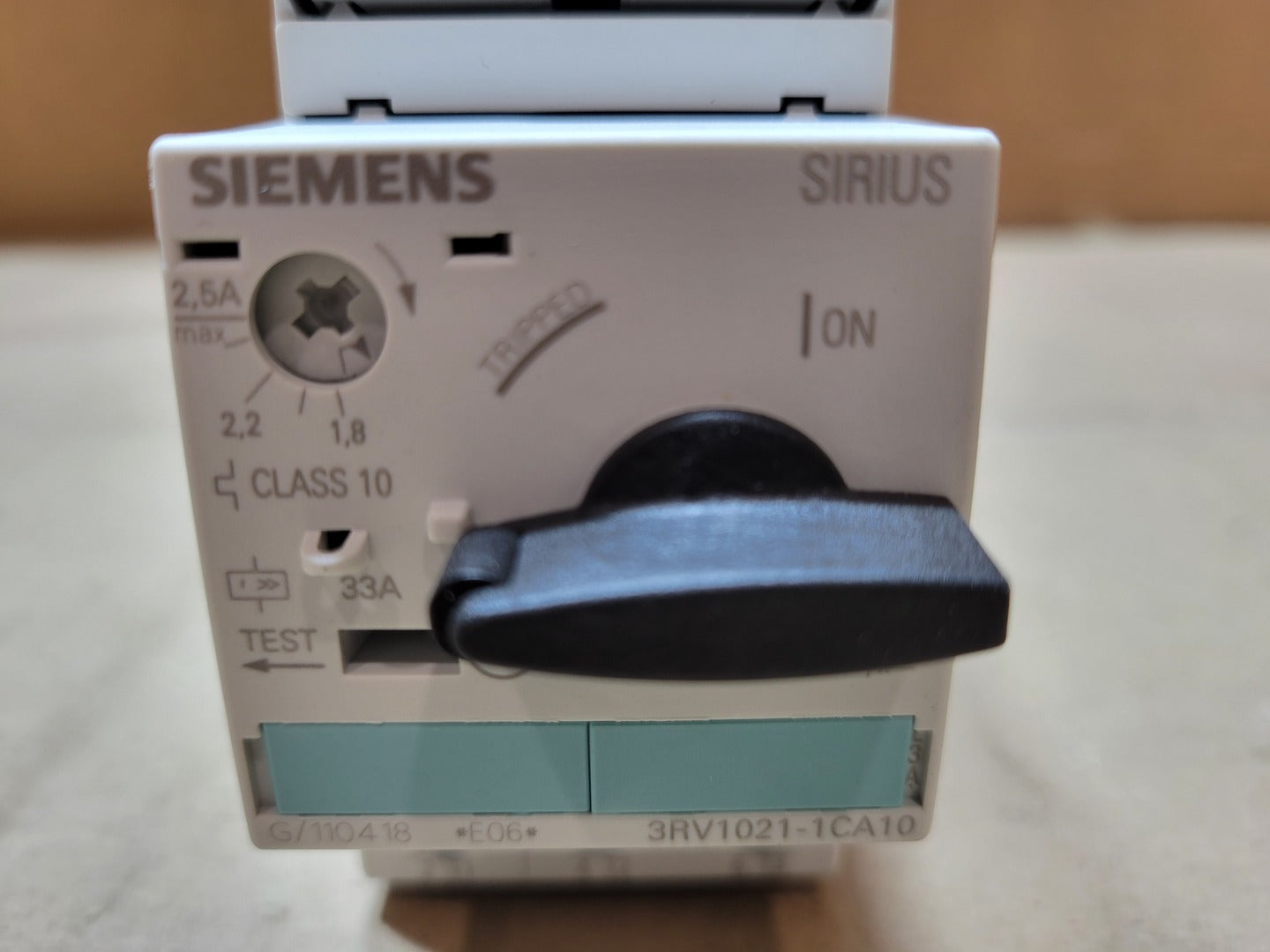

Product Type: Motor Protection Circuit Breaker / Manual Motor Starter Number of Poles: 3 Adjustable Thermal Overload Range: 1.8-2.5 A Maximum Overload Setting: 2.5 A Trip Class: Class 10 Magnetic Trip Indication: 33 A Rated Operational Voltage (Ue): Up to 690 V AC Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 400 V AC; 8 kA at 690 V AC Rated Service Short-Circuit Breaking Capacity (Ics): 100 kA at 400 V AC; 8 kA at 690 V AC Fuse Rating (gL/gG): 25 A, as indicated on the label Operating Frequency: 50/60 Hz Control / Operation: Manual rotary ON/OFF handle Reset / Test Features: Trip indicator and test function Main Terminal Wire Range: 1-6 mm2 / AWG 14-10 Main Terminal Tightening Torque: 2-2.5 Nm |
