Descripción
| Specifications | |
|---|---|
| Model | Pratix S 12C |
| Year: | 2015 |
| S/N: | AH/118840 |
| Condition | Used | General |
| Table Size | 4'x8' |
| CNC | Yes | Electrical |
| Voltage | 400 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

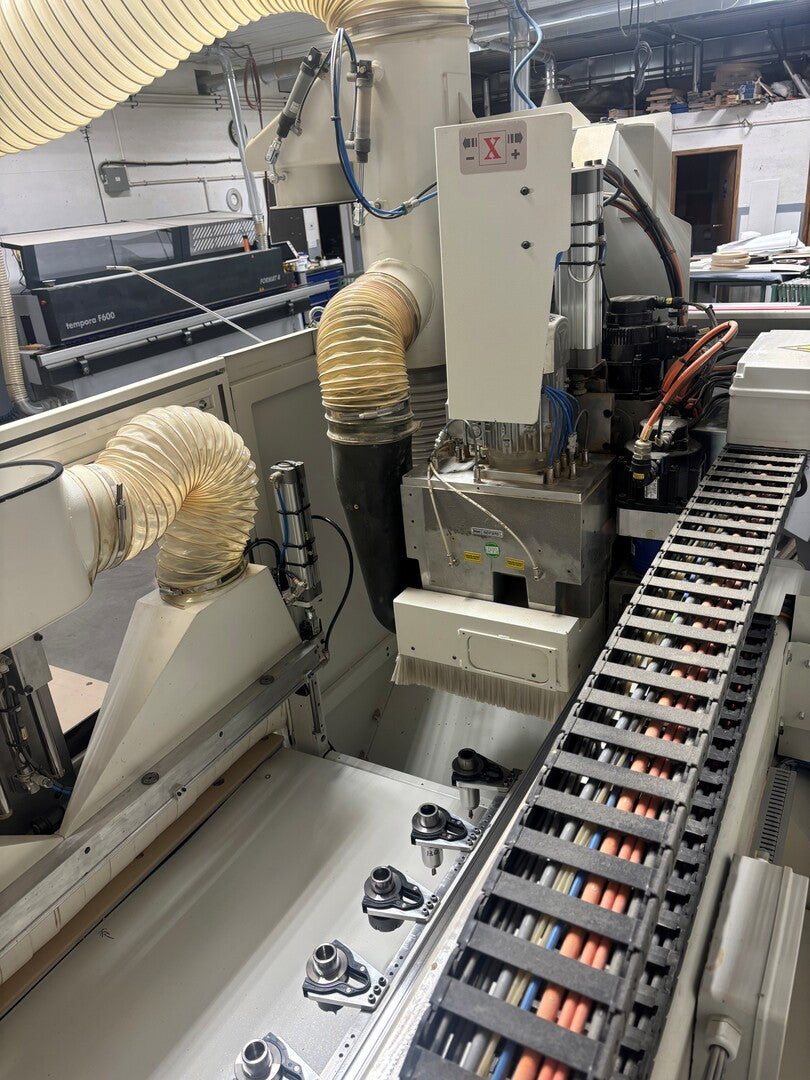

Axes Working area X-Y-Z: 2480 x 1250 x 100 mm // 97.6 x 49.2 x 3.9 in Stroke X-Y-Z: 3035 x 1745 x 240 mm // 119.5 x 68.7 x 9.4 in Vectorial speed X-Y axes: 35 m/min // 114.8 ft/min Working Table Type: Multifunction, aluminum No. of stops for A area: 3 Boring Head Vertical spindles: 7 spindles, 4000 rpm - 5X + 3Y Motor power: 2.2 kW // 3 HP Electrospindle Standard motor power S6: 5.5 kW // 7.5 HP Max speed: 24,000 rpm Side tool changer: 8 places Installation Installed motor power: 23-28.5 kW // 30.8-38.2 HP Compressed air consumption: 400 NL/min Extraction air consumption: 5300 m3/hr Exhaust air speed: 30 m/sec // 98.4 ft/sec Exhaust outlet diameter: 250 mm // 9.8 in |
