Descripción
| Specifications | |
|---|---|

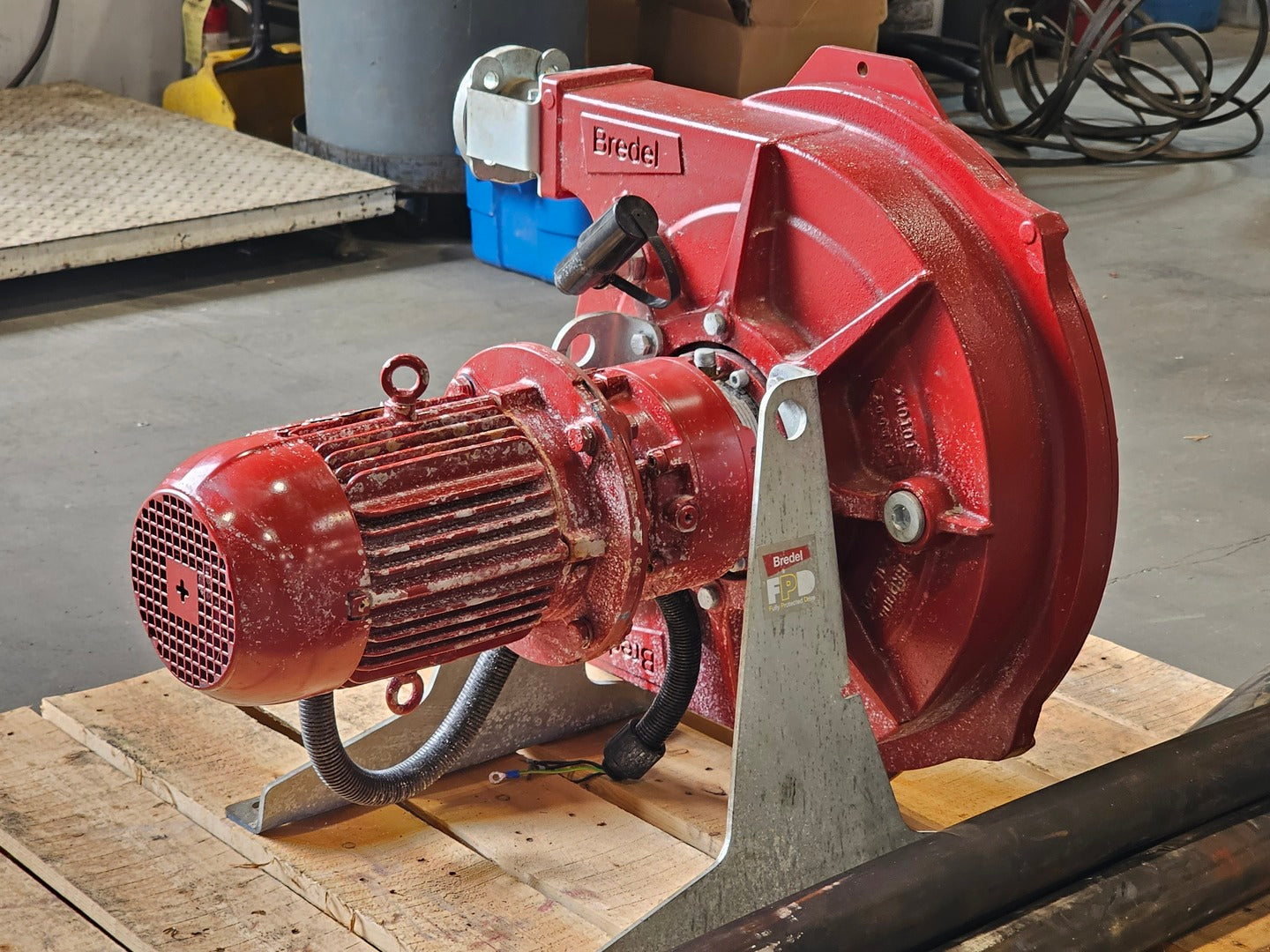

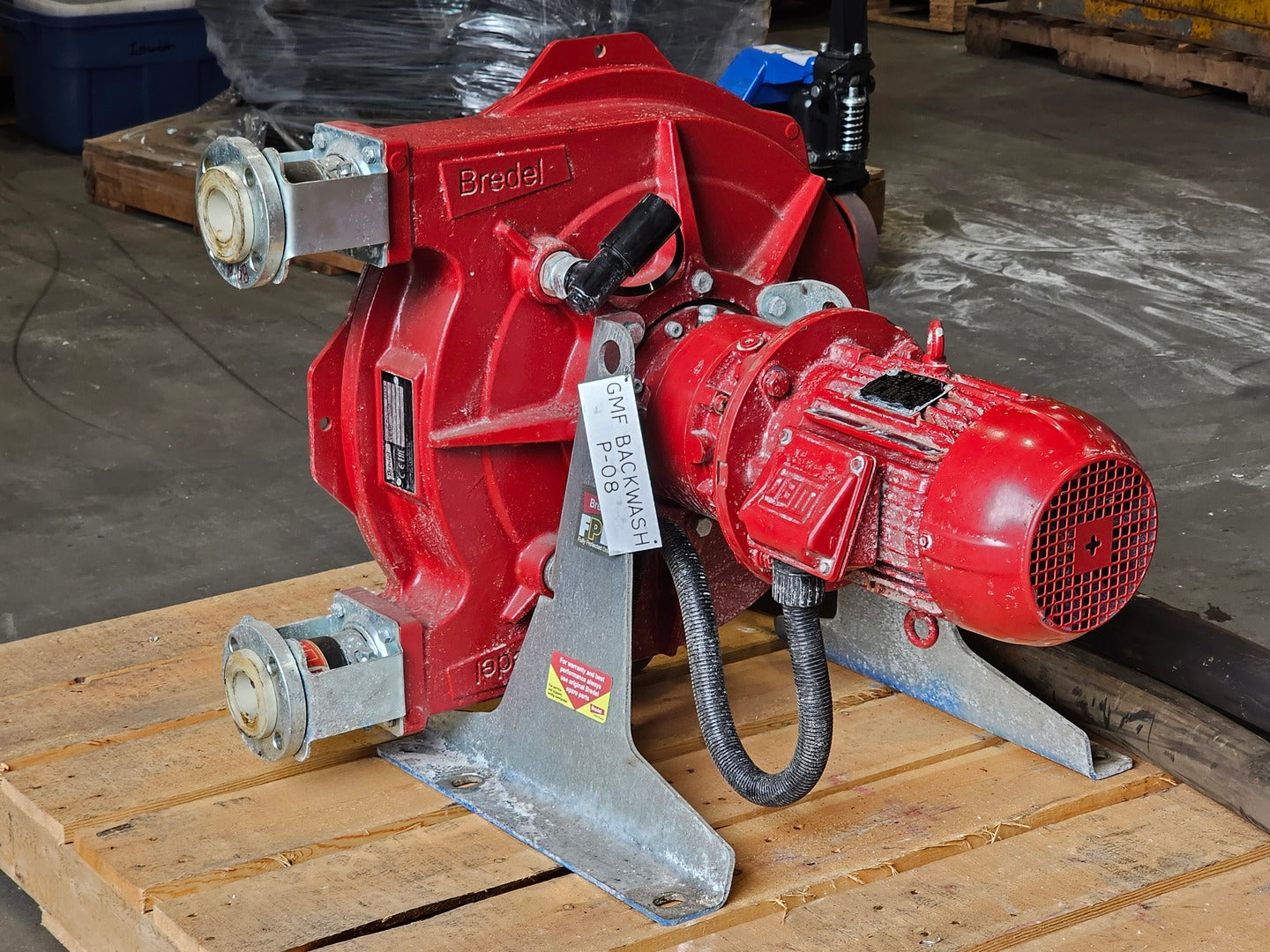

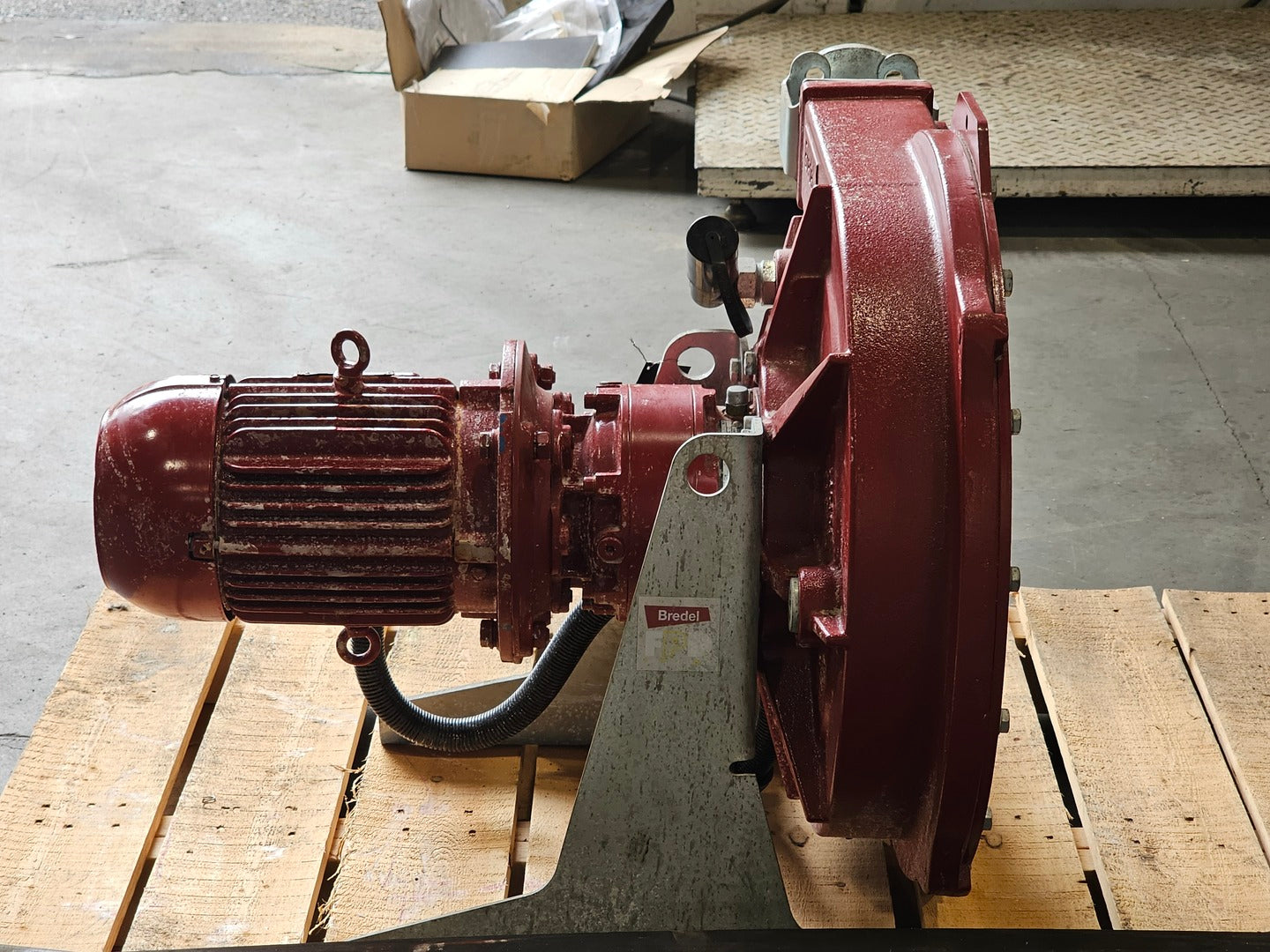

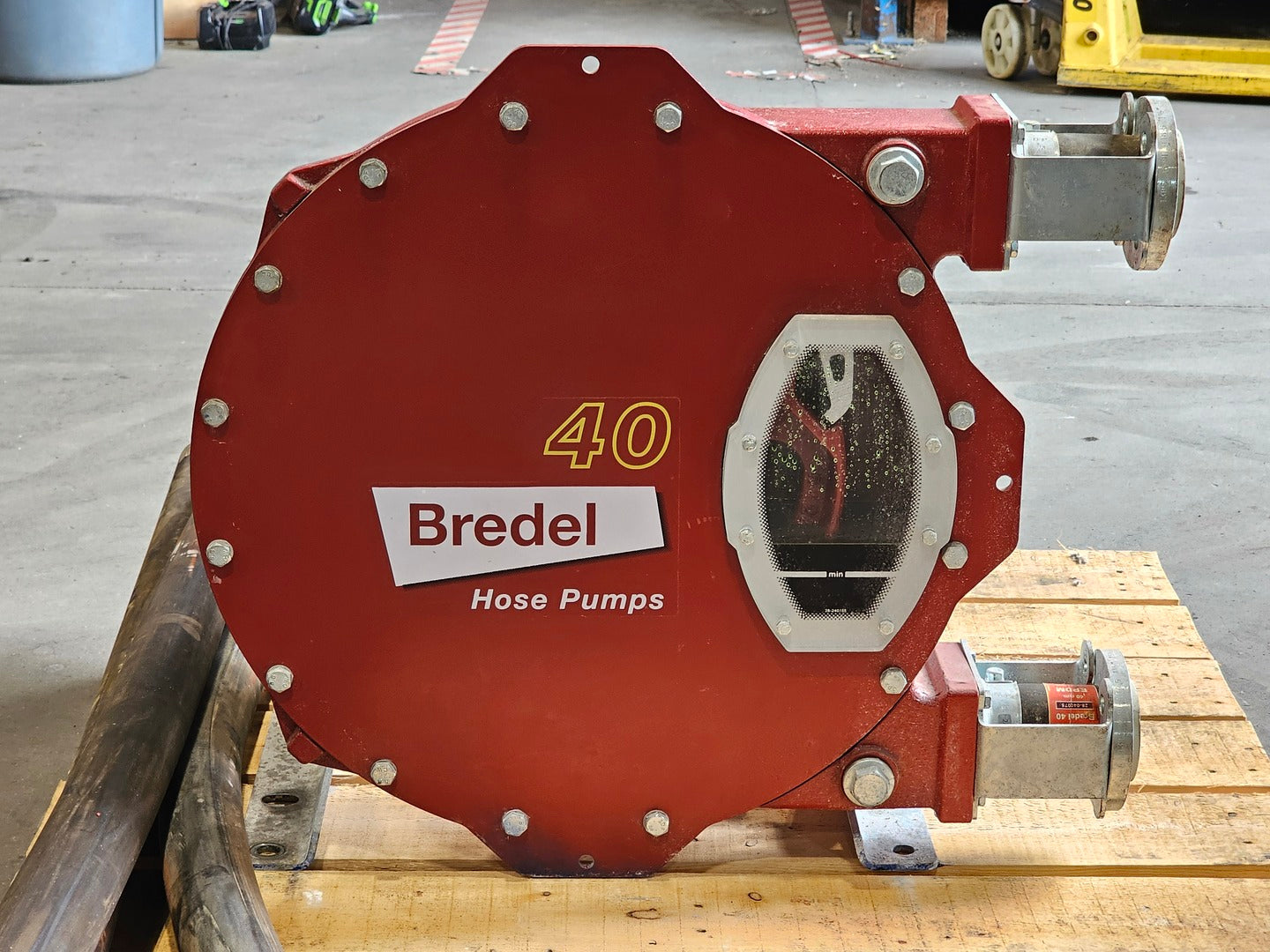

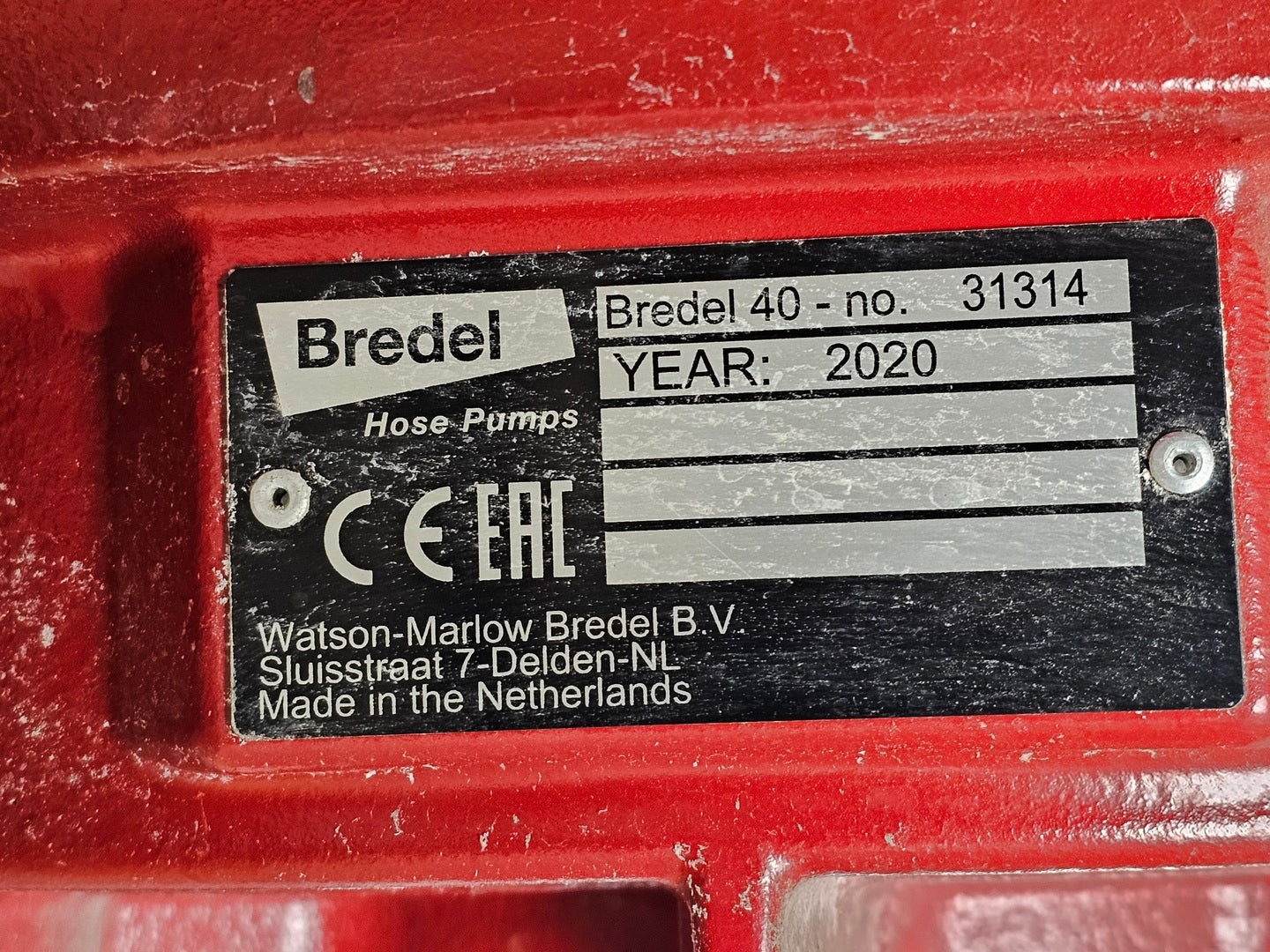

| Model | 40 |
| Year: | 2020 |
| S/N: | 31314 |
| Made In | NETHERLANDS |
| Condition | Used | General |
| Horsepower | 3 hp |
| GPM | 26.3 |
| Pump Material | Cast Iron |
| PSI | 232 psi |
| Seal Type | Neoprene, Nitrile |

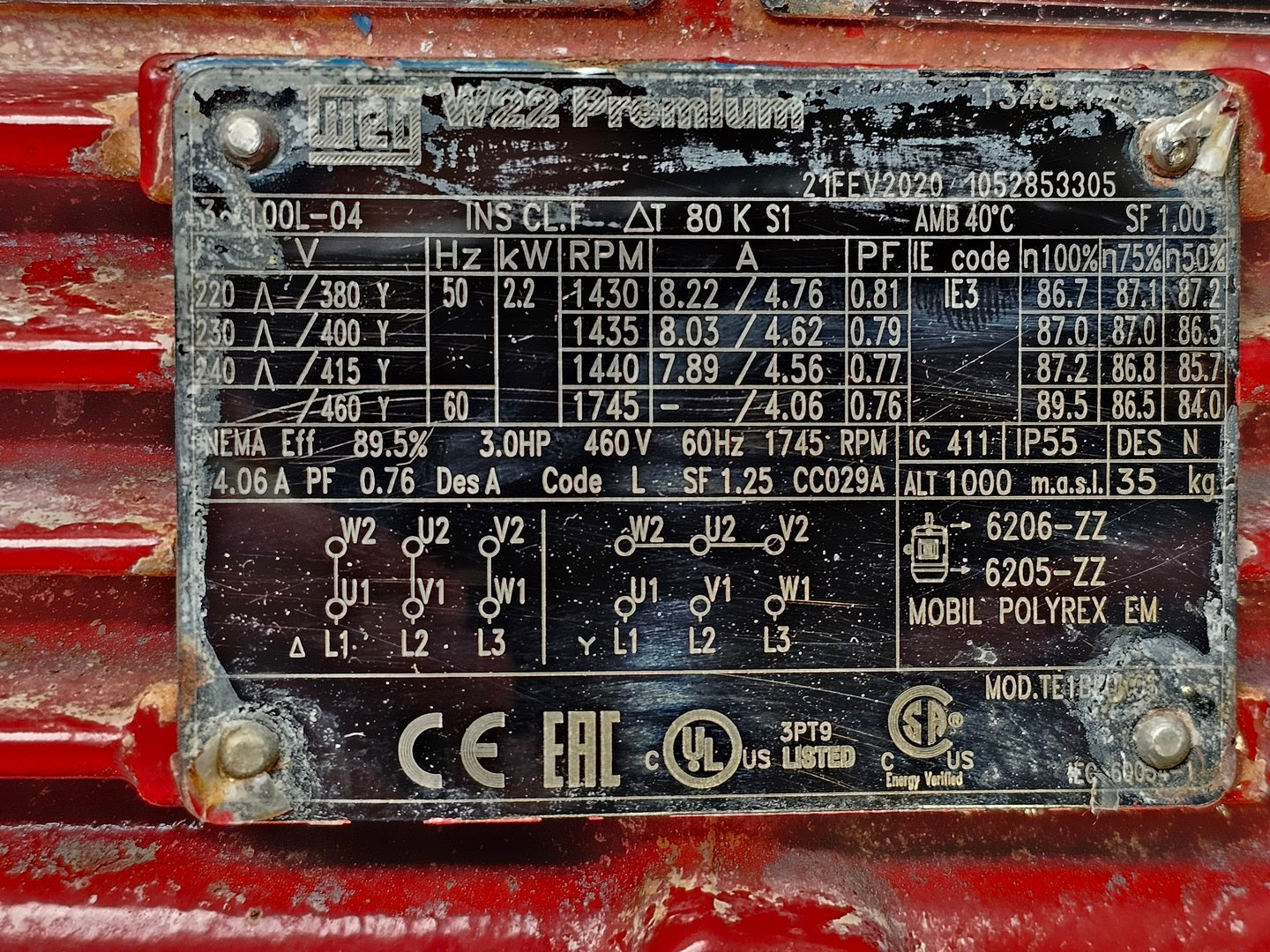

| RPM | 75 rpm | Electrical |
| Voltage | 460 volts |
| Phase | 3-phase |
| Other Specifications |
|---|

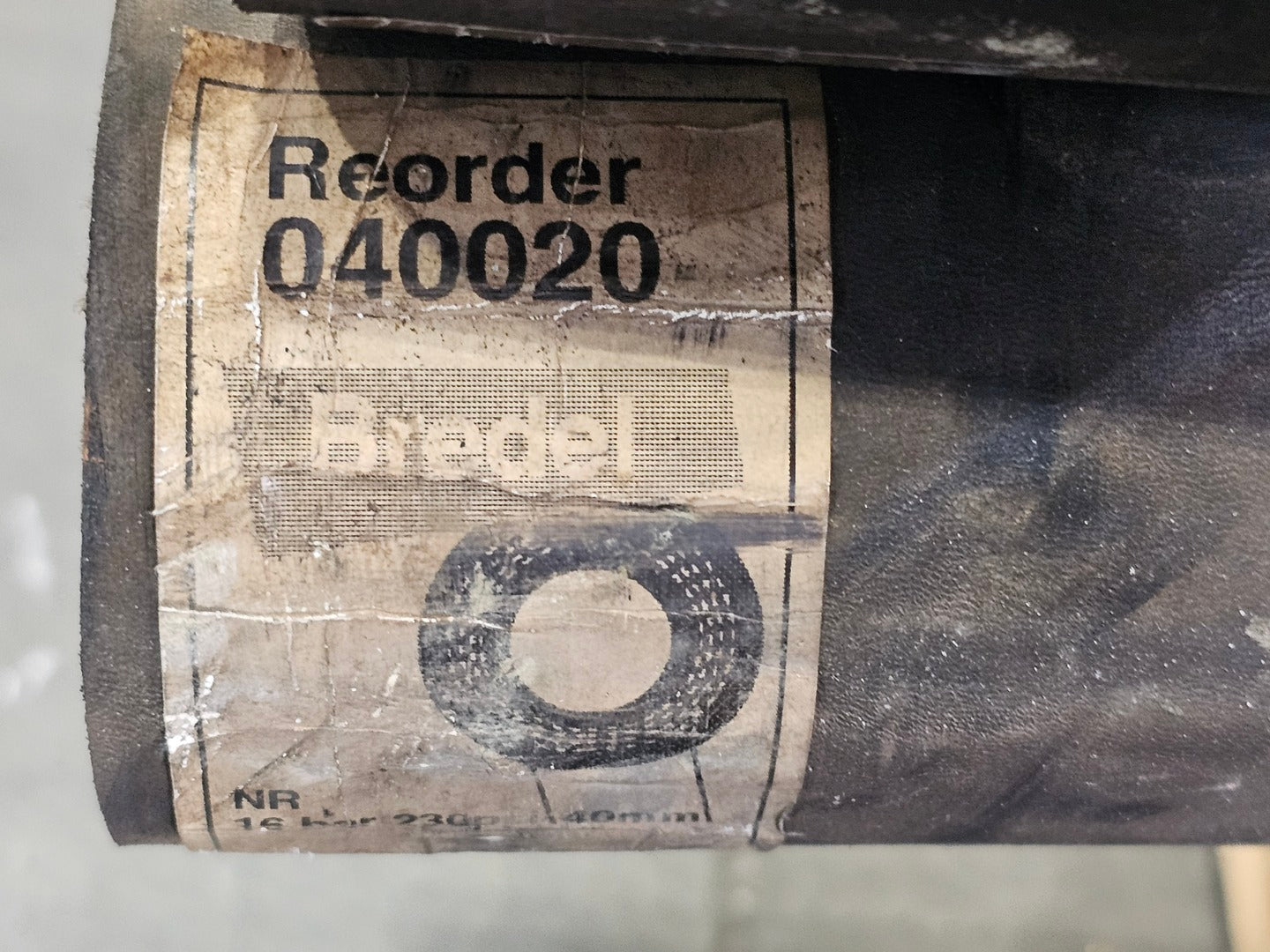

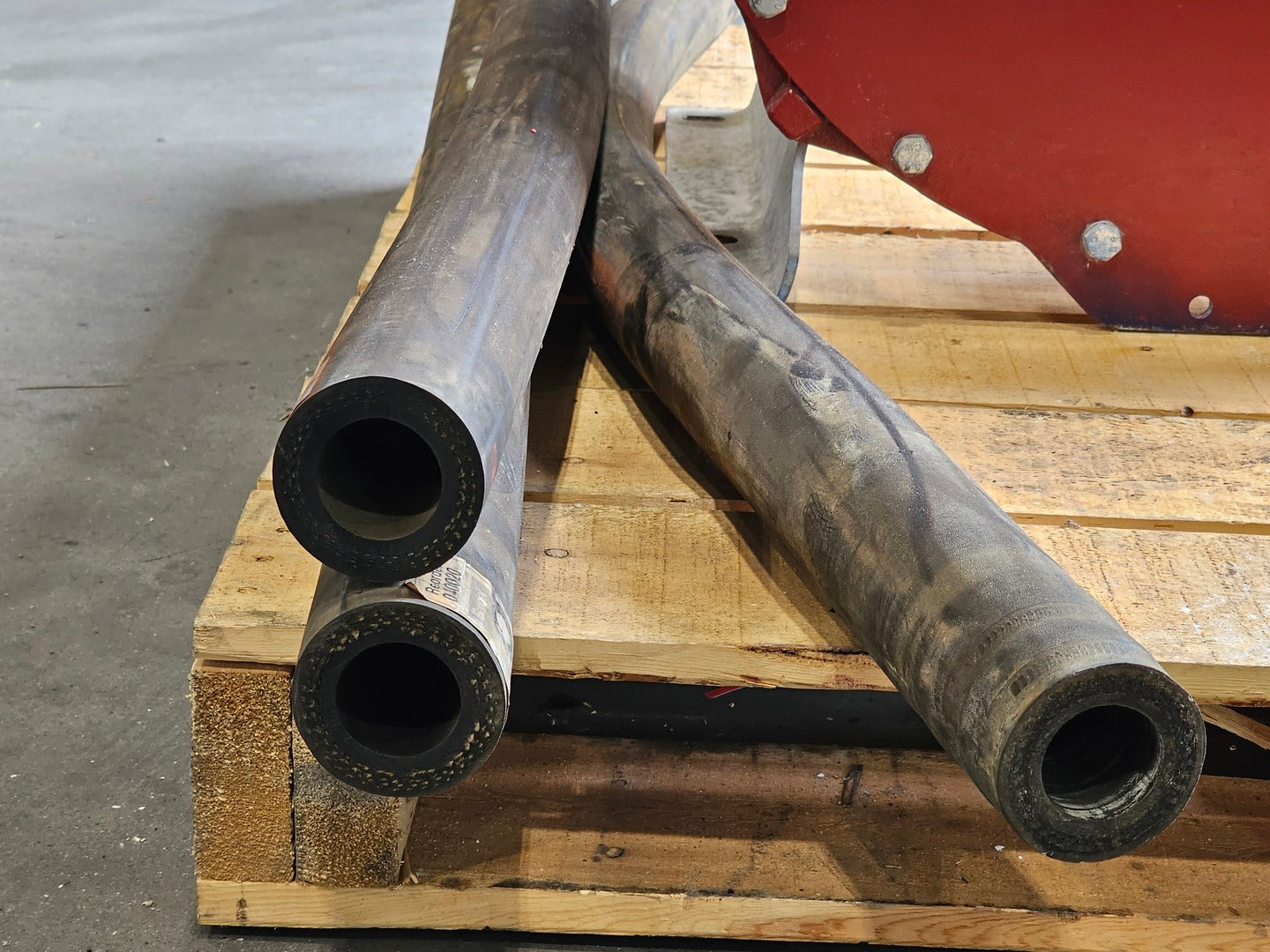

PDF Specification SheetMax. Flow Rate Continuous: 5985 L/h (26.3 US GPM) Max. Flow Rate Intermittent: 9576 L/h (42.1 US GPM) Volume Per Revolution: 1.33 L Max. Continuous Operating Speed: 75 rpm Max. Intermittent Operating Speed: 120 rpm Max. Inlet Pressure: 2.5 bar abs (38 psi abs) Max. Suction Capability: 9.5 mWC (374 inWC) Suction Capability (80% Flow Rate): 9 mWC (354 inWC) Operating Temperature: -20 C to 45 C Fluid Temperature: -20 C to 80 C Min. Starting Torque: 320 N m Weight: 180 kg (397 lbs) Hose Lubricant Required: 5 L Compatible Hose Materials: CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer Compatible Tube Materials: Bioprene Flange Assembly Type: ANSI, DIN, JIS Motor Speed: 1750 rpm Motor Current: 4.06 A |
