Descripción

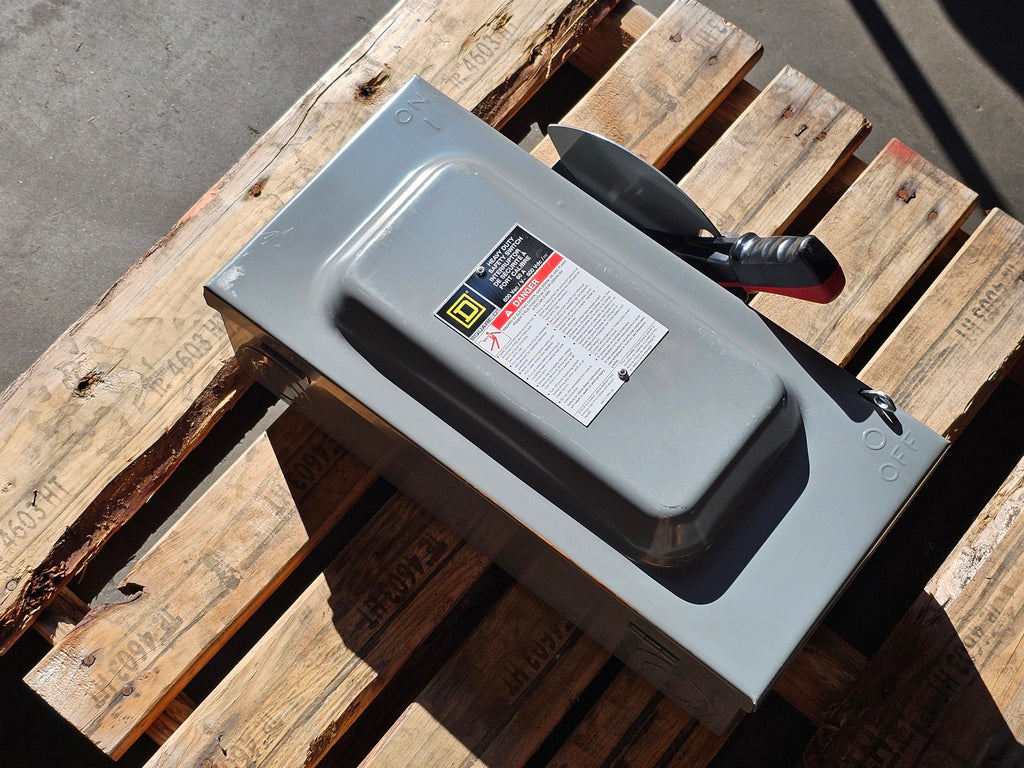

Square D CH362 heavy-duty fusible safety disconnect switch rated 60A and up to 600VAC/VDC. This unit features a 3-pole, single-throw fusible configuration housed in a Type 1 indoor enclosure. The disconnect is equipped with three visible Ferraz Shawmut SmartSpot AJT60 60A 600VAC fuses and an external ON/OFF operating handle. Suitable for industrial equipment isolation, motor disconnect applications, machinery power distribution, and electrical maintenance installations where a heavy-duty fusible disconnect is required.
| Specifications | |
|---|---|
| Model | CH362 |
| Condition | Used | Electrical |
| Amps | 60 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| Fused | Fused |
| Other Specifications |
|---|
|
Maximum DC Voltage: 600 VDC Frequency: 50/60 Hz Number of Poles: 3 Switch Configuration: Single Throw Enclosure Type: Type 1 / NEMA 1 Installation Environment: Indoor Operating Method: External manual ON/OFF handle Installed Fuses: 3 x Ferraz Shawmut SmartSpot AJT60 Fuse Rating: 60 A, 600 VAC each |
