Descripción

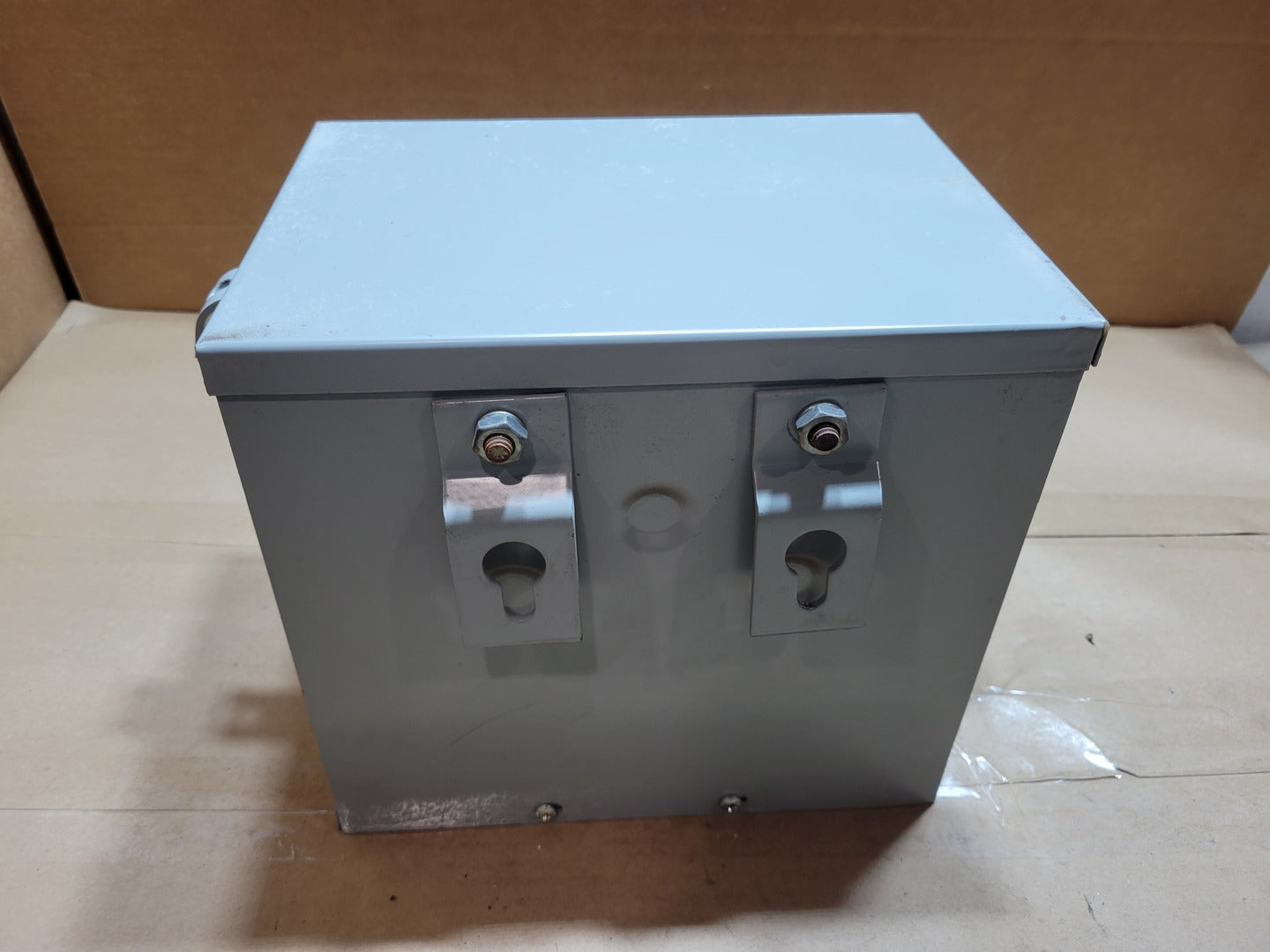

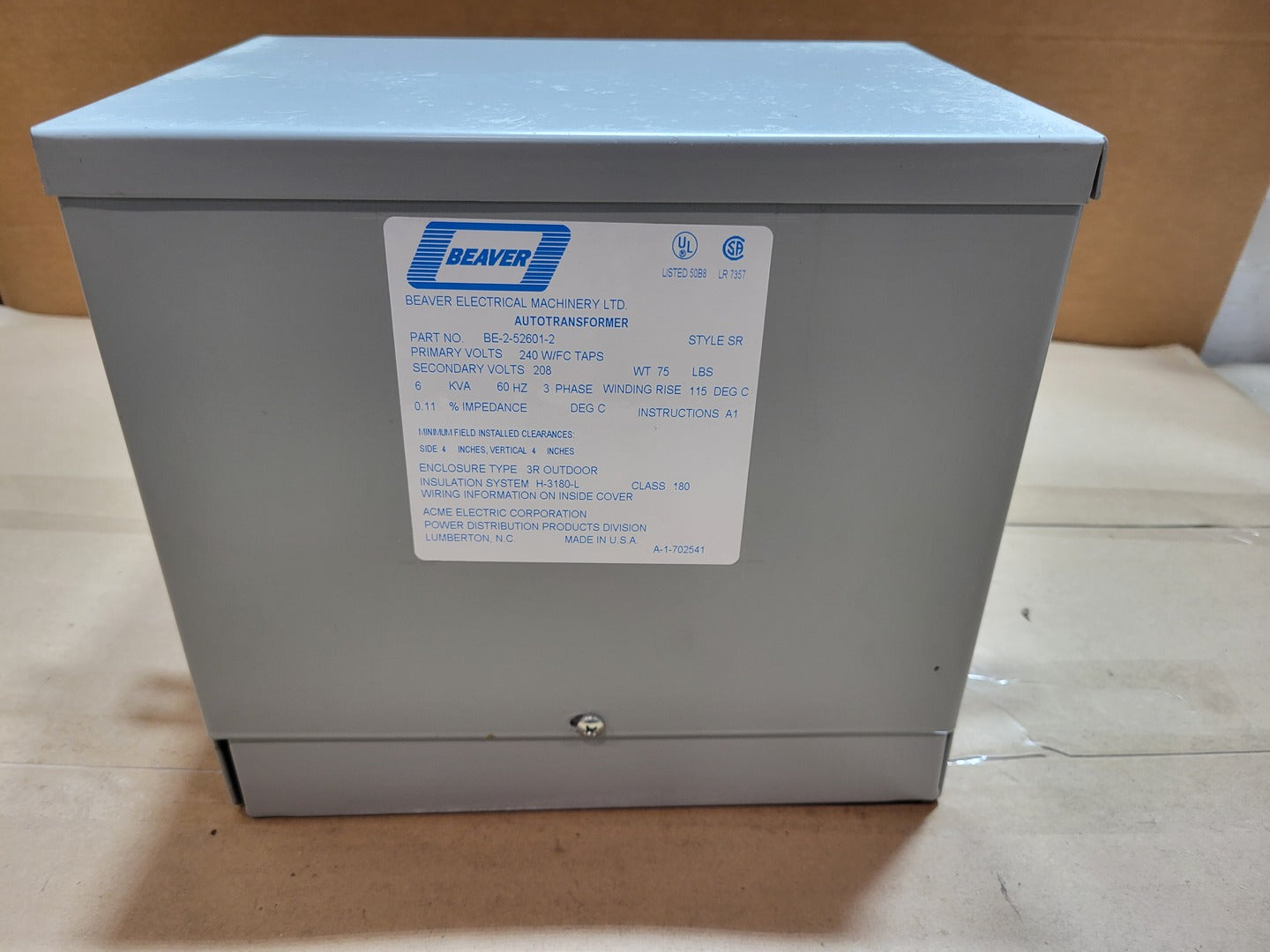

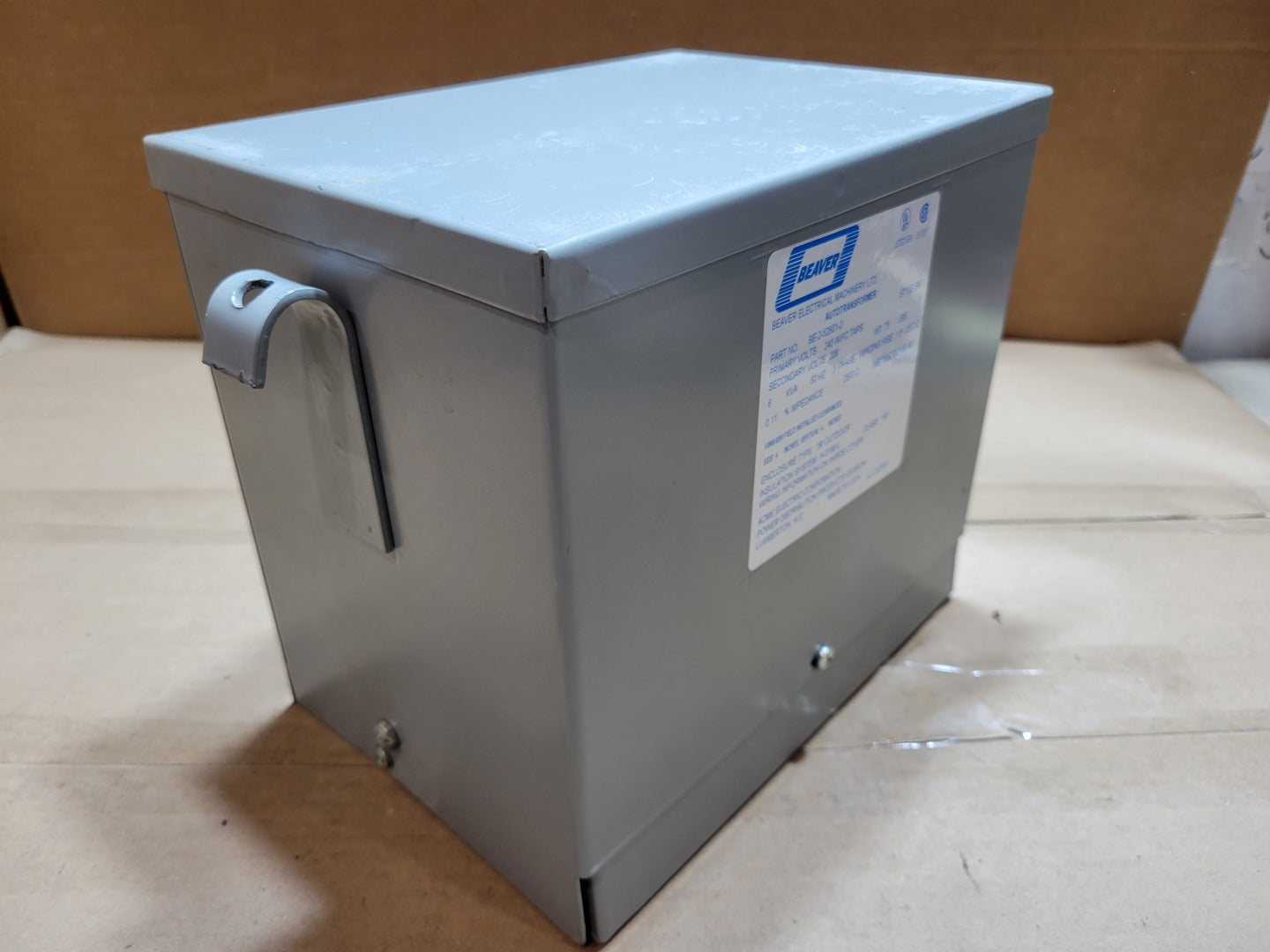

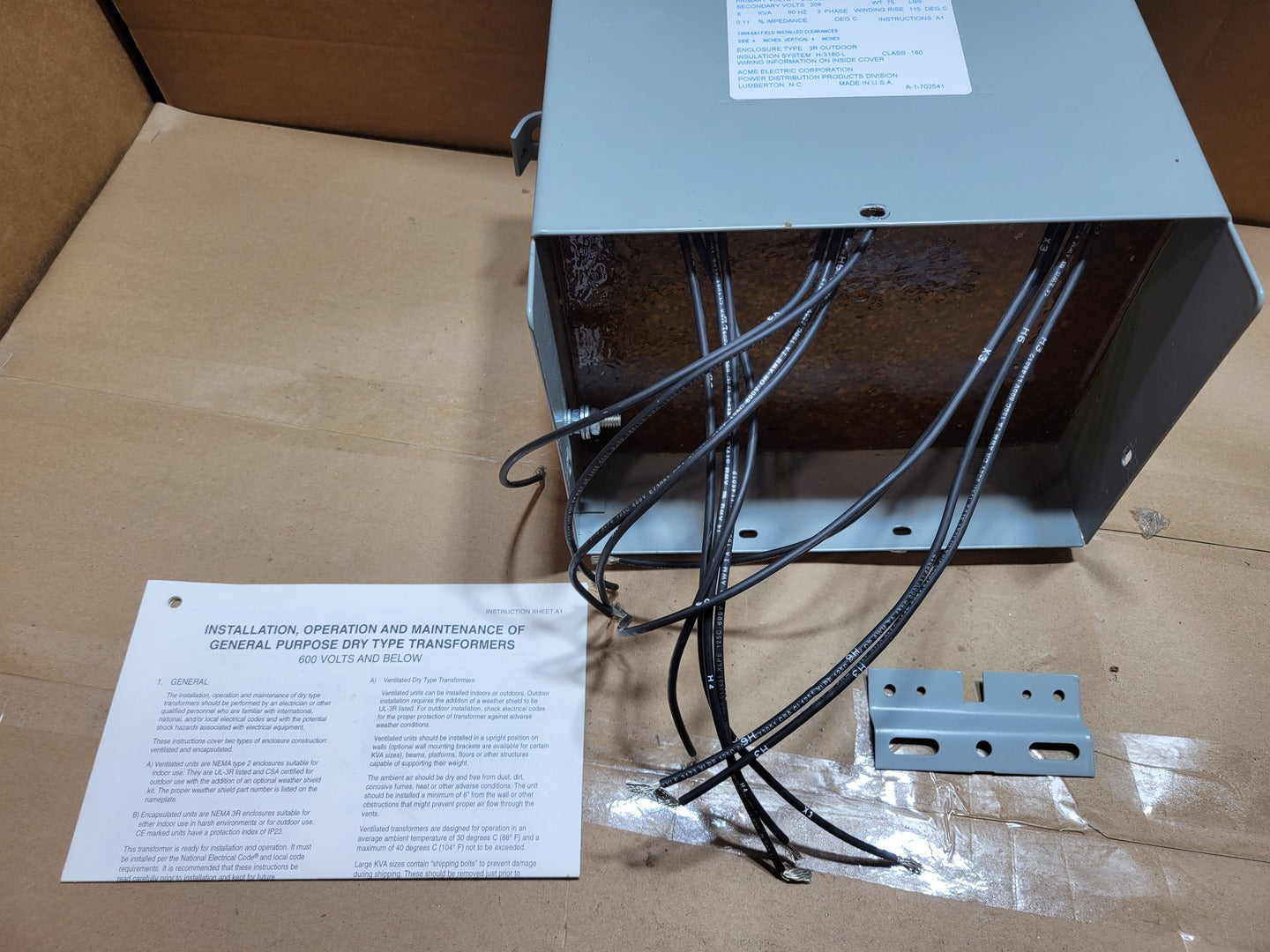

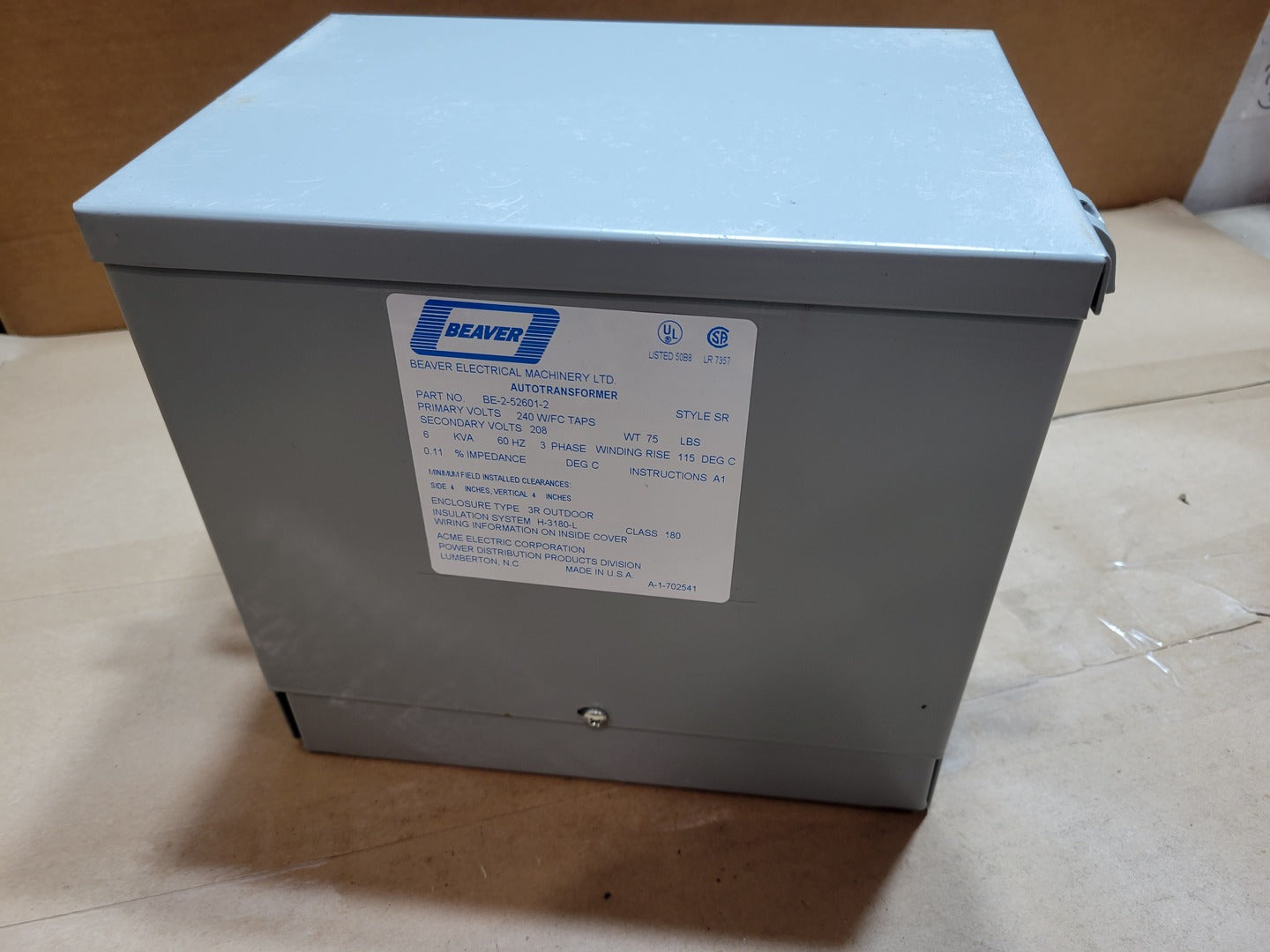

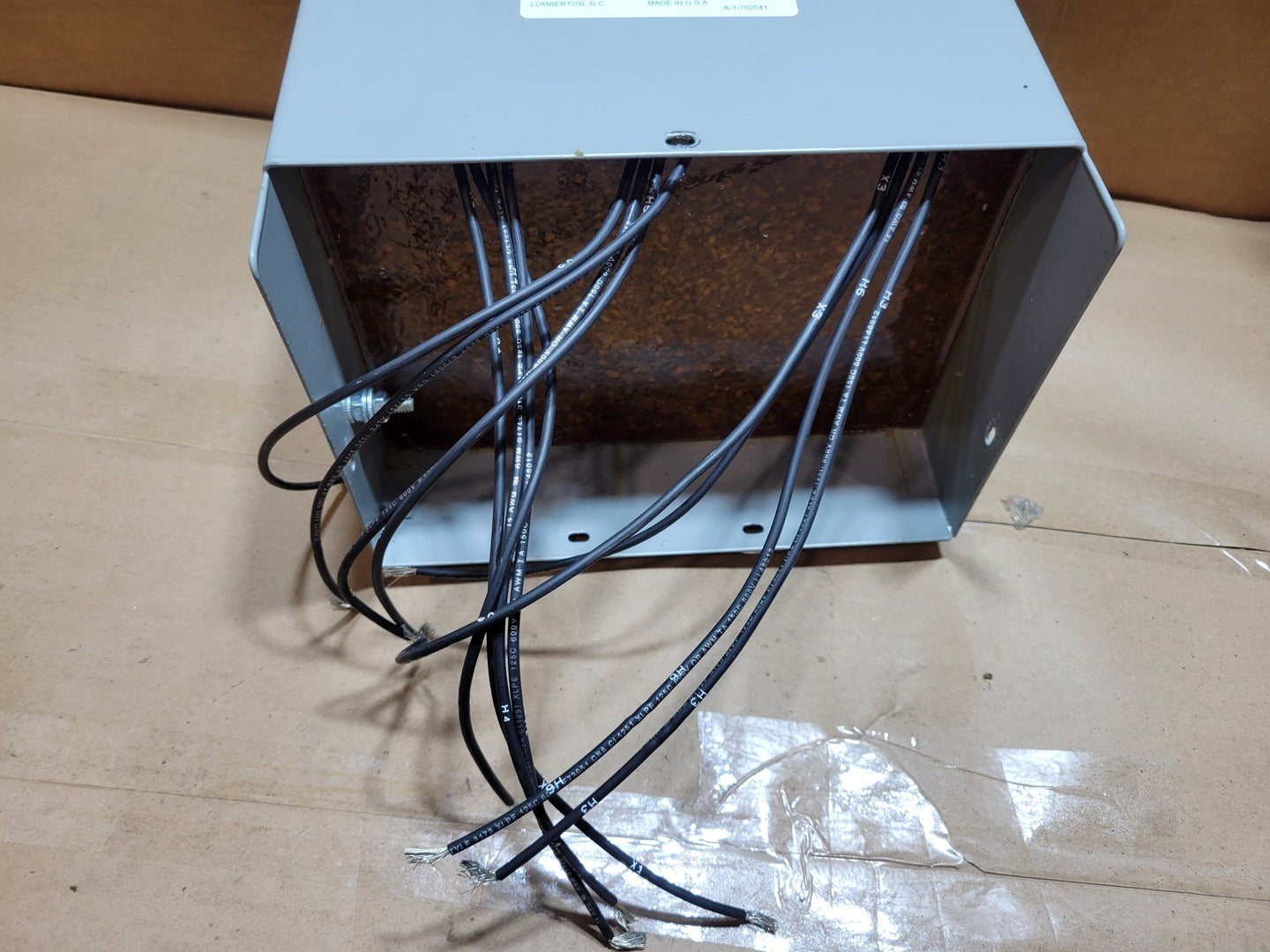

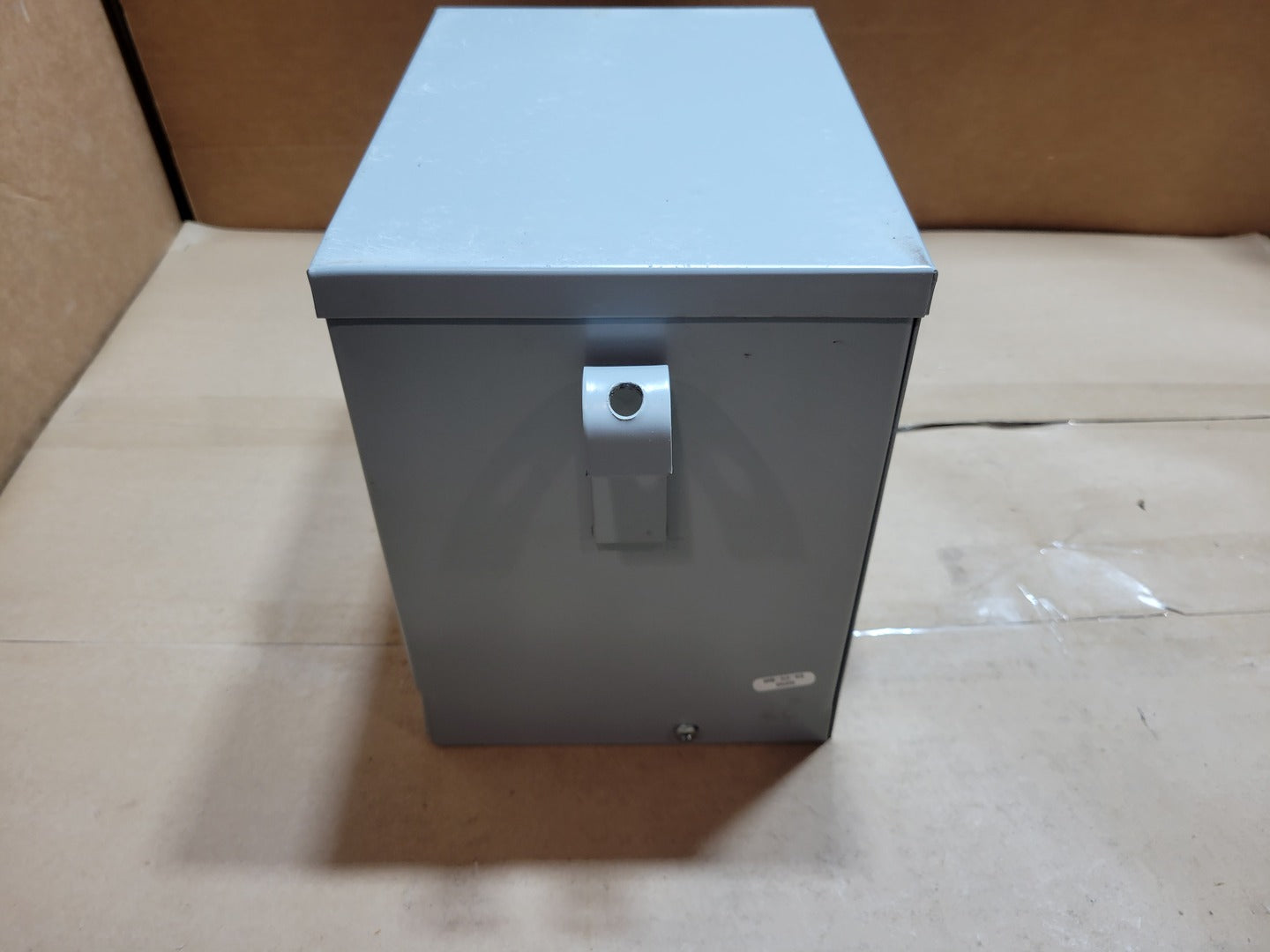

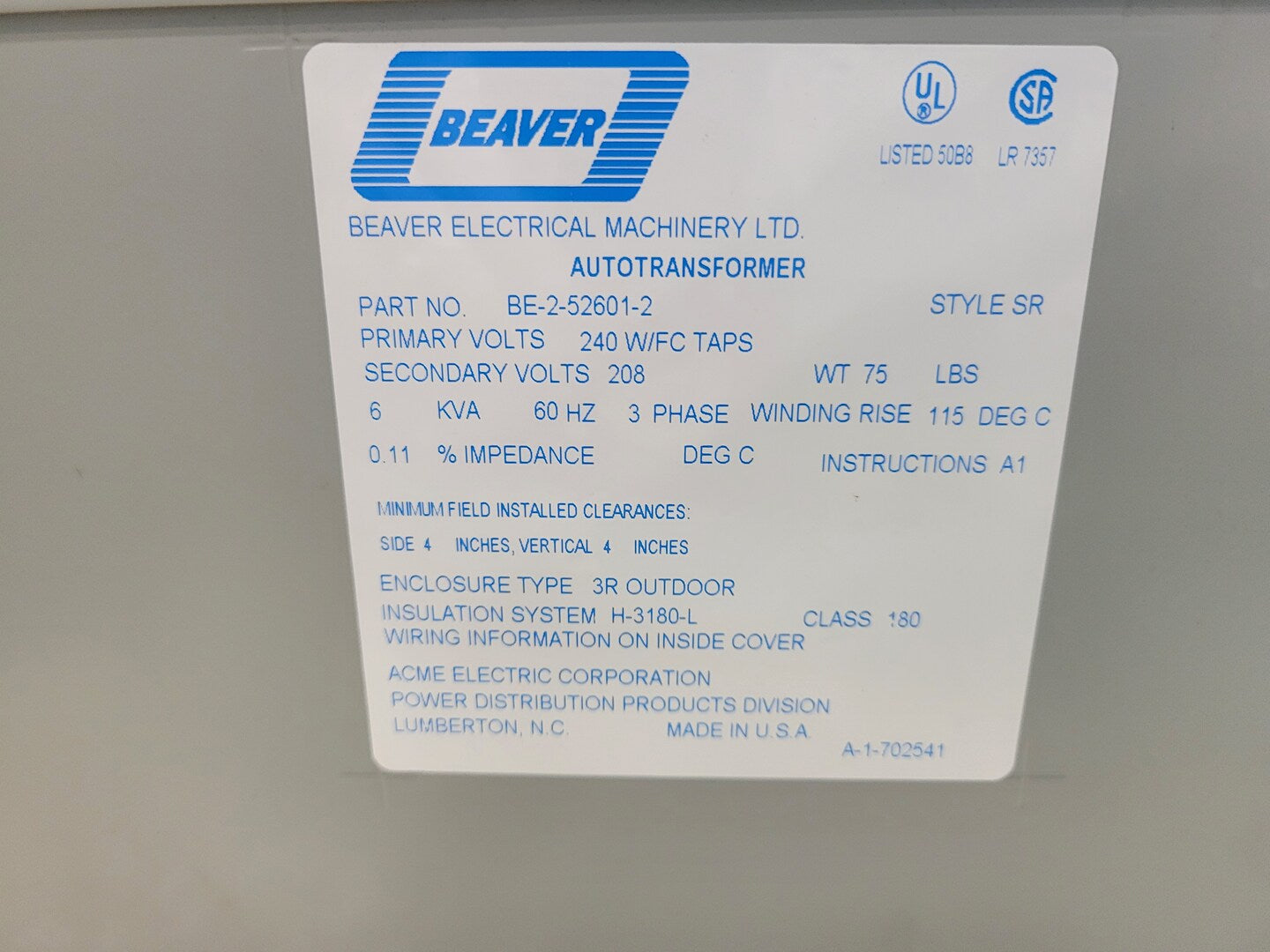

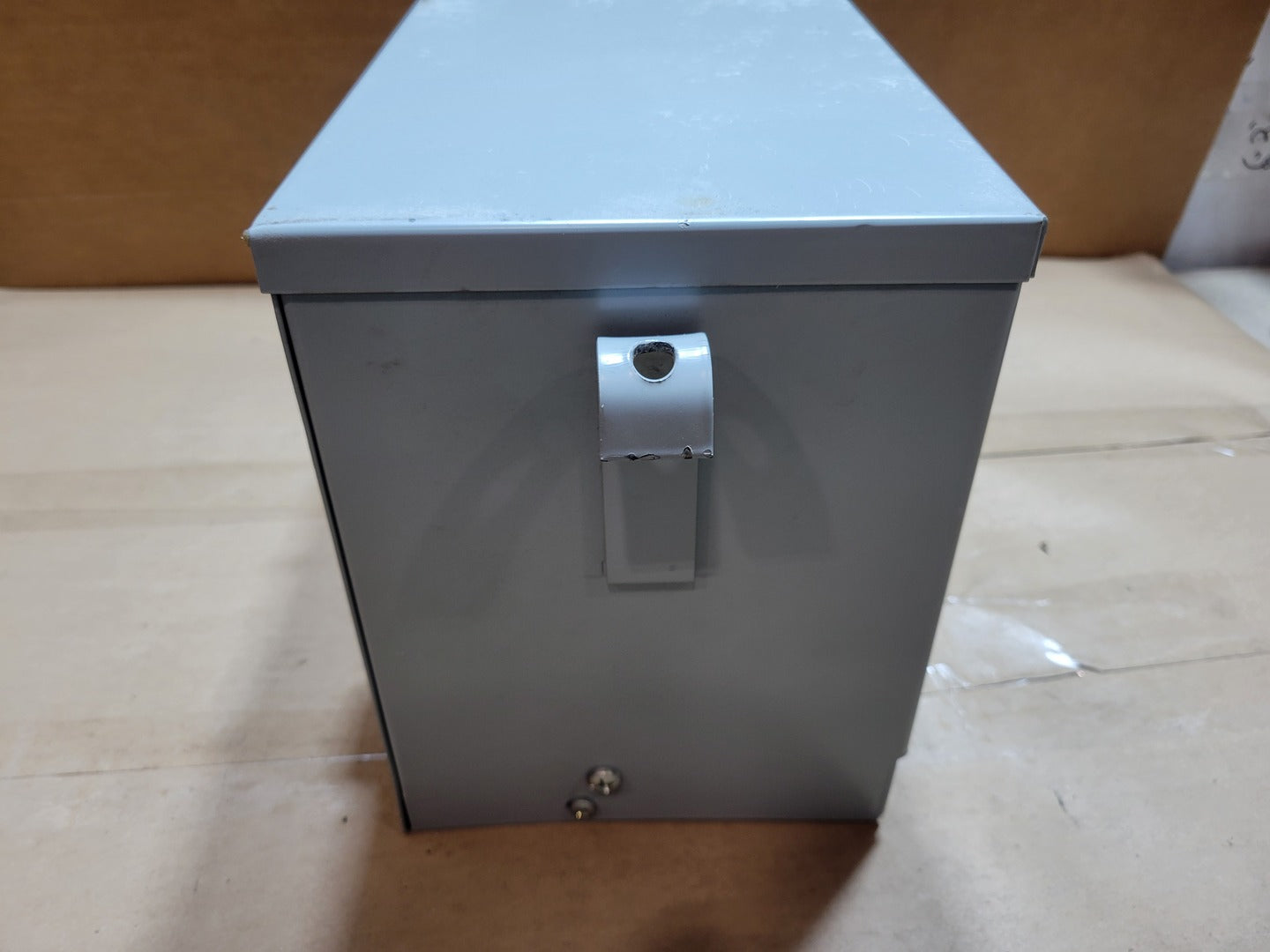

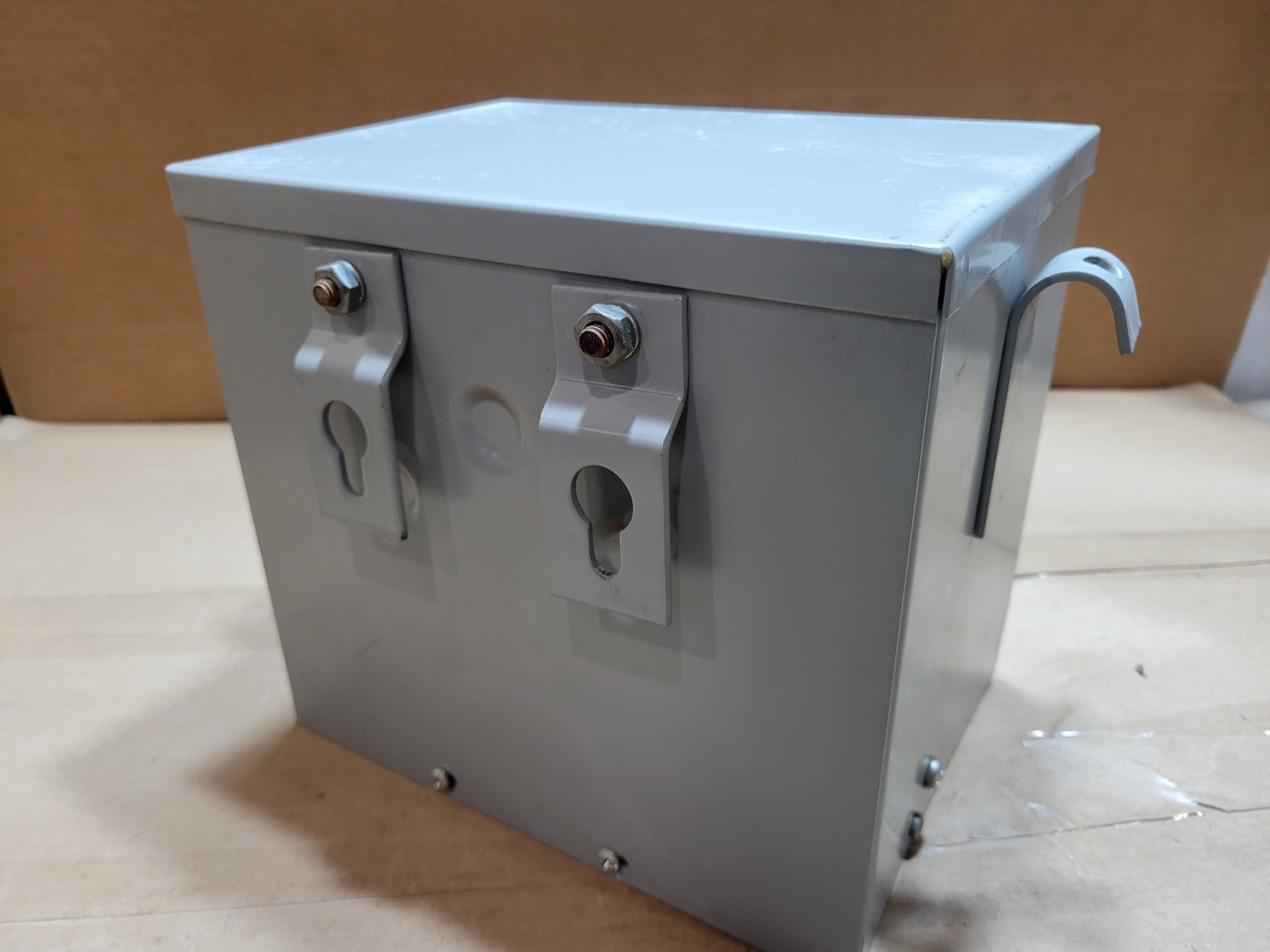

Beaver Electrical Machinery BE-2-52601-2 three-phase dry-type autotransformer rated 6 kVA, with 240 VAC nominal primary and 208 VAC secondary, 60 Hz operation, and 228/240/252 V primary tap provisions. Features an encapsulated Class 180 insulation system and Type 3R outdoor enclosure. Nameplate weight is 75 lb. Suitable for industrial three-phase voltage matching where electrical isolation between primary and secondary is not required.
| Specifications | |
|---|---|
| Model | BE-2-52601-2 |
| Condition | Surplus New | Electrical |
| kVA | 6 kVA |
| Primary Voltage | 240 volts |
| Secondary Voltage | 208 volts |
| Phase | 3-phase | General |
| Auto VS Isolation | Auto |
| Oil vs Dry | Dry |
| Enclosure Type | Nema 3R |
| Other Specifications |
|---|
|

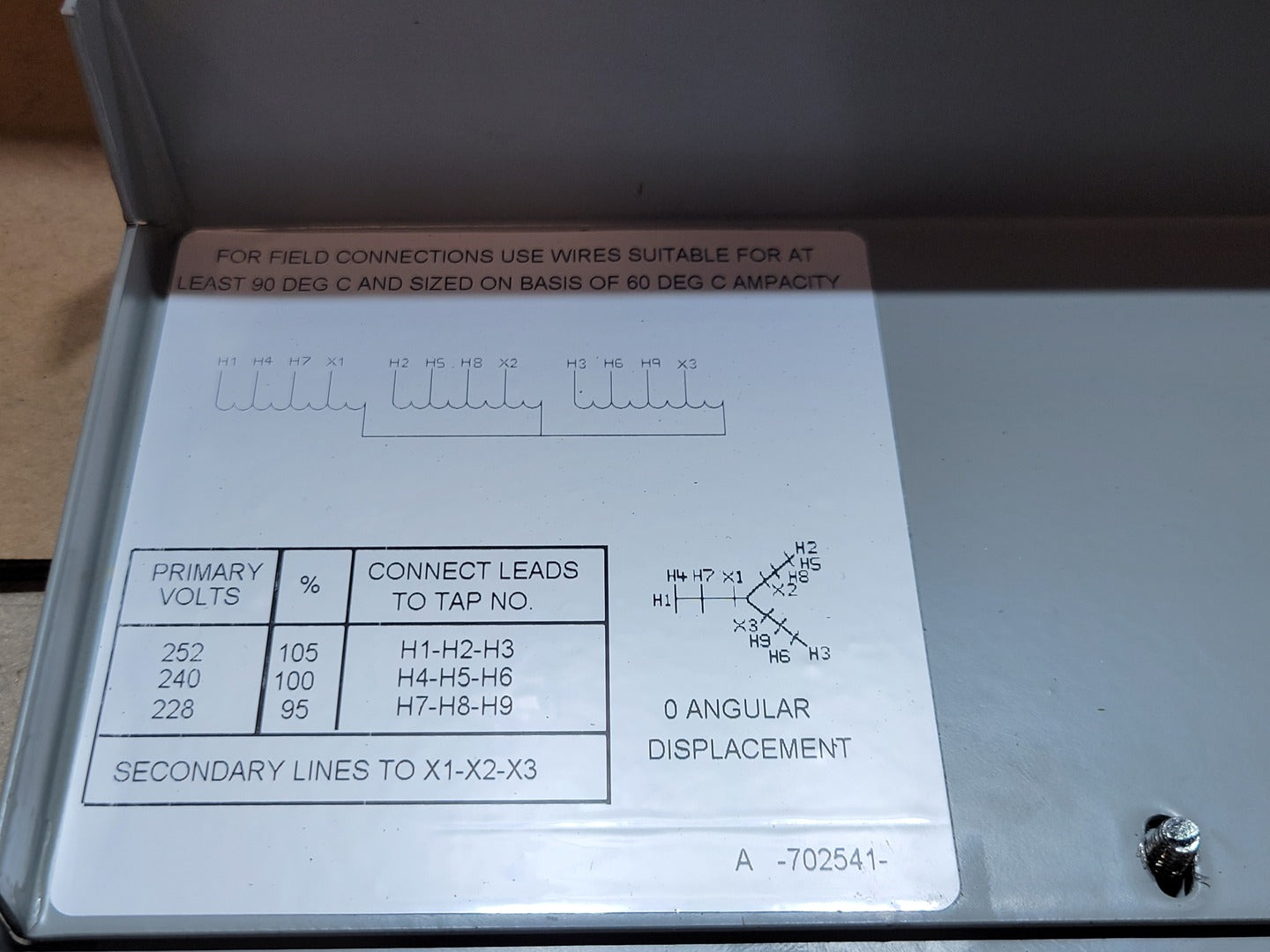

Style: SR Primary Taps: 228 / 240 / 252 VAC Frequency: 60 Hz Impedance: 0.11% Angular Displacement: 0° Winding Temperature Rise: 115°C Insulation System: H-3180-L Insulation Class: Class 180 Construction: Dry-Type / Encapsulated Minimum Side Clearance: 4 in Minimum Vertical Clearance: 4 in |
