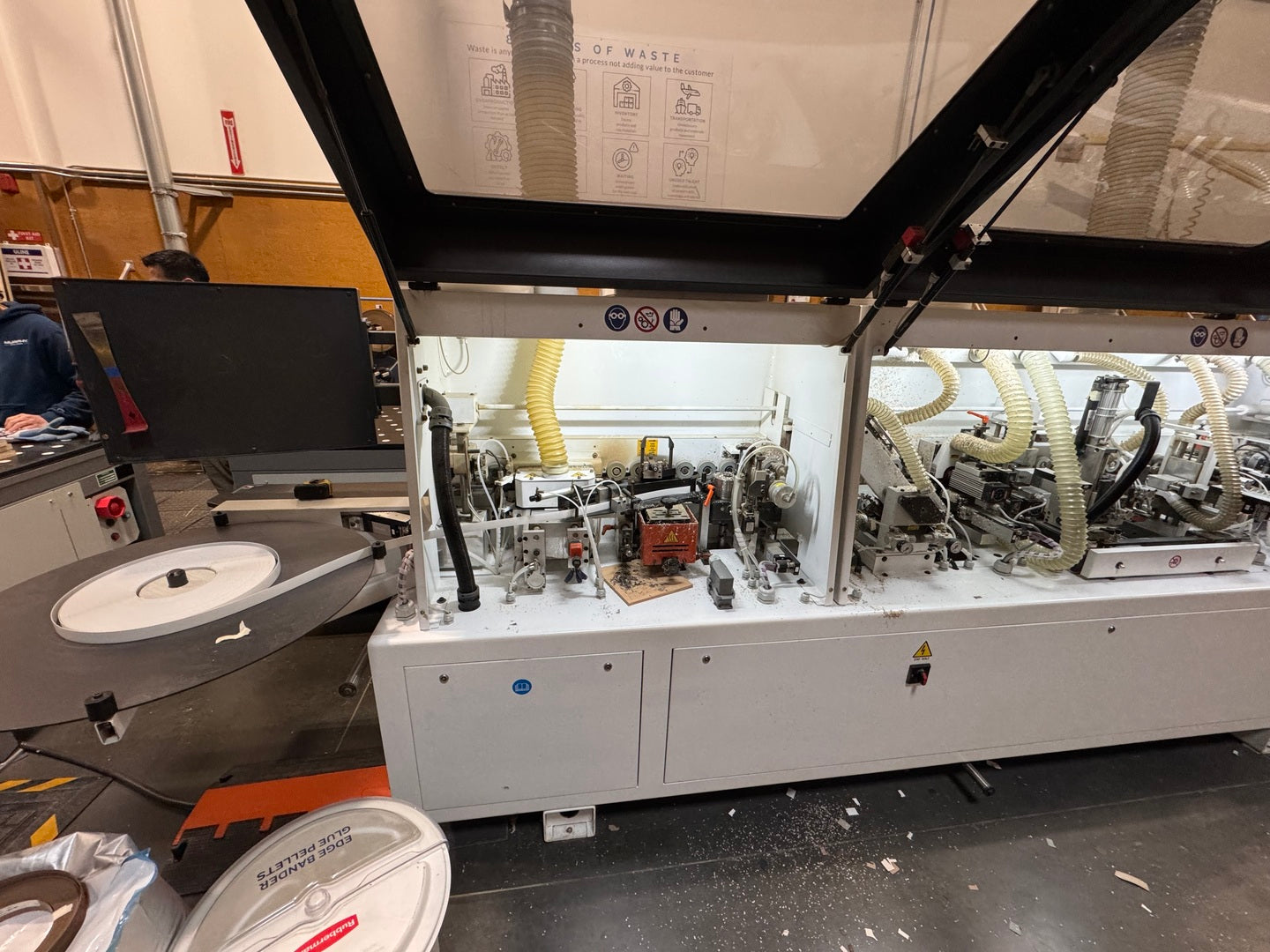

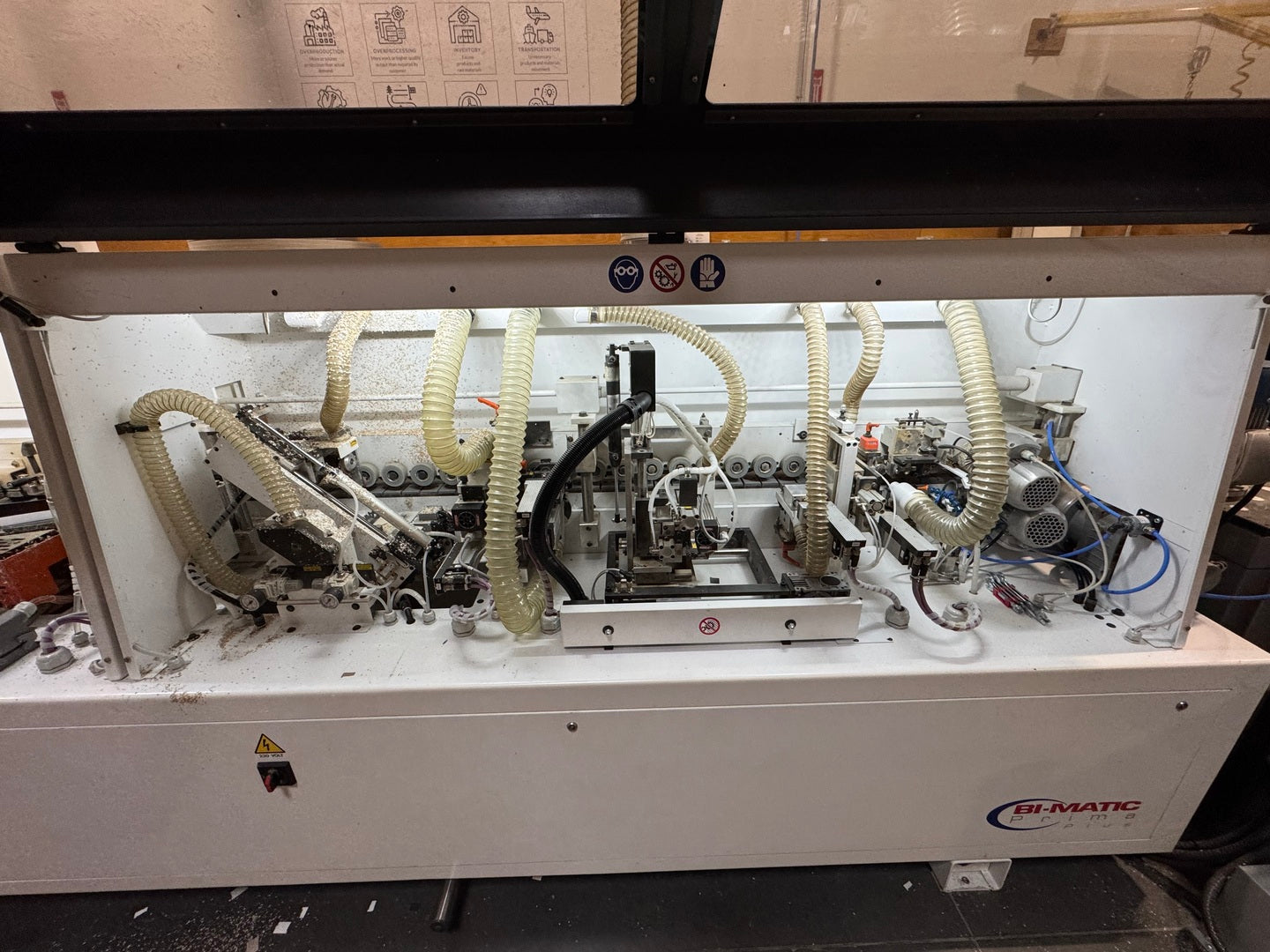

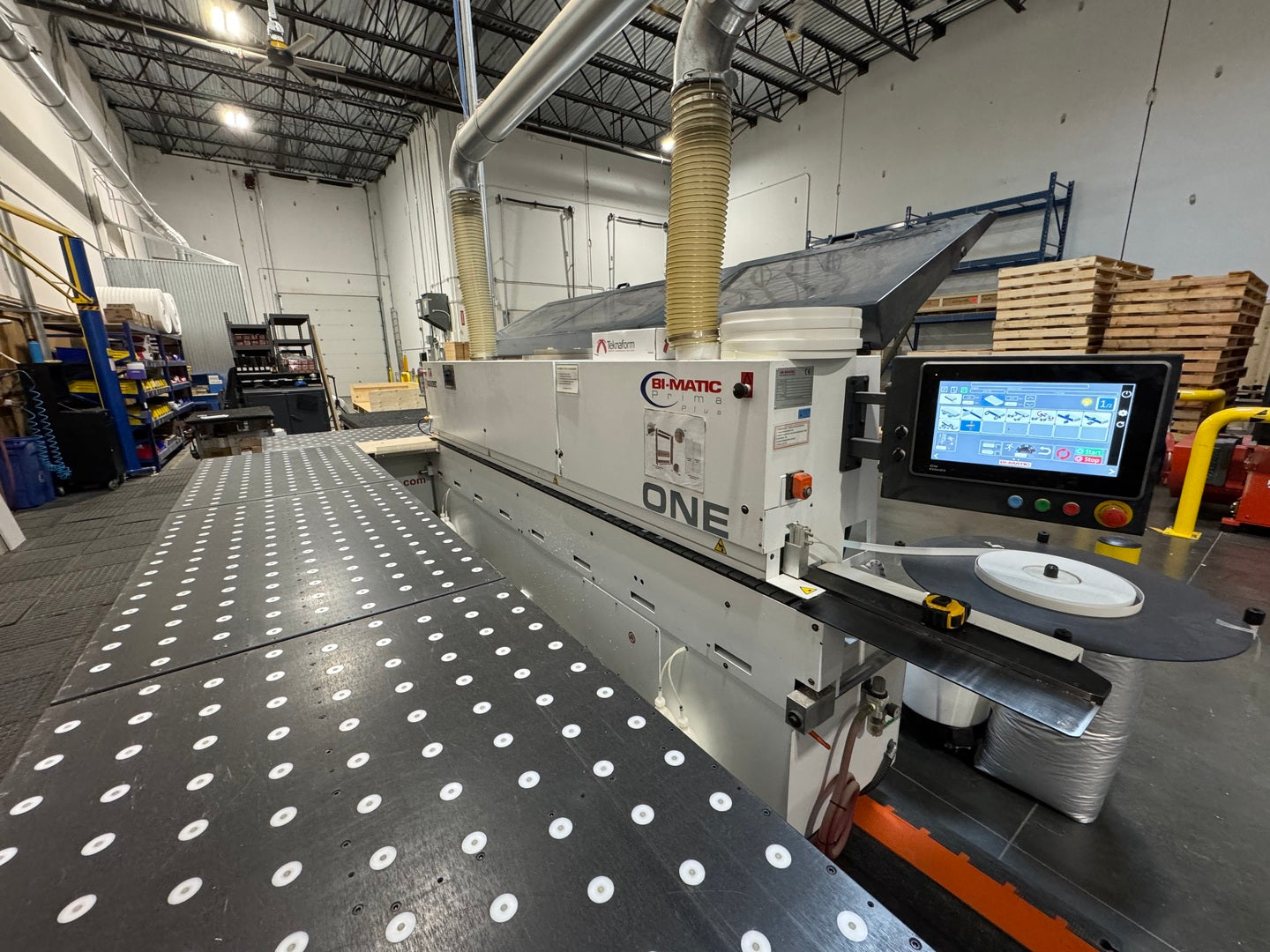

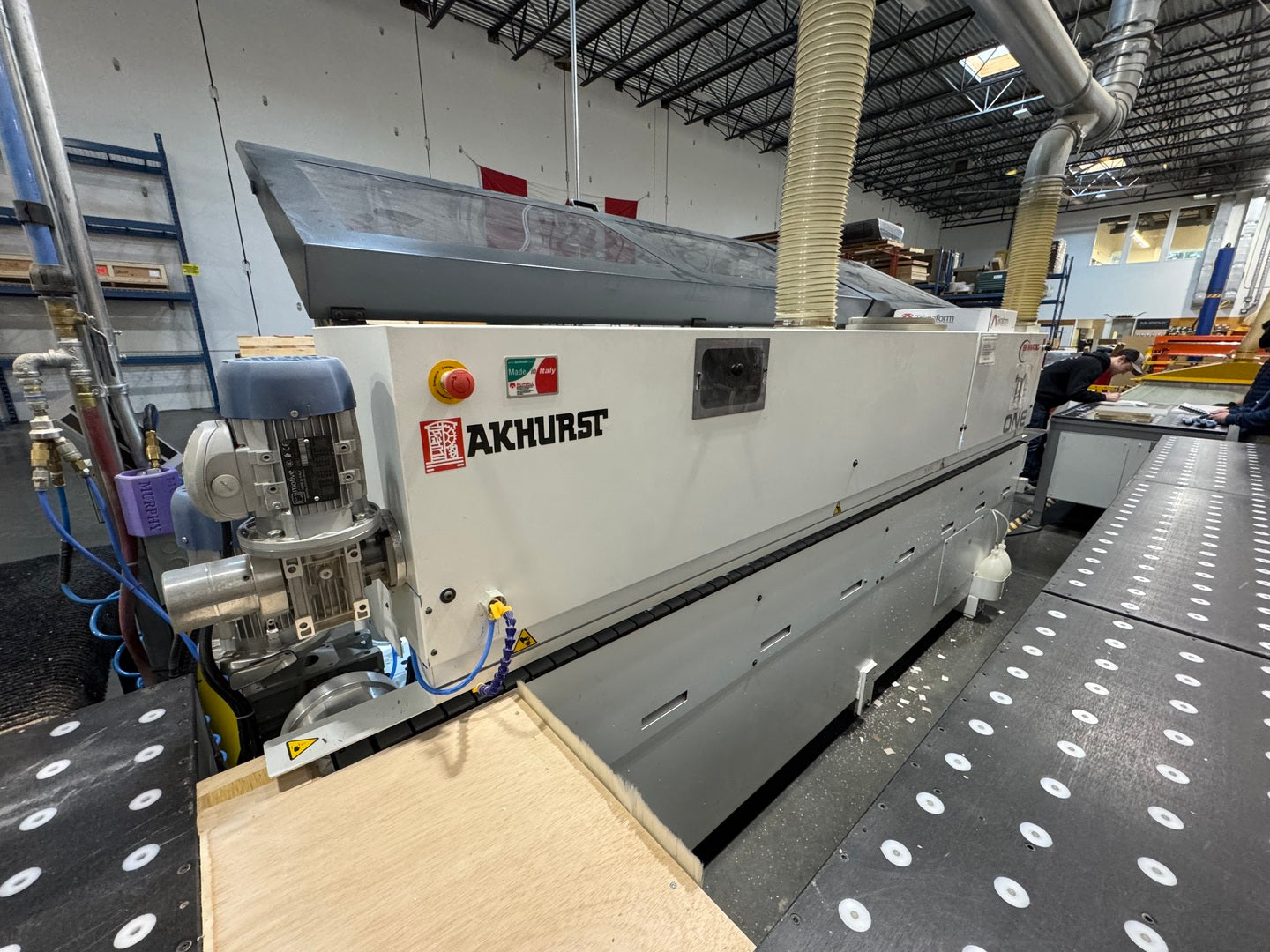

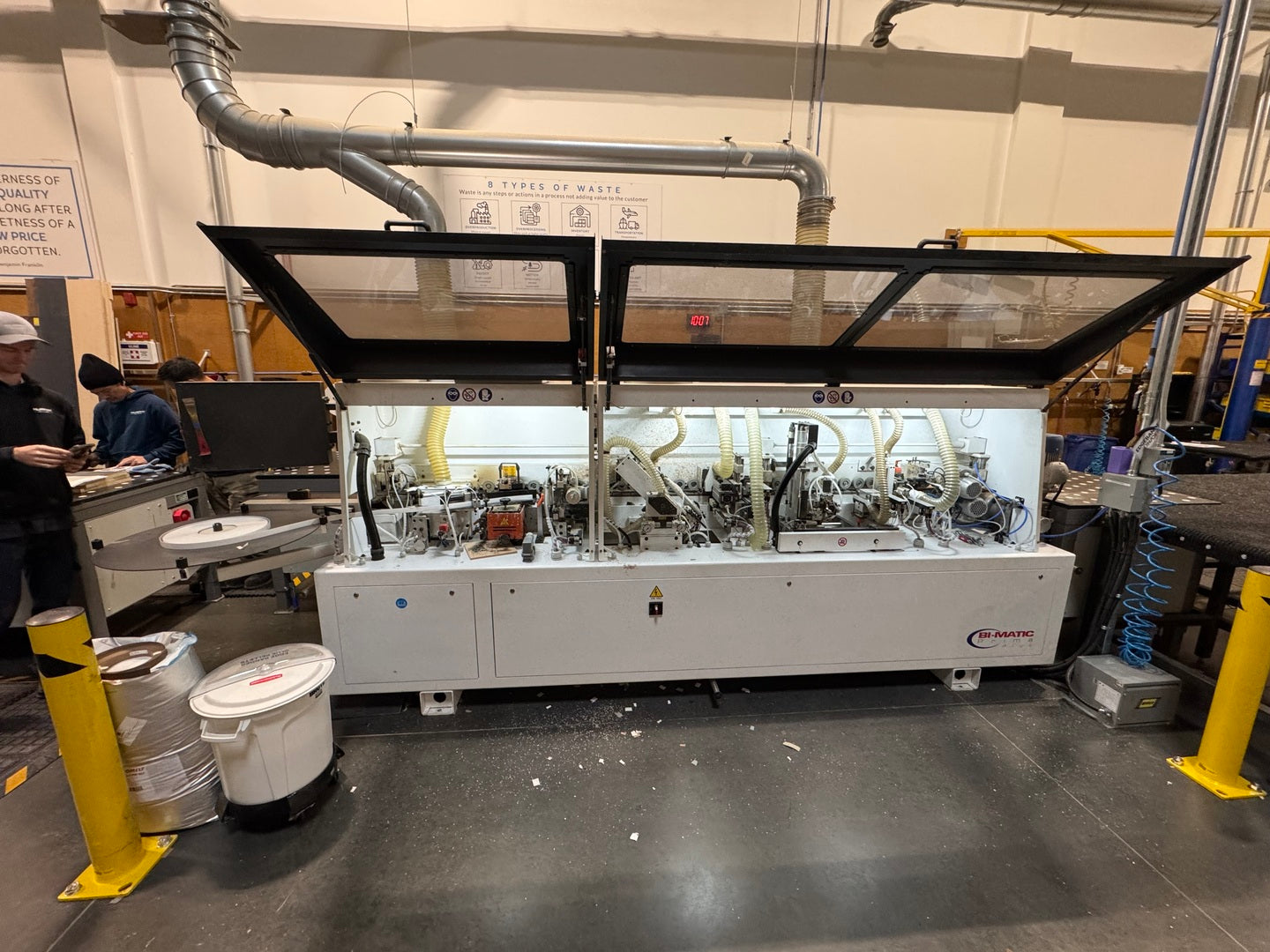

Single-Side Edge Bander Prima Plus 7.3 ONE

Video Demonstration

Video Backshot

Features:

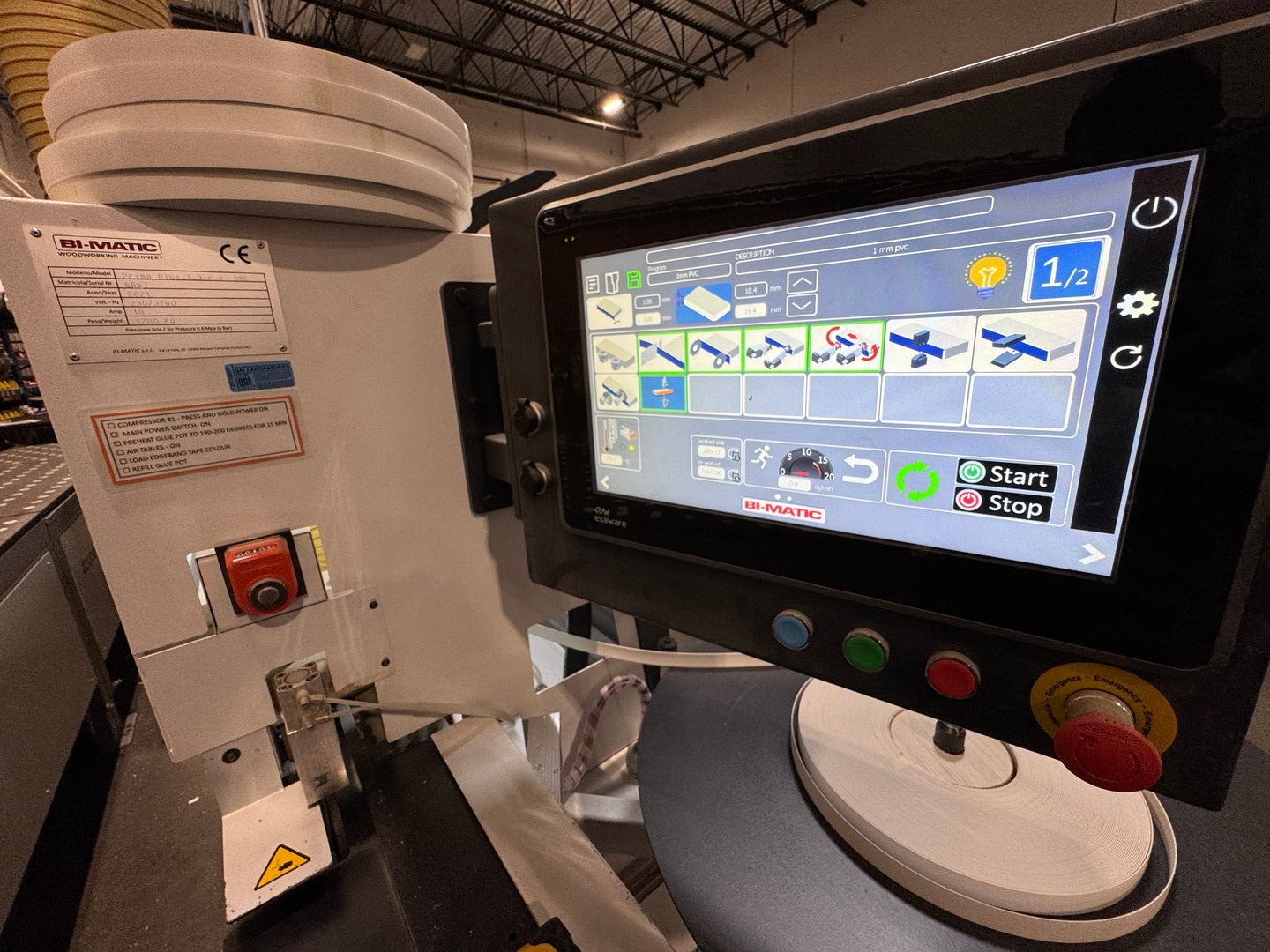

1. 12" touch screen control capable of storing machine settings
2. Automatic machine adjustments to certain units by servo and pneumatic controls
3. Auto setting infeed fence according to the edge thickness being applied
4. Narrow part insertion device to ensure panels are fed squarely into the machine
5. 1.5 litre Teflon coated glue pot with quick heating time of 5-6 minutes
6. Quick change system allows for fast exchange of the glue pot when using different color glues or different glues (when extra glue pot(s) are ordered)
7. Screw Glue Roller system allows for proper glue delivery of higher viscosity glues like Polypropylene resulting in virtually invisible glue joints
8. Dual motor end trim with pneumatic inclination from the control system
9. High frequency top & bottom edge trimming units with servo setting
10. Counter rotating diamond pre-milling cutters to ensure an optimum edge for high quality joints
11. Corner rounding unit for finishing the ends of the panel with pneumatic 2-position dual radius selection from the control panel
12. Glue scraping system to remove any excess glue to eliminate any re-working of the panel
13. Buffing unit to polish edges after machining
14. Nesting rollers for proper machining of doors with hinge holes already process
15. Riepe LPZ/II anti-adhesive spray system prior to pre-milling unit
16. Riepe LP163/93 polishing system before buffing unit to promote a vibrant edge

Installed Power: 10 kW

Edge Thickness: 0.4 - 3 mm

Min. Panel Length: 90/300 mm

Min. Panel Length w/ Rounding Unit: 130 mm

Min. Panel Width: 90/100 mm

Min. Panel Width w/ Rounding Unit: 300 mm

Max. Panel Thickness w/ Pre-milling: 50 mm

Max Panel Thickness w/ Rounding Unit: 50 mm

Max. Panel Thickness w/o Pre-milling or Rounding: 50 mm

Min. Panel Thickness: 10/12 mm

Working Speed: 9 m/min

Dust Outlets: Nr. 02, 150 mm diameter

Pneumatic Operating Pressure: 6 bar

Footprint: 4150 mm length x 700 mm width x 1400 mm height

Machine Weight: 1280 kg (2821 lbs)

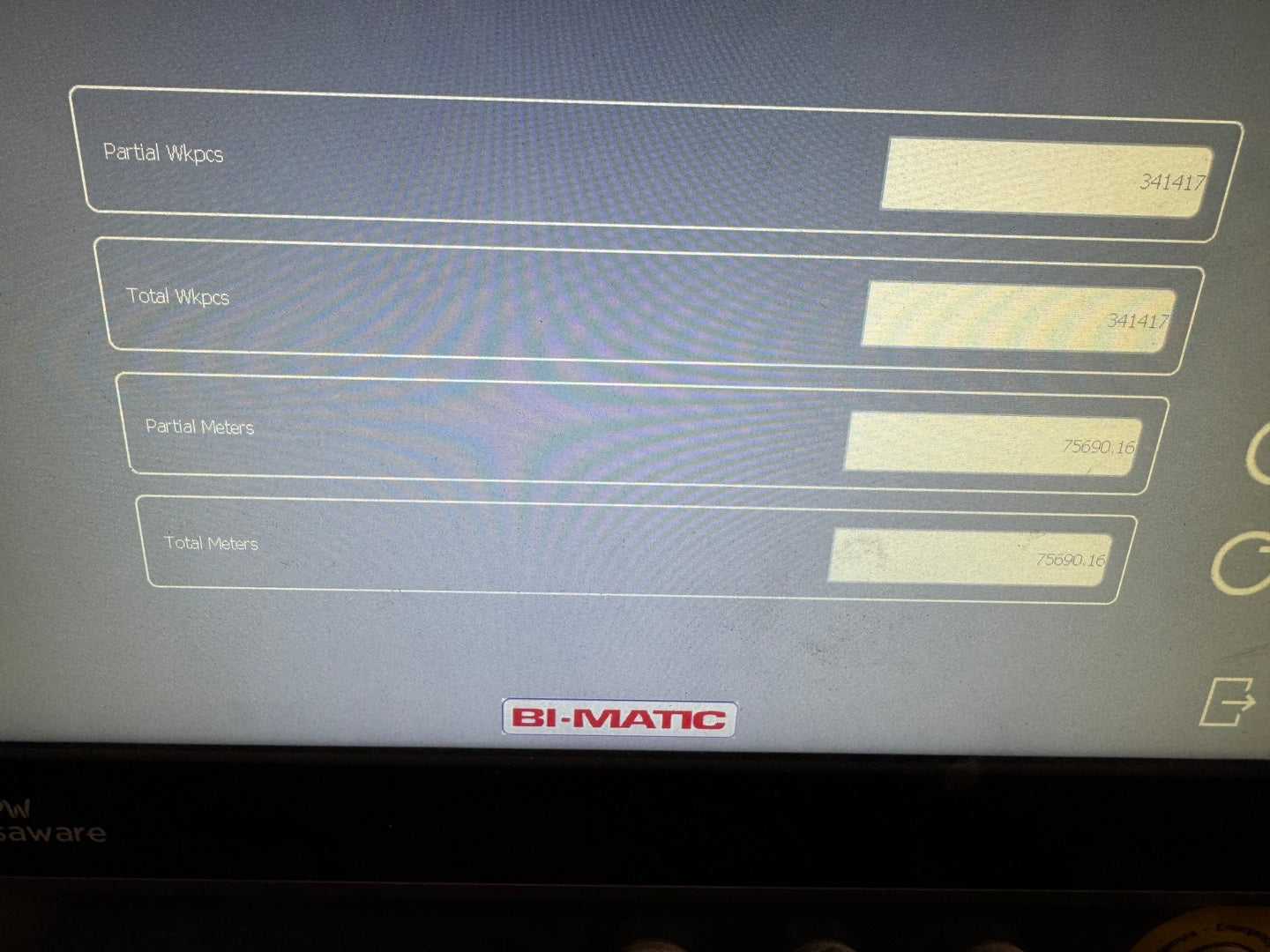

Hours: 2500 hrs (approx.)
