Descripción
| Specifications | |
|---|---|

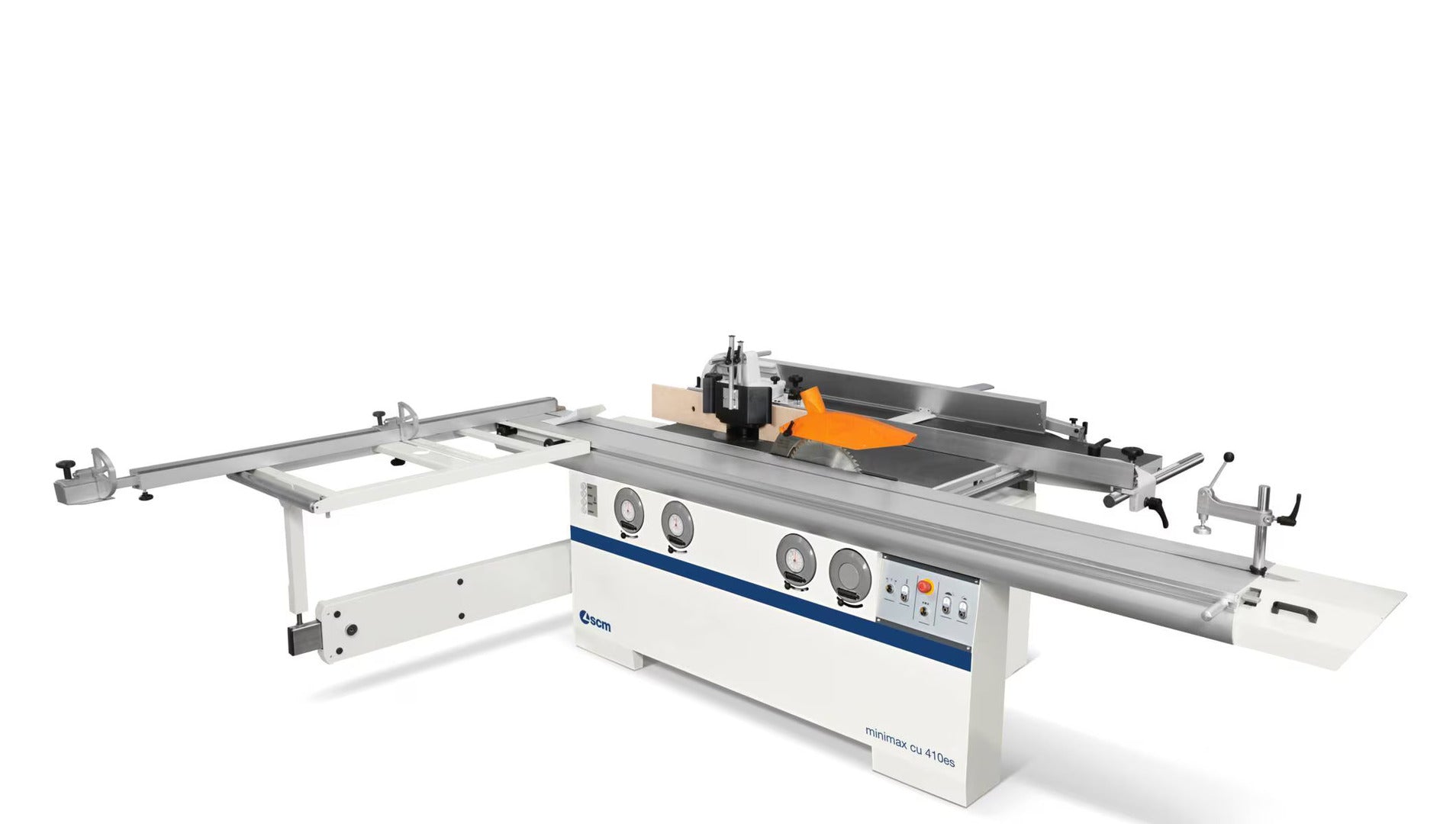

| Model | CU 410ES |
| Condition | New | General |
| Horsepower | 8 hp |
| Table Size | 2600 mm |
| Blade Diameter | 350 mm |
| Voltage | 220 volts |
| Phase | 3-phase |
| Saw Type | Table Saws |
| CNC | No |
| Other Specifications |
|---|
|
Cutterhead working width: 16 in. // 410 mm Jointer bed length: 86 in. // 2200 mm Max. sawblade diameter with scoring blade installed: 14 in. // 350 mm Sawblade arbor size: 1 in. // 25 mm Max. sawblade projection from table at 90°/45°: 4.64 in. // 118 mm / 0.18 in. // 4.64 mm Cutting width on parallel fence (Rip capacity): 39 in. // 1000 mm Max. useful spindle length: 5 in. // 125 mm Max. tool diameter when profiling: 9.44 in. // 240 mm Spindle moulder speed: 1700/4000/7000/9000 rpm (3x) Three-phase motors: 8 Hp Max. squaring stroke of sliding table saw: 8.5 ft. // 2600 mm |
