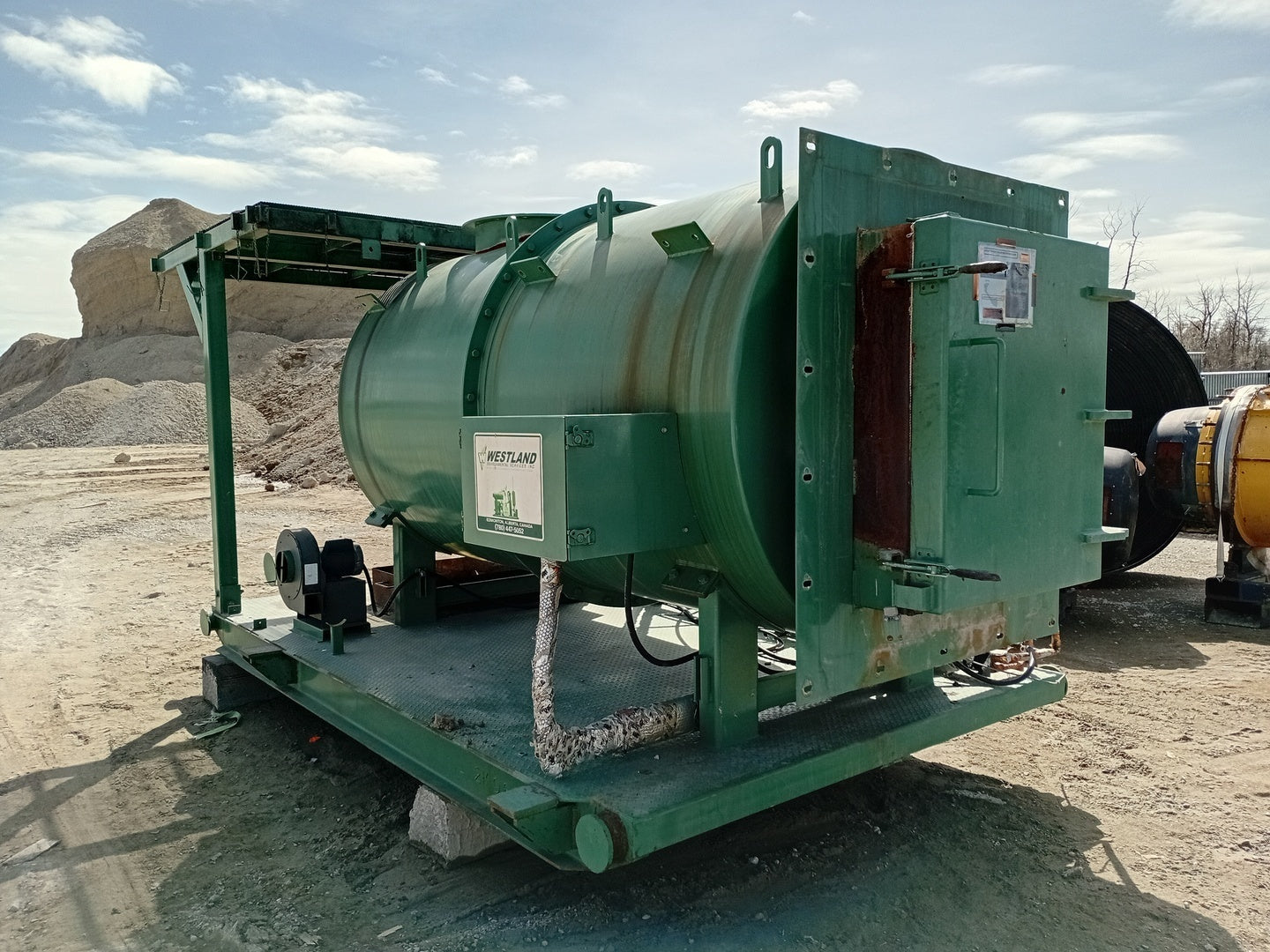

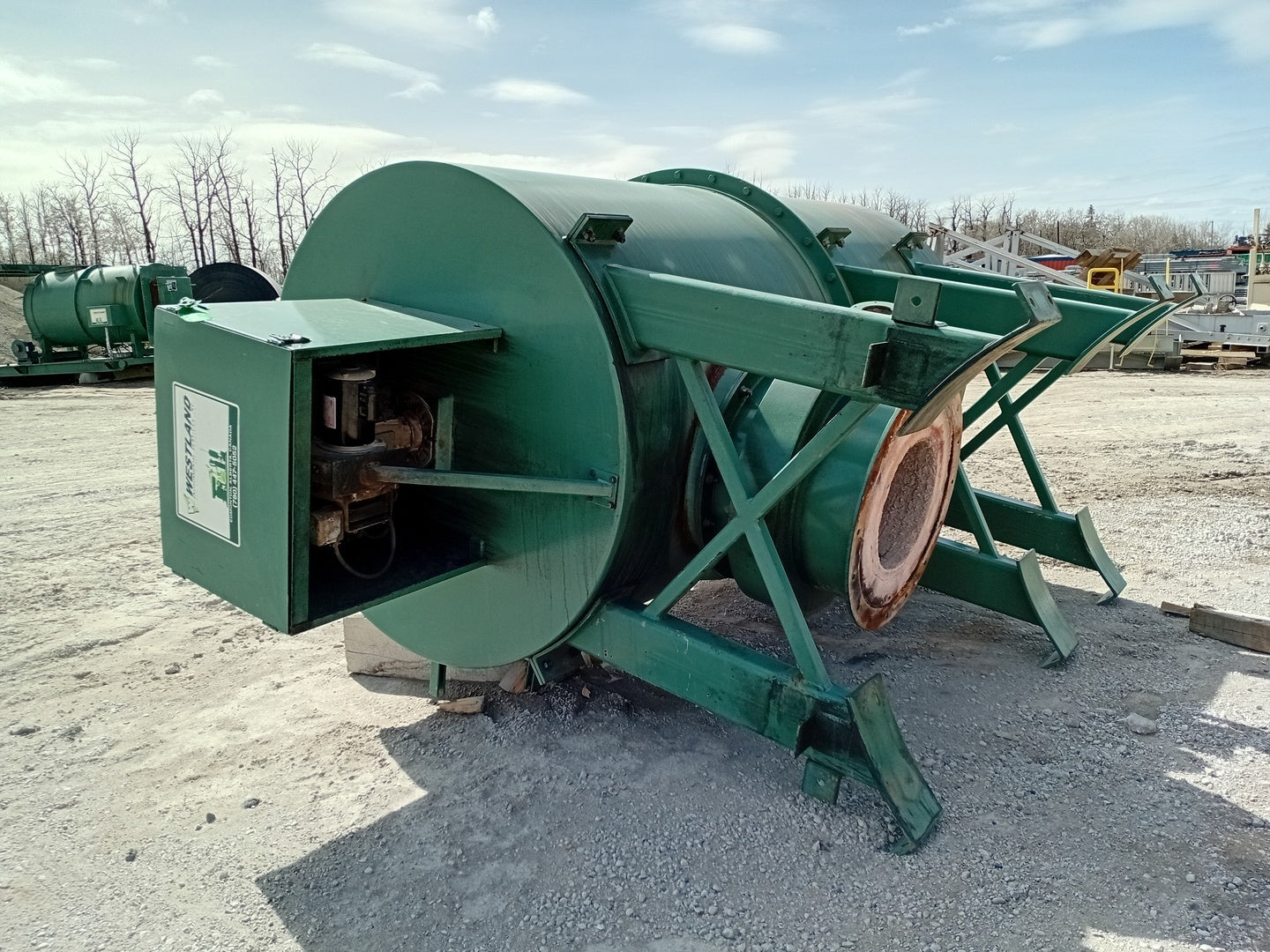

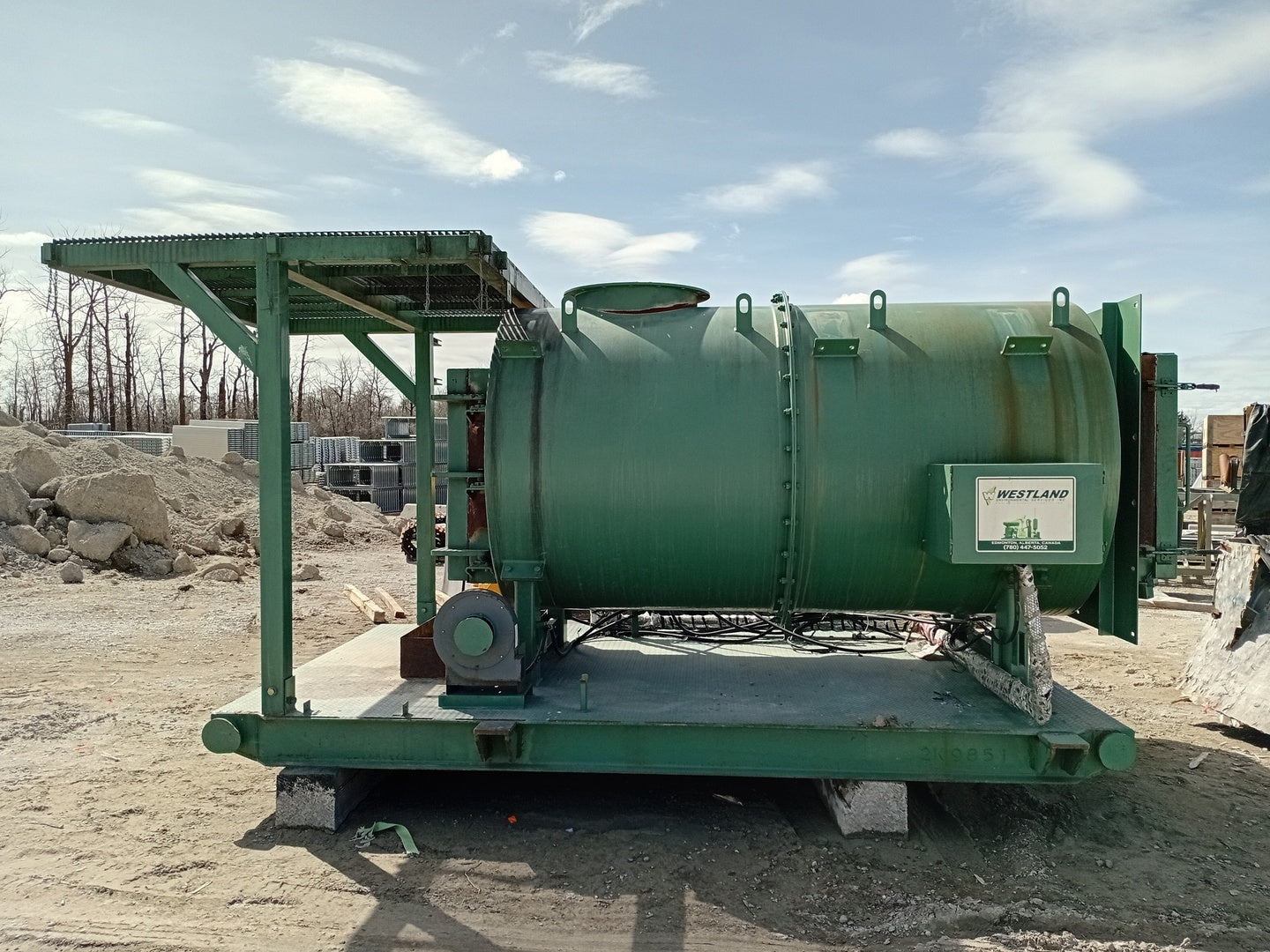

KETEK Cyclonator Incinerator CY-100-CA
KETEK

Cyclonator Incinerator CY-100-CA

SKU: 136389
Precio:
$92,181

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

Ketek's Controlled Air Incinerators destroy solid waste efficiently and reduce the risk of contamination to the environment.
Specifications
Model CY-100-CA
Condition Used
Other Specifications

Ketek CY-100-CA Brochure

Features

  • Dual chamber, controlled-air operation
  • Secondary chamber gas residency time of two seconds
  • Built in safety features
  • Load-and-go operation
  • Low power consumption

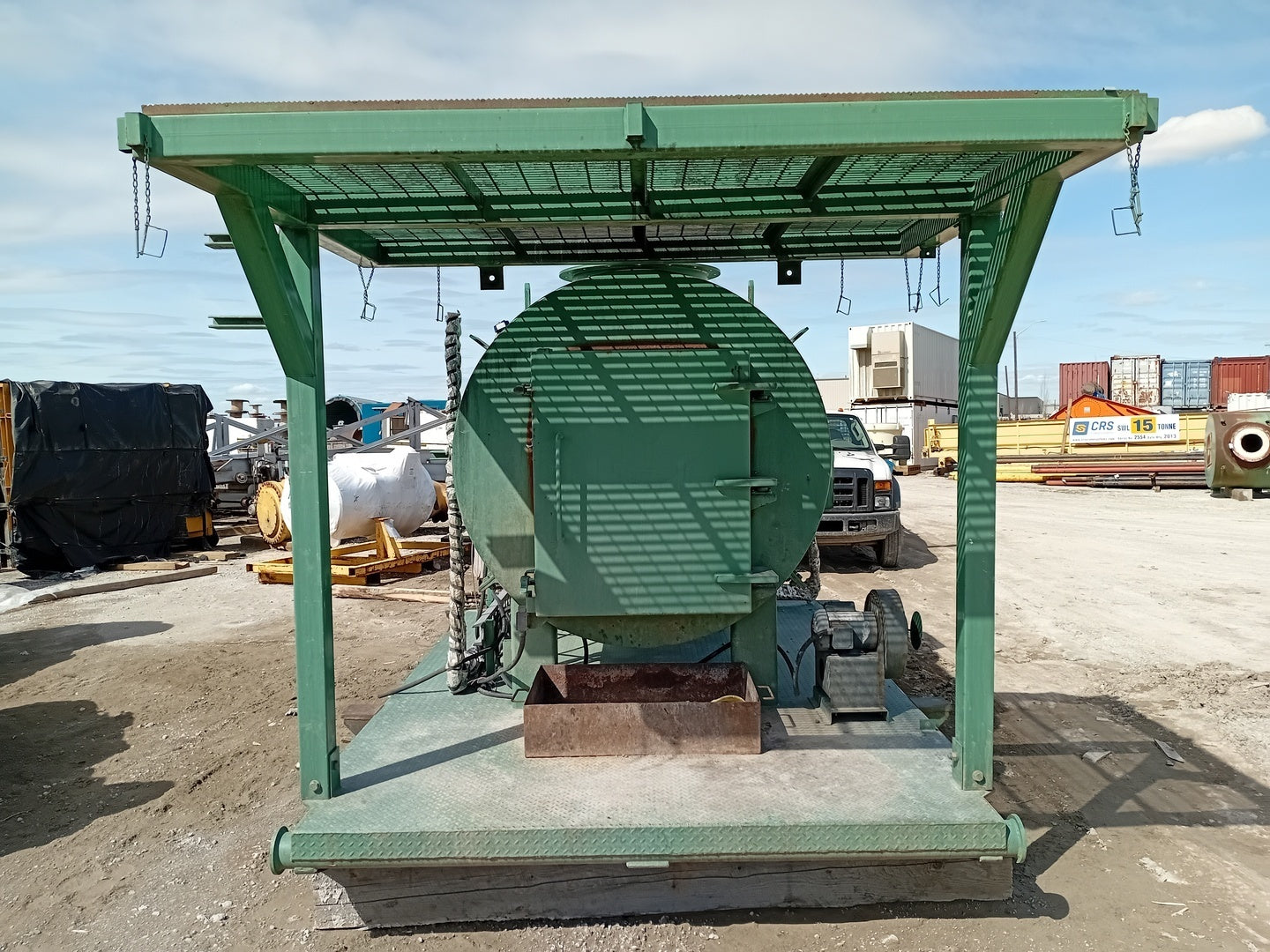

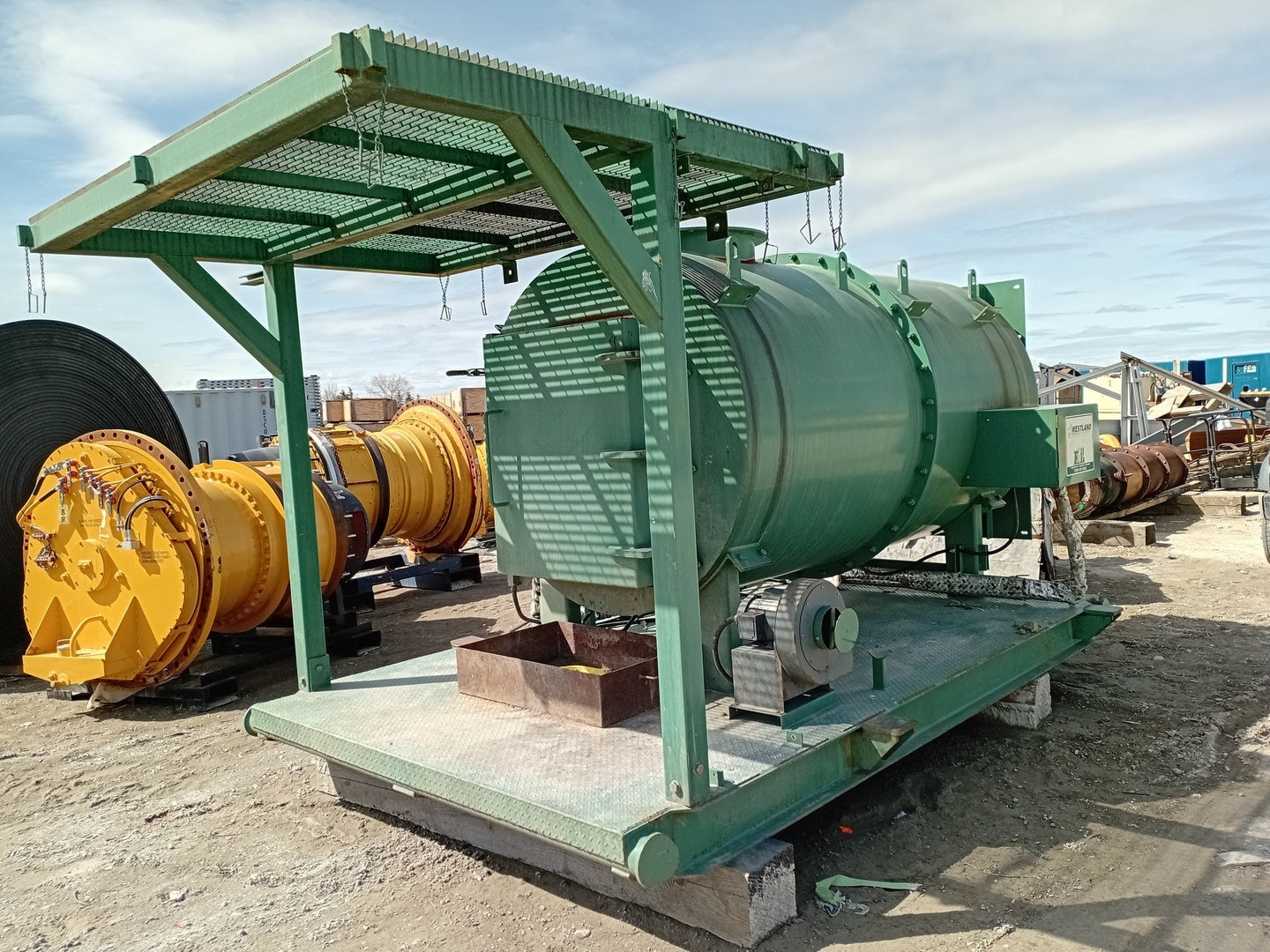

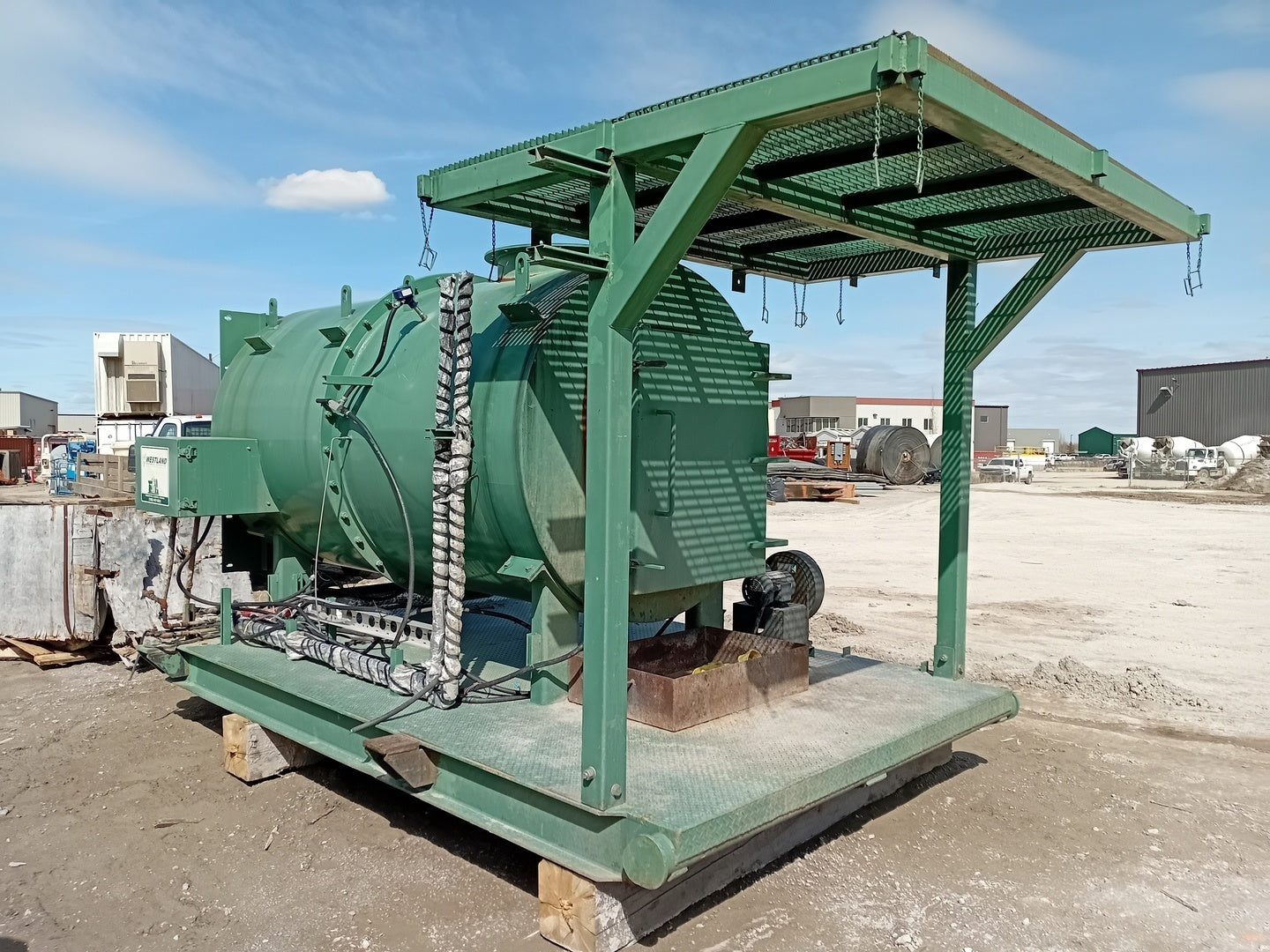

  • Platform, ladder, ladder cage and handrails

Control System

  • Load-and-go, one-button batch operation

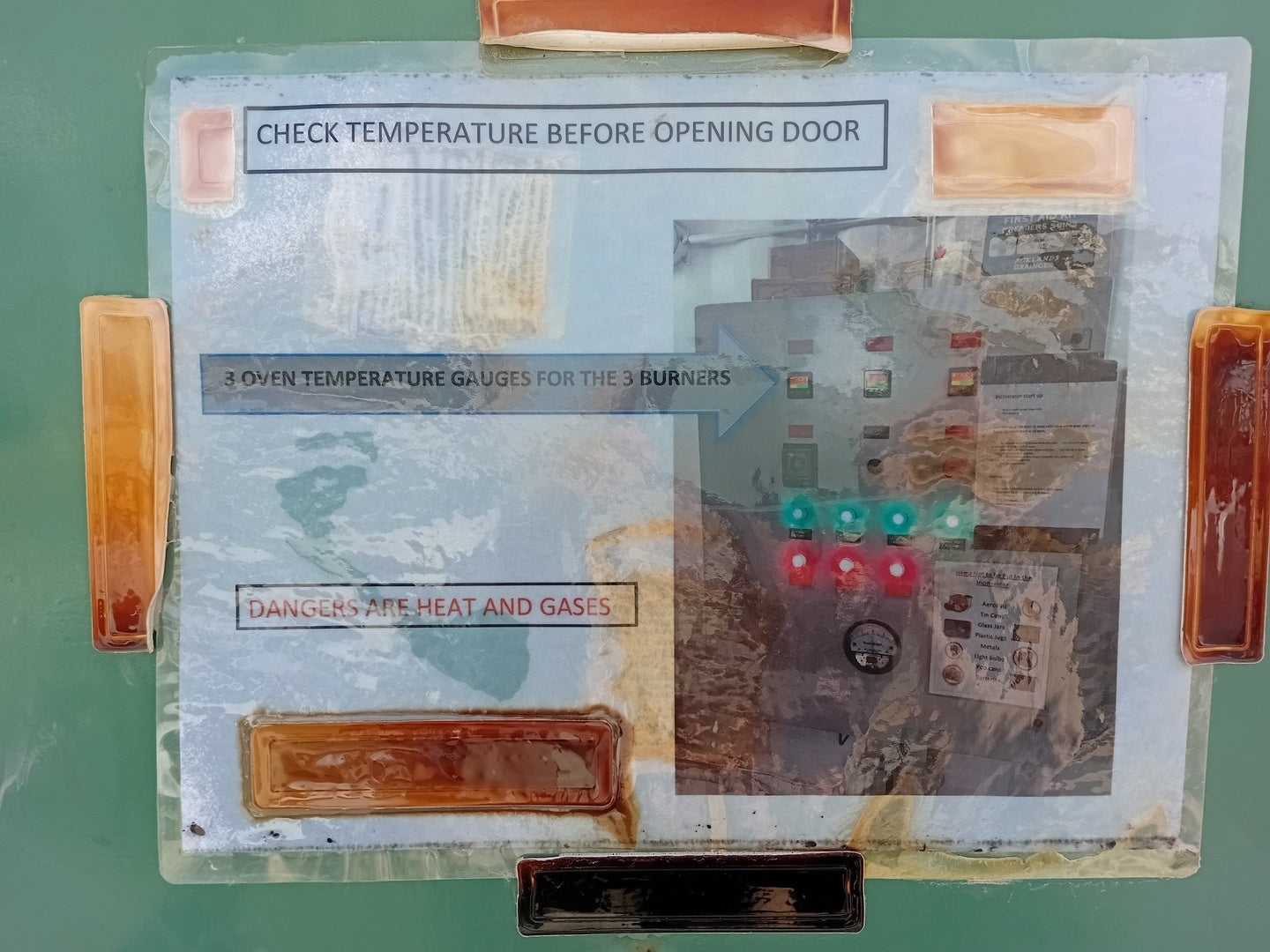

  • Temperature control for primary and secondary chambers
  • PLC real-time data logging

Fuel Supply (diesel-fired units)

  • Optional double-walled, 4,500 L fuel storage tank, c/w filter and flexible hose connection
  • Optional cold-climate package / Arctic fuel line

Optional Fuels

  • LPG, natural gas, diesel

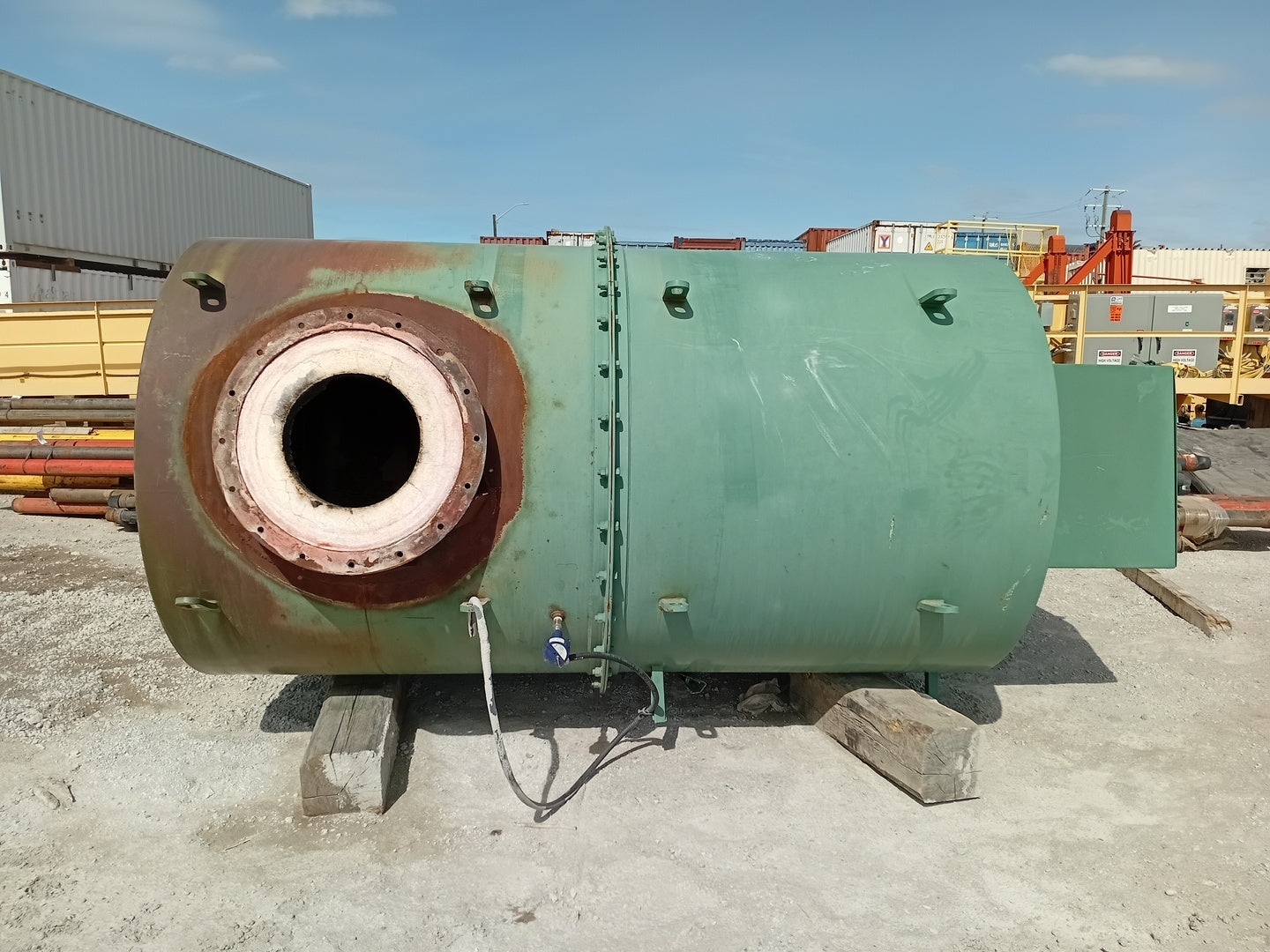

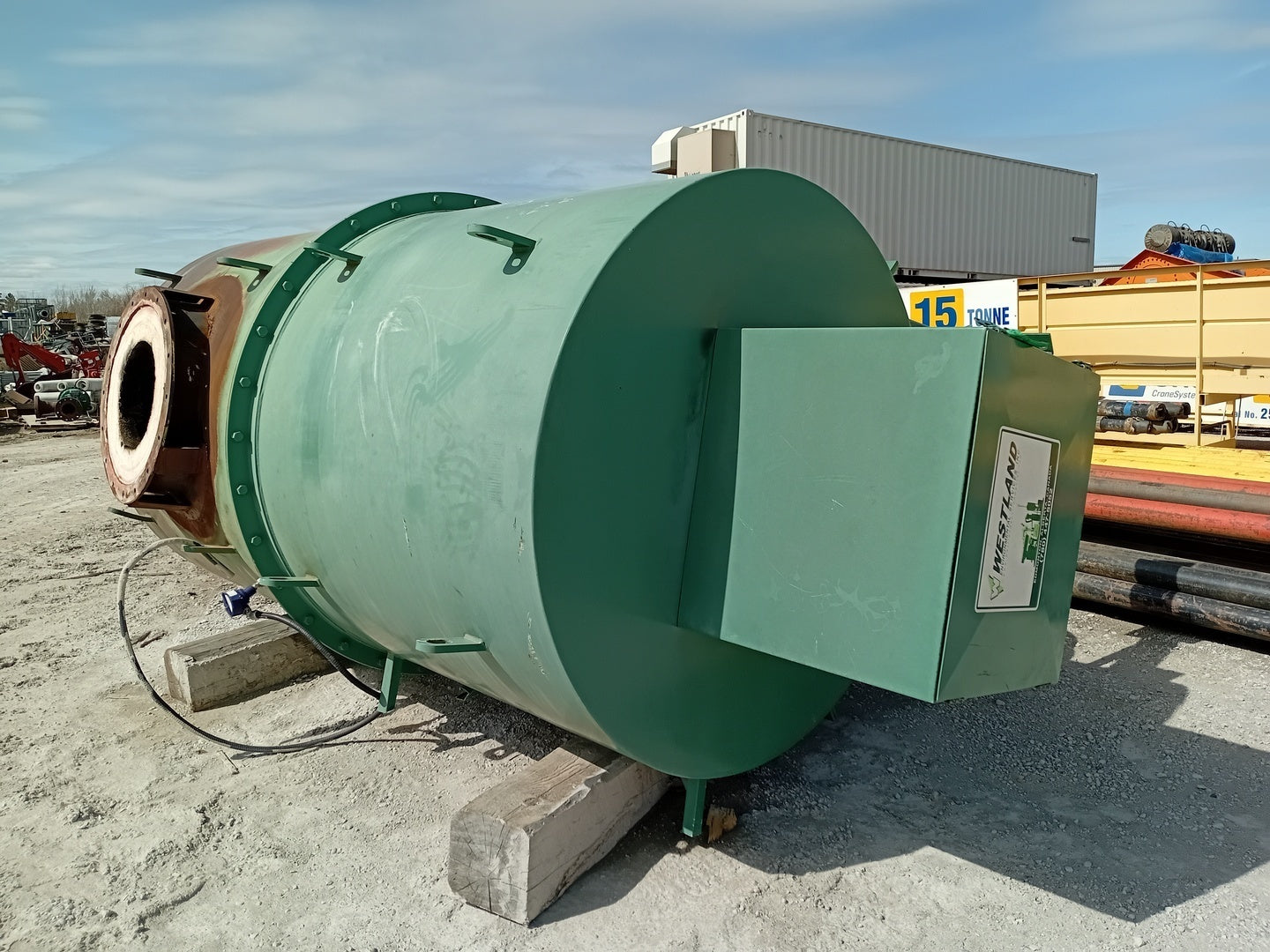

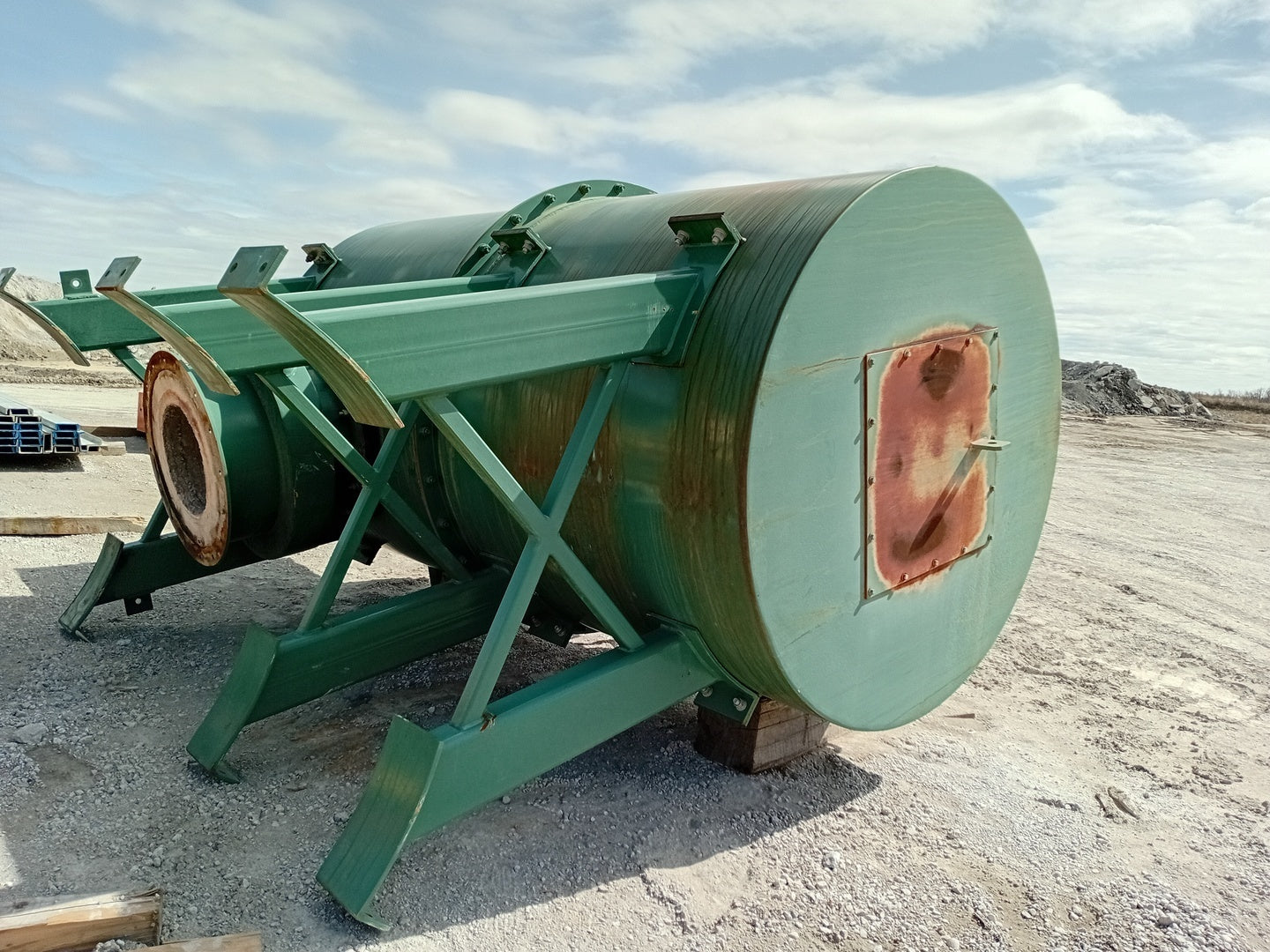

  • Combustion Chambers

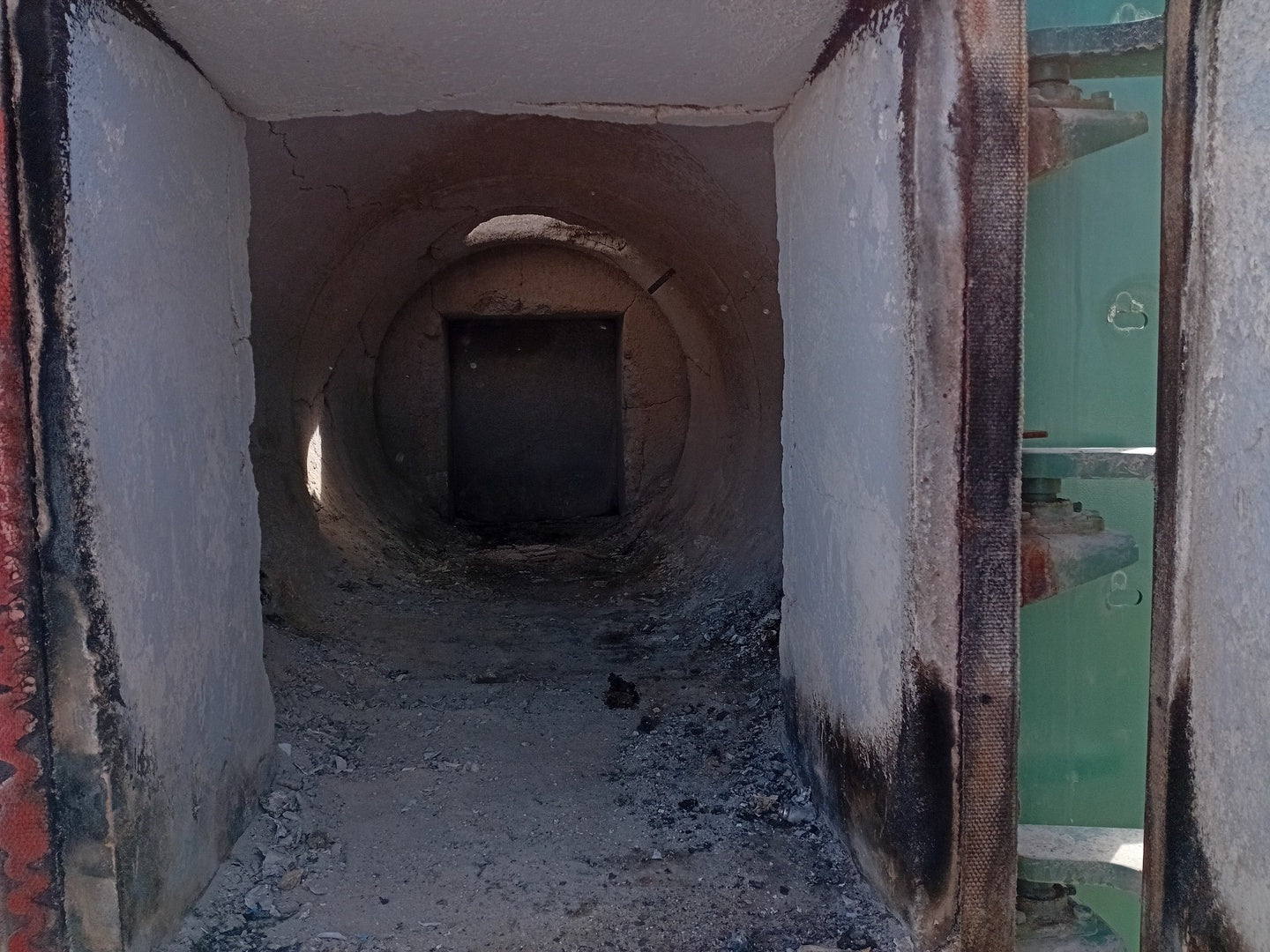

  • The primary chamber is 2.74 m3
  • The secondary chamber is 2.87 m3

Casing

  • 6.35 mm gauge steel

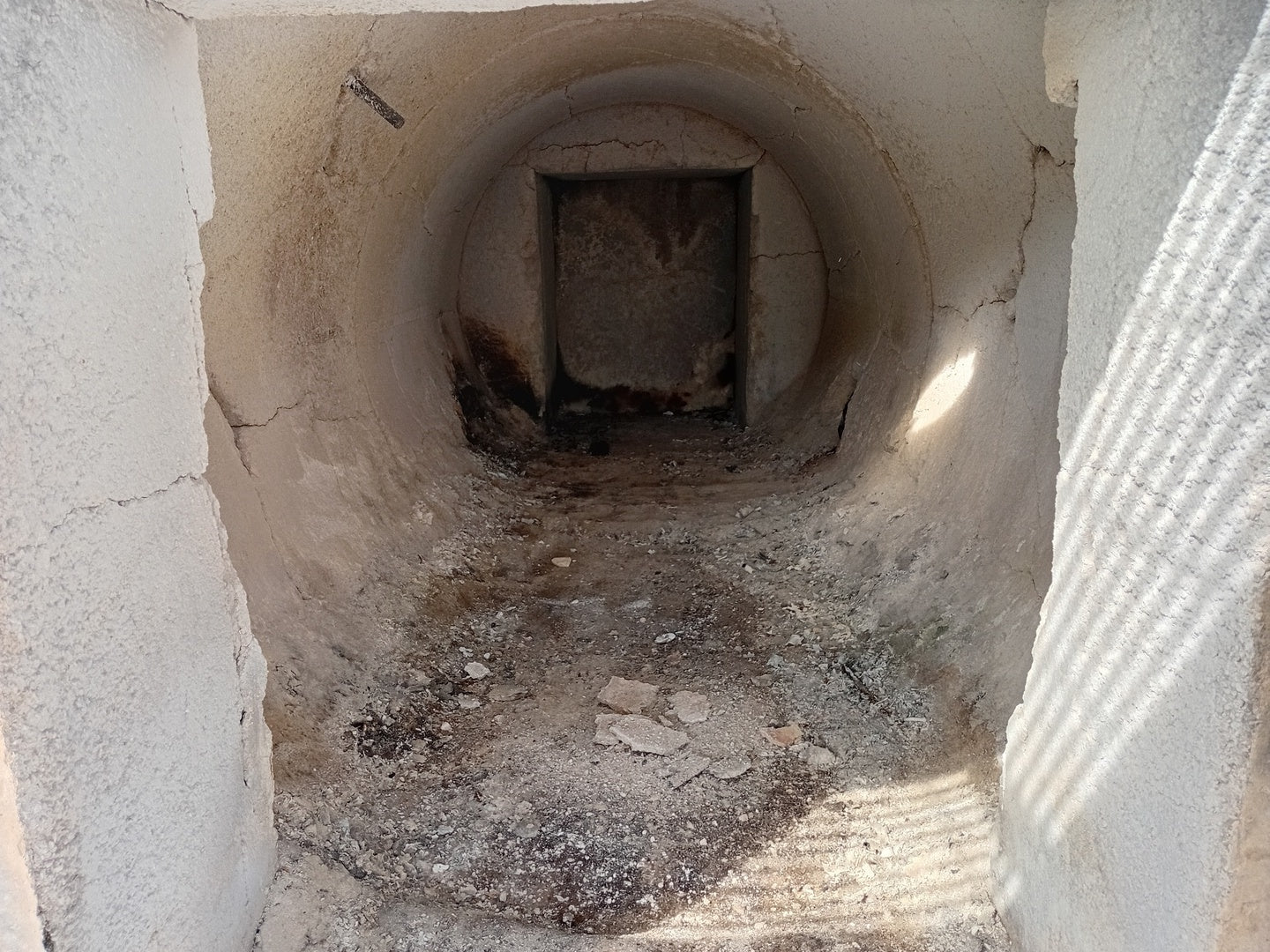

  • Lining: high-heat duty castable refractory over high-temperature insulation

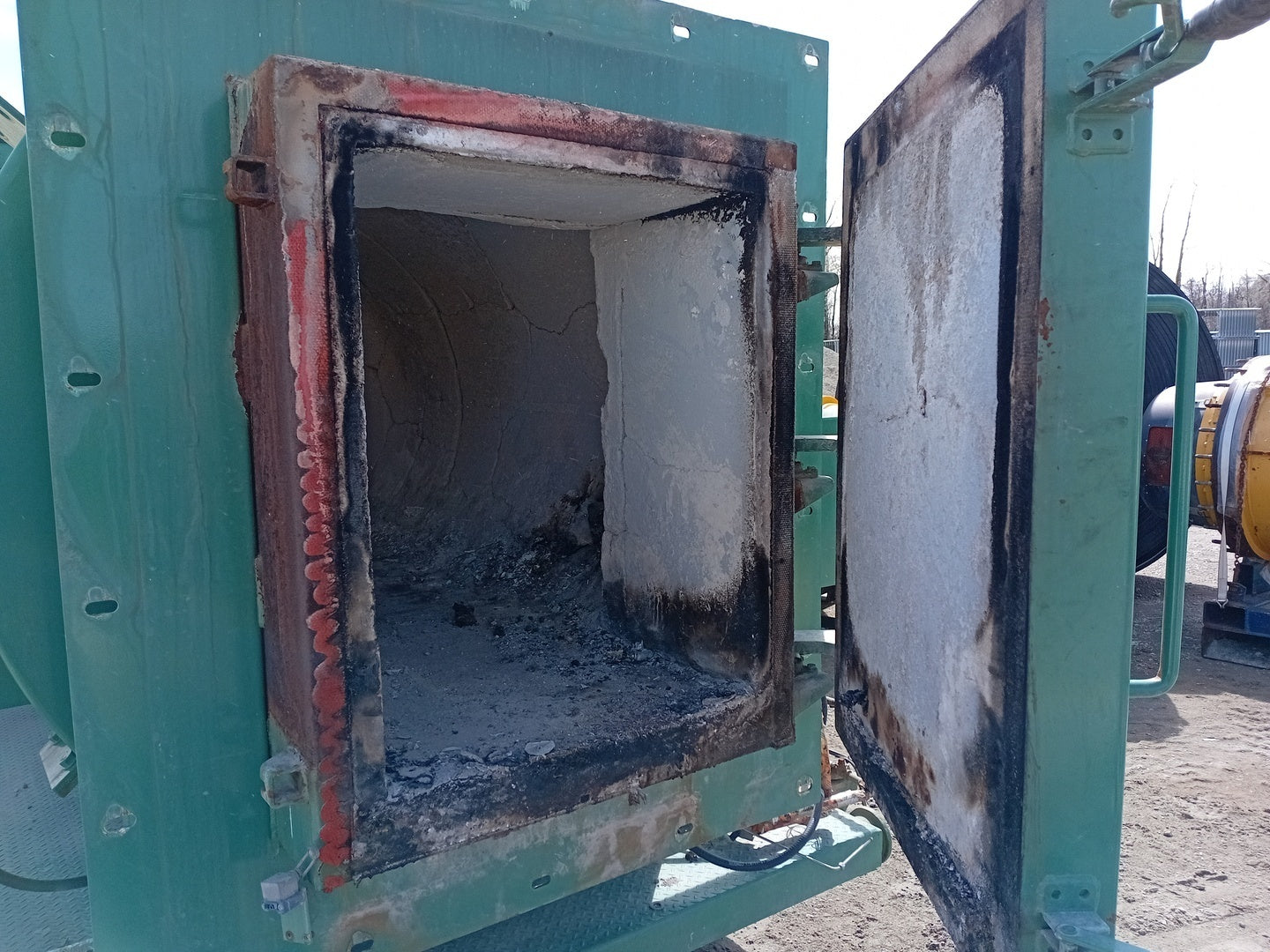

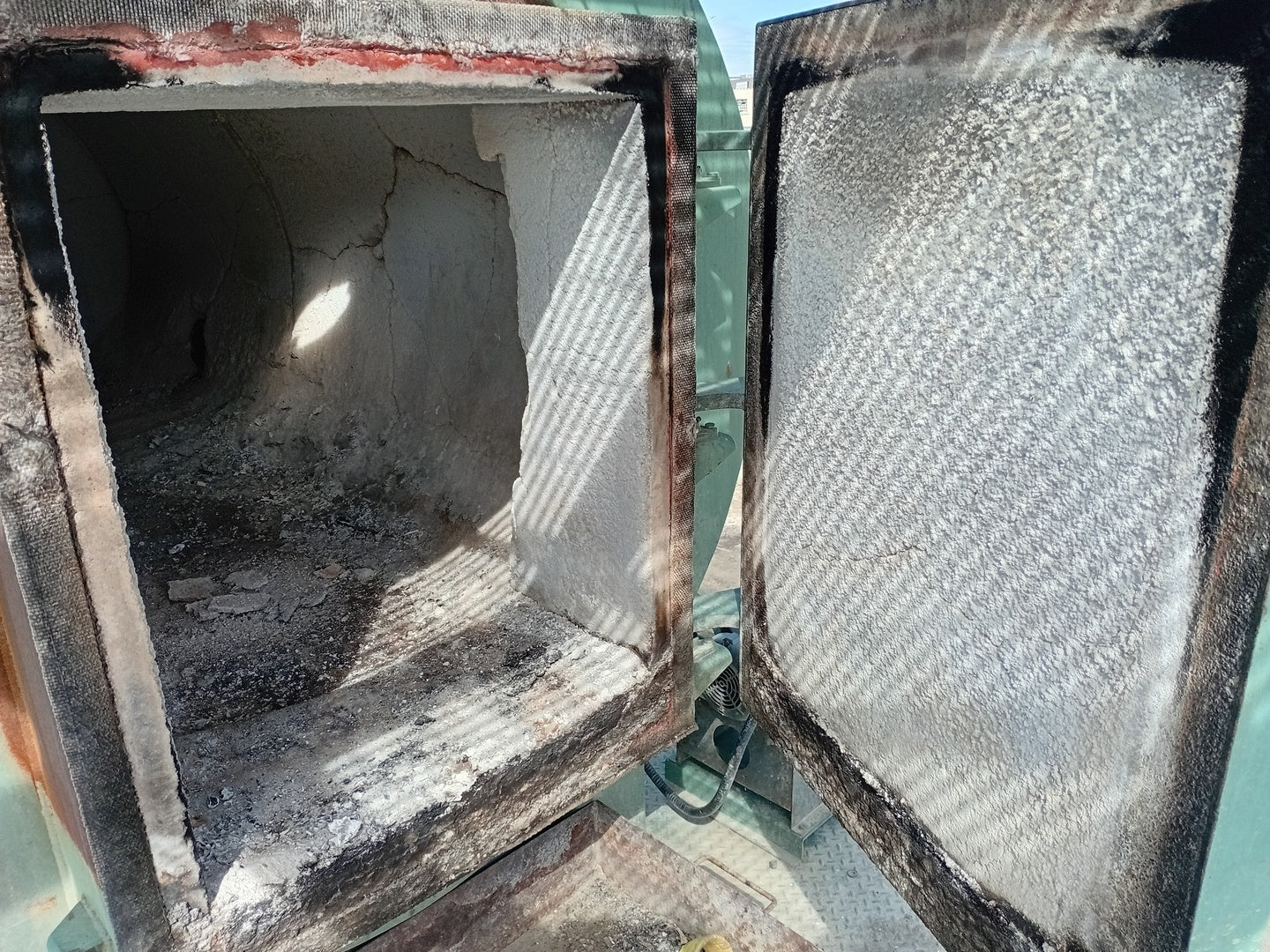

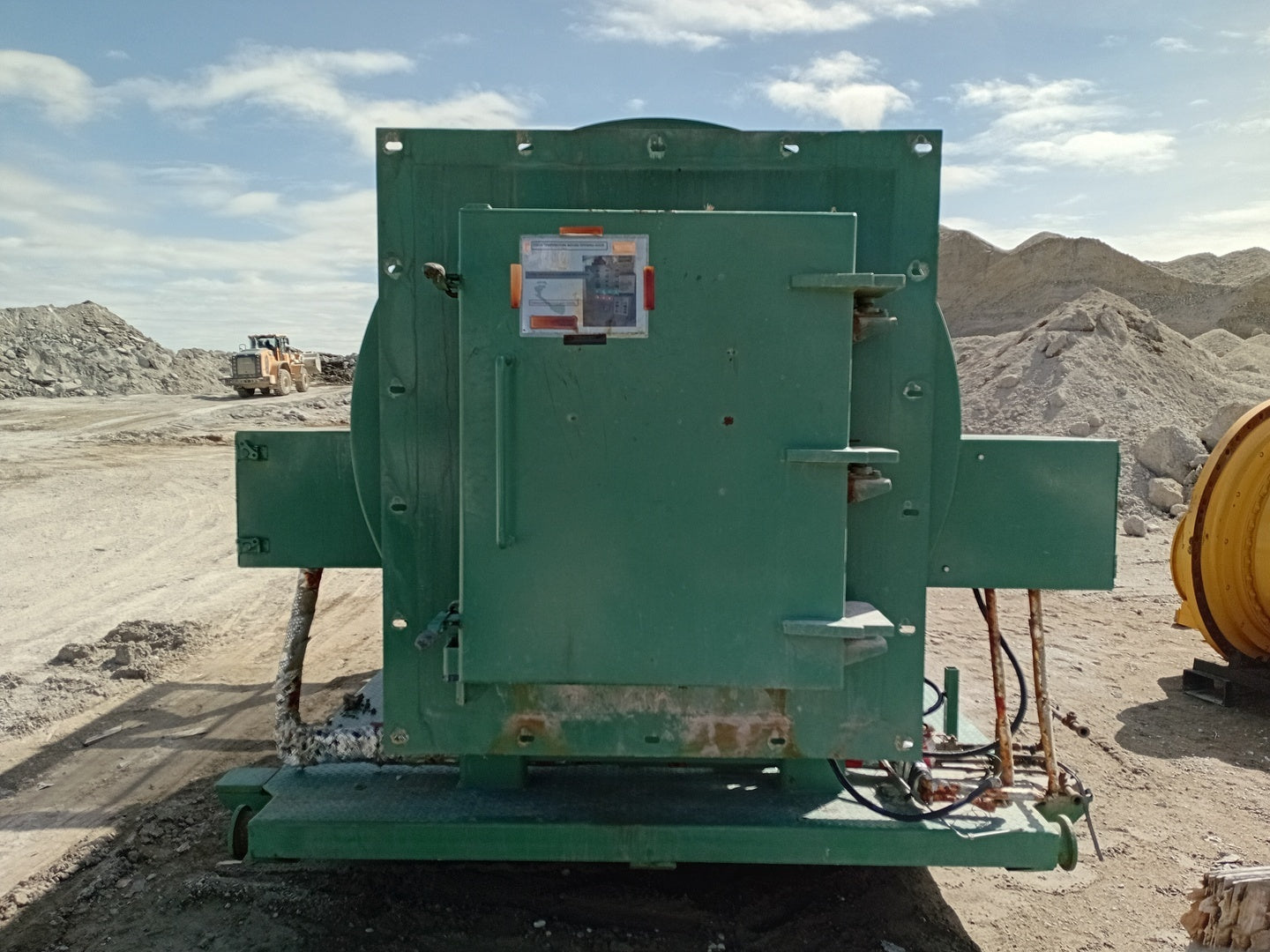

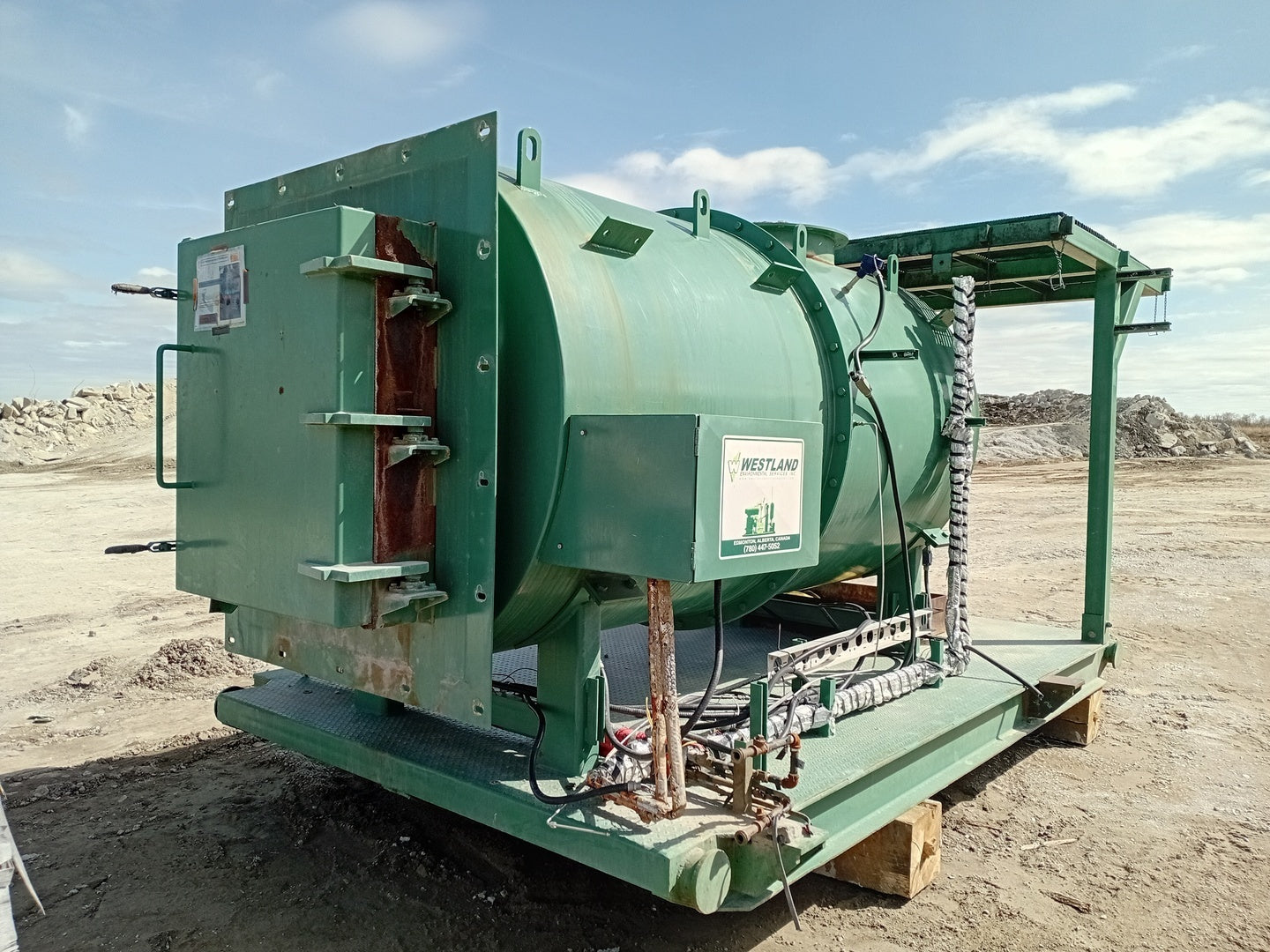

Refractory-lined Doors

  • 699 mm x 899 mm clear opening
  • 6.35 mm steel plate c/w heavy duty blade latch

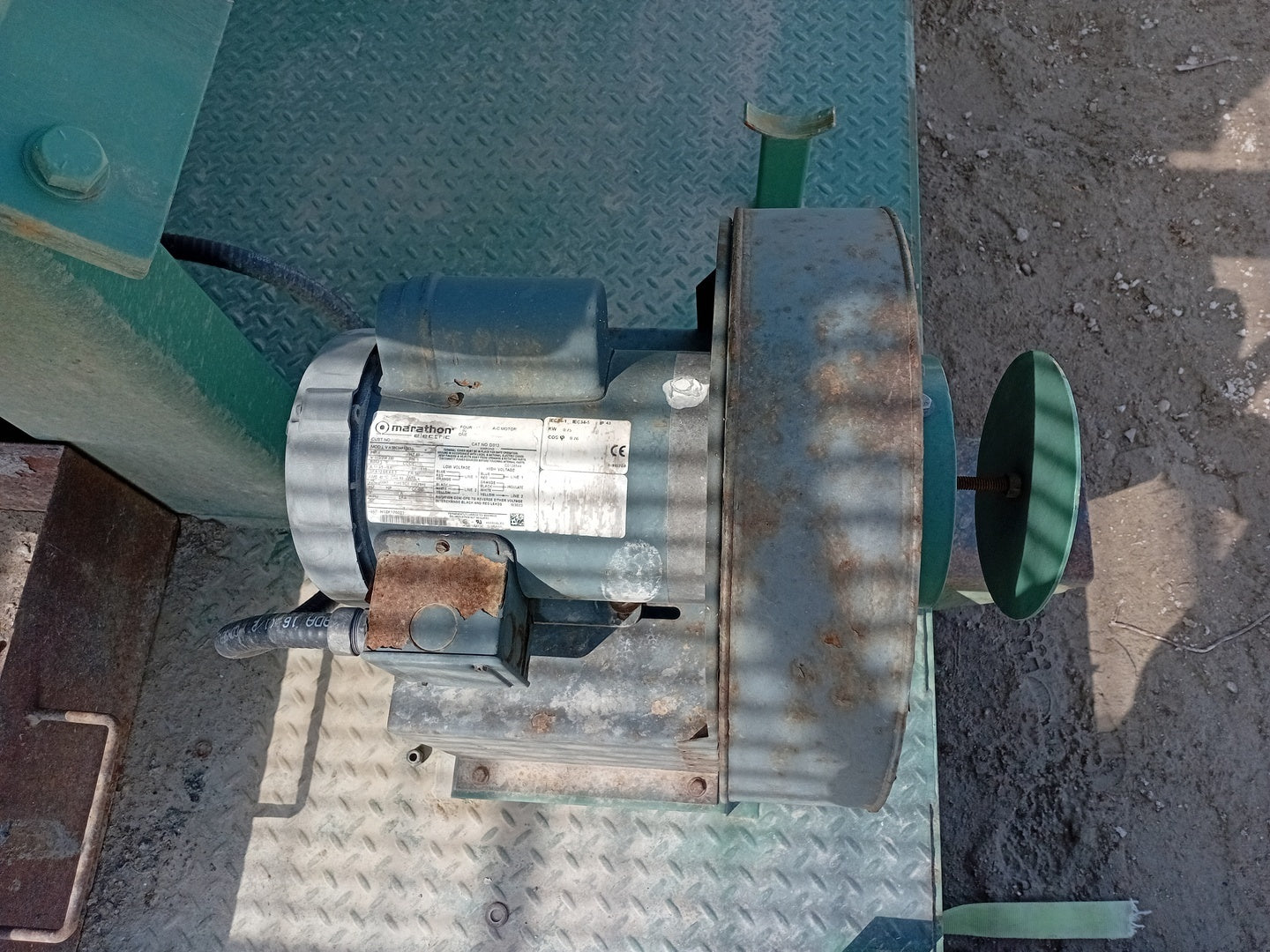

Adjustable Air Supply

  • Forced air fan c/w ducts to secondary flame port air jets

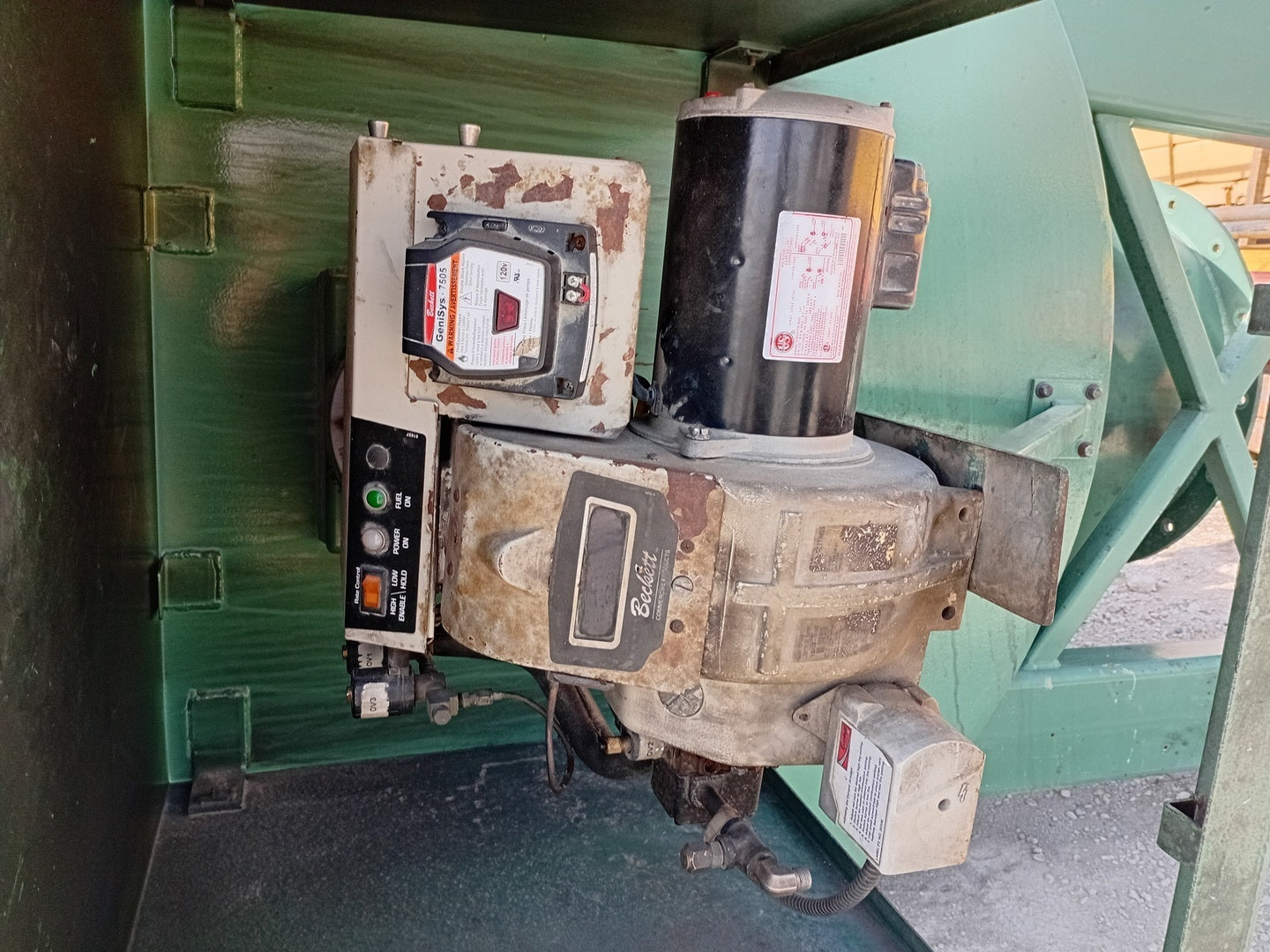

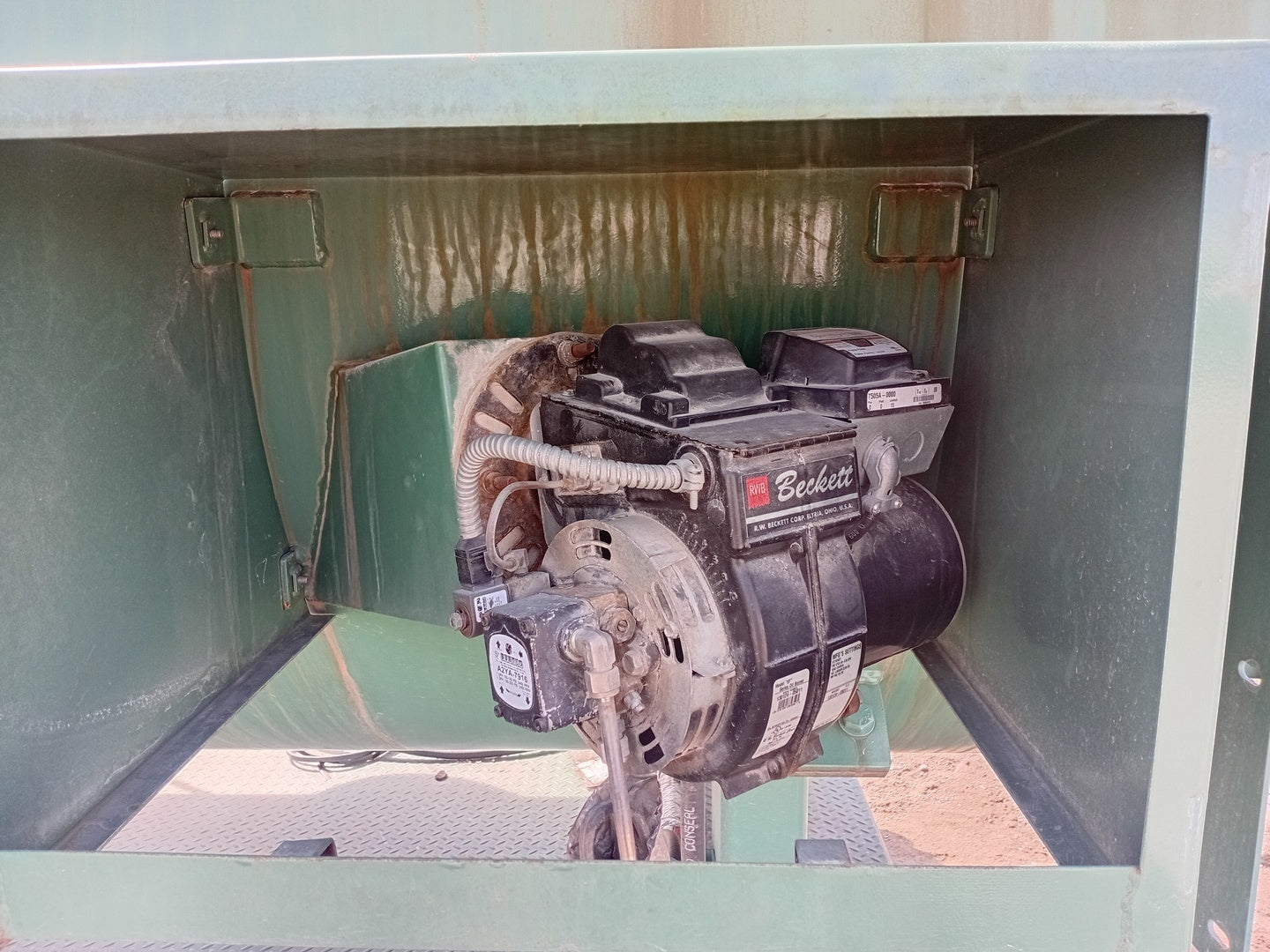

Auxiliary Burners

  • Two 770,000 BTU/hr burners for primary chamber
  • 1,600,000 BTU/hr burner for secondary chamber

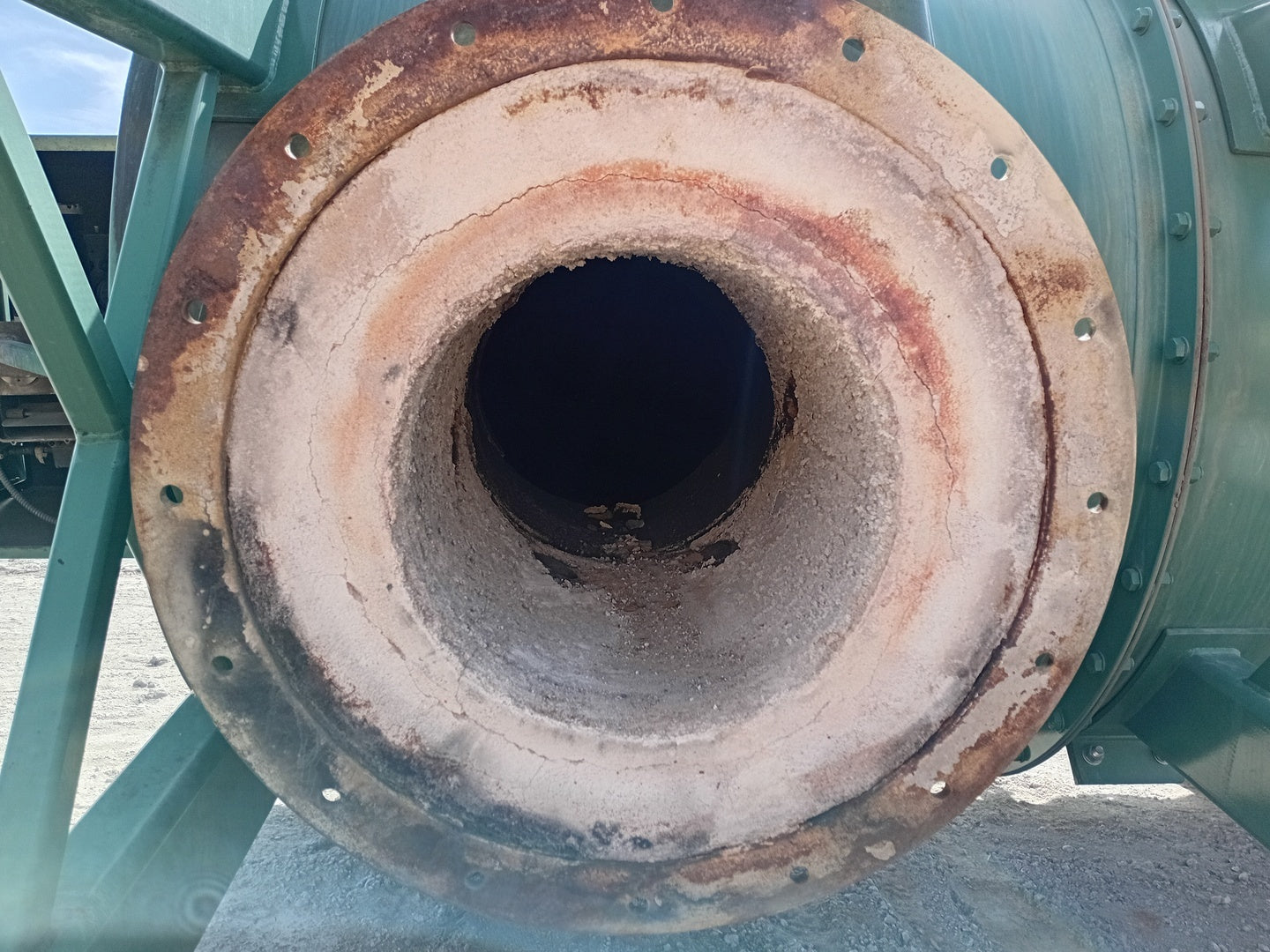

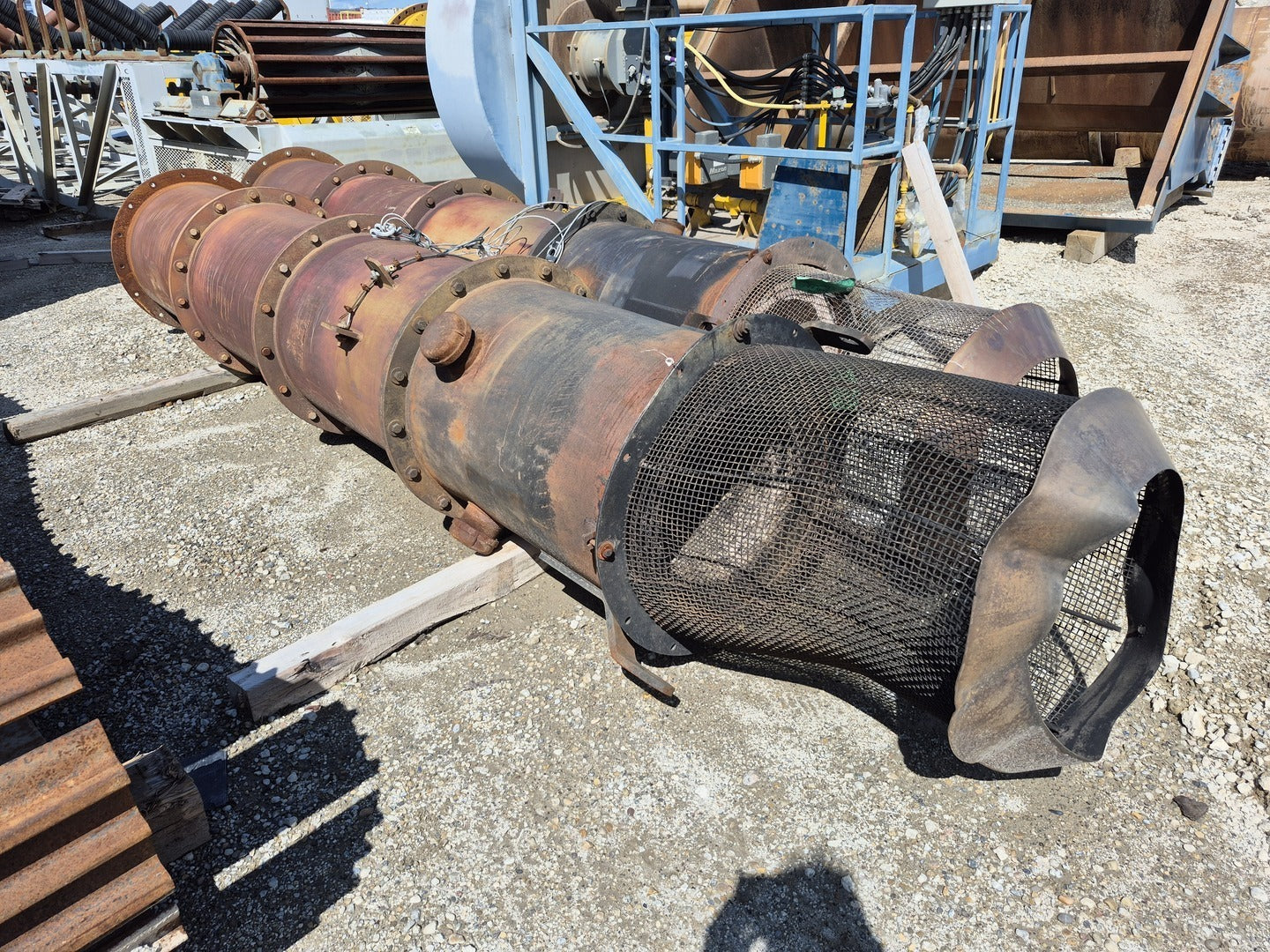

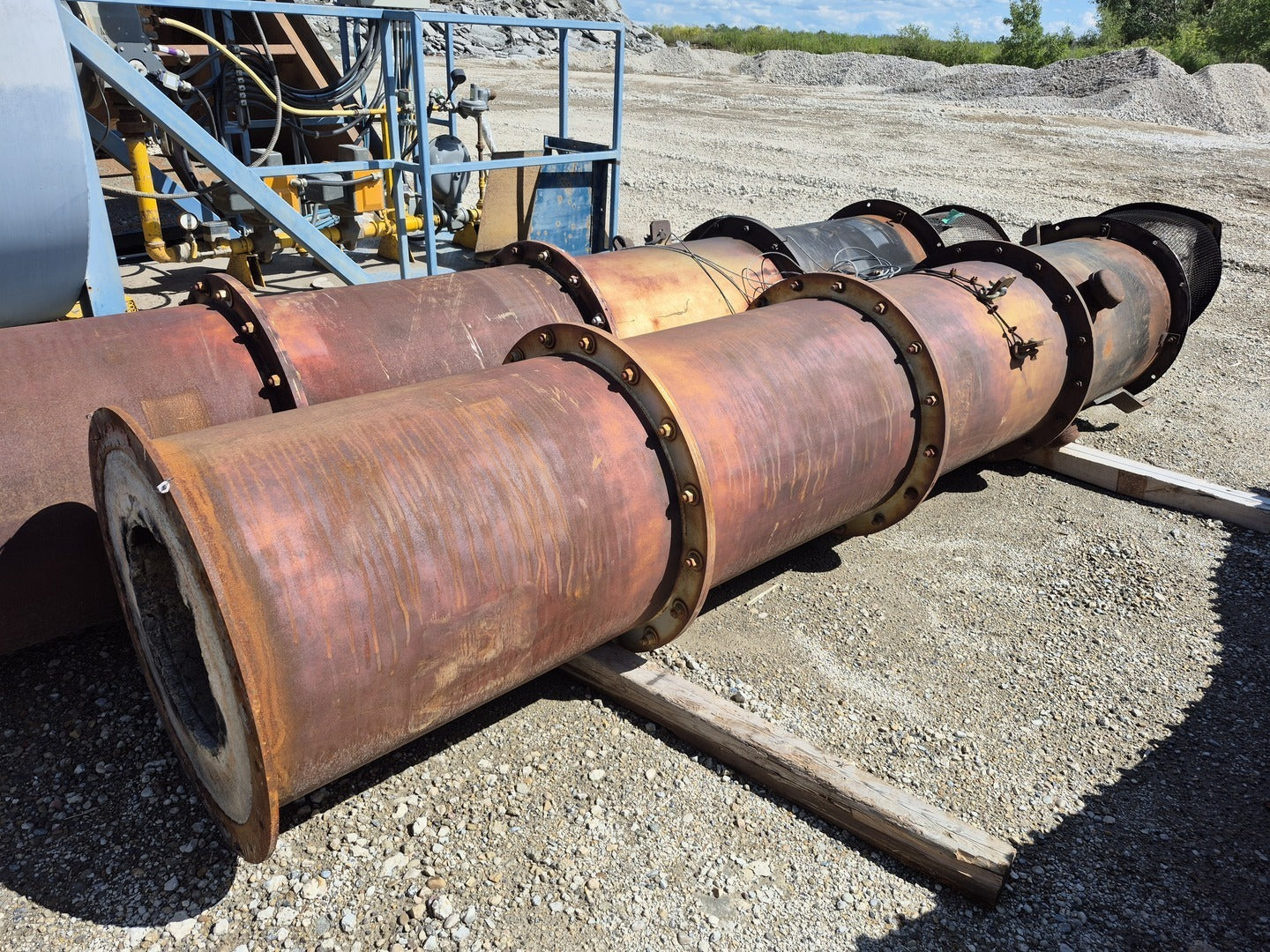

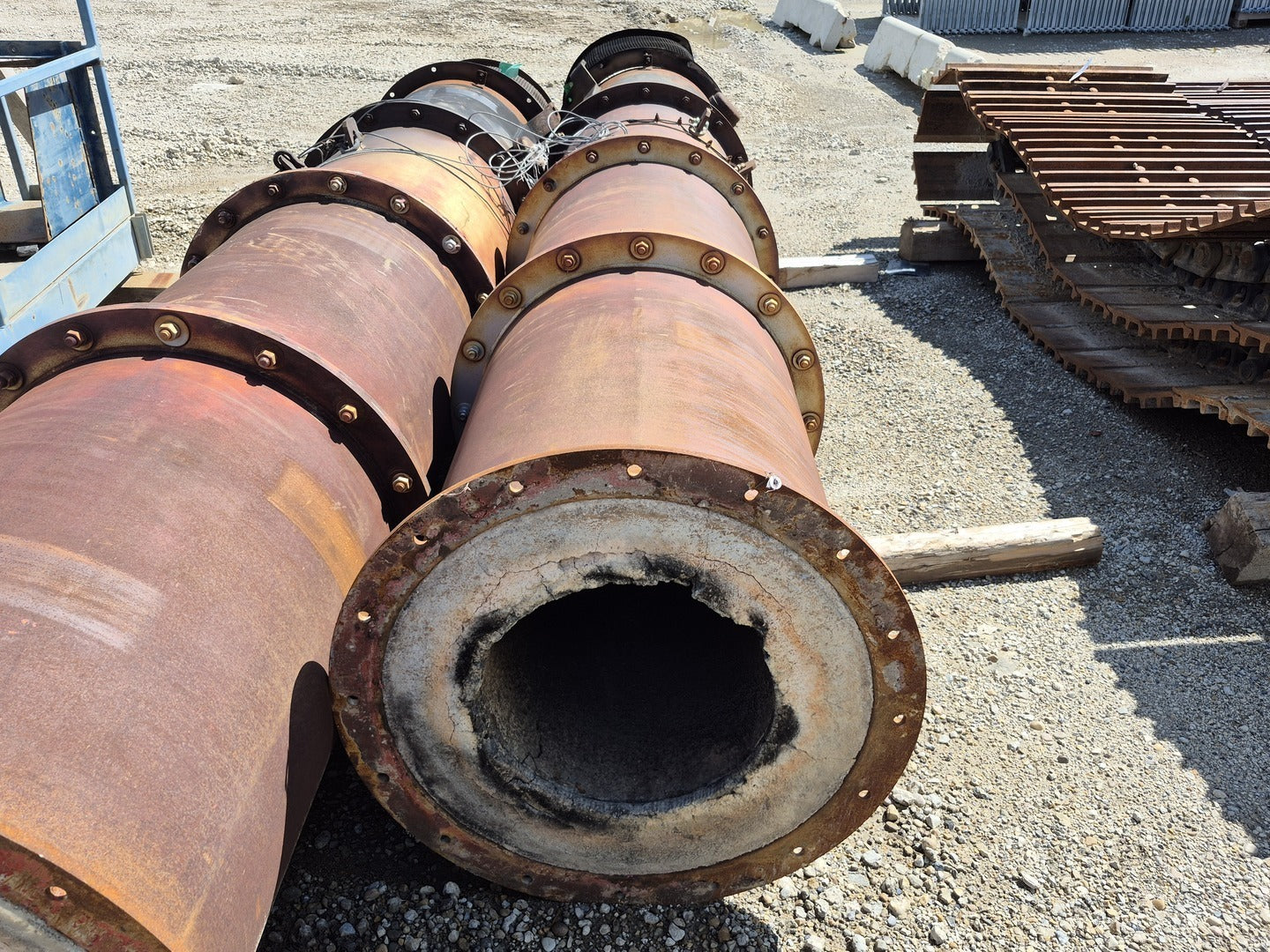

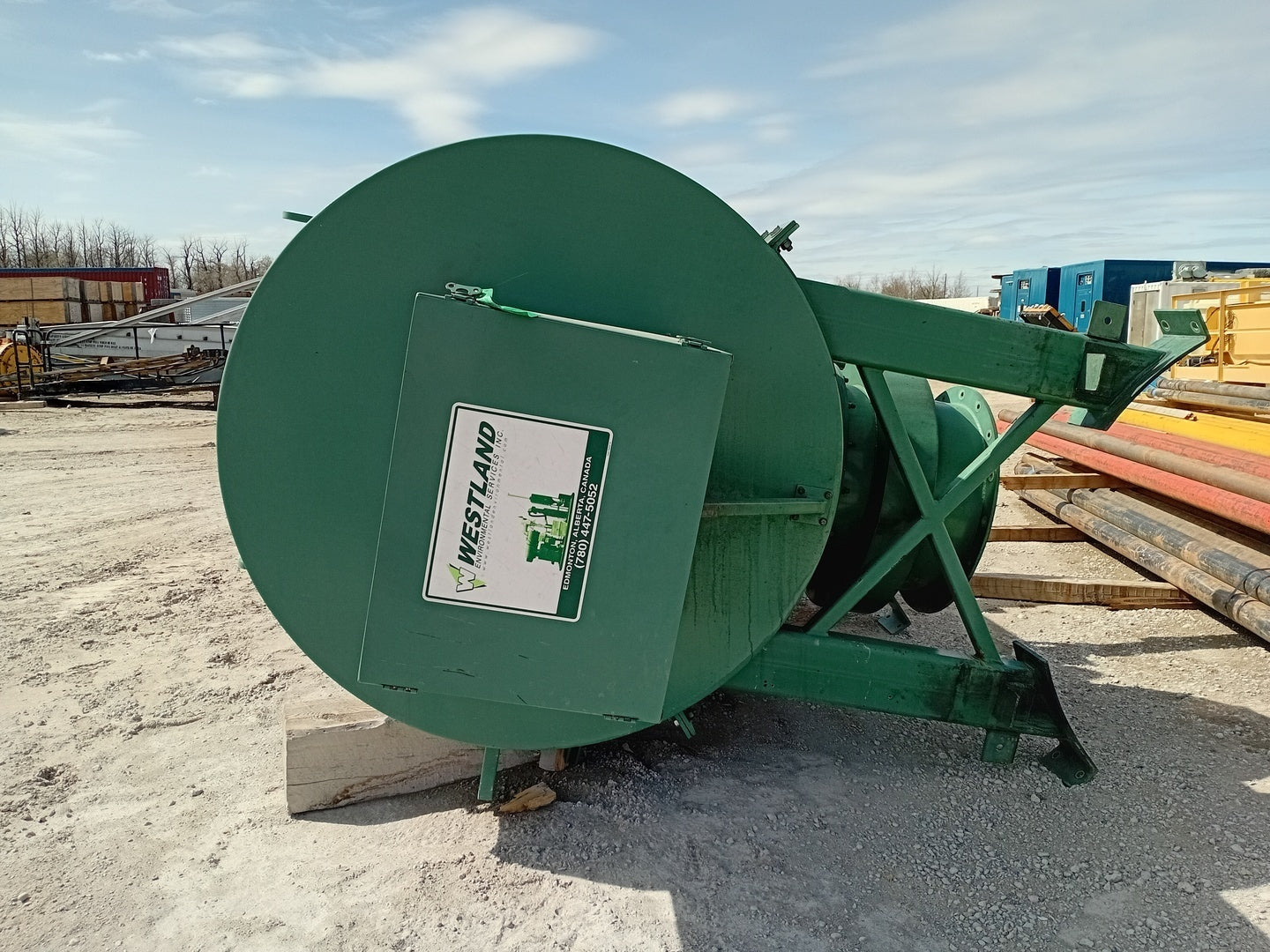

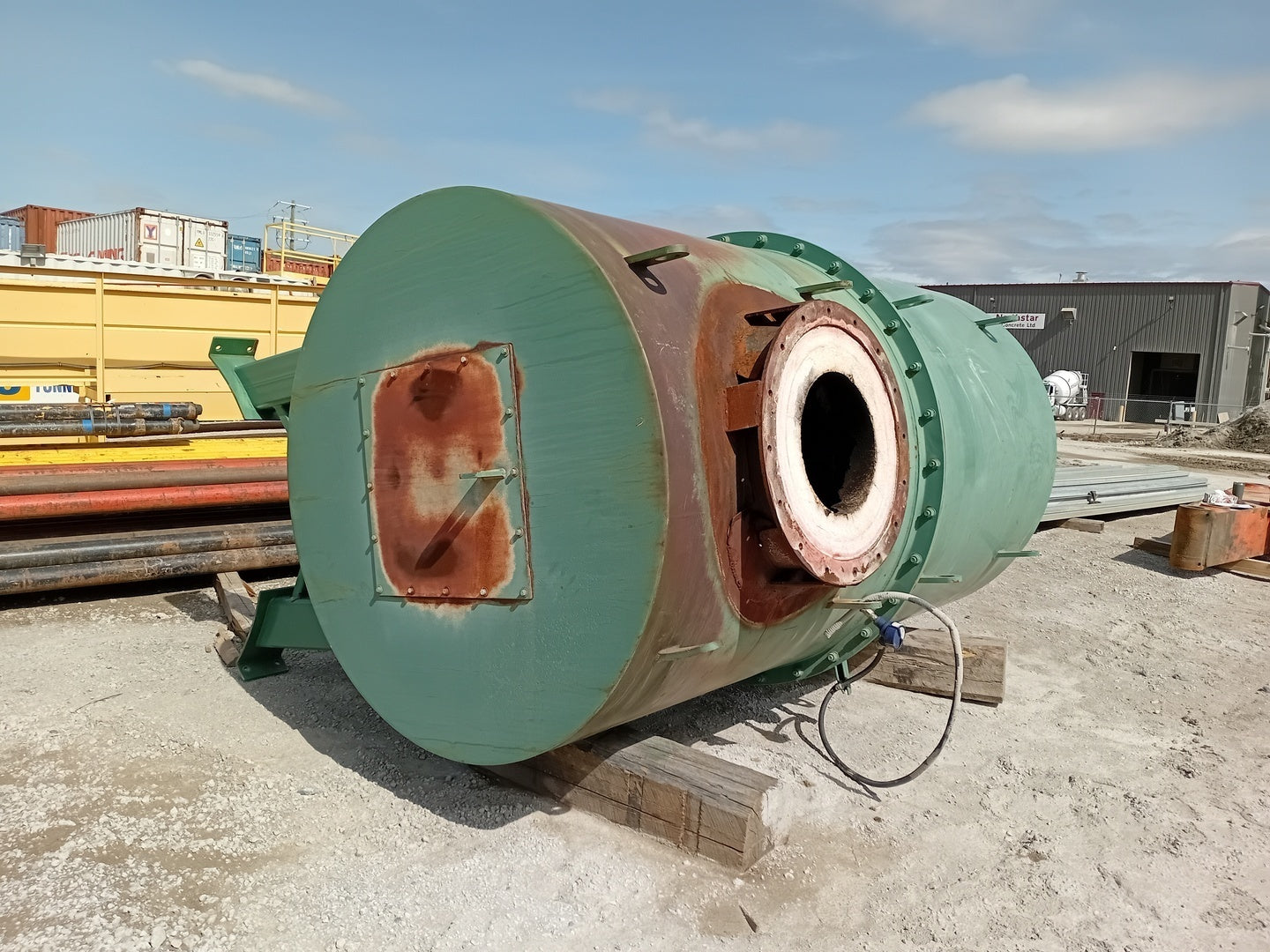

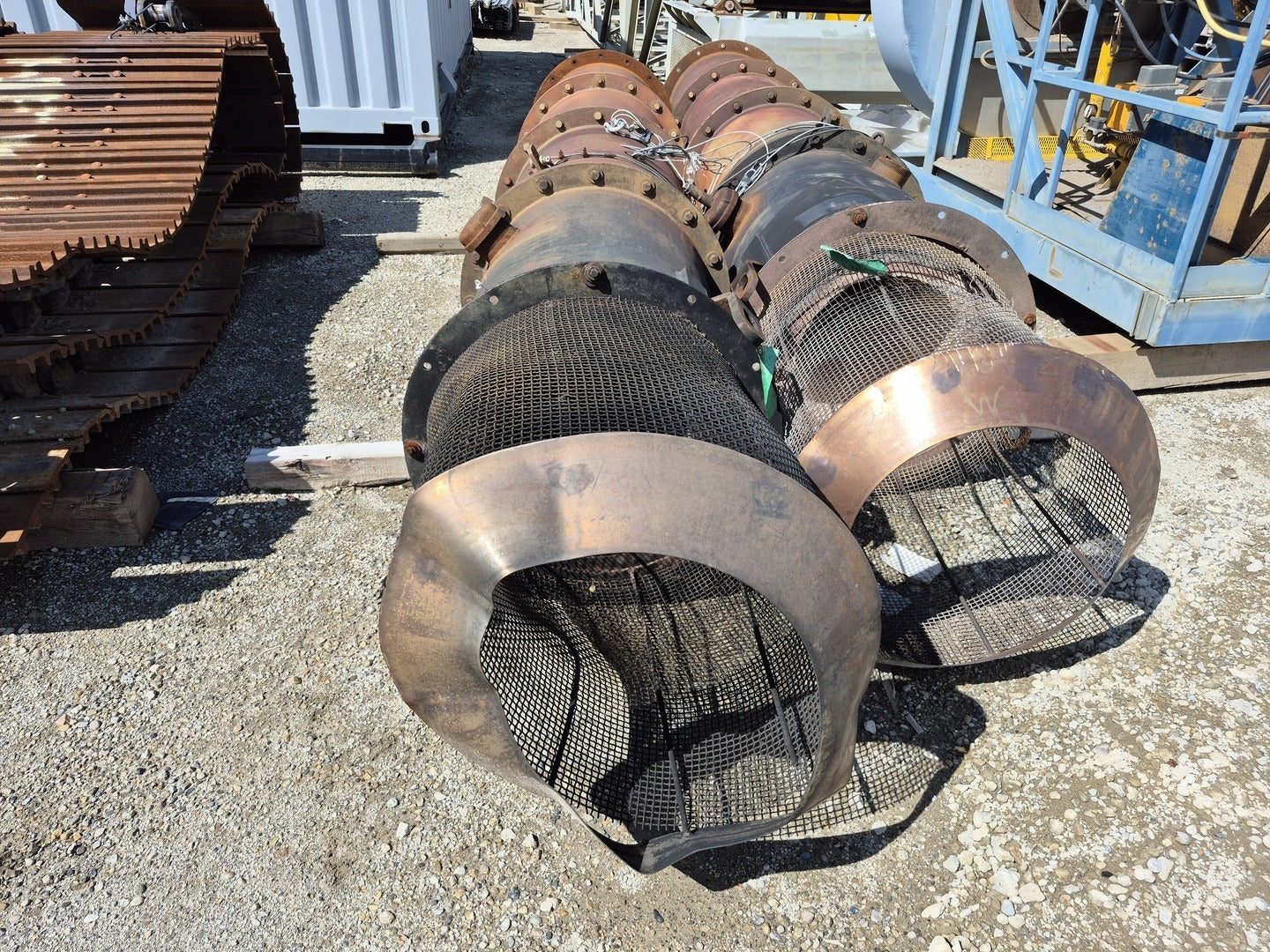

Refractory-lined Stack

  • Diameter: 457 mm
  • Height:
  • Without spark arrestor: 3.7 m
  • With spark arrestor: 4.24 m

Dimensions (Assembled)

  • L 6.1 m (20')
  • W 2.44 m (8')
  • H 8.9 m (29' 2")
  • Weight 16,300 kg (36,000 lbs)
