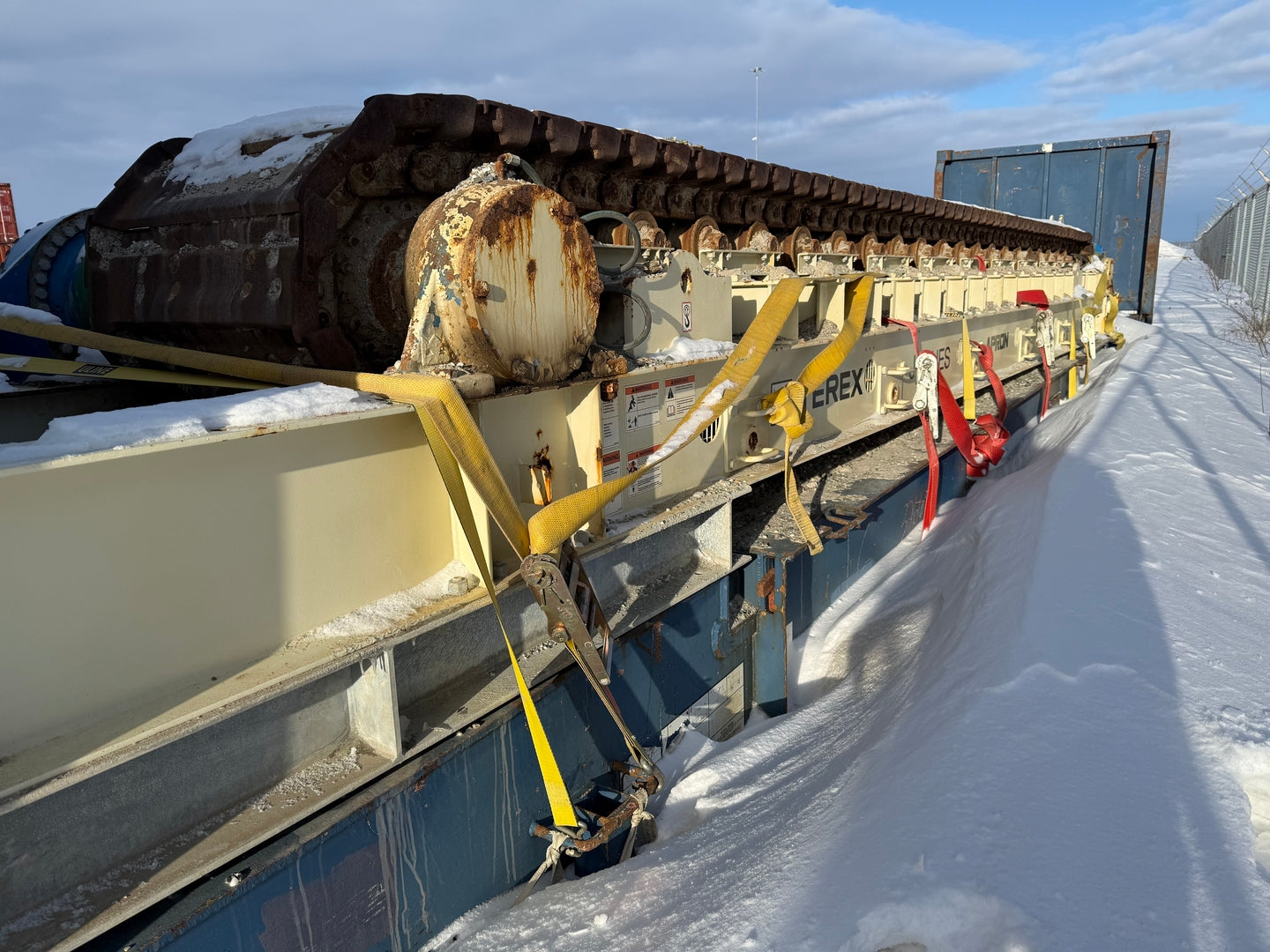

TEREX Jacques D3C Apron Feeder, 650 mm x 7581 mm
TEREX

Jacques D3C Apron Feeder, 650 mm x 7581 mm

SKU: 137903
Precio:
$67,186

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

Specifications

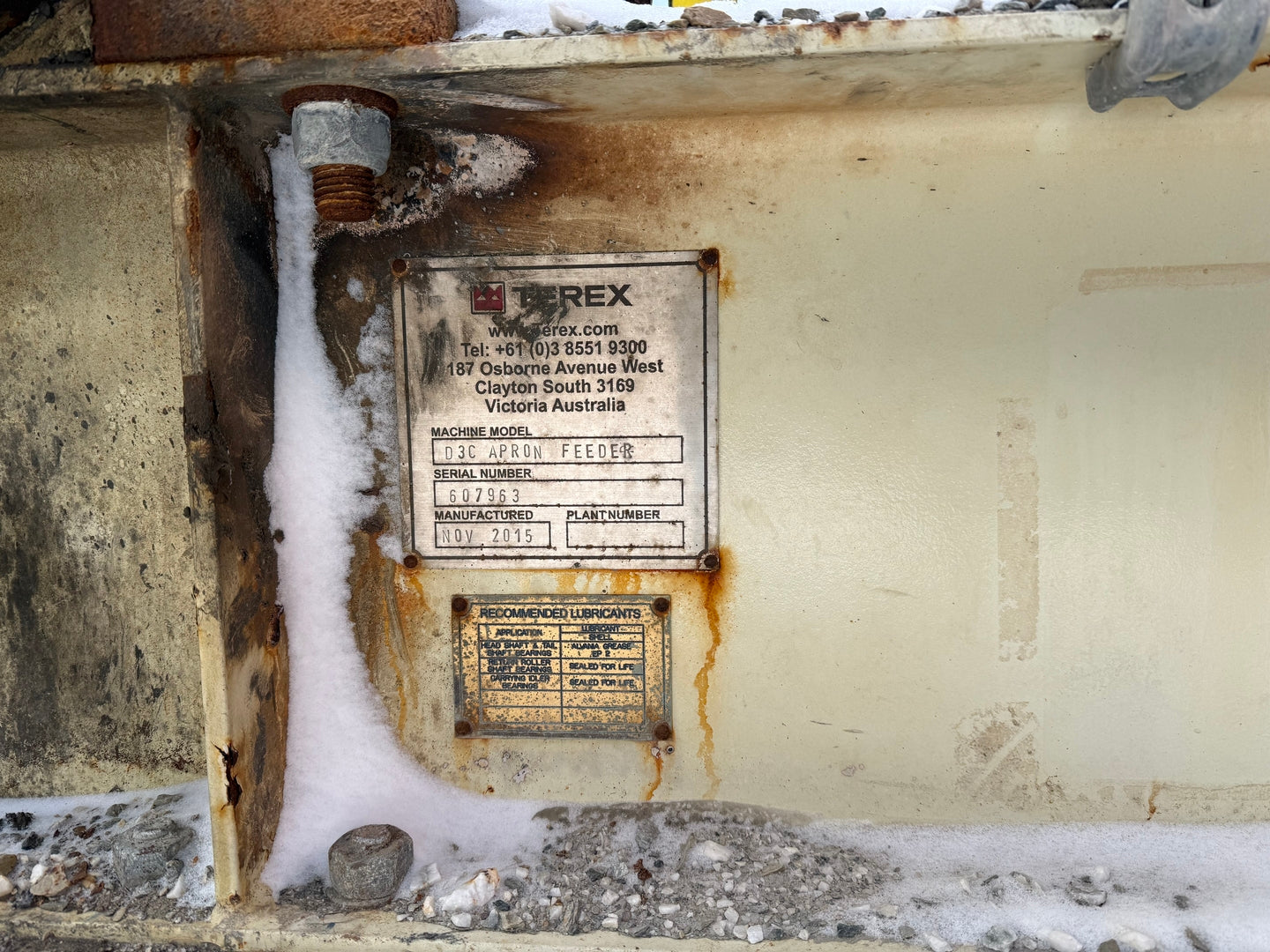

Model D3C
Year: 2015
Condition Used
General
Application Mining, Aggregate, or Oil and Gas
Conveyor Configuration Fixed
Other Specifications

PDF BROCHURE

PDF MANUAL

**NOTE: Manual is for a different serial number, but same model and configuration.

Features

  1. An apron feeder is a mechanical feed conveyor used to extract raw material typically from dump hoppers, bins and stockpiles. Apron feeders are used to extract or feed materials at a short distance with a controlled rate of speed.
  2. Typical applications include primary hopper recovery, stockpile reclaim, crusher feed and reclaim, ship and rail-car loading and unloading stations, ore pass recovery and other installations requiring a controlled feed.

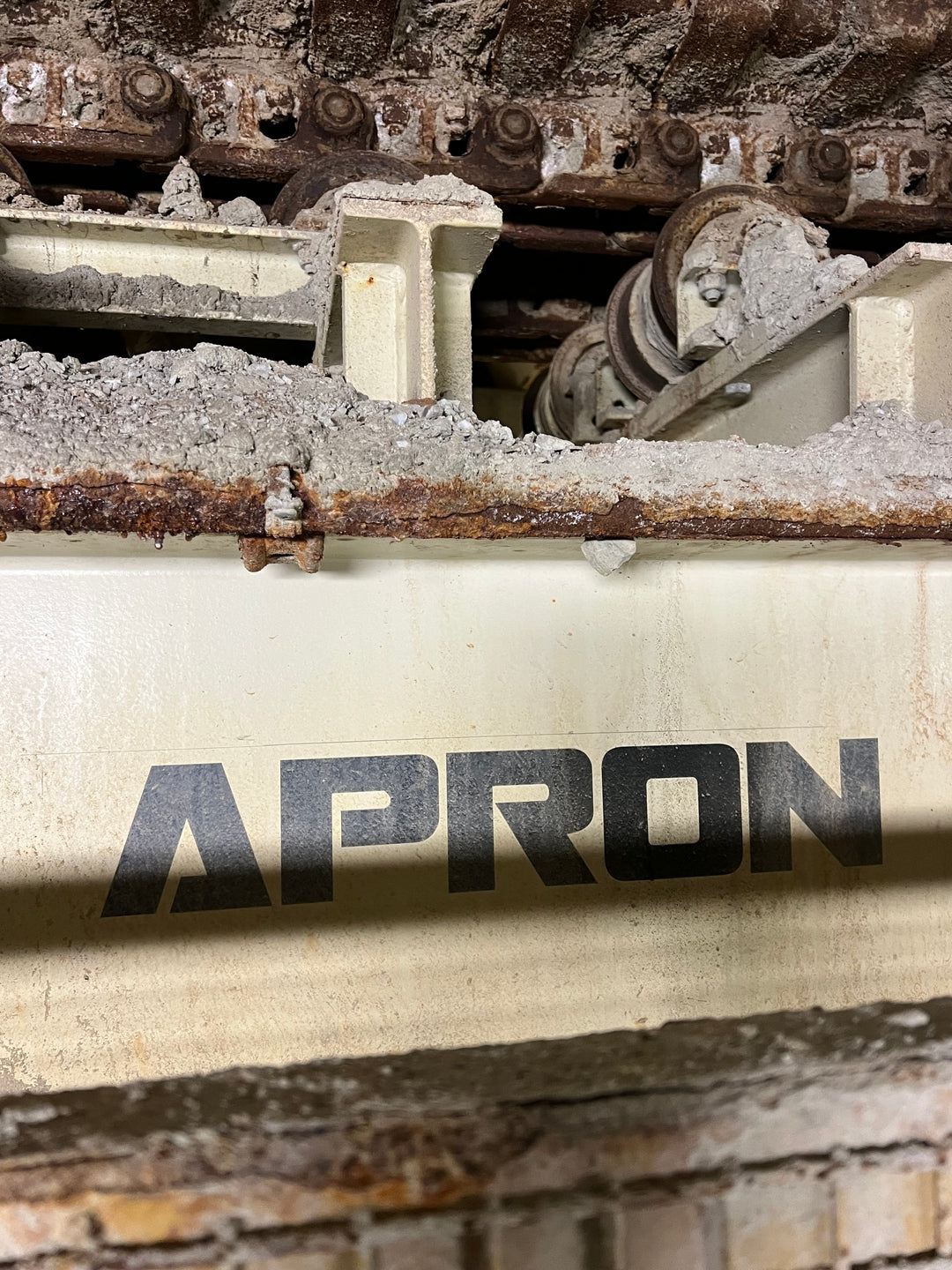

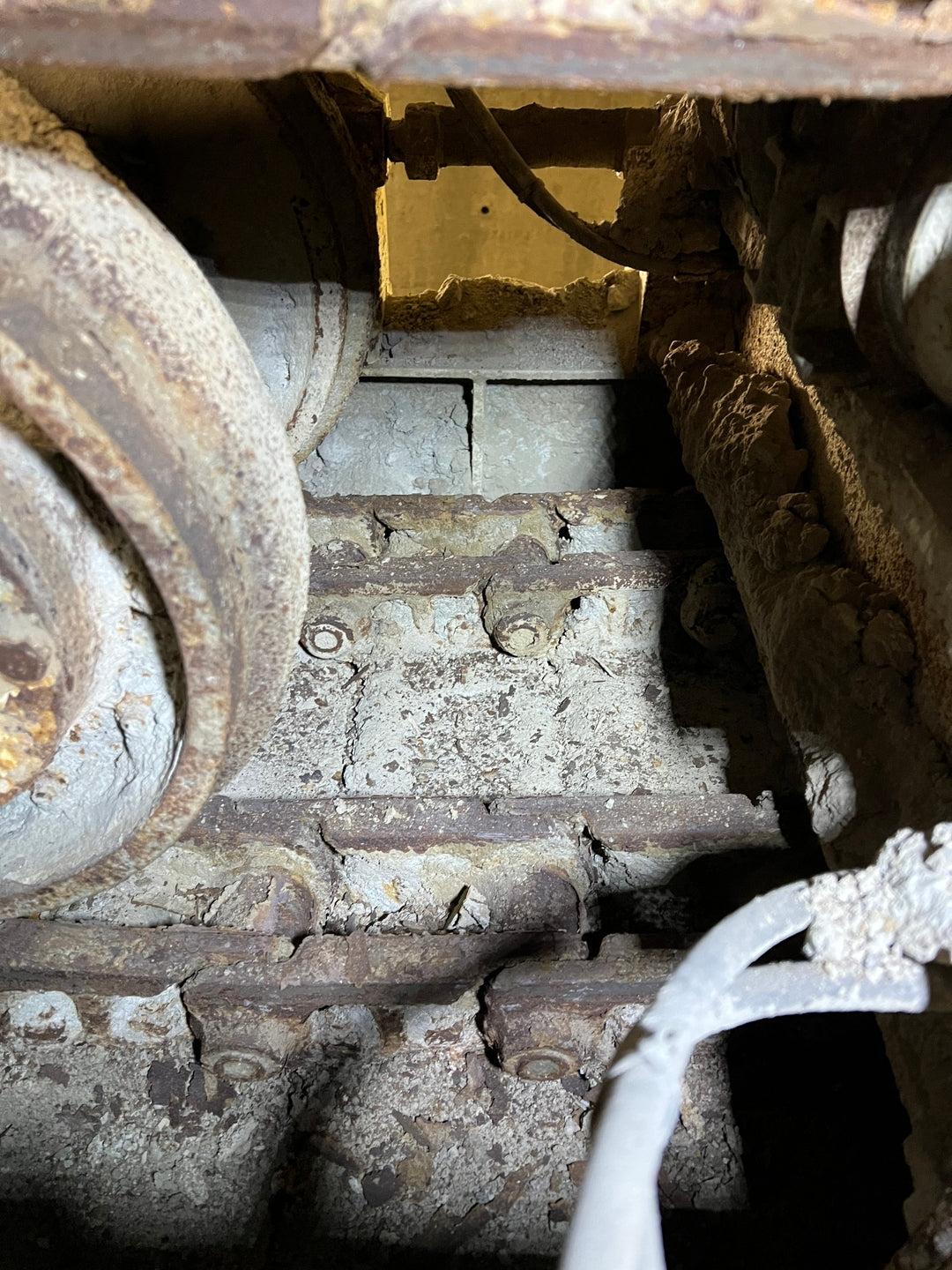

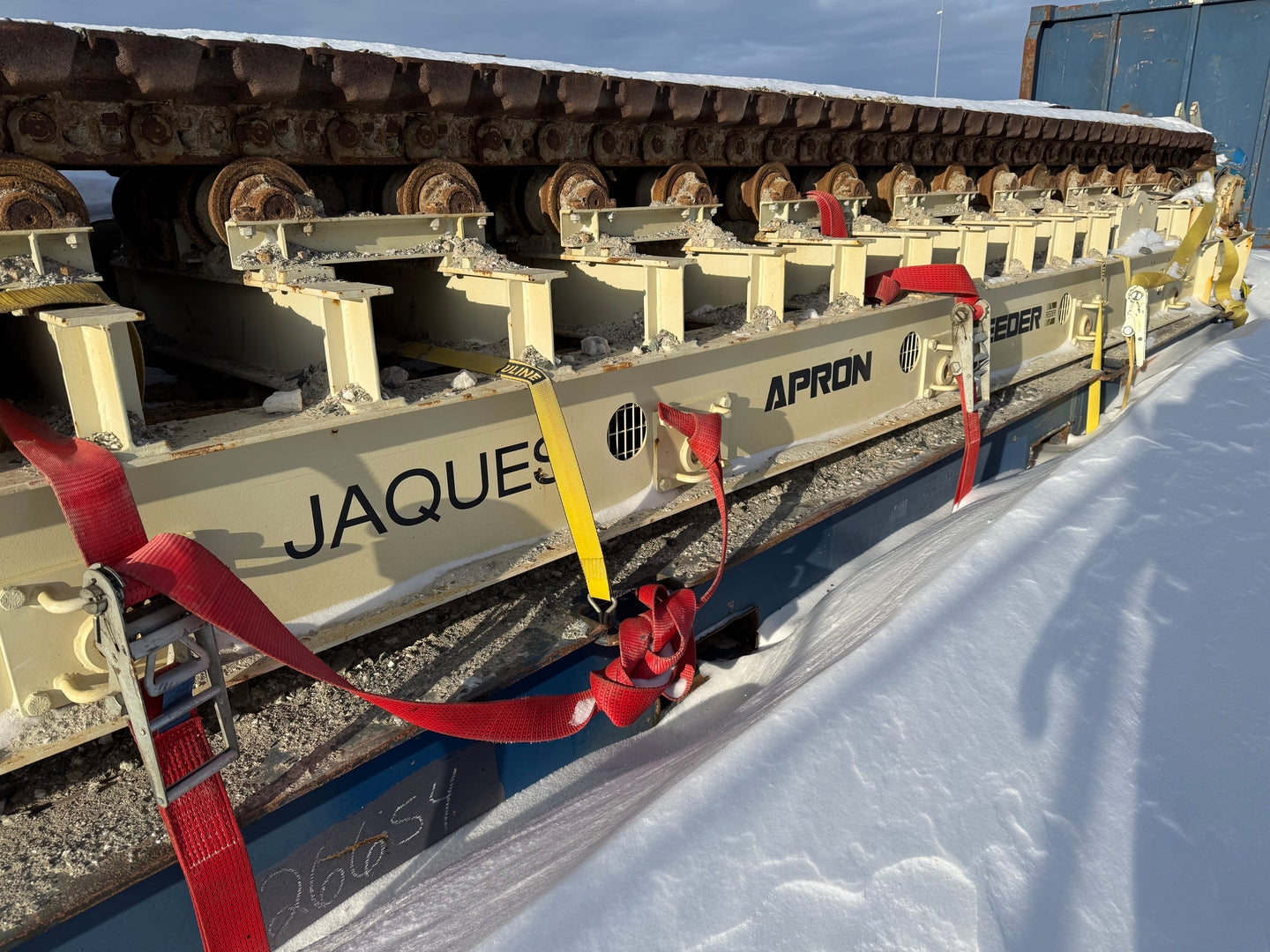

  3. Terex Jaques Apron Feeders use heavy-duty crawler tractor carrying rollers and chain, a fabricated support frame and high-strength steel head shafts and tail shafts. The lifetime of all parts is long, even under severe conditions, and maintenance requirements are low.

Feeder

Feeder Length: 650 mm

Feeder Width: 7581 mm

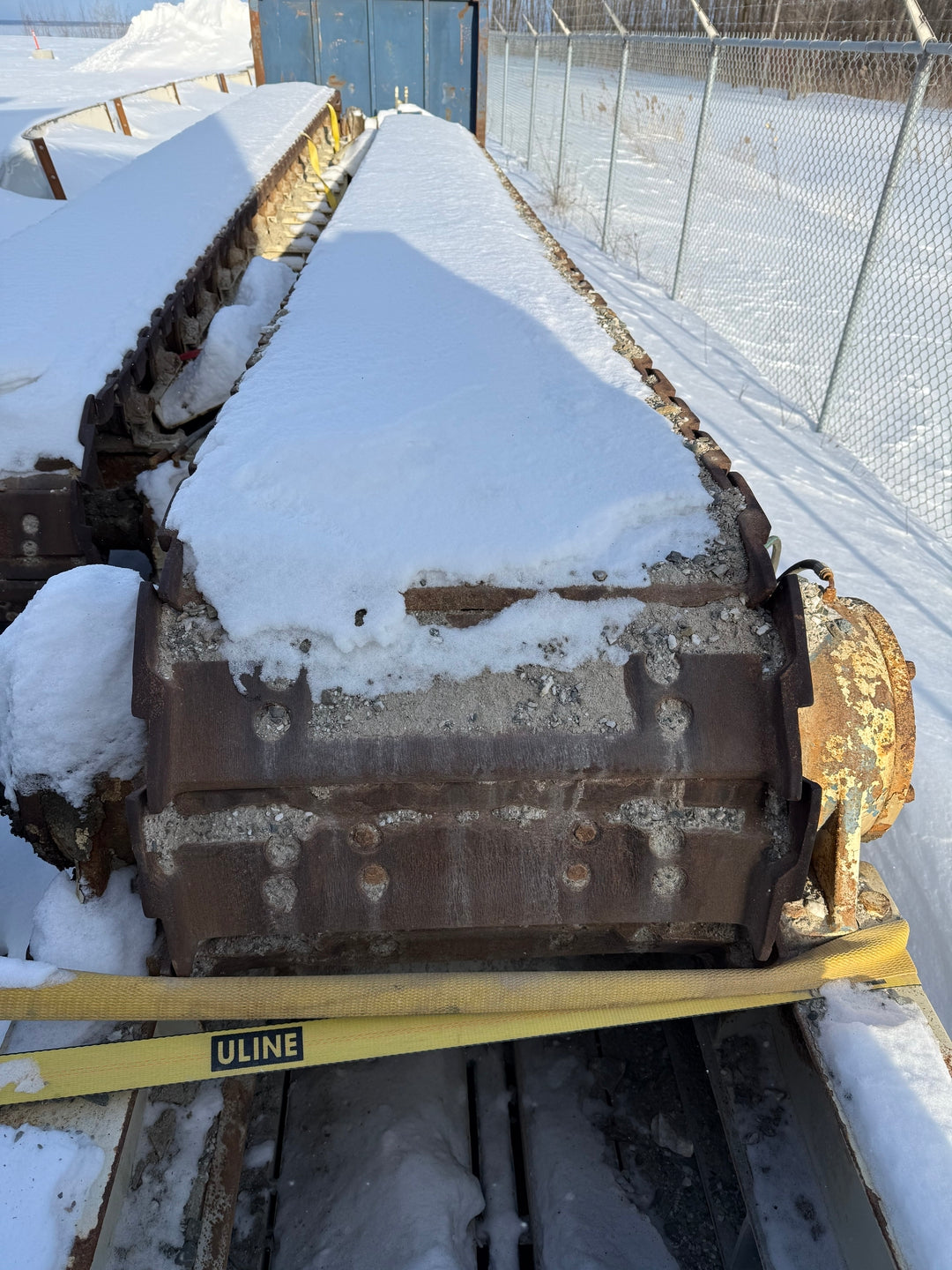

Feeder Flight Thickness: 19 mm Nominal

Capacity: 40 tph - 65 tph

Density of Ore: 1700 kg/m3

Deck Speed: 0.03 - 0.06 m/s

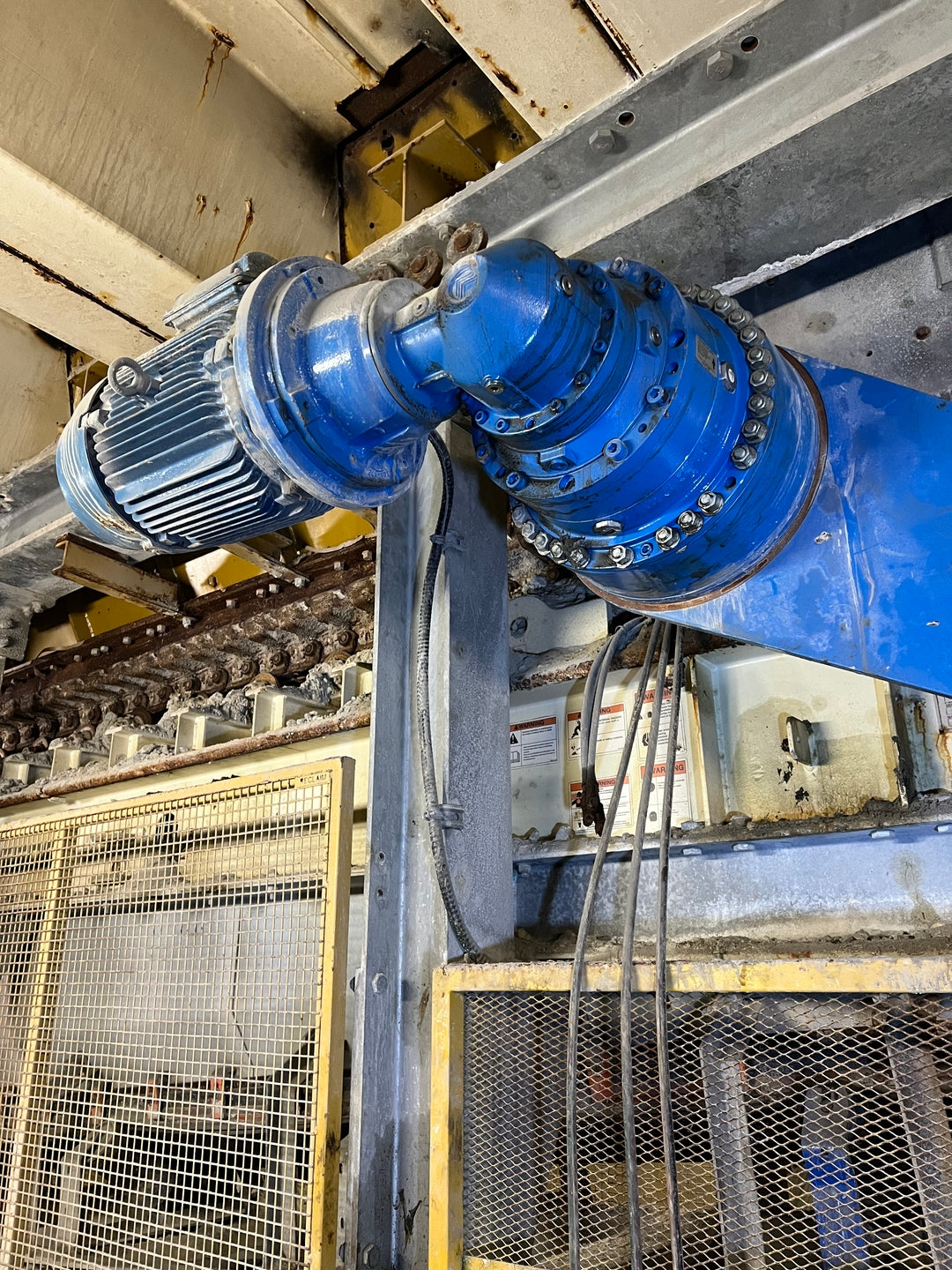

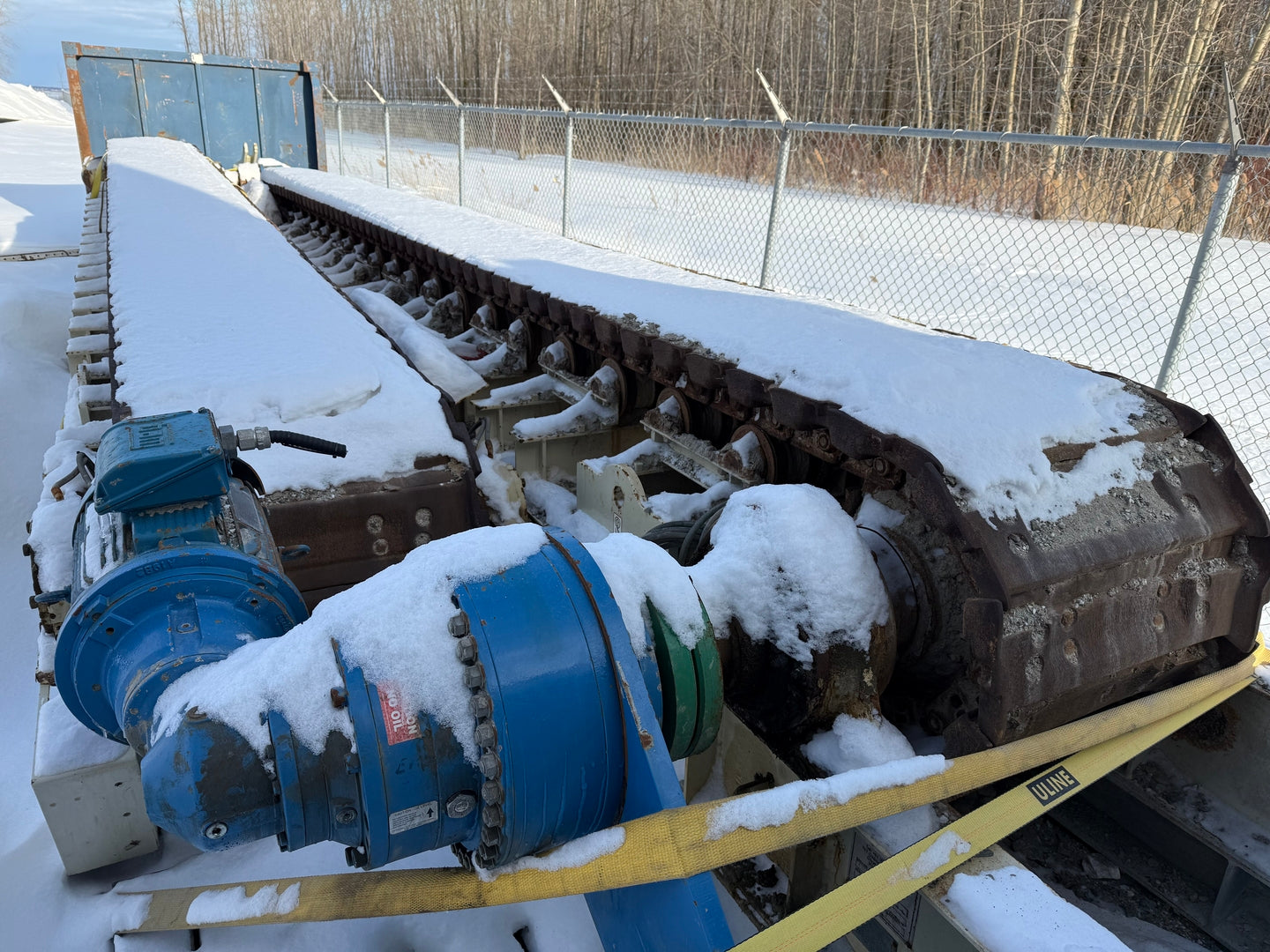

Gearbox & Motor

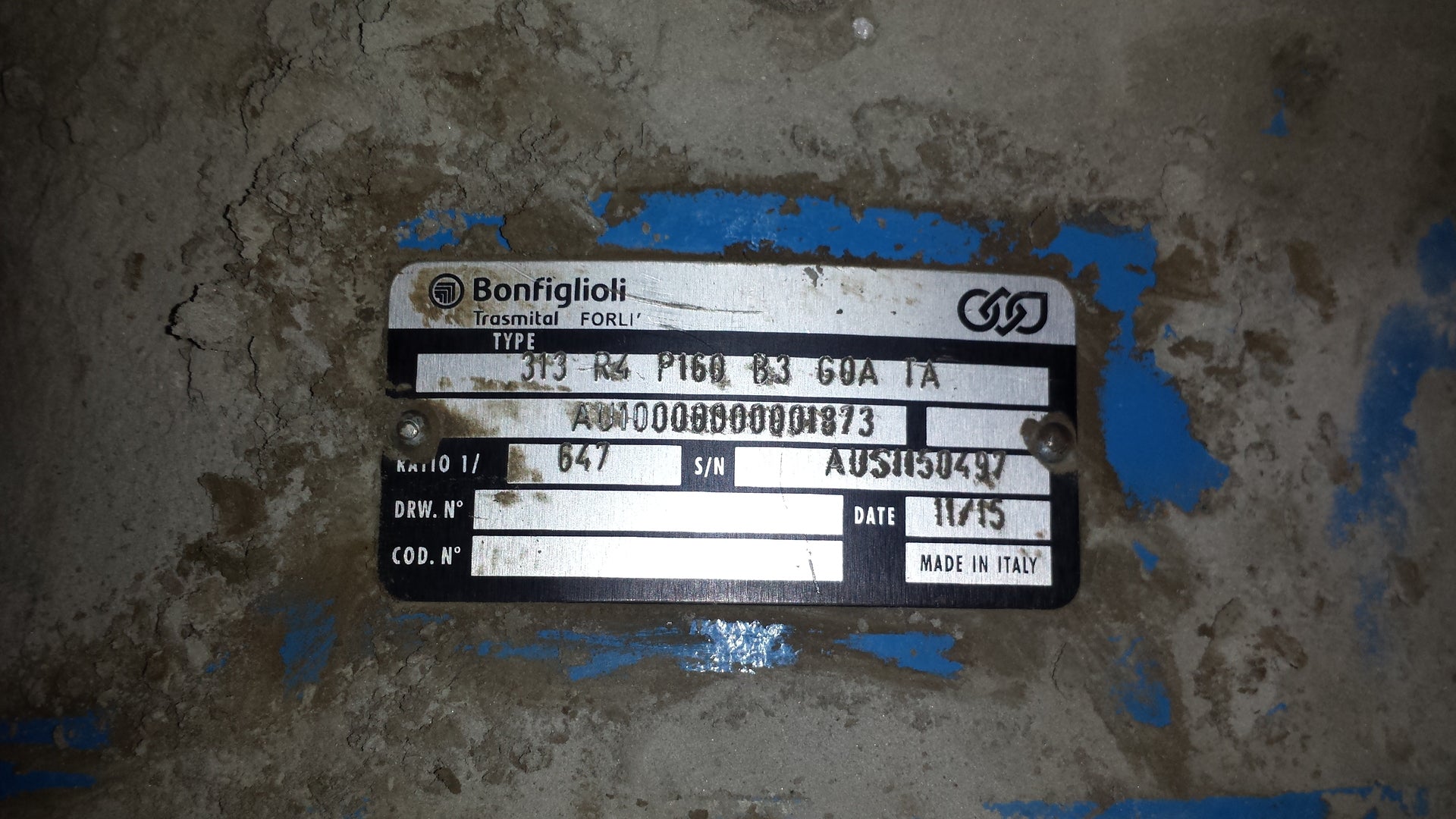

Part No.: 313 R4 FP P160 B3 G0A TK TA

Ratio: 647:1

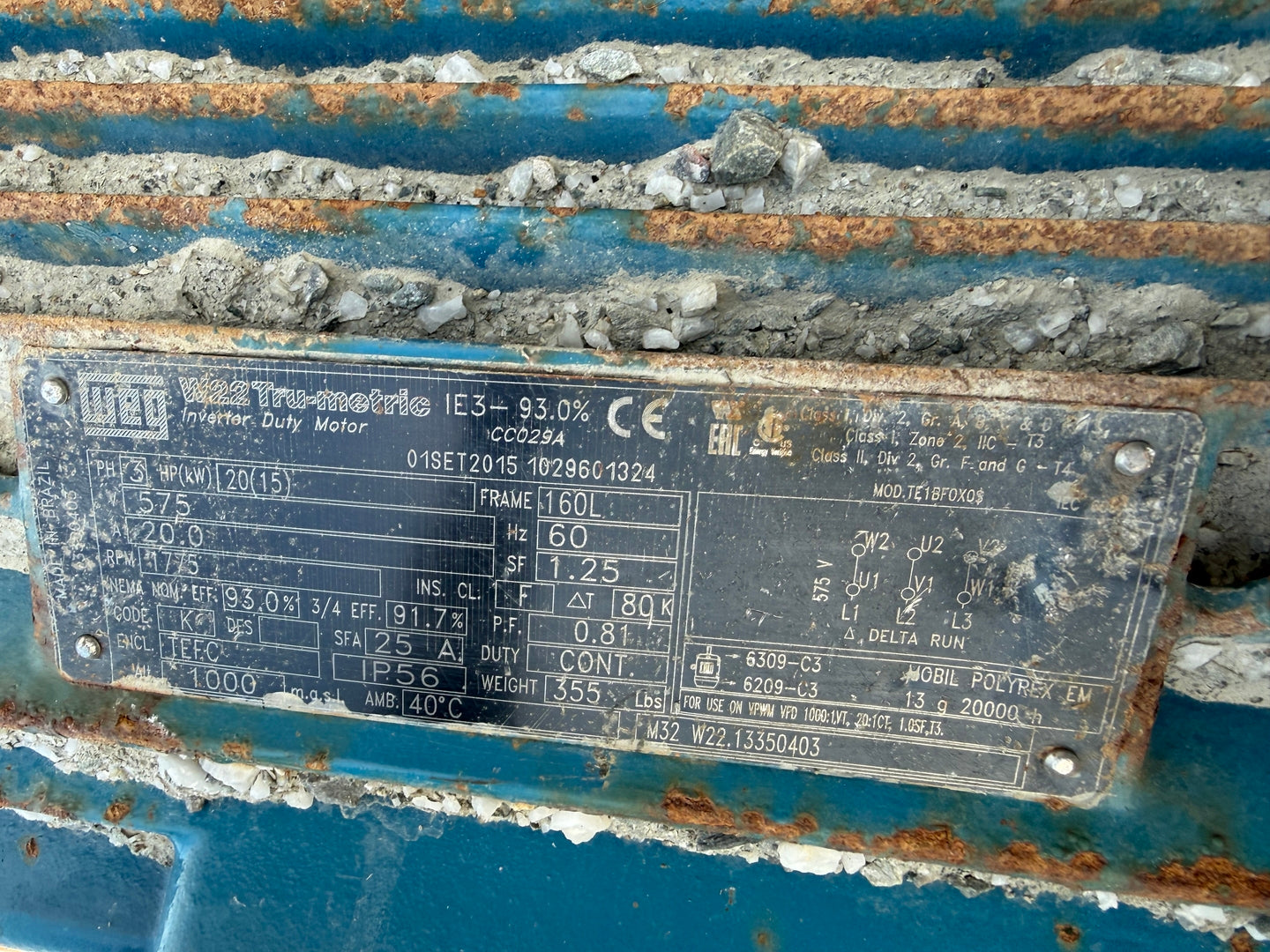

Power: 15 kW

Max. Normal Operating Speed: 1559 rpm

Normal Operating Speed: 1028 rpm

Min. Normal Operating Speed: 679 rpm
