Descripción
| Specifications | |
|---|---|
| Model | 1627-1 |
| Made In | UNITED STATES |
| Condition | Surplus New | Electrical |
| Amps | 15 amps |
| Other Specifications |
|---|
|

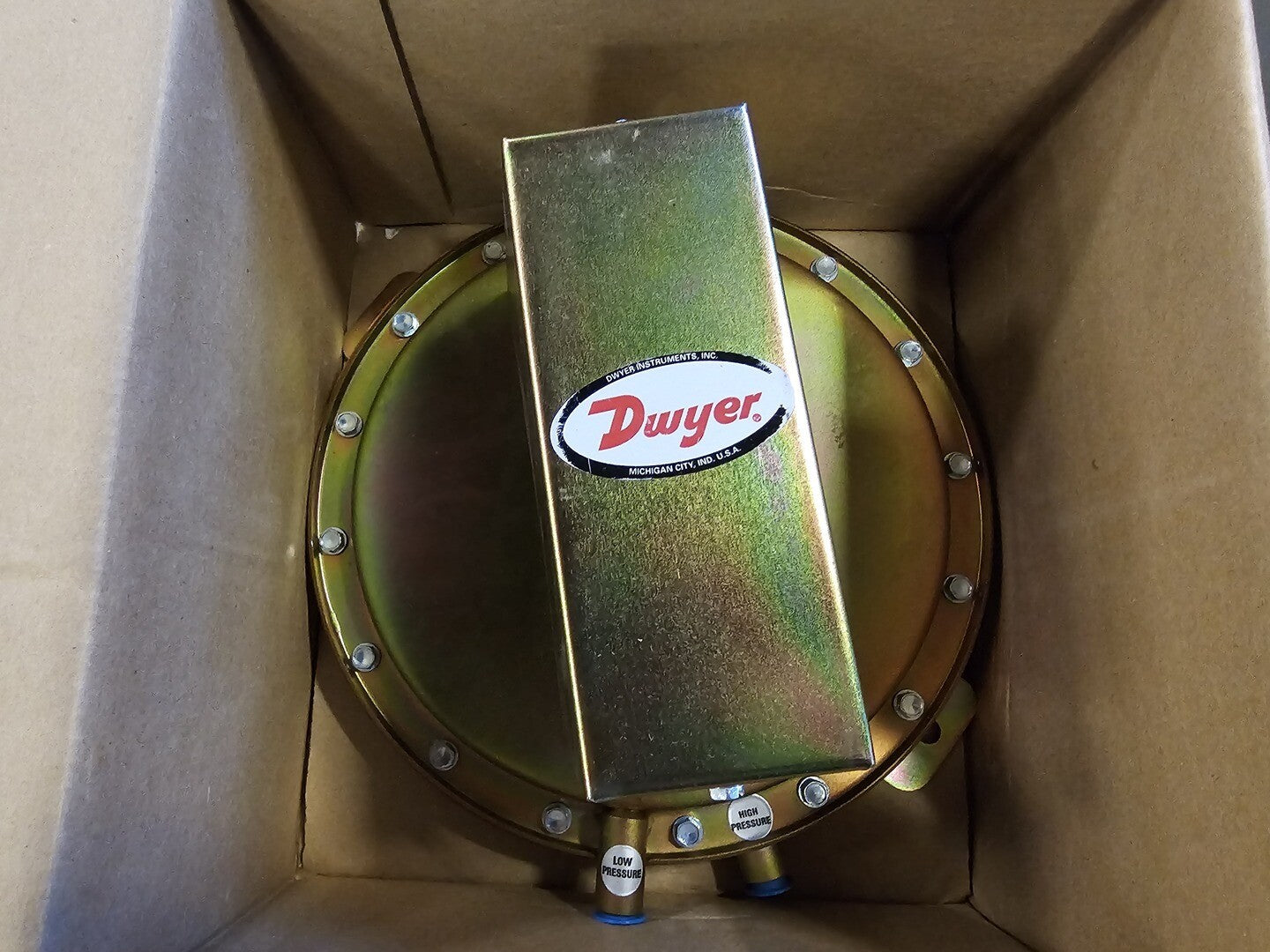

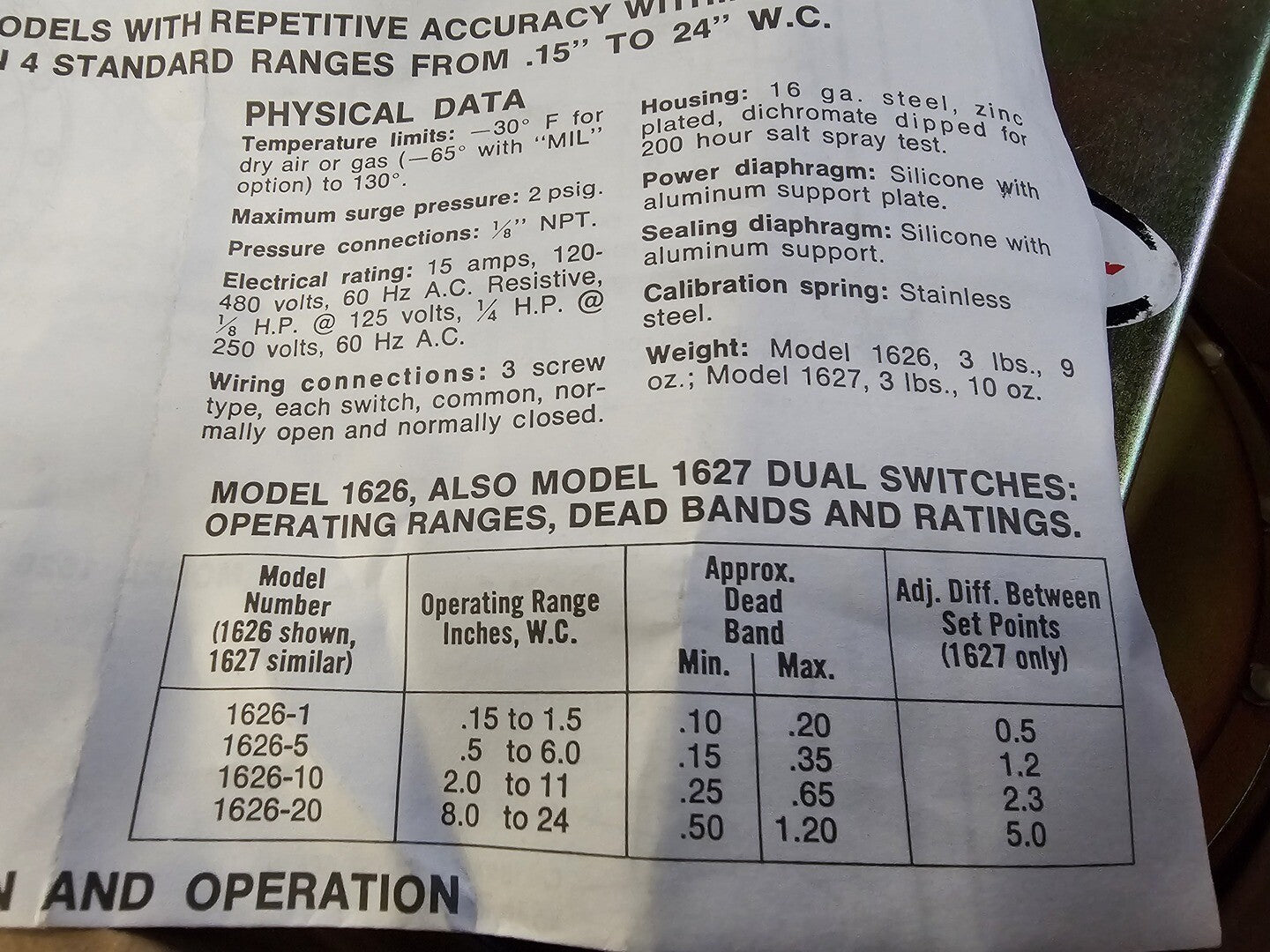

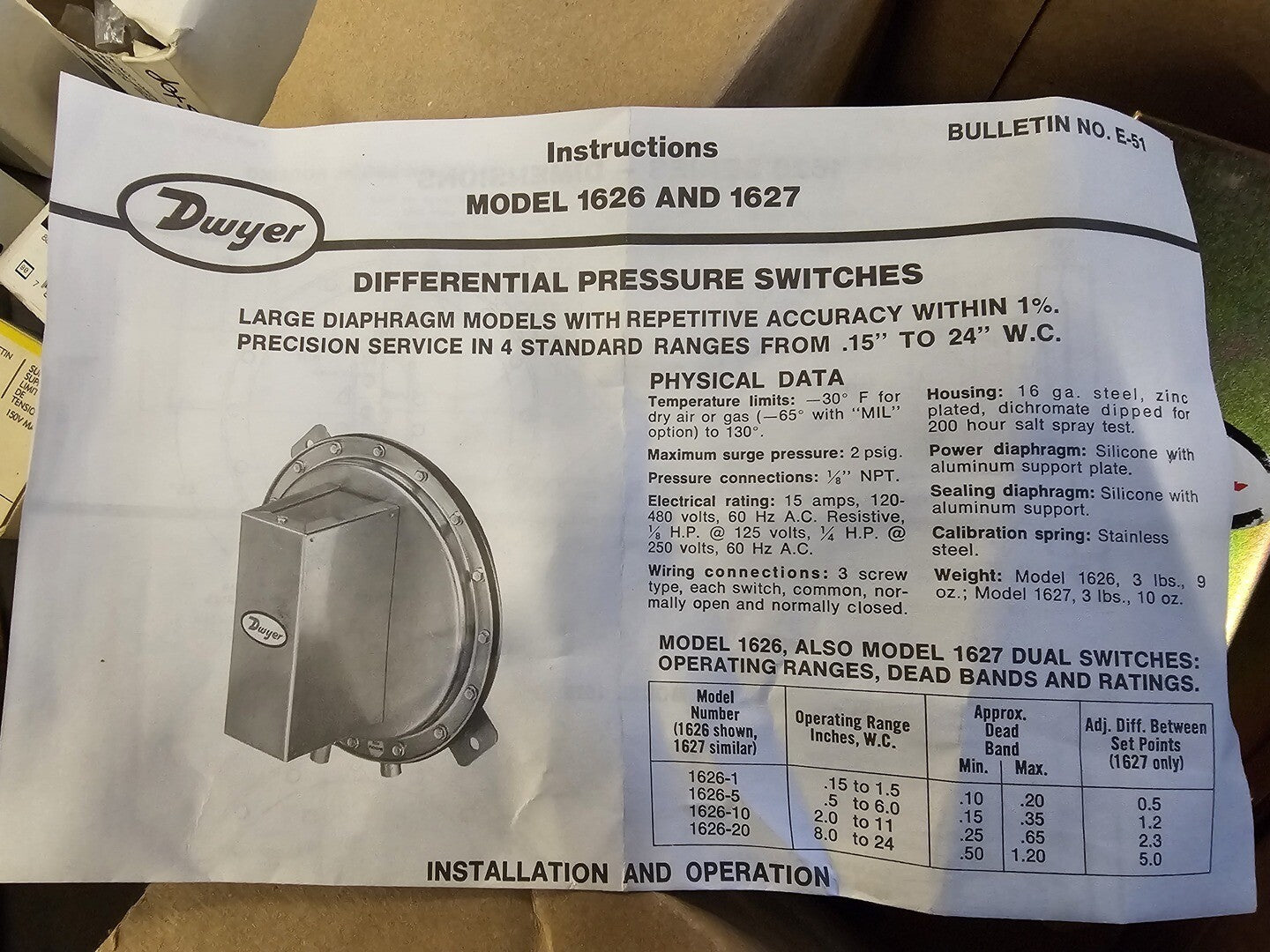

Switch Type: Two single-pole double-throw (SPDT) Operating Range: 0.15" w.c. to 1.5" w.c. Approx. Dead Band: 0.10 min. / 0.24 max. Adj. Diff. Between Set Points: 0.5 Temperature Limits: 30 F for dry air or gas (60 F with "MIL" option) to 130 F Max. Surge Pressure: 2 psig Pressure Connections: 1/8" NPT Electrical Rating: 15 A, 120-480 V, 60 Hz A.C. resistive, 1/8 HP @ 125 V, 1/4 HP @ 250 V Wiring Connections: 3 screw type, each switch, common, normally open and normally closed. Housing: 16 ga. steel, zinc plated, dichromate dipped for 200 hour salt spray test. Power diaphragm: Silicone with aluminum support plate. Sealing diaphragm: Silicone with aluminum support. Calibration spring: Stainless steel |
