Descripción

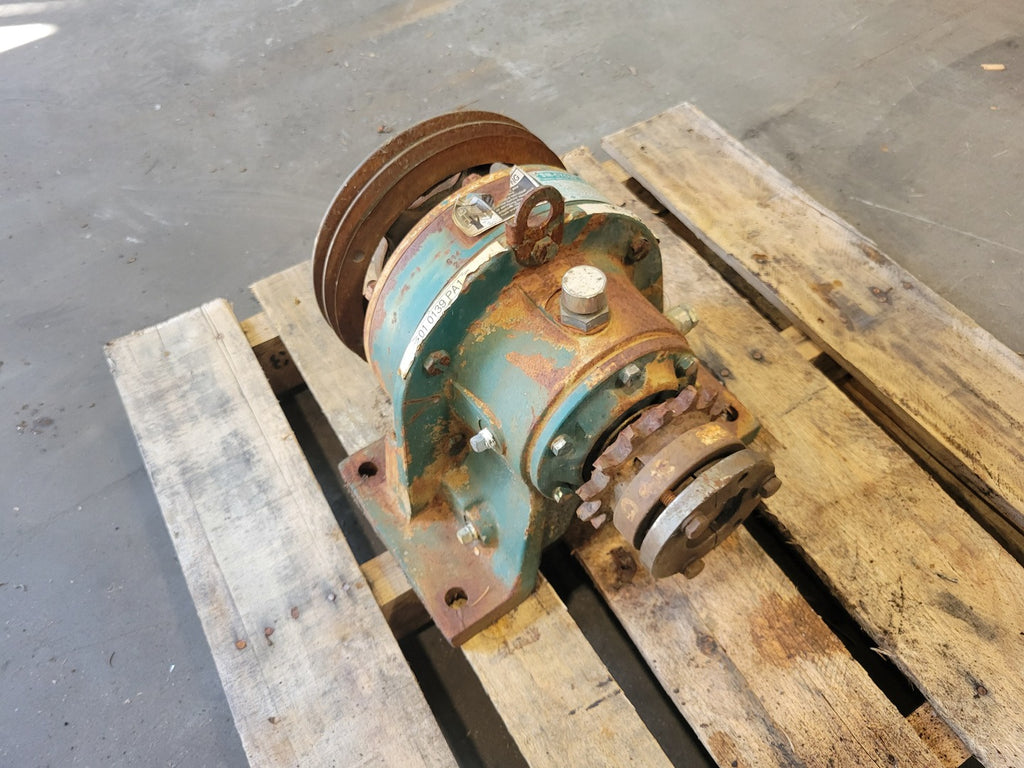

Used Sumitomo SM-Cyclo CHH-4135Y industrial gear reducer rated for a 21:1 reduction ratio, 9.4 HP input at 1,750 RPM and 6,580 in-lb output torque. The unit is mounted on a cast base and includes the attached multi-groove V-belt pulley and output-side coupling or sprocket components shown.
| Specifications | |
|---|---|
| Model | CHH-4135Y |
| S/N: | BC0002527 |
| Made In | CANADA |
| Condition | Used | General |
| Ratio | 21:1 |
| HP Rating | 9.4 hp |
| Other Specifications |
|---|
|
Reducer Type: Cycloidal gear reducer Mounting Configuration: Horizontal, foot-mounted Reduction Ratio: 21:1 Input Power Rating: 9.4 HP Input Speed: 1,750 RPM Calculated Output Speed: Approximately 83.3 RPM at 1,750 RPM input Output Torque: 6,580 in-lb Output Torque Equivalent: Approximately 548 ft-lb / 743 Nm Service Factor: 1.0 Input Drive: Multi-groove V-belt pulley |
