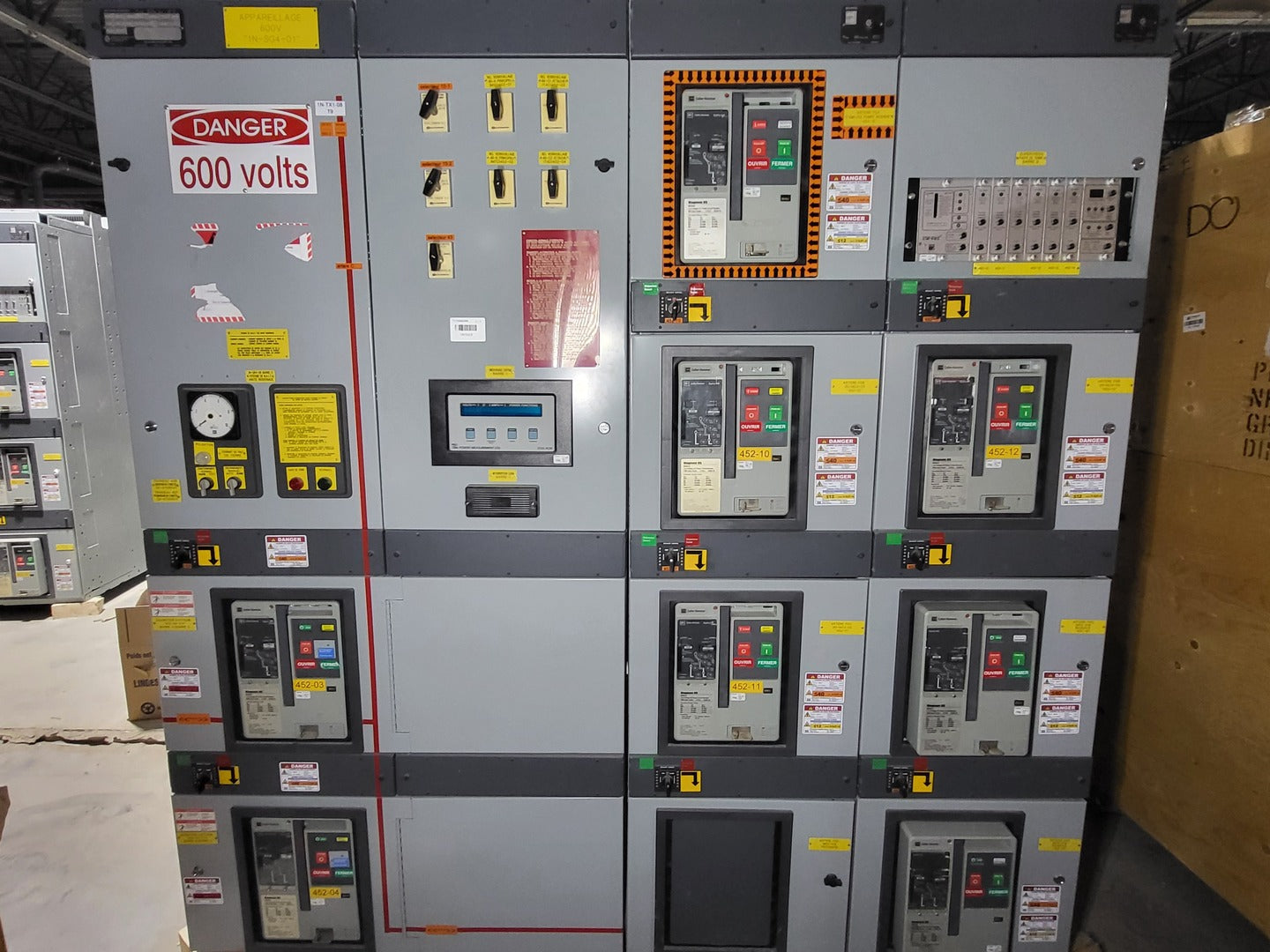

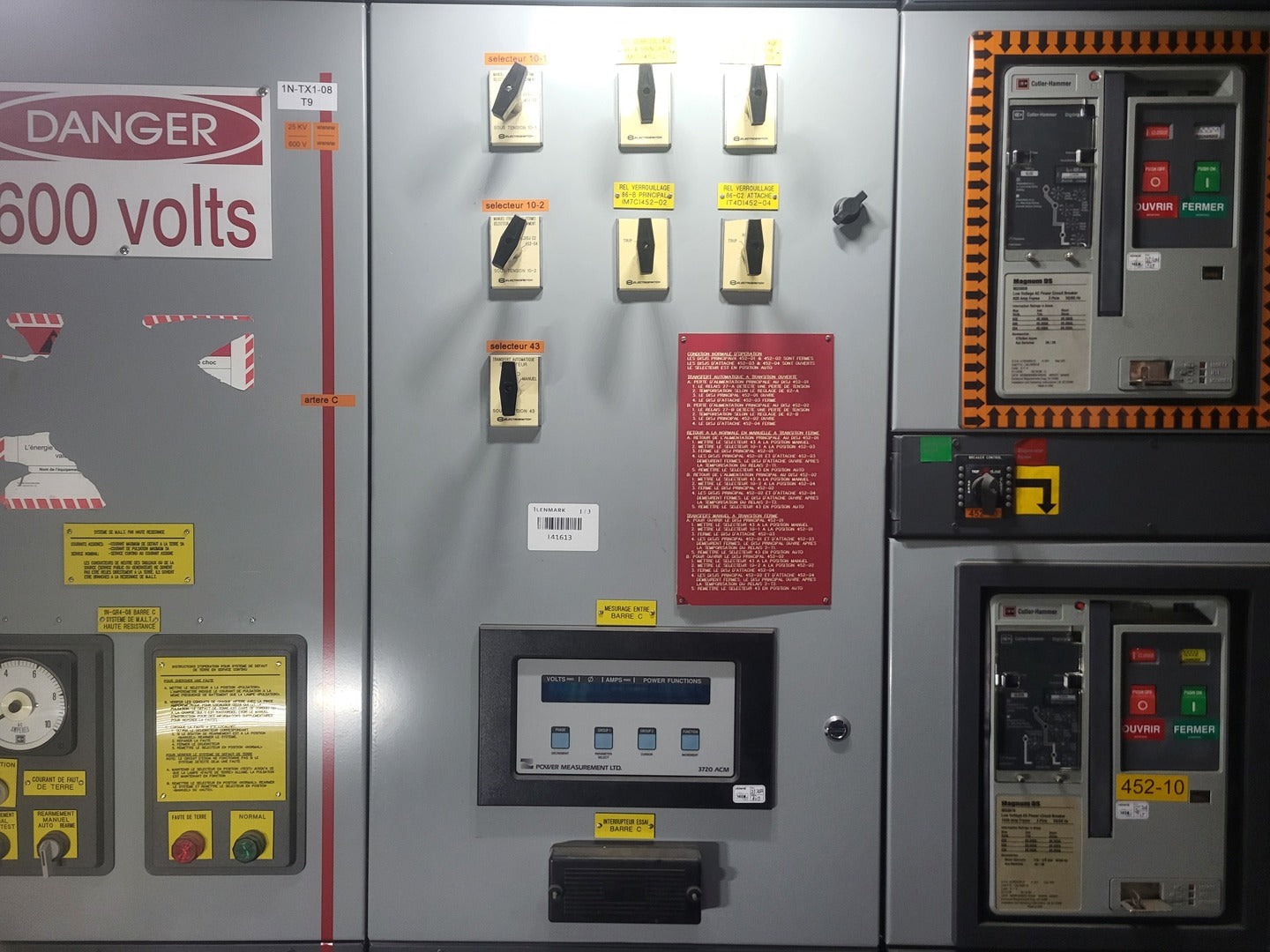

CUTLER-HAMMER Low Voltage PDC / Switchgear Section, (2) 4000A, (5) 1200A, (1) 800A Magnum DS Breakers, 600V 3PH
CUTLER-HAMMER

Low Voltage PDC / Switchgear Section, (2) 4000A, (5) 1200A, (1) 800A Magnum DS Breakers, 600V 3PH

SKU: 153870
Precio:
$164,524

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

Year: 2002
Made In UNITED STATES
Condition Used
General

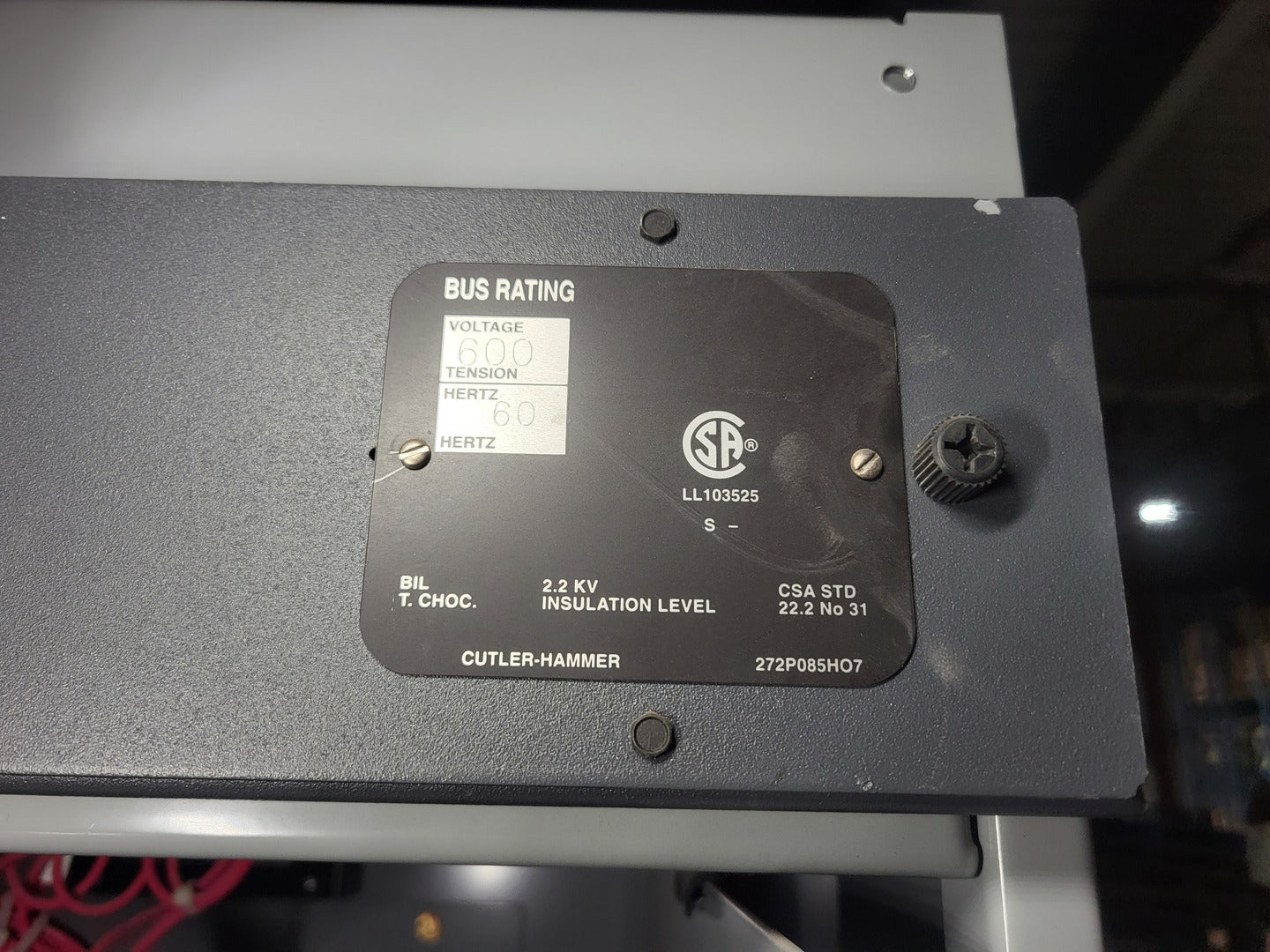

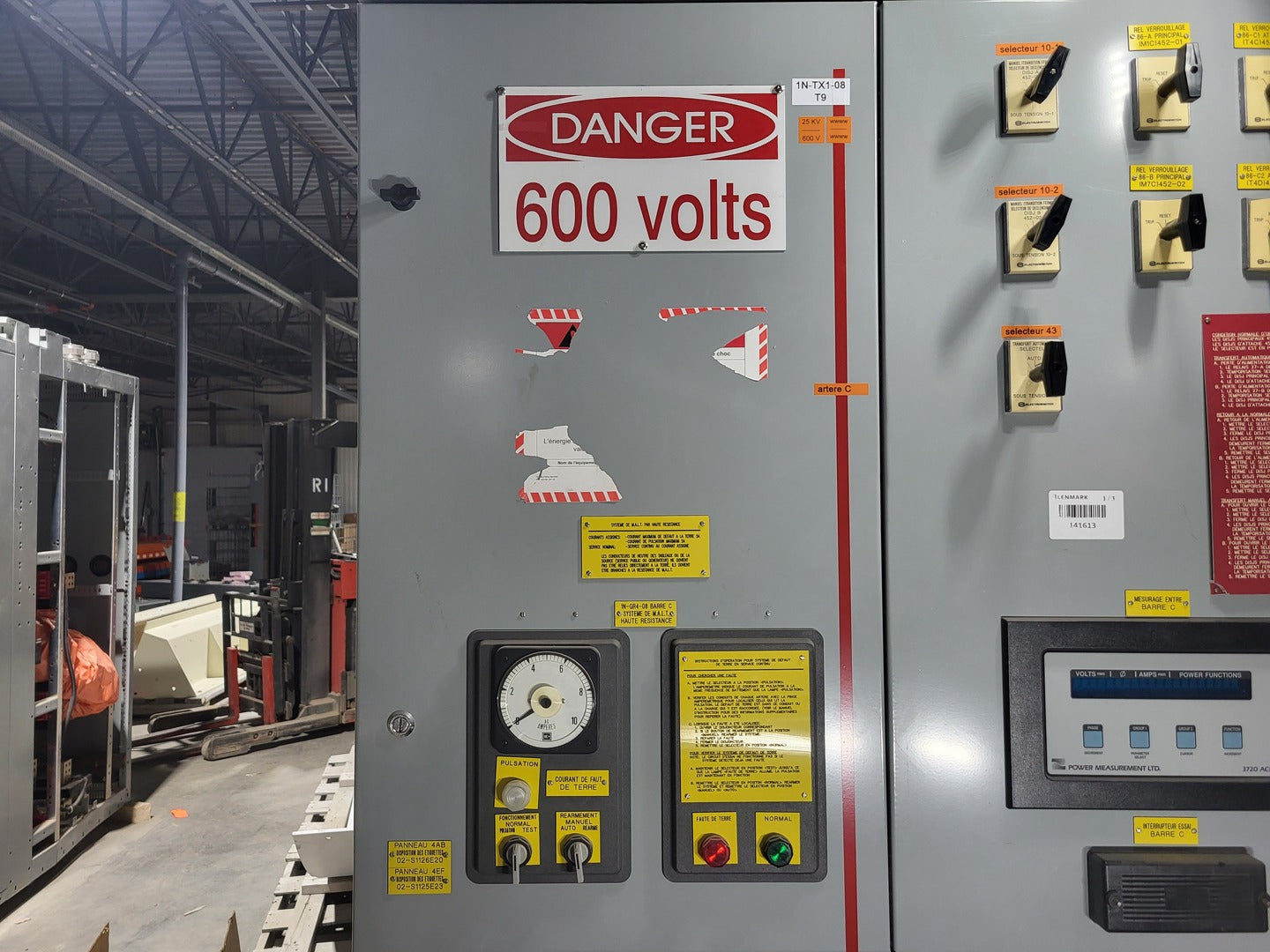

Voltage 600 volts
Frequency 60 Hz
Phase 3-phase
Amps 4000 amps
Other Specifications

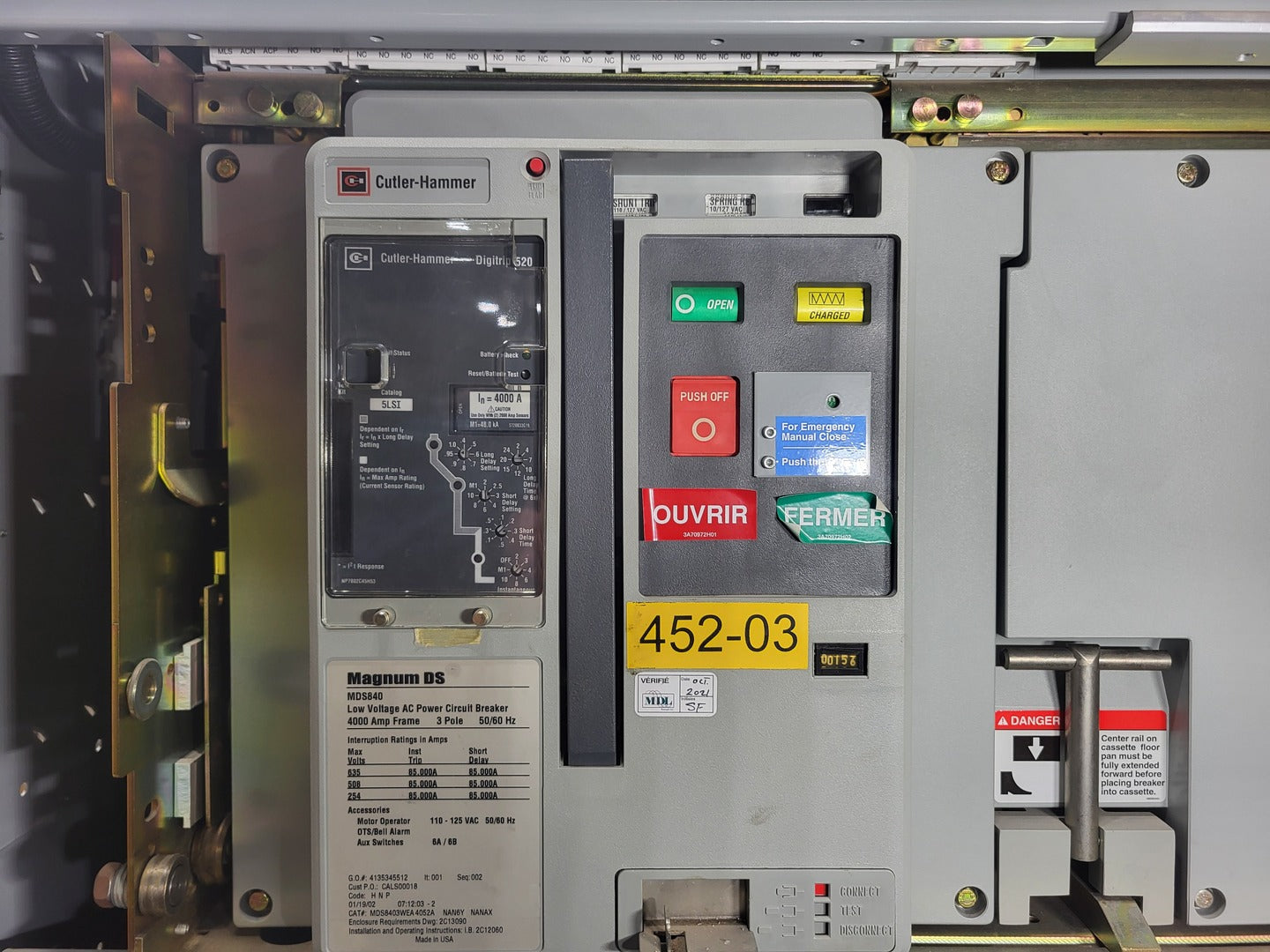

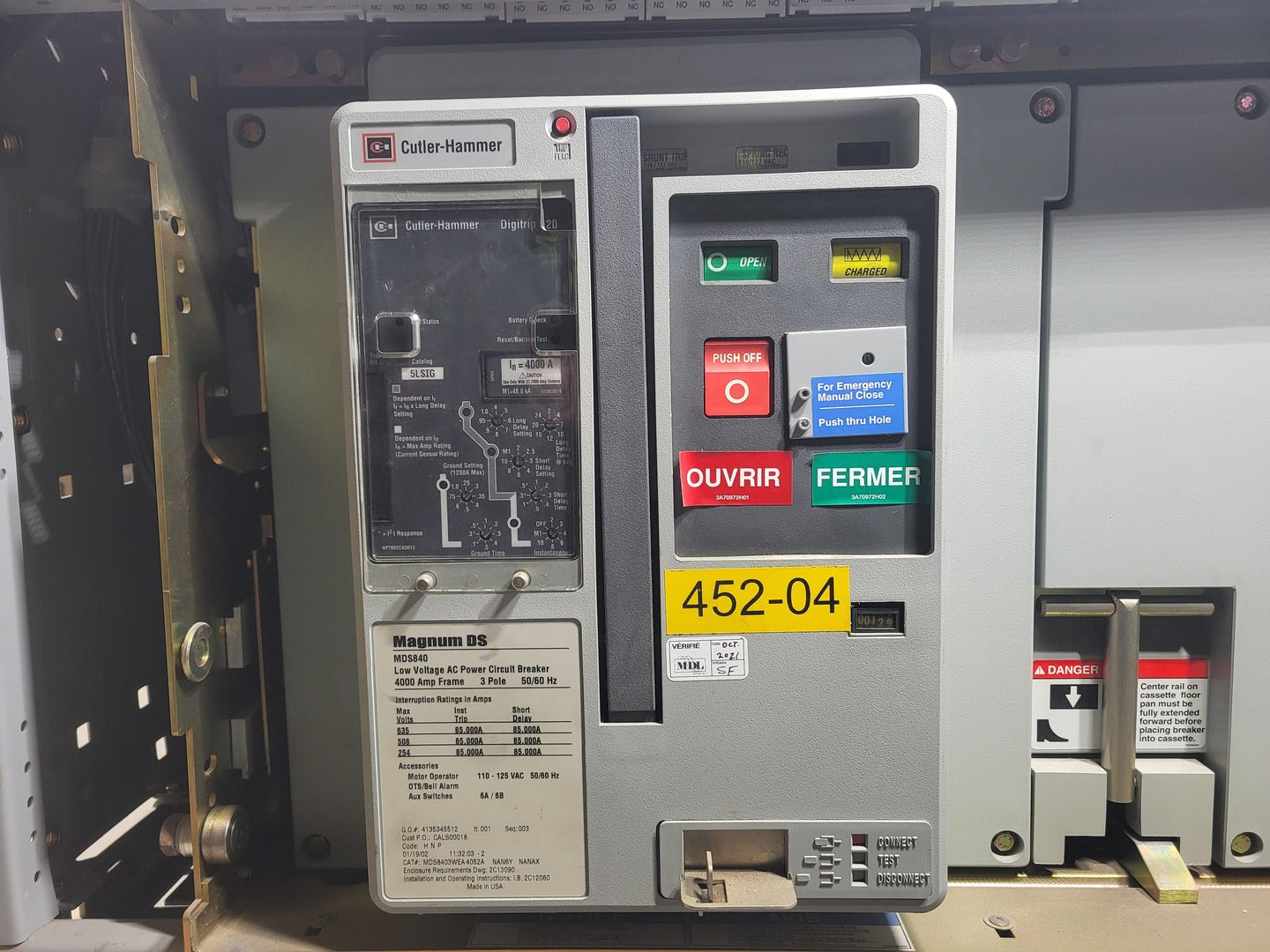

Main Breakers - 4000A (2 x units)

Model: MDS840

Series: Magnum DS

Specs:

  1. Frame Size: 4000 Amp
  2. Poles: 3 Pole
  3. Voltage: 600V Class
  4. Interrupting Rating:
  5. 85 kA @ 635V
  6. 85 kA @ 508V
  7. 85 kA @ 254V
  8. Trip Unit: Digitrip 520, 4000 Amp
  9. Protection: LSI / LSIG (Long, Short, Instantaneous, Ground Fault)

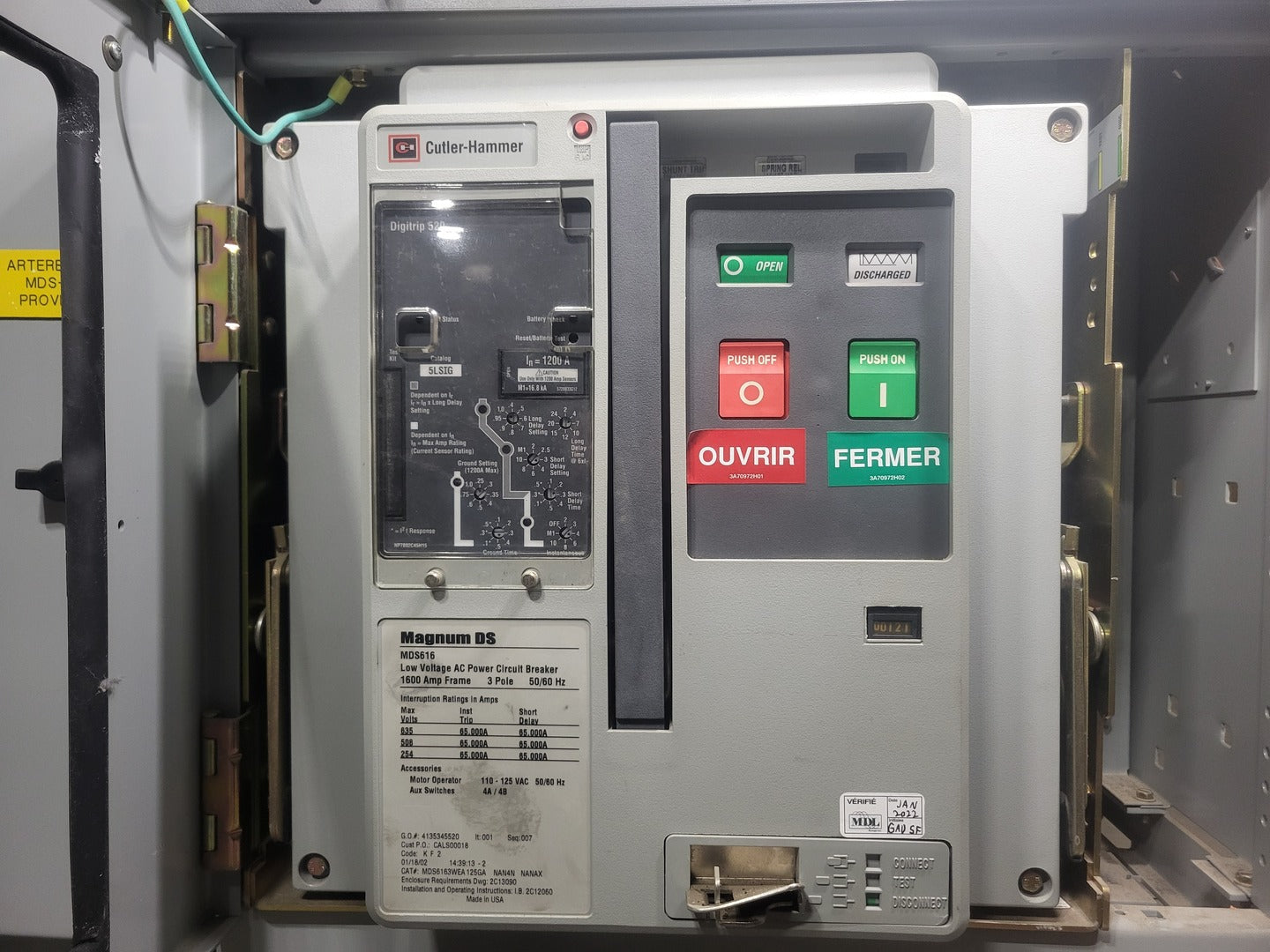

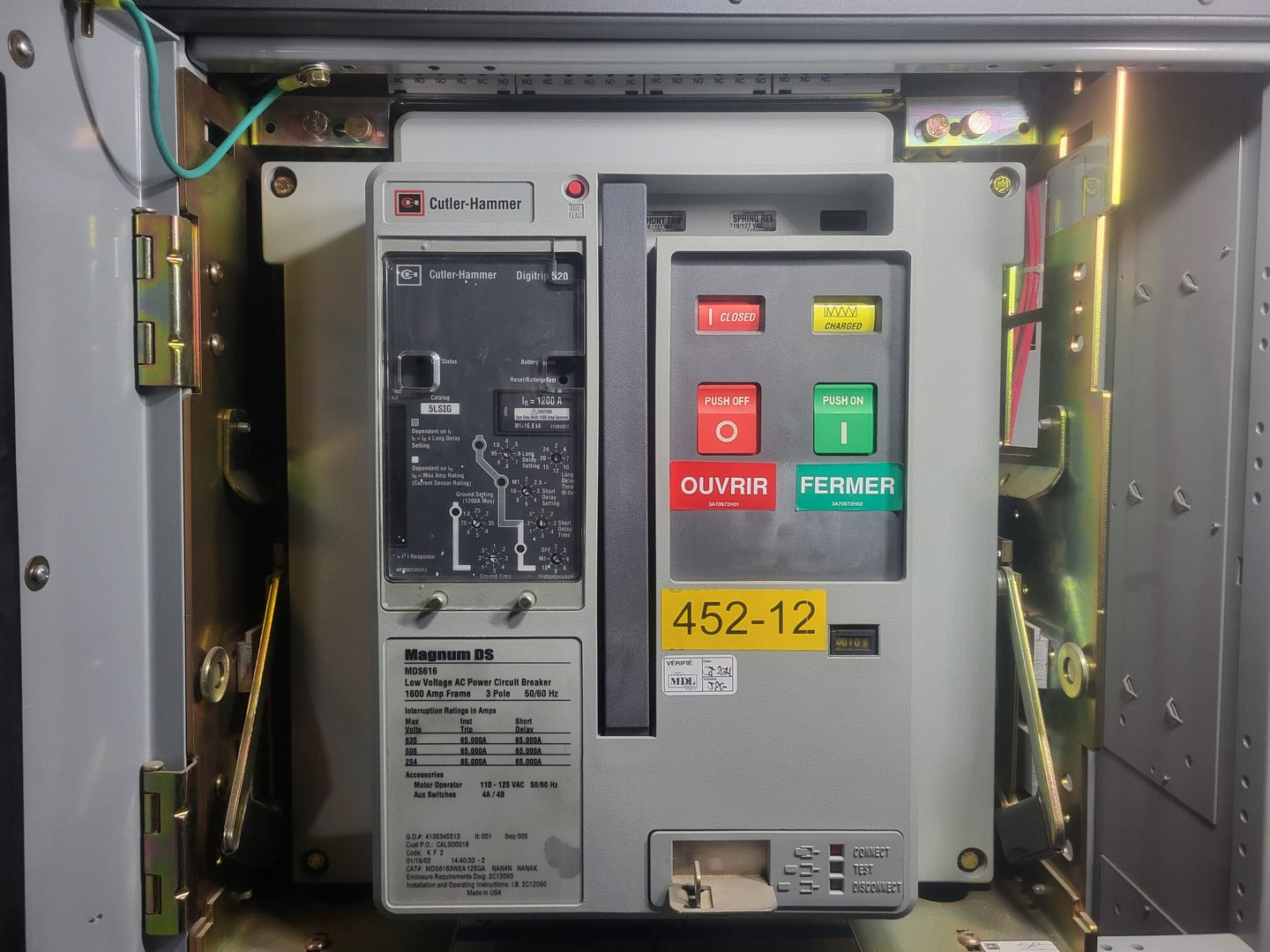

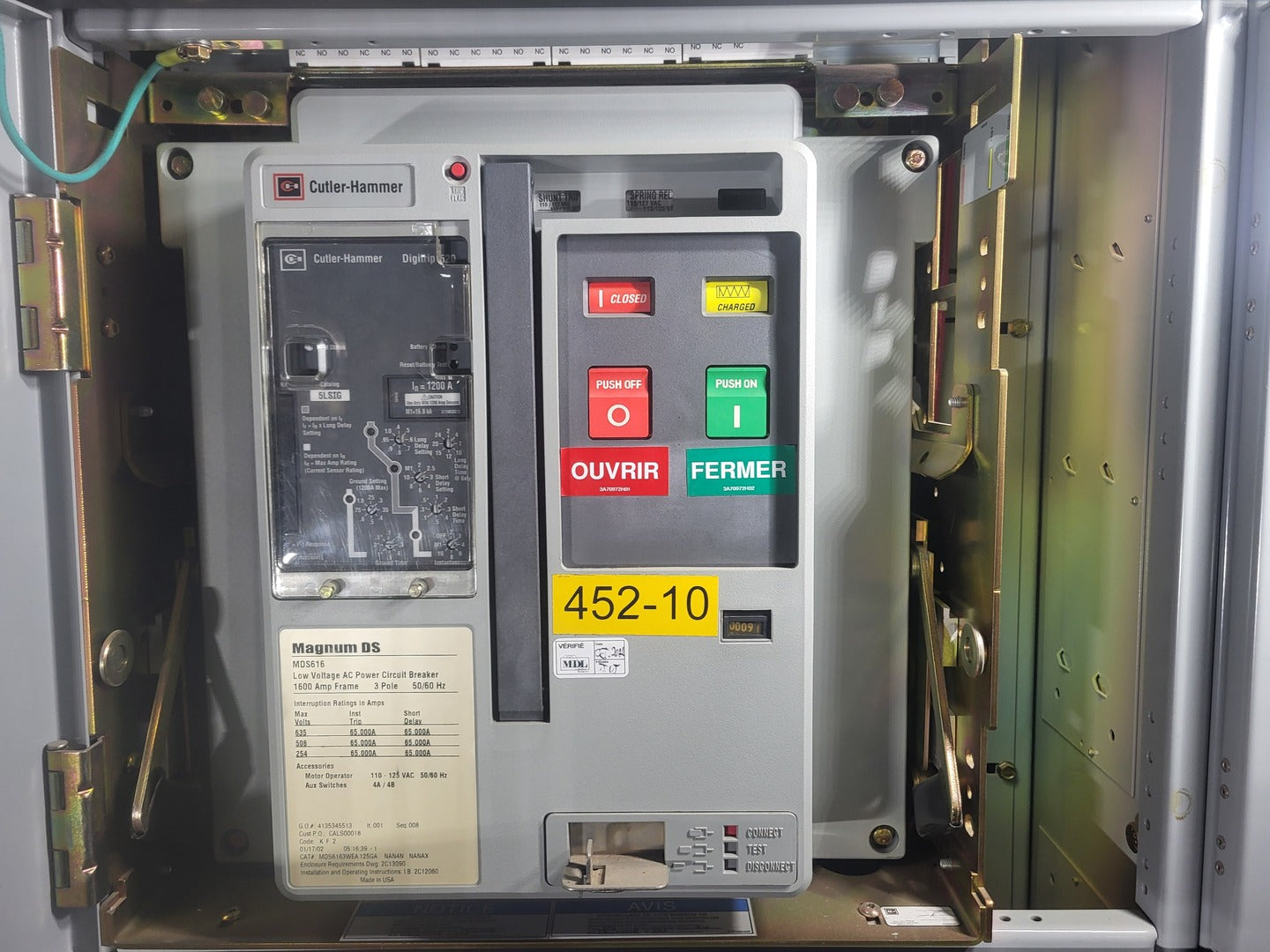

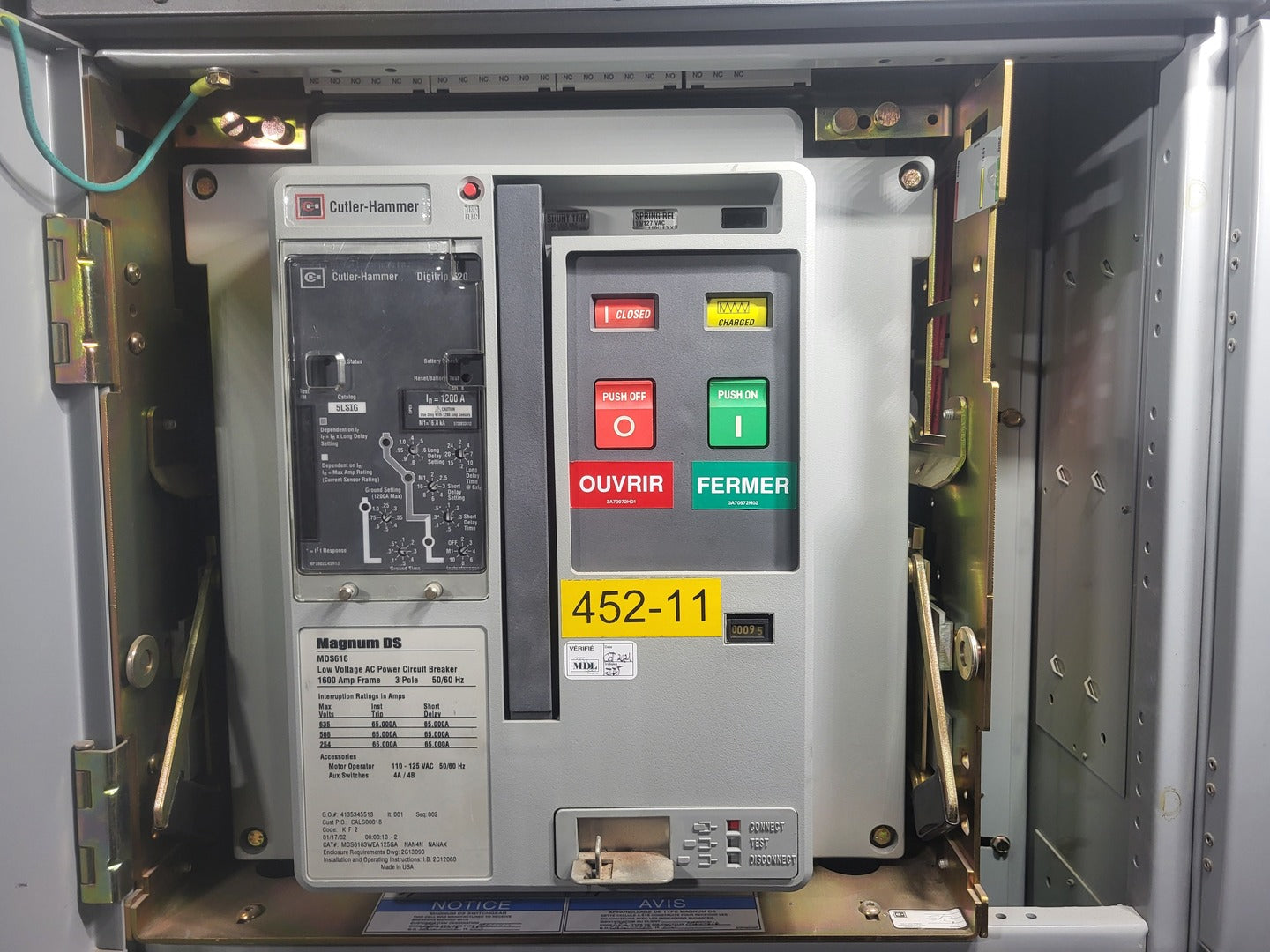

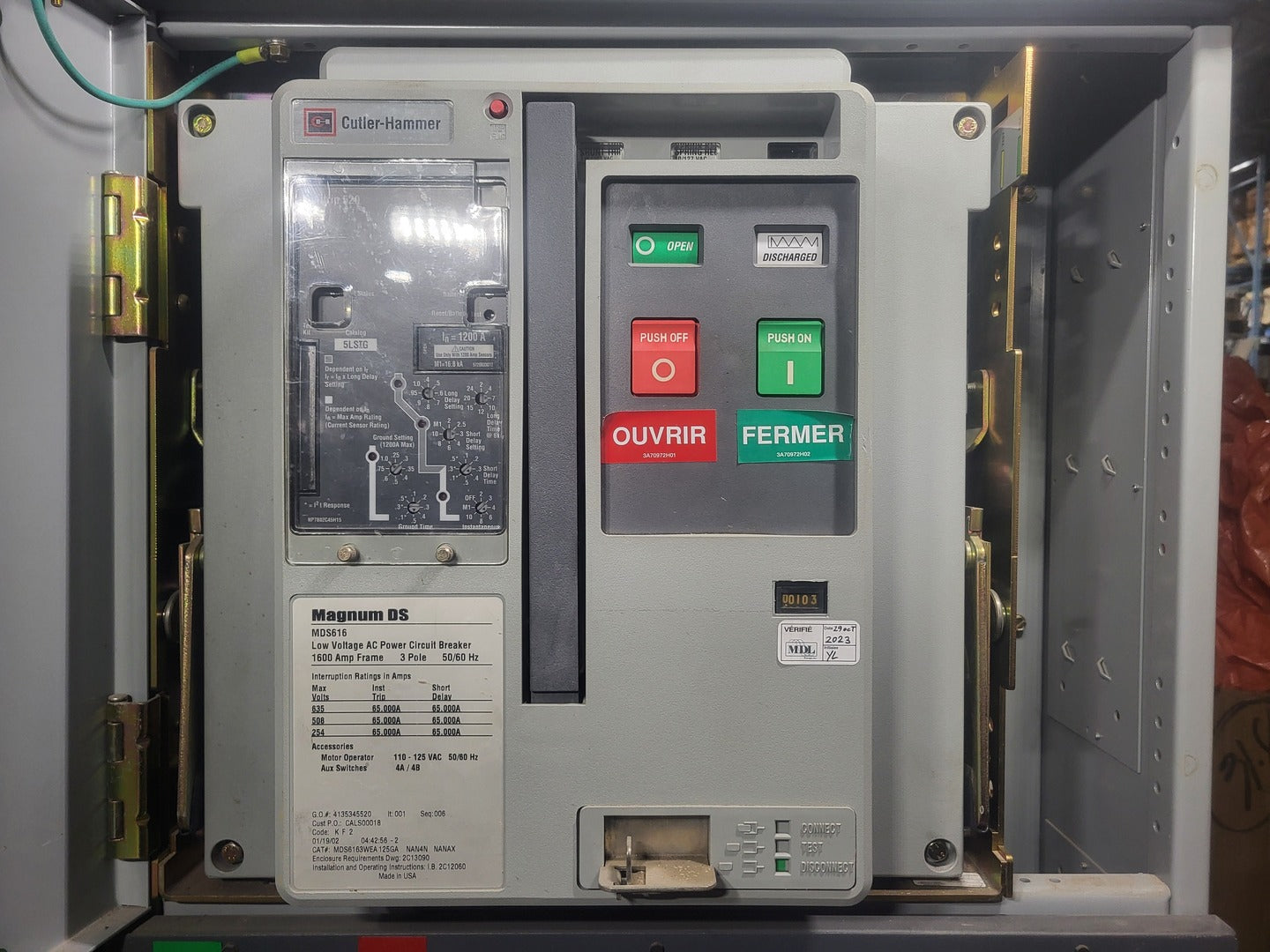

Feeder Breakers - 1200A (5 x units)

Model: MDS616

Series: Magnum DS

Specs:

  1. Frame Size: 1600 Amp
  2. Poles: 3 Pole
  3. Voltage: 600V Class
  4. Interrupting Rating:
  5. 65 kA @ 635V
  6. 65 kA @ 508V
  7. 65 kA @ 254V
  8. Trip Unit: Digitrip 520, 1200 Amp
  9. Protection: LSIG (Long, Short, Instantaneous, Ground Fault)

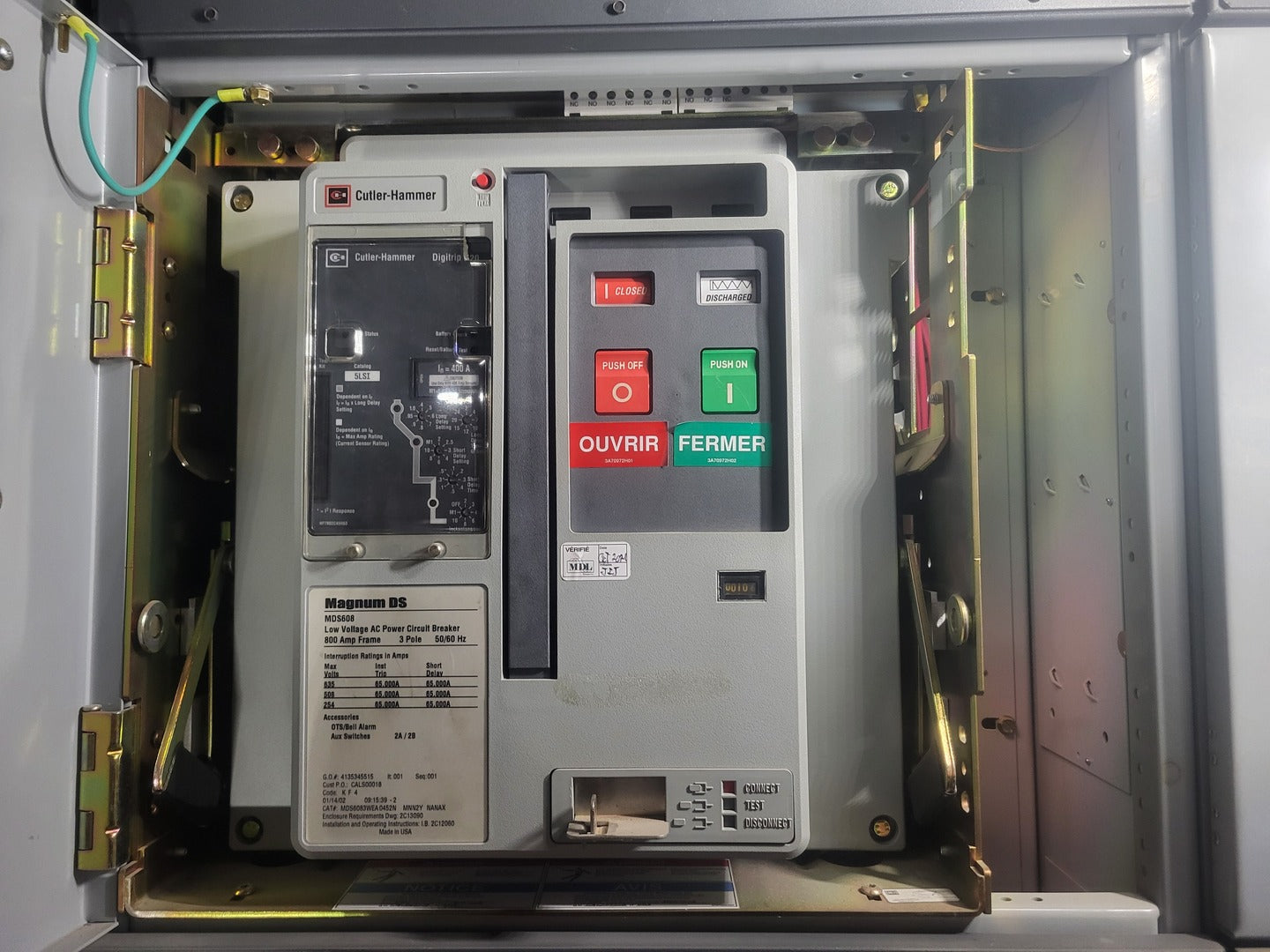

Feeder Breaker - 400A (1 x unit)

Model: MDS608

Series: Magnum DS

Specs:

  1. Frame Size: 800 Amp
  2. Poles: 3 Pole
  3. Voltage: 600V Class
  4. Interrupting Rating:
  5. 65 kA @ 635V
  6. 65 kA @ 508V
  7. 65 kA @ 254V
  8. Trip Unit: Digitrip 520, 400 Amp
  9. Protection: LSI (Long, Short, Instantaneous)
