Descripción
| Condition | Used | General |
|---|---|
| Horsepower | 5 hp |
| RPM | 1760 rpm | Electrical |
| Voltage | 575 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

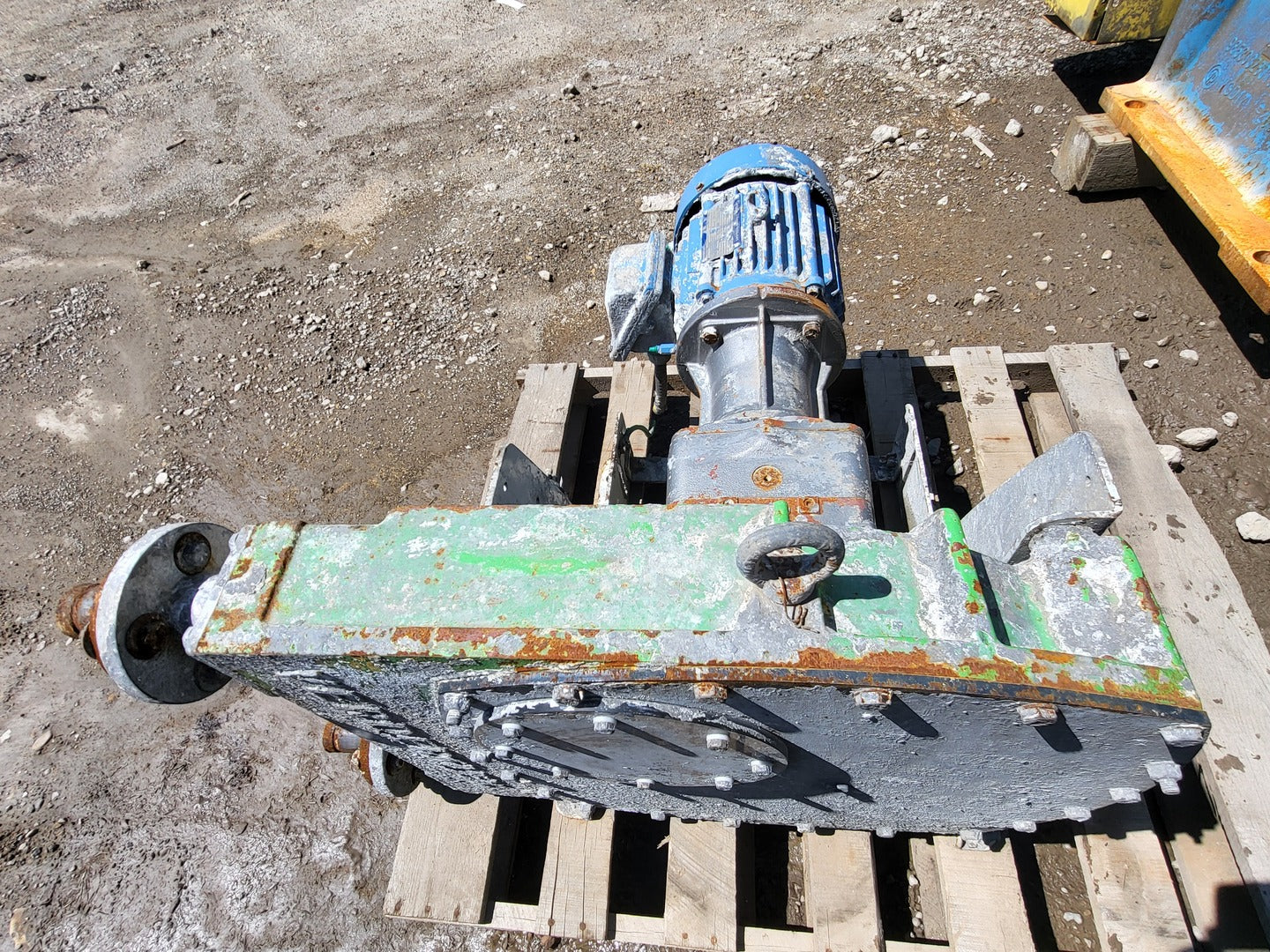

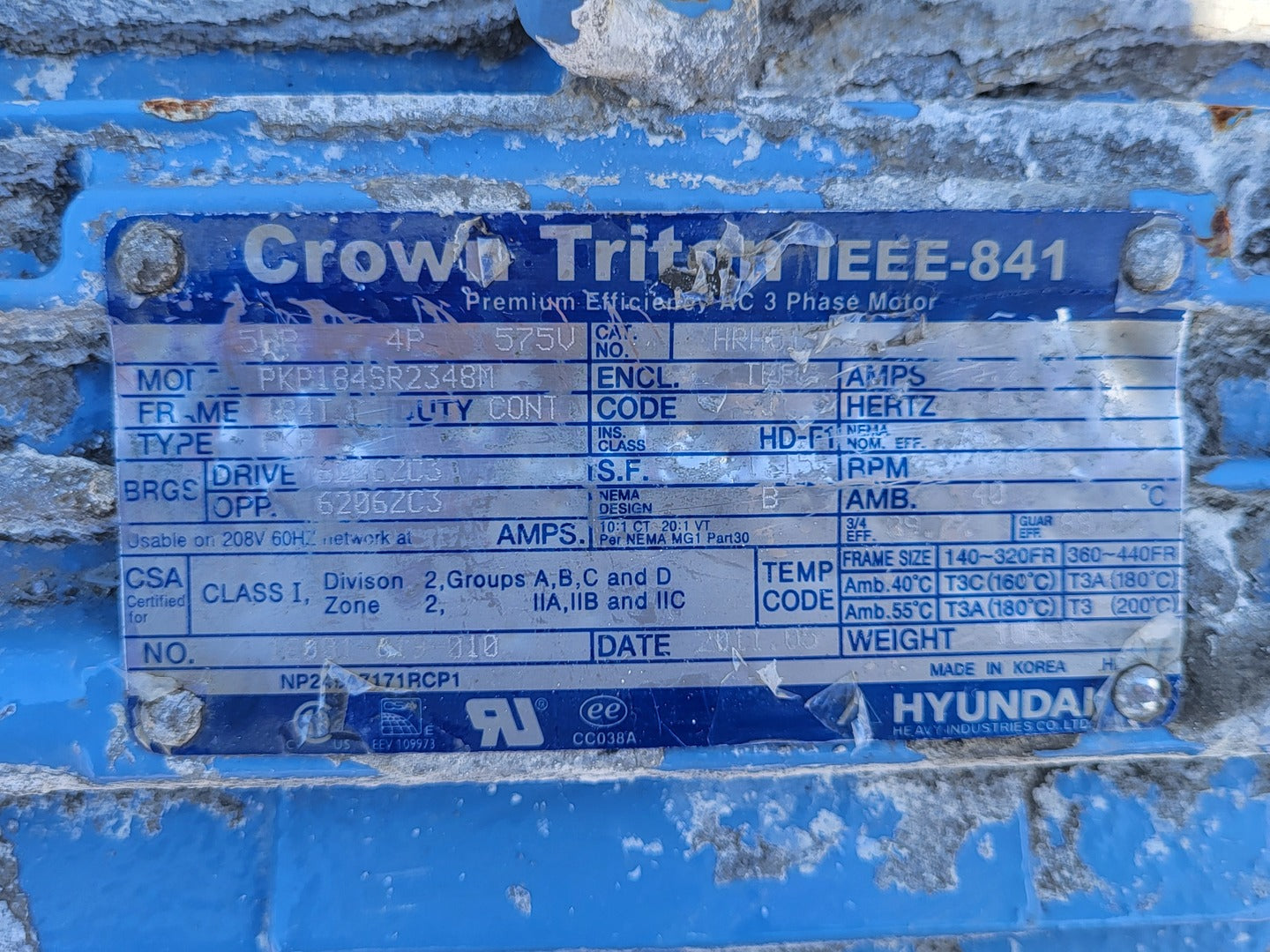

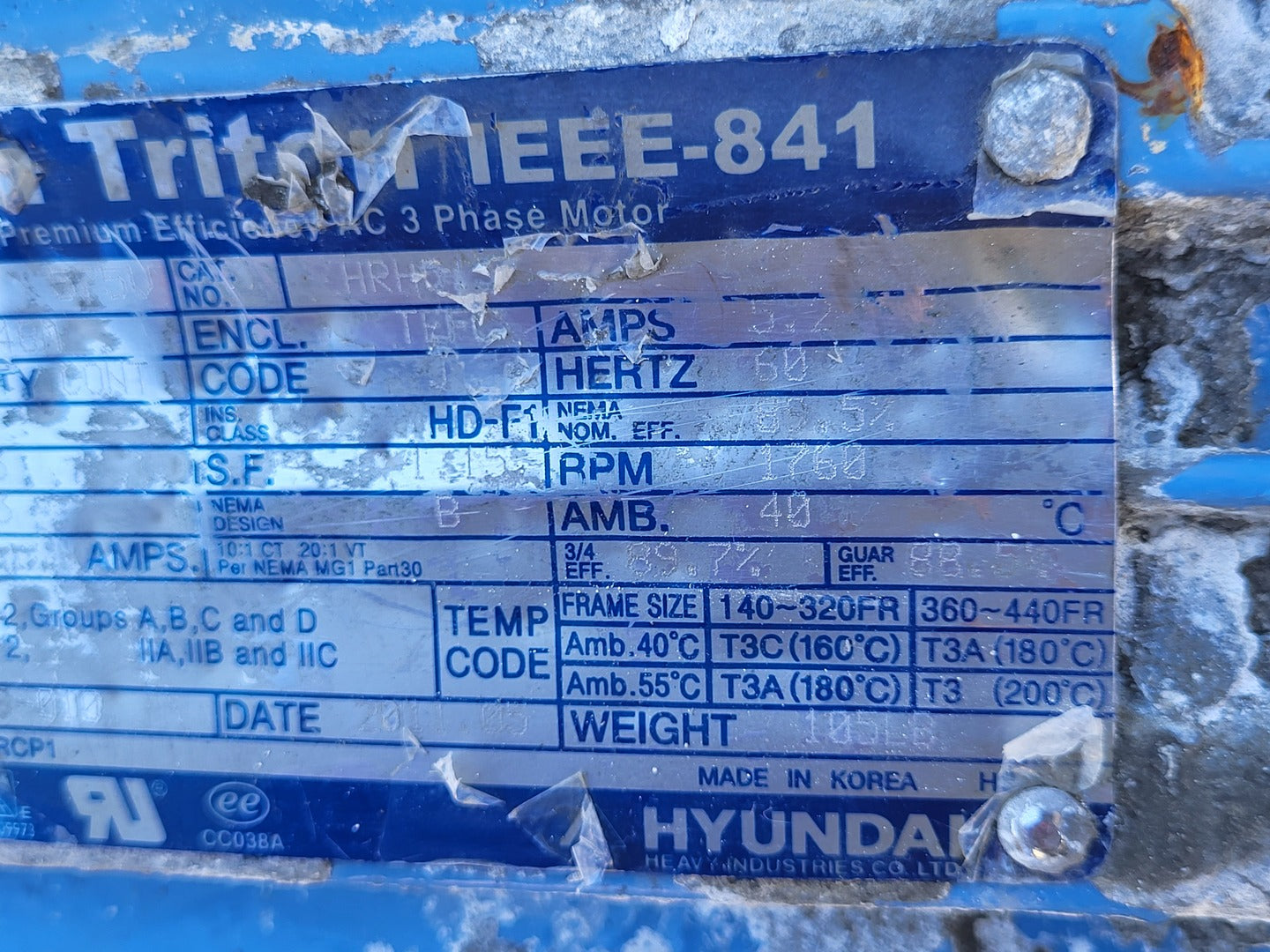

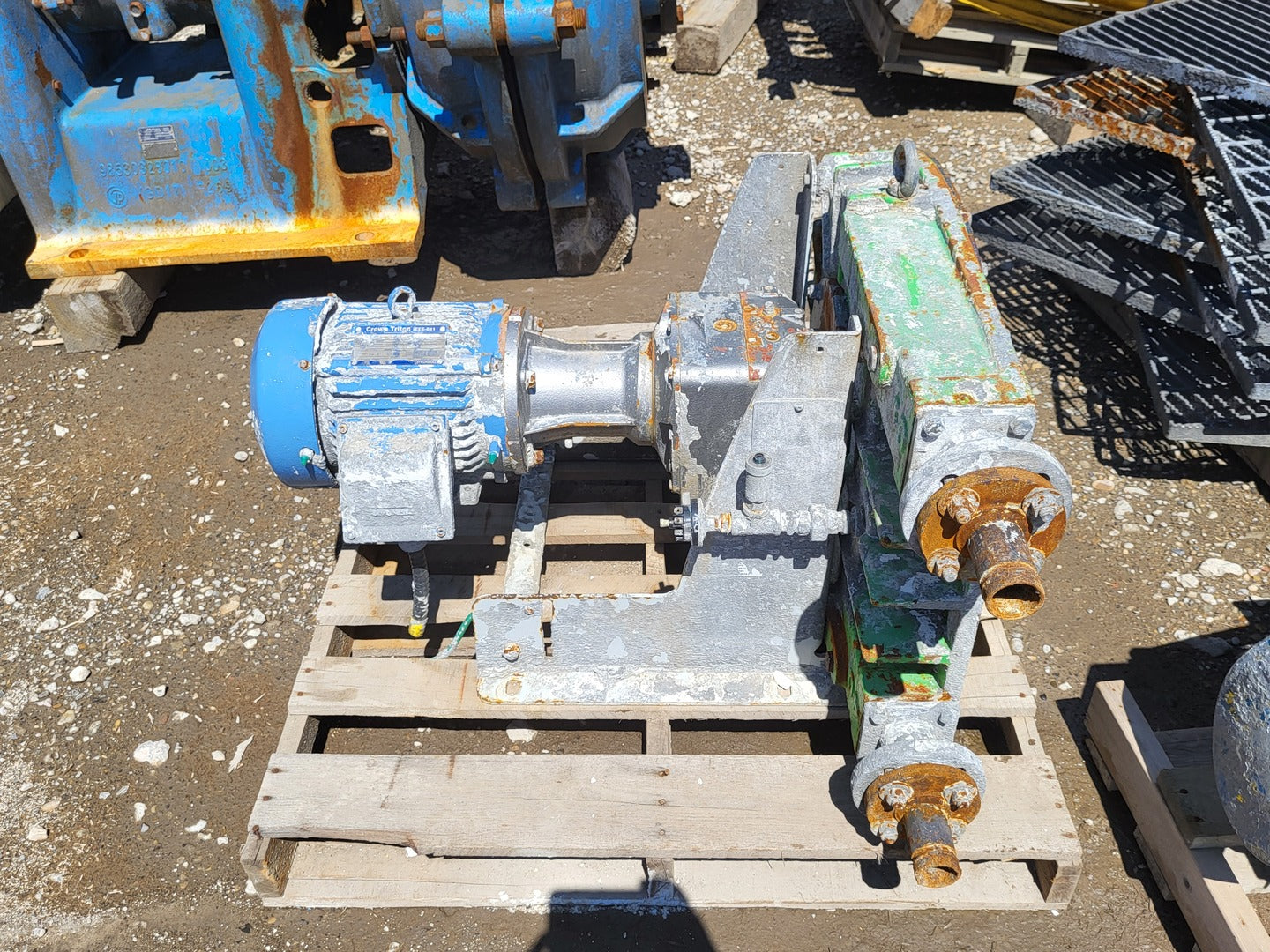

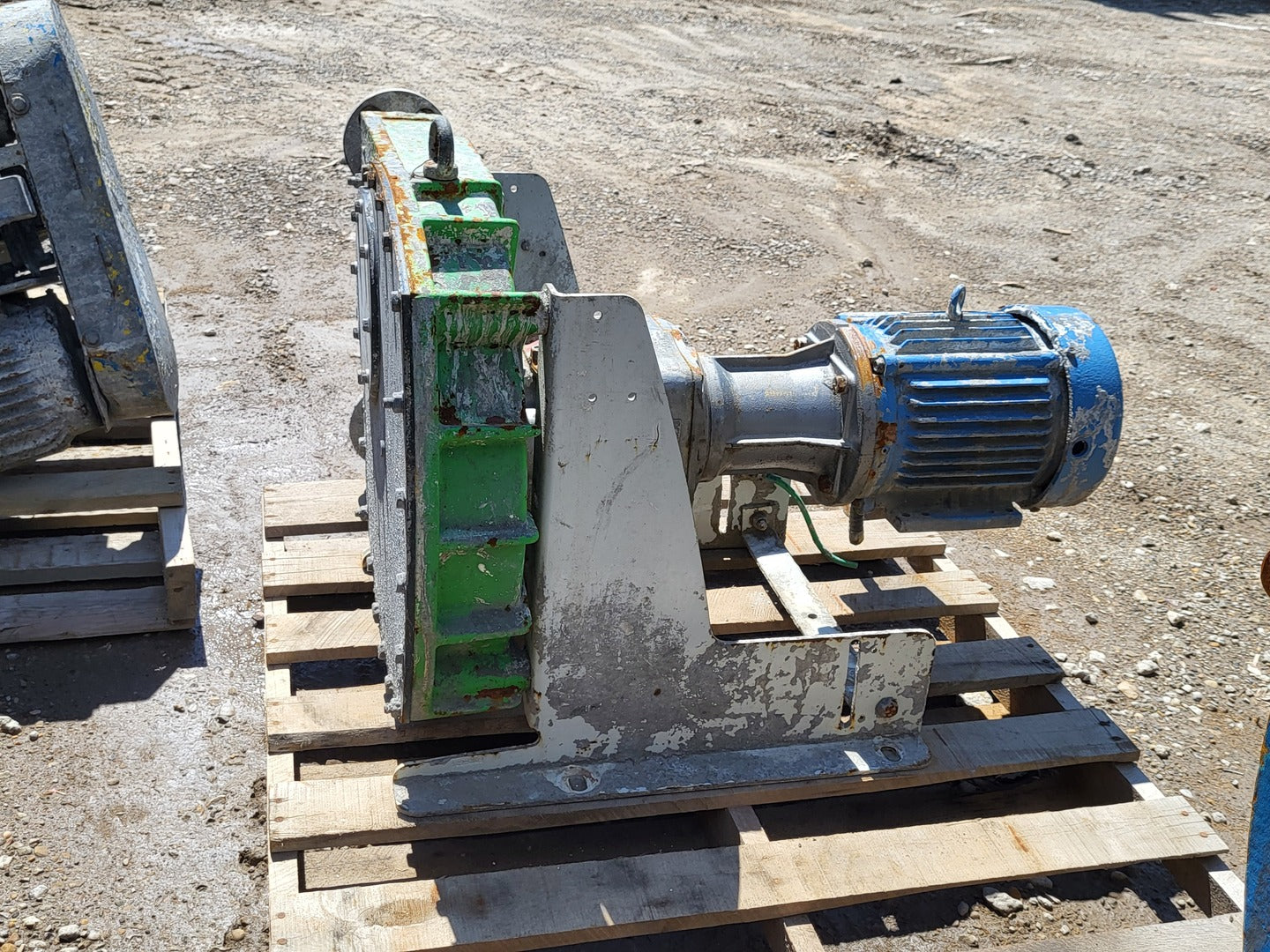

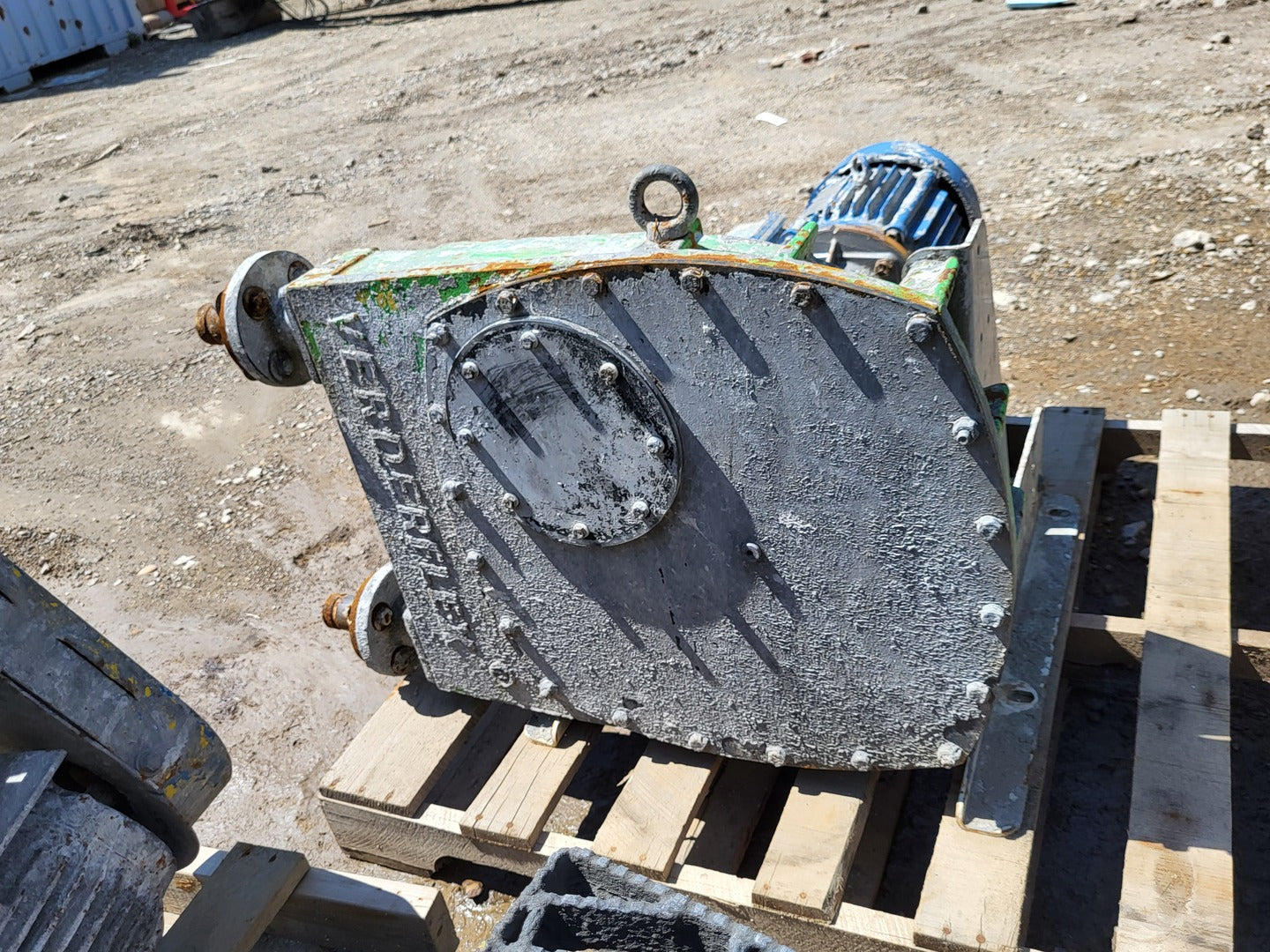

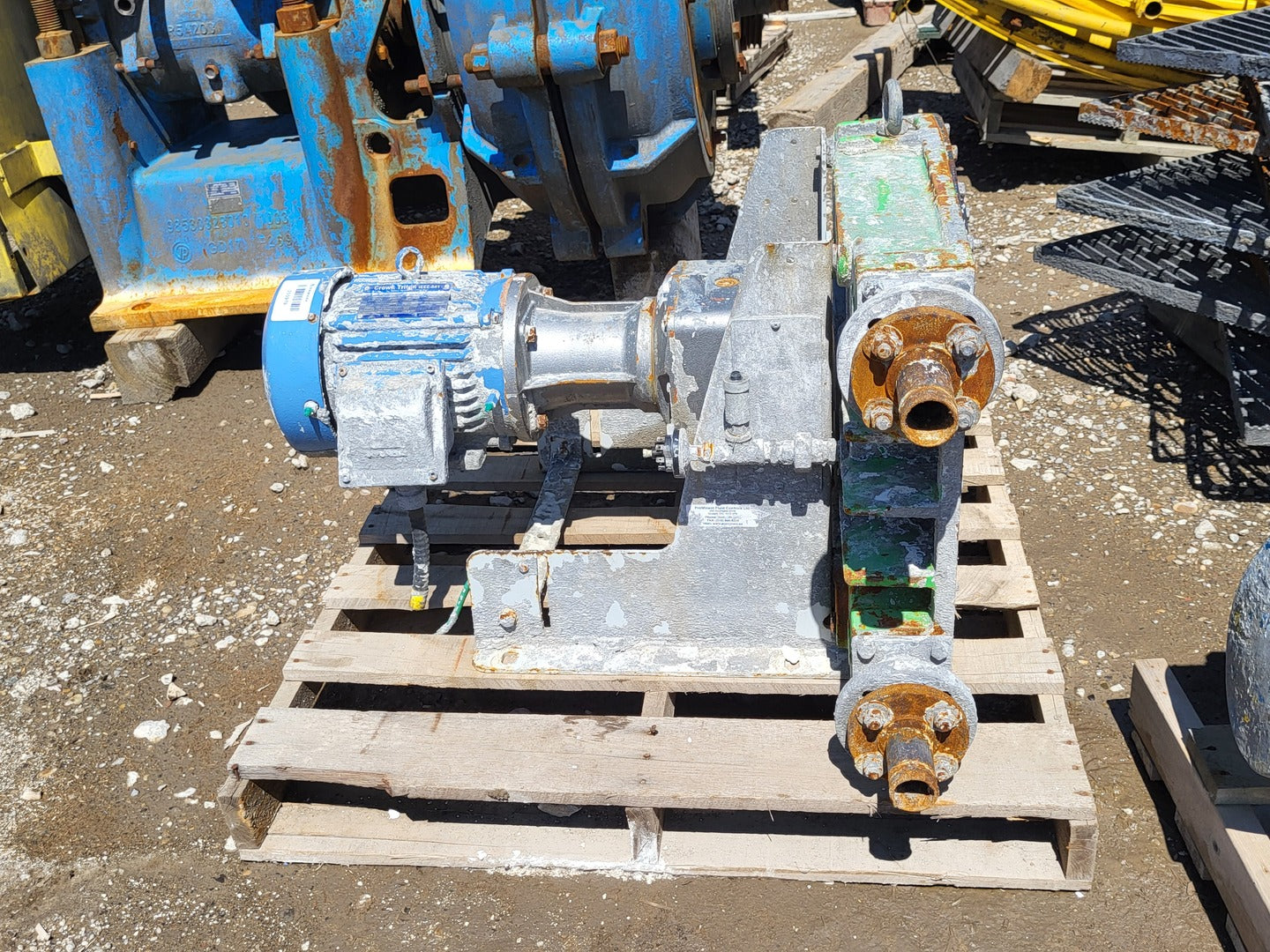

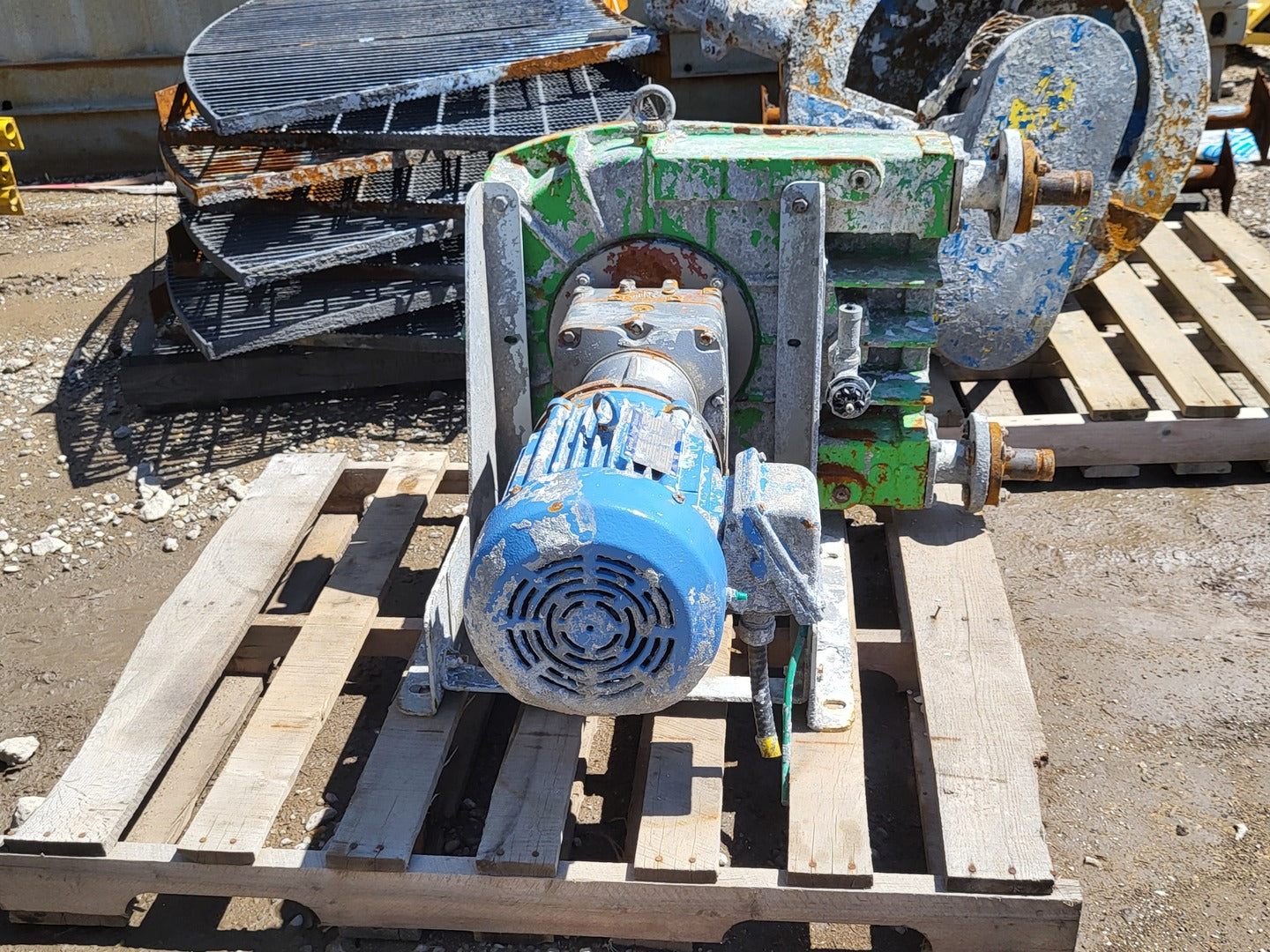

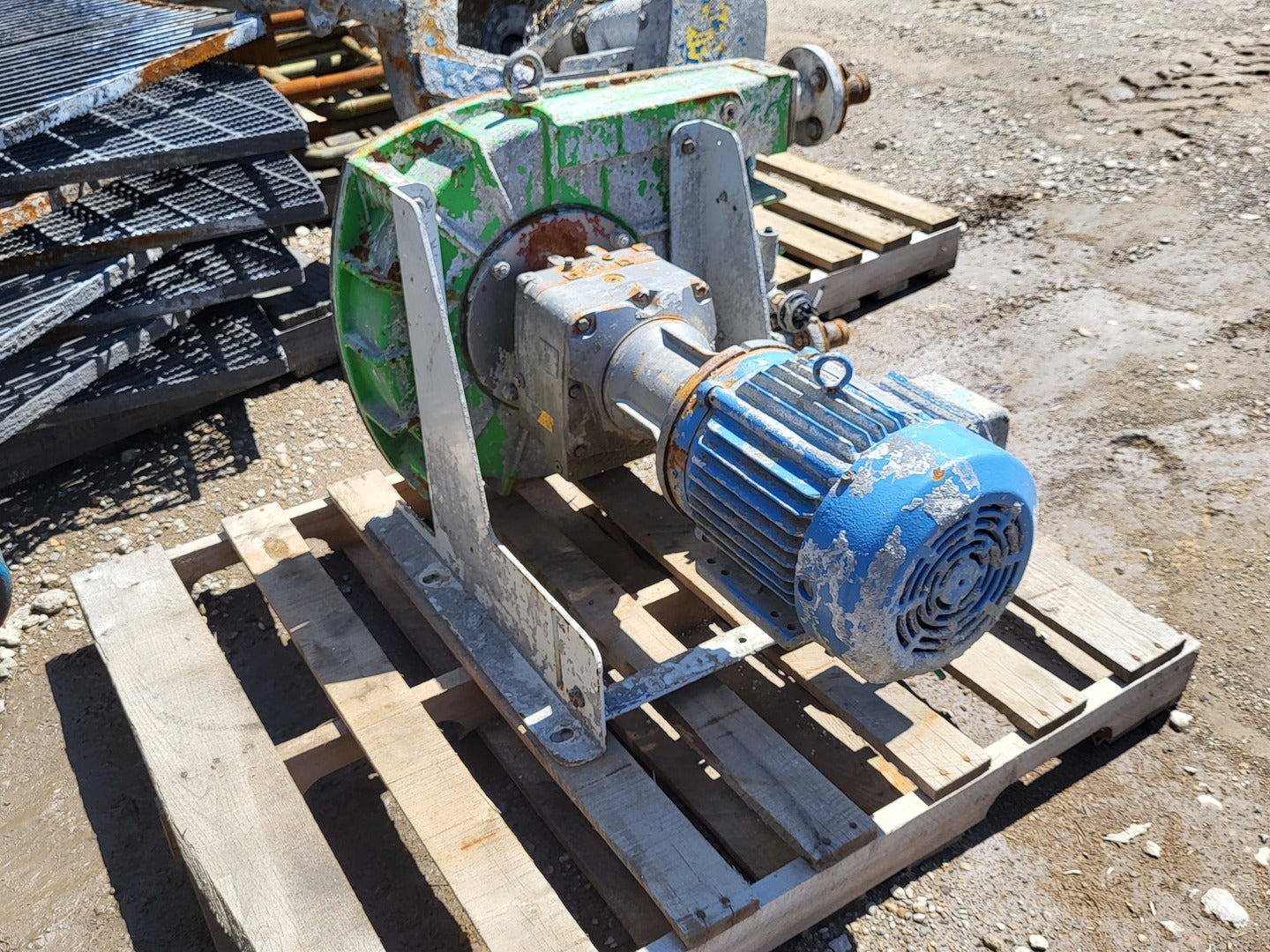

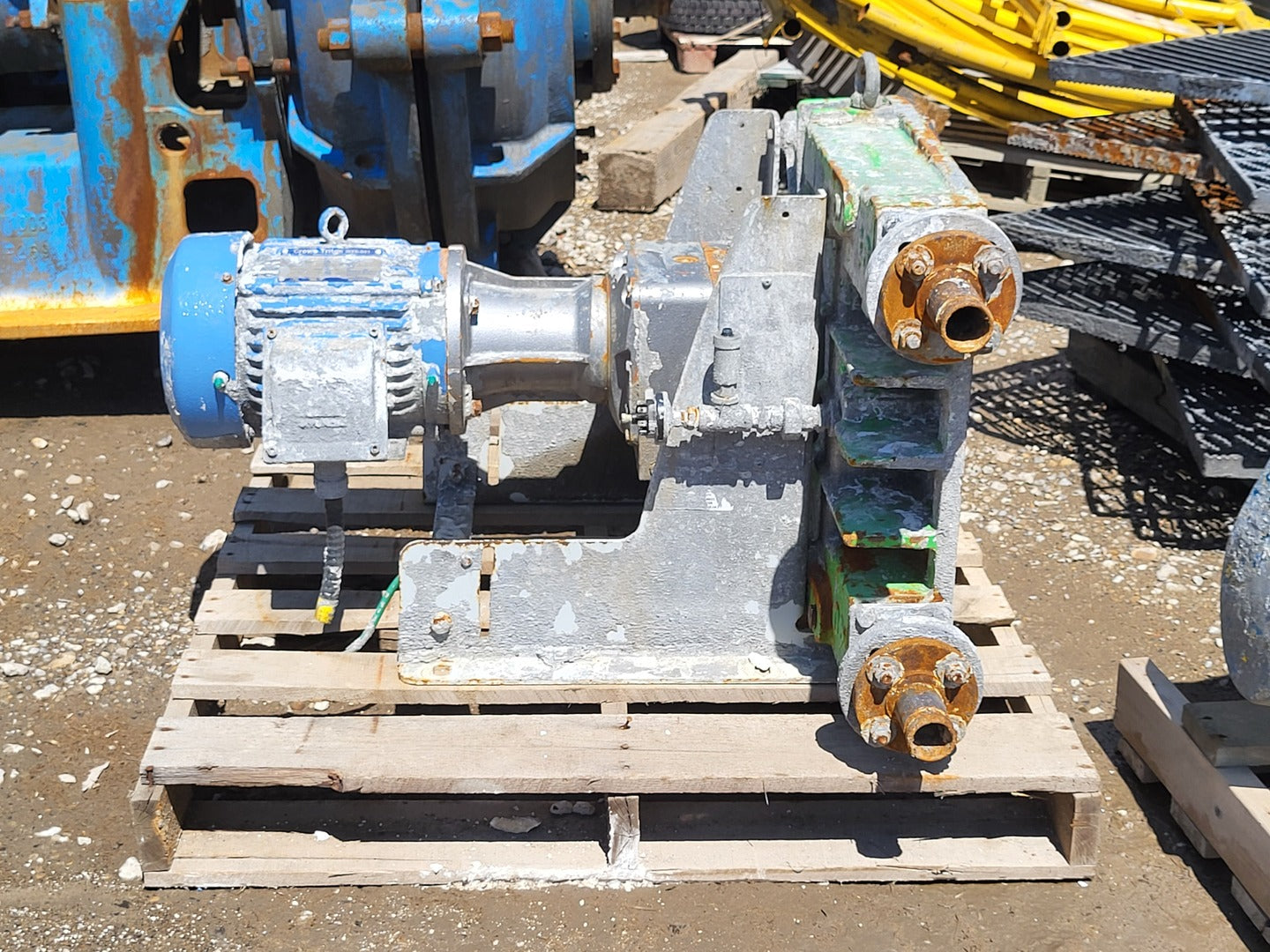

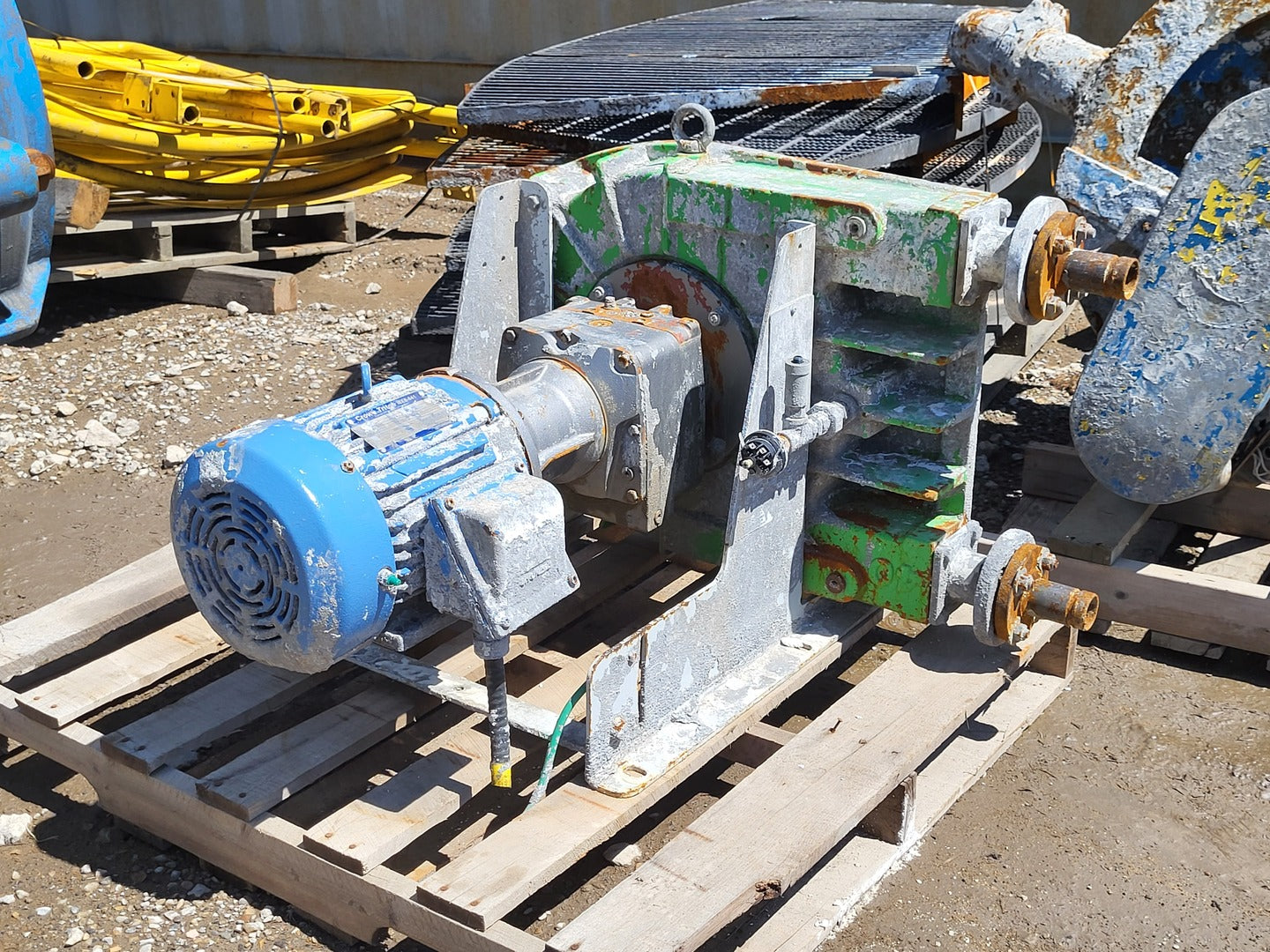

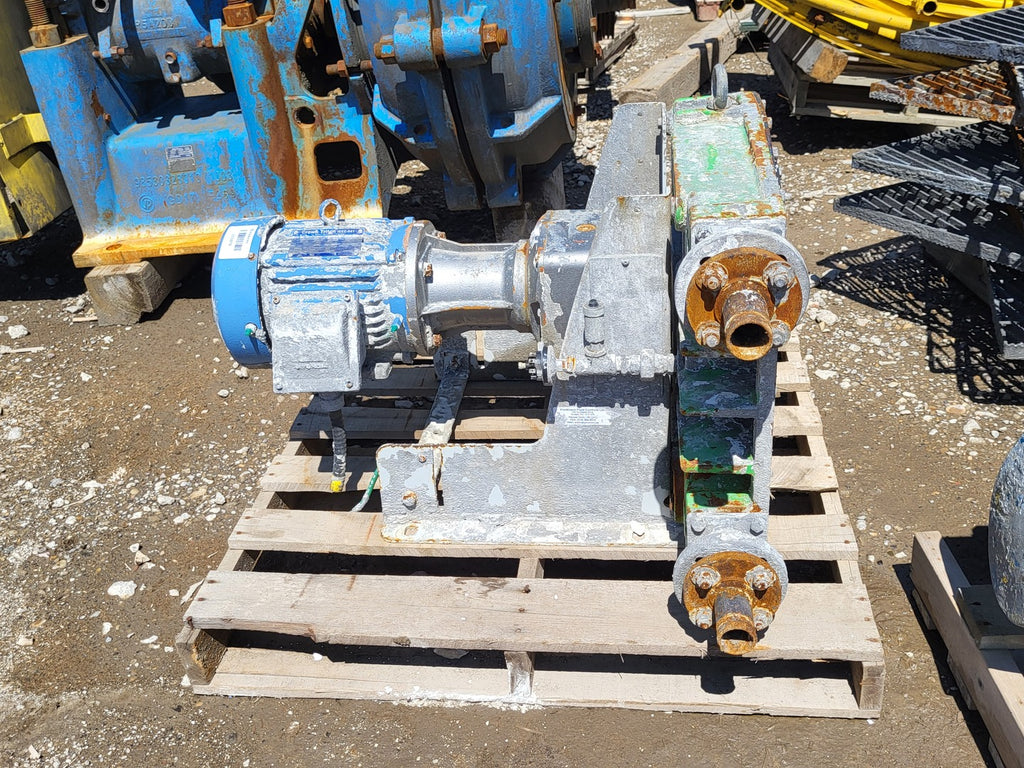

Equipment Type: Motor-Driven Process / Metering Pump Pump Configuration: Positive displacement process pump assembly Drive Type: Electric motor with gear reducer Motor Manufacturer: Hyundai Heavy Industries Motor Series: Crown Triton IEEE-841 Motor Type: Premium Efficiency AC 3-Phase Motor Motor Power: 5 HP Motor Voltage: 575 VAC Phase: 3-Phase Frequency: 60 Hz Motor Speed: 1760 RPM Motor Efficiency: Approximately 89.5% nominal, based on visible nameplate Motor Enclosure: TEFC Duty: Continuous NEMA Design: B Ambient Rating: 40°C Hazardous Location Rating: Nameplate indicates Class I, Division 2, Groups A, B, C & D / Zone 2 IIA, IIB & IIC Gear Reducer Manufacturer: NORD Gear Gear Reducer Model: SK 73F Gear Ratio: 23.47:1 Gearbox Output Speed: 61 RPM Gearbox Mounting Position: M1 Process Connections: Two flanged connections visible on pump head Mounting: Heavy-duty fabricated steel base/frame |
