Descripción
| Specifications | |
|---|---|

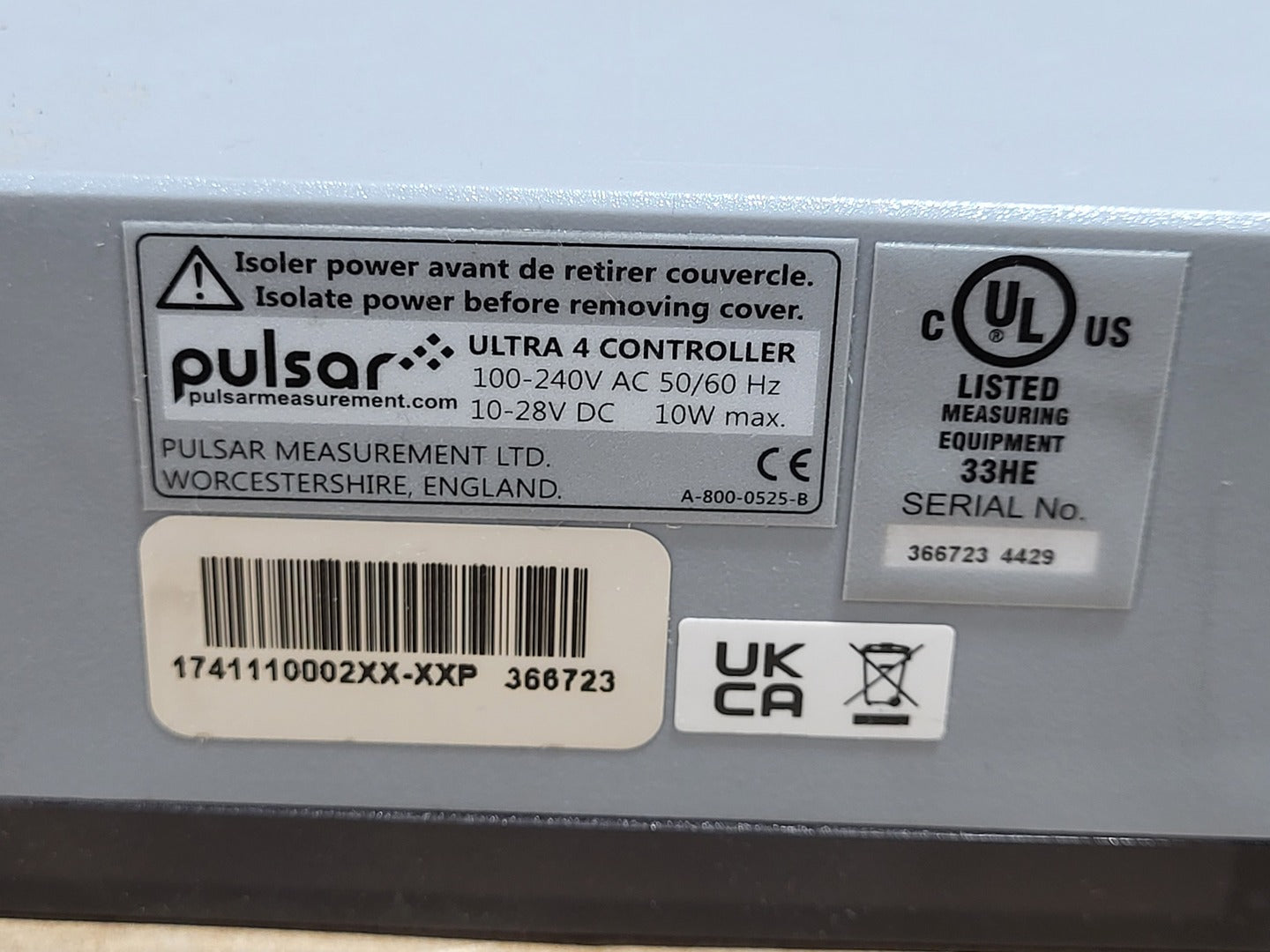

| Model | 1741110002XX-XXP |

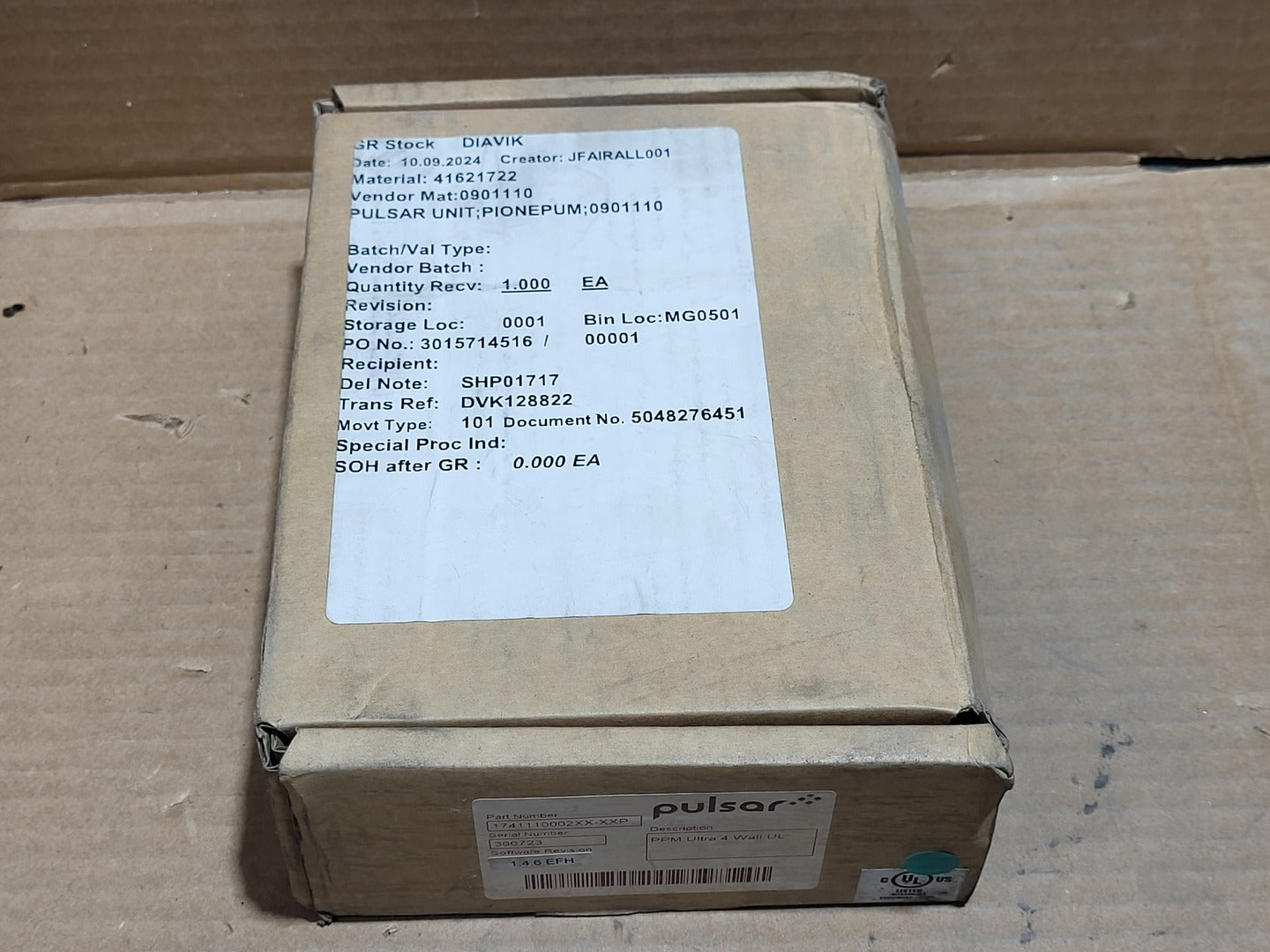

| Condition | Surplus New |
| Other Specifications |
|---|
|
Accuracy: 0.25% of the measured range or 6 mm (0.2 in), whichever is greater. 2 mm (0.01 in) for dBR16 mm WAVE RADAR. Resolution: 0.1% of the measured range or 2 mm (0.08 in), whichever is greater Max Range: Dependent on application and transducer (maximum 40 m (131.2 ft) dB40) Min Range: Dependent on application and transducer (minimum zero dBMACH 3) Rate Response: Fully Adjustable Analog Output: Isolated (floating output (to 150 V) of 4-20mA or 0-20mA into 1 k Ohm (user-programmable and adjustable) Digital Output: Full Duplex RS232 Volt-free Contacts, Number, & Rating: 3 x SPCO isolated relays, rated at 5A at 250 V AC and 1 Solid-state SPNO isolated relay, rated 30 V at 100mA, suitable for pulse counter applications Display: Monochrome graphical dot-matrix, 160 x 240 pixels. Fully programmable display options with an integral keypad with menu navigation keys. Power Supply: 100-240 V AC 50/60 Hz. DC 10-28 V Power Consumption: AC = 20 VA MAX, DC = 10 W max Fuses, Mains: 1A 'T' 20 mm (0.8 in) ceramic 1500A breaking Fuses, Transducer: 100 mA barrier type, 4000A breaking |
