Descripción

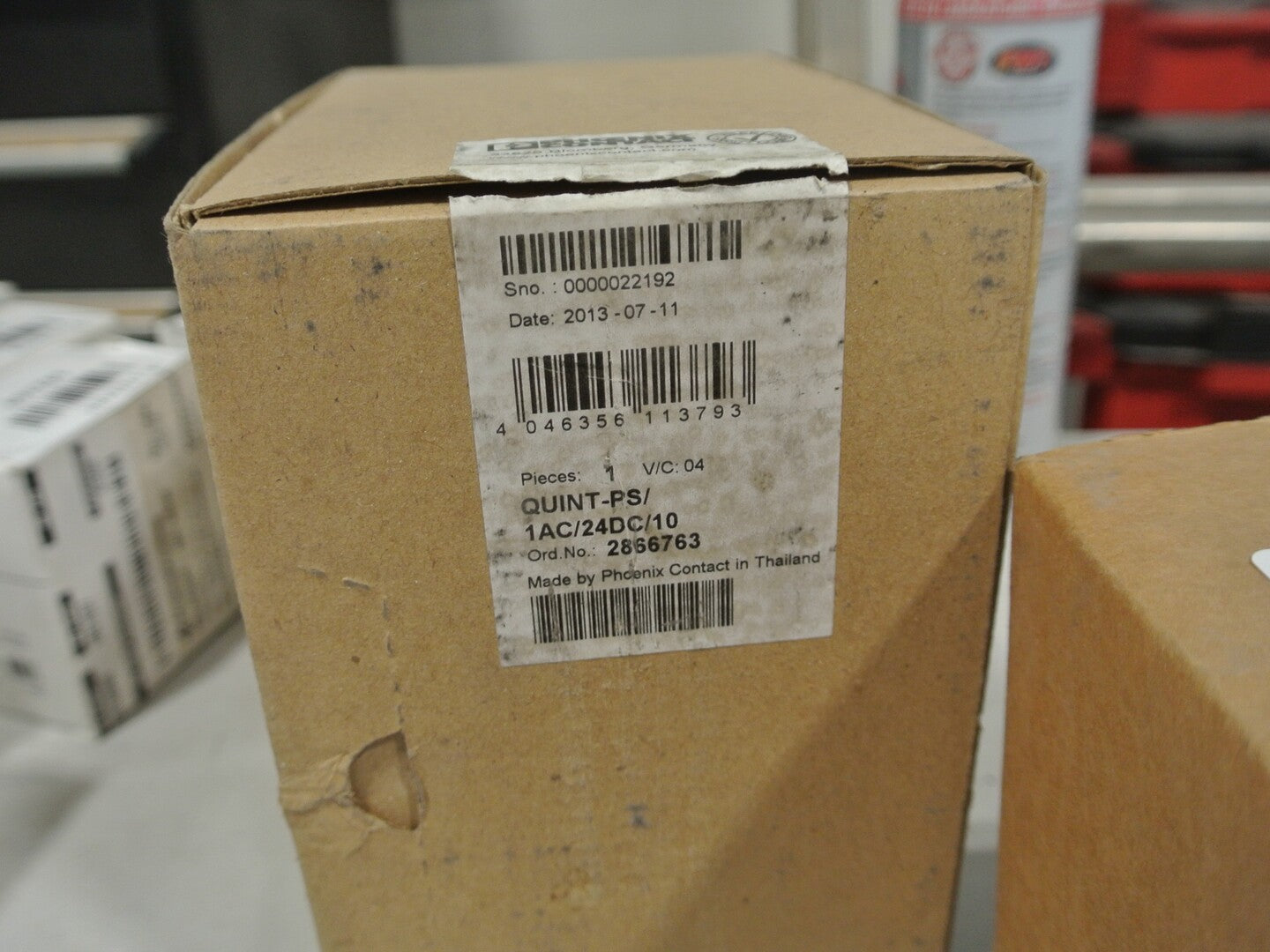

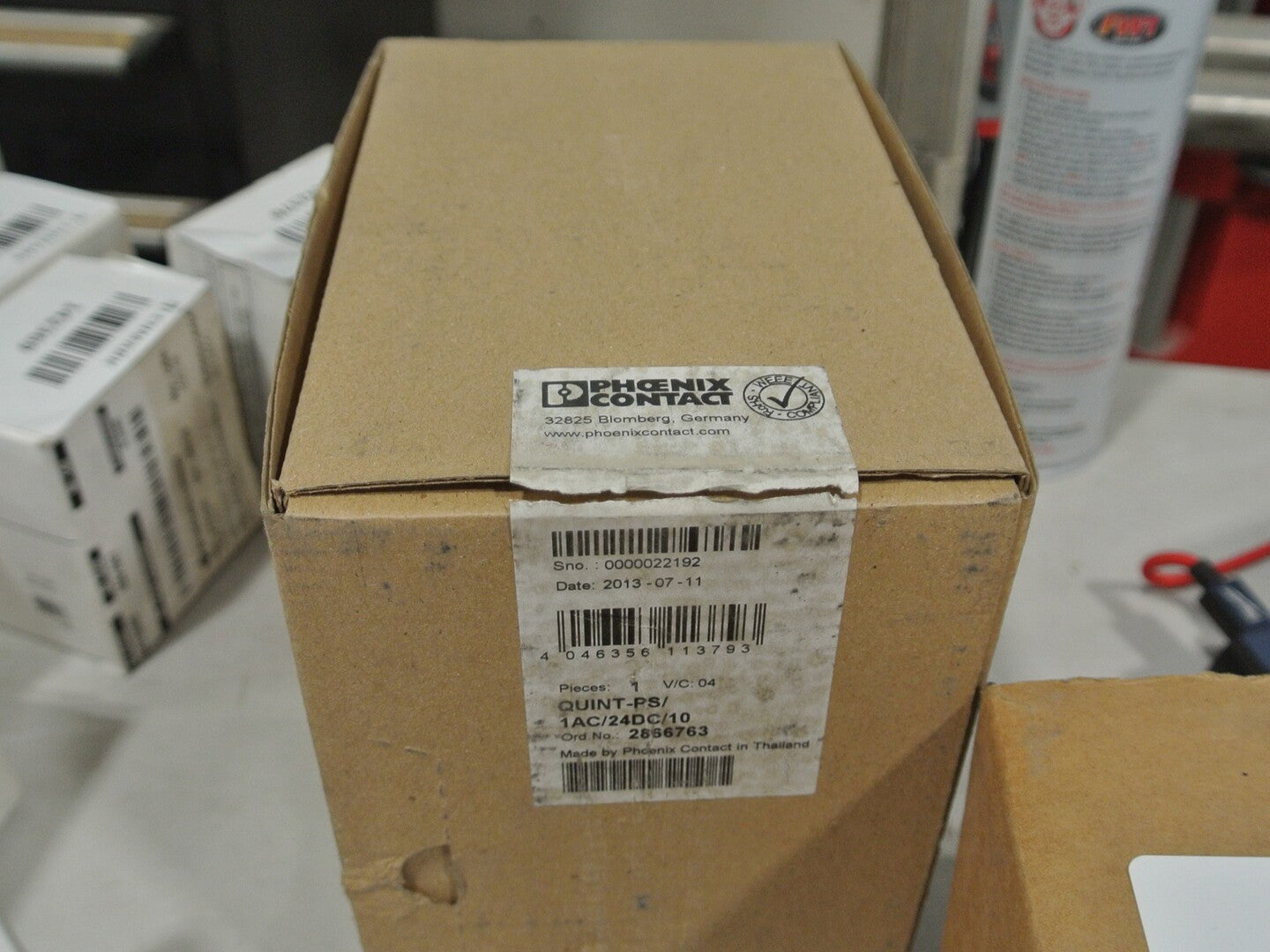

Phoenix Contact QUINT-PS/1AC/24DC/10, order number 2866763, industrial primary-switched DIN-rail power supply. Provides a nominal 24 VDC, 10 A, 240 W output from a wide-range single-phase AC input. Features adjustable output voltage, POWER BOOST, Selective Fuse Breaking (SFB) technology and DC OK monitoring.
| Specifications | |
|---|---|
| Model | QUINT-PS/1AC/24DC/10 |
| Made In | THAILAND |
| Condition | Surplus New | General |
| Type | Switched Mode | Electrical |
| Output Capacity | 24 Volts |
| Voltage | 240 volts |
| Frequency | 45-65 Hz |
| Other Specifications |
|---|
|
Number of Phases: 1 Nominal AC Input: 100-240 VAC (-15% / +10%) AC Input Range: 85-264 VAC AC Frequency: 45-65 Hz DC Input Range: 110-350 VDC Nominal Output: 24 VDC +/- 1% Output Adjustment Range: 18-29.5 VDC Nominal Output Current: 10 A Nominal Output Power: 240 W POWER BOOST / Static Boost: 15 A SFB Current: 60 A for 12 ms Efficiency: Approx. 92% at 120 VAC; 93.2% at 230 VAC Short-Circuit Protection: Yes Mounting: DIN rail Connection: Screw terminals Protection Rating: IP20 Operating Temperature: -25°C to +70°C, with derating above 60°C |
