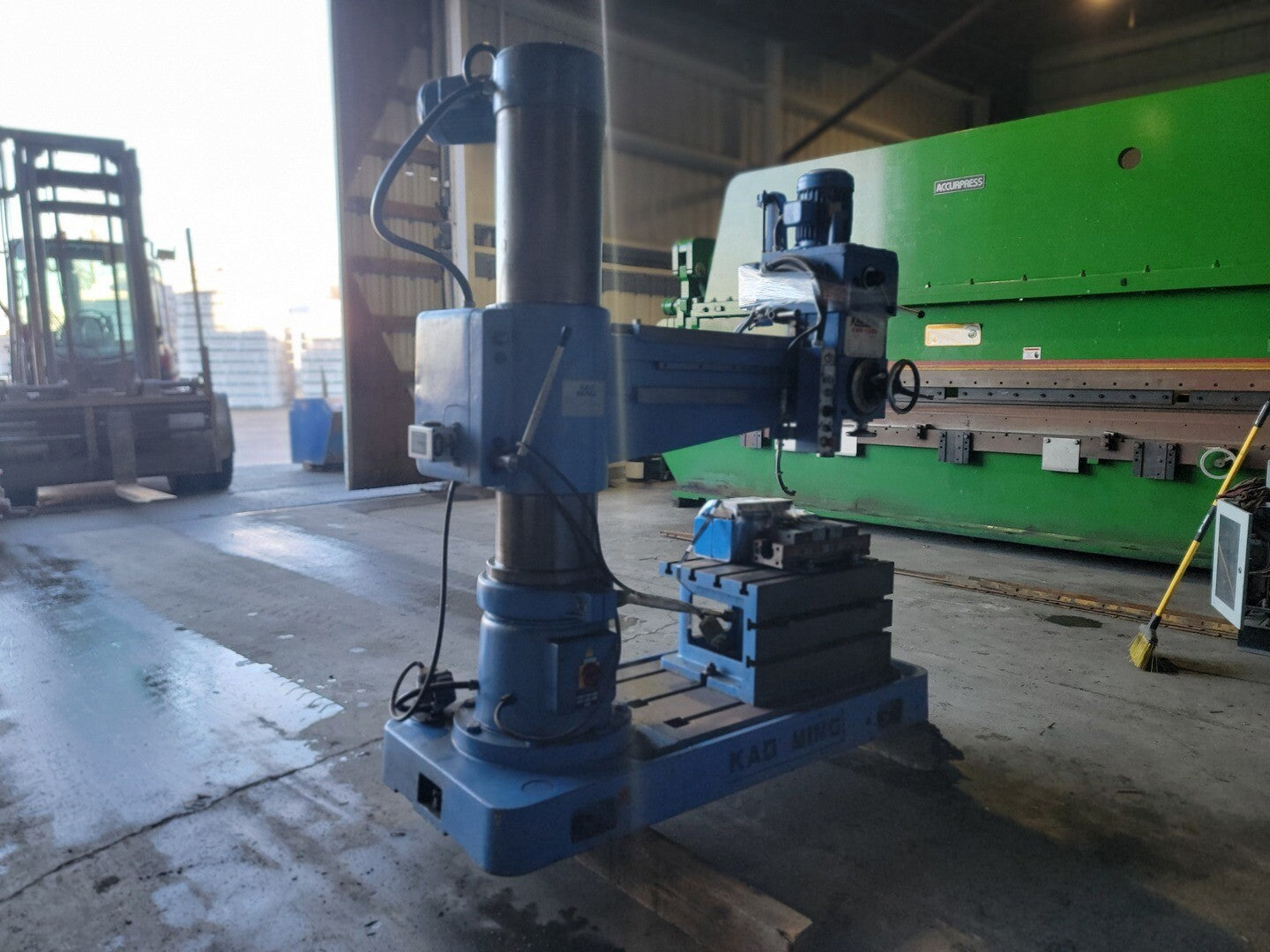

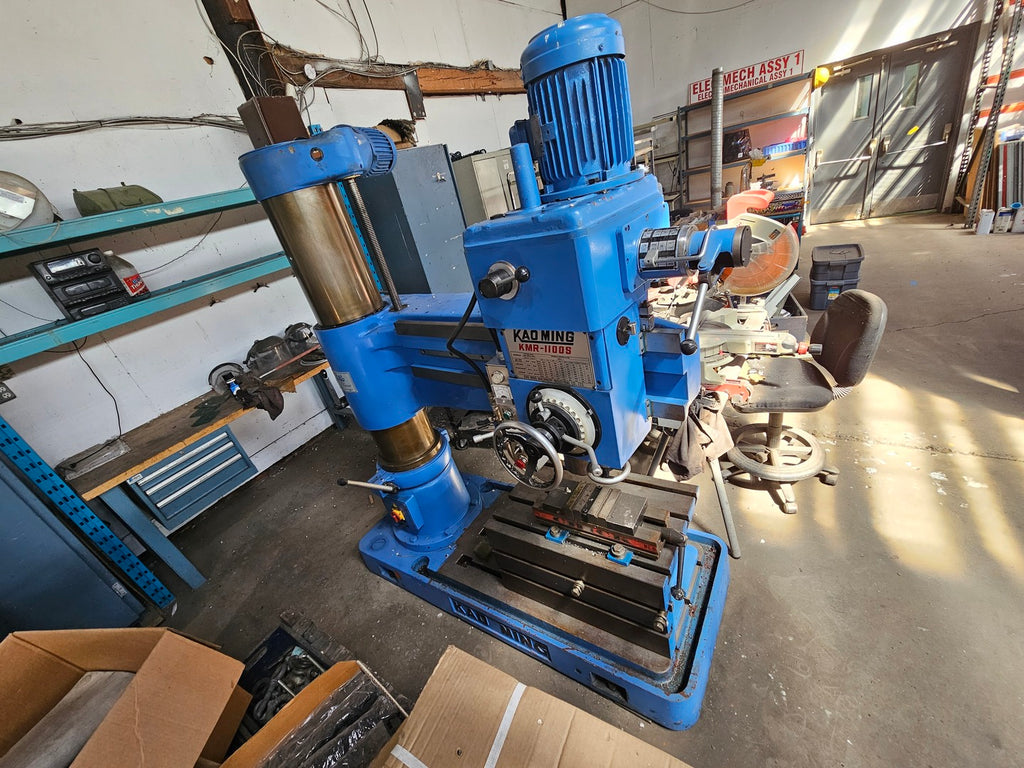

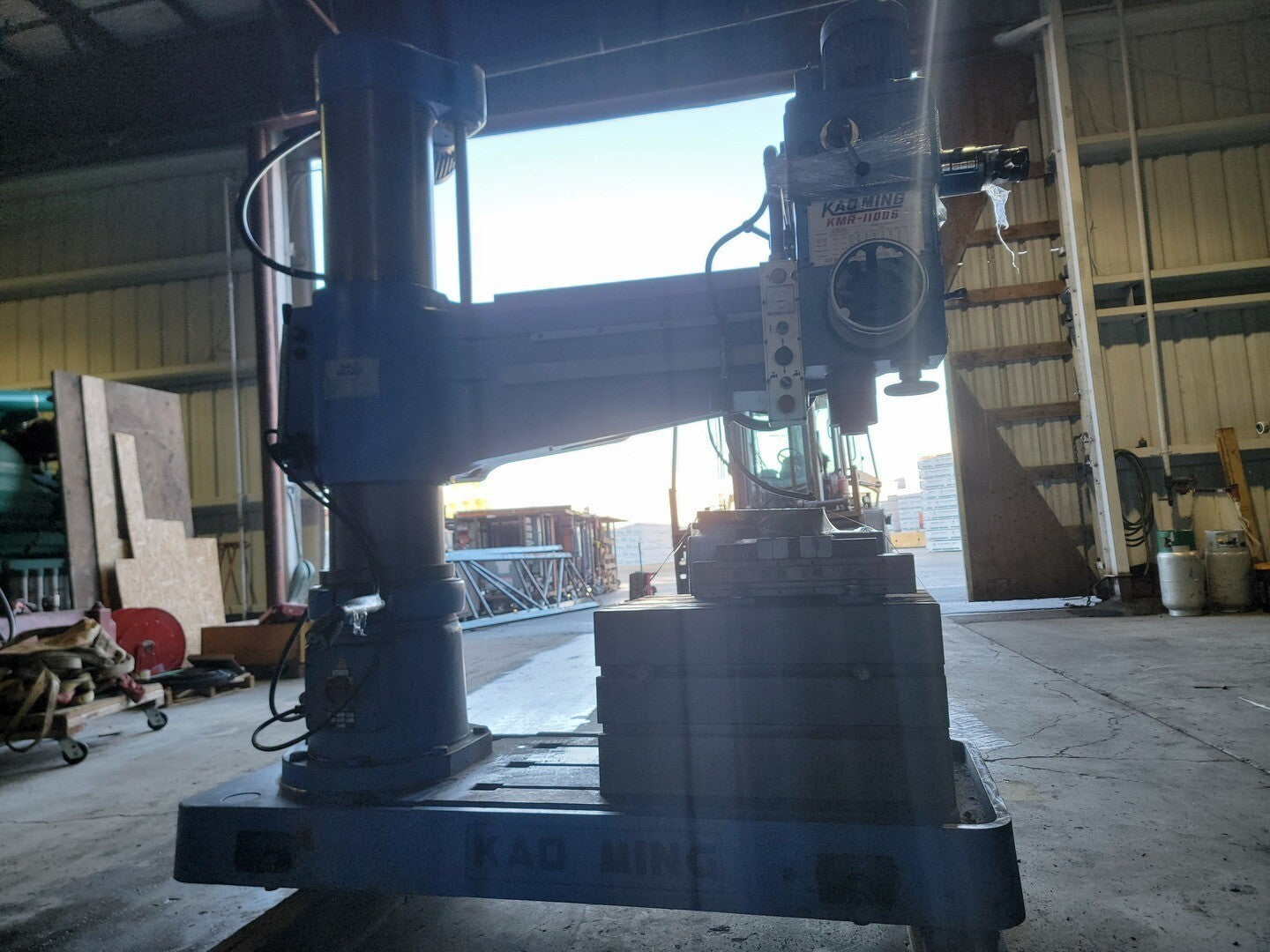

Radial Arm Drilling Machine KMR-11OOS

SKU: 148004
Precio:
$14,945

Gastos de envío calculados en la caja

Stock:
Disponibles (2 unidades), listas para ser enviadas
Make an Offer

¿Necesita una respuesta ahora?

Descripción

Specifications

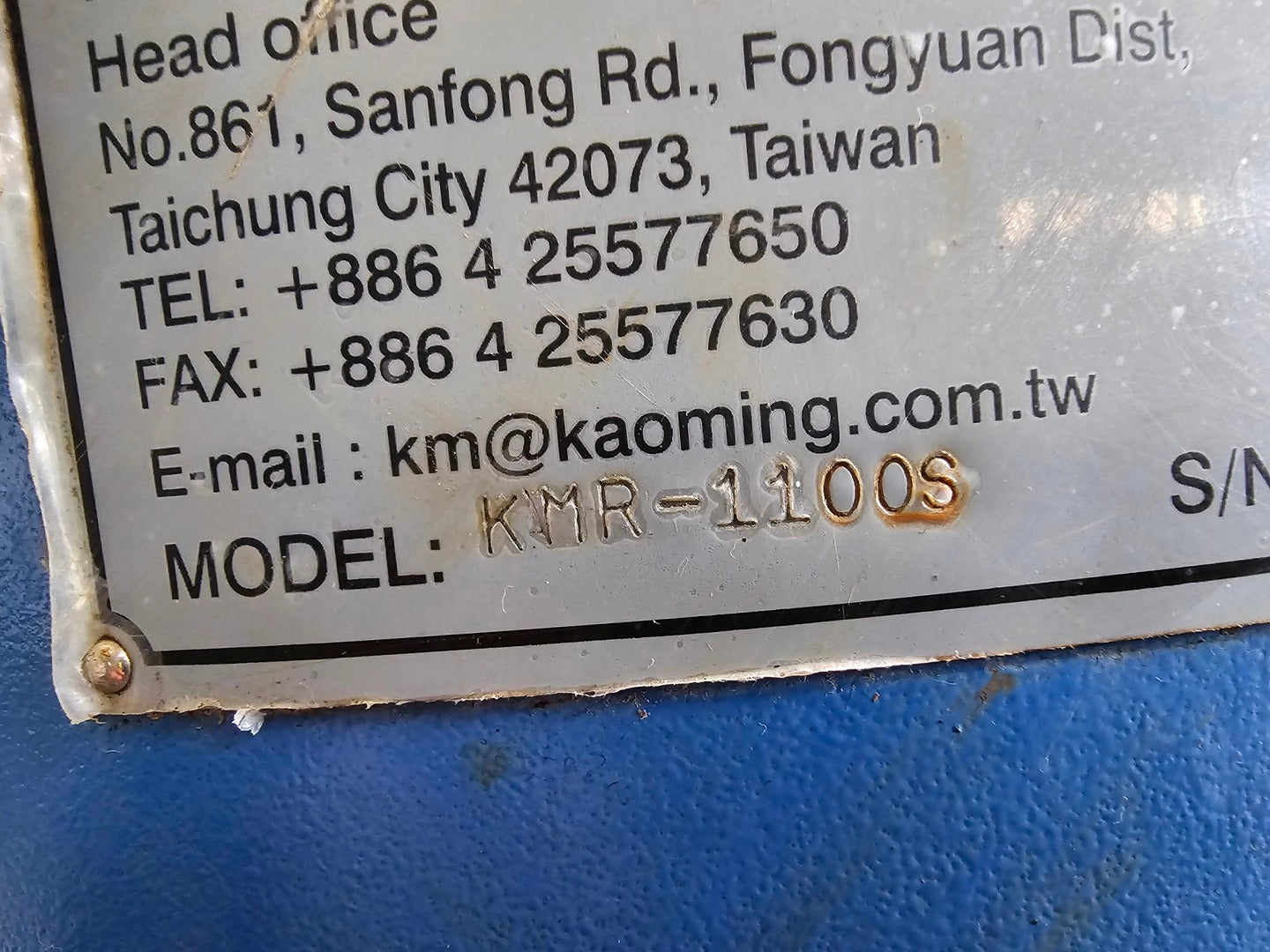

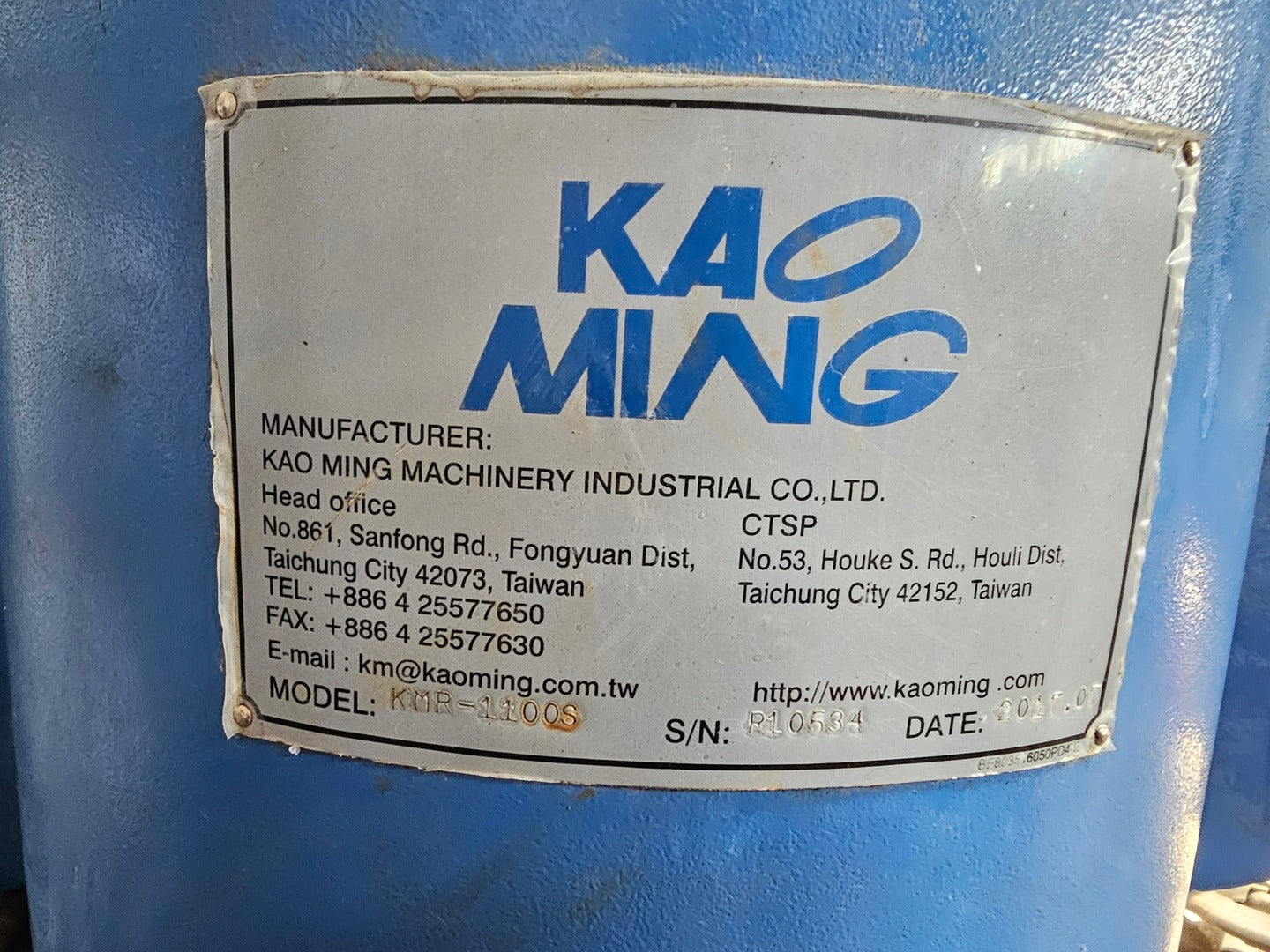

Model KMR-1100S
Year: 2017
S/N: R10534
Made In TAIWAN
Condition Used
General
Type Radial Arm Drill
Arm Travel 27.55"
Morse Taper MT#4
Table Size 19.68" x 29.52" x 15.74"
Electrical
Horsepower 3 hp

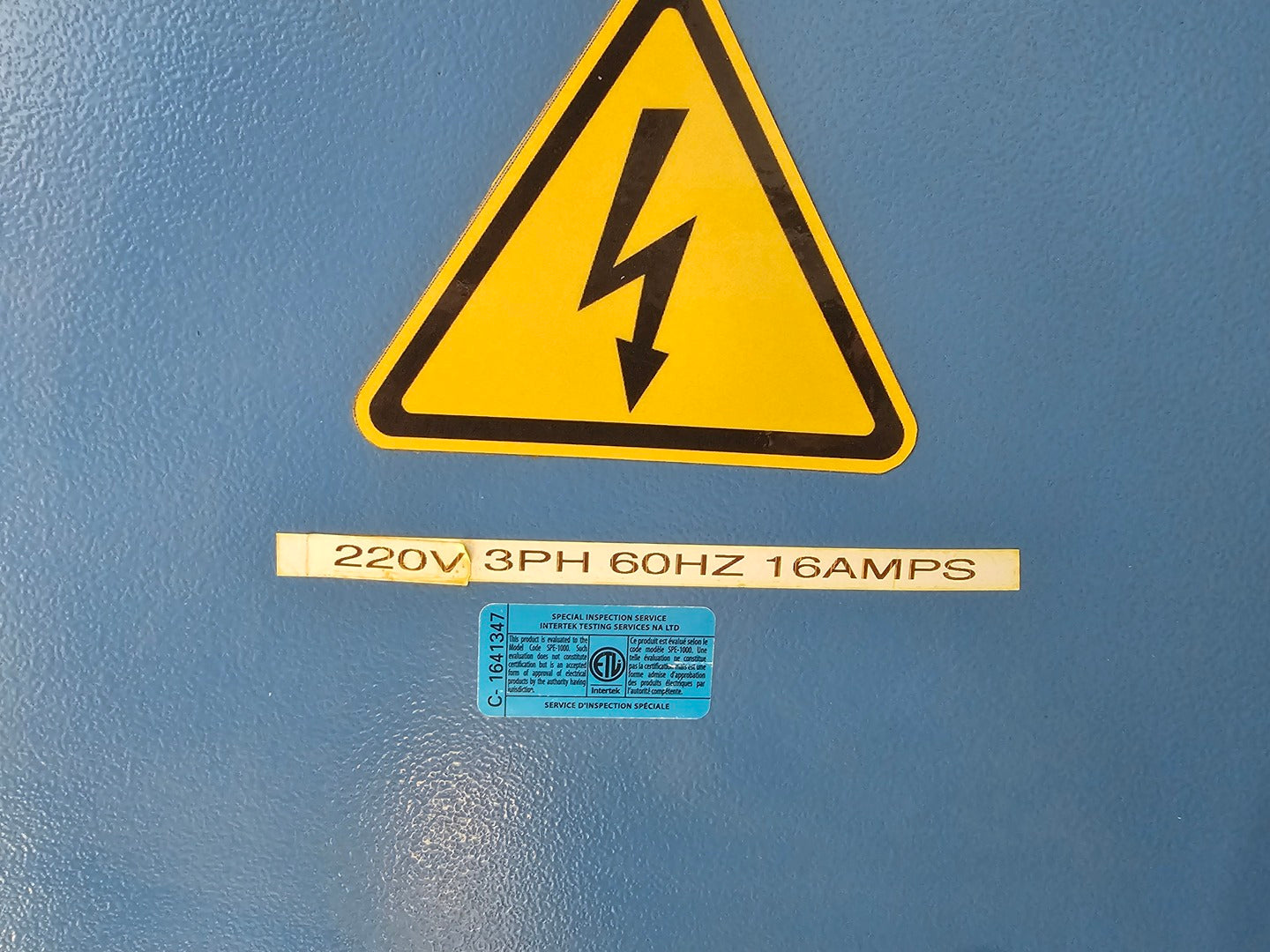

Voltage 220 volts
Phase 3-phase
Other Specifications

Travels:

  • Spindle head longitudinal travel: 768 mm // 30.25"
  • Vertical arm travel: 700 mm // 27.55"
  • Spindle center to column center: 505 - 1250 mm // 19.88 - 49.21''
  • Spindle center to column face: 355 - 1100 mm // 13.97 - 43.30"
  • Spindle end to work base surface: 345 - 1265 mm // 13.58 - 49.80"
  • Work base surface area: 1260 x 760 mm // 49.60 x 29.92"
  • Column diameter: 300 mm // 11.81"
  • Column height: 2108 mm // 82.99"
  • Max height spindle head to floor: 2503 mm // 98.54"

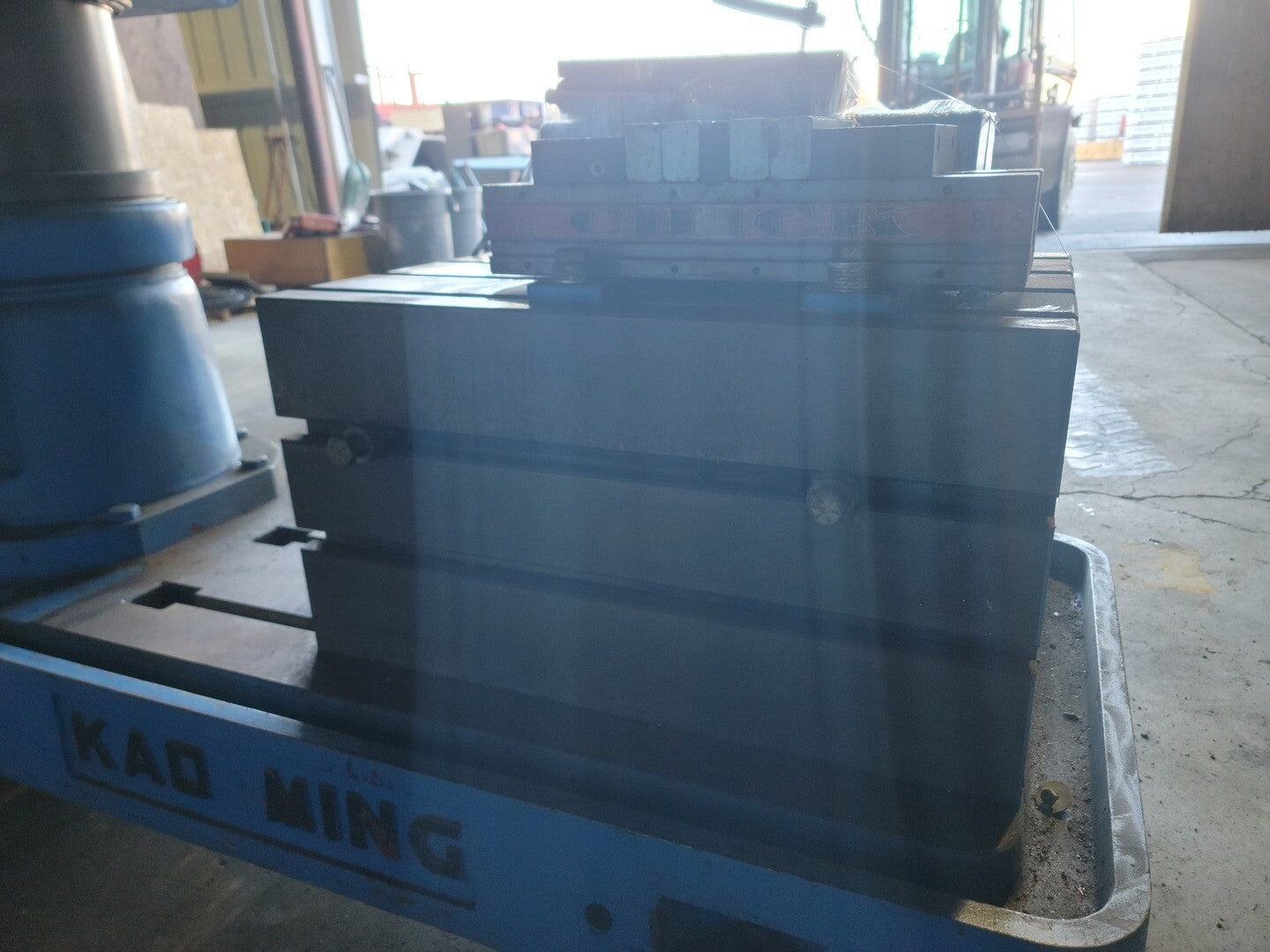

  • Box table L x W x H: 500 x 750 x 400 mm // 19.68 x 29.52 x 15.74"

Spindle:

  • Taper: MT4

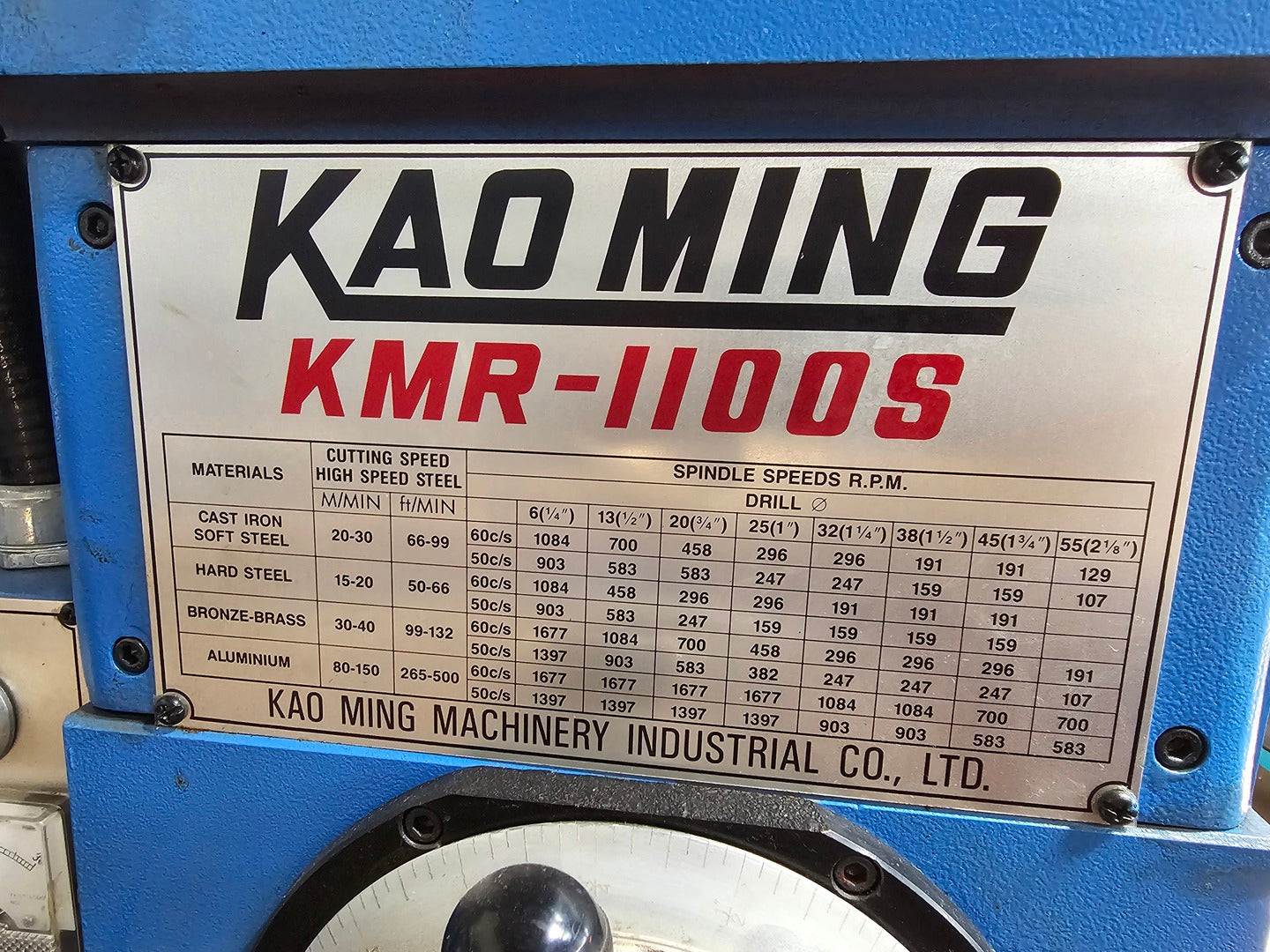

  • Speed range: 49 - 1524 rpm
  • Number of speeds: 9 steps
  • Feed range: 0.1 / 0.22 / 0.35 mm/rev // 0.004 / 0.0088 / 0.014"/rev
  • Number of feeds: 3-step
  • Spindle travel: 220 mm // 8.66"
  • Quill diameter: 80 mm // 3.14"

Working capacity:

  • Drilling (cast iron / steel): 55 / 45 mm // 2.16" / 1.77"
  • Boring (cast iron / steel): 150 / 100 mm // 5.90" / 3.93"
  • Tapping (cast iron / steel): 38 / 25 mm // 1.49" / 0.98"

Motors:

  • Main spindle motor: 2.2kW // 3hp

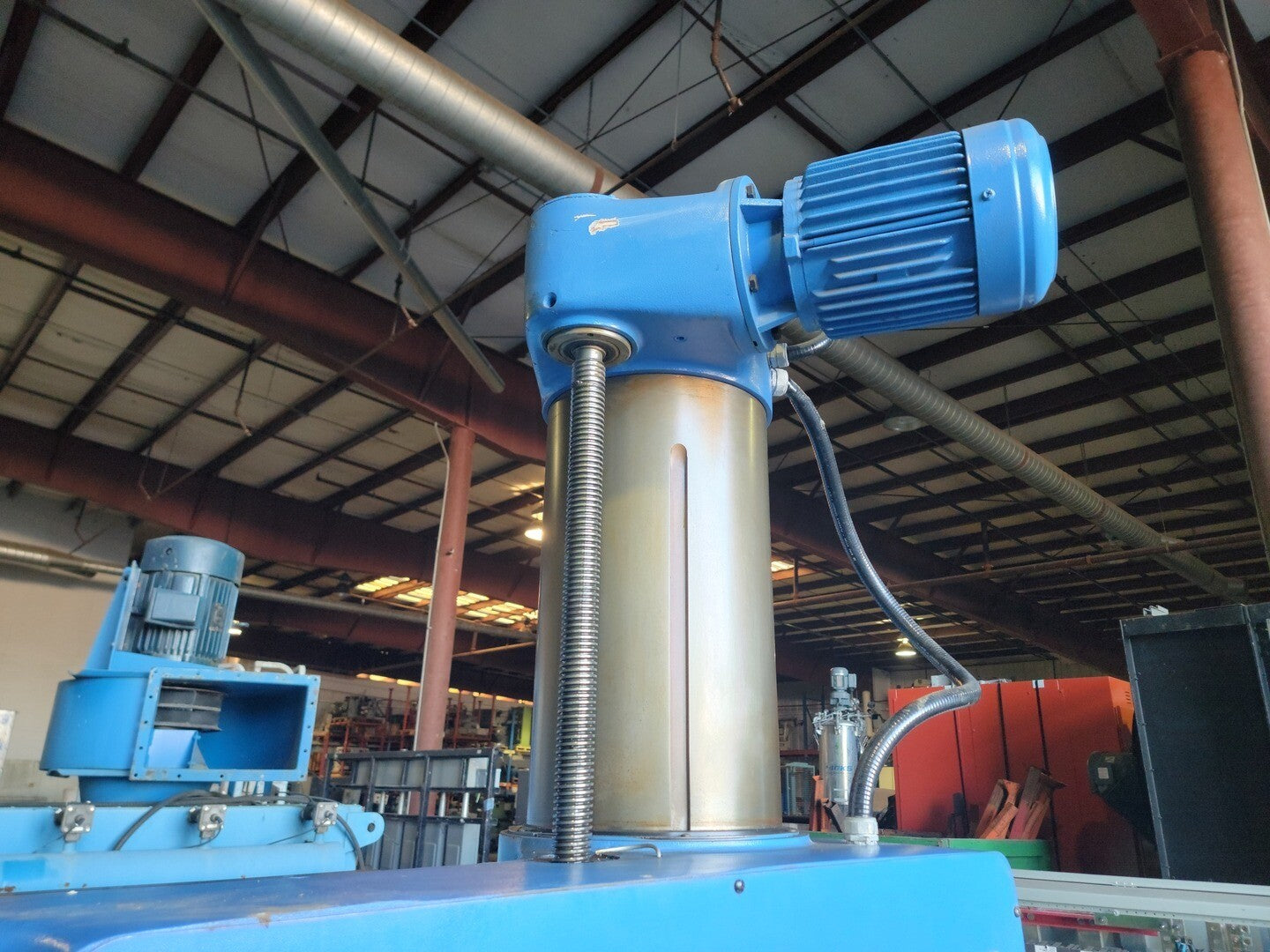

  • Arm elevating motor: 1.5kW // 2hp
