Descripción

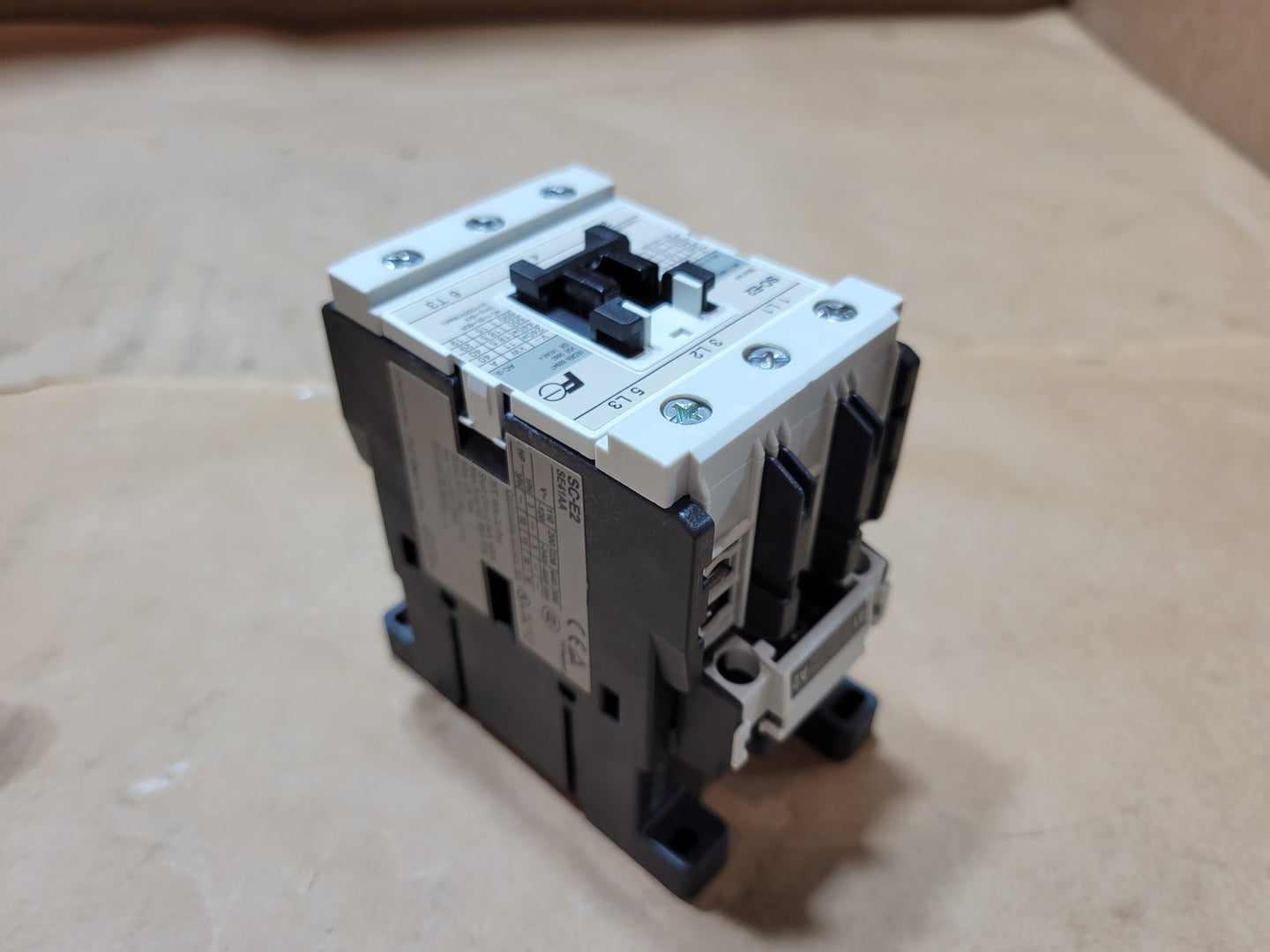

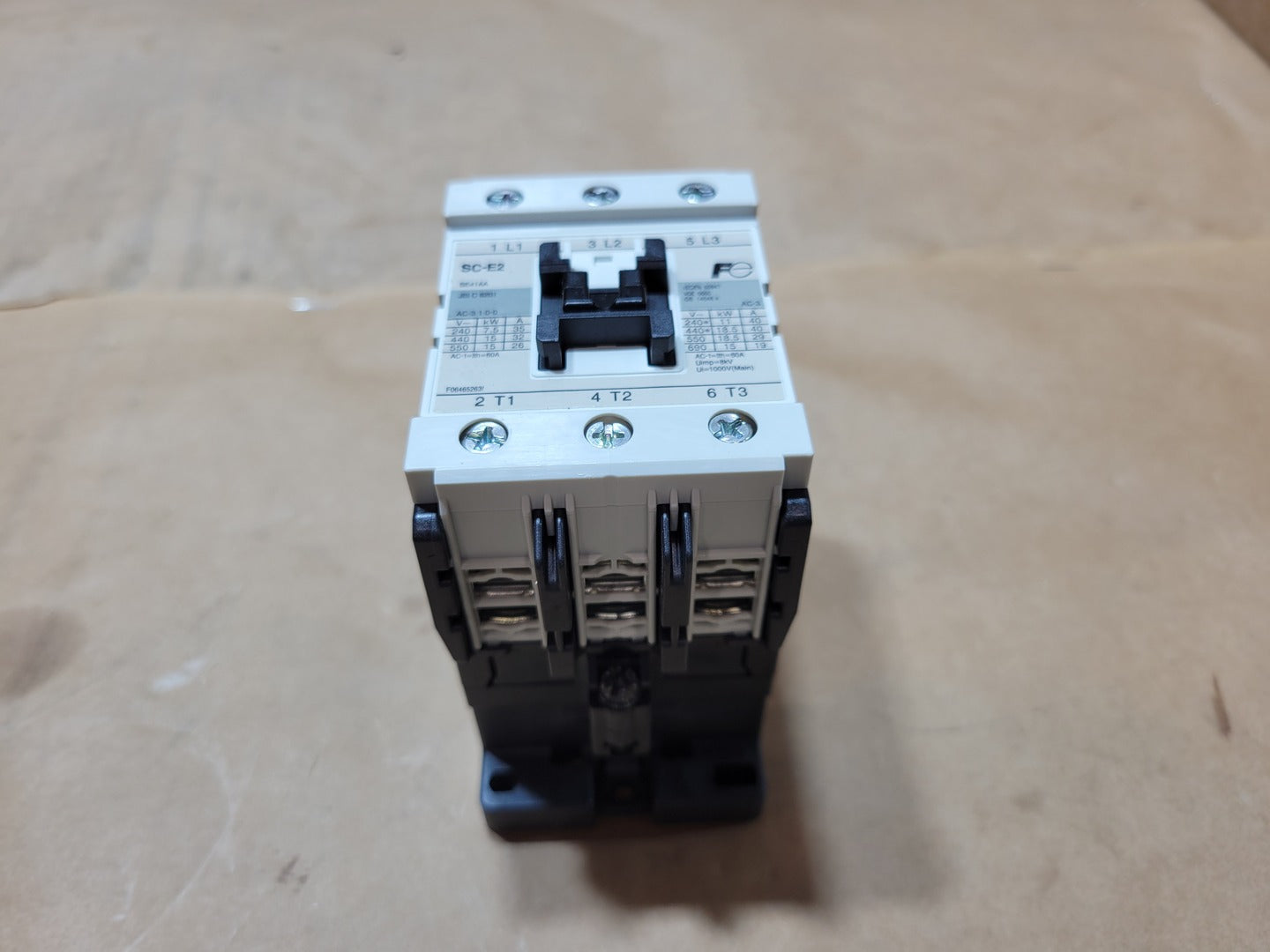

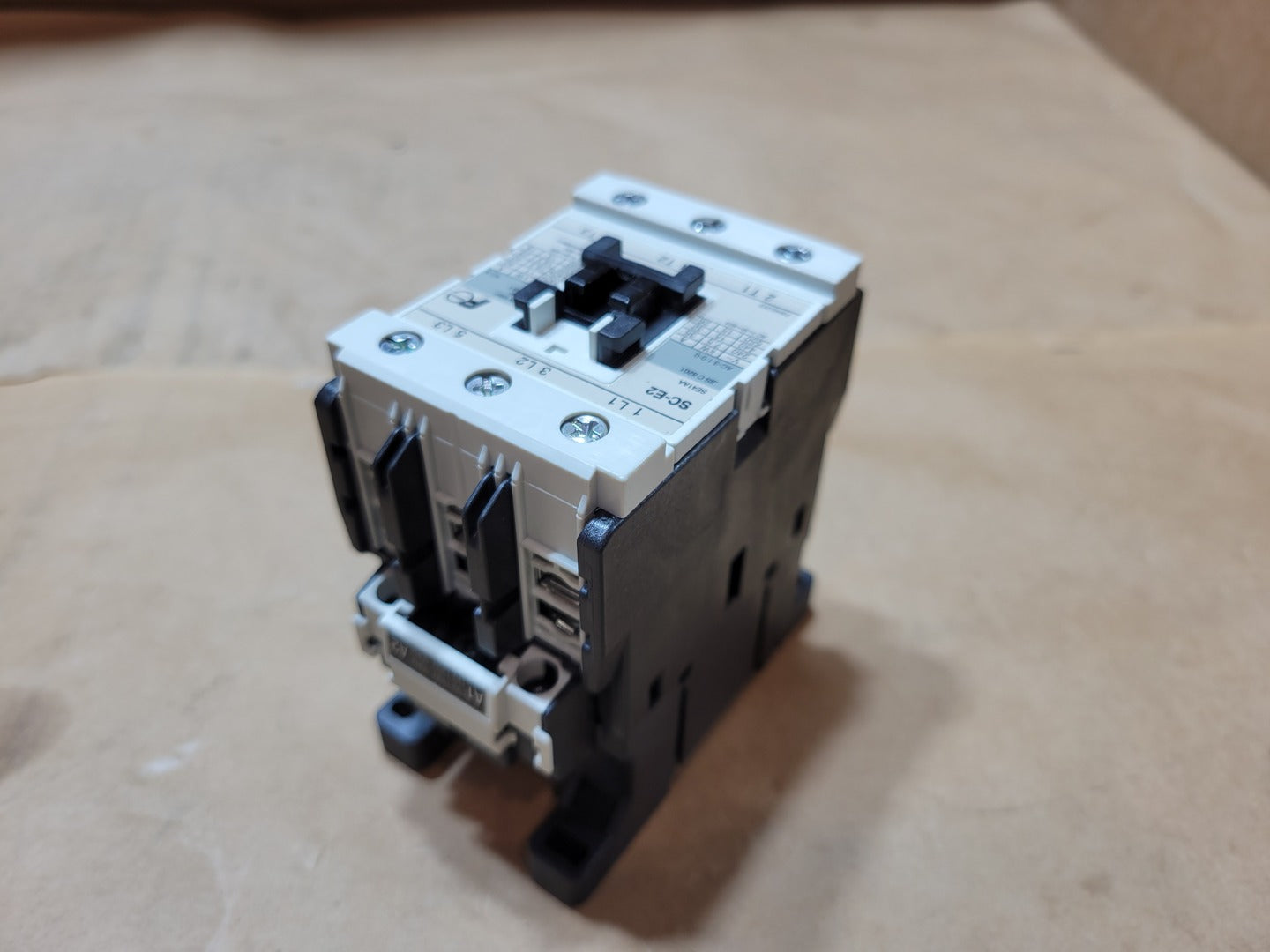

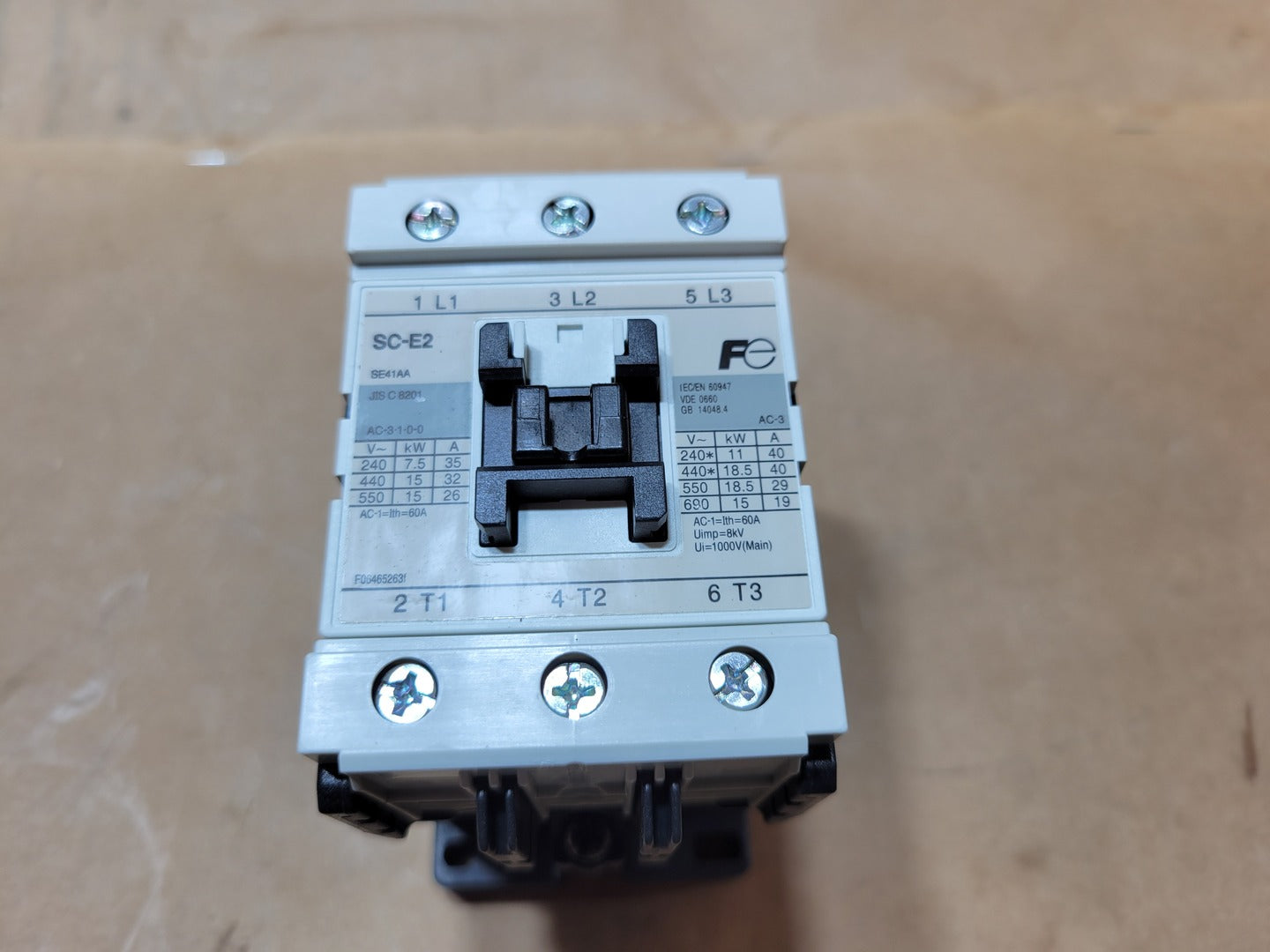

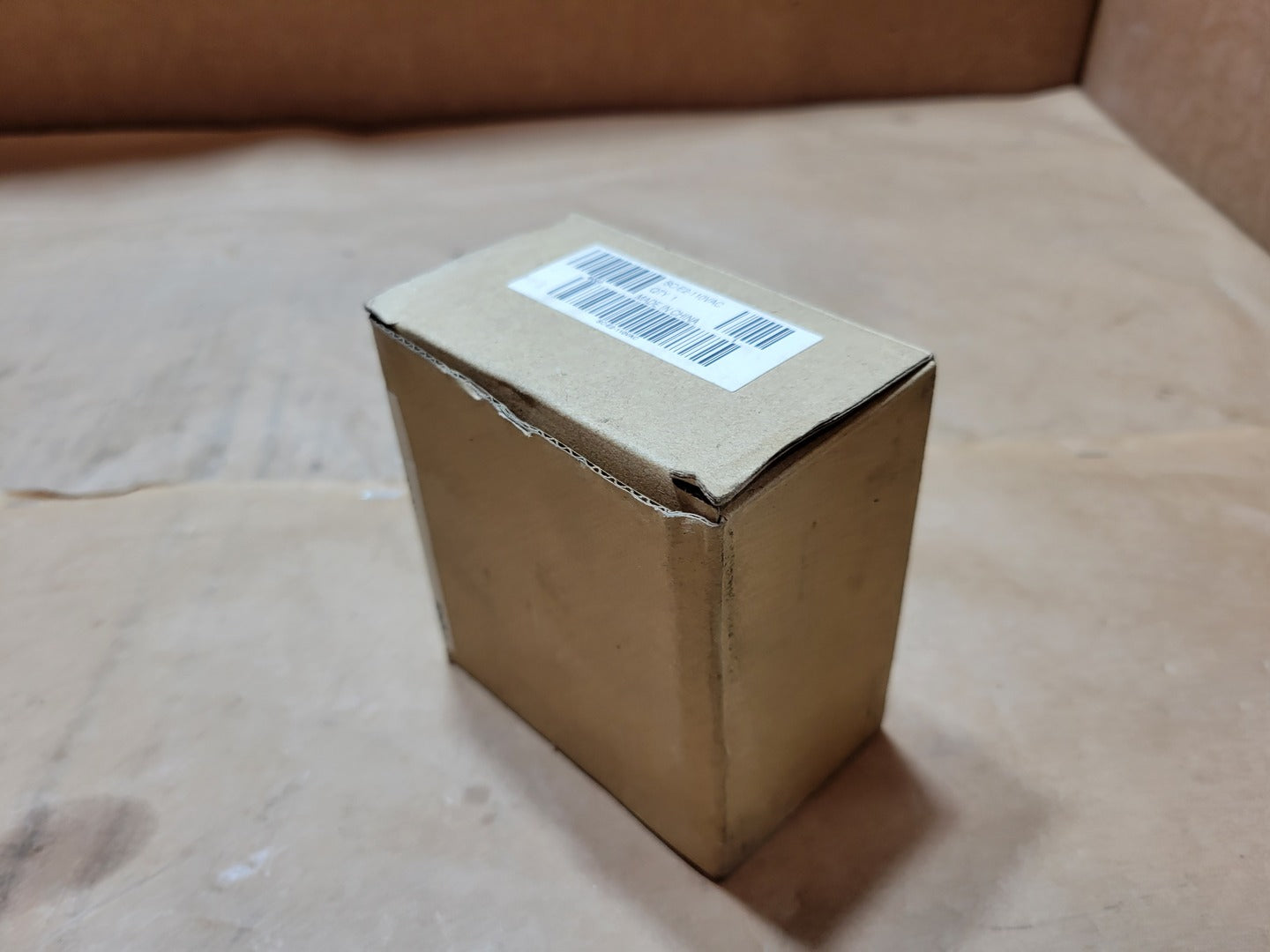

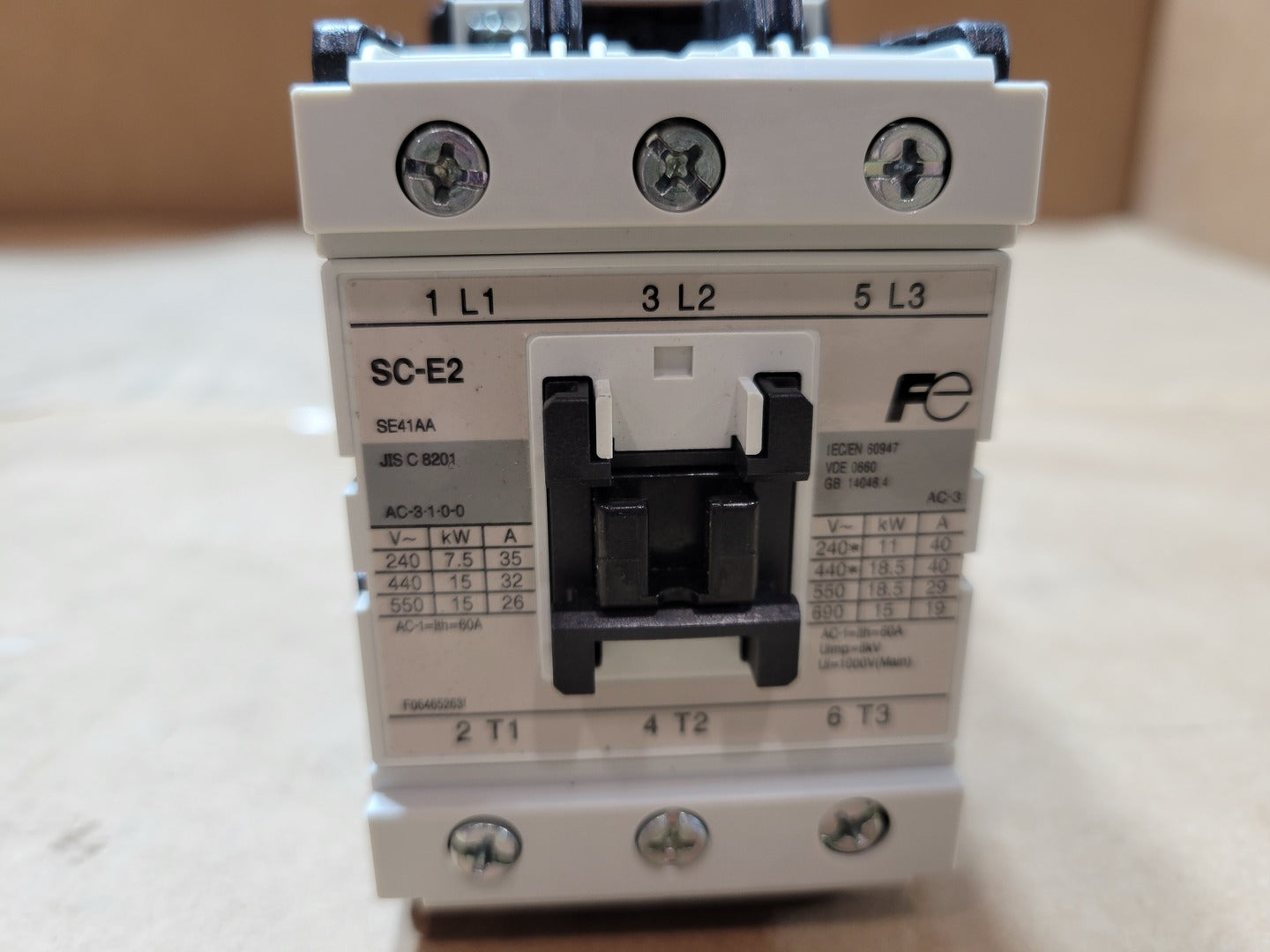

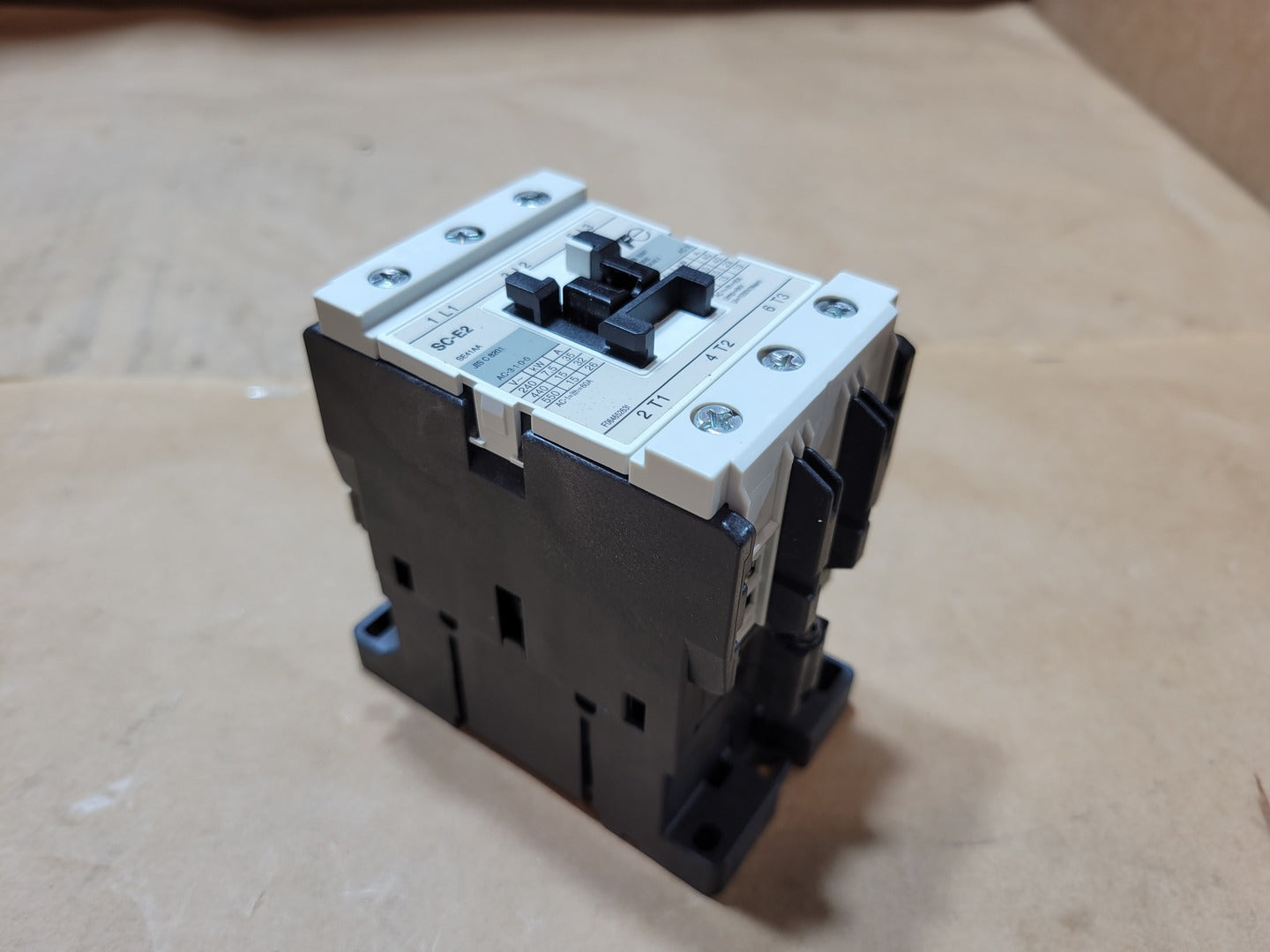

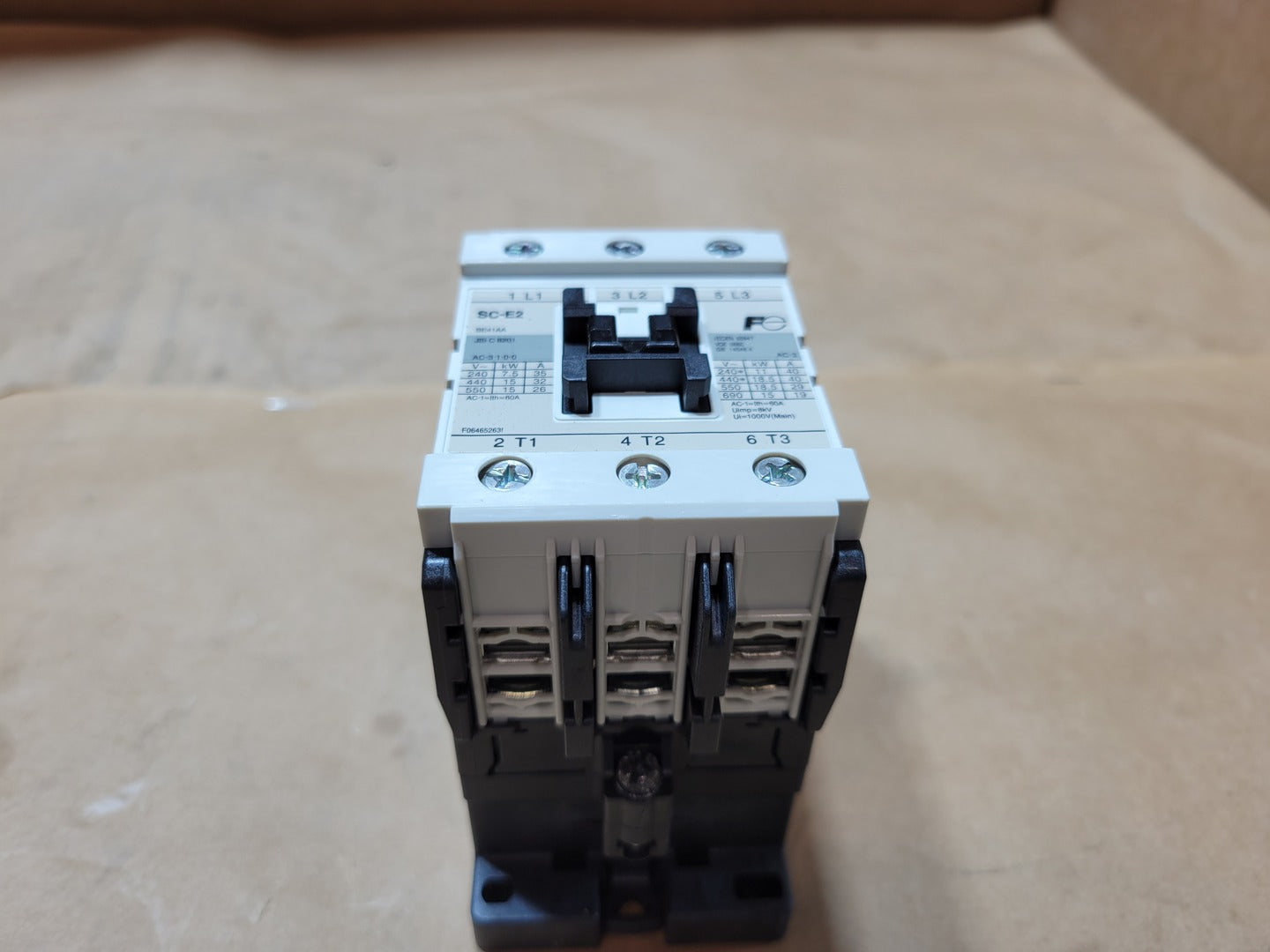

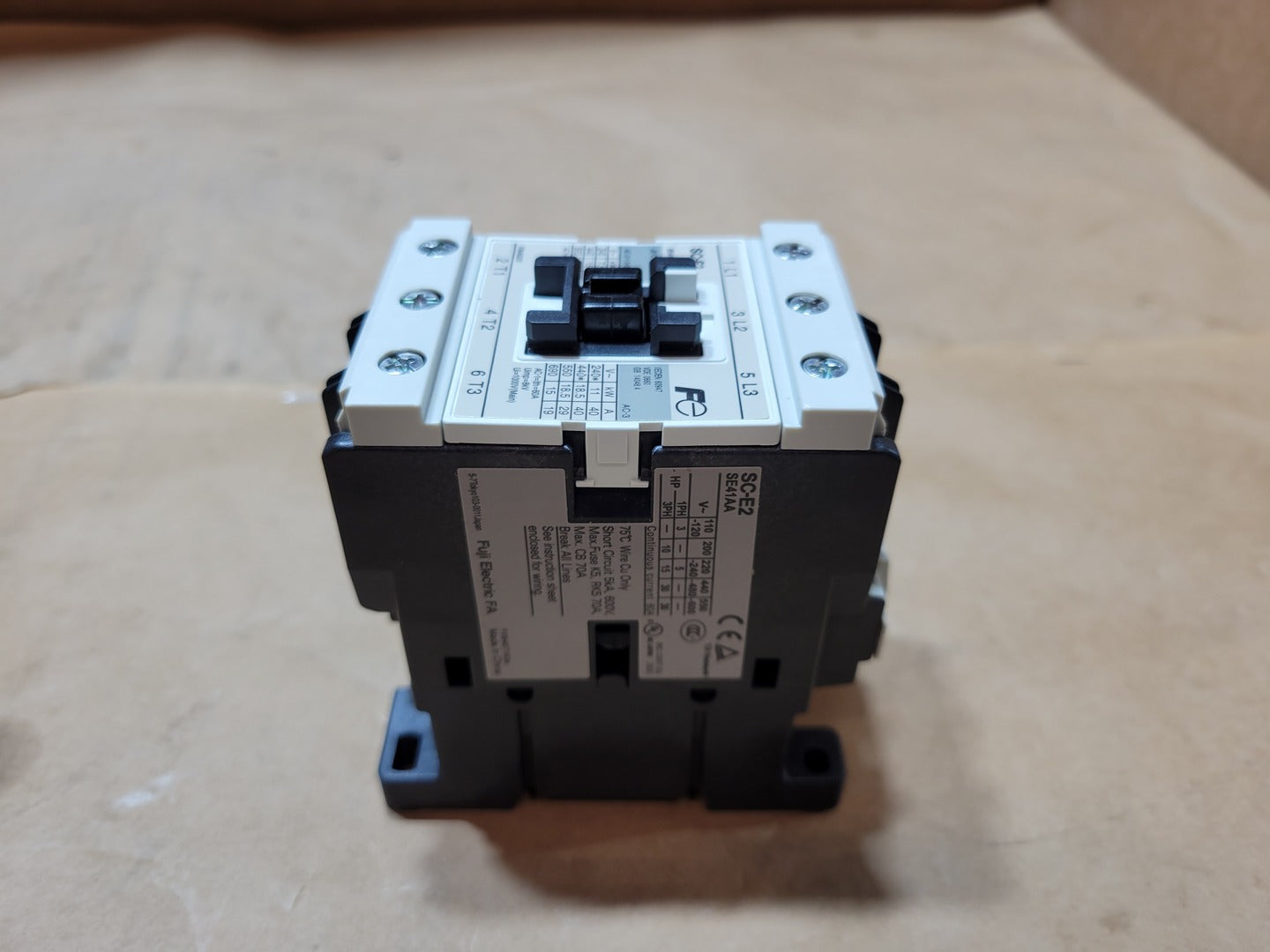

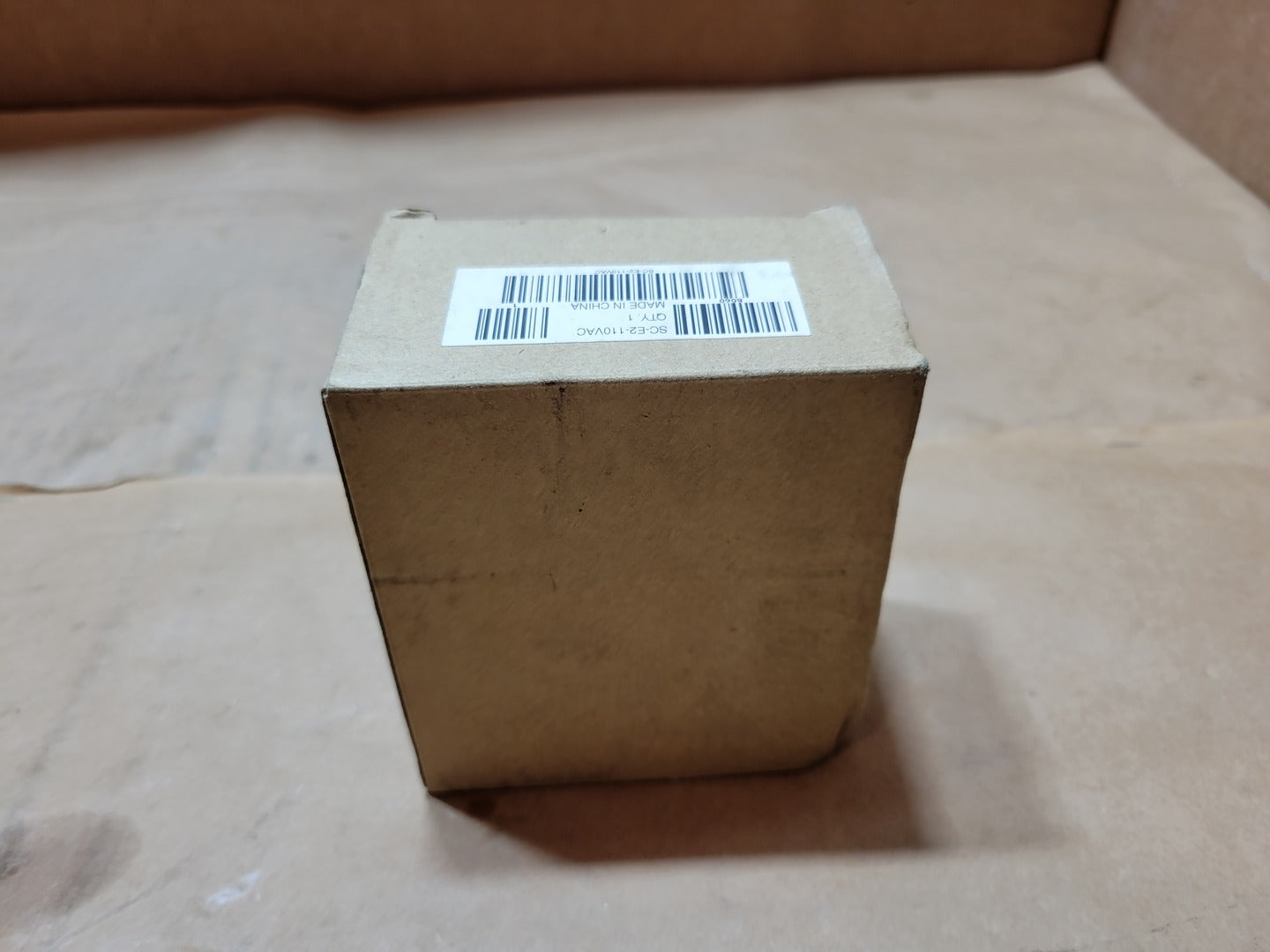

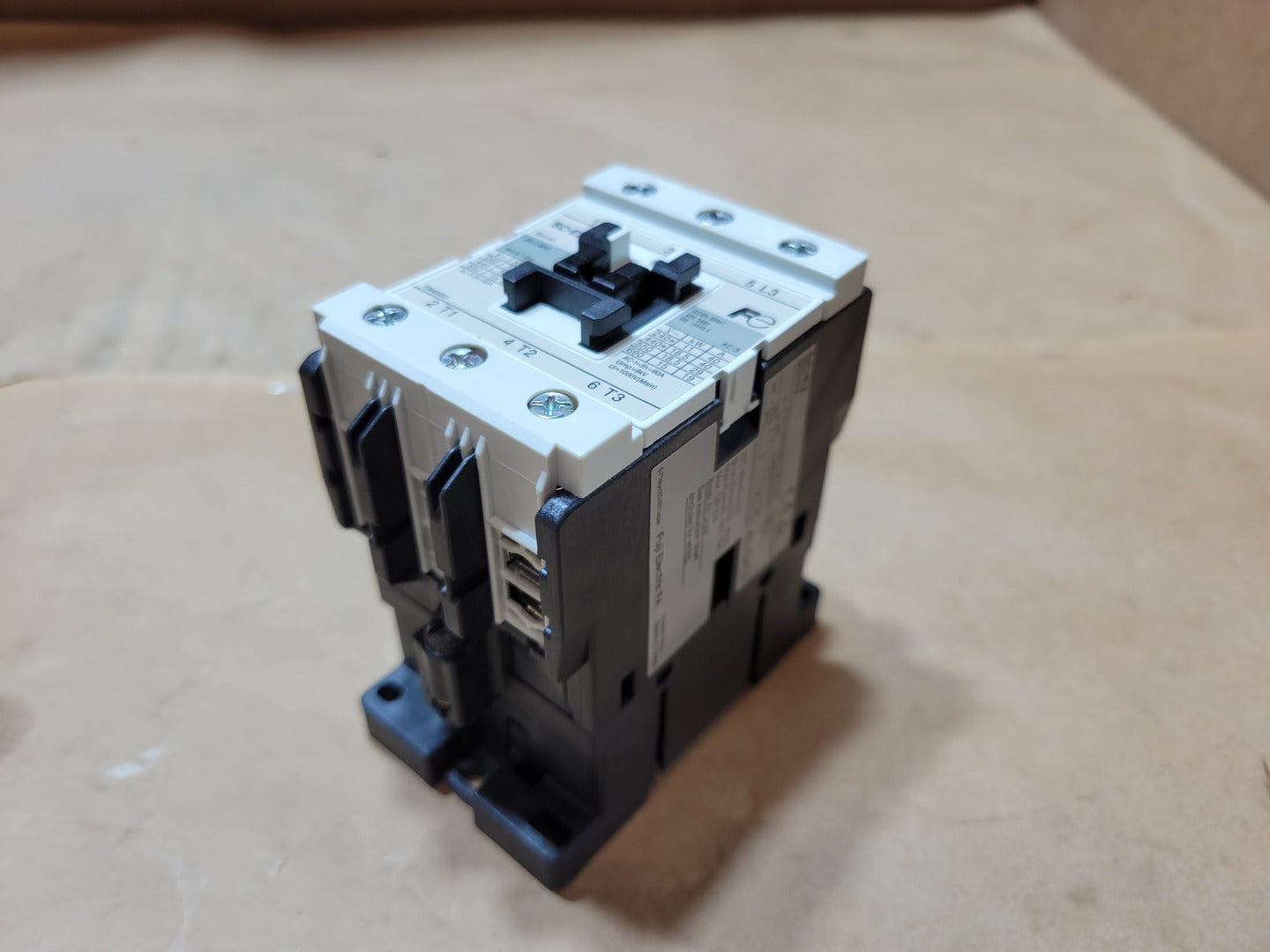

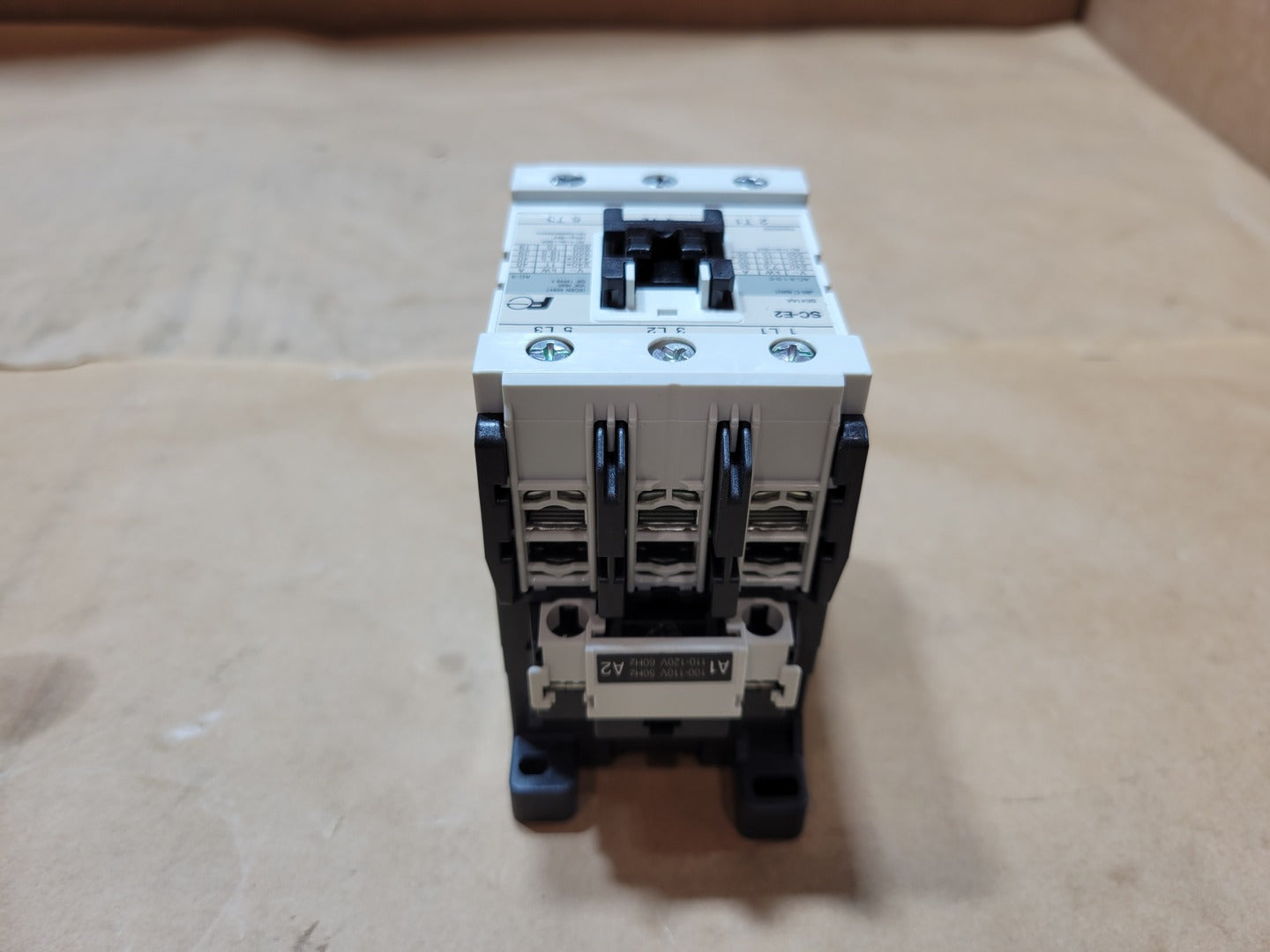

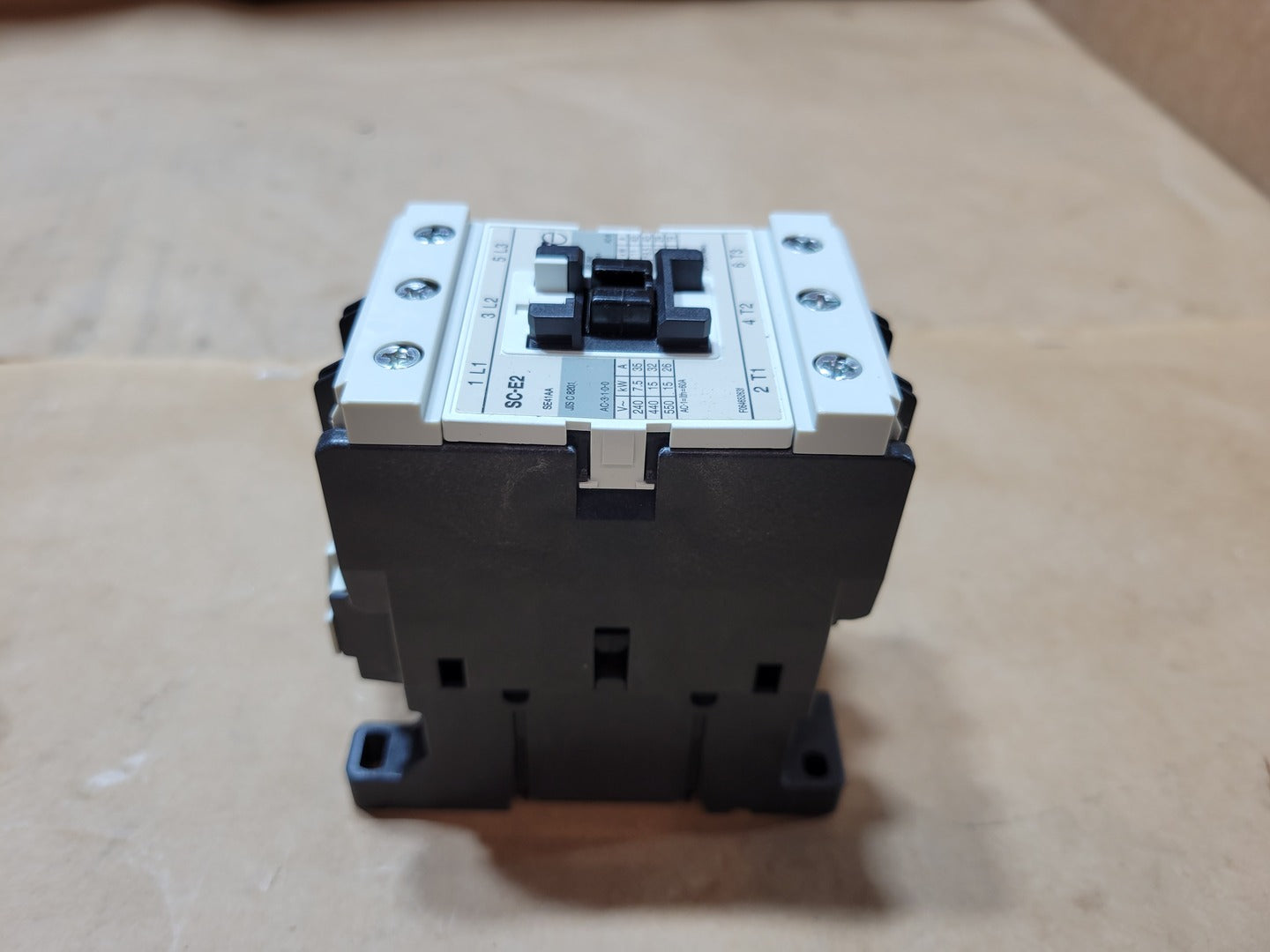

Fuji Electric SC-E2 IEC magnetic contactor with a 100-110 VAC 50 Hz / 110-120 VAC 60 Hz operating coil. The unit appears clean with no visible signs of installation or electrical wear and includes the original Fuji Electric carton. Rated for AC-3 motor switching applications up to 40 A depending on operating voltage.
| Specifications | |
|---|---|
| Model | SC-E2 |
| Made In | CHINA |
| Condition | Surplus New | General |
| Horsepower | 30 hp | Electrical |
| Voltage | 600 volts |
| Amps | 70 amps |
| Other Specifications |
|---|
|

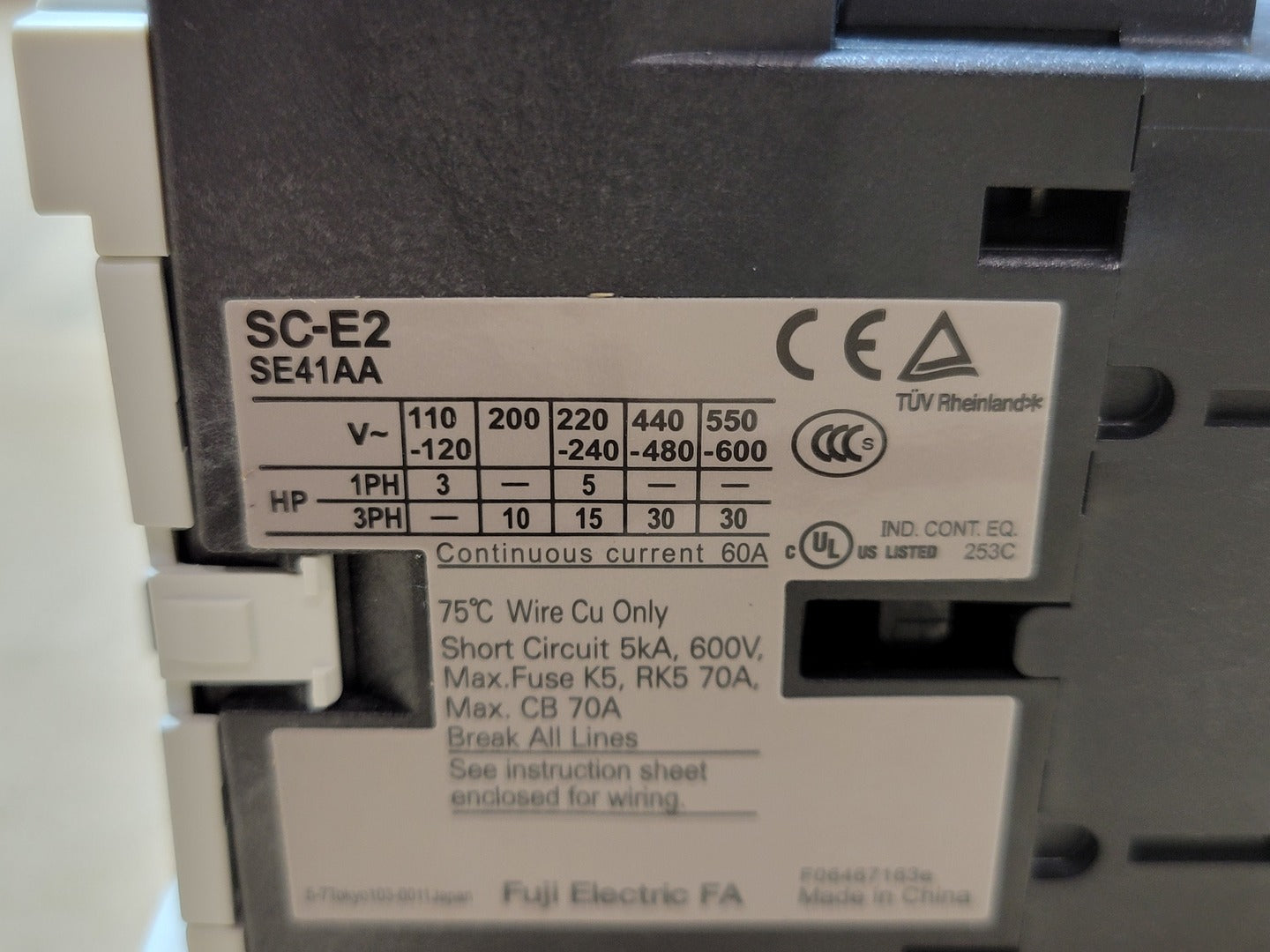

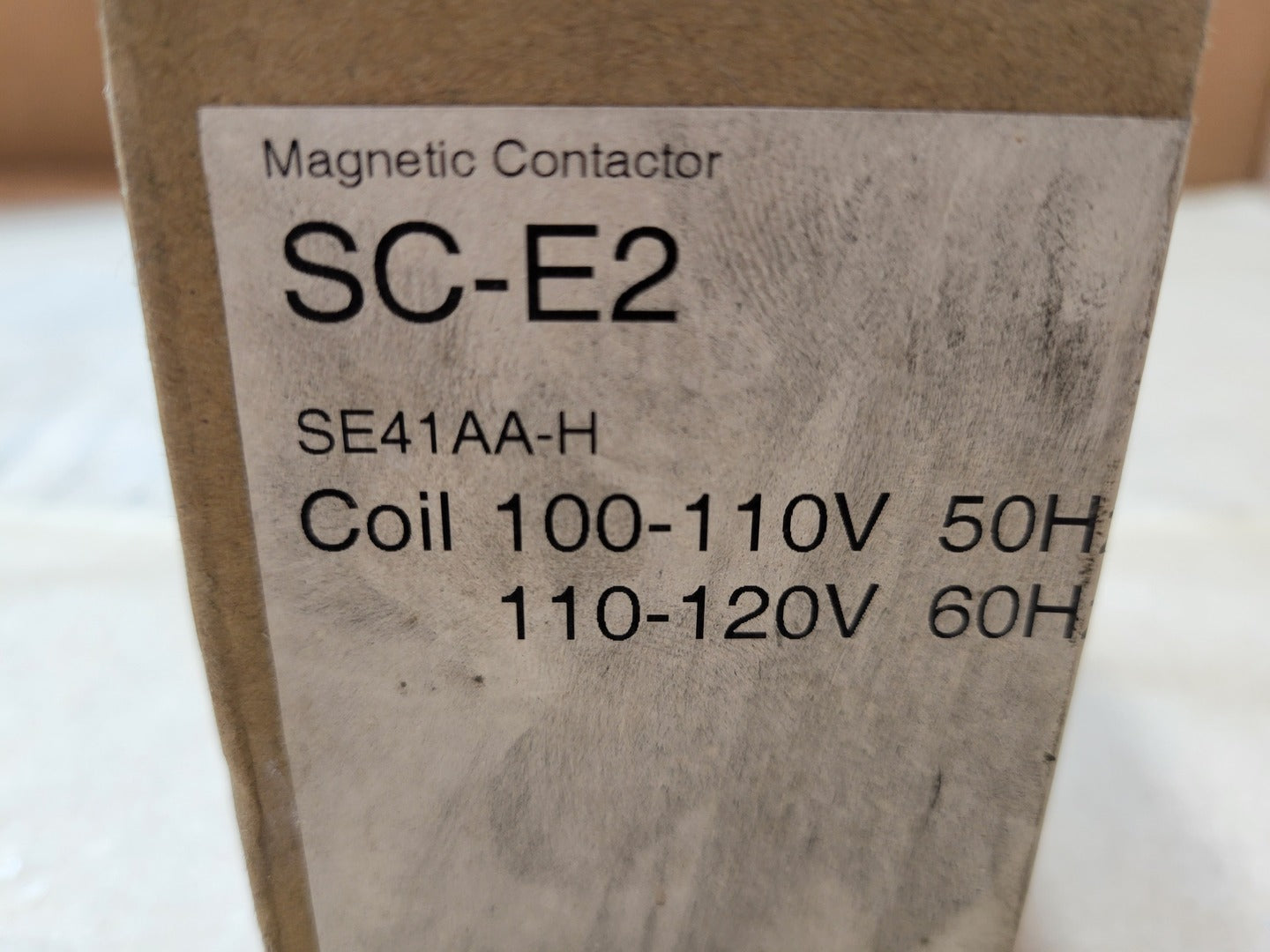

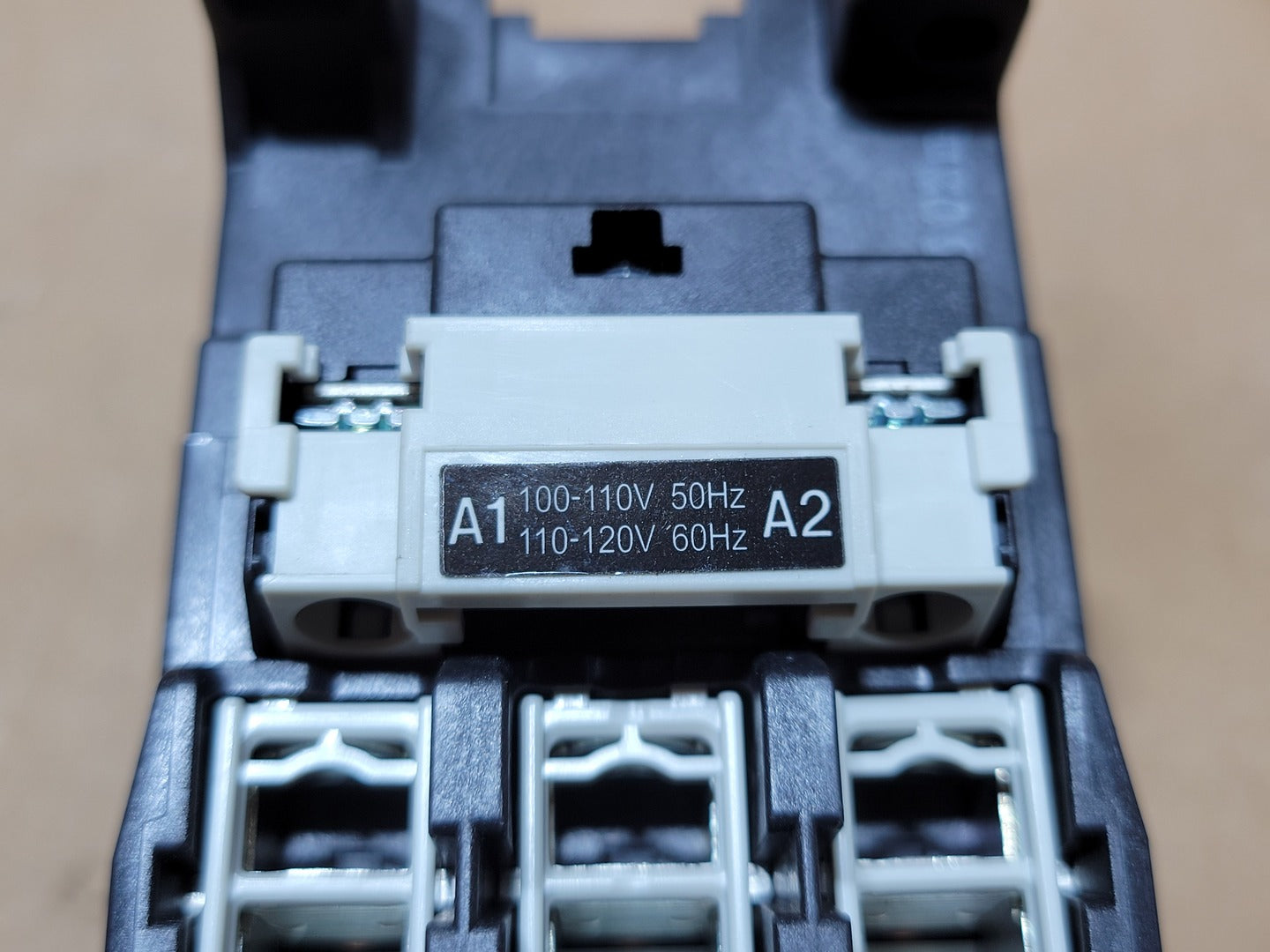

Catalog Code (Box): SE41AA-H Device Type: IEC Magnetic Contactor Number of Poles: 3 Main Contacts: 3 Normally Open (NO) Rated Operating Current (AC-3): 40 A (240 V & 440 V) Continuous Current (AC-1 / Ith): 60 A Coil Voltage: 100-110 VAC 50 Hz / 110-120 VAC 60 Hz Rated Motor Capacity (AC-3):
Horsepower Rating:
Maximum Operating Voltage (Ui): 1000 V Impulse Withstand Voltage (Uimp): 8 kV Short Circuit Rating: 5 kA, 600 V Maximum Fuse: Class K5/RK5 70 A Maximum Circuit Breaker: 70 A Wire Rating: 75°C Copper Conductors Only Standards: IEC/EN 60947-4-1, UL Listed, CE, TUV Rheinland, CCC |
