Descripción

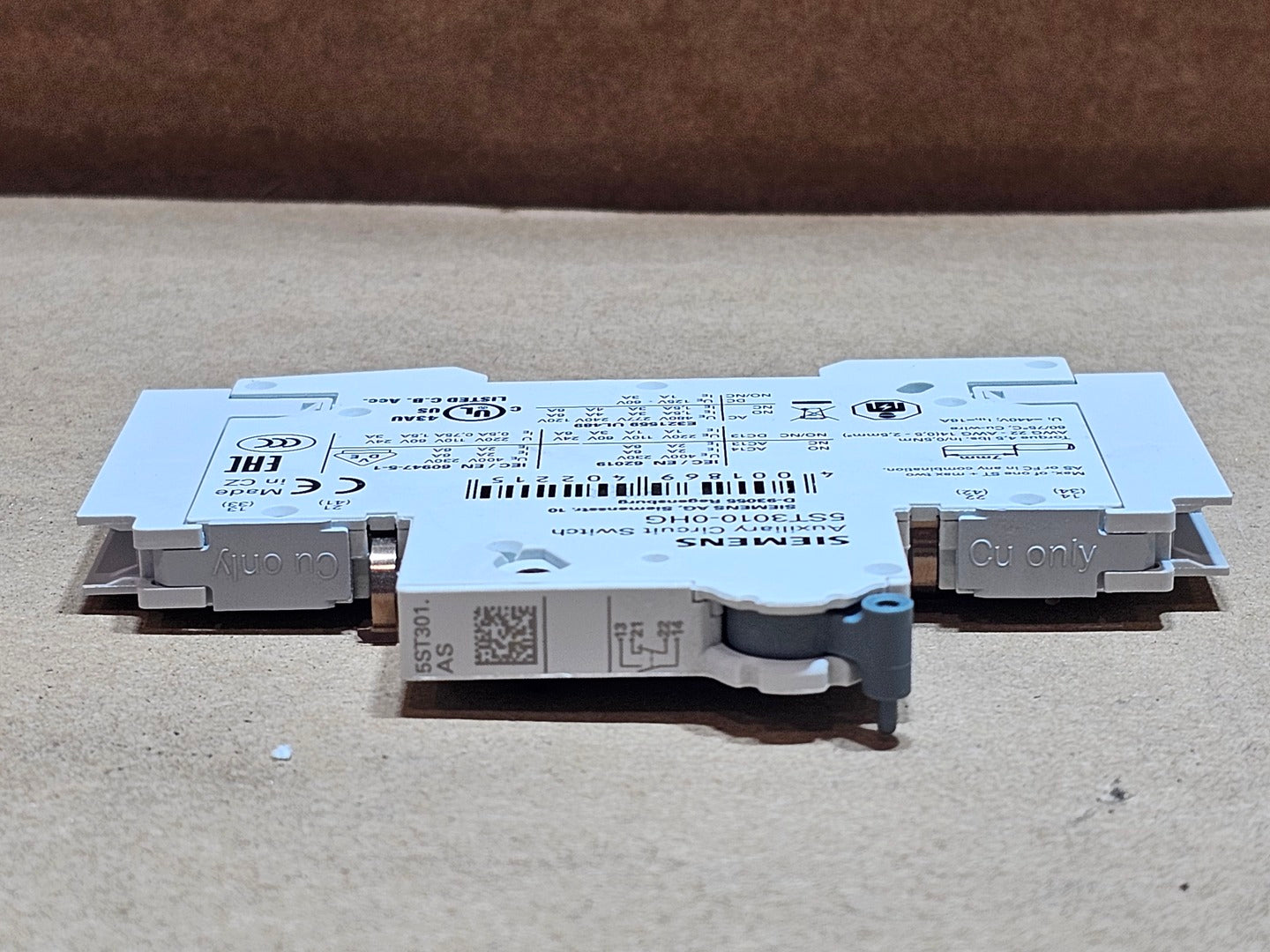

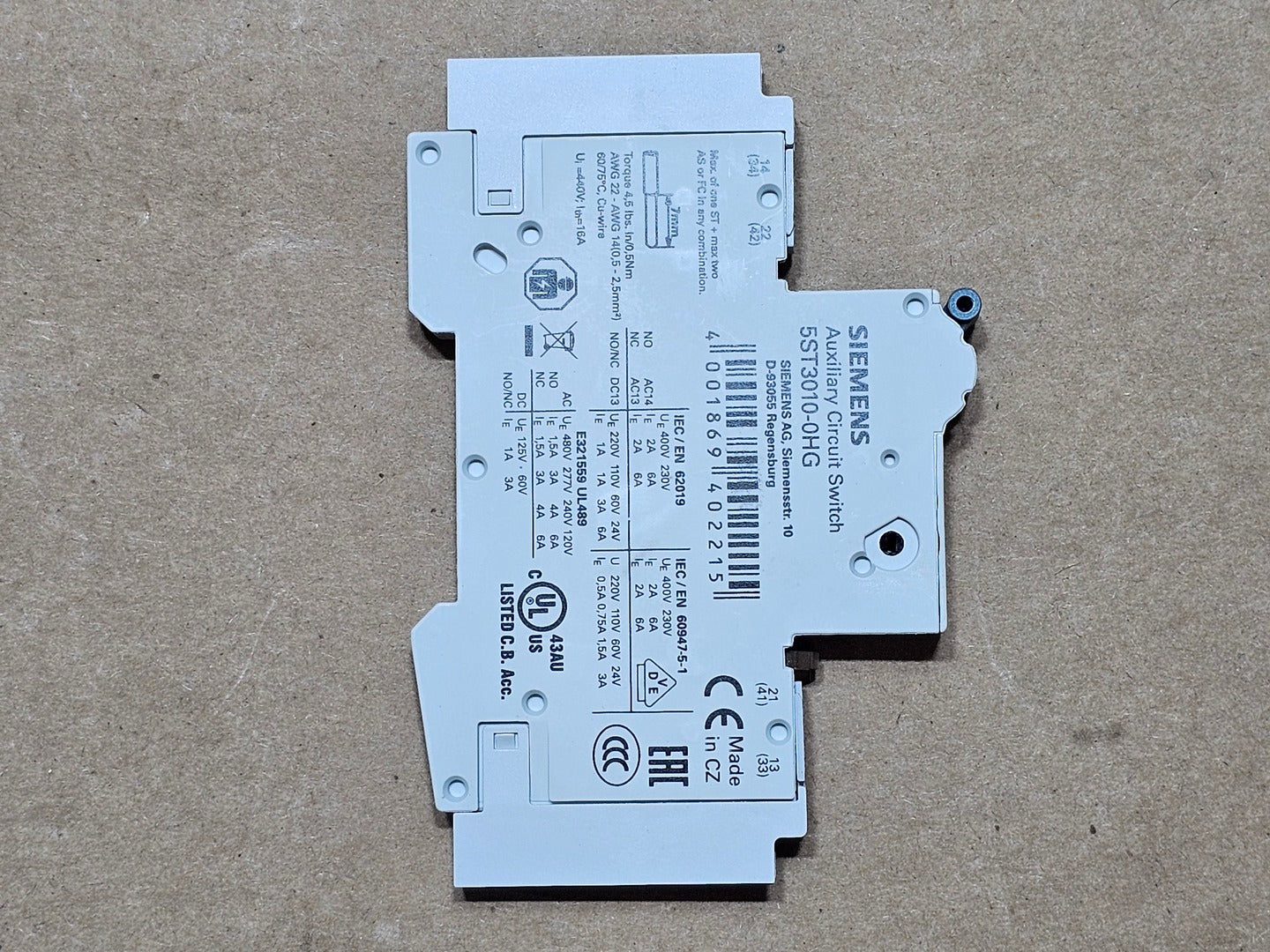

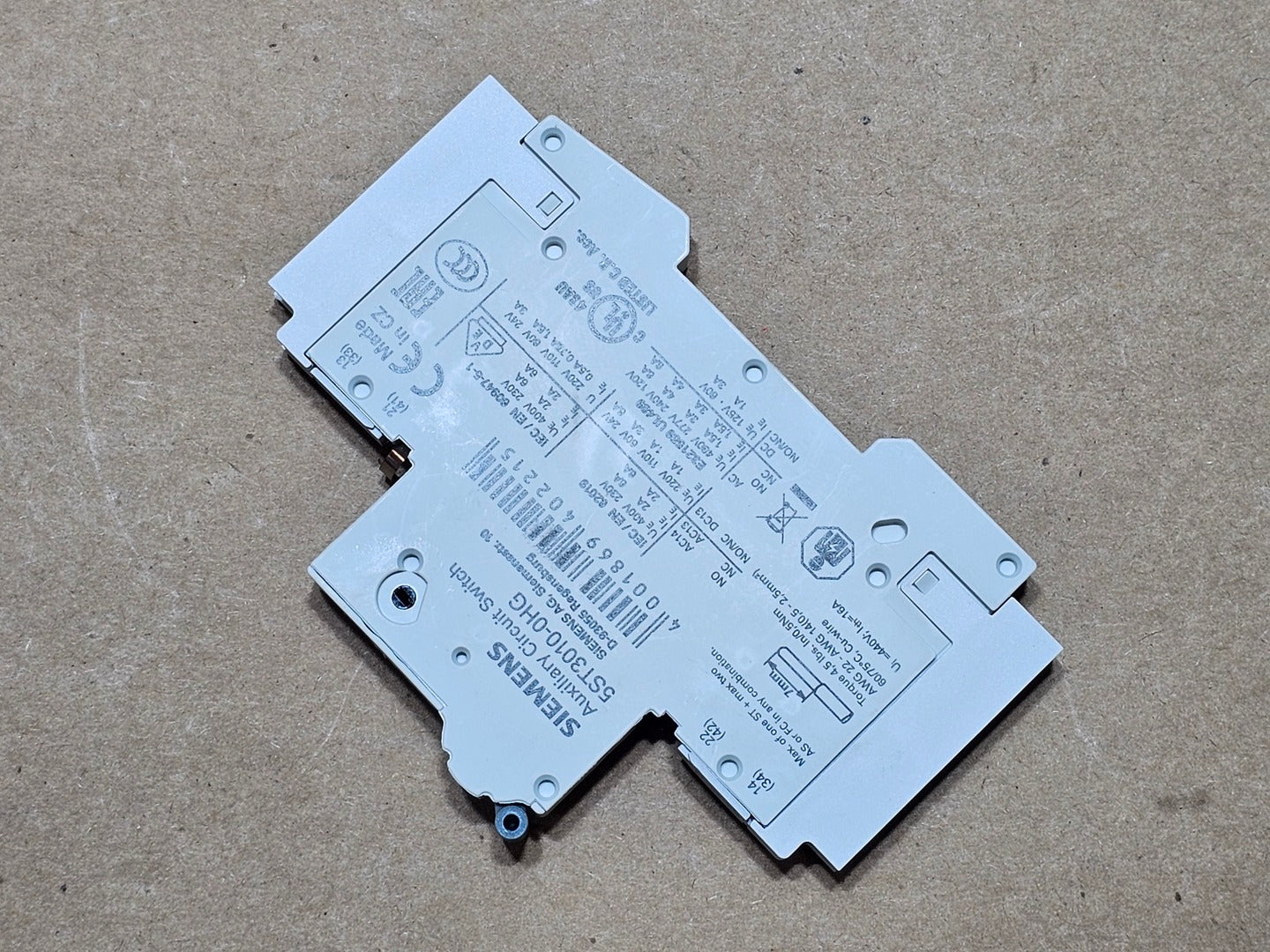

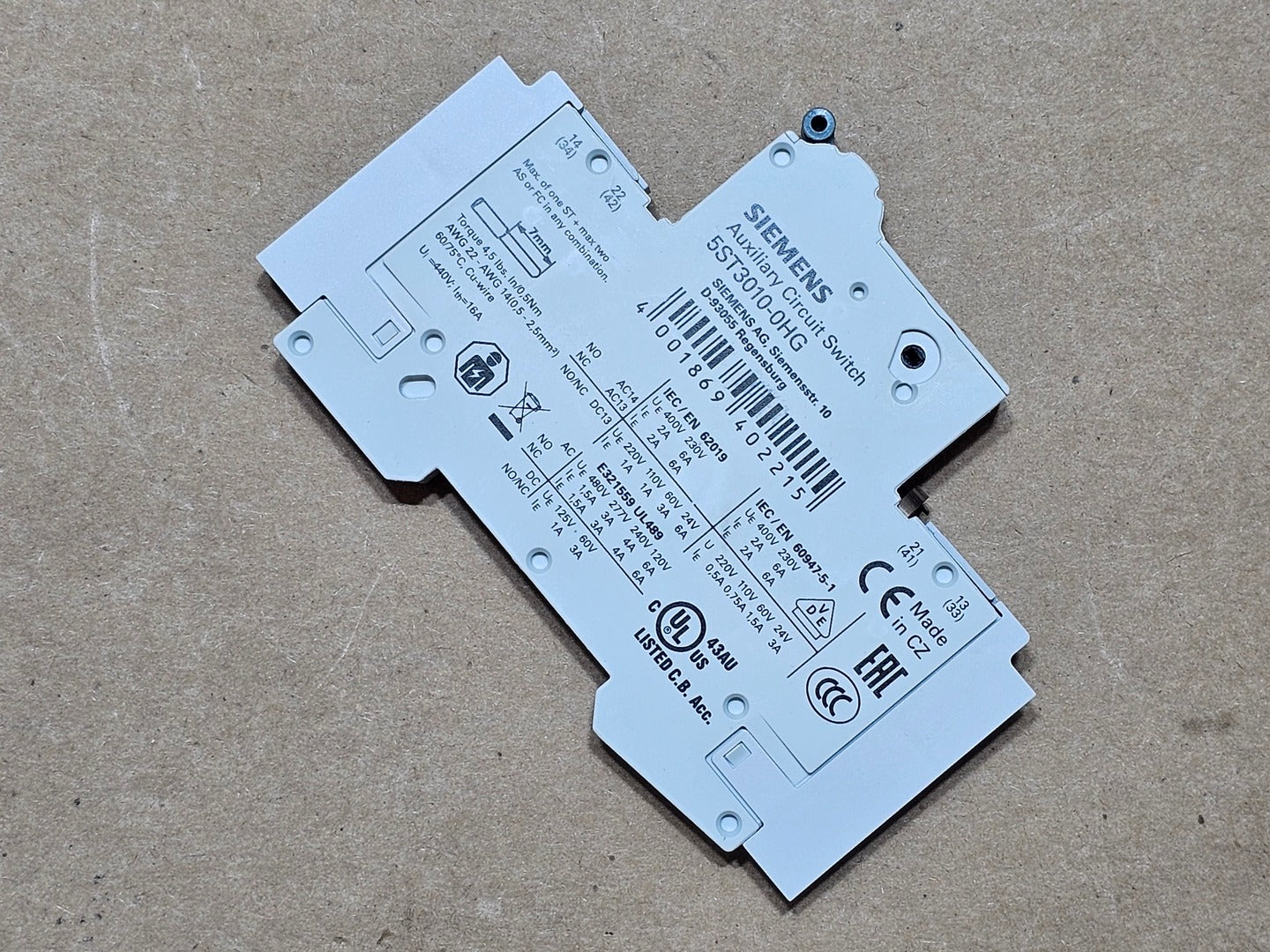

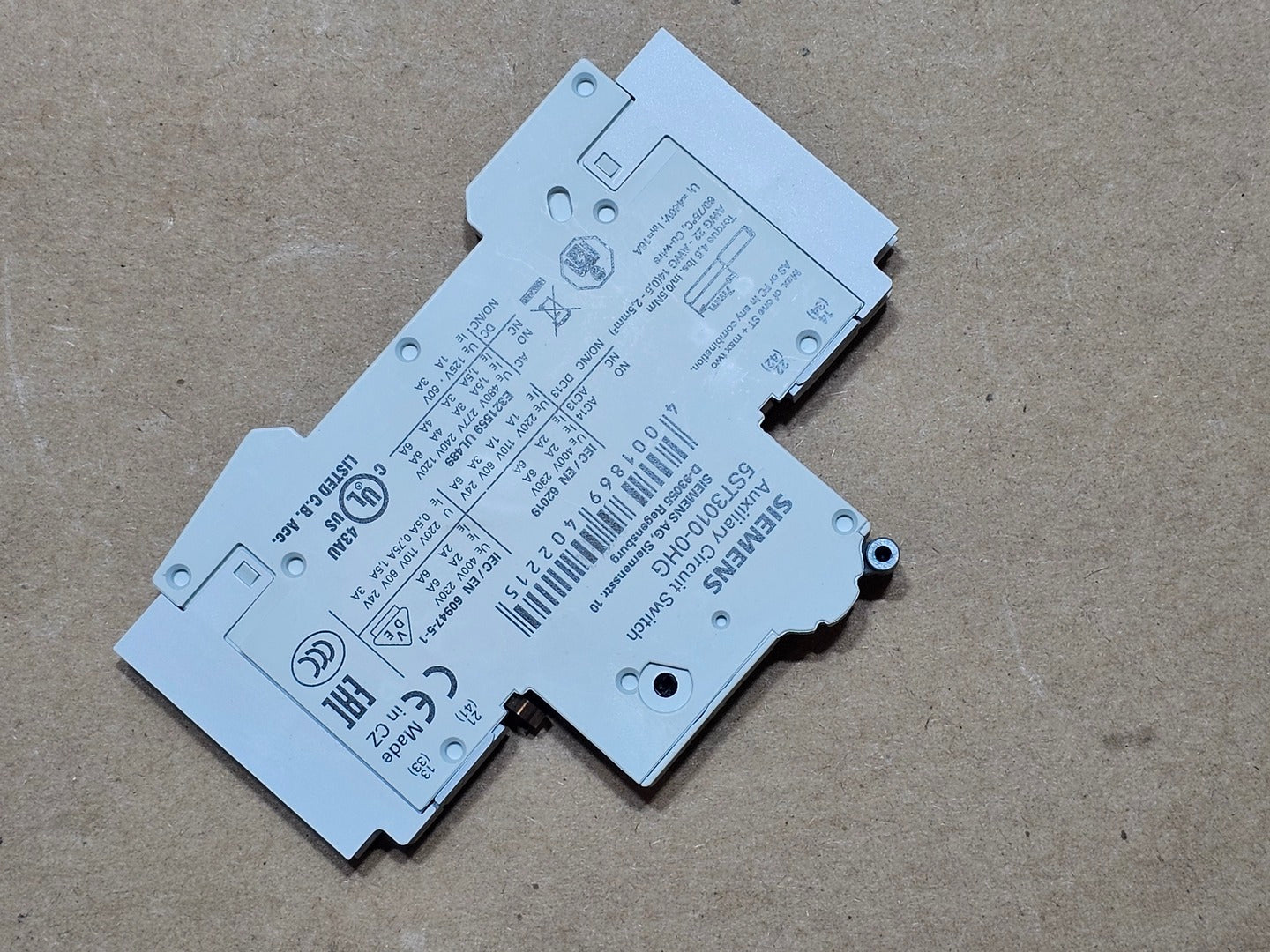

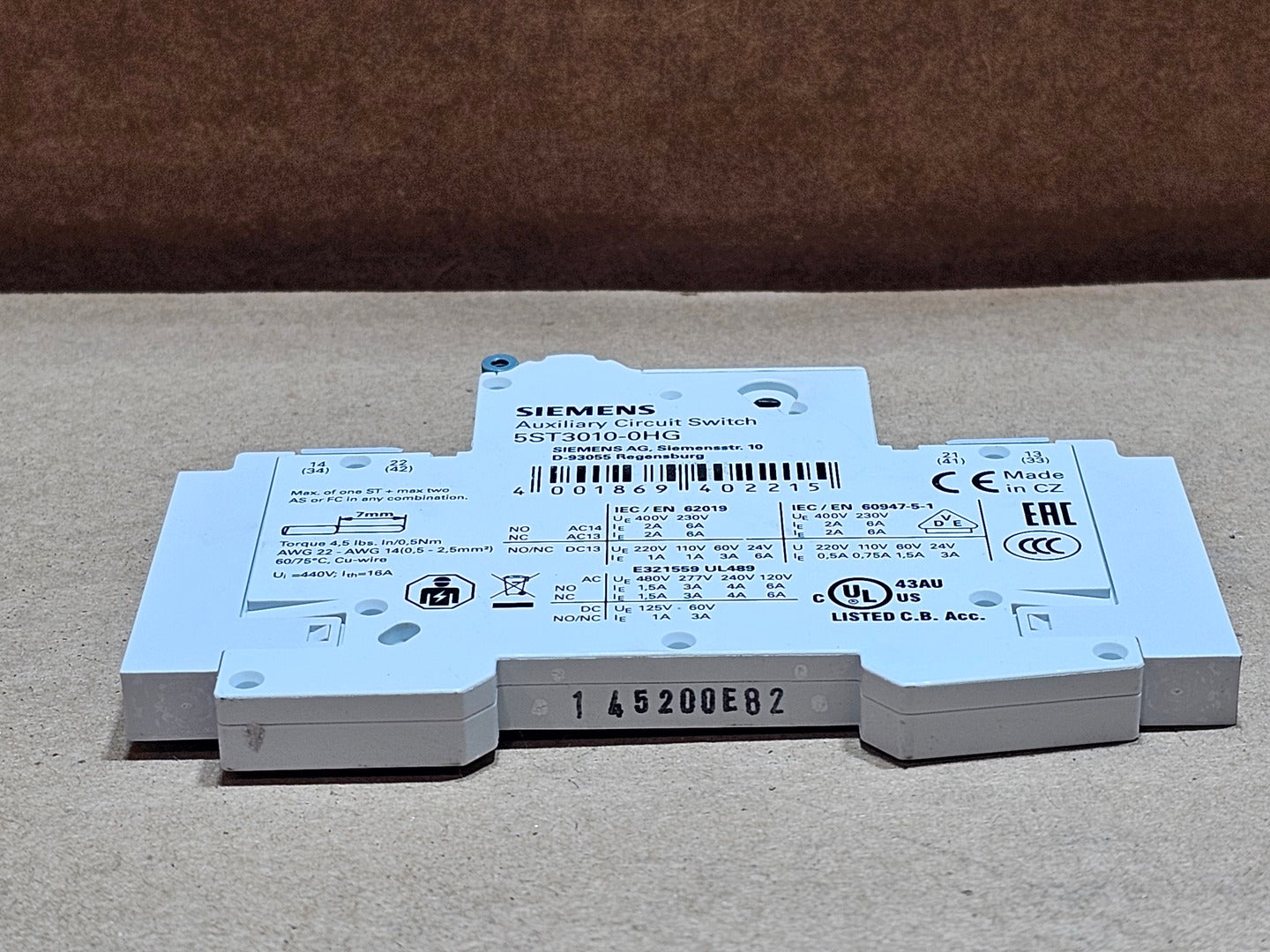

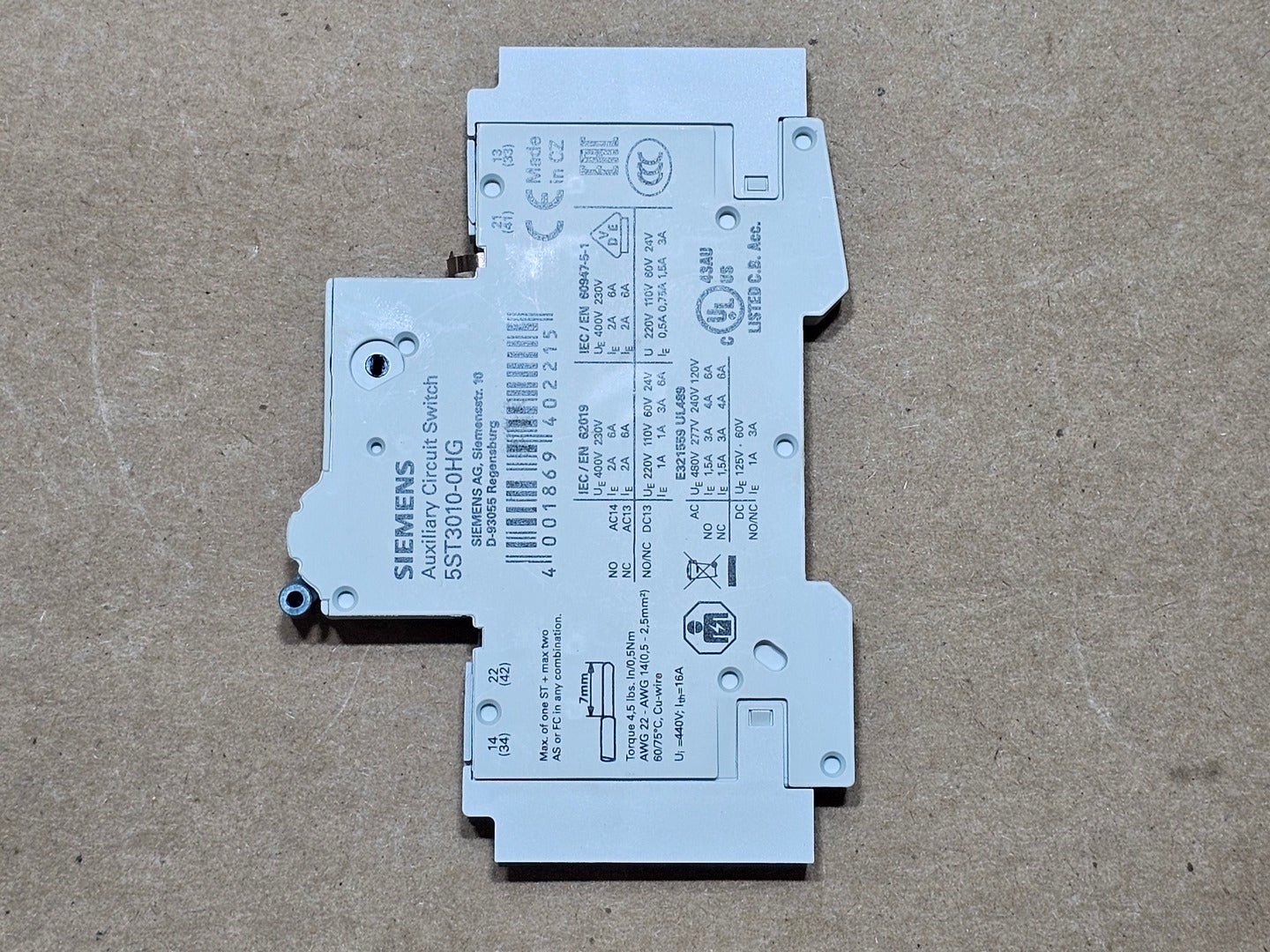

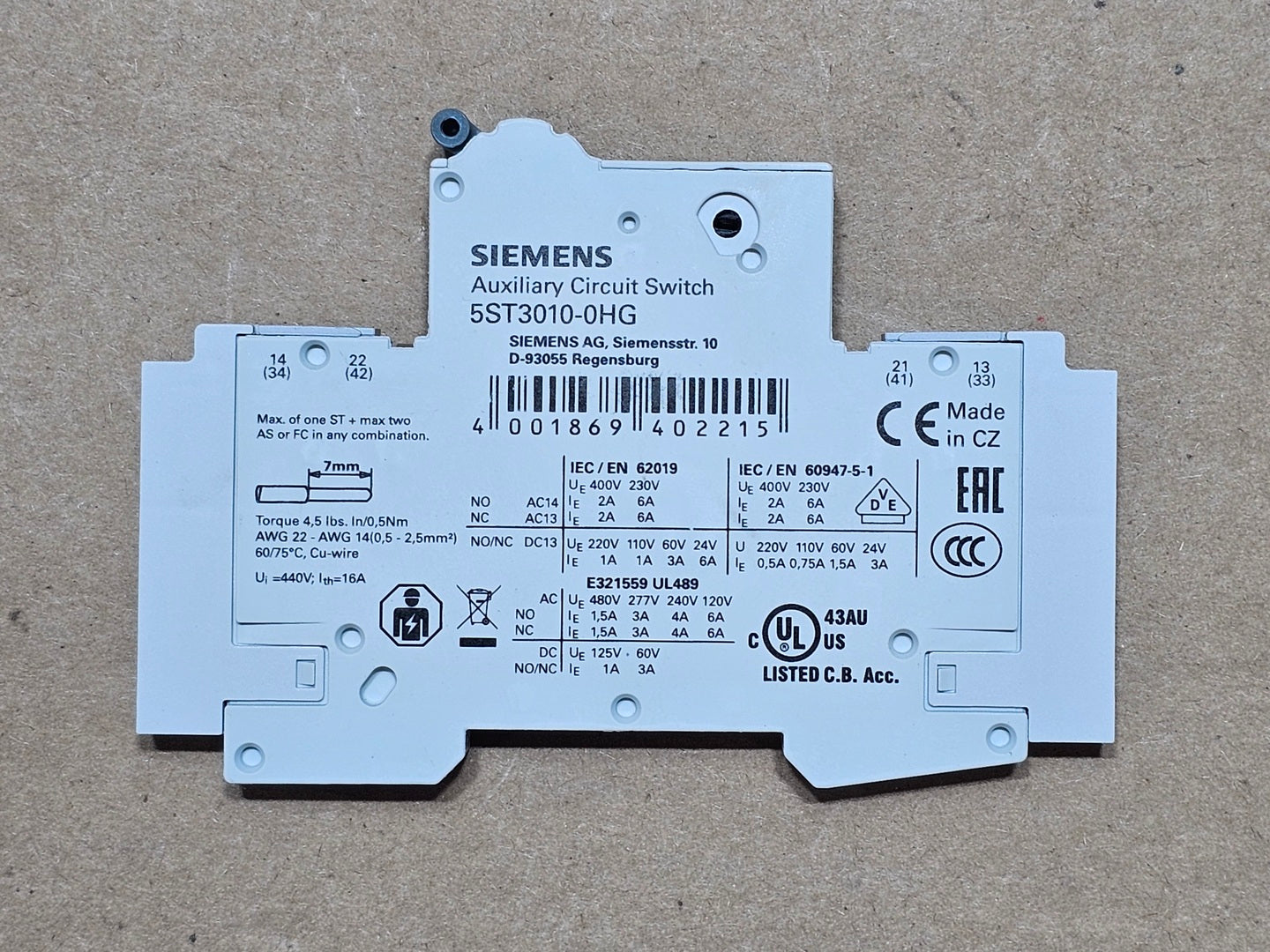

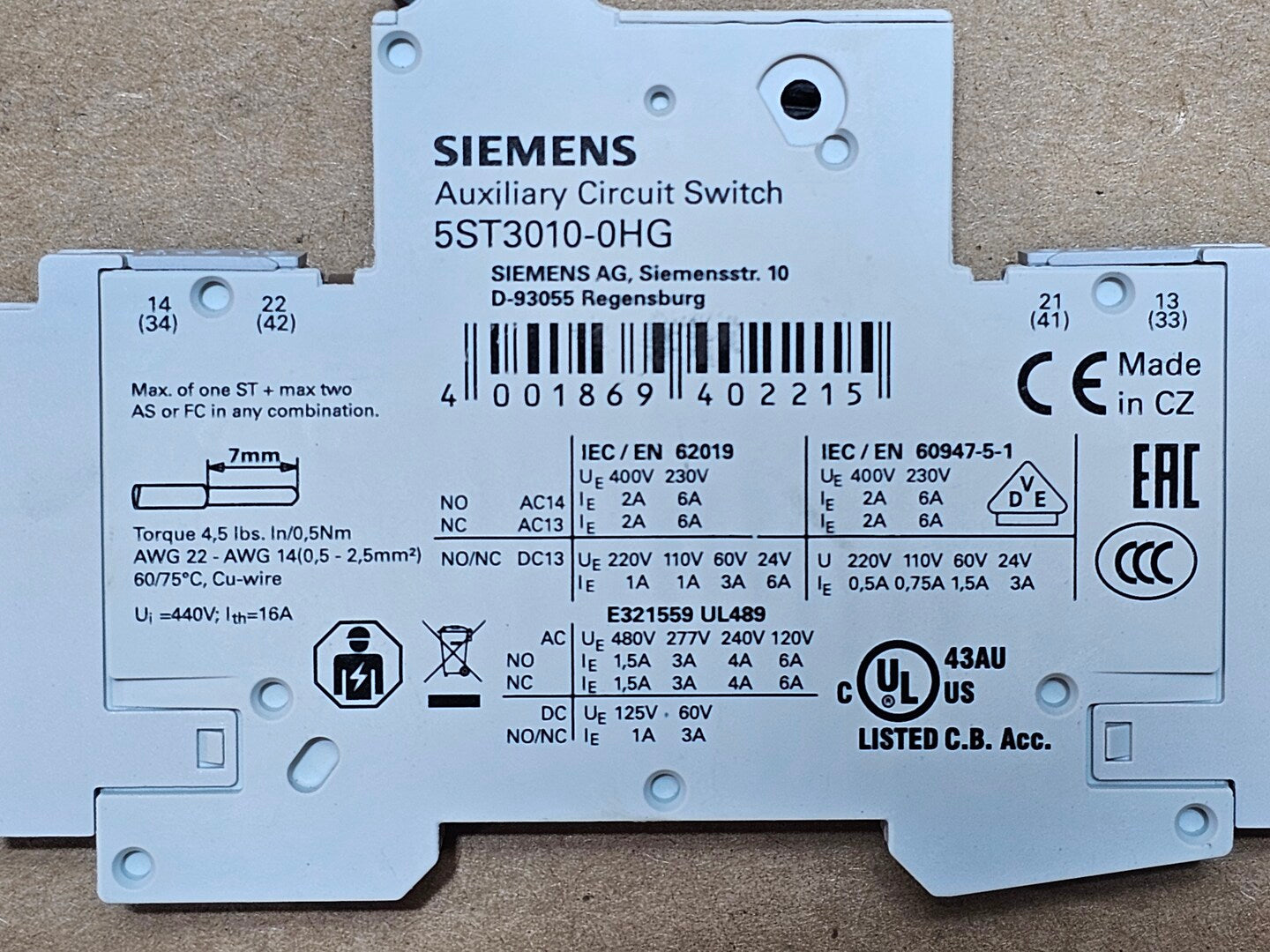

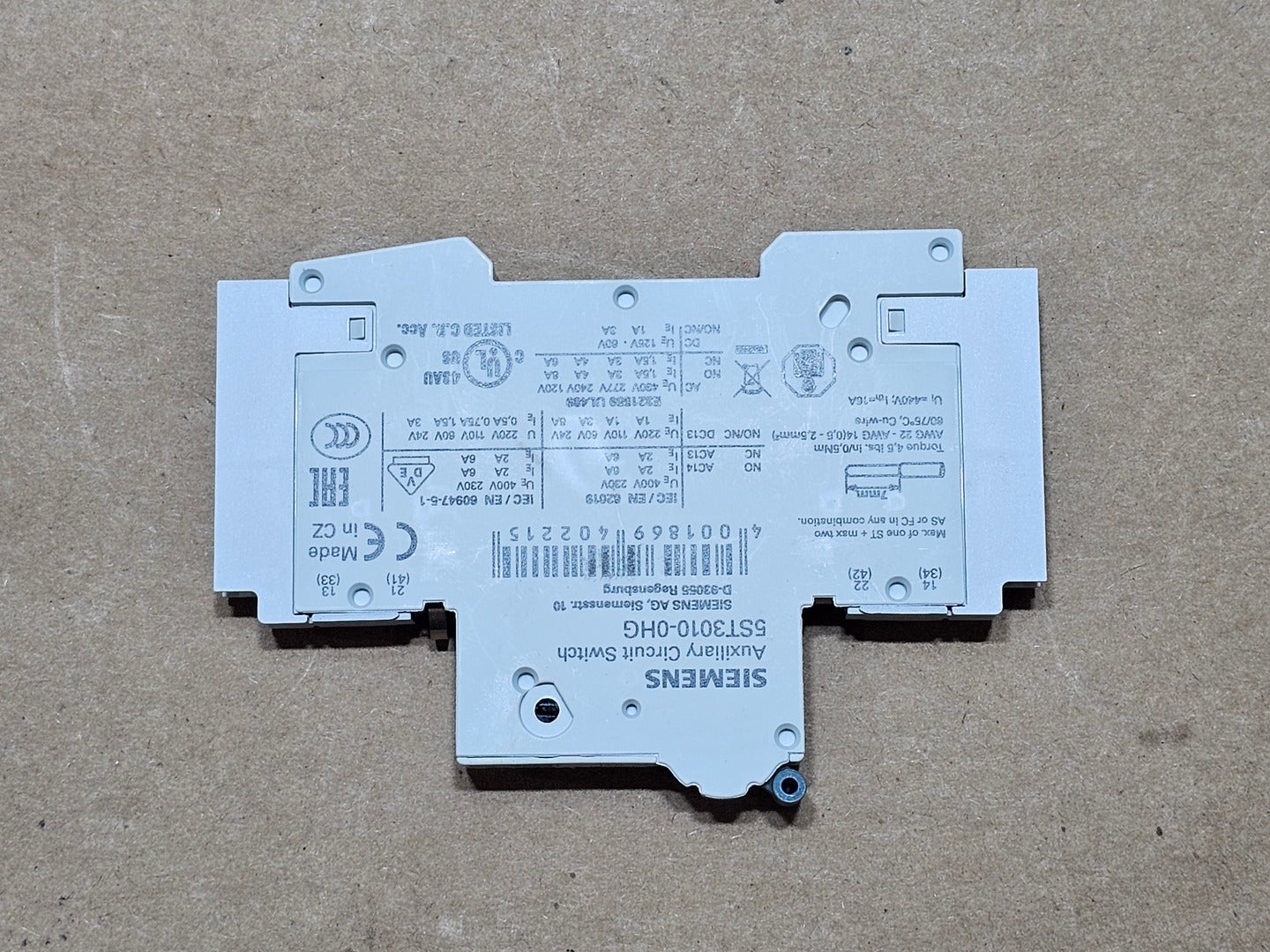

Siemens SENTRON 5ST3010-0HG auxiliary circuit switch for use with compatible miniature circuit breakers. It provides one normally open and one normally closed dry contact for remote breaker-position indication, control interlocking, alarm circuits and automation monitoring.
| Specifications | |
|---|---|
| Model | 5ST3010-0HG |
| Condition | Used |
| Other Specifications |
|---|
|
Series: SENTRON 5ST3 Model: 5ST3010-0HG Product designation: Auxiliary circuit switch Contact configuration: 1NO + 1NC Terminals: 13-14 NO; 21-22 NC Alternate terminal markings: 33-34 NO; 41-42 NC Installation type: Side-mounted breaker accessory Rated insulation voltage Ui: 440 V Conventional thermal current Ith: 16 A Rated operating voltage: Up to 480 VAC Minimum rated operating voltage: 12 V AC/DC |
