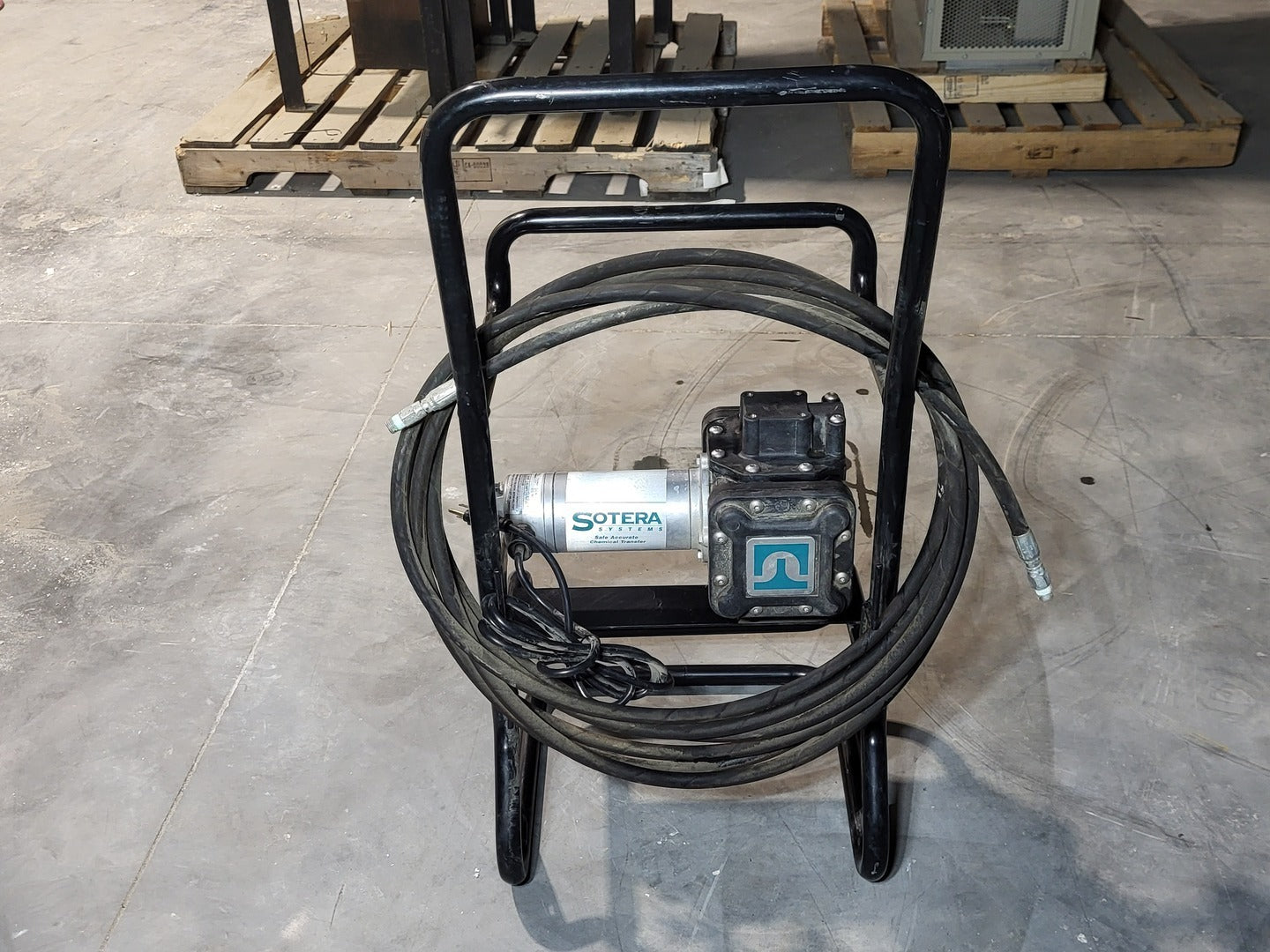

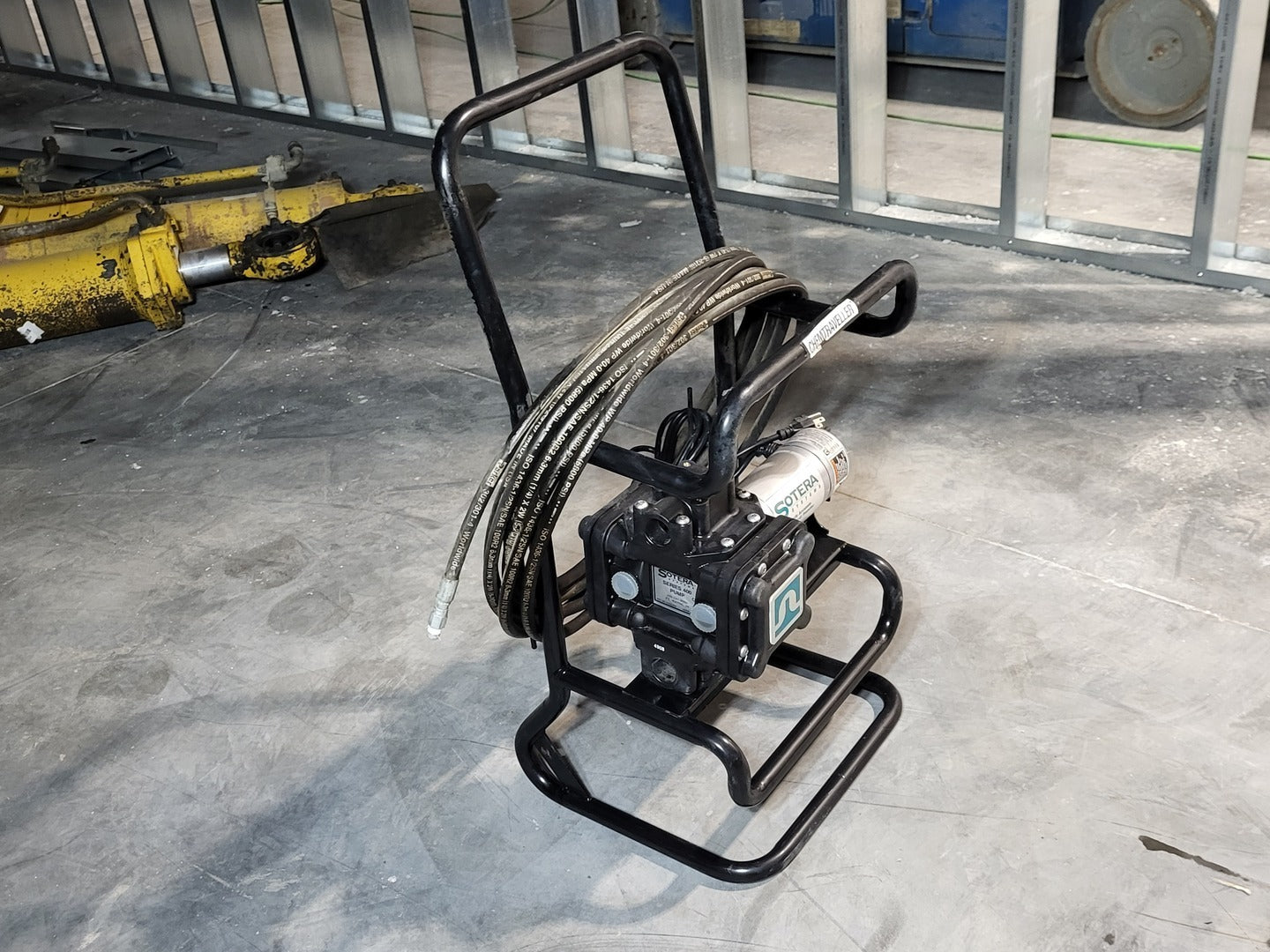

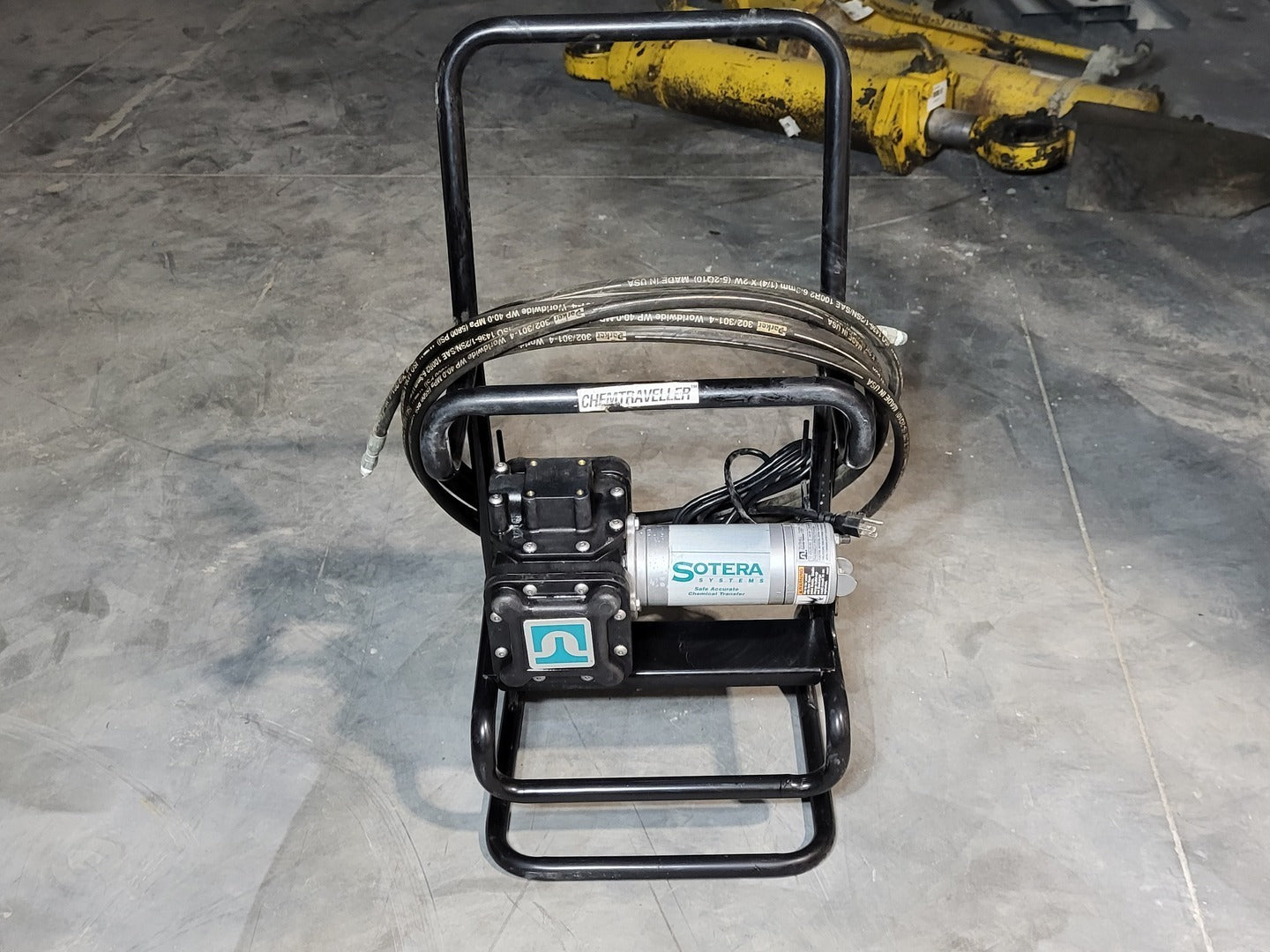

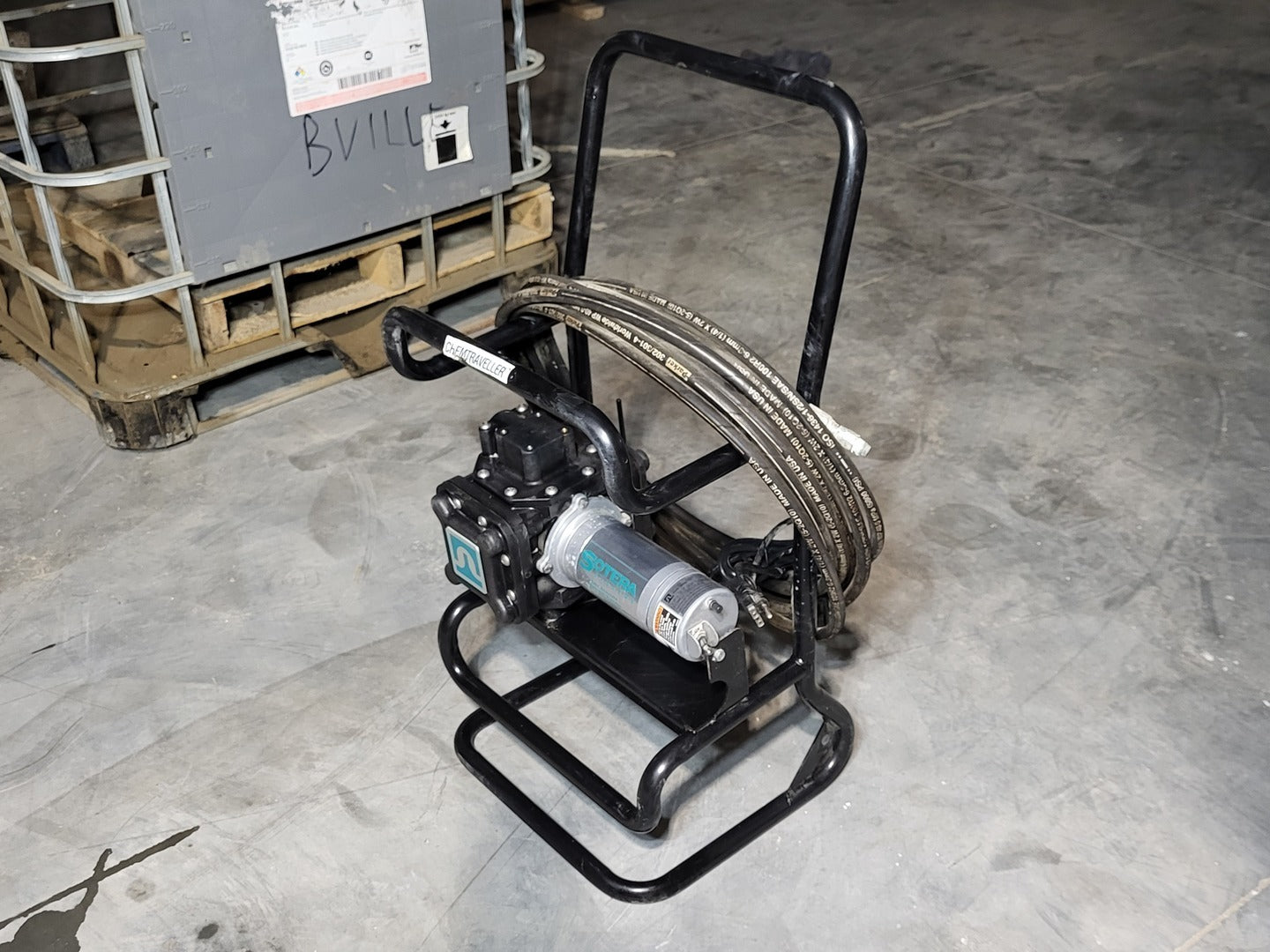

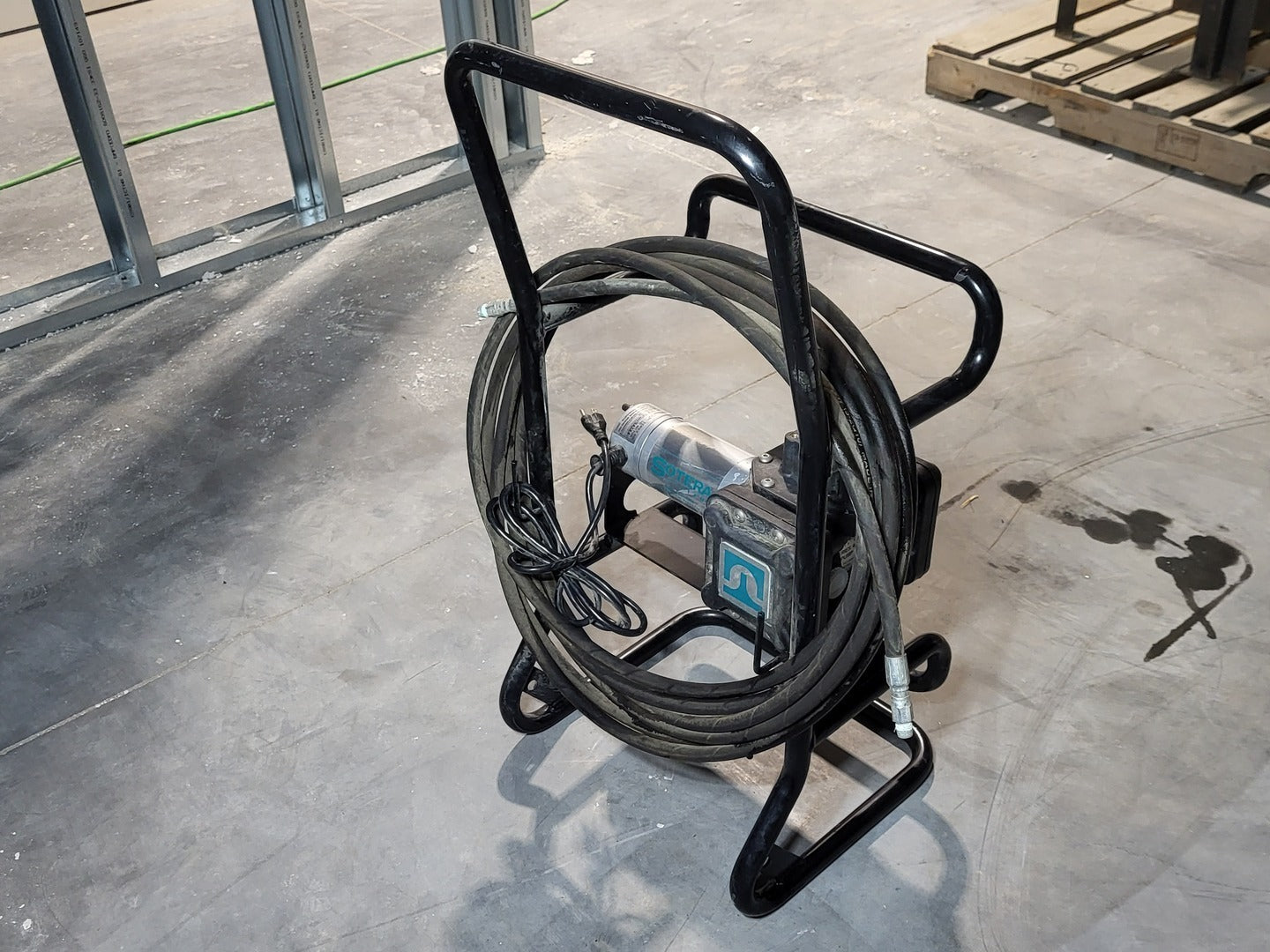

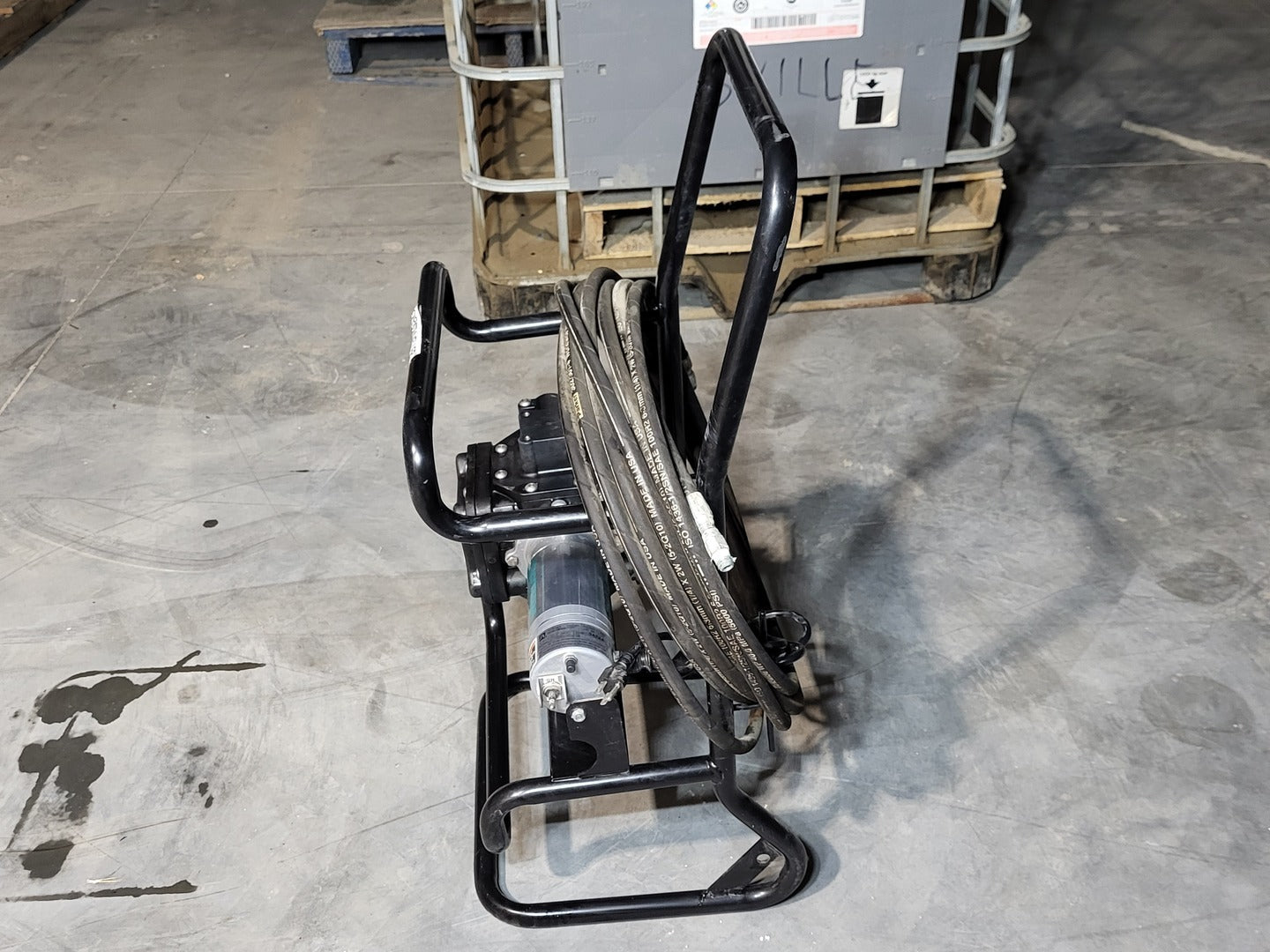

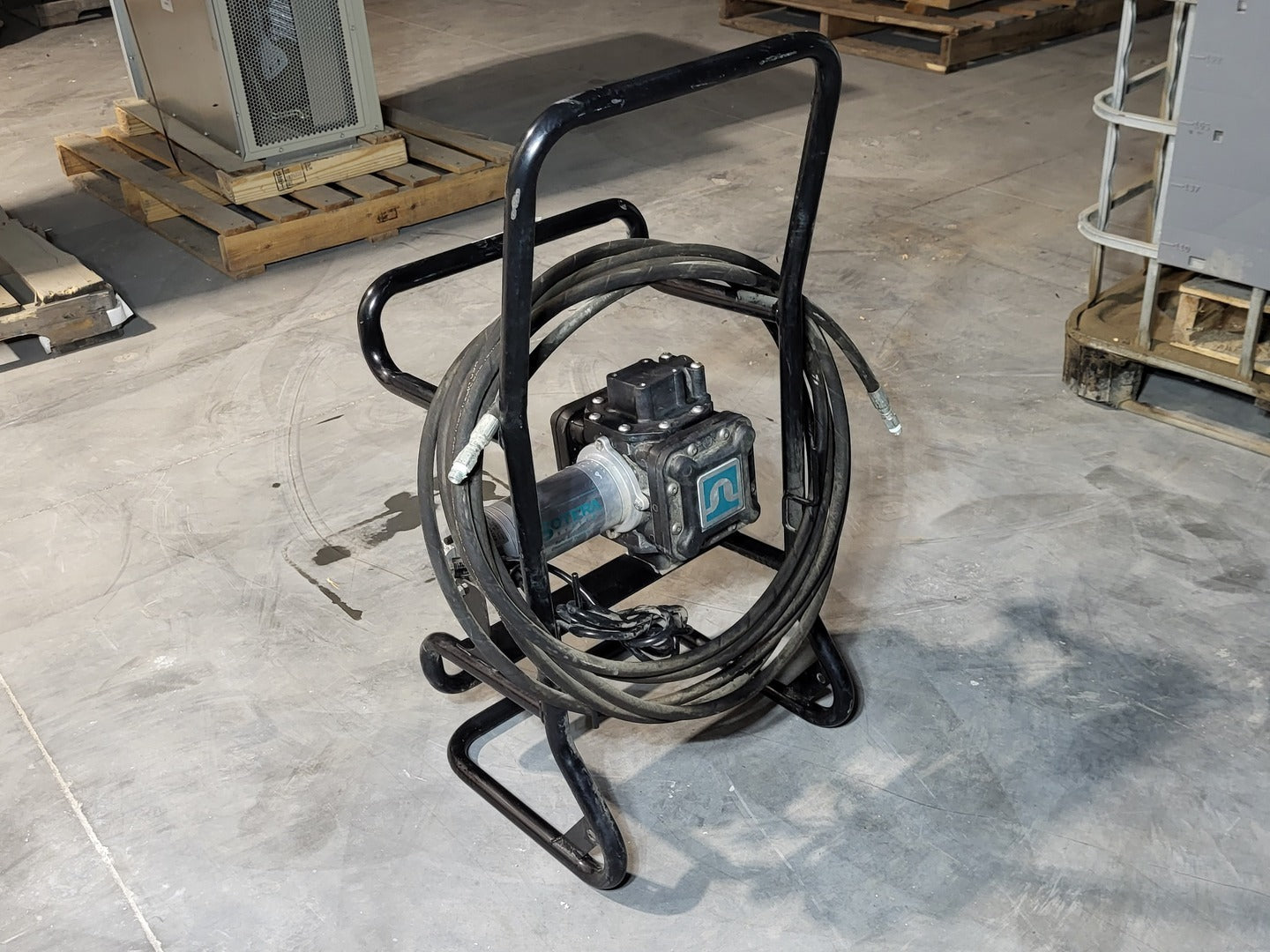

Series 400 Electric Double Diaphragm Chemical Transfer Pump

SKU: 144575
Precio:
$505

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

Descripción

Specifications
Model 400
Made In UNITED STATES
Condition Used
Other Specifications

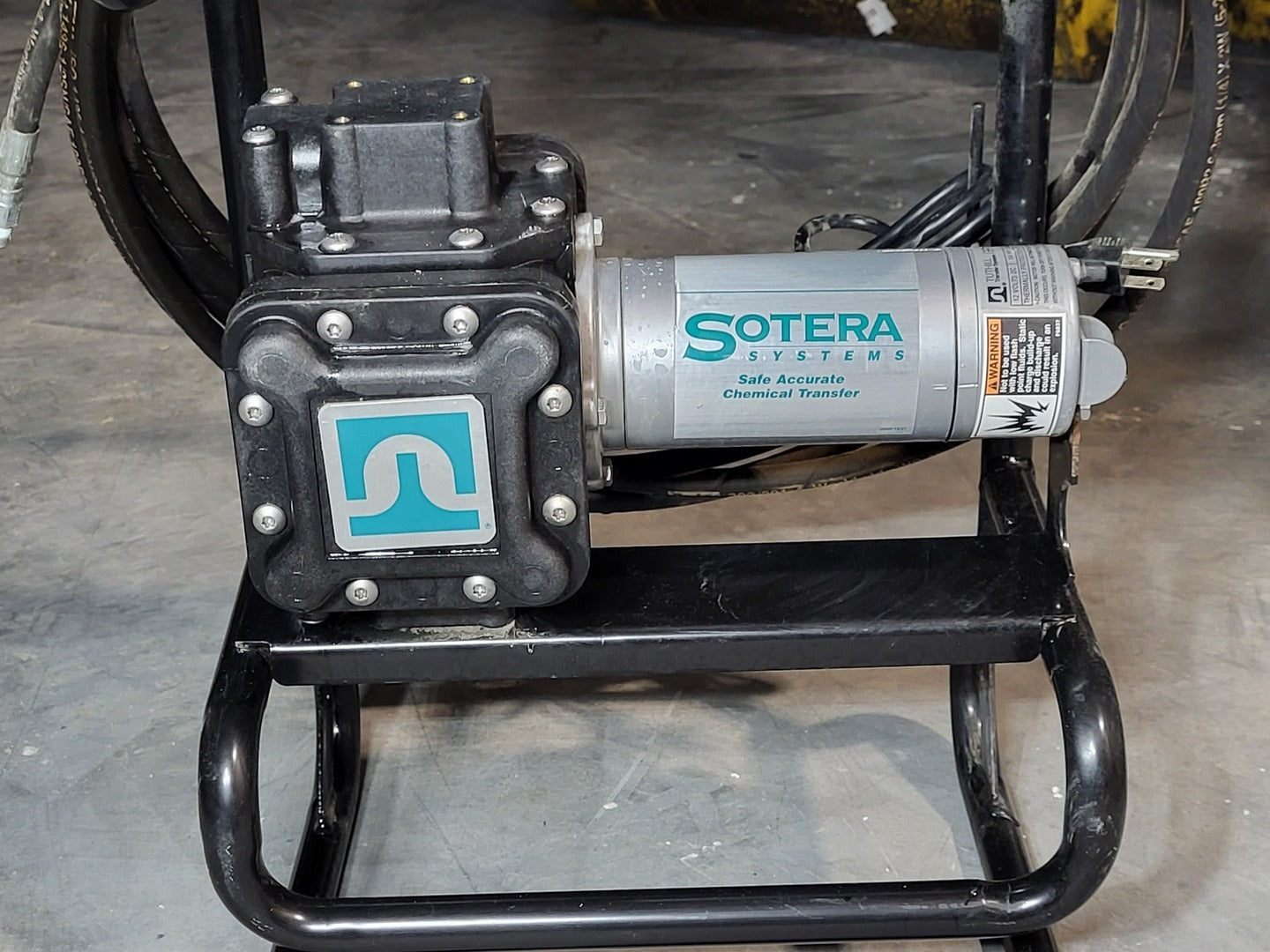

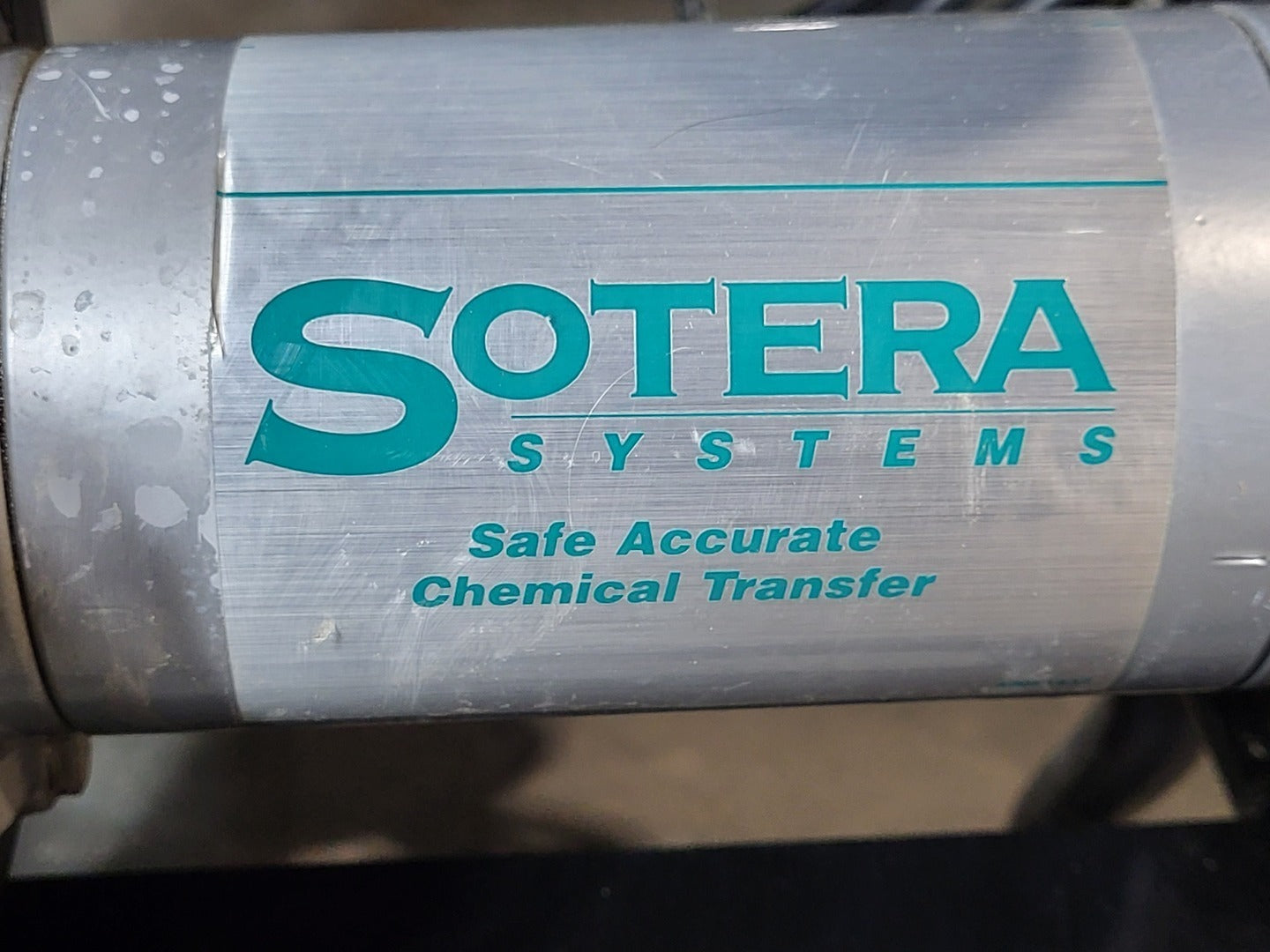

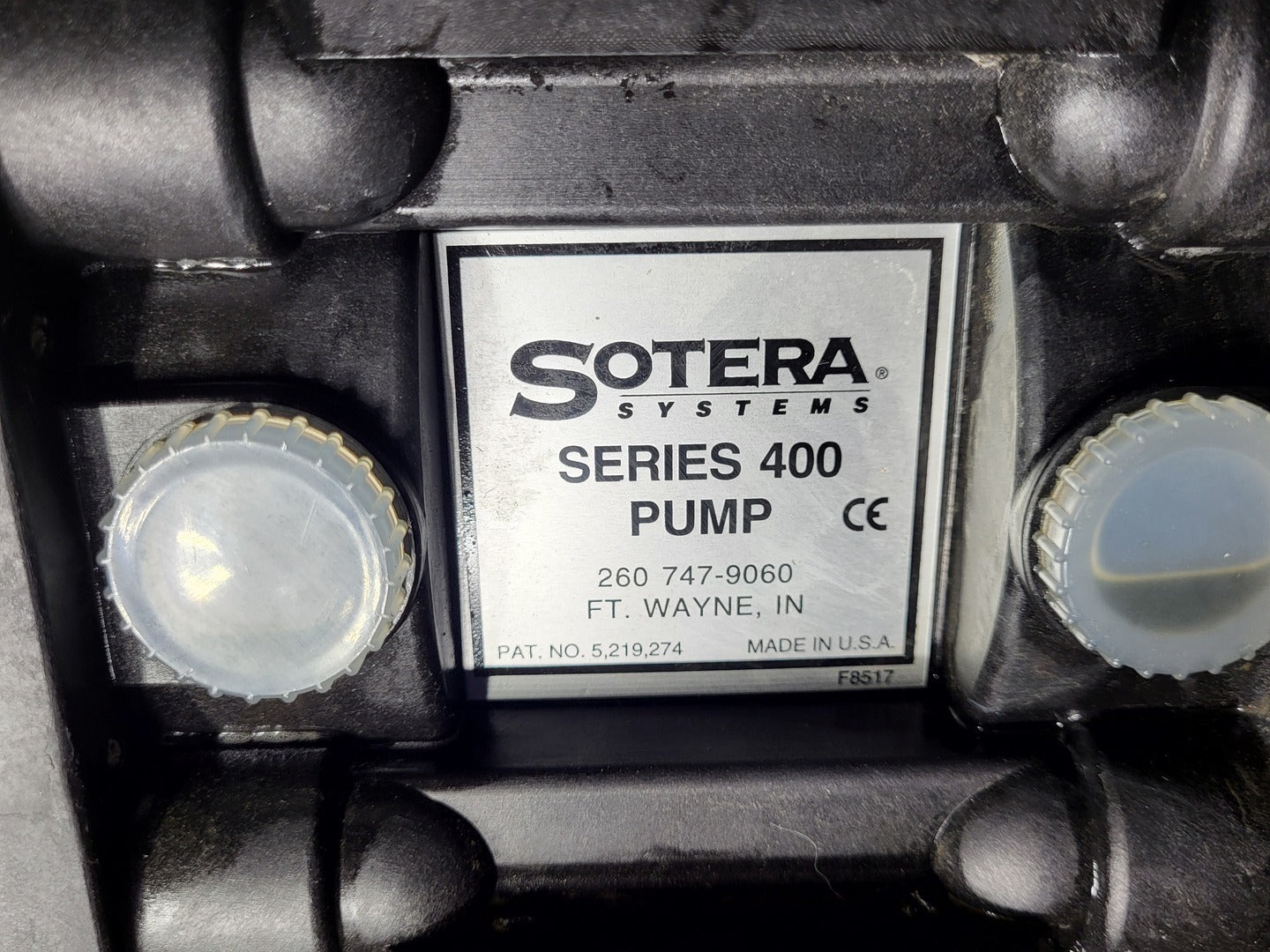

Description: The Sotera Series 400 is a double action diaphragm pump, using a spring-driven, positive displacement mechanism.

Features

  1. Flow Rate: Up to 13 GPM
  2. Max. Outlet Pressure: 15 psi

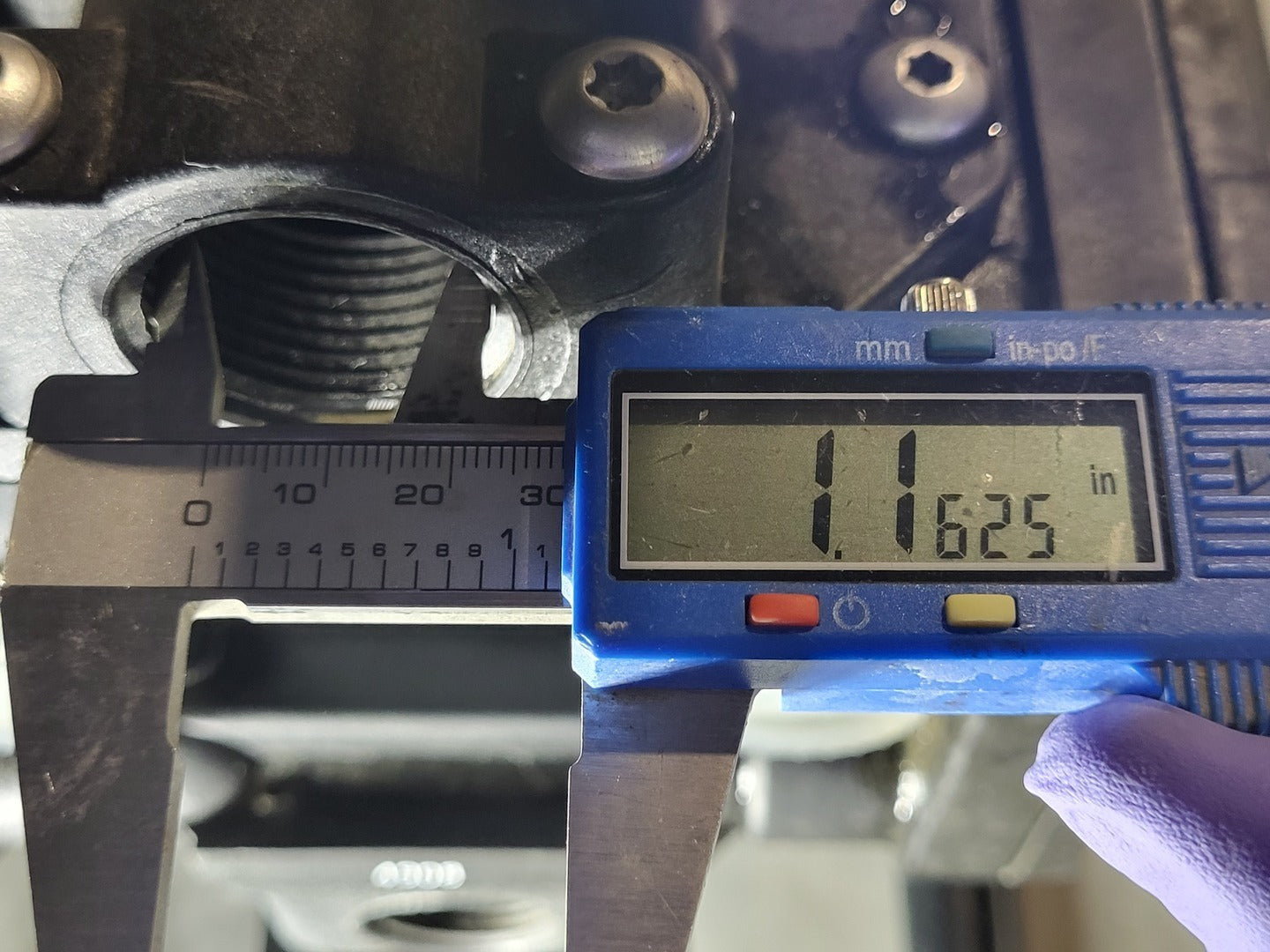

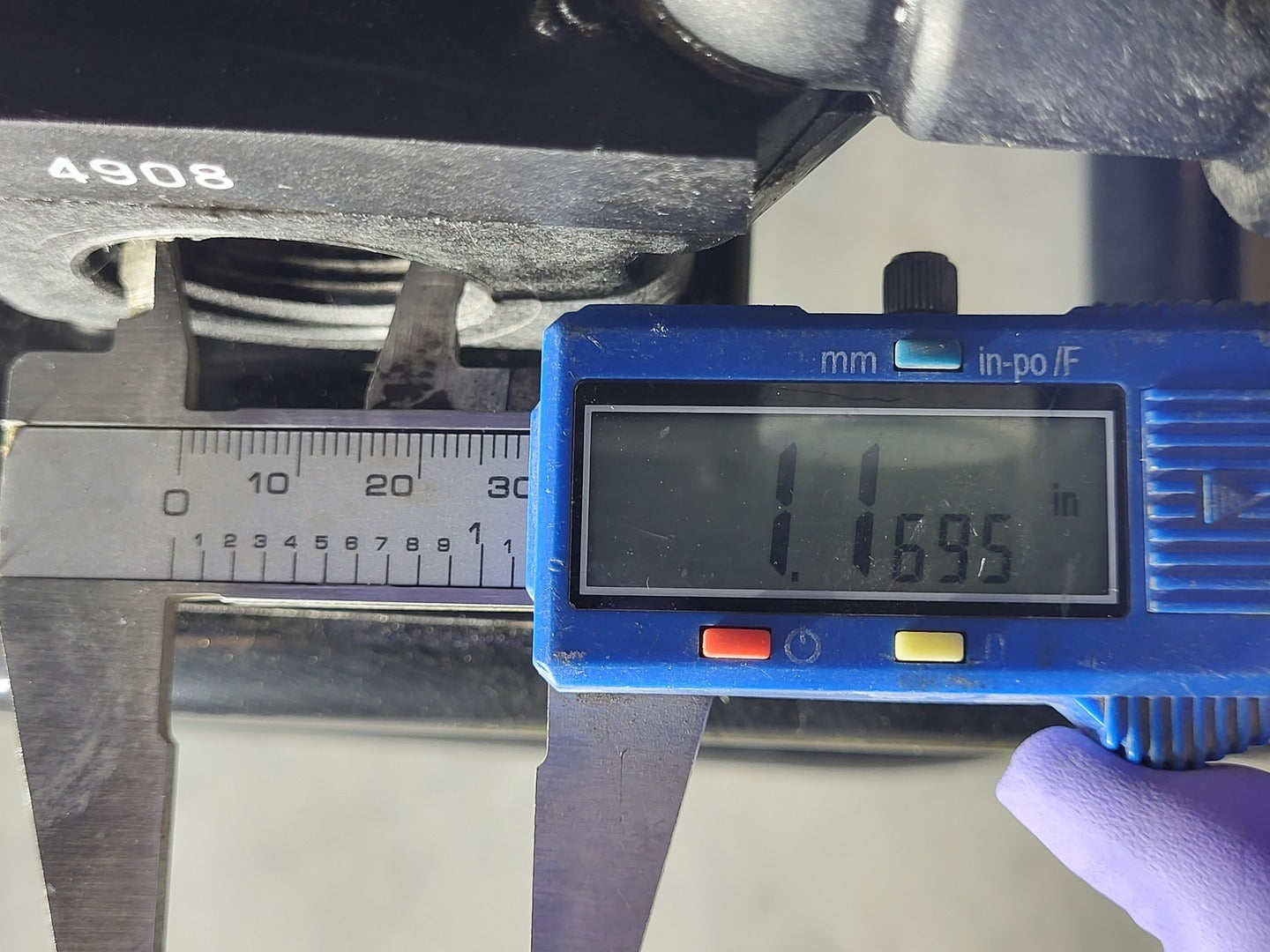

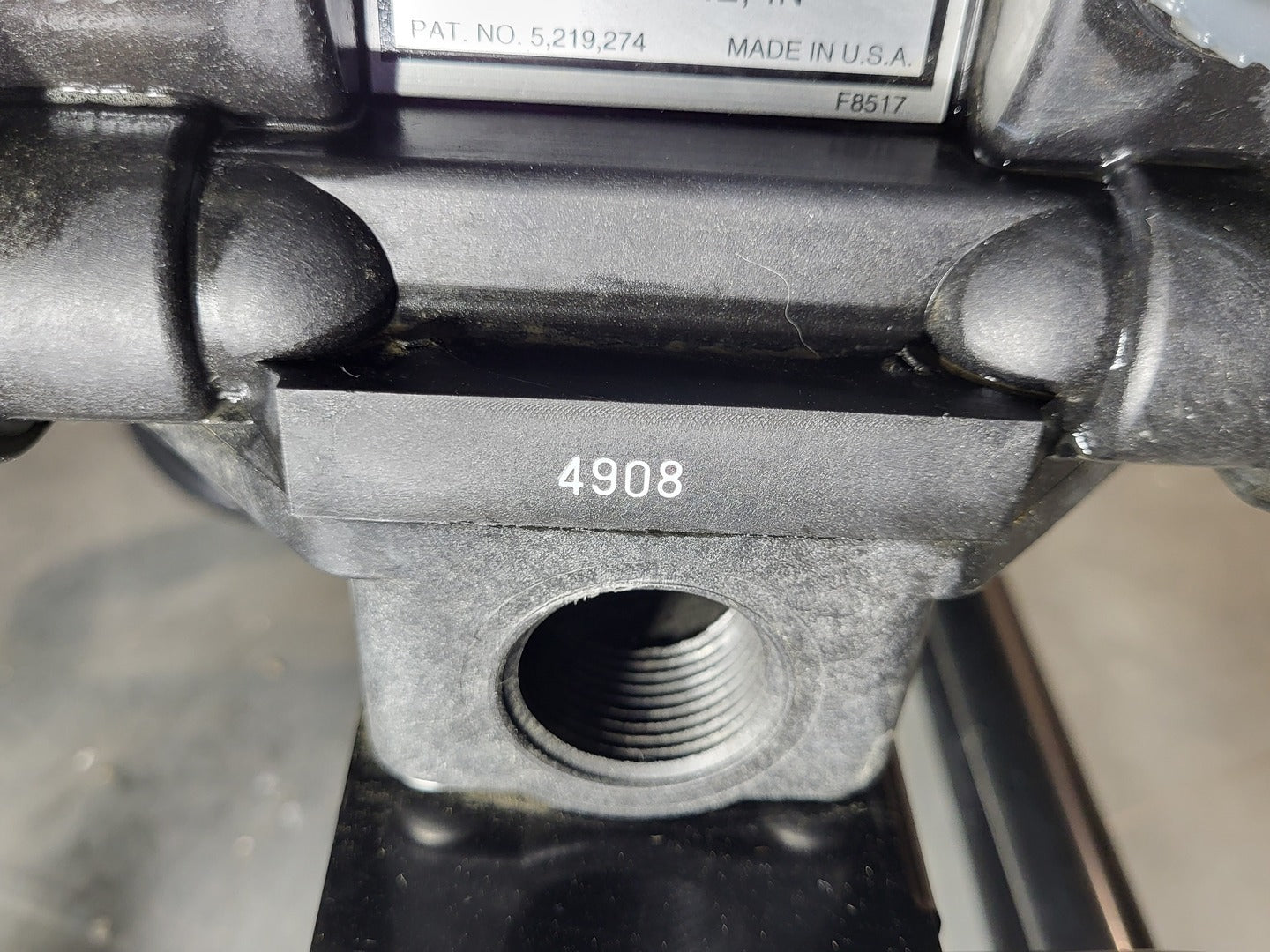

  3. Inlet: 1" FNPT
  4. Min. Suction Lift: 10' for water & 11' for diesel fuel
  5. Min. Operating Ambient Temp.: -10 F (-23 C)
  6. Max. Operating Ambient Temp.: 130 F (54 C)
  7. Overall Dimensions: 14" long x 8.25" high x 8.75" deep
  8. Can pass particulate materials up to 0.100" diameter in the pumped fluids.
  9. Pump may run dry without damage
  10. Flow easily controlled by outlet throttling from maximum to zero
  11. Handles viscosities from 1.0 CPS to 3000 CPS (SAE 140 gear oil at 68 deg F (50 deg C))

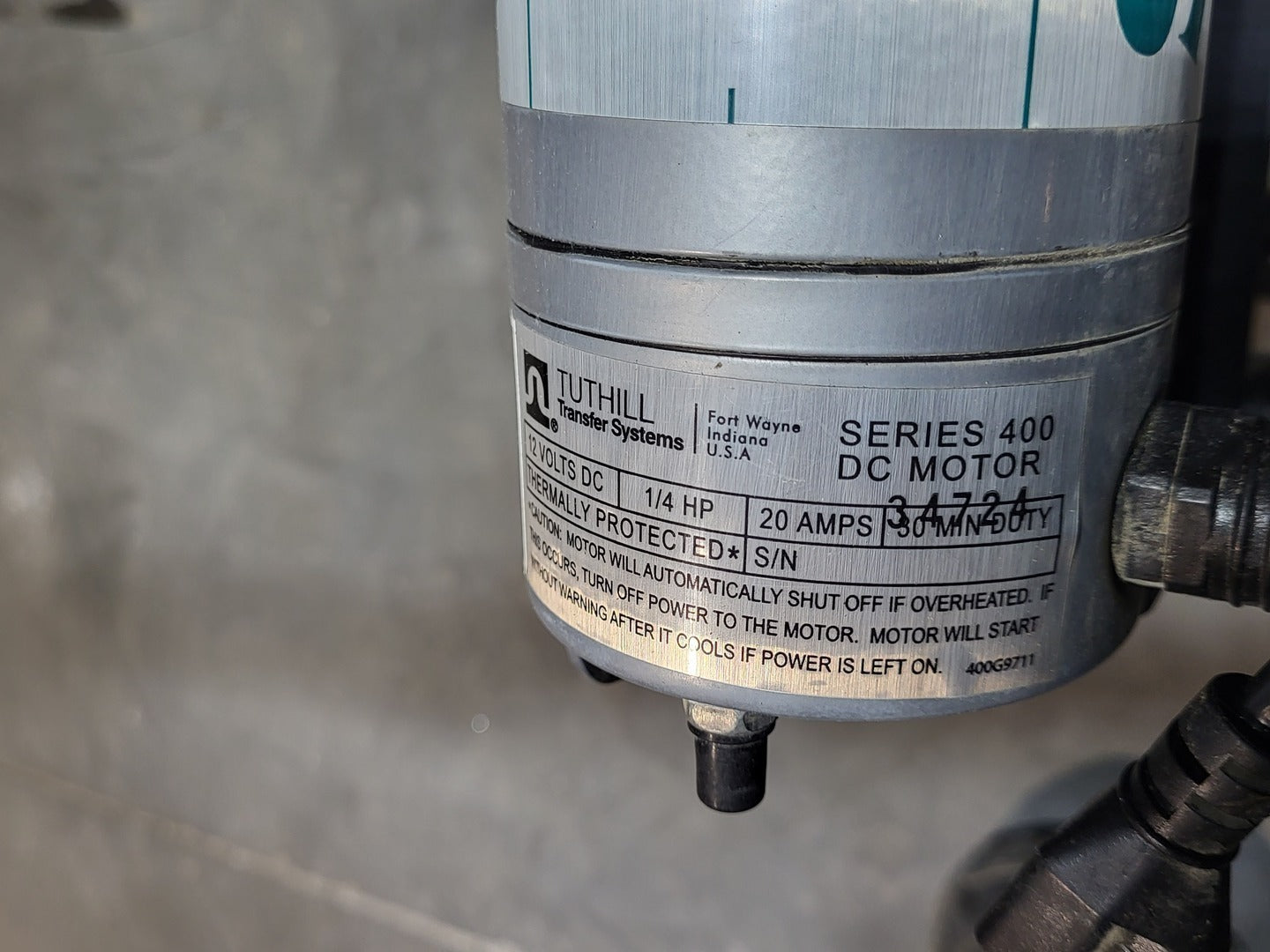

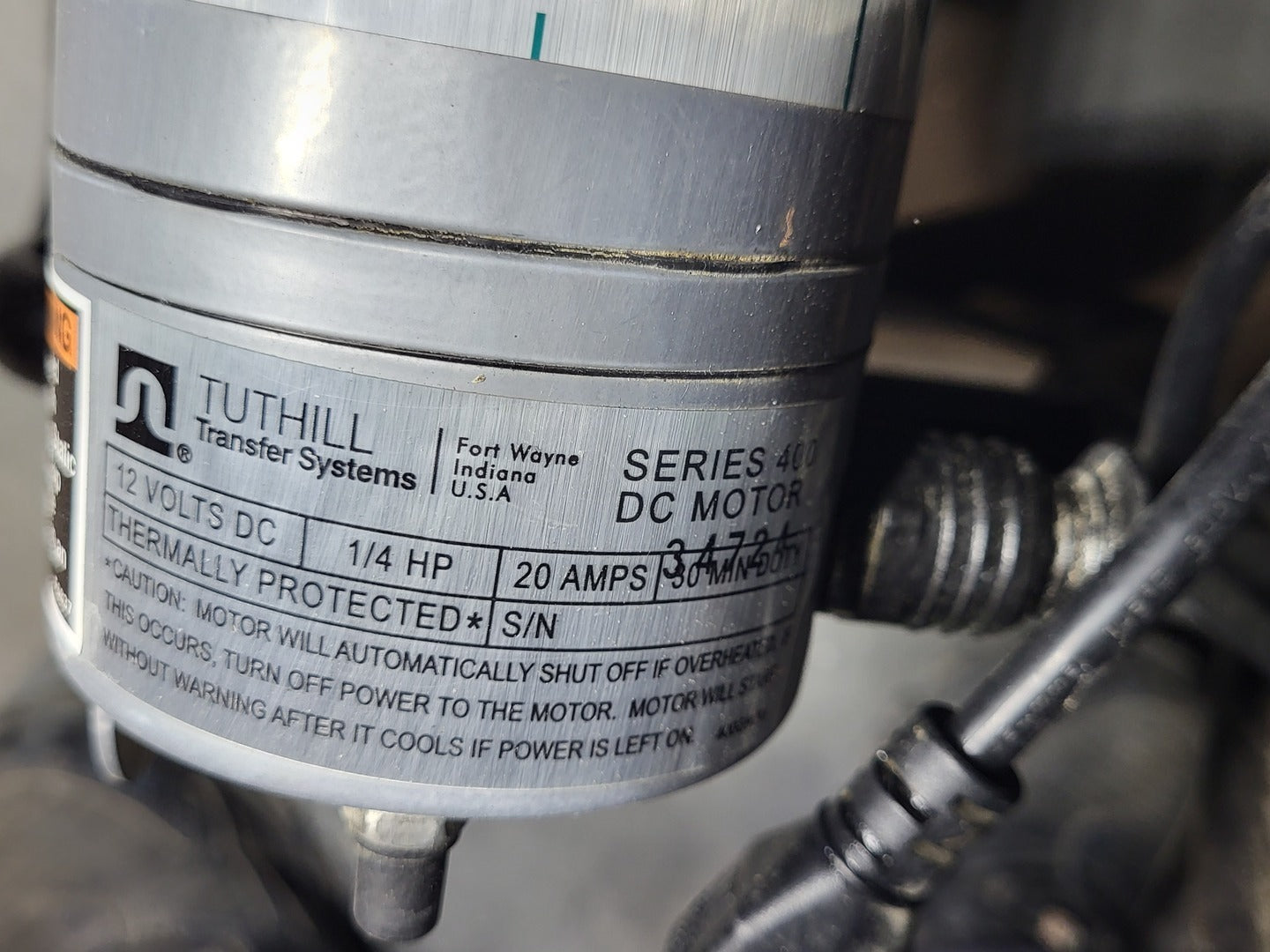

Motor

Horsepower: 1/4 hp

Voltage: 12 VDC

Current: 20 A

Duty: 30 Min
