Descripción
| Condition | Used |
| Other Specifications |
|---|
|

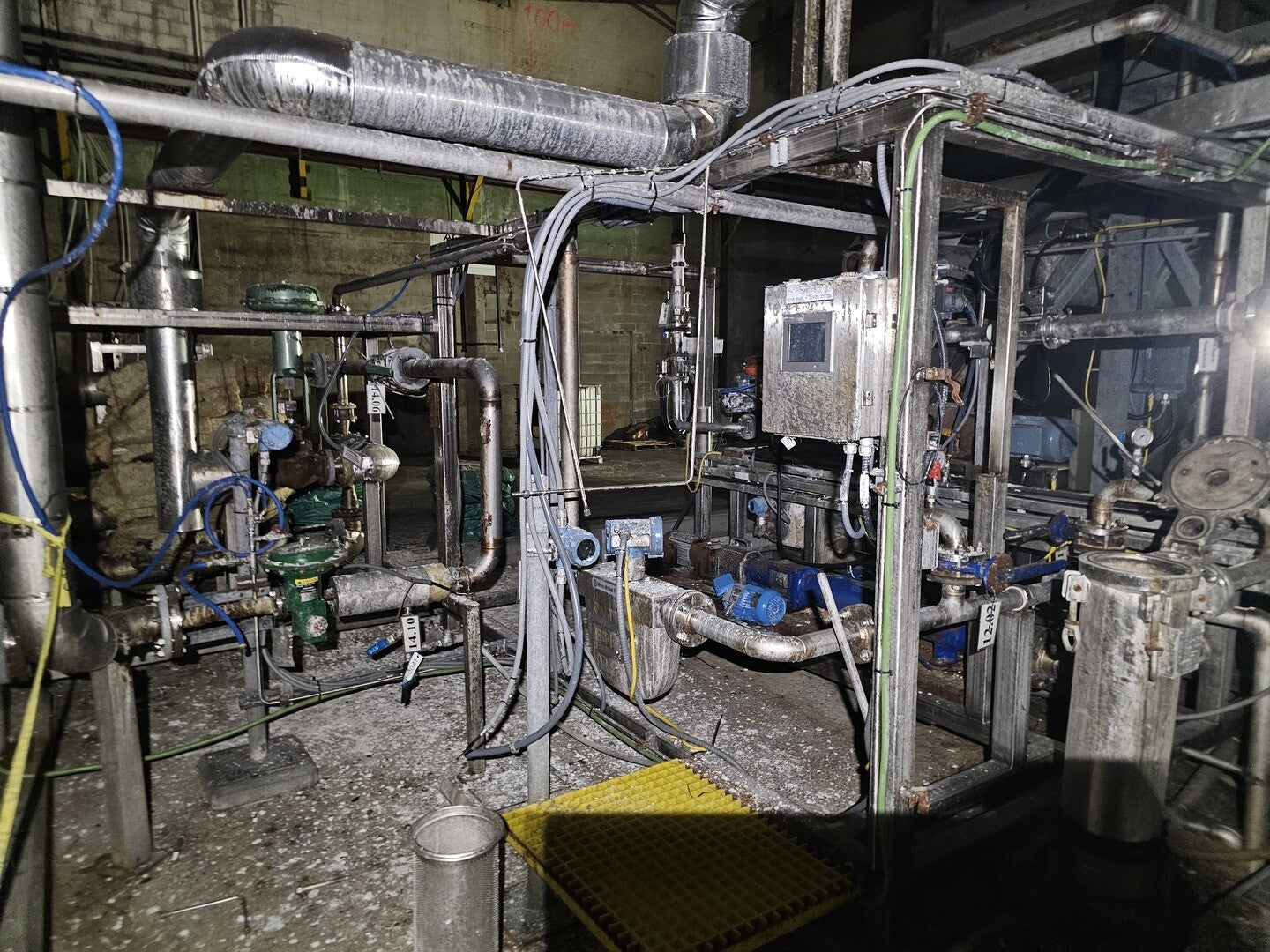

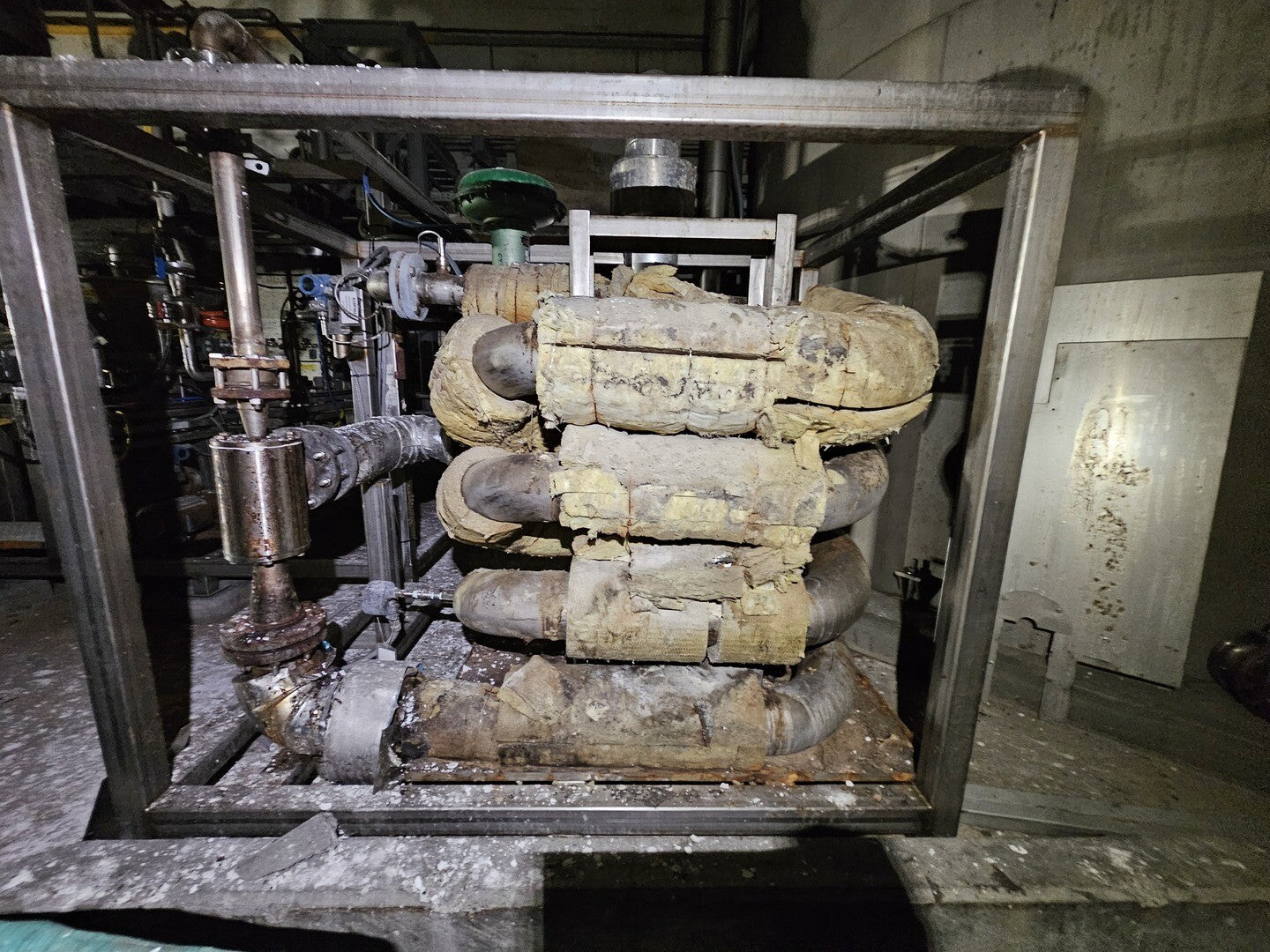

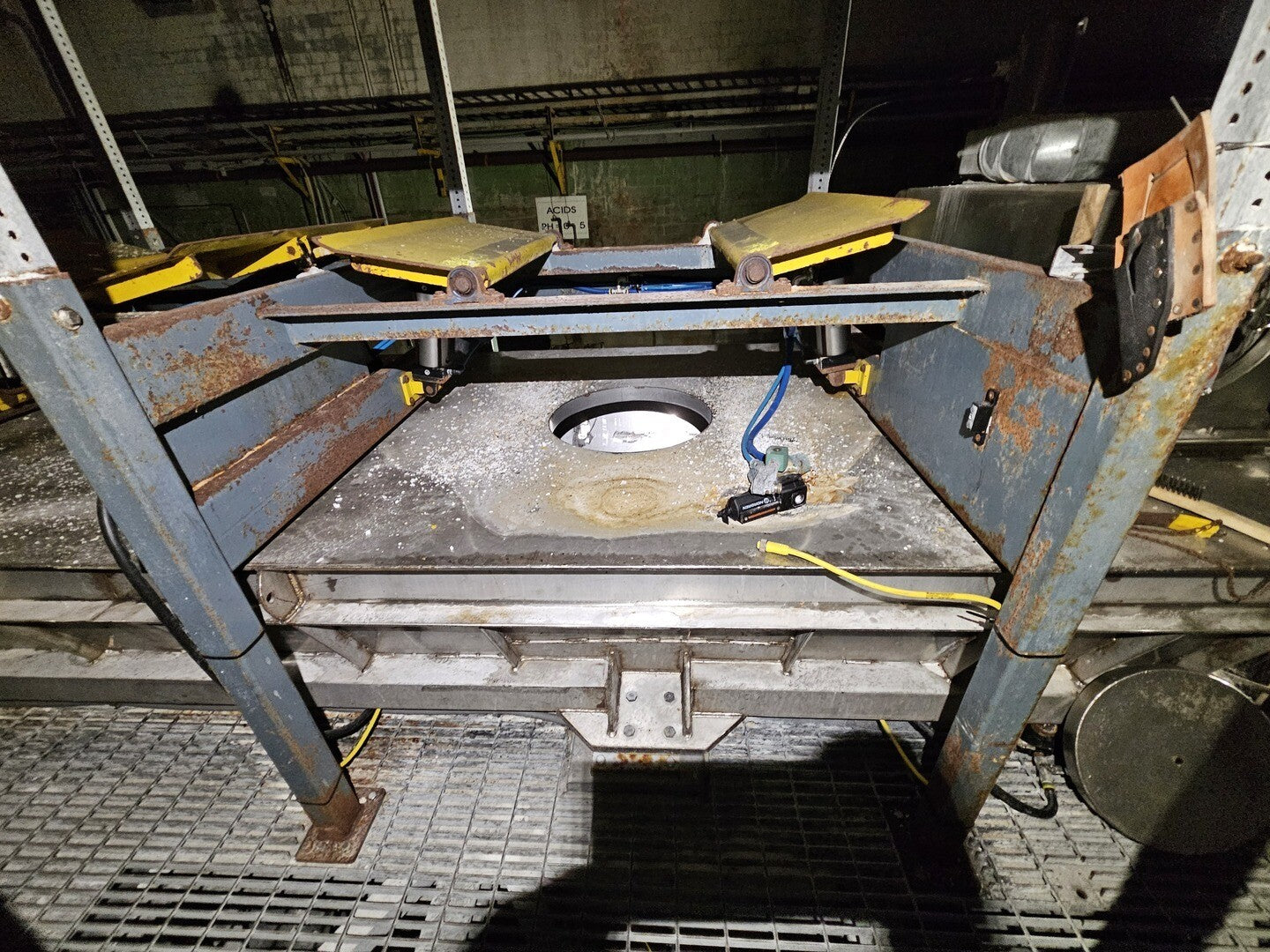

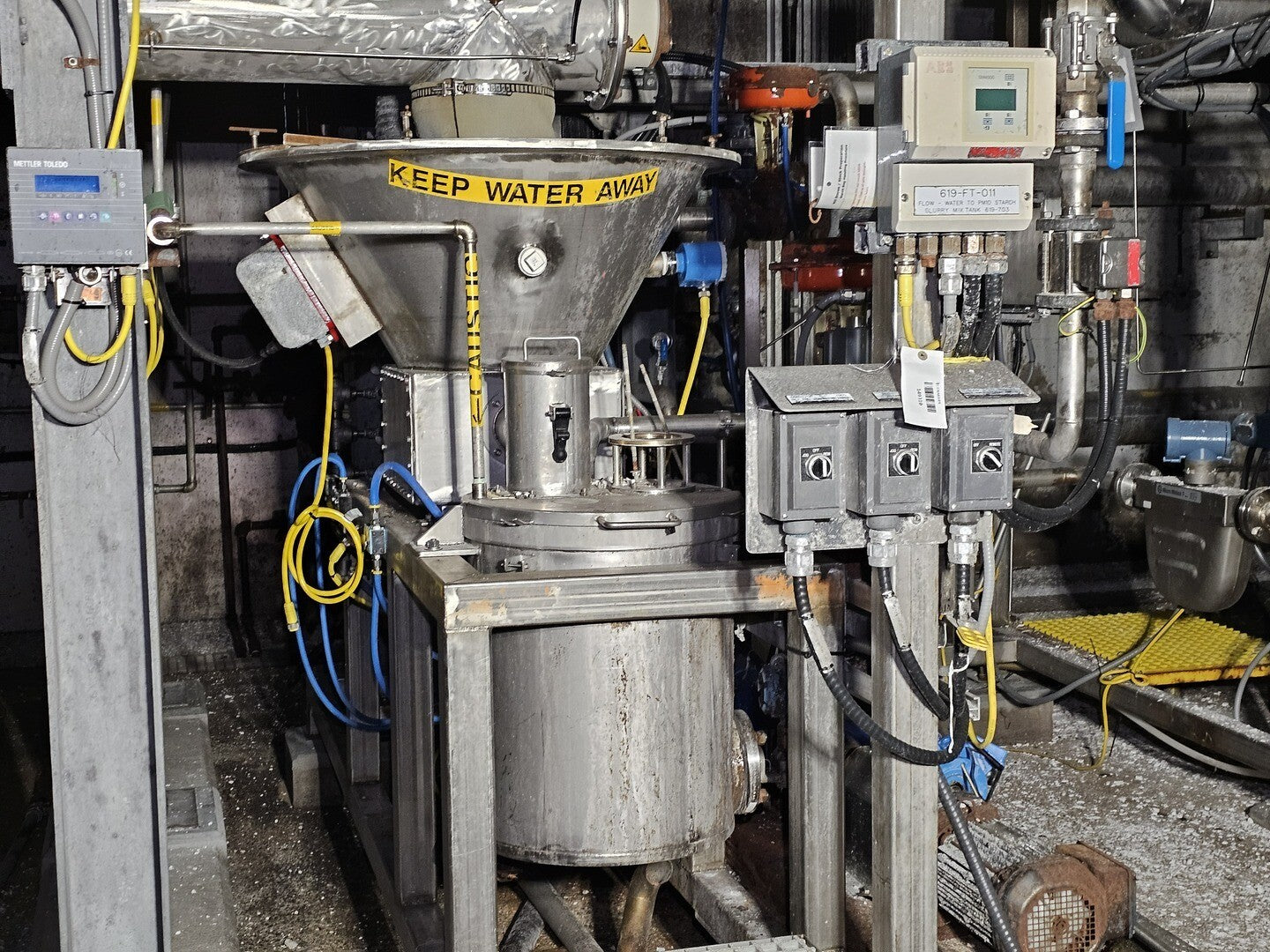

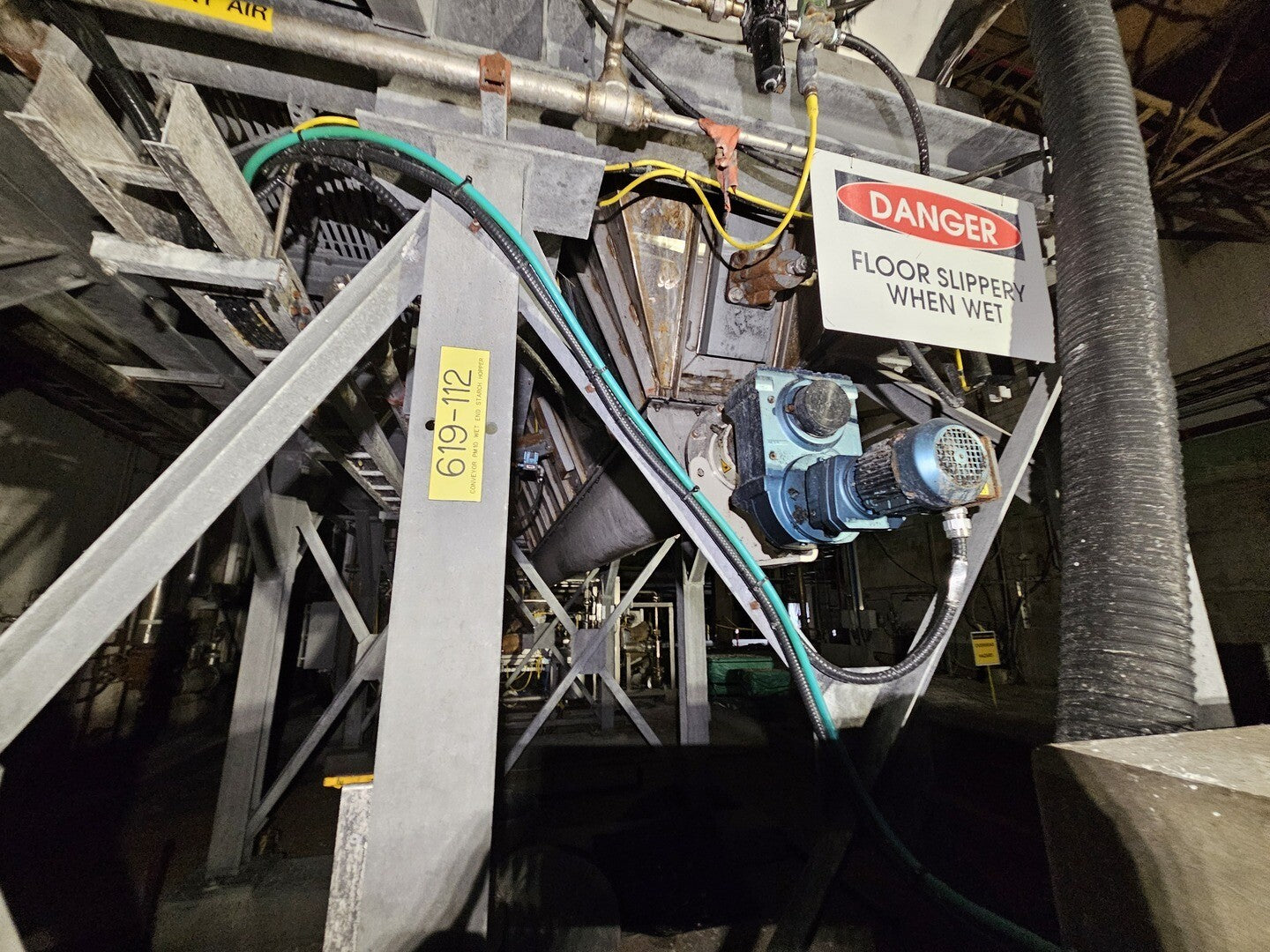

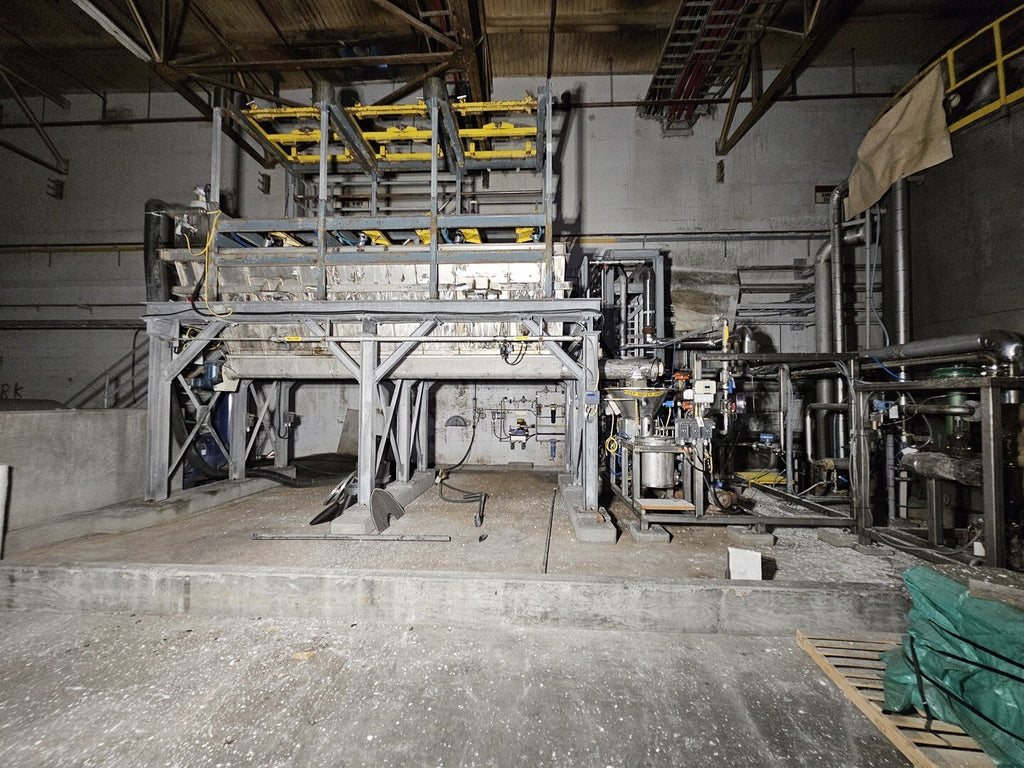

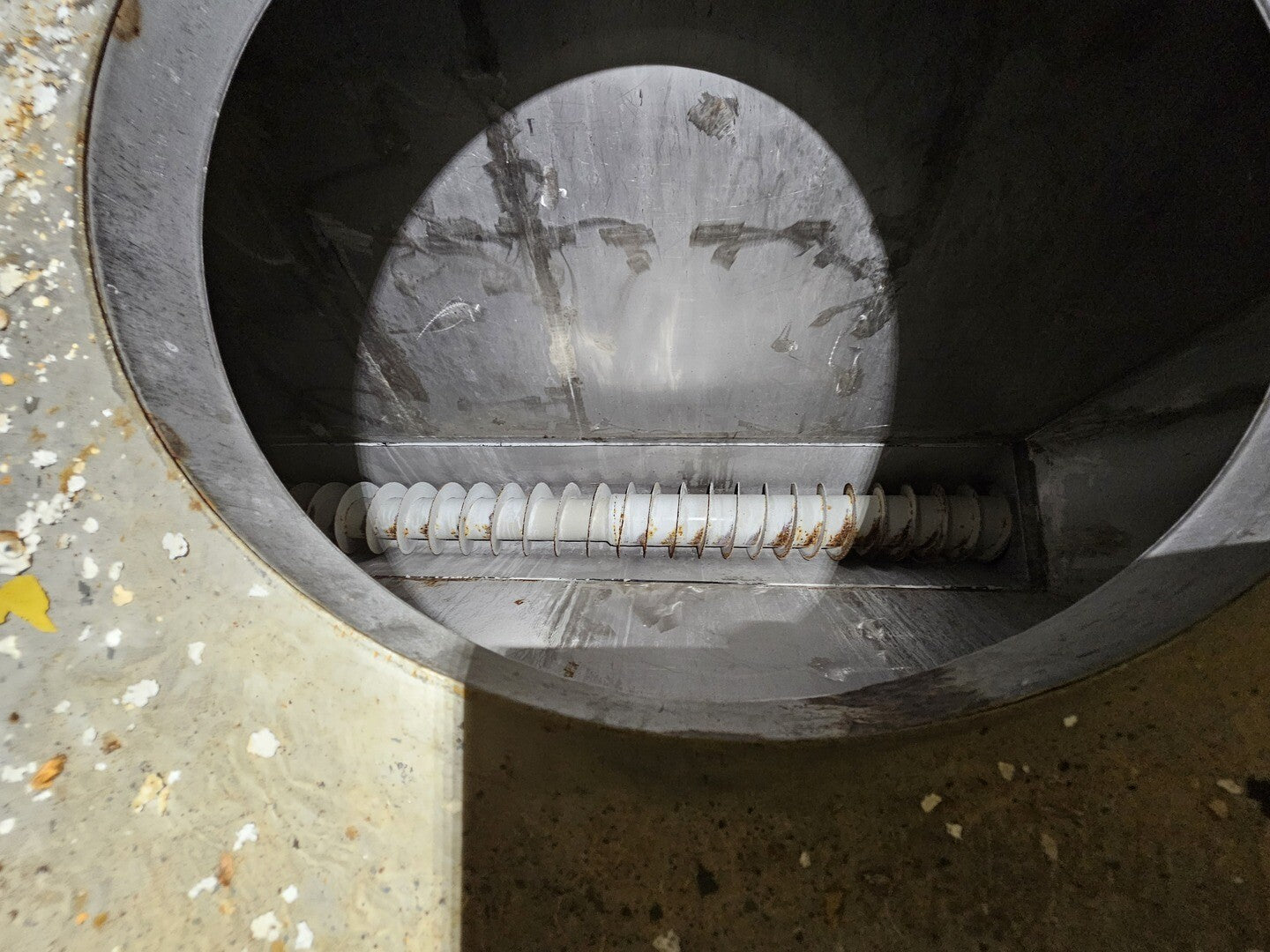

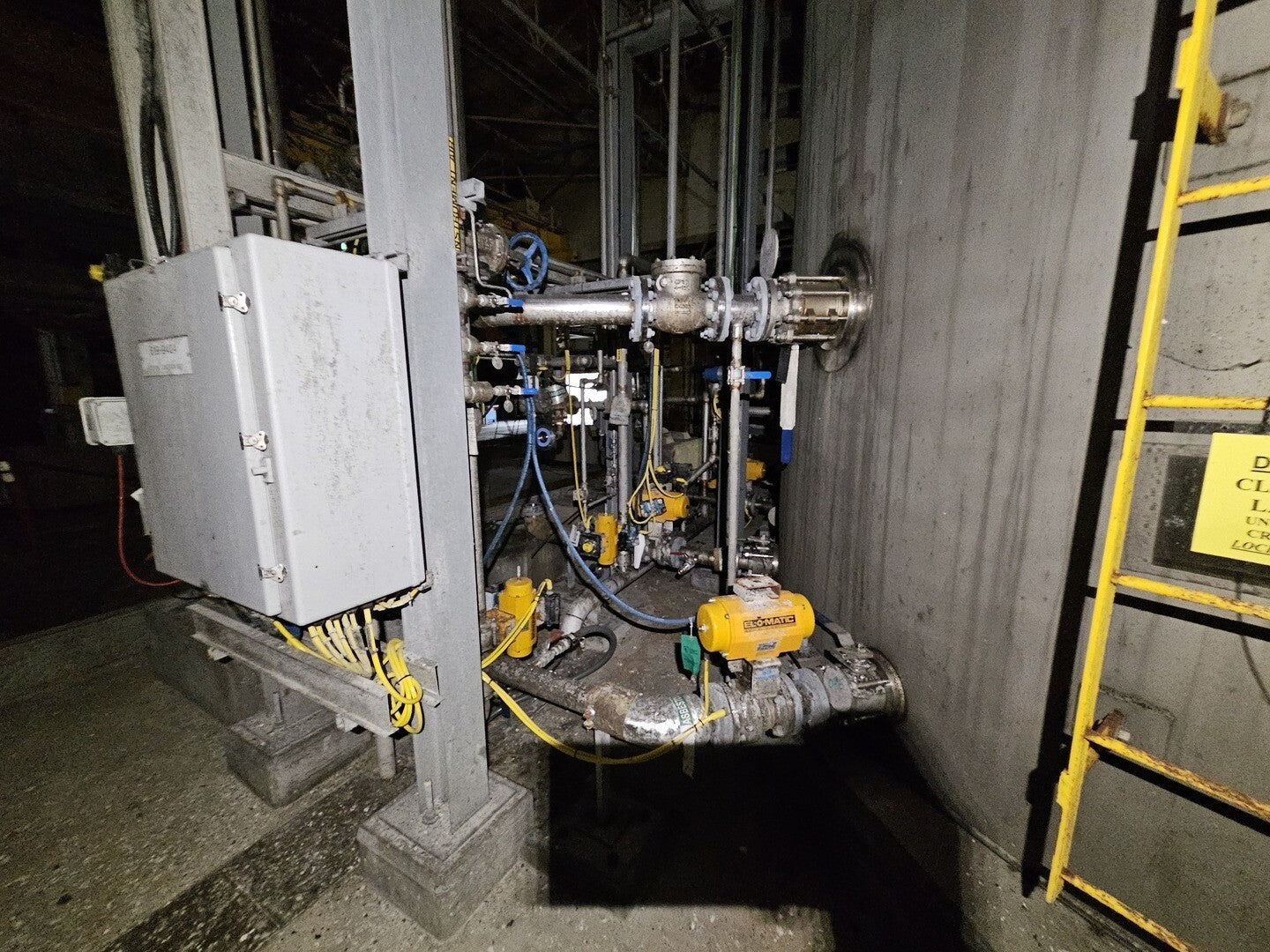

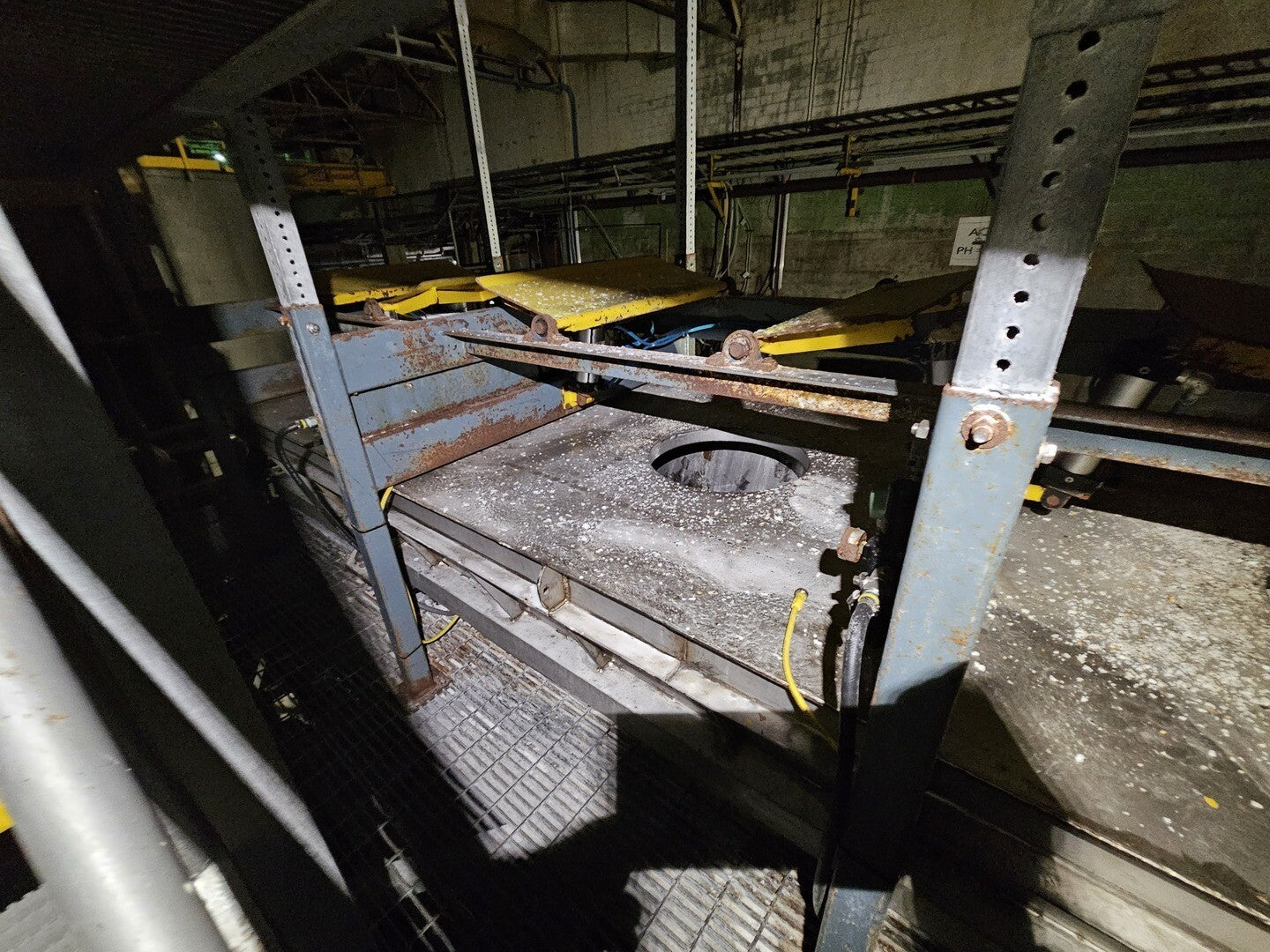

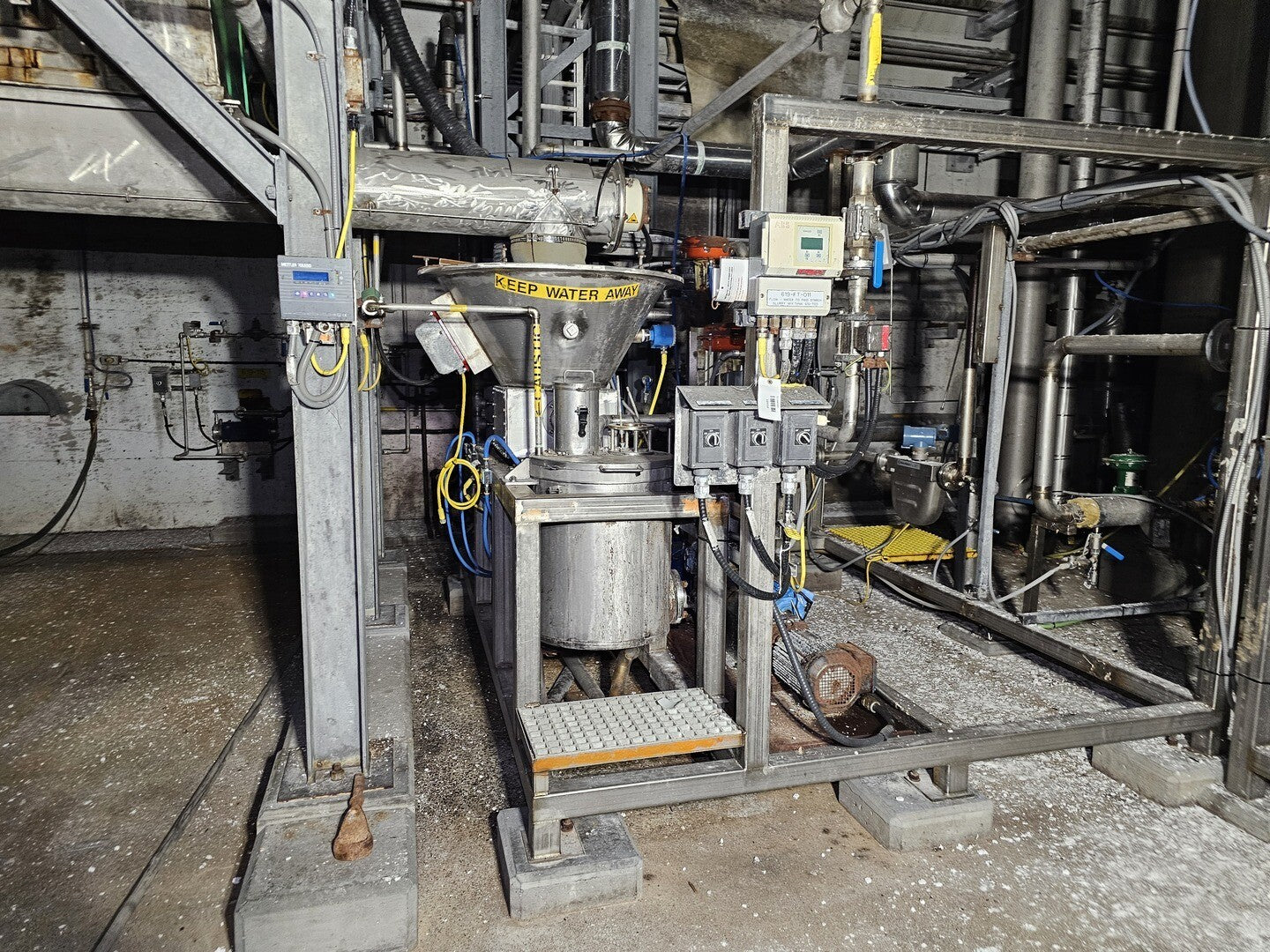

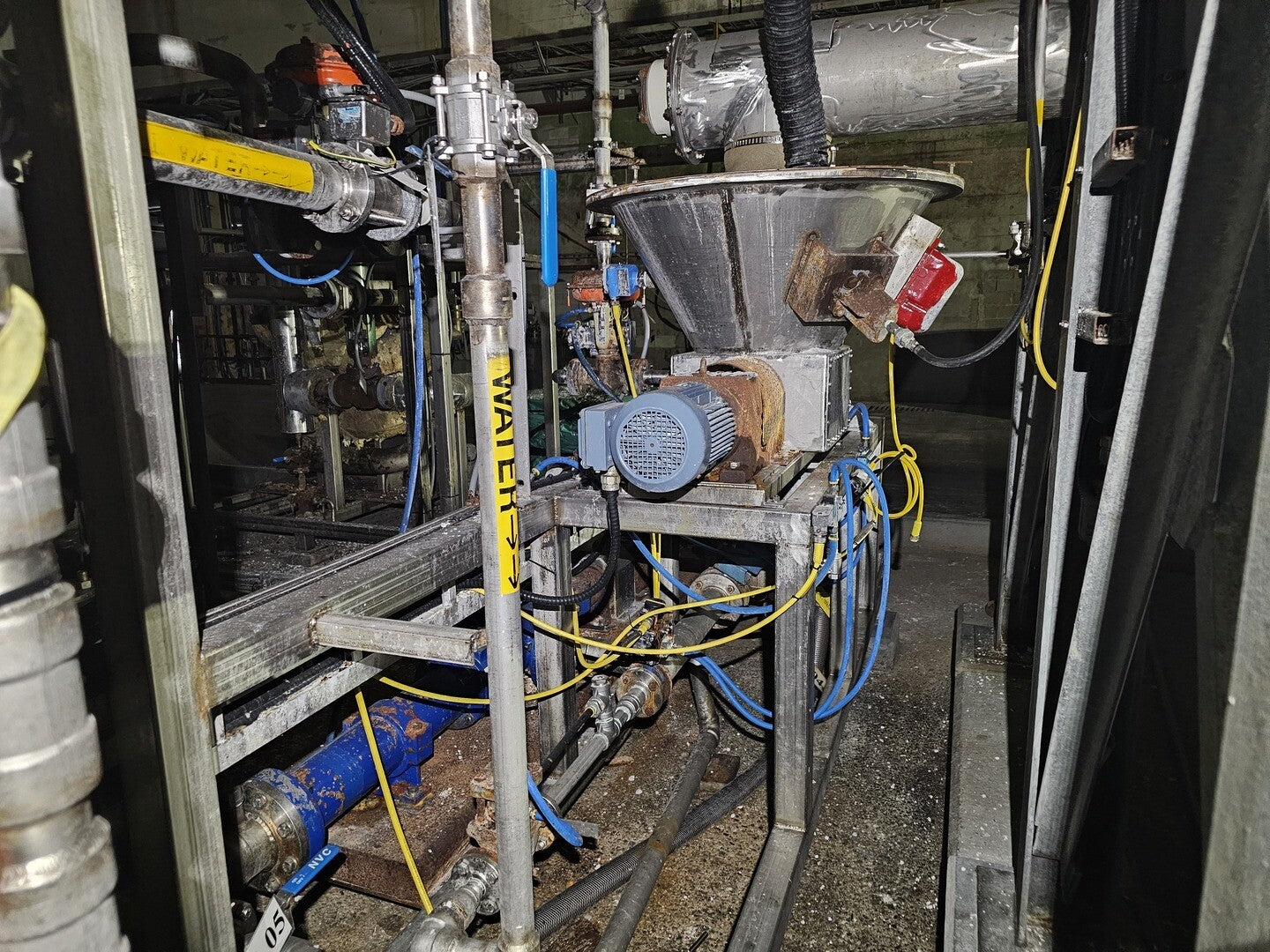

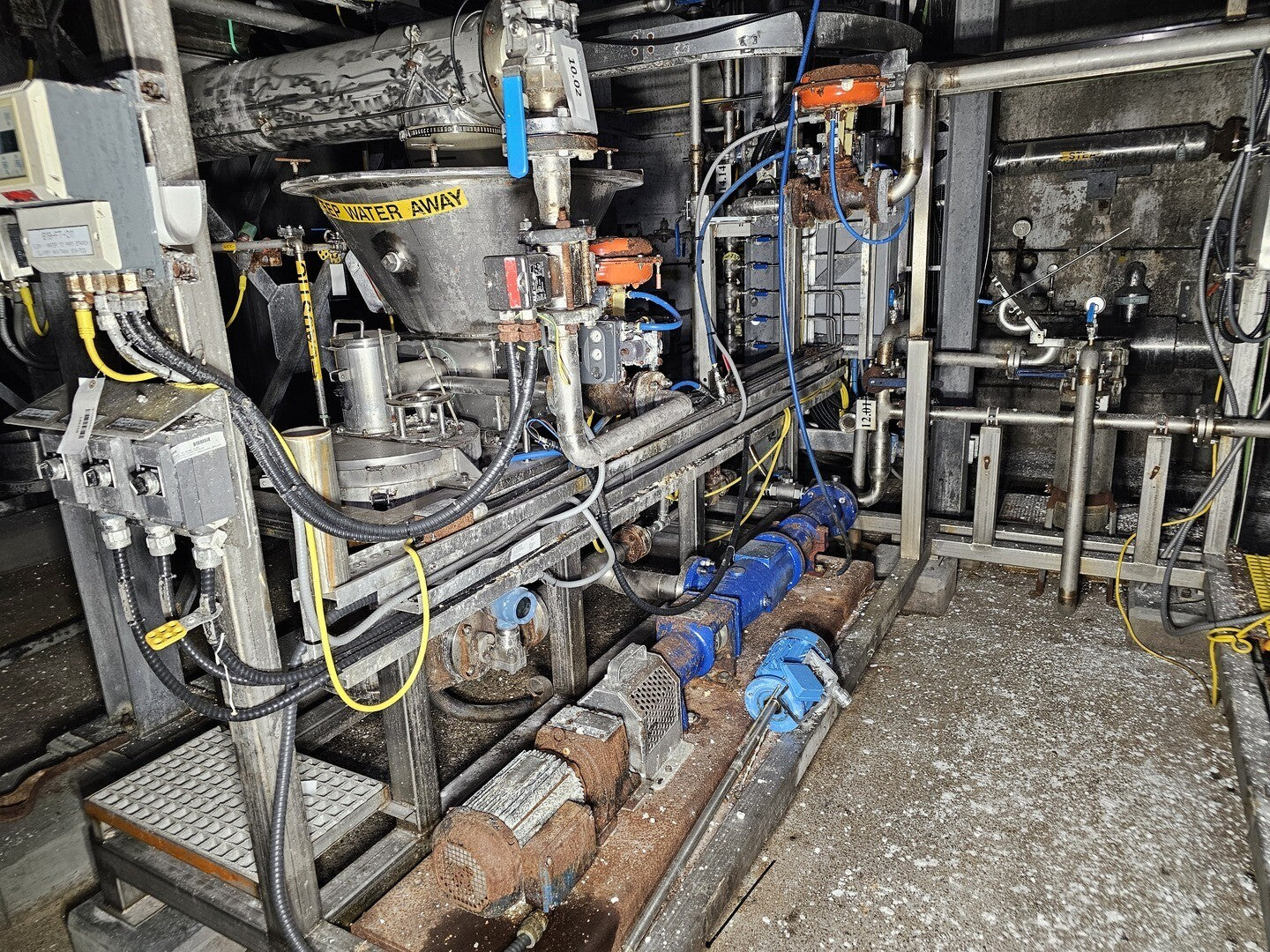

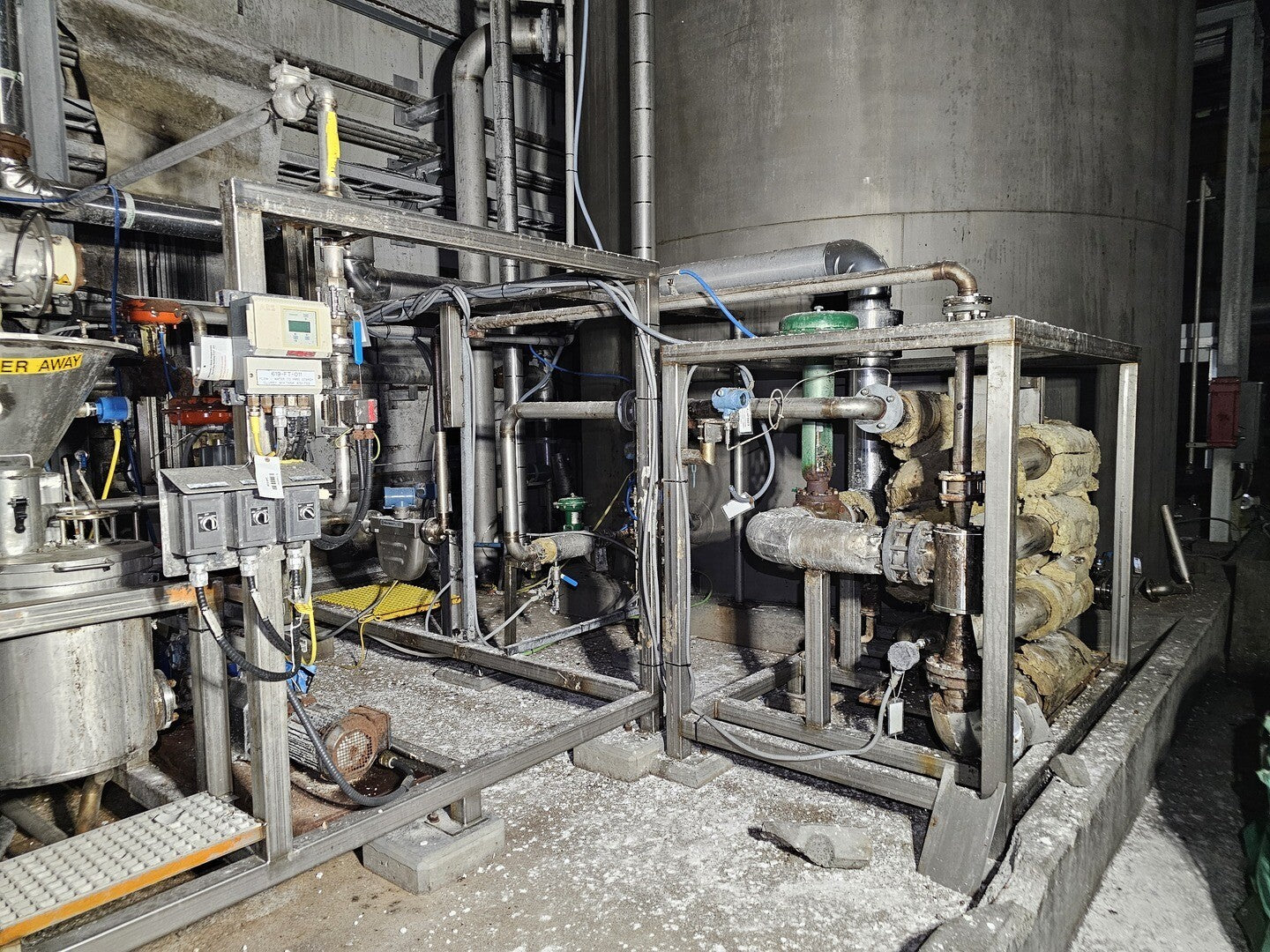

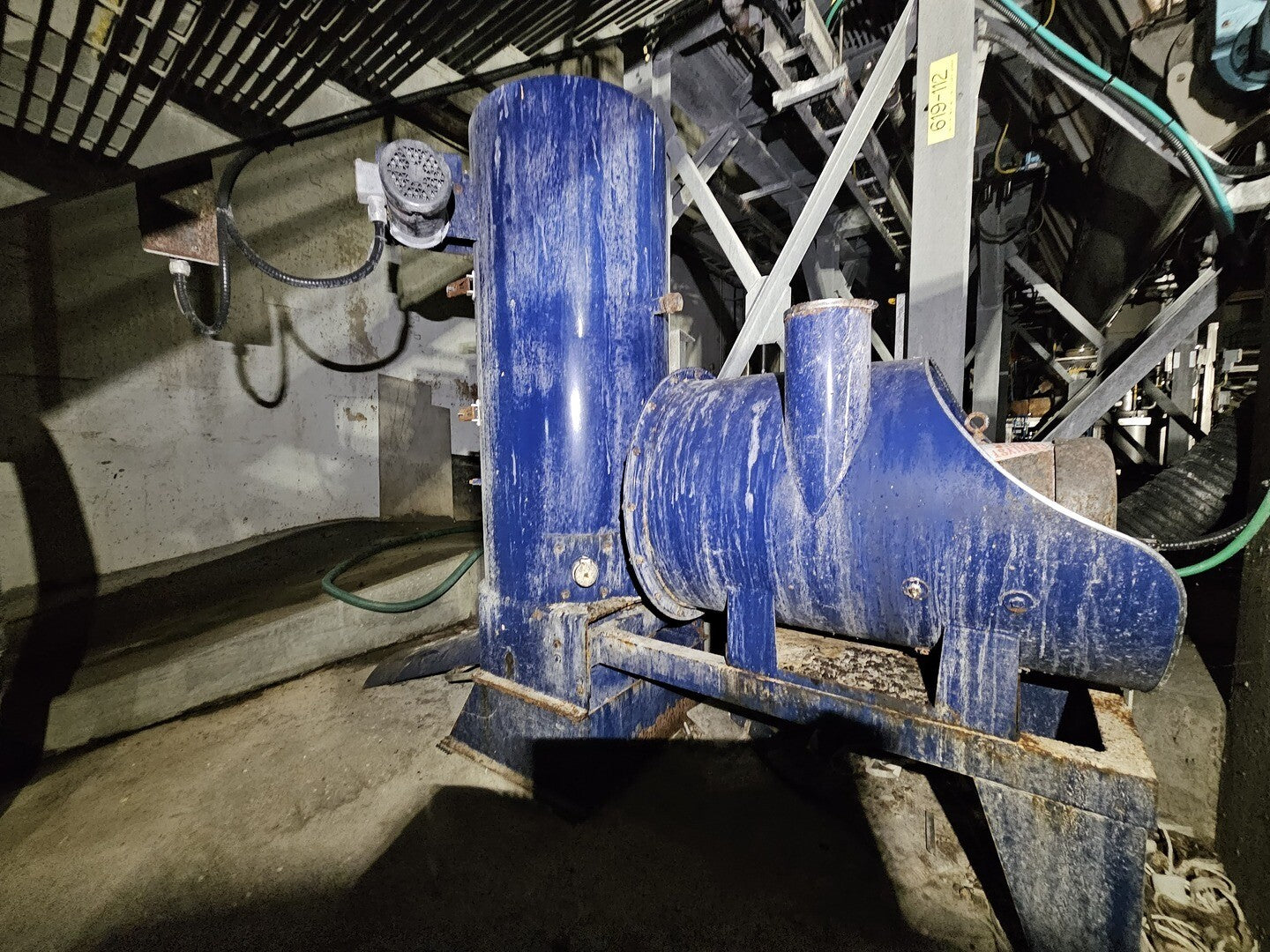

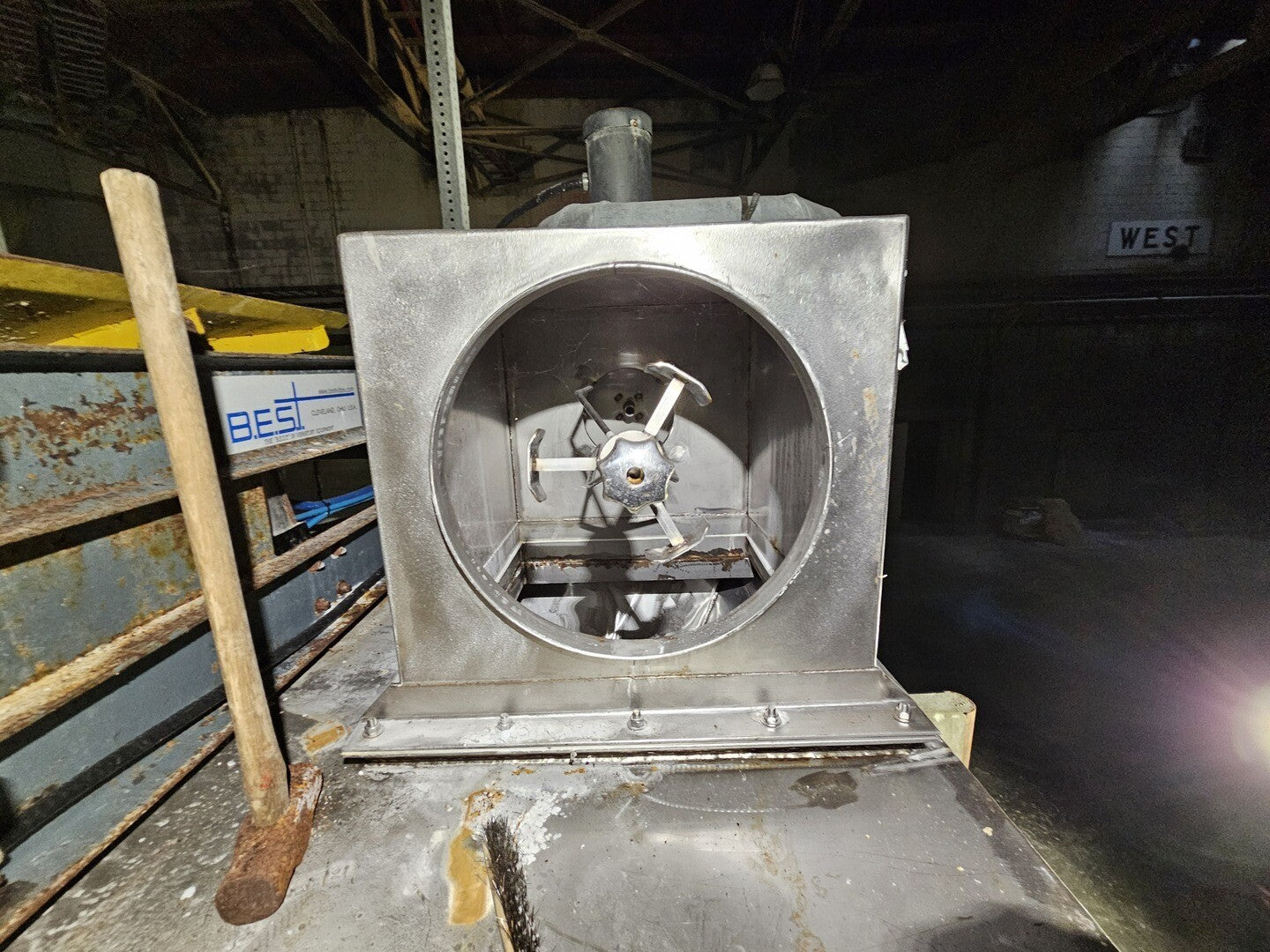

PDF STARCH PASTE TANK DRAWINGS Starch Hopper Size: 18'-2" Length x 5' Width x 4'-8" Height Material Wetted Parts: AISI 304 Conveyor for Starch Hopper Type: Screw conveyor Size: 20'-4" length Material Wetted Parts: AISI 304 Motor Ratings: 1/2 hp, 1800 rpm, 3-ph Starch Cooker Flow: 10.3 cubic meter/hr Material Wetted Parts: 316LSS Cooked Starch Paste Tank Nominal Diameter: 16' I.D. Nominal Height: 18'-1/8" Nominal Capacity: 91.5 cubic meter Design Liquid Level: 14'-5" Max. Design Pressure: Atmospheric / static Design Temperature: 0C to 90C Shell Material: SA-240-316L Material Wetted Parts: 316LSS Starch Mix Tank Volume: 75 L Material Wetted Parts: 316LSS Starch Slurry Mixer Agitator Brand: Turbo Model: RW OF 74 Motor Ratings: 2 hp, 1800 rpm, 575 V, 3-ph Material Wetted Parts: SS316L Starch Slurry Pump Brand: Moyno Model: AZG 55Q3SPA Motor Ratings: 5 hp, 575 V, 3-ph |
