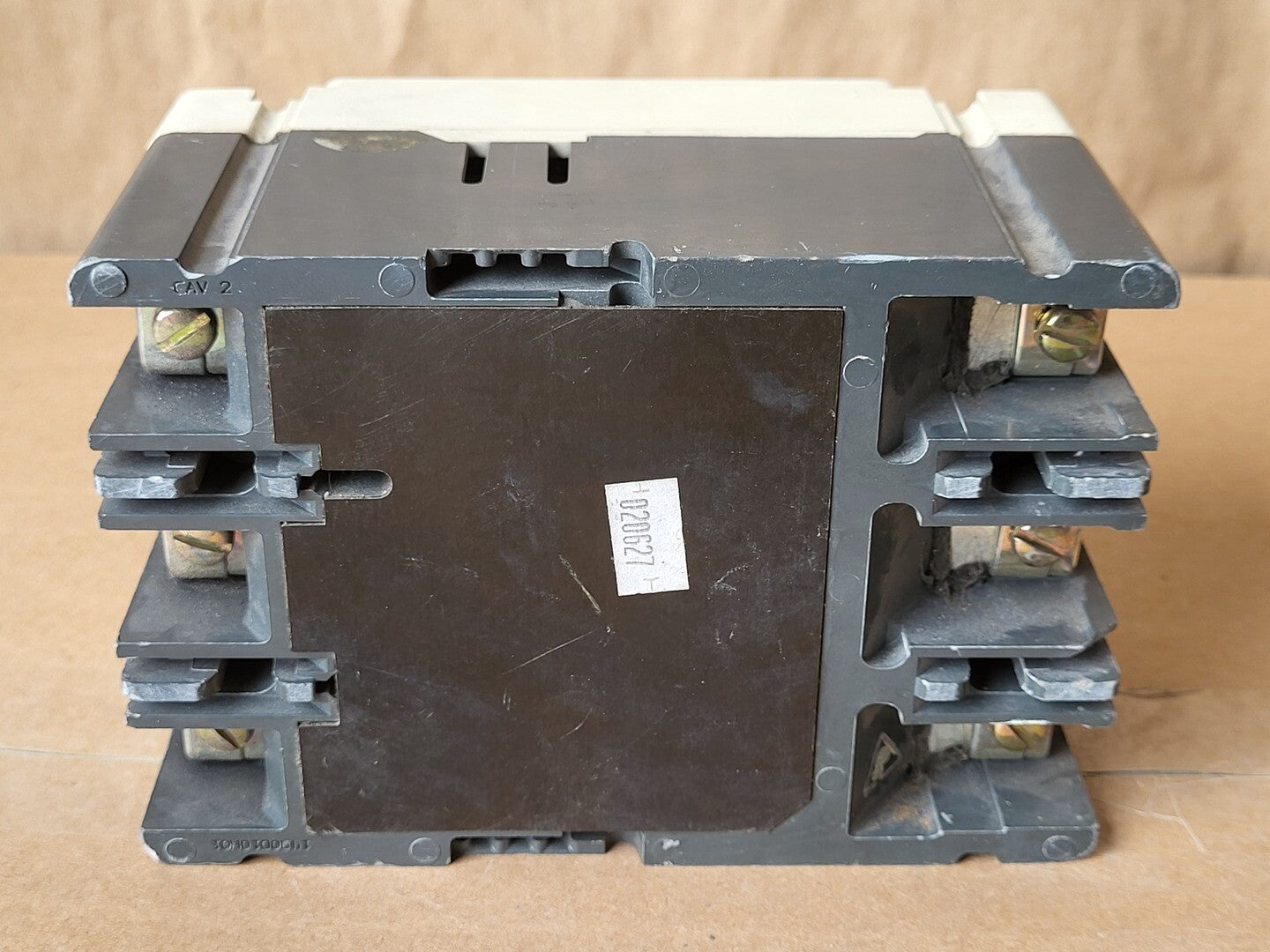

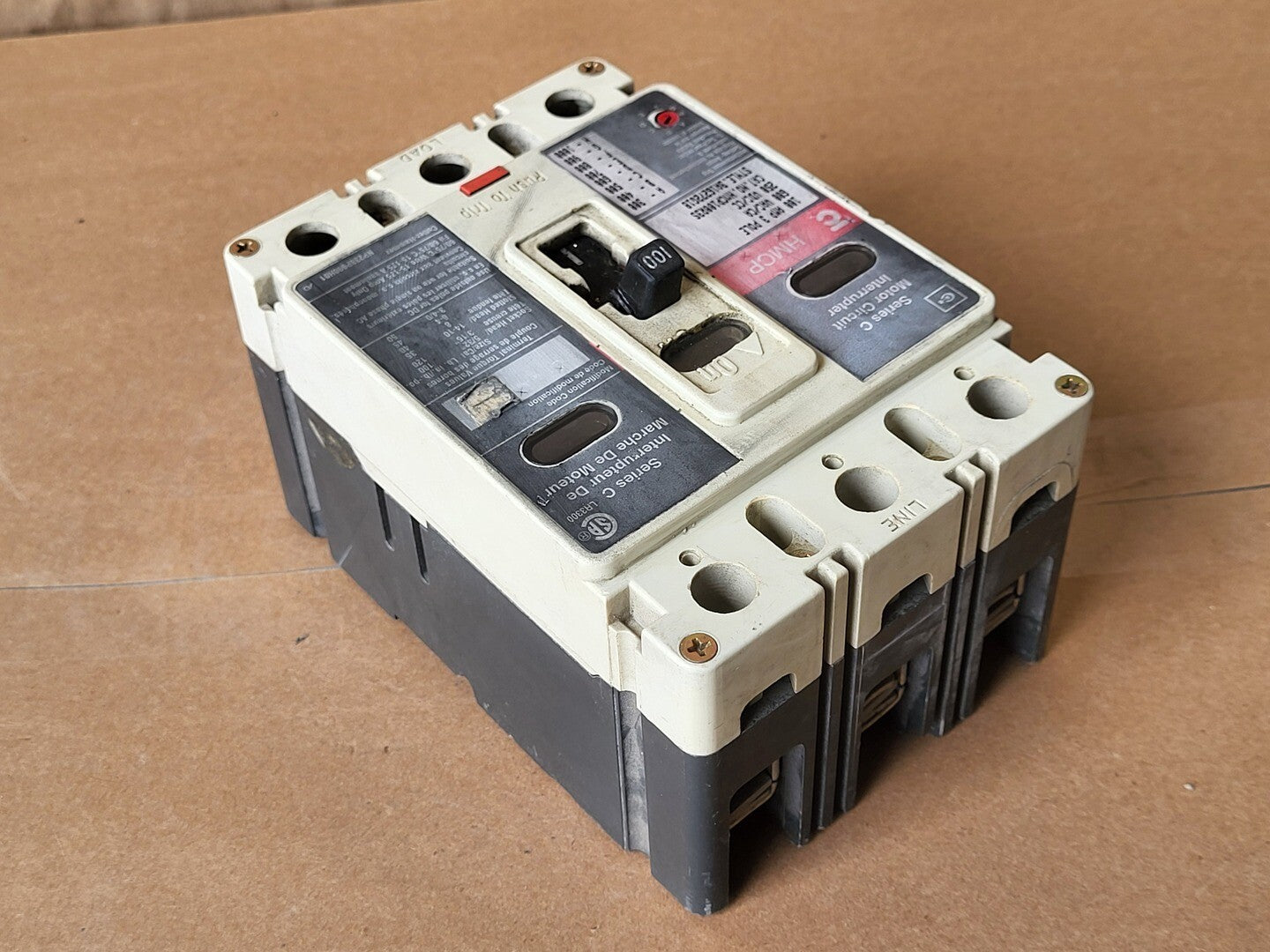

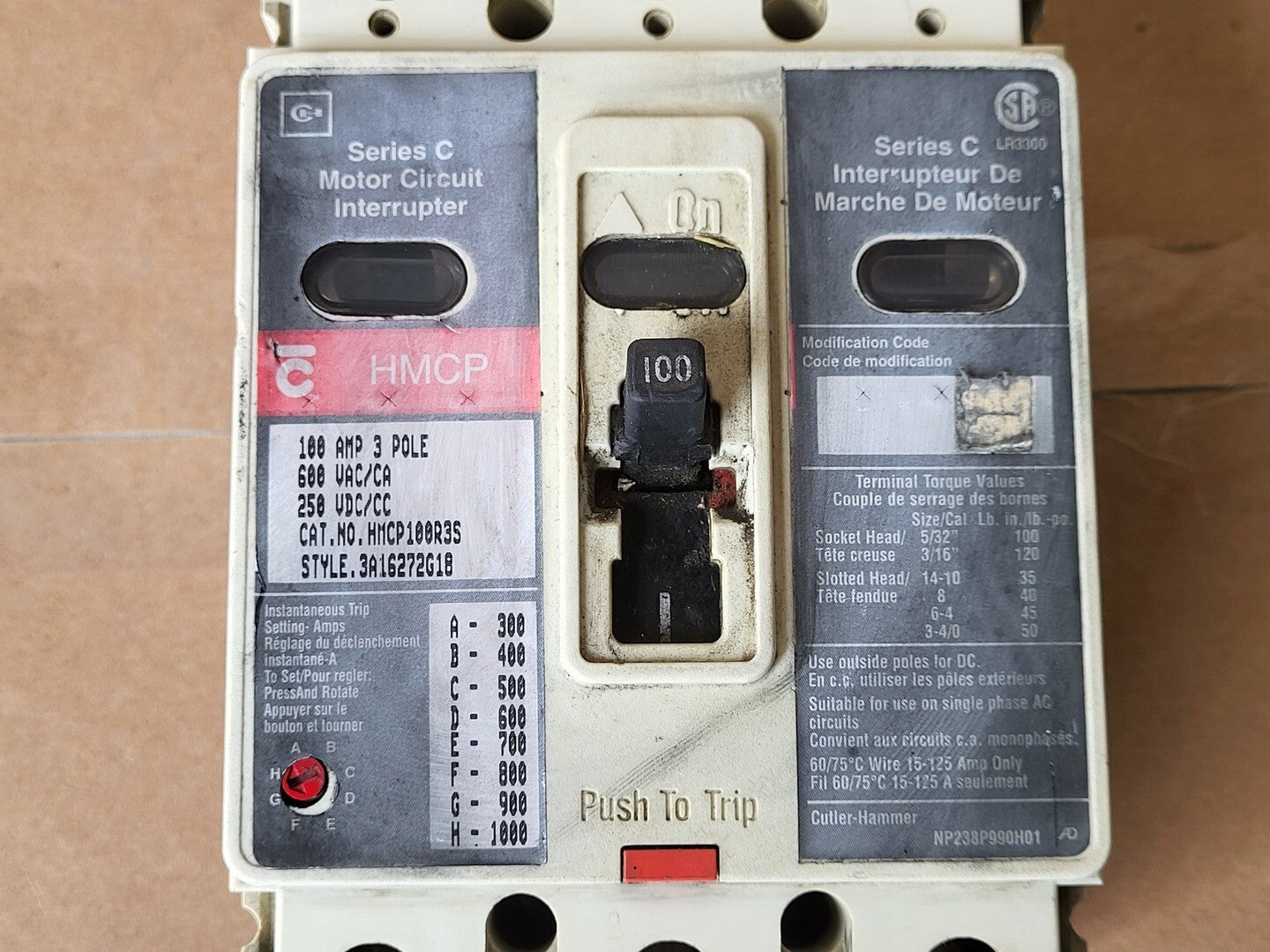

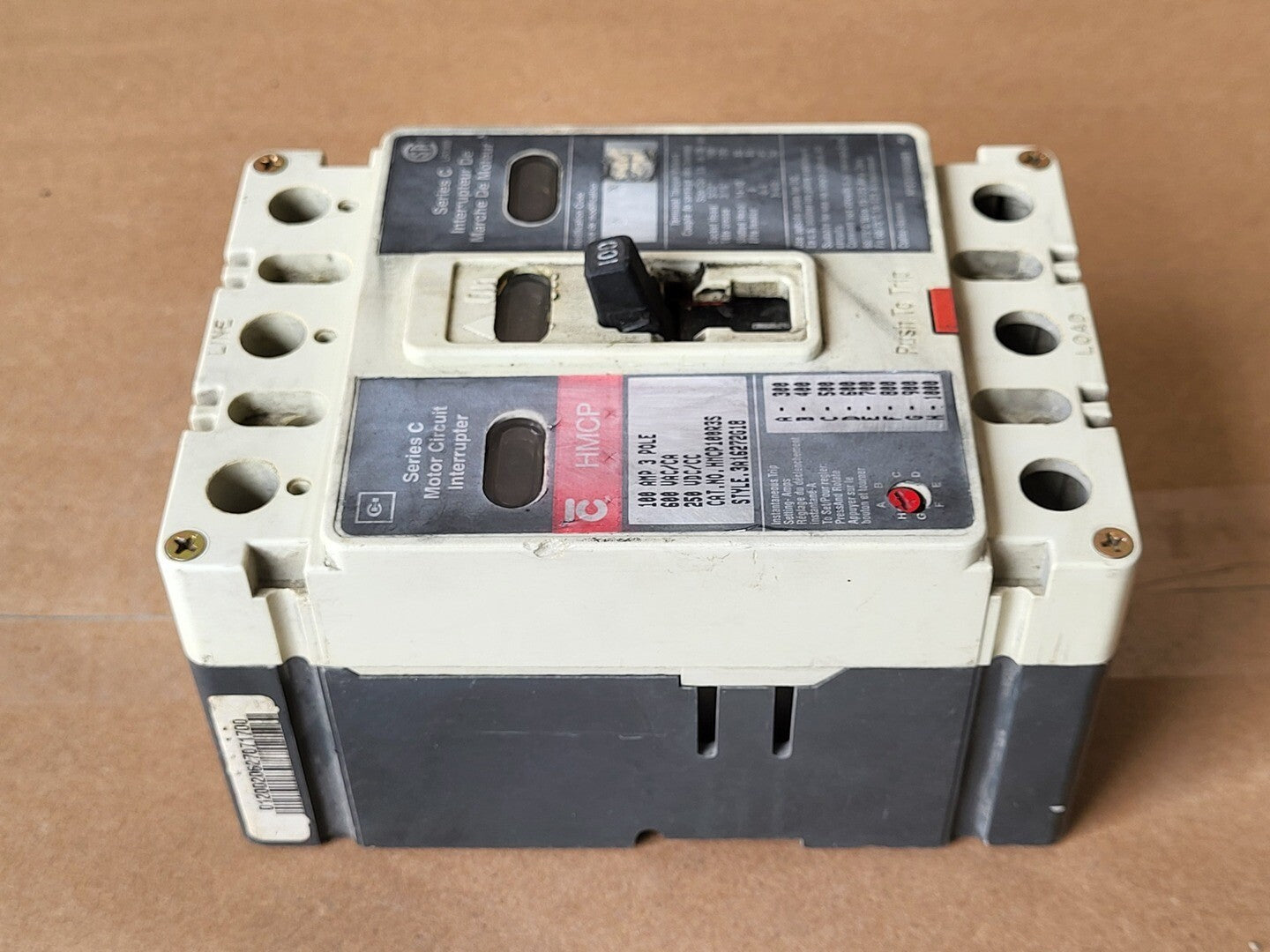

100 Amp, 3 Pole, 600 Volt Circuit Breaker HMCP100R3S

SKU: 139959
Precio:
$149

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

Descripción

The Cutler-Hammer HMCP100R3S is a 3-pole motor circuit protector designed for short-circuit protection of motor circuits. It is rated at 100 amps and operates at up to 600 VAC or 250 VDC. This MCP uses a magnetic-only, instantaneous trip mechanism to quickly disconnect in the event of a short circuit. It is not intended for overload protection. With a 25 kA interrupting capacity at 600 VAC and bolt-on mounting style, it is ideal for industrial motor control panels. Certified to UL 489, CSA, and CE standards, the HMCP100R3S provides reliable protection for motor applications.
Specifications
Model HMCP100R3S
Year: 2002
Condition Used
General
Amps 100 amps
Series C
# of Poles 3
Mounting Style Bolt-On
Voltage 600 volts
Phase 3-phase
AFCI No
GFCI No
Other Specifications

Overview:

  • Part Number: HMCP100R3S
  • Brand: Cutler-Hammer
  • Frame: Series C F-frame
  • Type: Motor Circuit Protector (MCP)
  • Number Of Poles: 3-Pole
  • Rated Current: 100 A
  • Rated Voltage: 600 VAC / 250 VDC
  • Interrupting Capacity: 25 kA At 600 VAC
  • Trip Type: Magnetic-Only Instantaneous
  • Mounting Style: Bolt-On / Panel Mount
  • Certifications: UL 489, CSA C22.2, CE
