MV MANUFACTURING GROUP

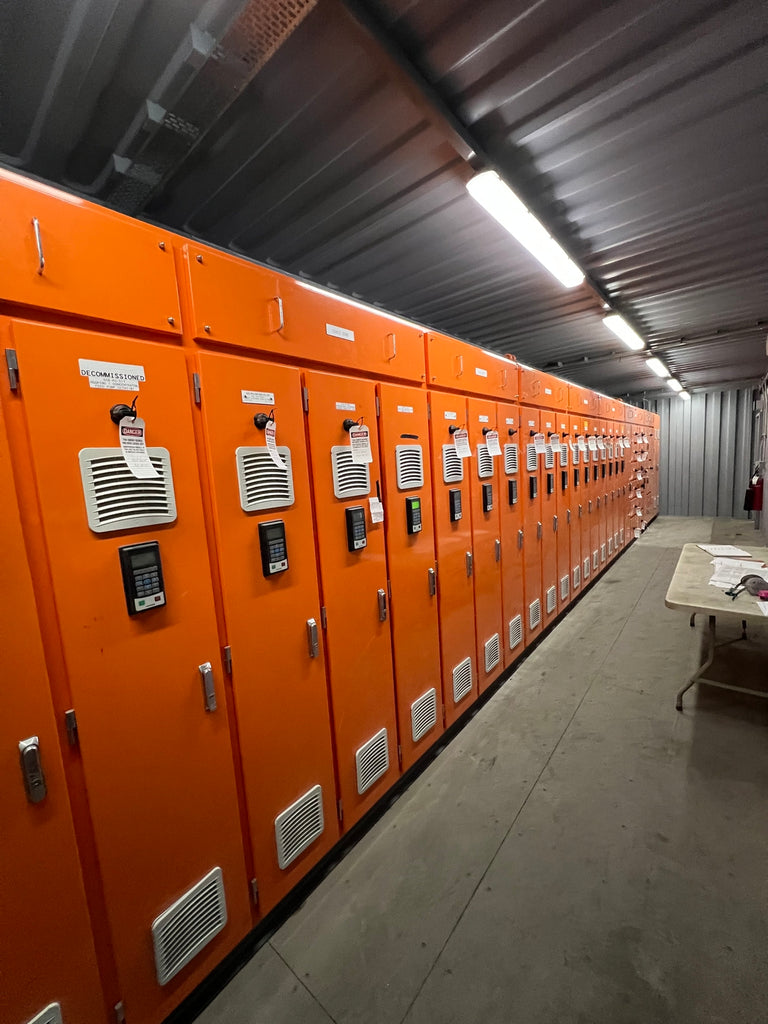

1200A Motor Control Center MCC, 575V, 1200A Bus, Form 4A, IP42 Enclosure

SKU: 137980

¿Necesita una respuesta ahora?

604-449-1880

Finance

Term:

Amount:

Email Finance

Condition

Used

Other Specifications

PDF Single Line Diagrams

Original Designation: MCC-D Gravity & Grinding

Bus Voltage: 575 V

Short Circuit Rating: 25 kA rms Sym

Board Rated: 1200 A

Horizontal Busbar Rated: 1200 A

Vertical Busbar Rated: 1200 A

Form: 4A

Enclosure: IP42 custom built

Main Equipment Summary

Main Switch: 1200 A Switch

Motor Control Assemblies:

(1) 450 kW (Free standing VSD, external to MCC)
(1) 0.18 kW
(1) 5.5 kW
(3) 7.5 kW
(1) 1.5 kW
(1) 55 kW
(1) 2.33 kW
(2) 15 kW
(1) 3 kW
(1) 0.055 KW

Supply Sections:

(1) 4 kVA, 575 VAC to 110 VAC Control Transformer
(3) 575 VAC to 24 VDC Control Power Supply
