Descripción

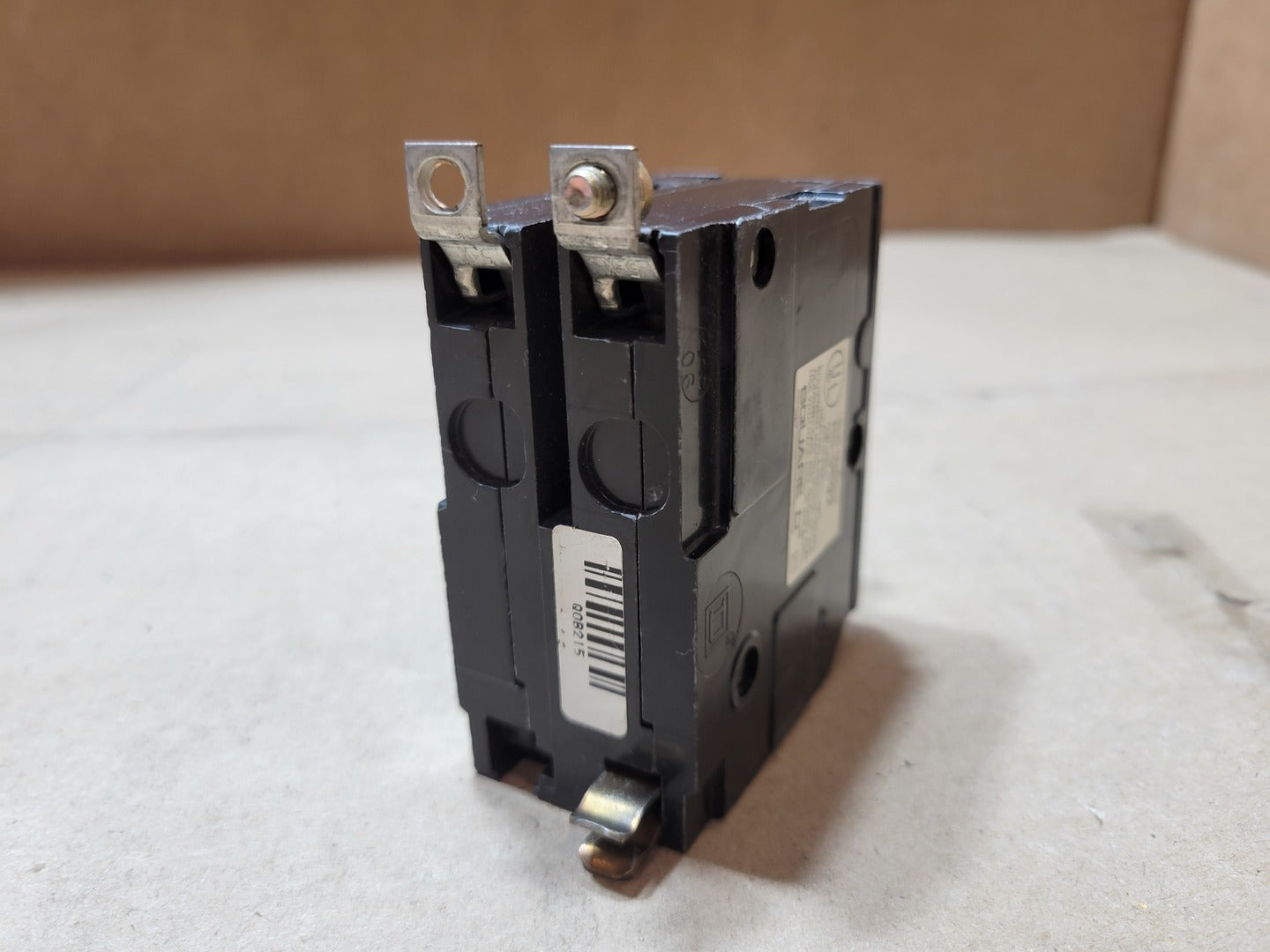

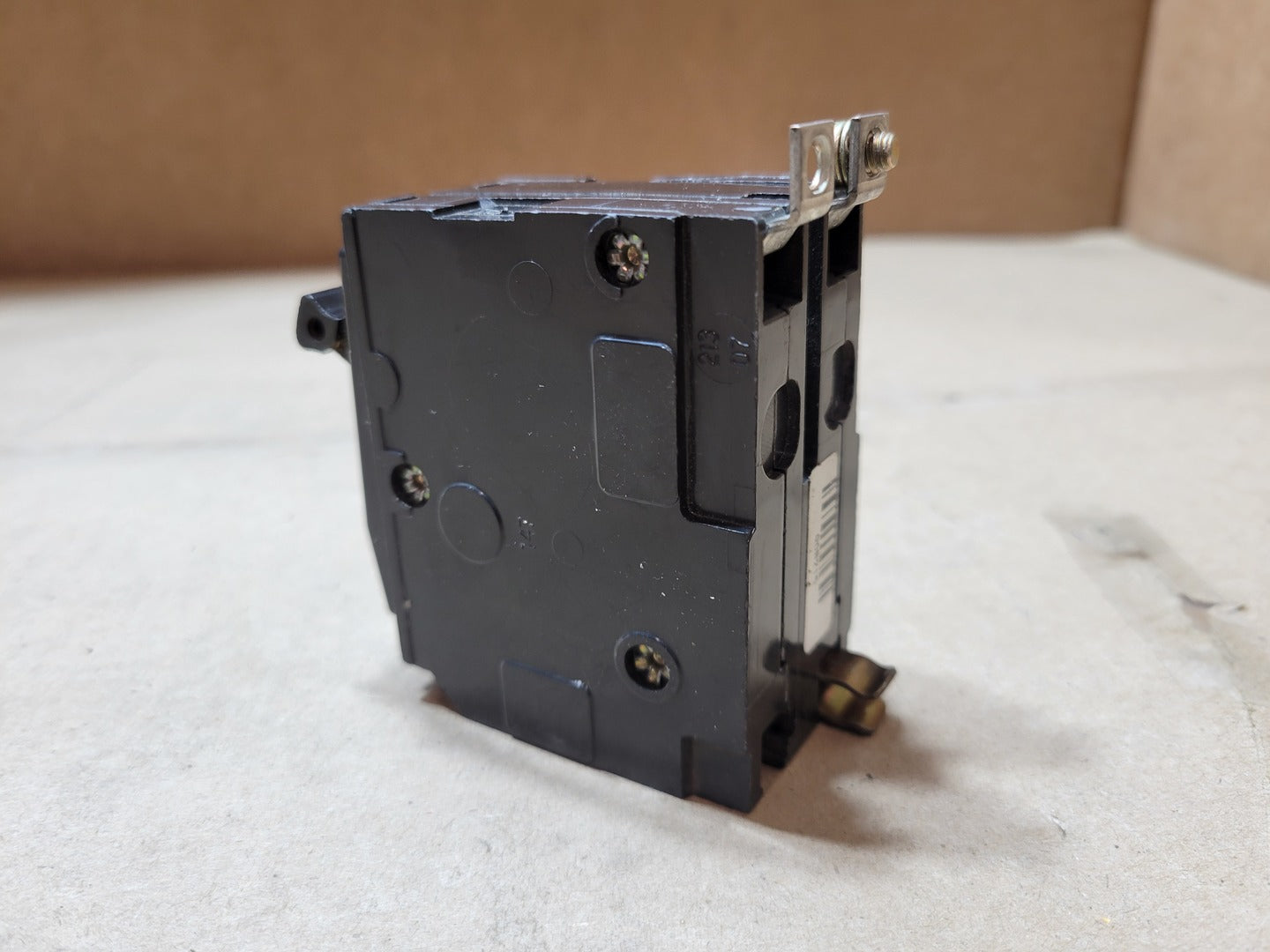

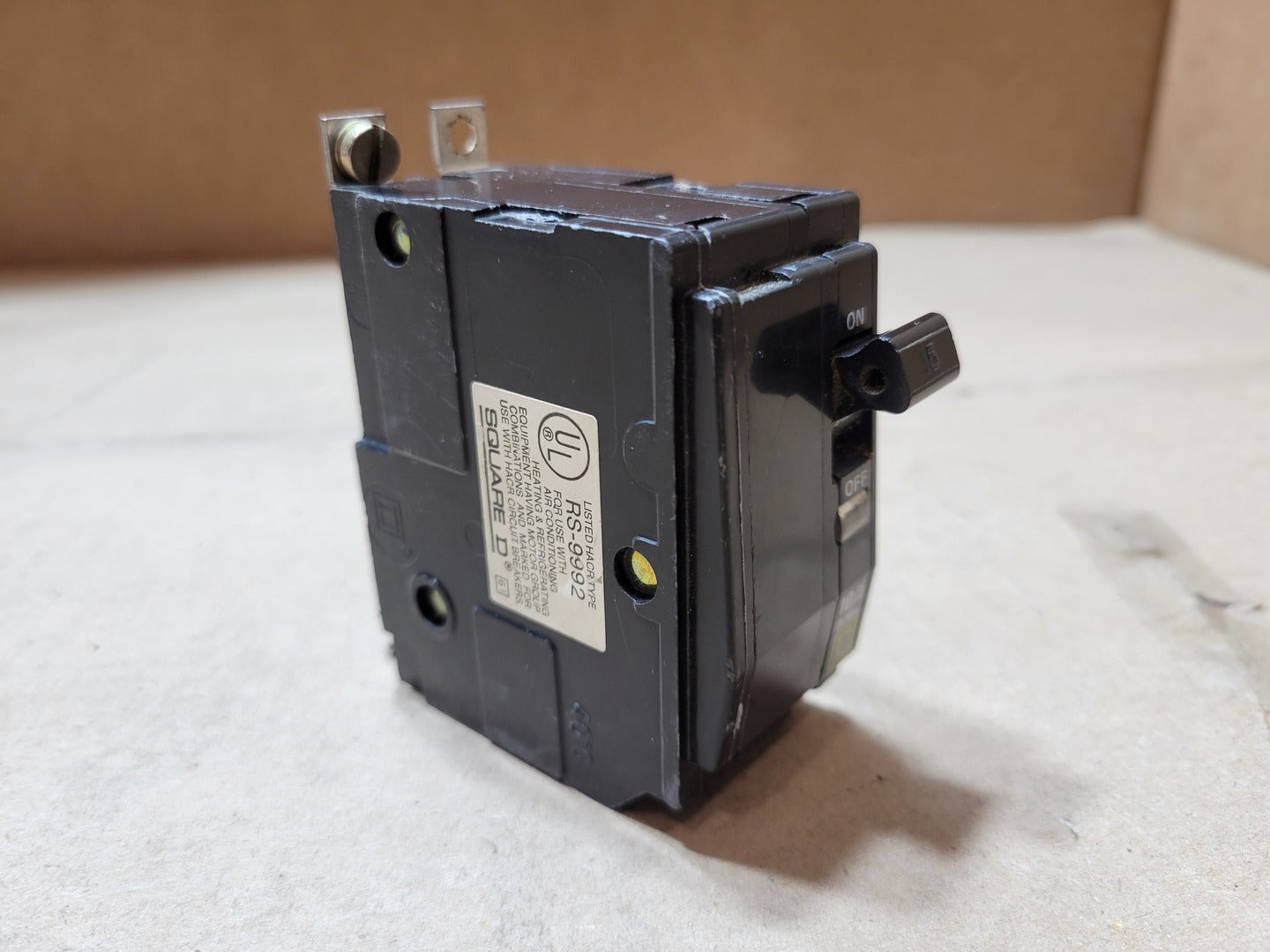

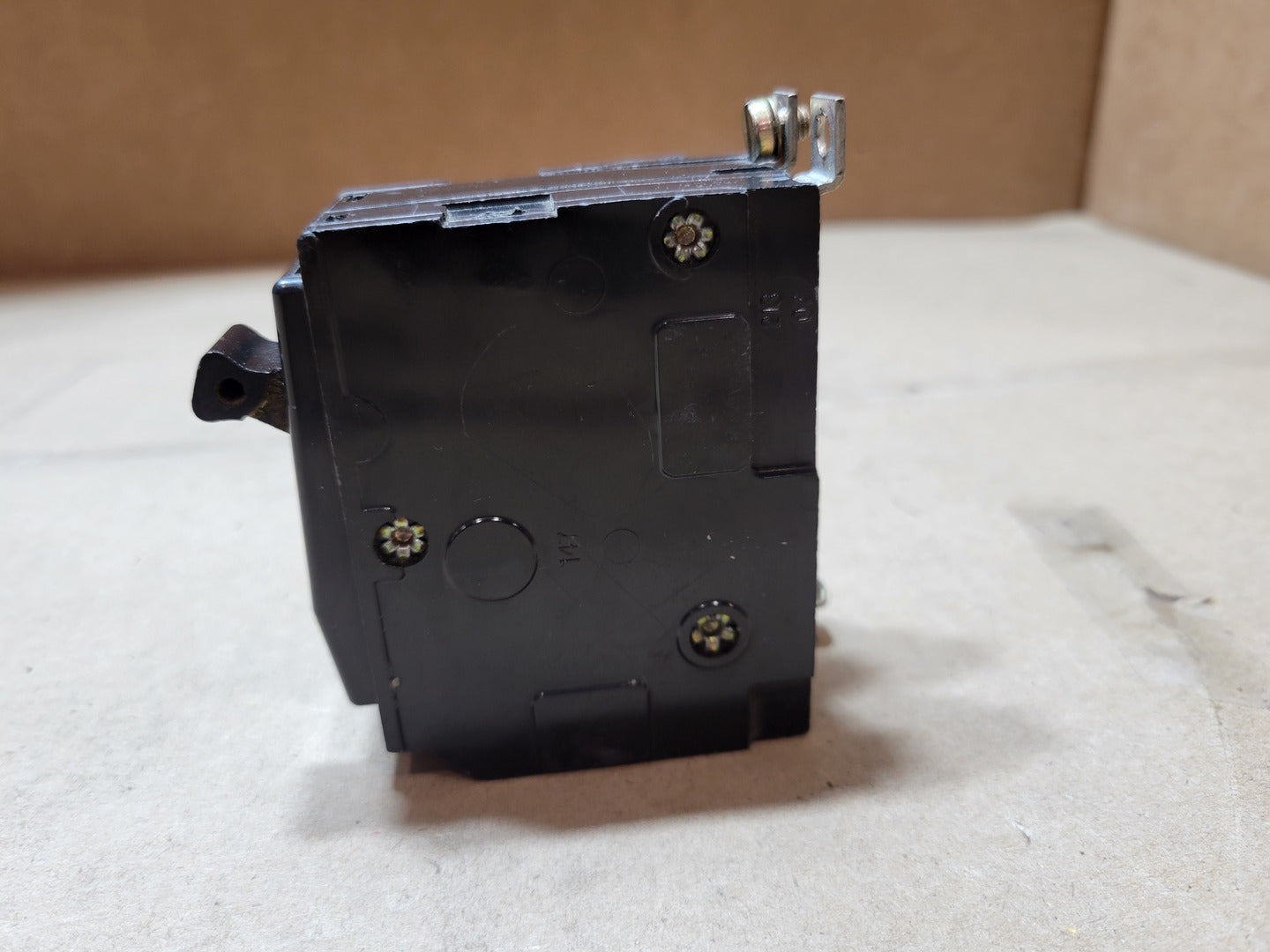

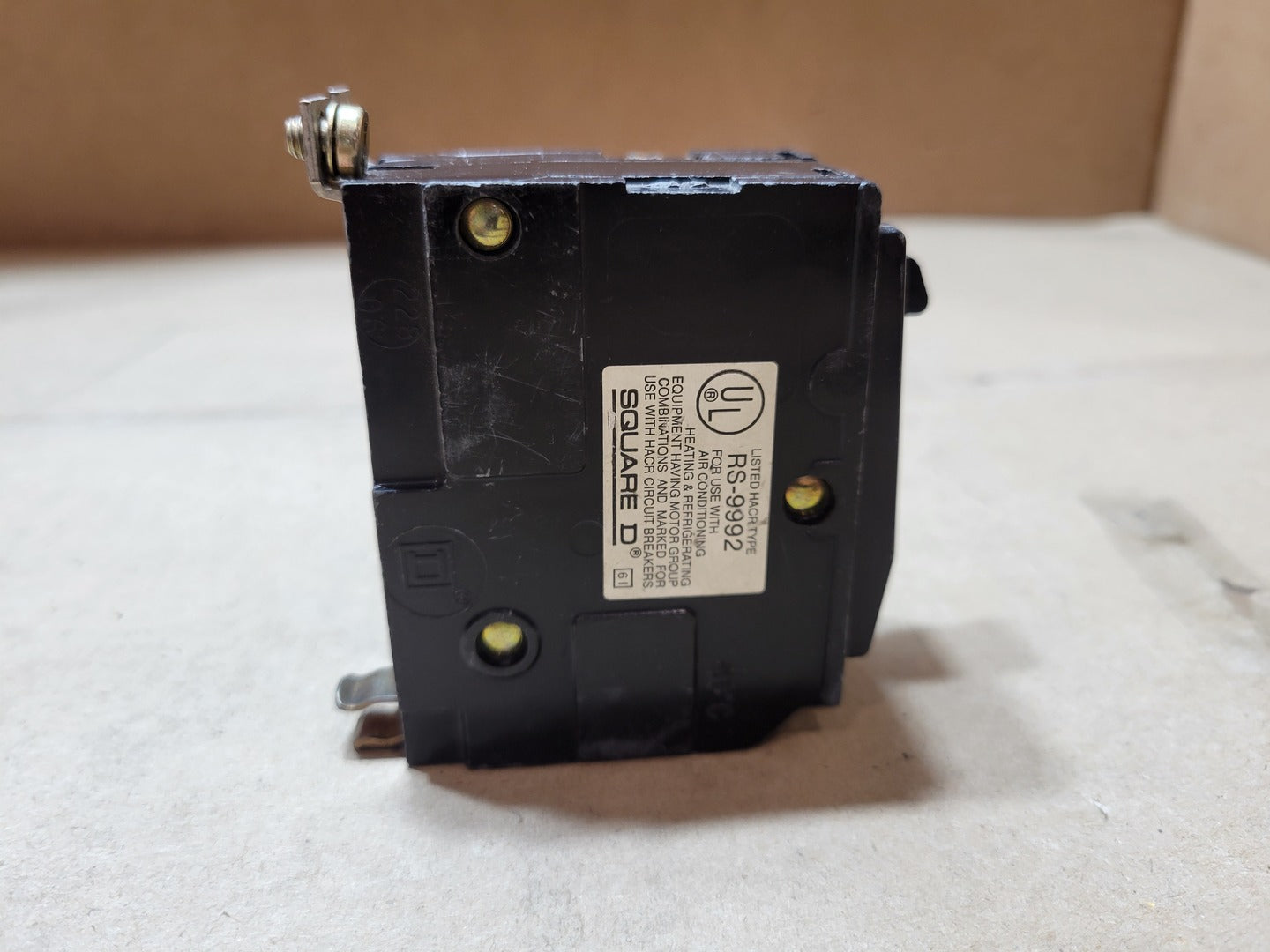

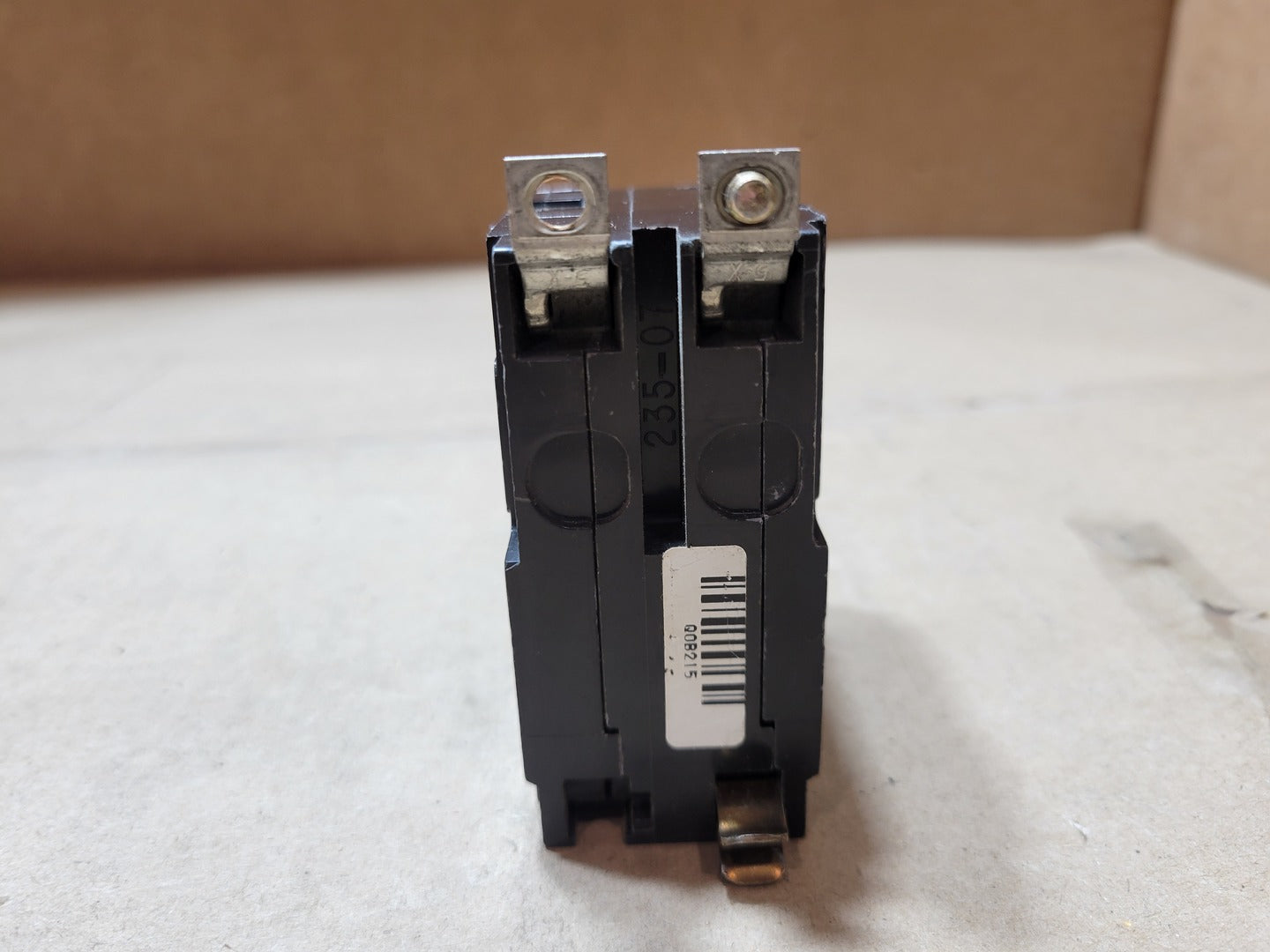

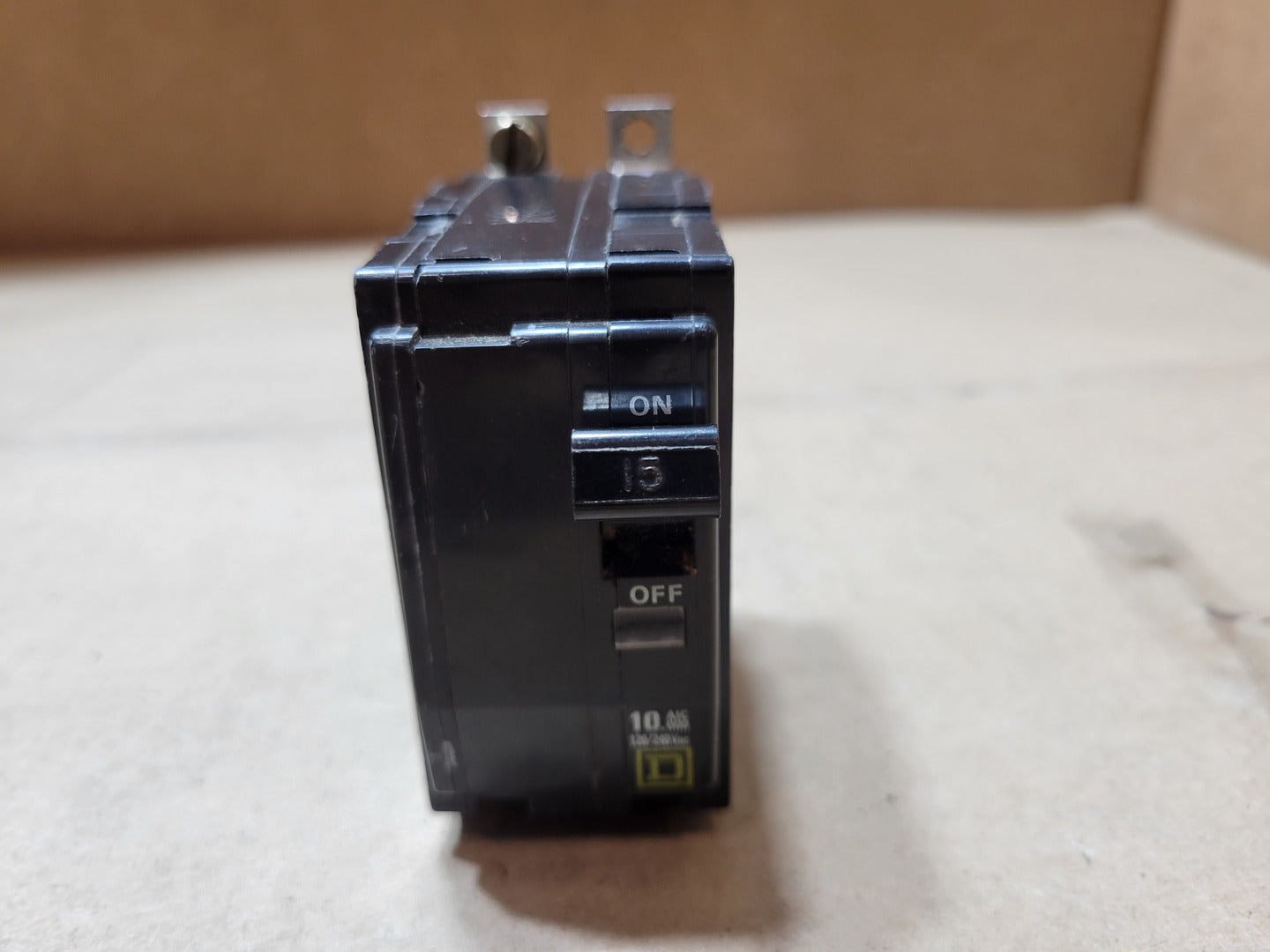

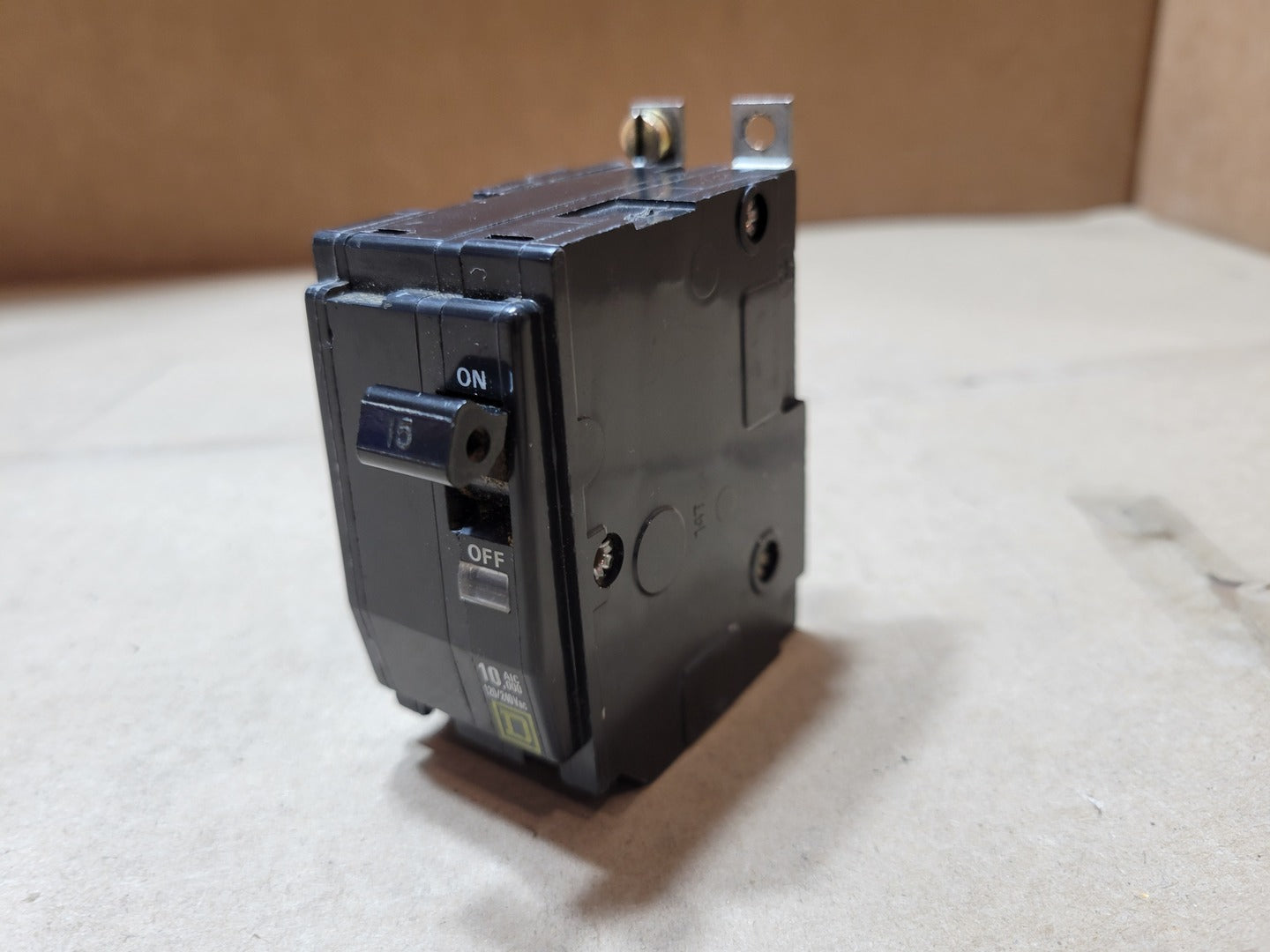

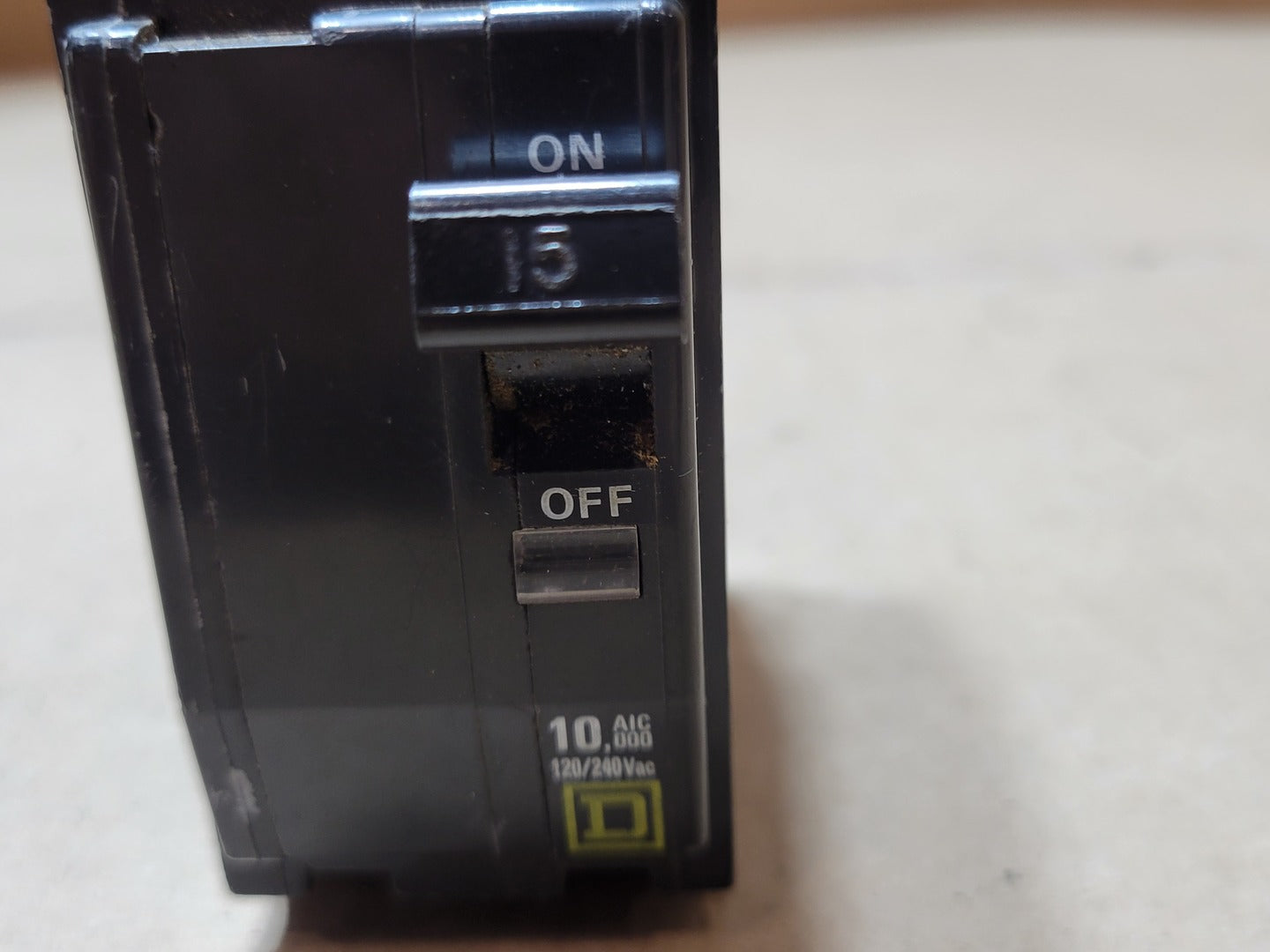

Square D QOB215 two-pole bolt-on miniature circuit breaker rated at 15 amps and designed for 120/240 VAC branch circuit protection. This breaker belongs to the QO/QOB product family and features a 10 kA interrupting rating with bolt-on mounting for compatible Square D panelboards.
| Specifications | |
|---|---|
| Model | QOB215 |
| Condition | Used | General |
| Amps | 15 amps |
| Series | QO |
| # of Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|
Product Type: Thermal Magnetic Miniature Circuit Breaker Frequency: 50/60 Hz Interrupting Rating: 10,000 A (10 kA) Electrical Connection: Pressure plate terminals Conductor Compatibility: Copper or Aluminum (Al/Cu) Wire Size: AWG 14-8 Copper or Aluminum Panel Spaces Required: 2 Ambient Rating: 40°C Certification: UL Listed, CSA Certified, HACR Rated |
