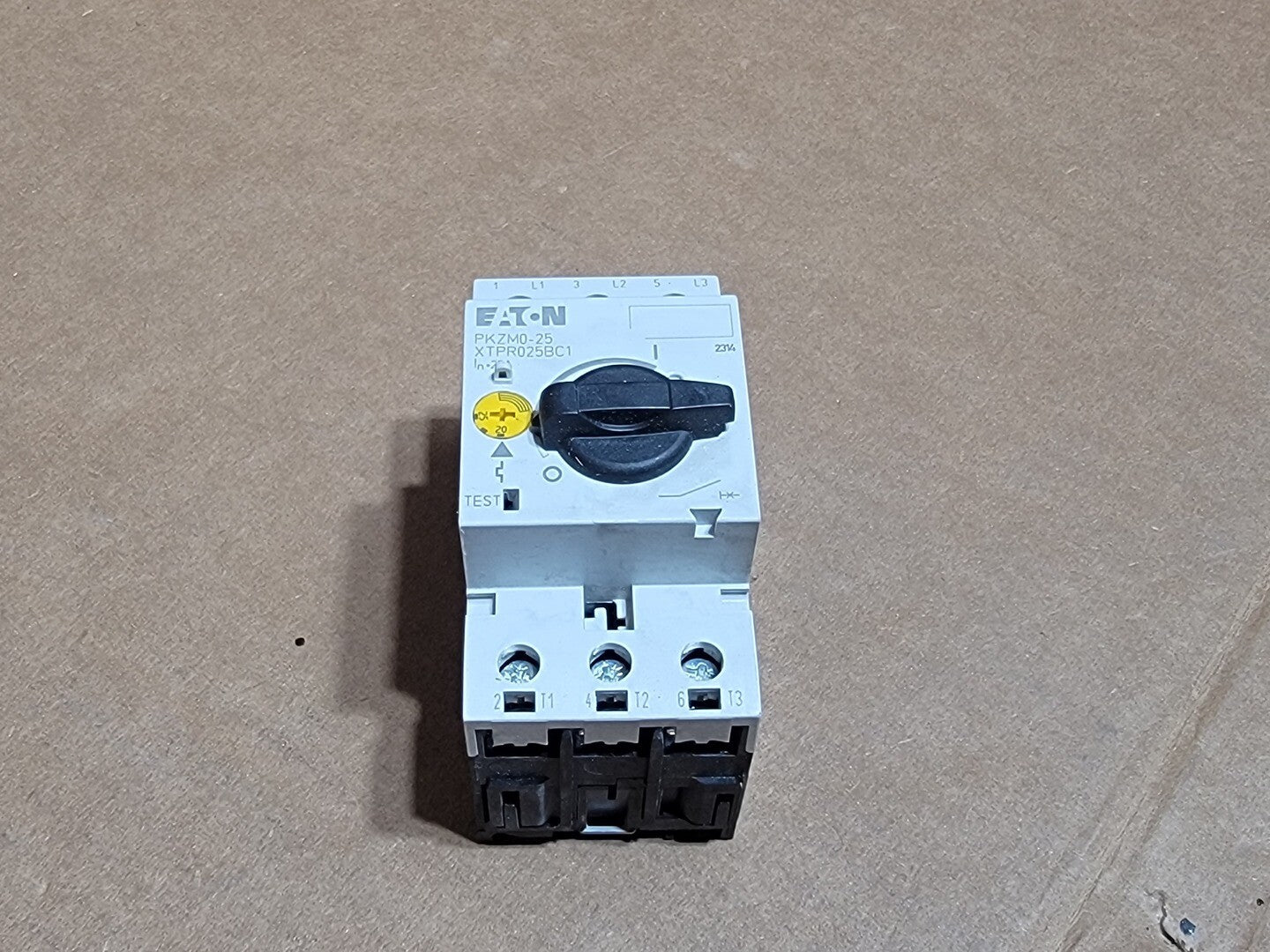

25 Amp, 3 Pole, 600 Volts Motor Circuit Breaker PKZM0-25

SKU: 150401
Precio:
$67

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

Descripción

Eaton IEC motor control UL 1077 Industrial Miniature Circuit Breaker - Supplementary Protector, 8A, 10-20X /n trip, Single-pole, Standard terminals
Specifications
Model PKZM0-25
Year: 2023
Made In GERMANY
Condition Surplus New
General
Amps 25 amps
Series PKZM0
# of Poles 3
Voltage 600 volts
Phase 3-phase
AFCI No
GFCI No
Other Specifications

Overview:

  • Product type: Motor protection circuit breaker (manual motor starter)
  • Rated current (adjustable): 20 - 25 A
  • Number of poles: 3-pole
  • Rated operational voltage: Up to 690 V AC (600 V AC compatible)
  • Tripping mechanism: Thermal-magnetic (overload and short-circuit protection)
  • Phase failure sensitivity: Yes
  • Motor power rating (AC-3): approx. 5.5 kW @ 230 V, 12.5 kW @ 400 V, 15 kW @ 500 V, 22 kW @ 690 V
  • Mounting: DIN rail (IEC/EN 60715)
  • Connection type: Screw terminals
  • Protection rating: IP20
  • Standards and approvals: IEC/EN 60947-4-1, UL, CSA, CE
  • Application: Motor protection and manual switching in industrial control systems
