Descripción

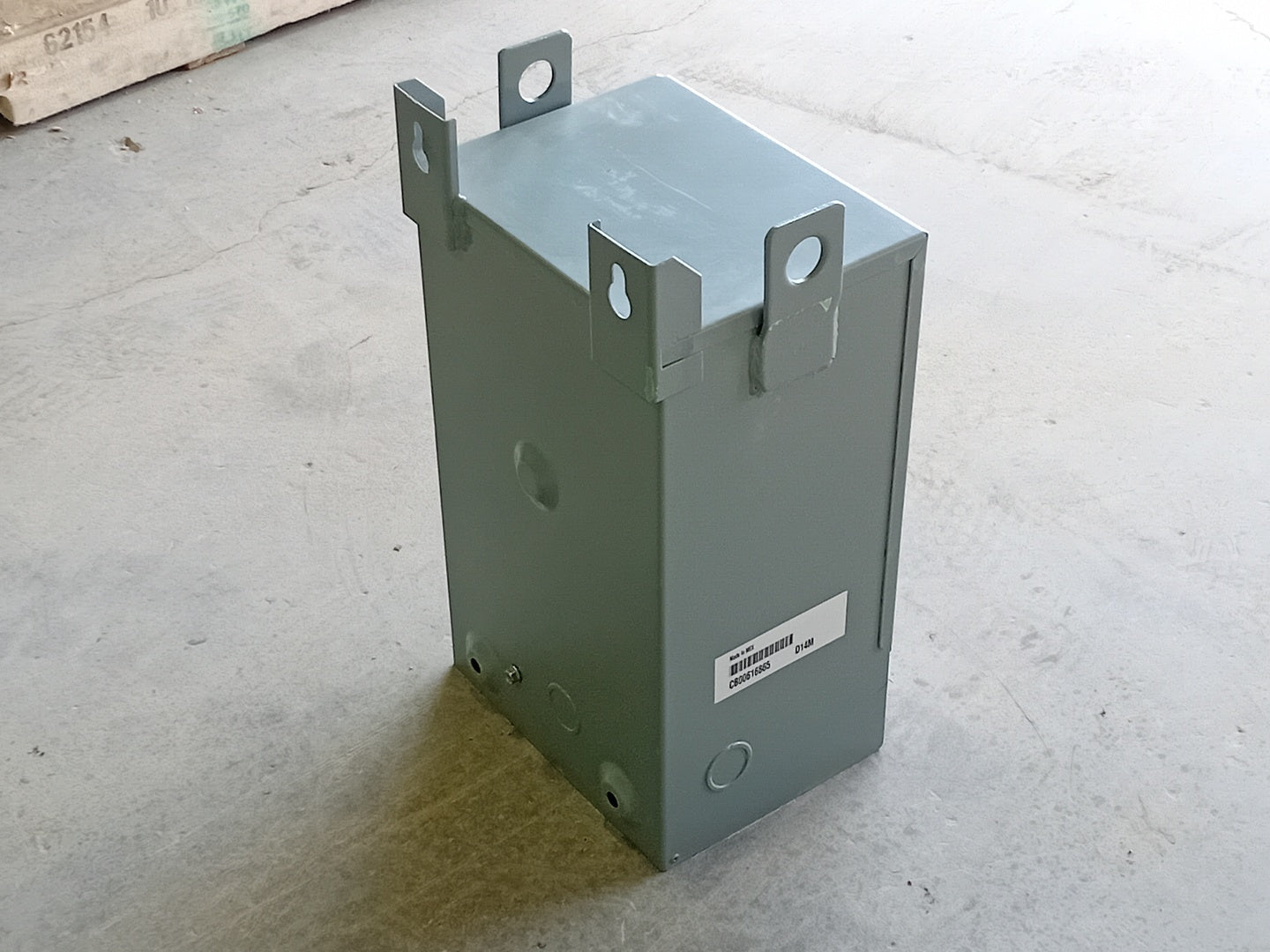

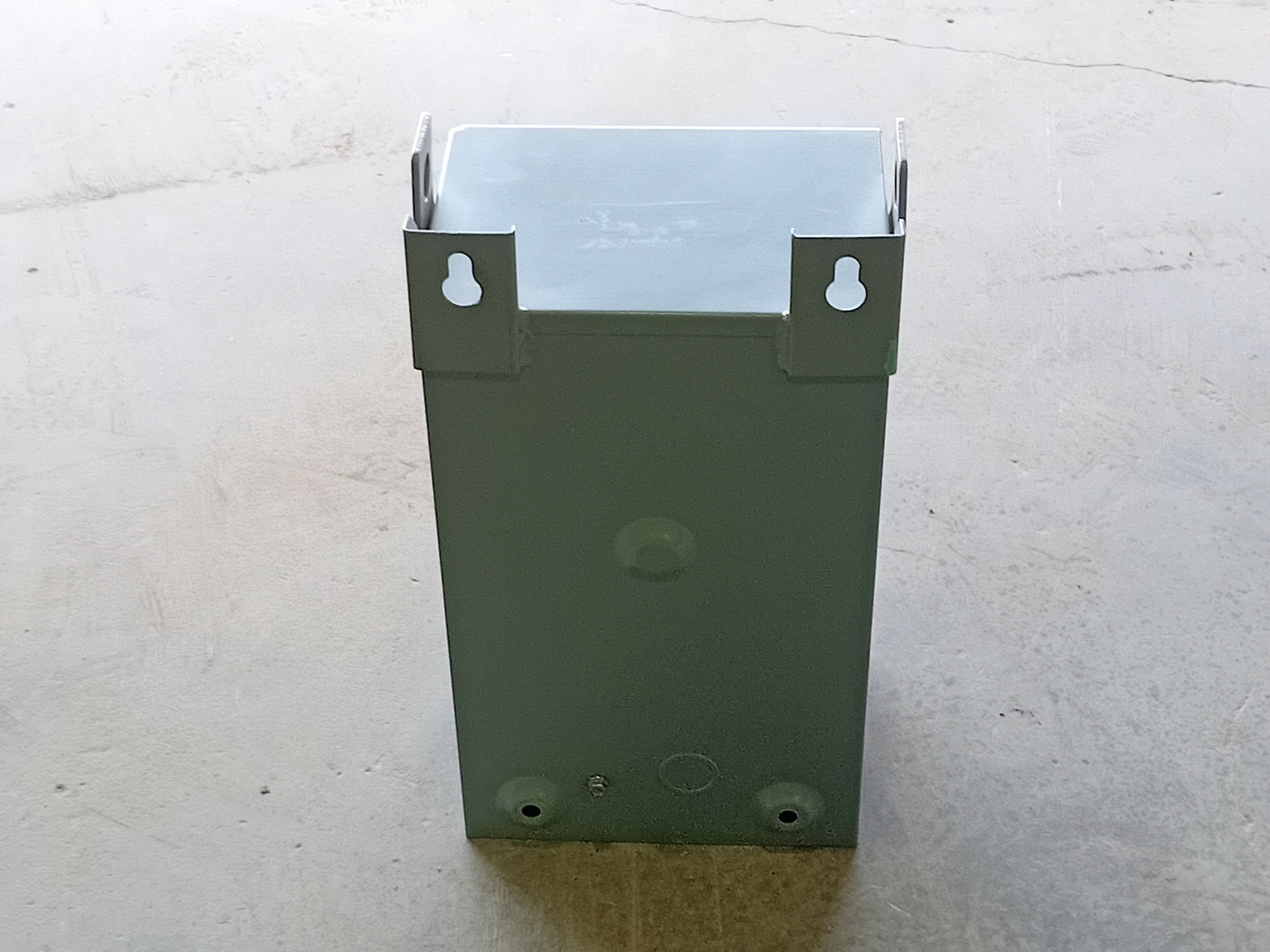

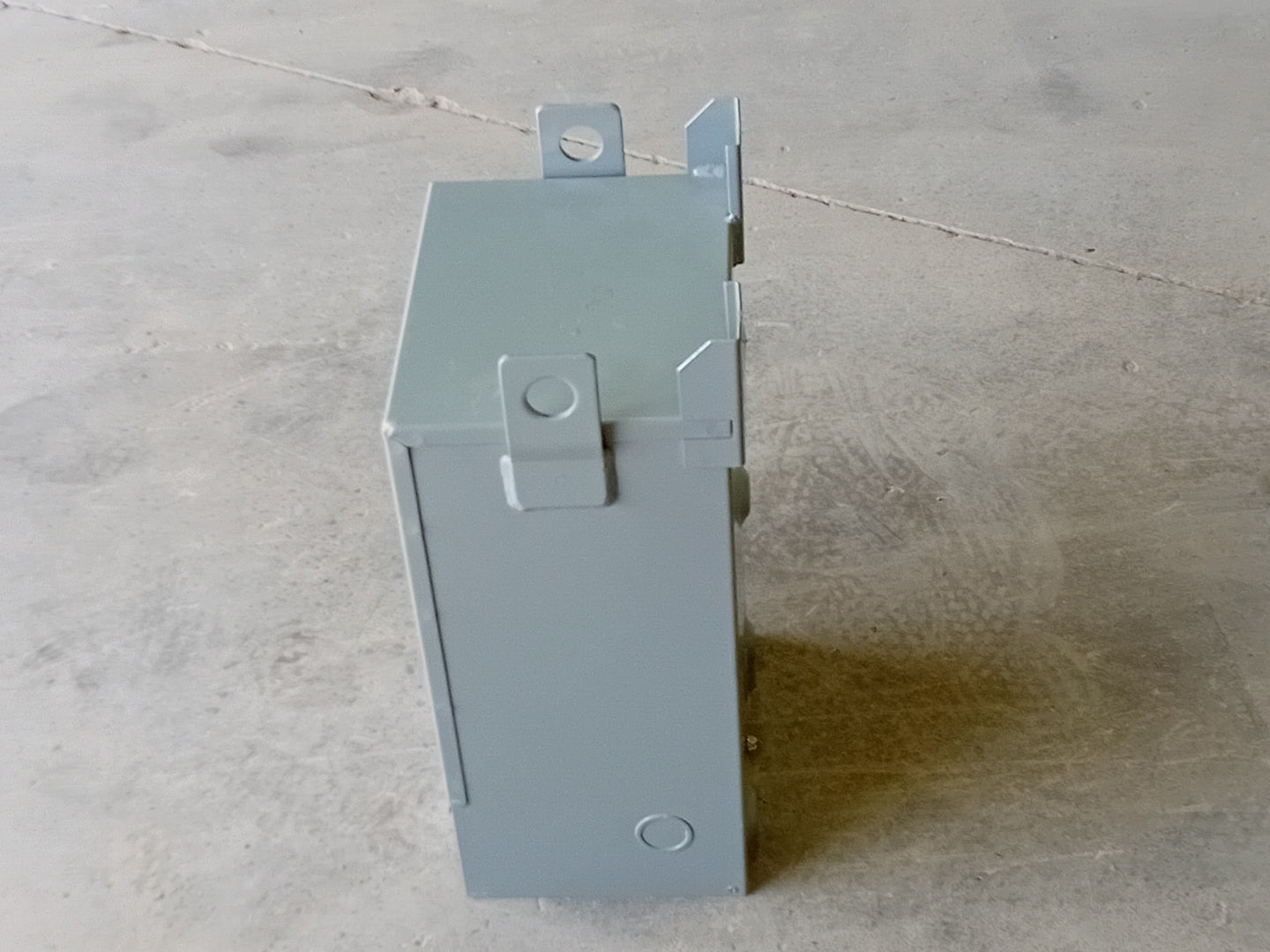

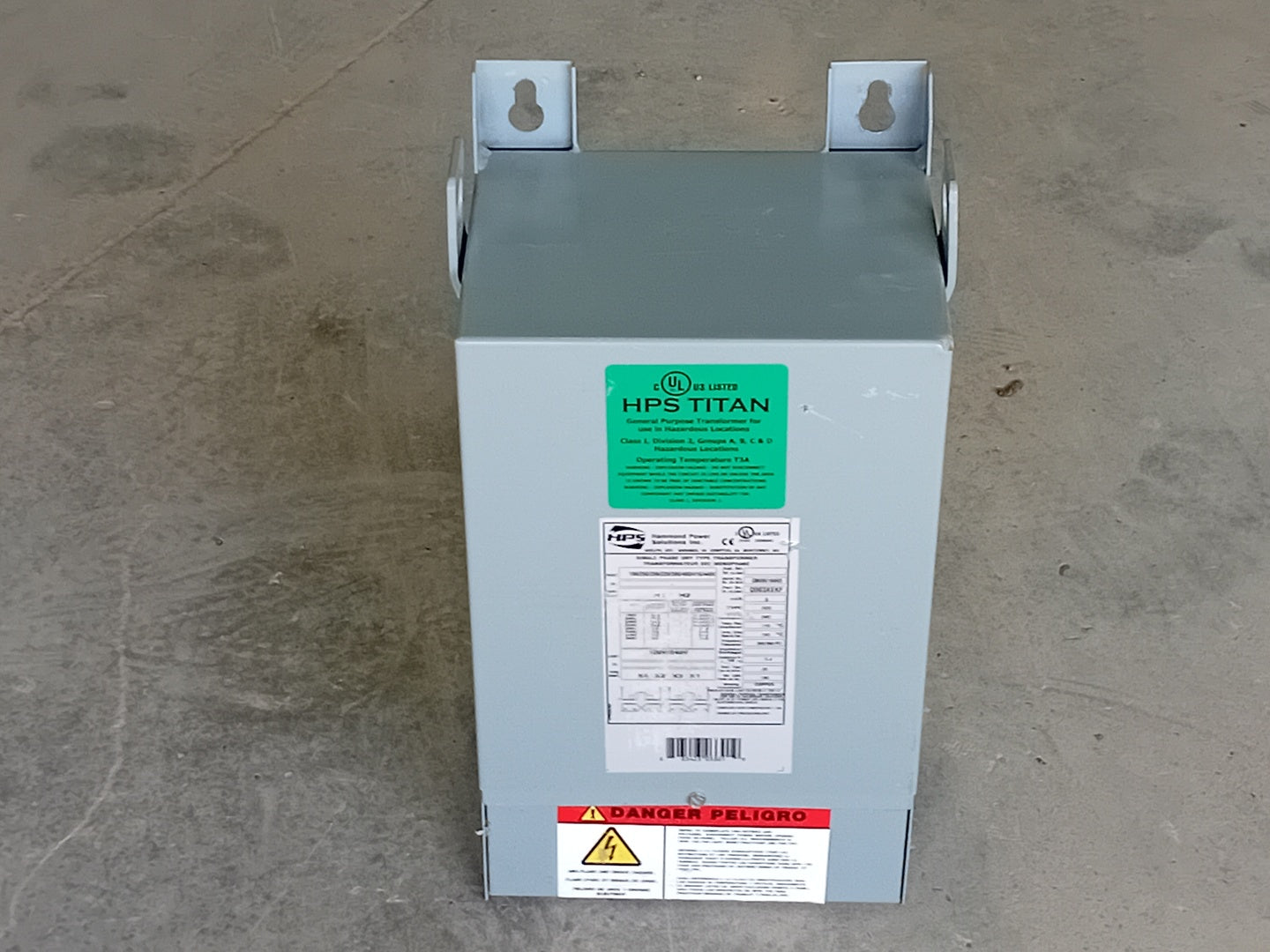

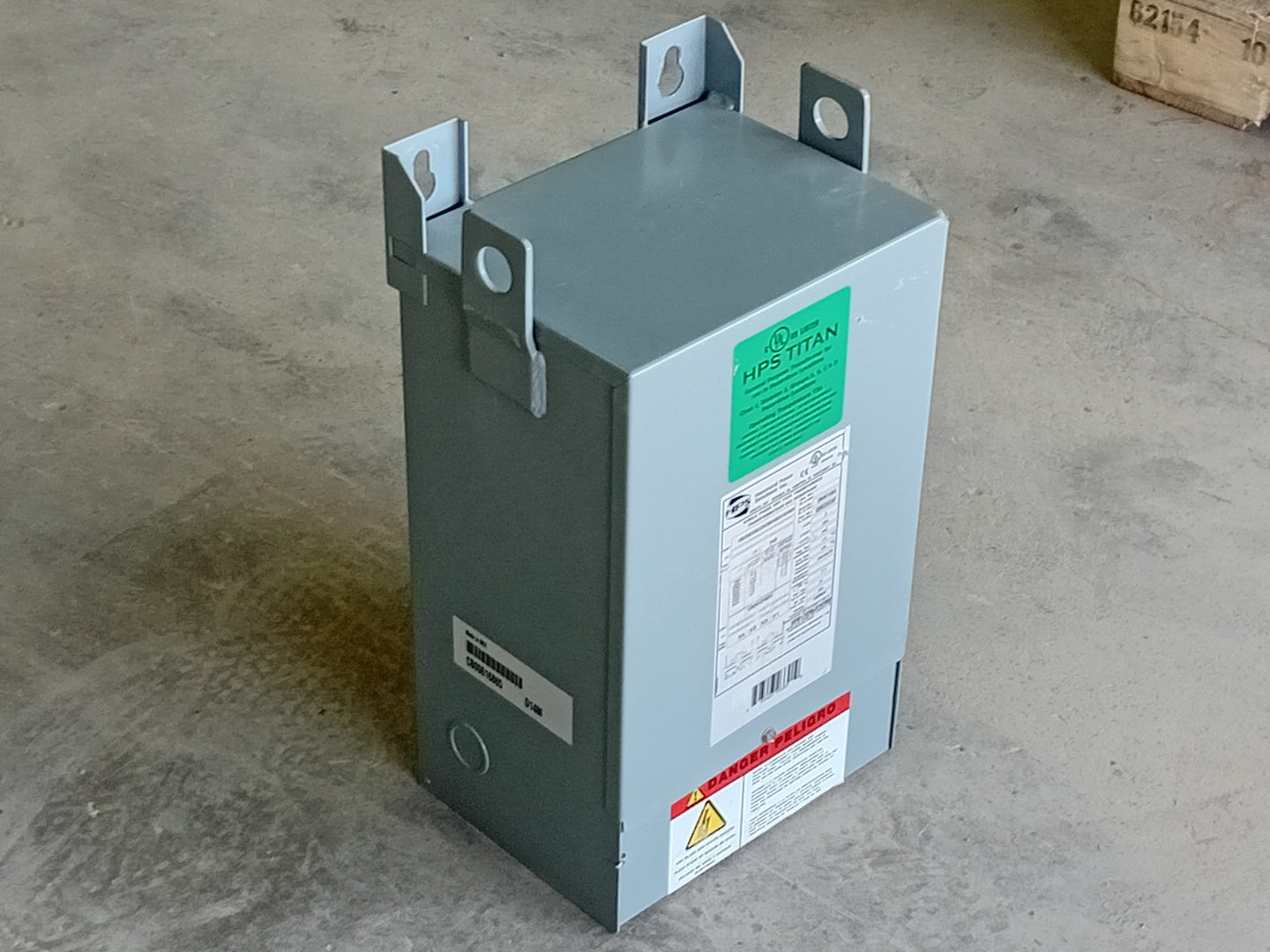

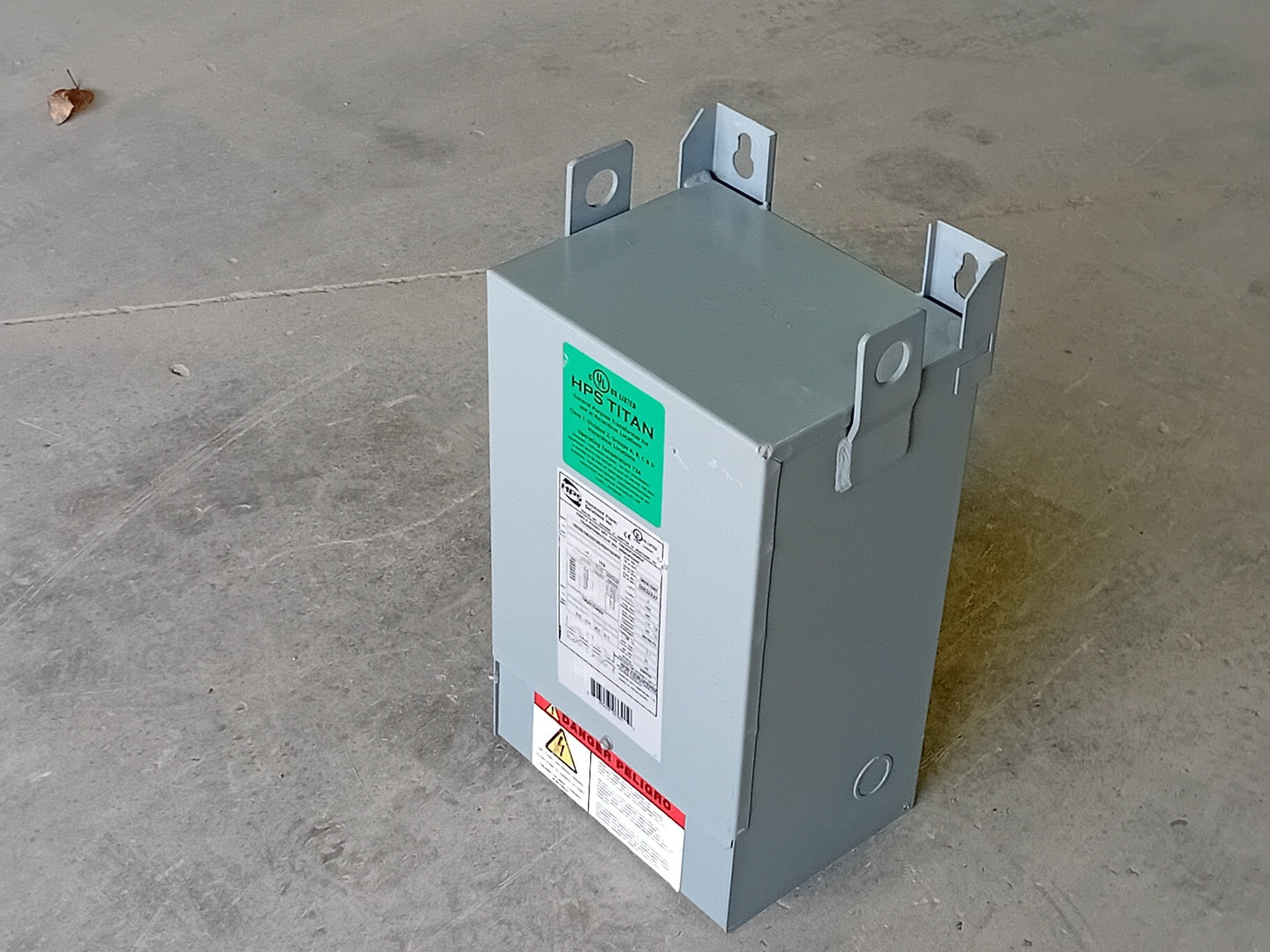

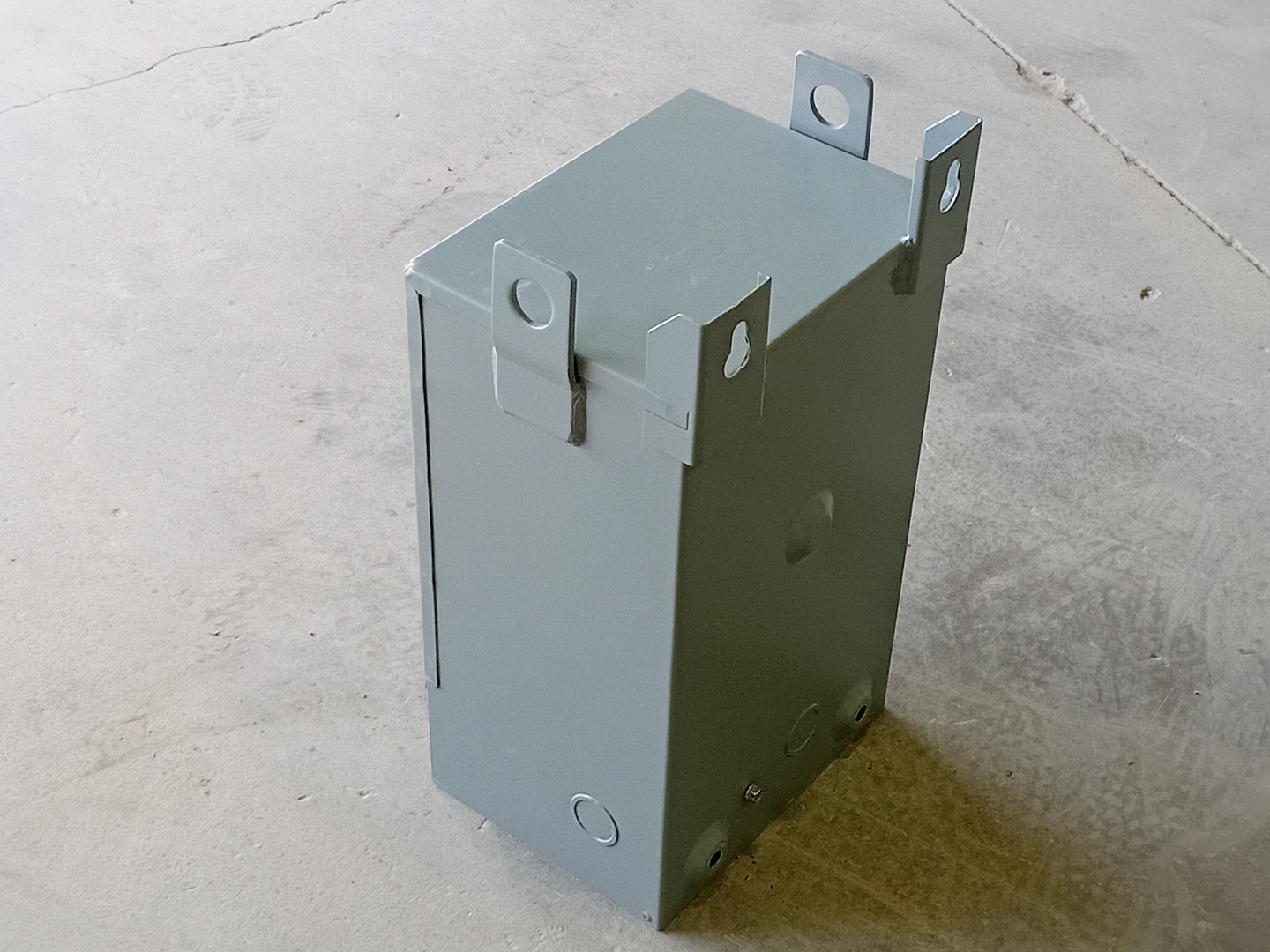

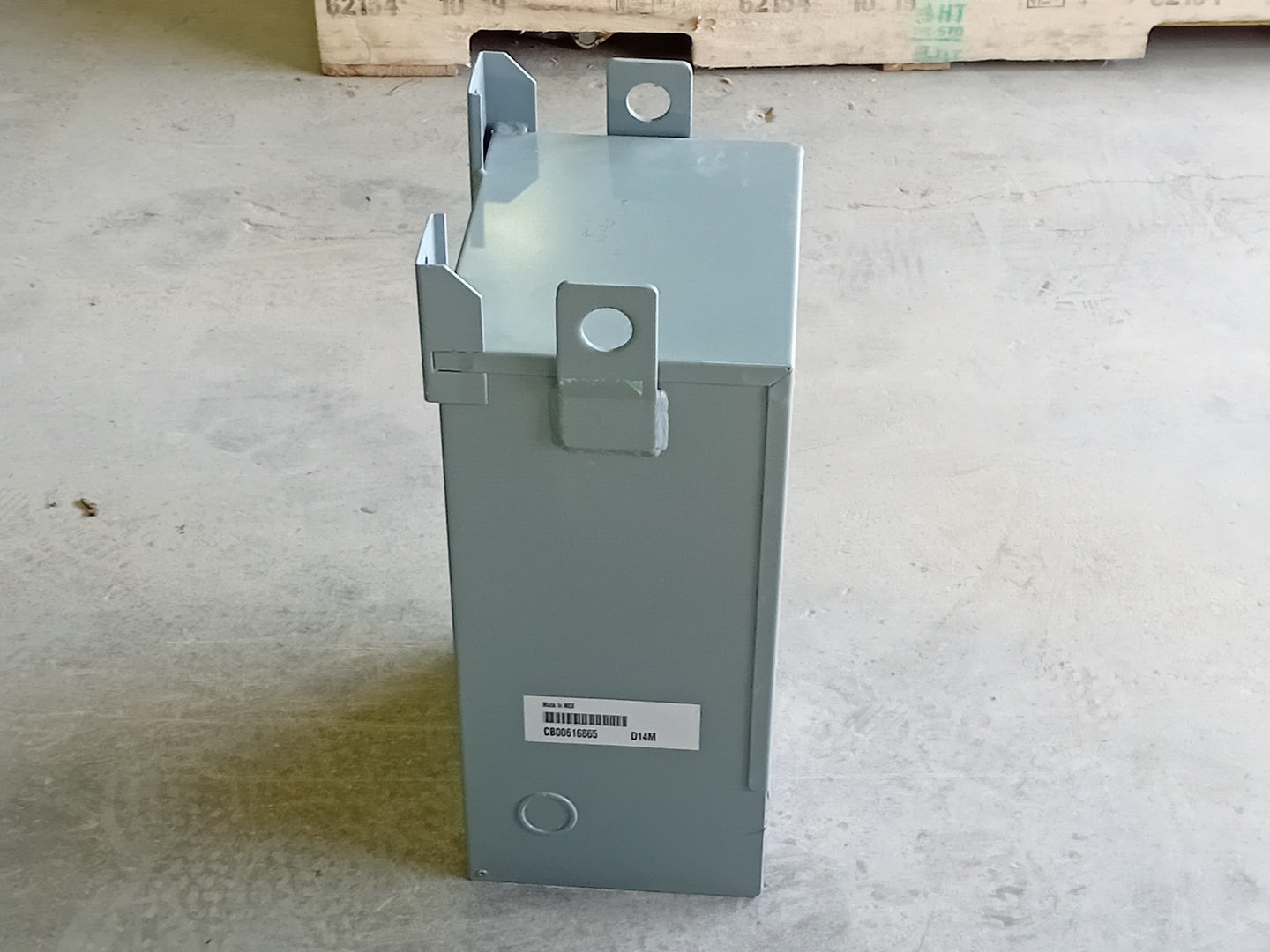

HPS Titan Q003XEKF 3 kVA single-phase dry-type general-purpose transformer designed for indoor/outdoor and hazardous-location installations. It provides multiple primary voltage taps from 190-440 VAC with a 120/240 VAC secondary, copper windings, electrostatic shielding, and a NEMA 3R enclosure. Rated for Class I, Division 2, Groups A-D hazardous locations.
| Specifications | |
|---|---|
| Model | Q003XEKF |
| Condition | Surplus New | Electrical |
| kVA | 3 kVA |
| Secondary Voltage | 120/240 volts |
| Phase | Single-phase | General |
| Transformer Type | Distribution Transformer |
| Auto VS Isolation | Isolation |
| Oil vs Dry | Dry |
| Enclosure Type | Nema 3R |
| Other Specifications |
|---|
|

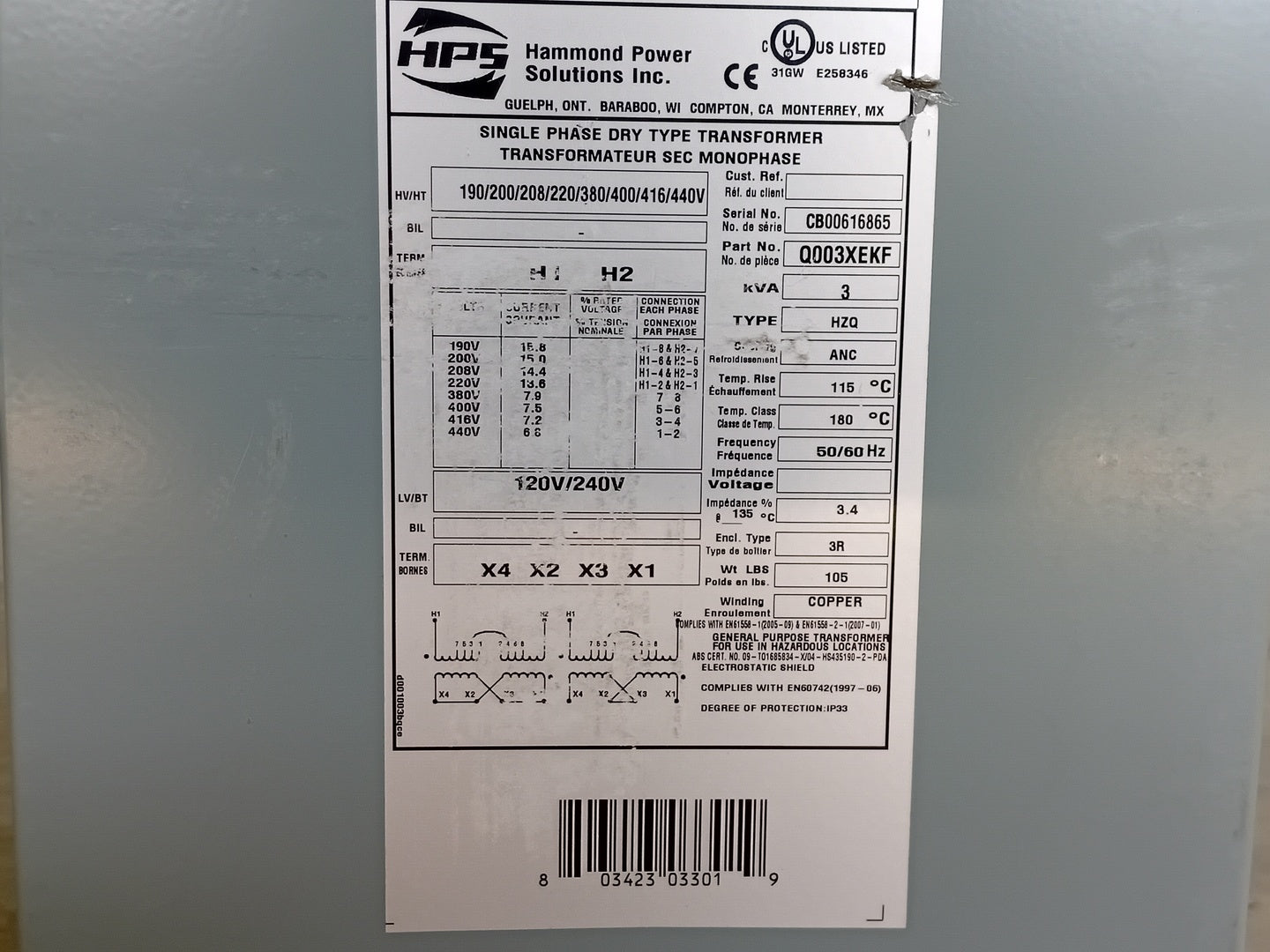

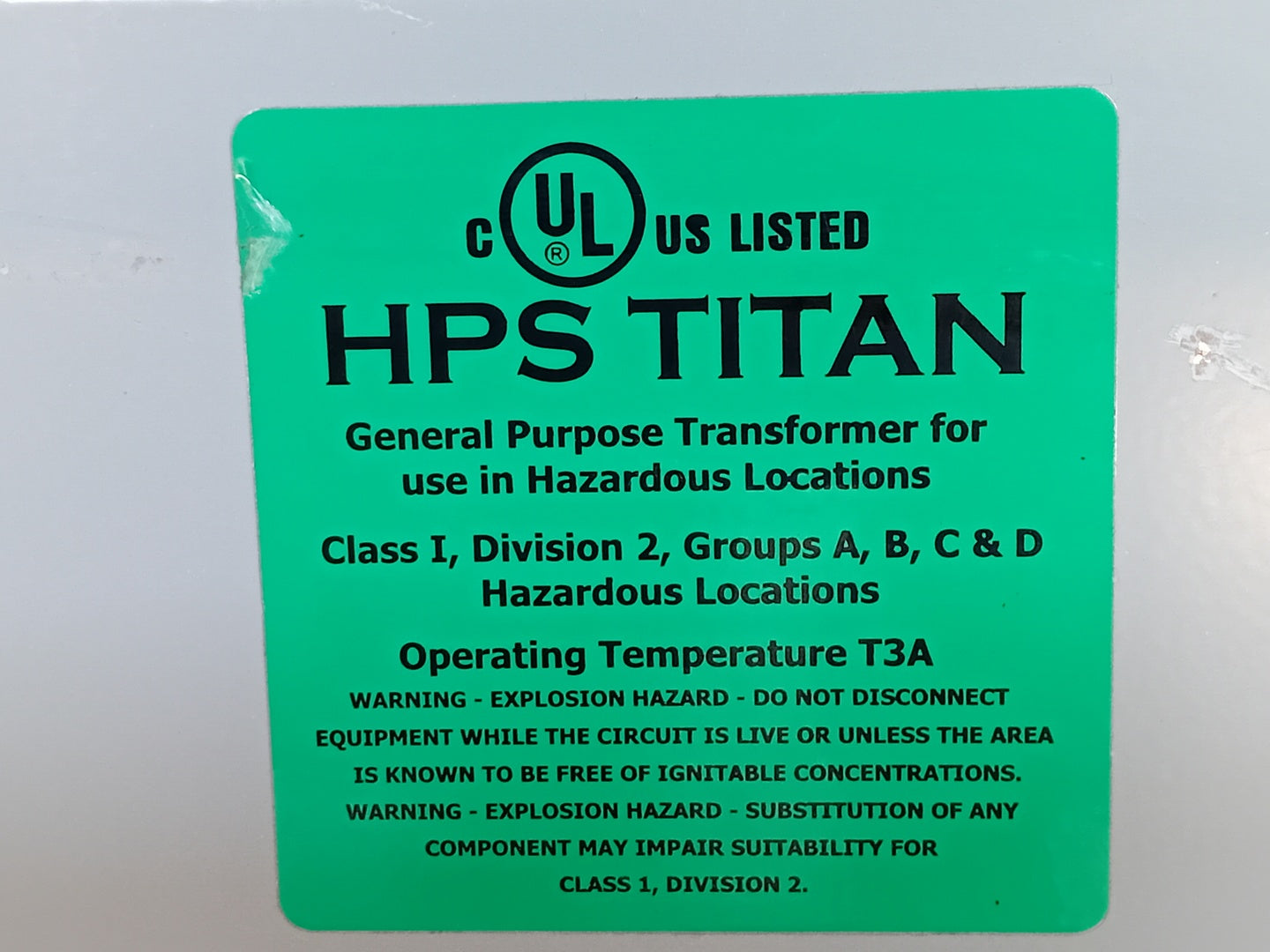

Primary Voltage: 190/200/208/220/380/400/416/440 VAC Secondary Voltage: 120/240 VAC Frequency: 50/60 Hz Temperature Rise: 115°C Insulation Class: 180°C Impedance: 3.4% Winding Material: Copper Enclosure: NEMA 3R Degree of Protection: IP33 Hazardous Location Rating: Class I, Division 2, Groups A, B, C & D Temperature Code: T3A |
