Descripción
| Year: | 2002 |
| Condition | Used | Electrical |
|---|---|
| Amps | 2000 amps |
| Phase | 3-phase |
| Other Specifications |
|---|
|

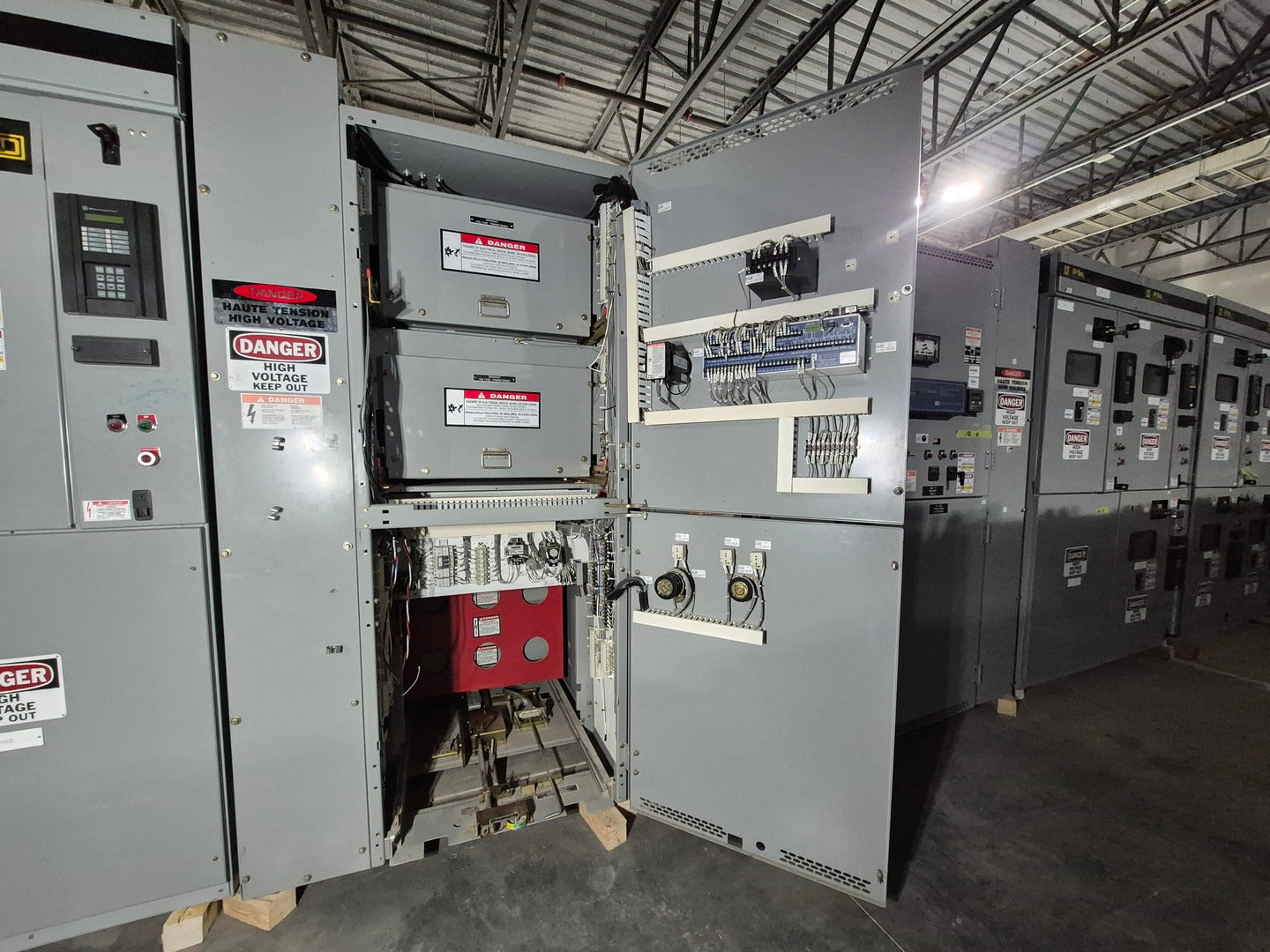

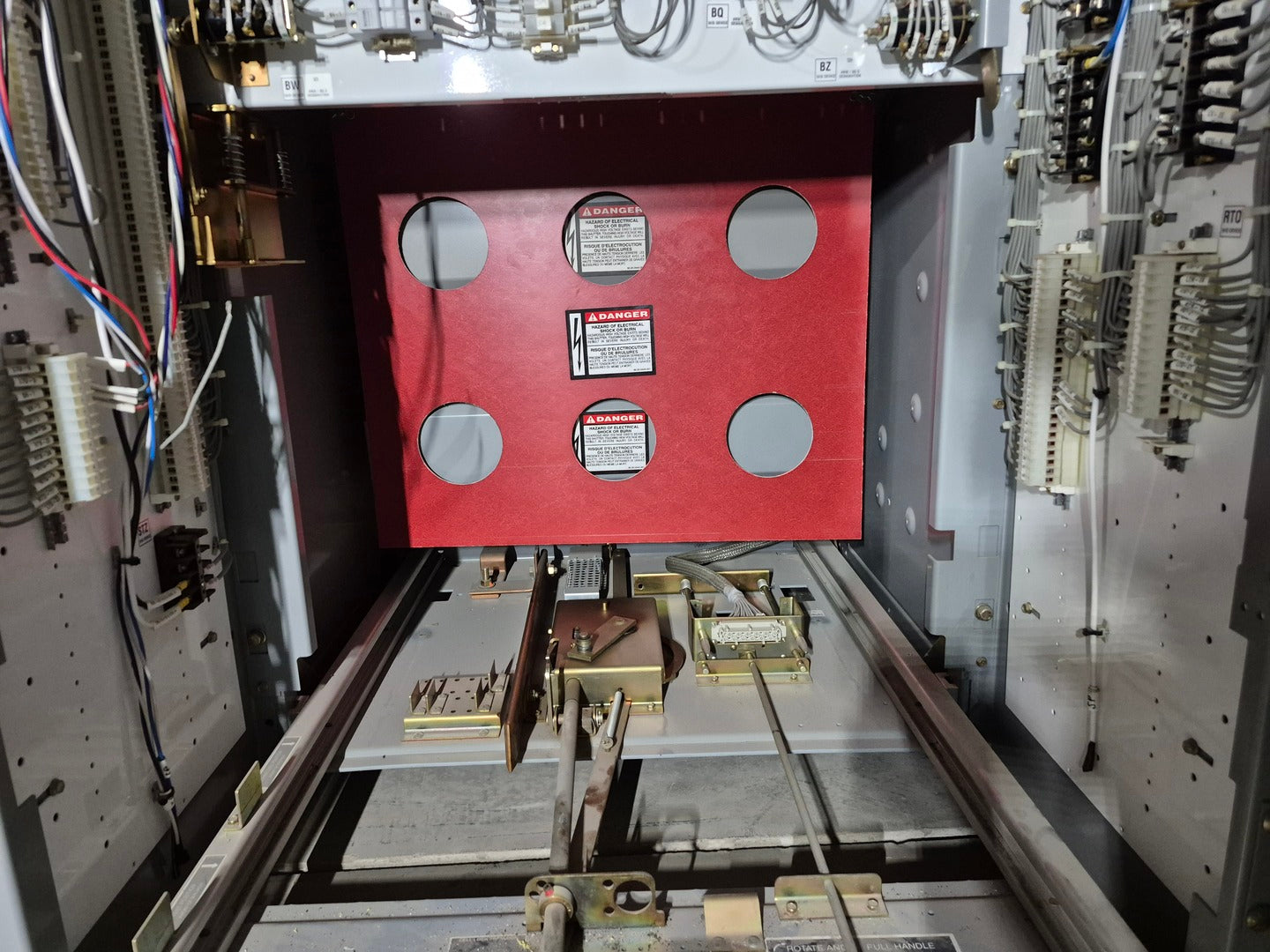

Draw out vacuum circuit breaker is NOT included with this listing. Listing is for the Federal Pioneer medium-voltage switchgear cell/cabinet and remaining installed components shown in the photographs. Manufacturer: Federal Pioneer (Groupe Schneider) Equipment Type: Medium Voltage Metal-Clad Switchgear Cell Installation Type: Indoor Phase: 3 Phase Frequency: 60 Hz Year: 2002 Electrical Ratings Rated Maximum Voltage: 4,760 V (4.16 kV class) Continuous Bus Rating: 2,000 A Interrupting Capacity: 36 kAIC - per equipment nameplate Bus Bracing: 36 kA Insulation Level (BIL): 60 kV System Amps (Nominal): 2,000 A Protection & Controls Protection Relay: SEL (Schweitzer Engineering Laboratories) Metering: Schneider PowerLogic Voltage Transformer: Drawout-Type Compartment Condition / Configuration Certifications / Identification Standard: CSA C22.2 No. 31 Serial Number: 1400564-001 Plant Code: 17 Date Code: 2/02 |
