Descripción
| Specifications | |
|---|---|
| Model | RCS 5 |
| Year: | 2016 |
| S/N: | 640-FC-XXX |
| Condition | Used |
| Other Specifications |
|---|

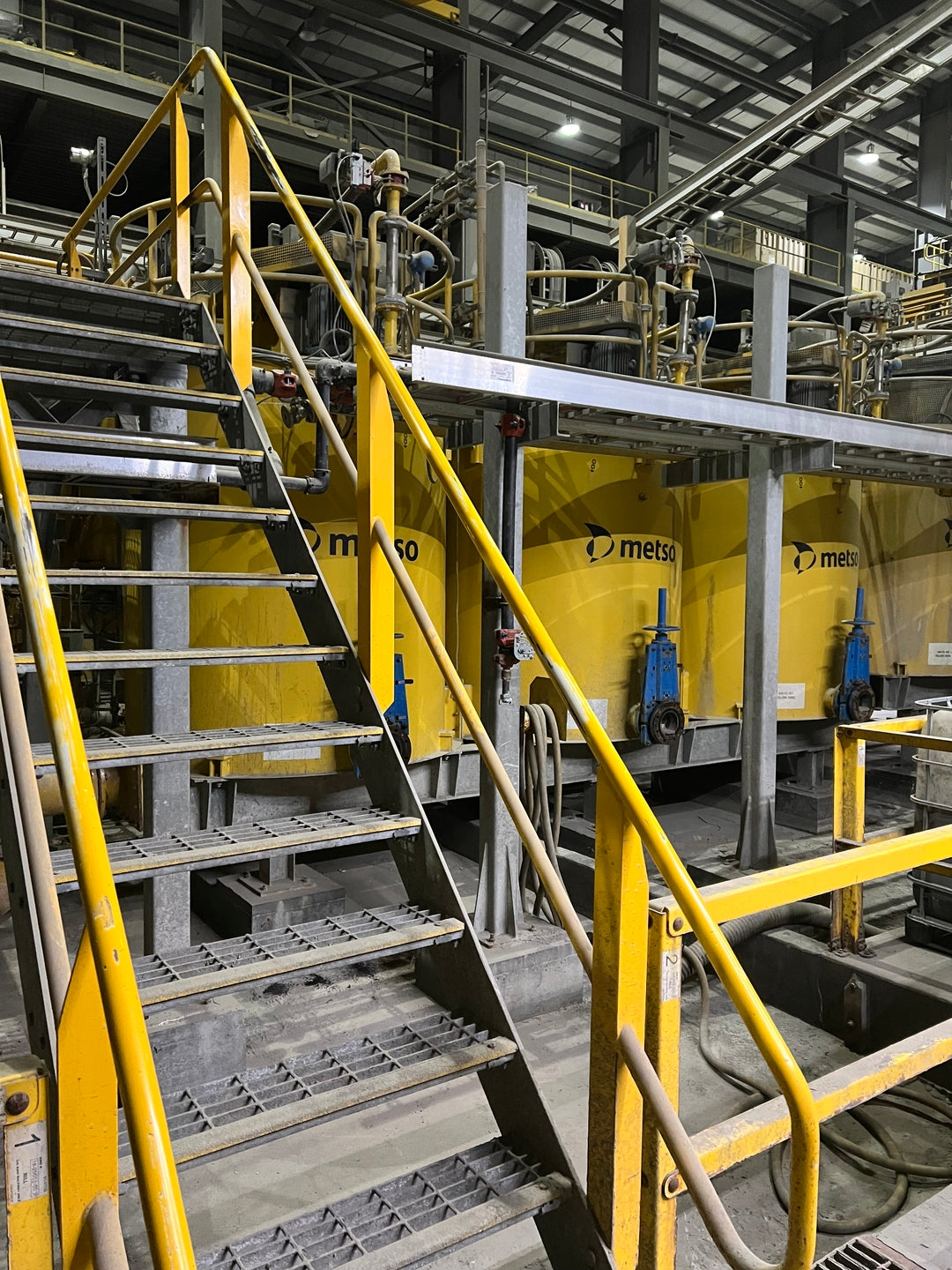

PDF ManualPDF General ArrangementPDF Mechanical Drawing PkgProject/Order No.: C.3842 Number of lines: 1 Number of cells/line: 9 Bank arrangement: FB-1-FB-1-FB-2-2-3-DB Cell type: RCS 5 General Specifications Tank Diameter: 2000 mm Tank Height: 2076 mm Cell/Tank volume: 5 m3 Cells, feed and discharge box lining: Rubber lined in high wear areas with Natural rubber. Impeller and diffuser material: Moulded polyurethane on carbon steel skeleton Air requirement/bank: 27 Nm3 free air delivered at 19 kPag at shaft Motor/cell: 15 kW, 6-pole Supply voltage : 575/600 V, 3Ph, 60 Hz. Connections Feed box, opening: 620 x 320 mm Froth Outlet: 10" ANSI B16.5 150# Air Control Flange: 2" ANSI B16.5 150# Drain Flange: 6" ANSI B16.5 150# |
