VIKING Containerized Foam Fire Suppression System w/ Deluge Valve, Potter Controls & Piping Manifold
VIKING

Containerized Foam Fire Suppression System w/ Deluge Valve, Potter Controls & Piping Manifold

SKU: 142378
Precio:
$91,455

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

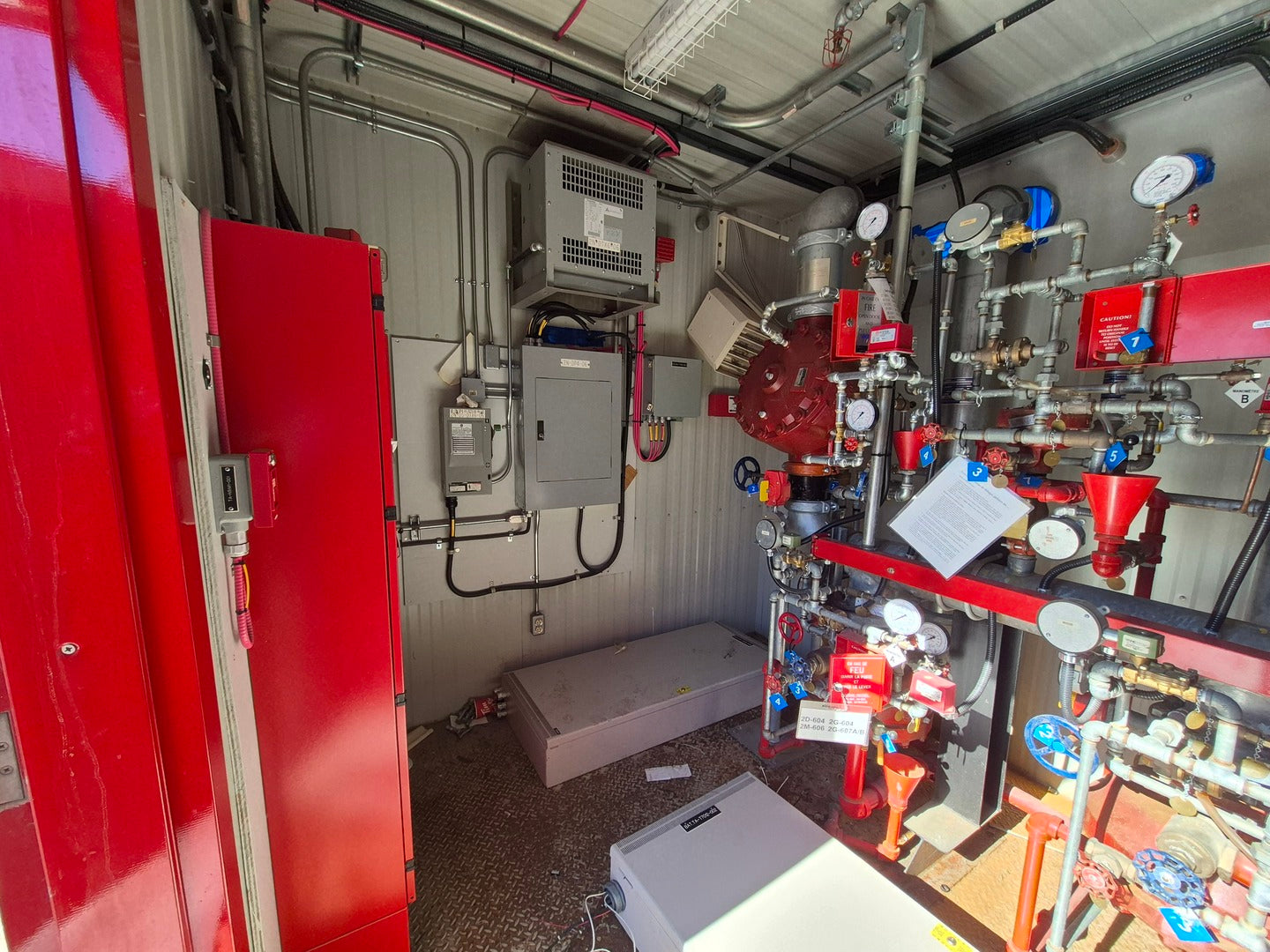

Containerized Viking industrial foam fire suppression system designed for high-hazard fire protection applications. System includes Viking foam proportioning assembly, deluge valve, fire control valves, pressure instrumentation, and Potter fire monitoring equipment mounted within a transportable container module. Suitable for mining facilities, fuel storage terminals, and industrial plants.
Condition Used
Other Specifications

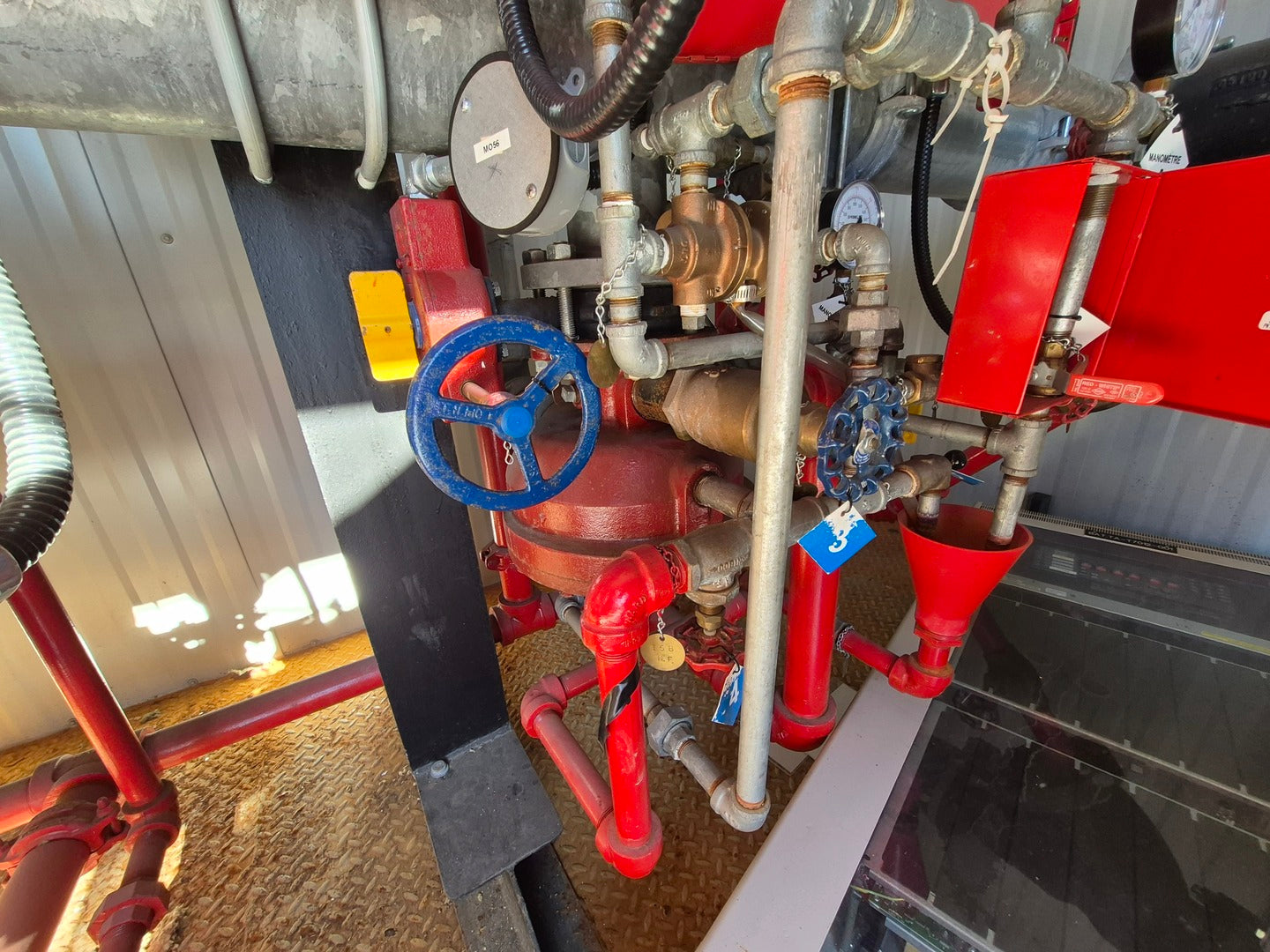

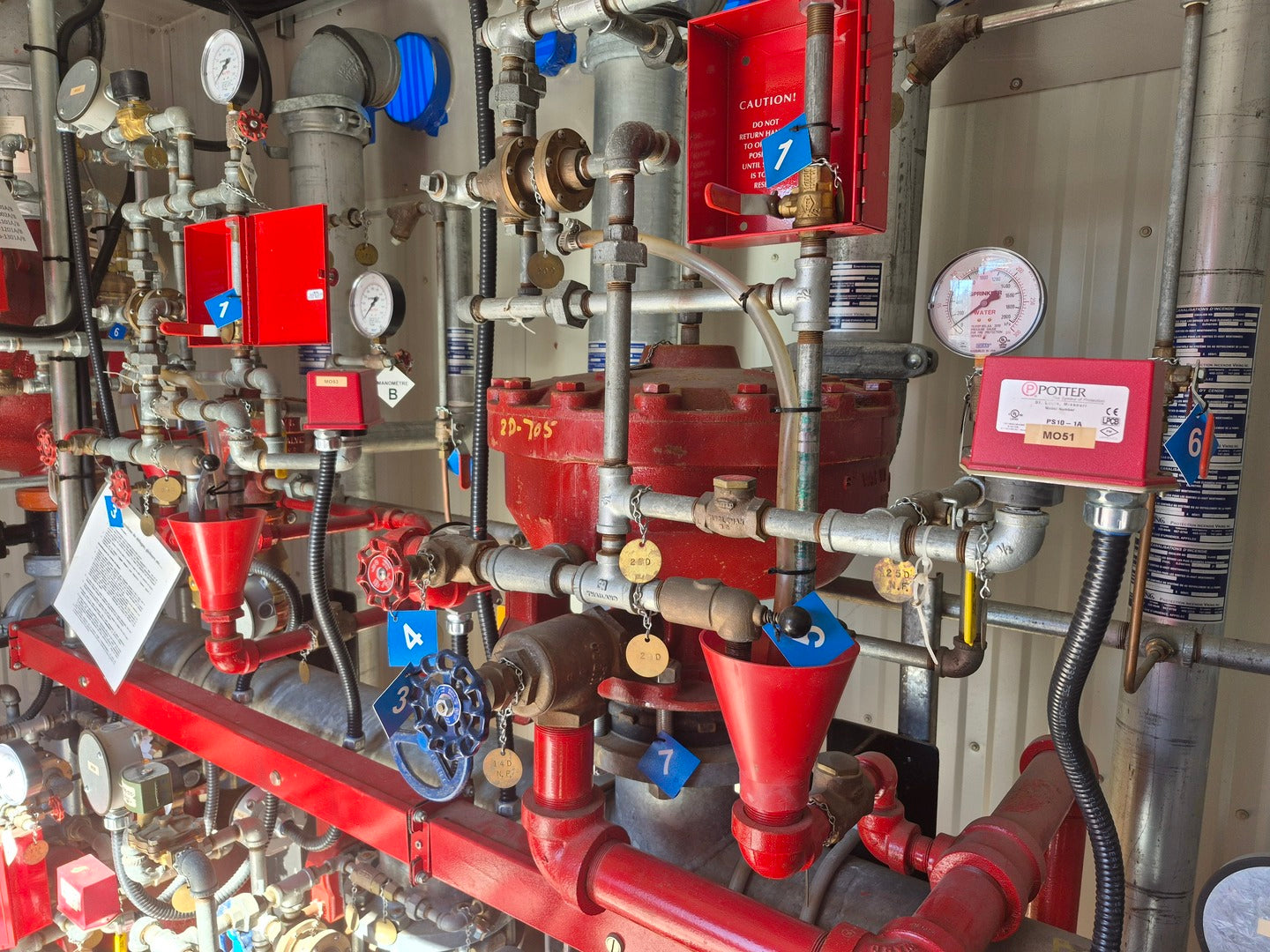

Viking Deluge Valve

Manufacturer: Viking Group

Model: E-1

Size: 2.5 in

Pressure Rating: 175 PSI

This is a deluge valve, which instantly releases water or foam when the fire detection system is triggered.

NIBCO Fire Valve / Control Valve

Brand: NIBCO

Type: Fire protection control valve

Used to isolate and regulate system flow within the fire suppression piping.

Potter Electric Fire Monitoring Module

Manufacturer: Potter Electric Signal Company

Potter equipment monitors:

  1. water flow
  2. pressure
  3. supervisory alarms
  4. valve position

These components connect to a fire alarm panel and notify operators when the system activates or when valves are tampered with.

Foam Proportioning Equipment:

  1. foam proportioning piping
  2. foam concentrate injection connection
  3. foam mixing manifold

These systems mix foam concentrate with the water supply to produce firefighting foam.

Typical foam ratios:

  1. 1%
  2. 3%
  3. 6%

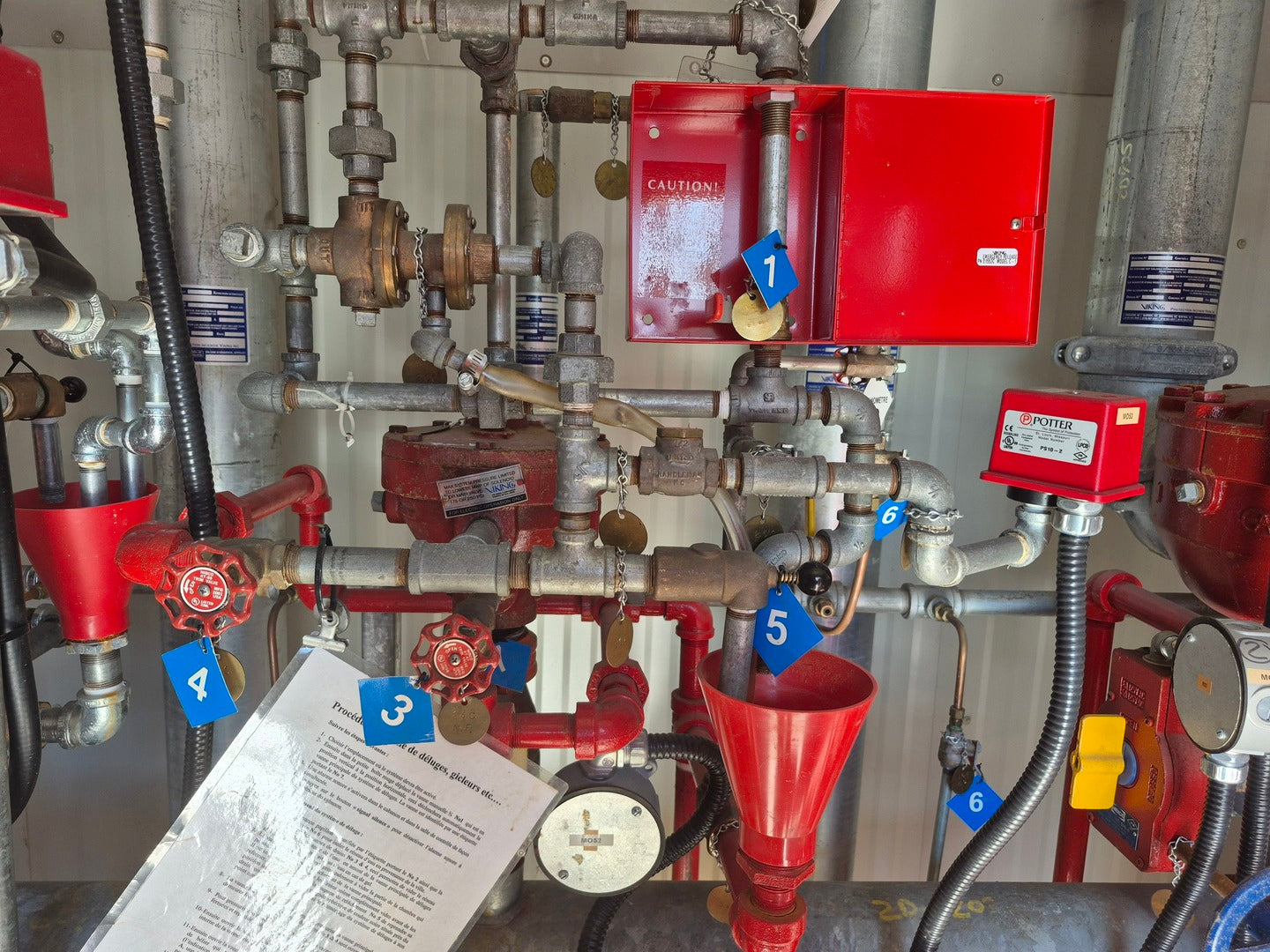

Fire System Instrumentation

The skid includes:

  1. pressure gauges
  2. supervisory switches
  3. test valves
  4. relief valves
  5. manual activation valves

These allow the system to be tested, monitored, and manually activated if required.

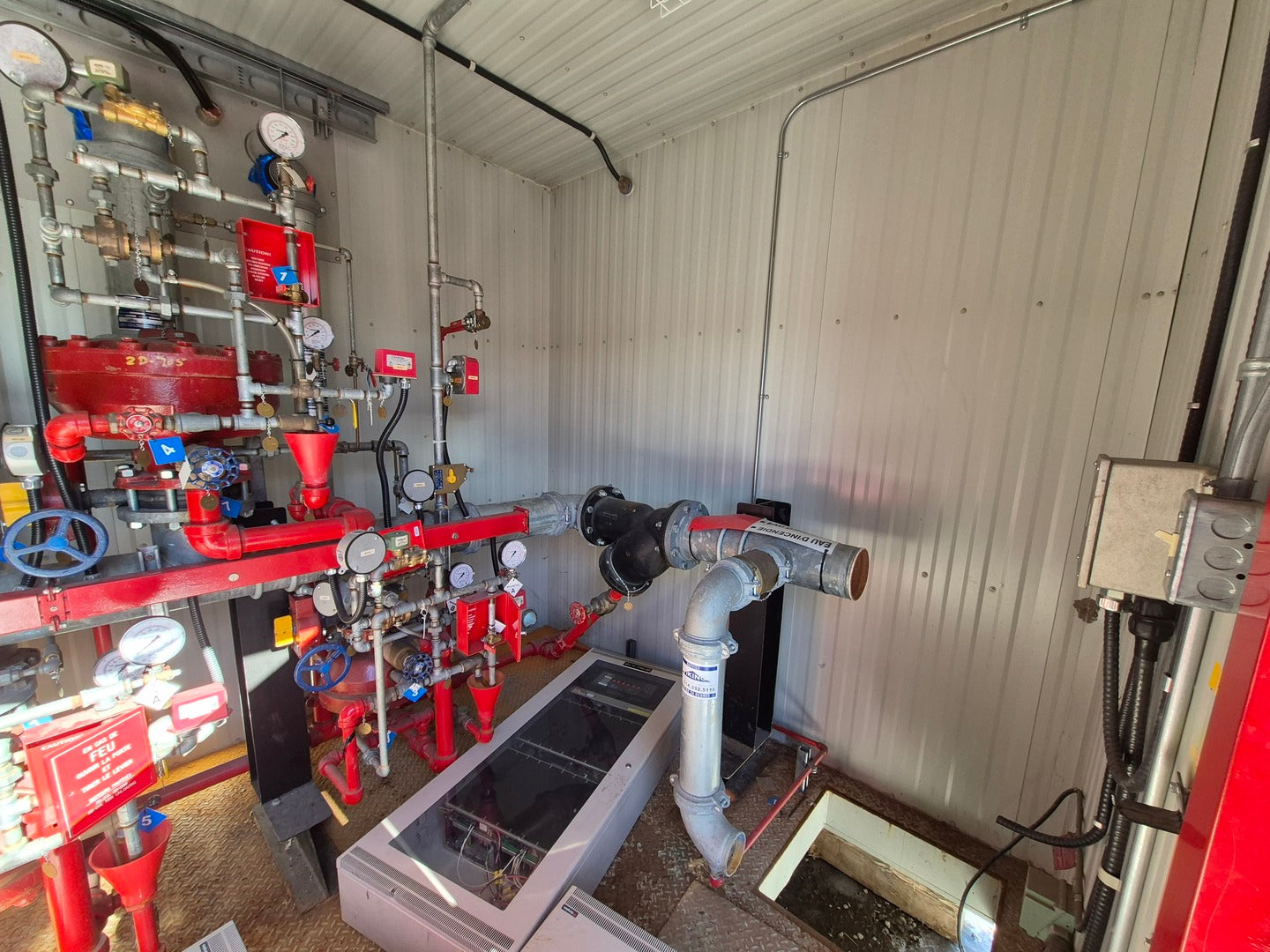

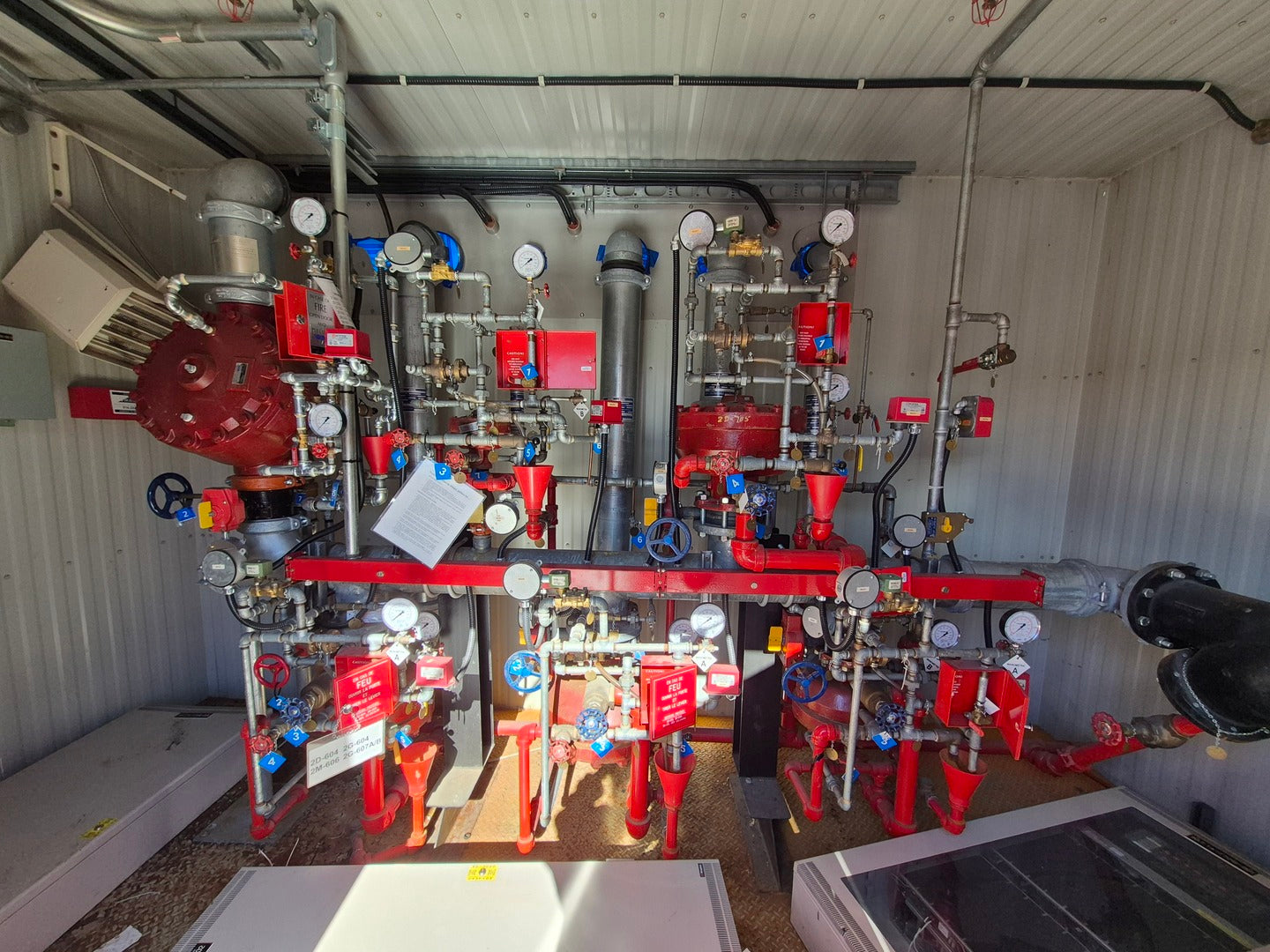

Fire Suppression Distribution Manifold

The red fire piping manifold distributes the water / foam mixture to multiple suppression zones or discharge points.

This includes:

  1. flanged piping connections
  2. branch outlets
  3. isolation valves
  4. drain connections

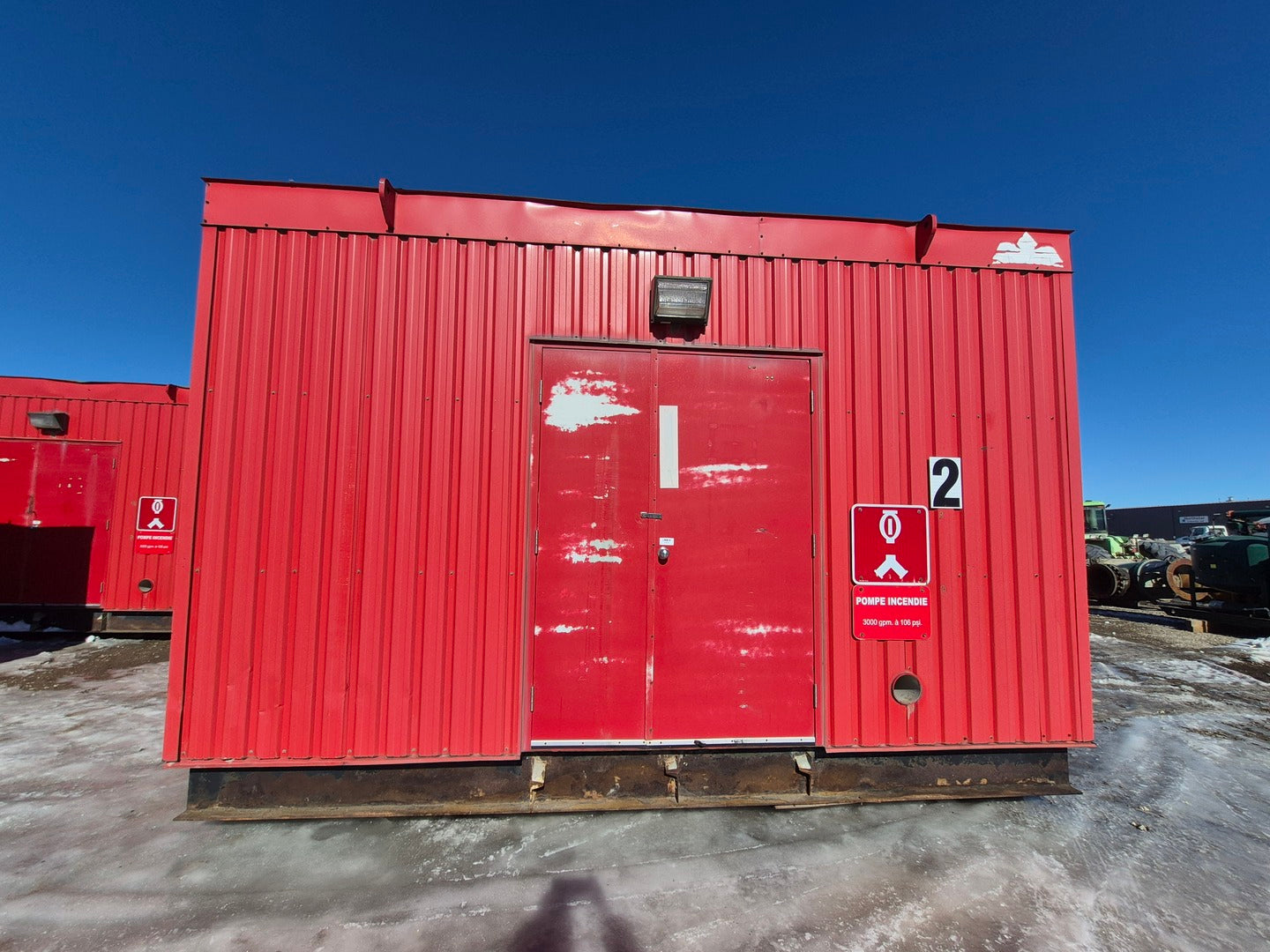

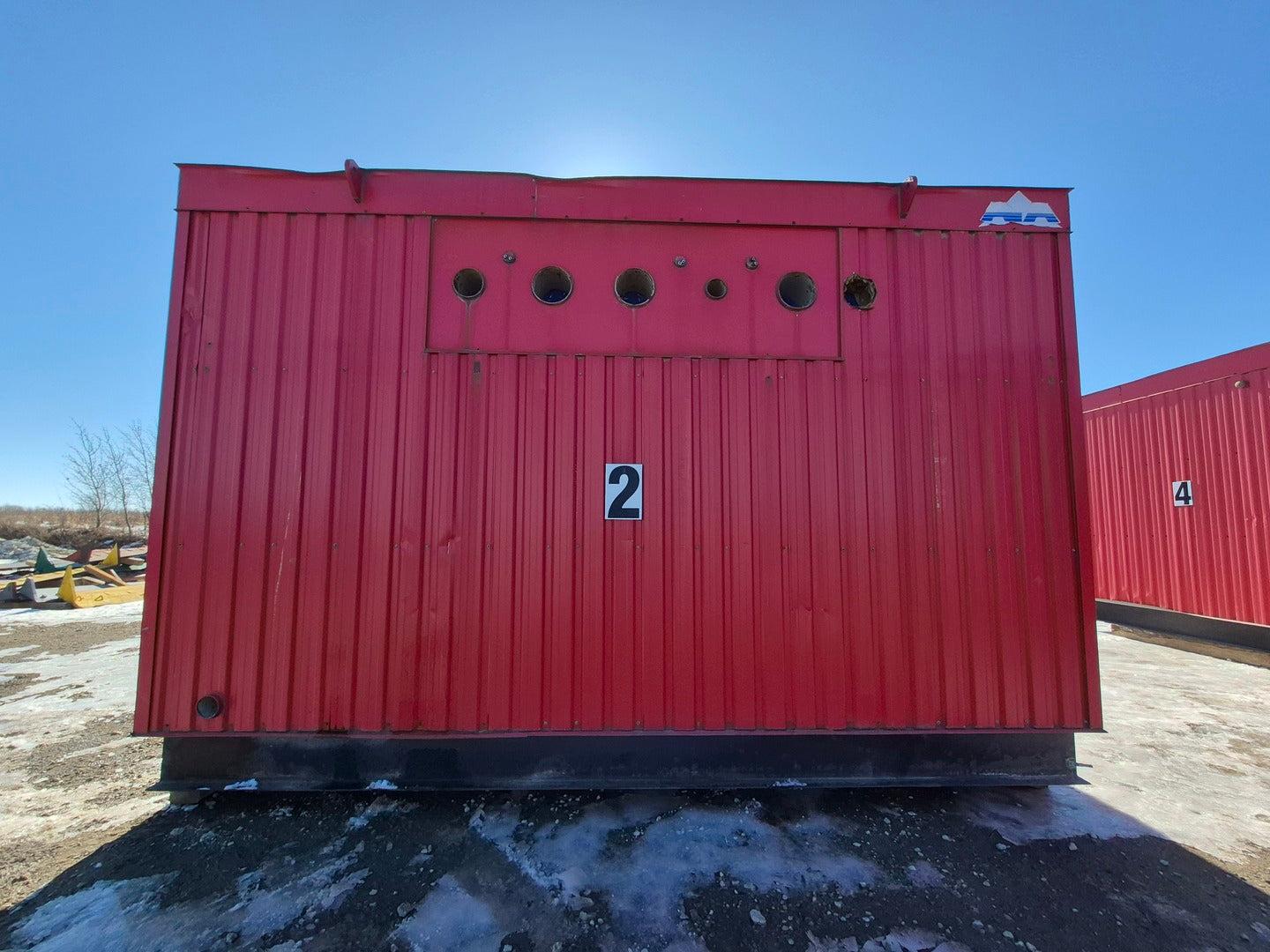

Containerized Skid

All equipment is mounted on a steel skid inside a weatherproof container.

This configuration allows the fire suppression system to be installed outdoors in harsh industrial environments such as:

  1. mining operations
  2. fuel storage terminals
  3. oil & gas facilities
  4. pulp and paper mills
  5. power plants.
