Descripción
| Specifications | |
|---|---|

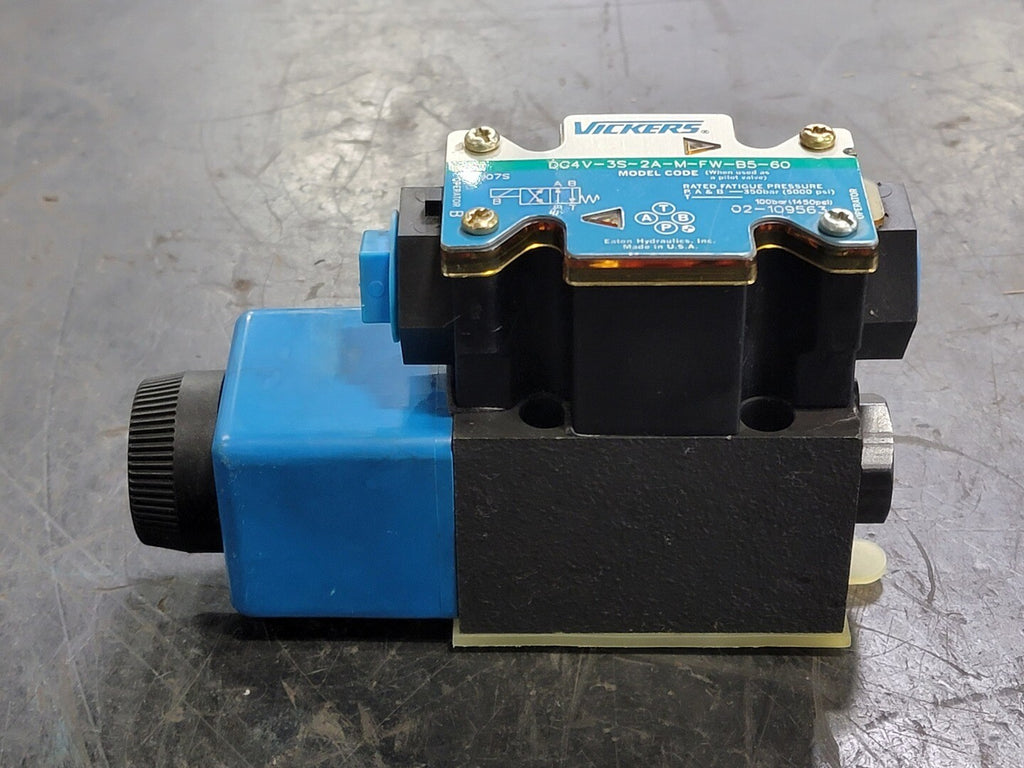

| Model | DG4V-3S-2A-M-FW-B5-60 |
| Condition | Used - Like New | General |
| Fuel Type | Oil |
| Max. Pressure | 5075 psi |
| Other Specifications |
|---|
|
Actuation: Solenoid Body Material: Gray Iron Check Location: Solenoid B Coil Voltage: 110 VAC (50 Hz) / 120 VAC (60 Hz) Design Number: 60 (Basic) Electrical Connection: 1/2" NPT Thread Conduit Box Electrical Connector Type: Flying Lead Coil with 1/2 in. NPT Thread Wiring Housing Flow Direction: 4-Way Fluid Comp: Petroleum Oil Maximum Ambient Temperature: 158 deg. F Maximum Flow Rate: 10.5 gpm Maximum Operating Temperature: 158 deg. F Minimum Operating Temperature: -4 deg. F Mounting Type: Manifold, Sulphate Seal Material: Buna-N Series: DG4V-3 60 Design Valve Size: D03 Spool Type: Closed Center (All Ports) Spool Spring Arrangement: Spring Offset T Port Pressure Rating: 1450 psi Valve Application: Industrial Valve Type: IV Directional Control Valves Wiring Housing Type: 1/2" NPT Thread |
