Descripción
| Specifications | |
|---|---|

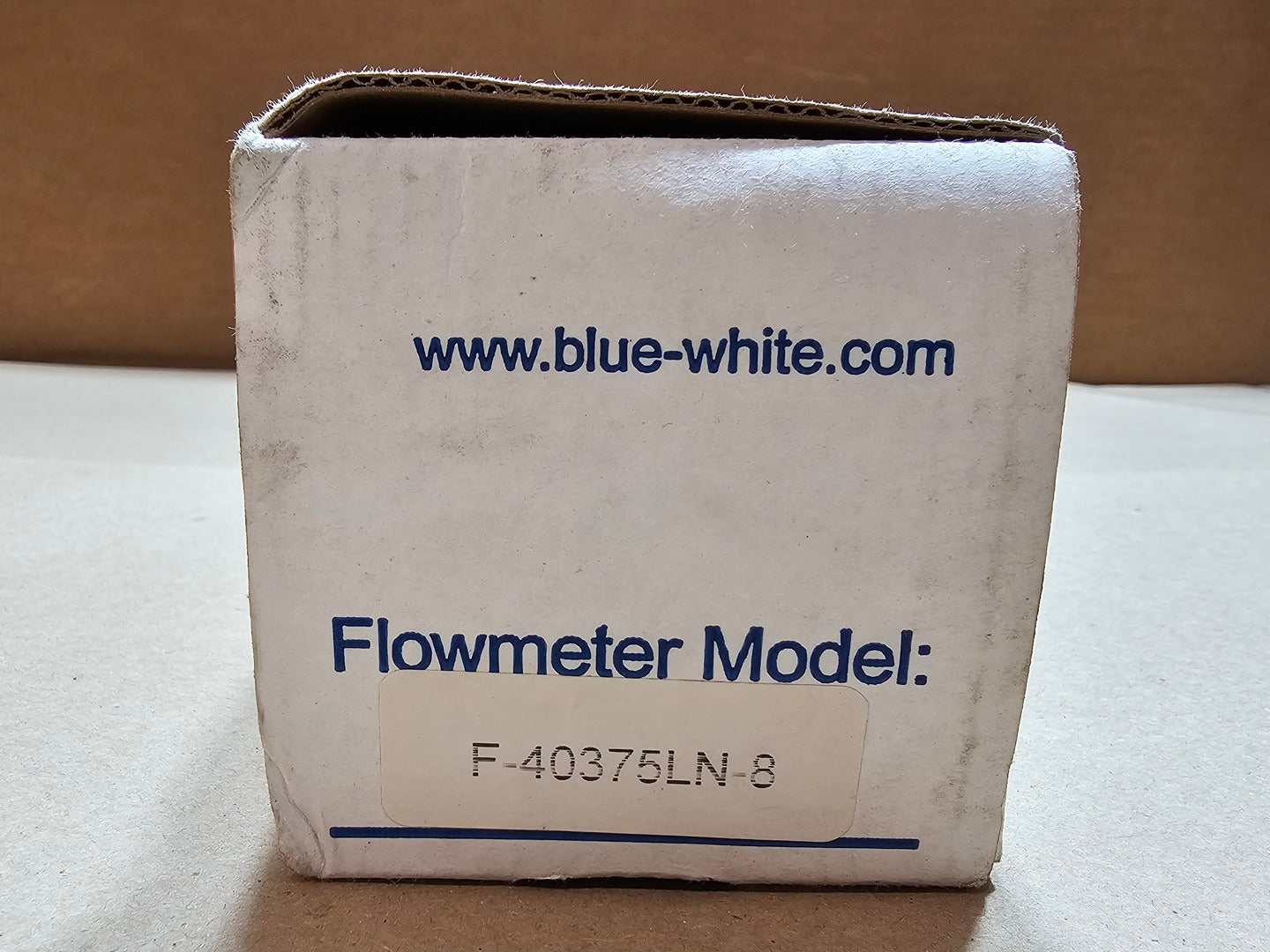

| Model | F-40375LN-8 |
| Condition | Surplus New |
| Other Specifications |
|---|
|

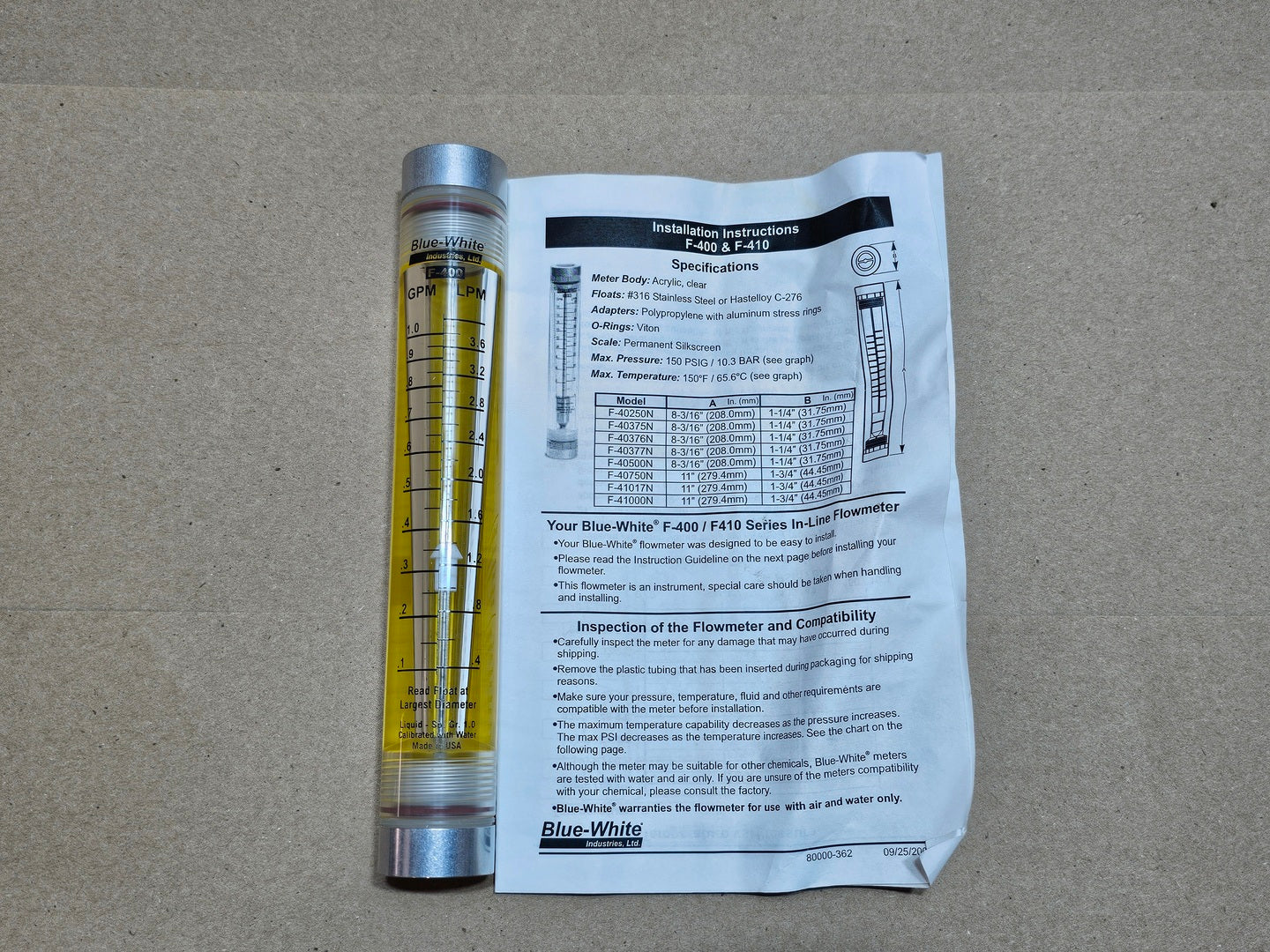

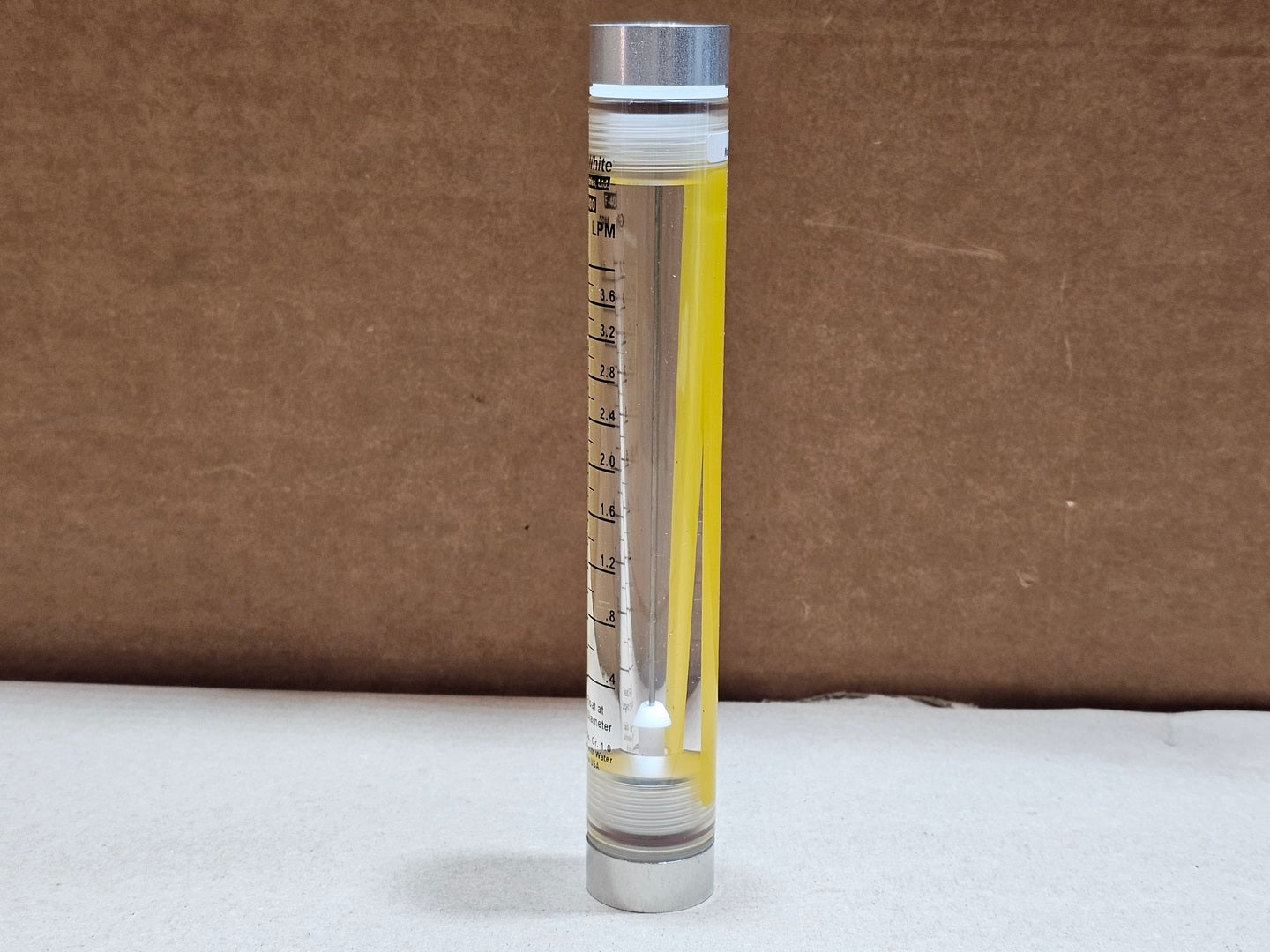

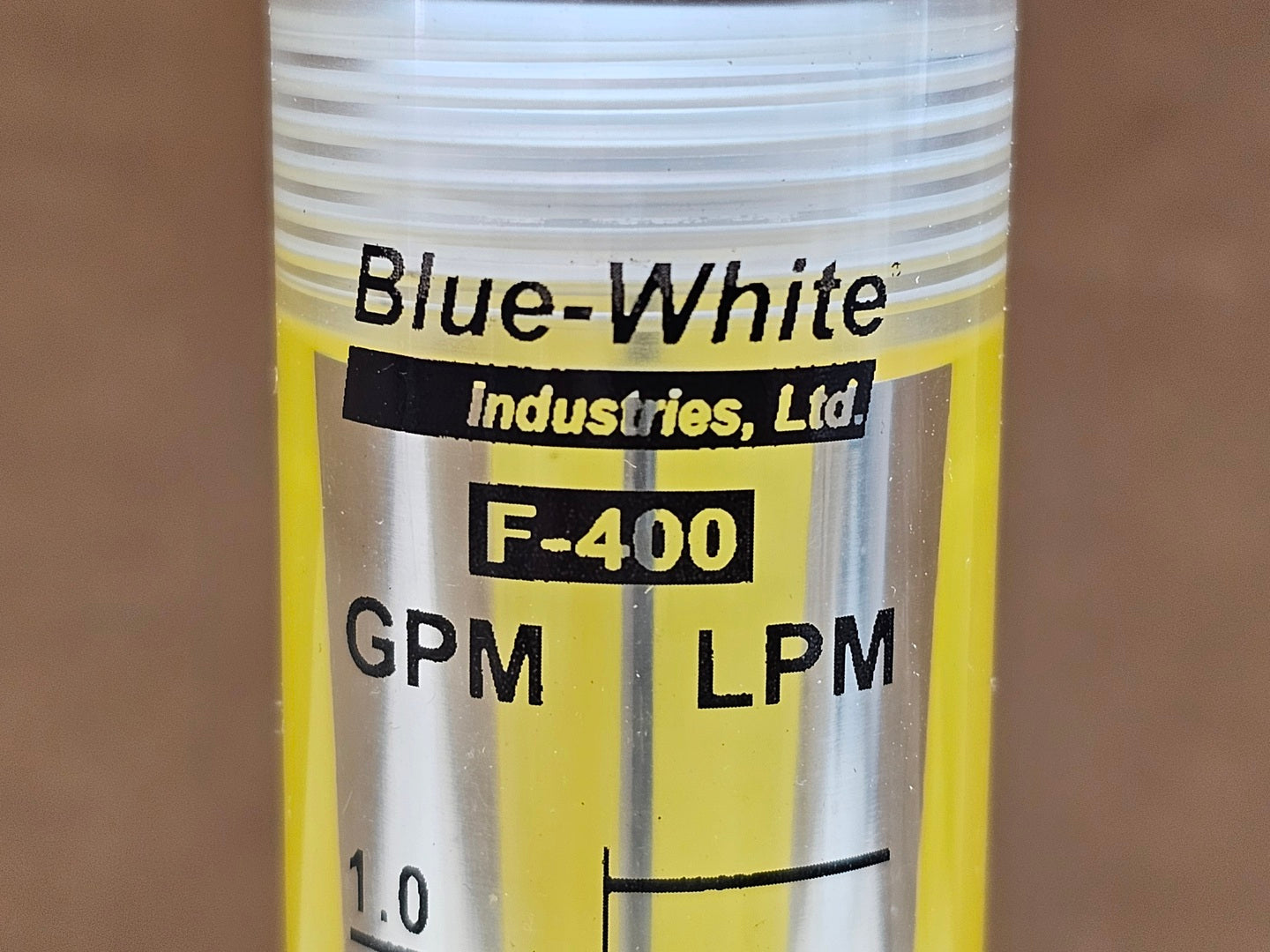

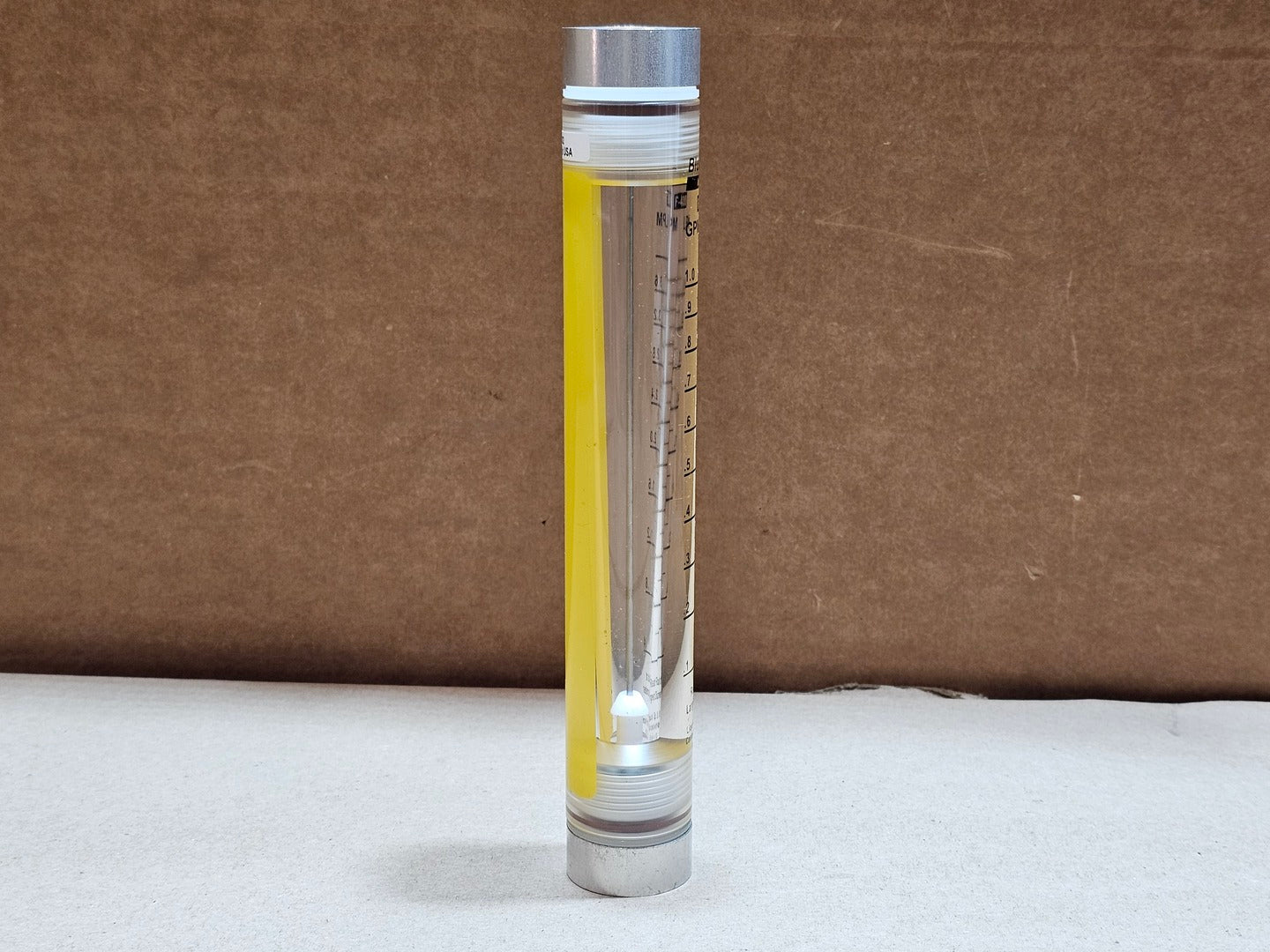

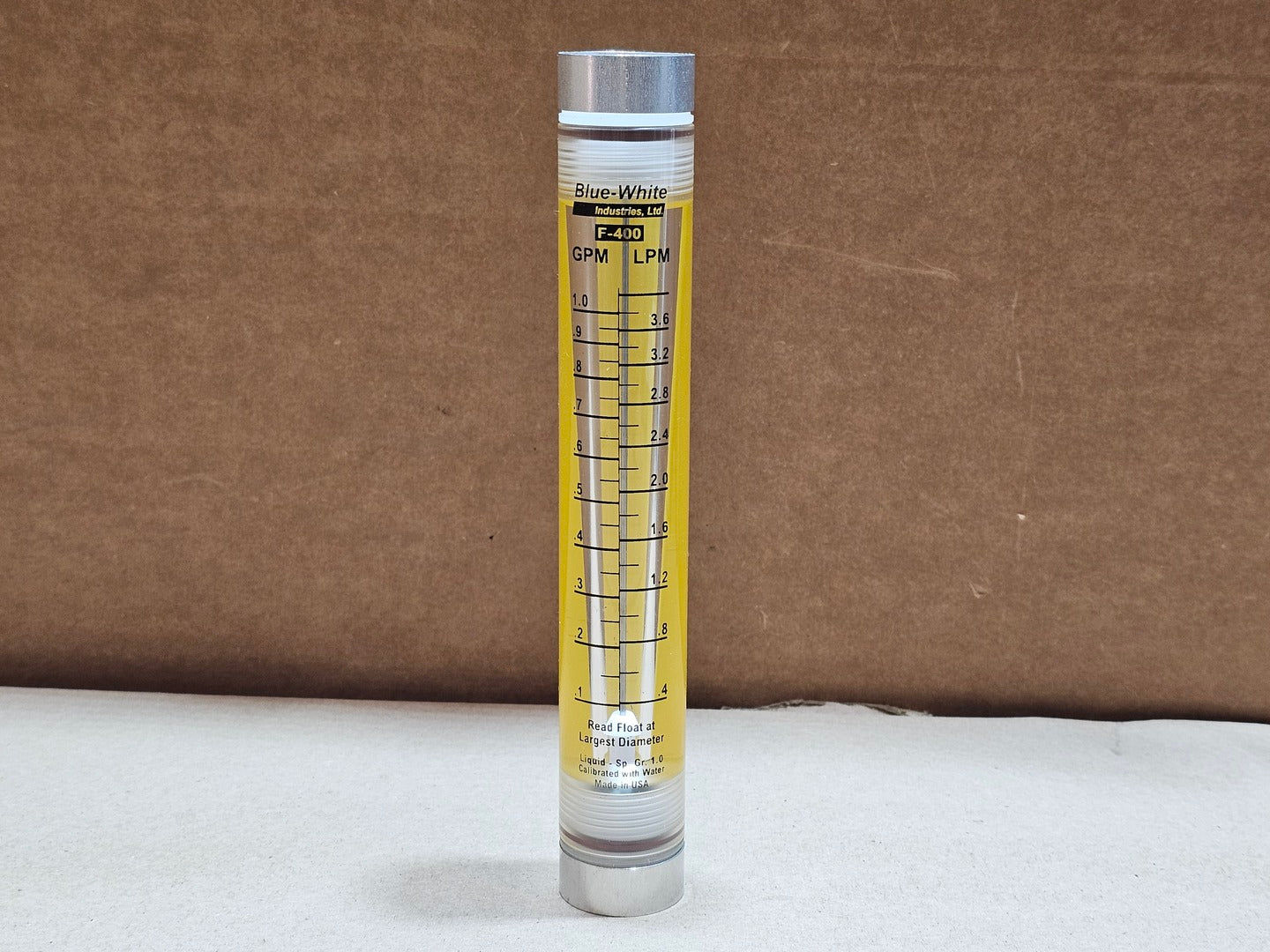

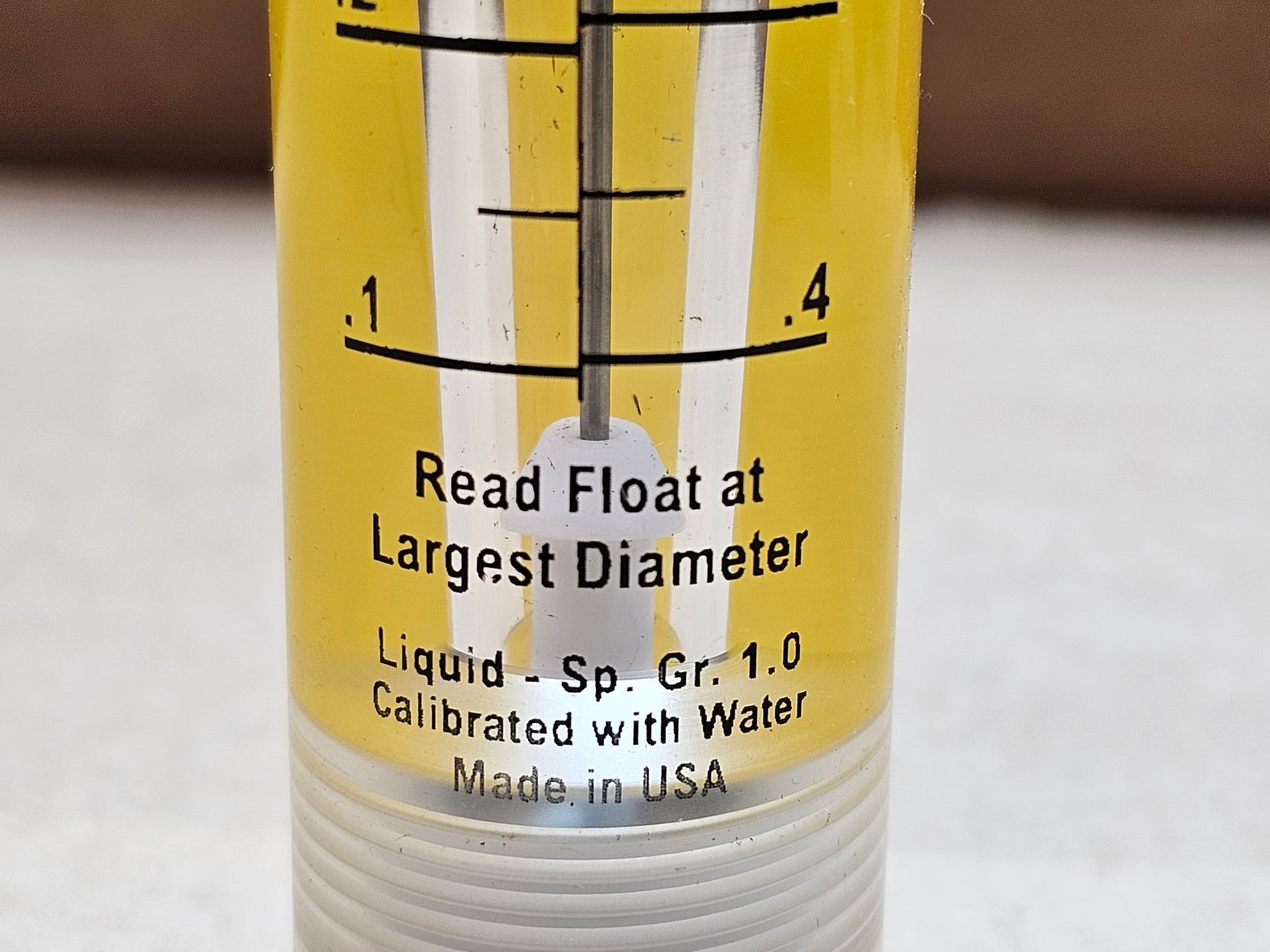

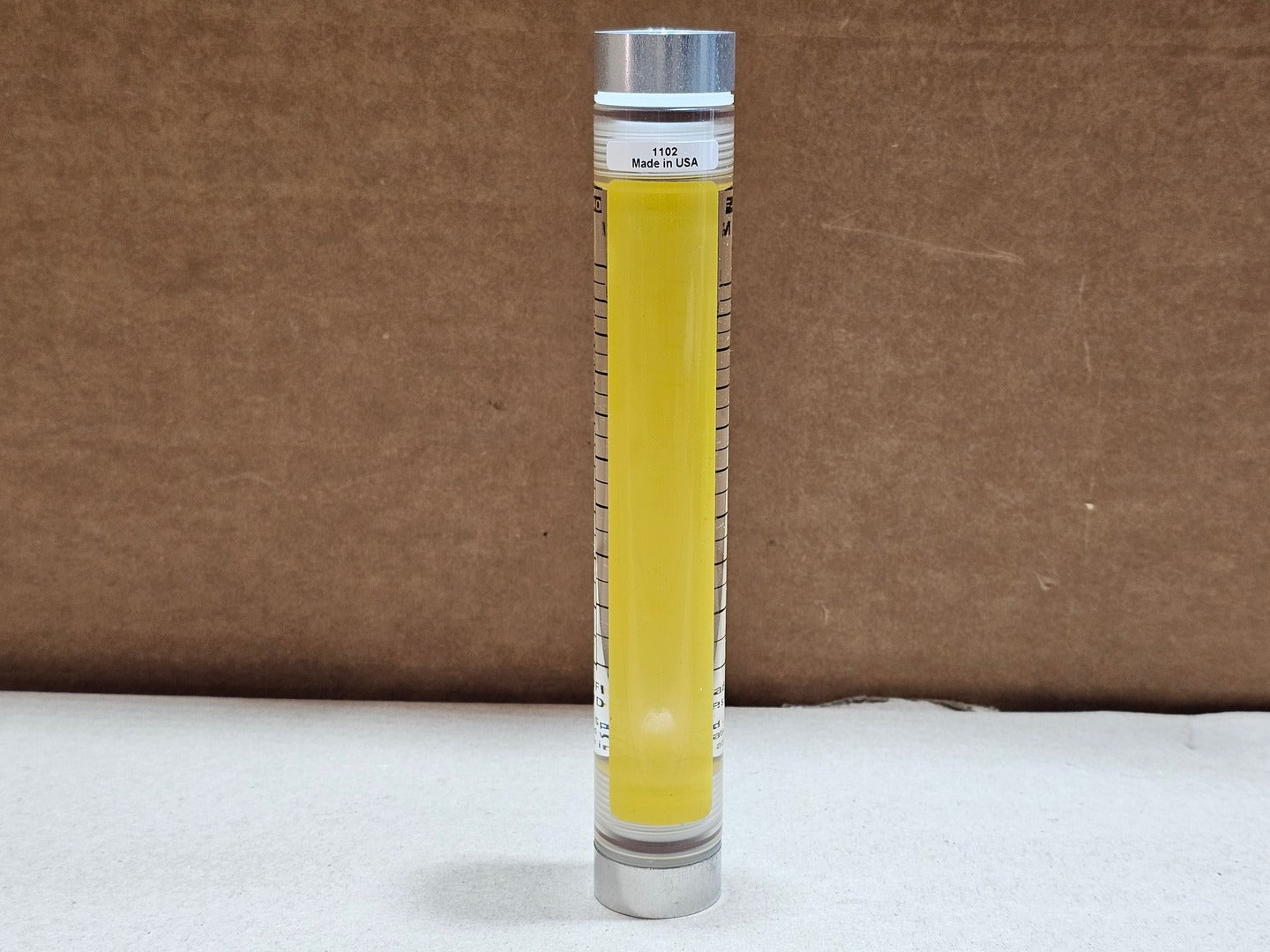

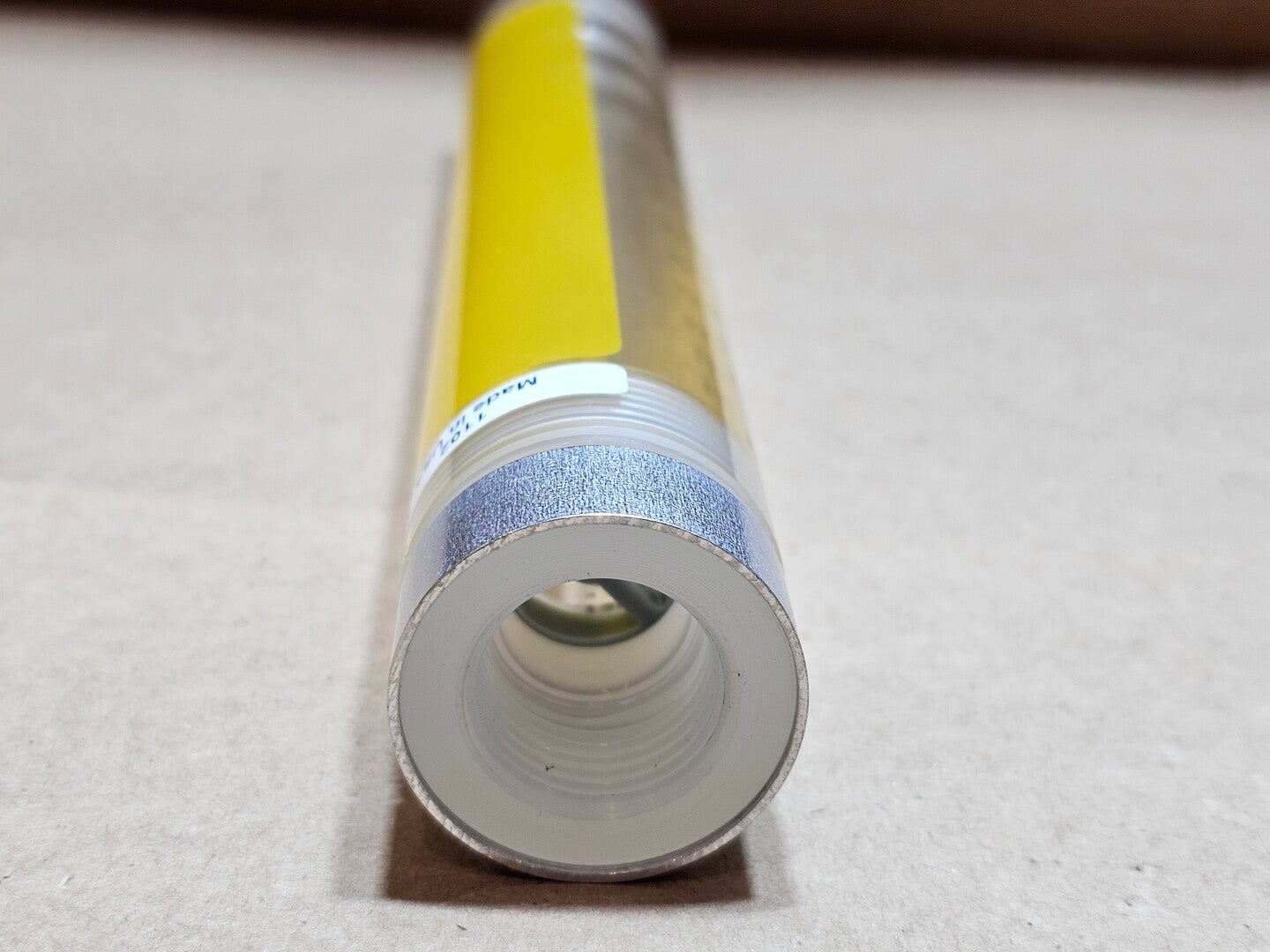

Series: F-400 Model: F-40375LN-8 Equipment Type: Inline variable area flowmeter / rotameter GPM Range: 0.1-1.0 GPM LPM Range: 0.4-4.0 LPM Scale Units: GPM and LPM Calibration Fluid: Water Calibration Specific Gravity: 1.0 Reading Method: Read float at its largest diameter, Process Connections: 1/2 in female NPT at both ends Body Material: Clear cast acrylic Adapter Material: Polypropylene with aluminum reinforcing rings Guide Rod Material: 316 stainless steel Standard Seal Material: FKM / Viton Float Material: White polymer float visible Catalog Accuracy: 5% of full scale Maximum Working Pressure: 150 PSI / 10.3 bar at 21°C Maximum Fluid Temperature: Approximately 65°C / 150°F Catalog Overall Length: 208 mm / 8-3/16 in Catalog Outside Diameter: Approximately 31.8 mm / 1-1/4 in |
