Description

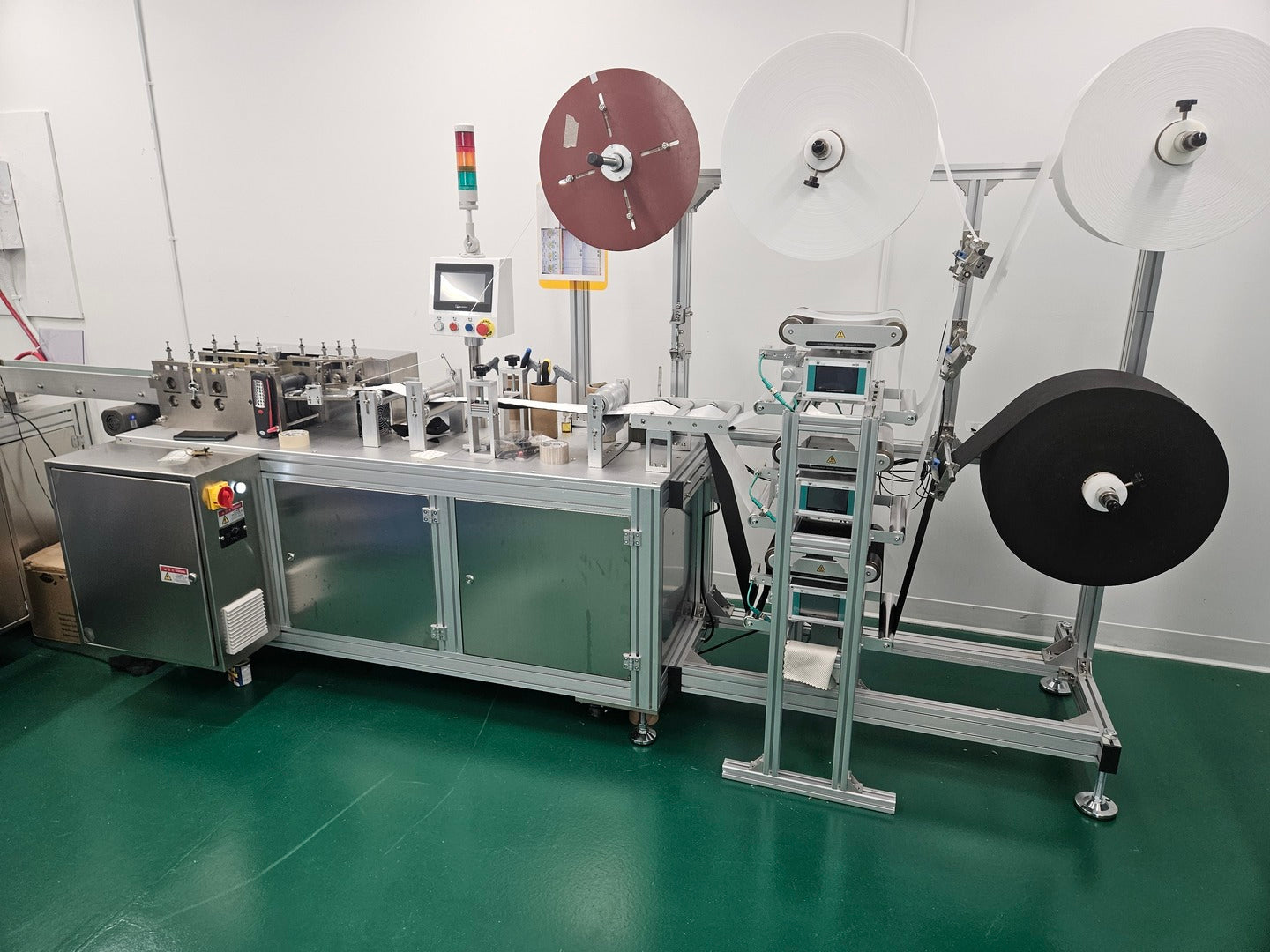

- High-speed servo-controlled flat positioning mask machine designed for efficient production of flat masks.
Product Features
- High-Speed and Stable Performance: The machine operates at high speed with consistent and reliable performance.
- Ultrasonic Welding Technology: Produces aesthetically pleasing, hygienic, and environmentally friendly masks.
- Fully Automated Production Line: Automates material feeding, nose wire insertion, edge sealing, and cutting, ensuring high efficiency and reduced labor costs.
- Durable and Hygienic Construction: The frame is made of aluminum alloy, with critical components crafted from stainless steel, offering rust resistance, durability, easy cleaning, and an attractive appearance.
- Advanced Control System: Utilizes PLC programming and servo-driven technology for high automation, excellent stability, and low failure rates.
Technical Specifications
- Dimensions: 4336 x 3268 x 1985 mm (L x W x H)
- Weight: 1500 kg
- Utility: compressed air required
- Maximum System Operating Pressure: 0.7 MPa
- Rated System Operating Pressure: 0.5 - 0.7 MPa
- Input Voltage: 220V AC
- Power: 10 kW
- Operating Humidity: 20 - 80% RH (non-condensing)
- Operating Temperature: 5 - 40°C
- Production Speed: max. 85 pieces per minute
- The chip-cutting machine adopts one Huizhuan ultrasonic 15K2600W, and the earband machine is equipped with two Huizhuan ultrasonic 20K2000W.
|
