Descripción
| Specifications | |
|---|---|

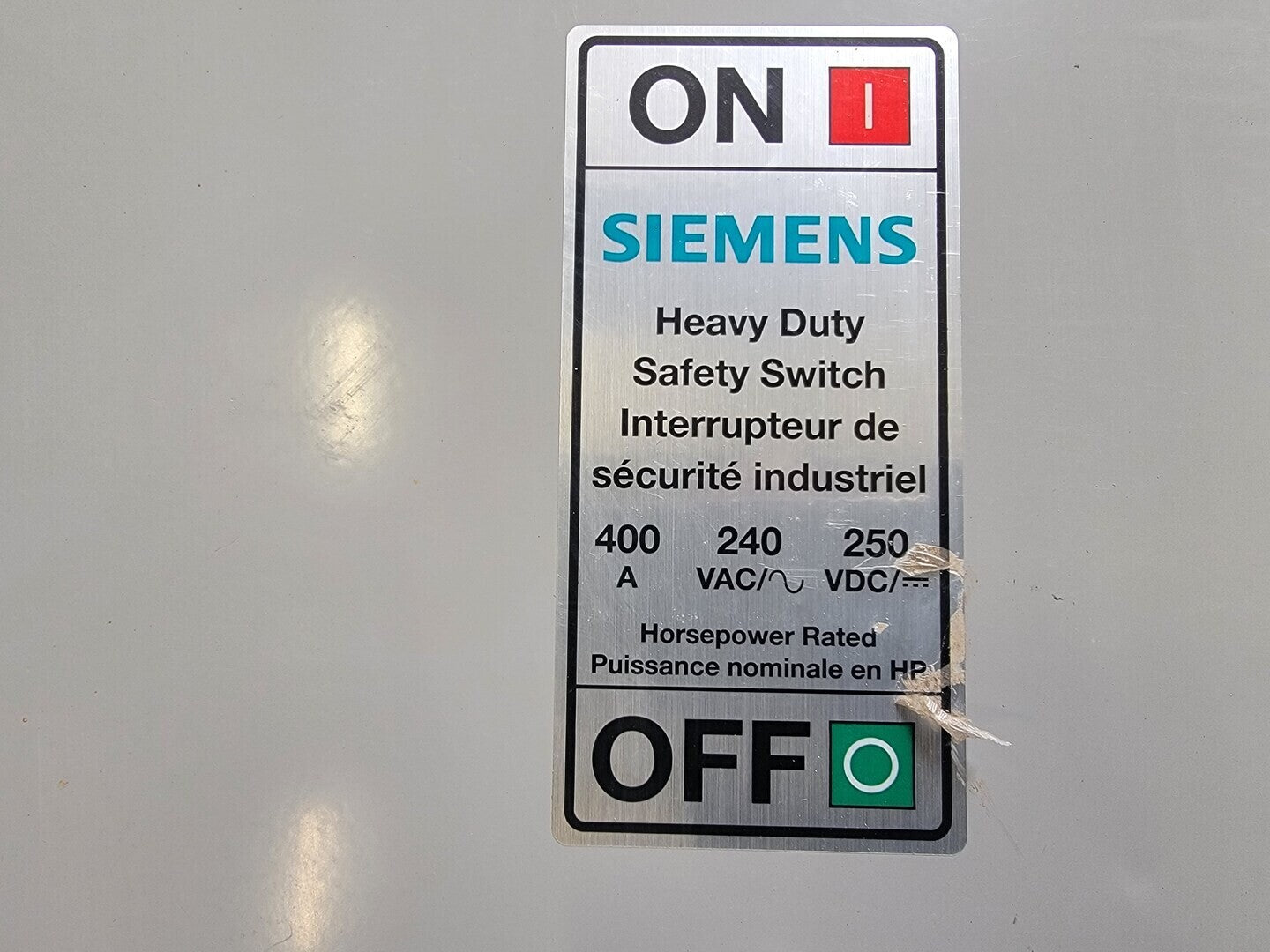

| Model | HF362SNA |
| Condition | Used | Electrical |
| Amps | 400 amps |
| Voltage | 600 volts |
| Other Specifications |
|---|
|

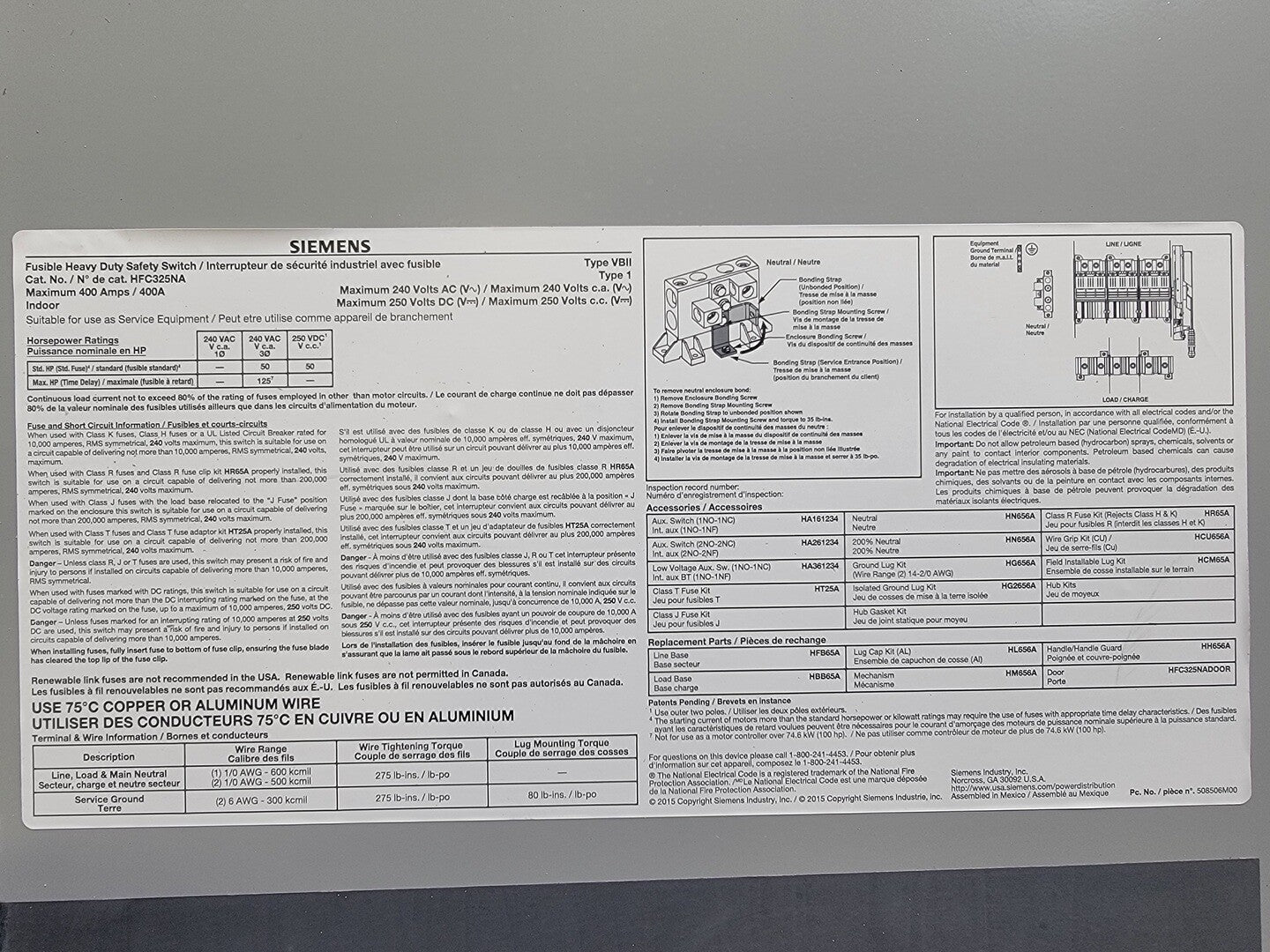

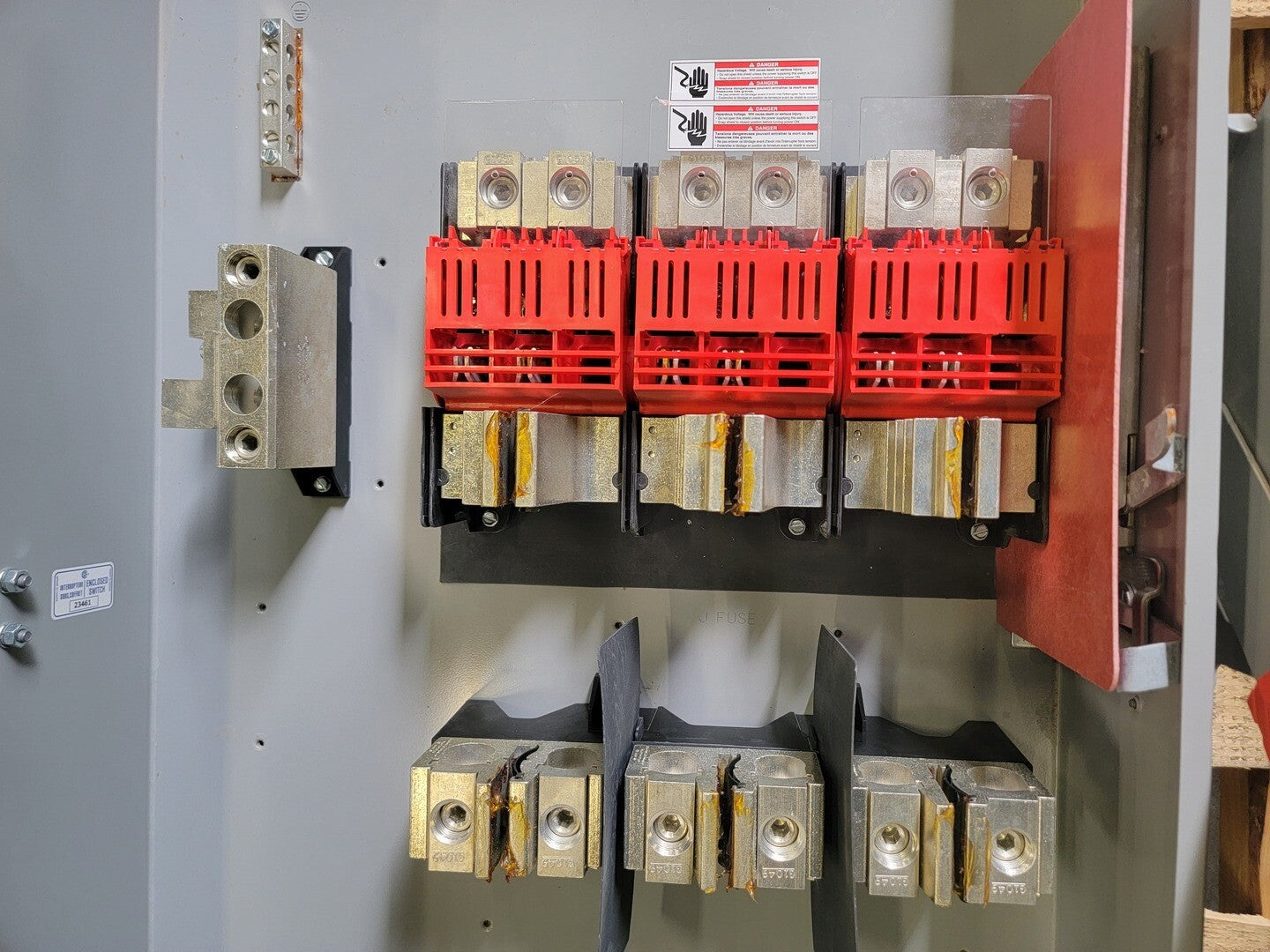

Type: VBII, Type 1 (Indoor) Current Rating: 400 Amps Voltage Rating AC: Maximum 600 Volts AC Voltage Rating DC: Maximum 250 Volts DC Horsepower Rating at 240V AC (1 phase): 100 HP Horsepower Rating at 240V AC (3 phase): 200 HP Horsepower Rating at 480V AC (3 phase): 400 HP Horsepower Rating at 600V AC (3 phase): 500 HP Wire Size Range Line, Load, Neutral: #4 AWG to 600 kcmil copper or aluminum Wire Size Range Ground: #14 AWG to 300 kcmil copper or aluminum Terminal Lug Torque Line and Load: 275 lb-in Ground Lug Torque: 180 lb-in Fuse Type: Class H, K, R, J (fusible switch type) Enclosure Type: NEMA 1 (indoor use only) Suitable for Use As Service Equipment: Yes Operation: External handle ON/OFF with lockout capability Conductor Requirement: Use 75°C copper or aluminum wire |
