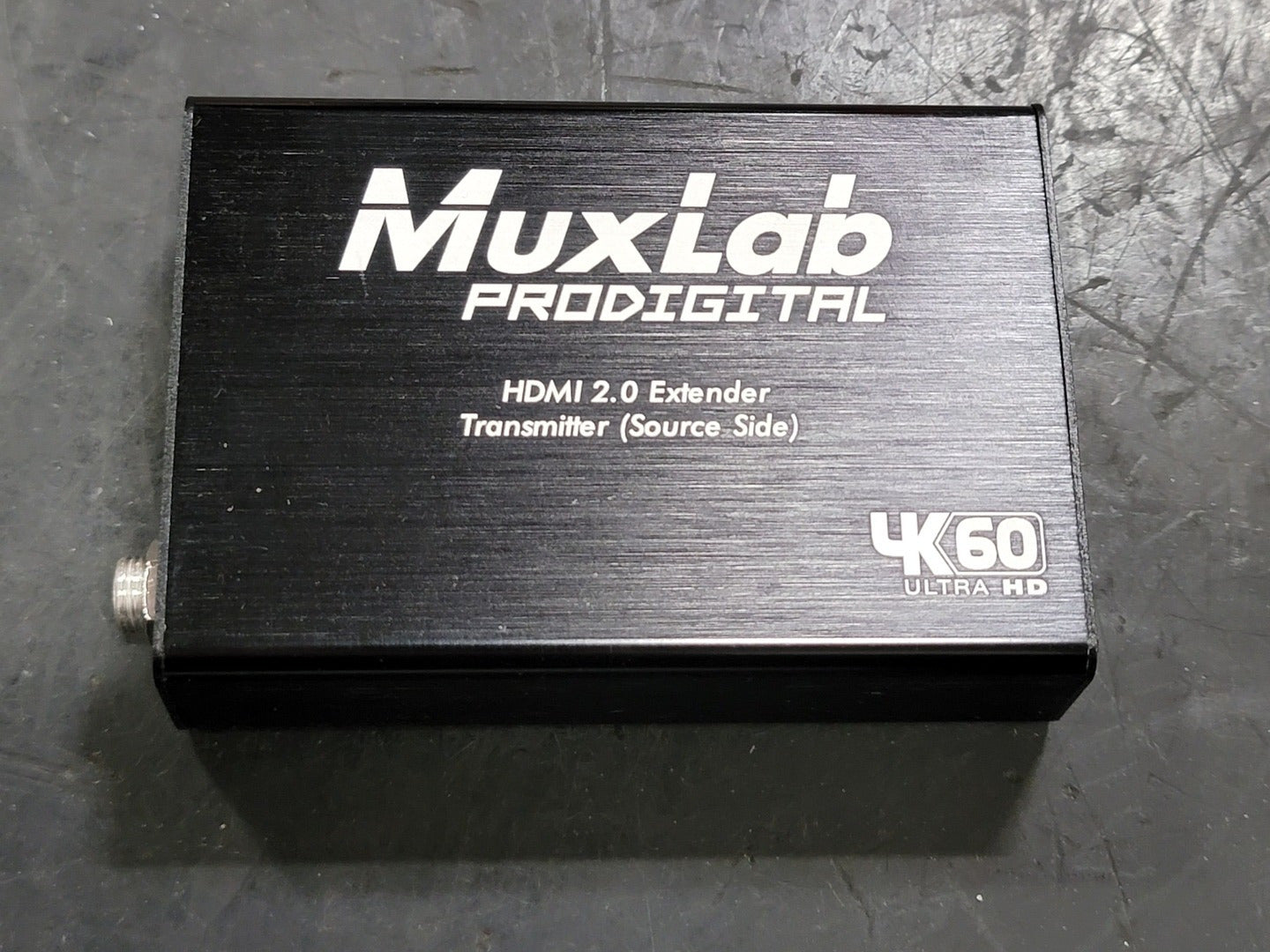

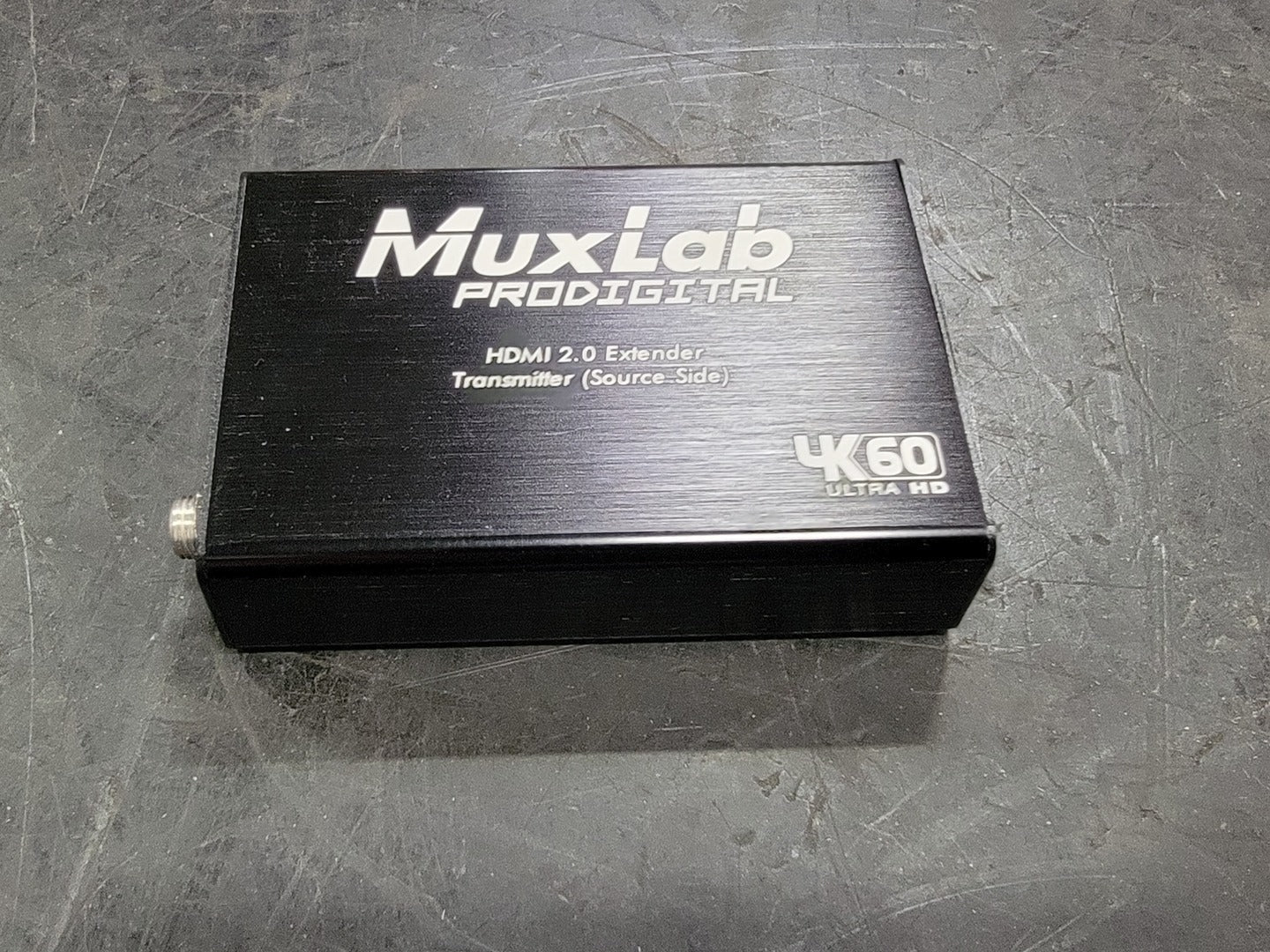

MUXLAB HDMI 2.0 Extender Kit 500409
MUXLAB

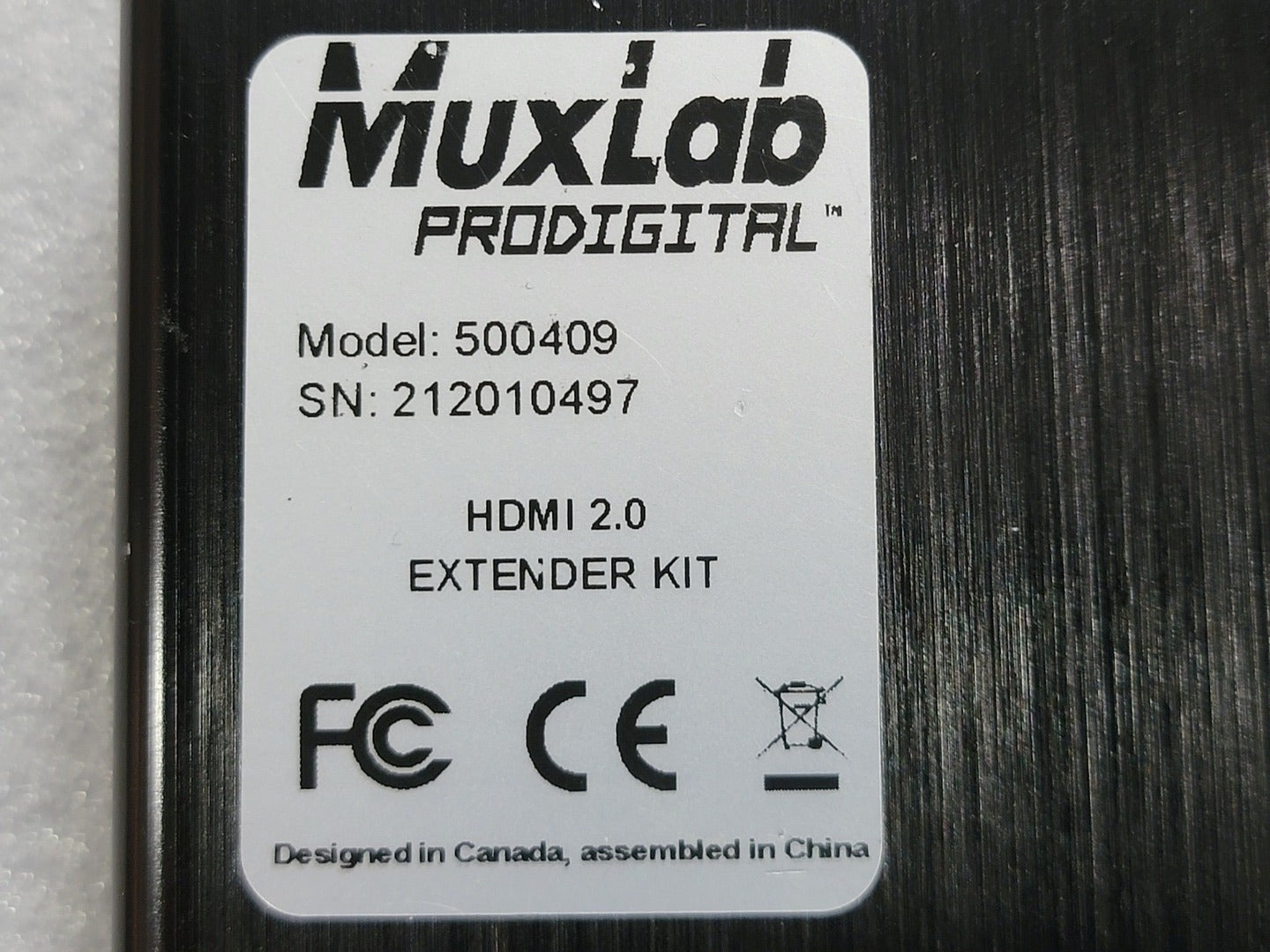

HDMI 2.0 Extender Kit 500409

SKU: 115622
Precio:
$151

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

Specifications
Model 500409
Made In CHINA
Condition Surplus New
Other Specifications

Features:-

  1. Video up to 4K/60 (4:4:4) uncompressed
  2. HDCP 2.2
  3. Pass-through of up to Dolby Atmos and DTS:X audio
  4. 30m (100ft.) at 4K/60 over Cat 6a/7 cable
  5. Point-to-Point connectivity
  6. 1-way IR for remote control of end devices
  7. PoC to power either the TX or RX unit

Environment: HDMI 2.0

Devices: DVD, plasma, projections, monitors, TV, PC, laptops, servers, supporting HDMI

Transmission: Transparent to the user

Bandwidth: 594 MHz

Signals: HDMI 2.0 and HDCP 2.2

Connectors:

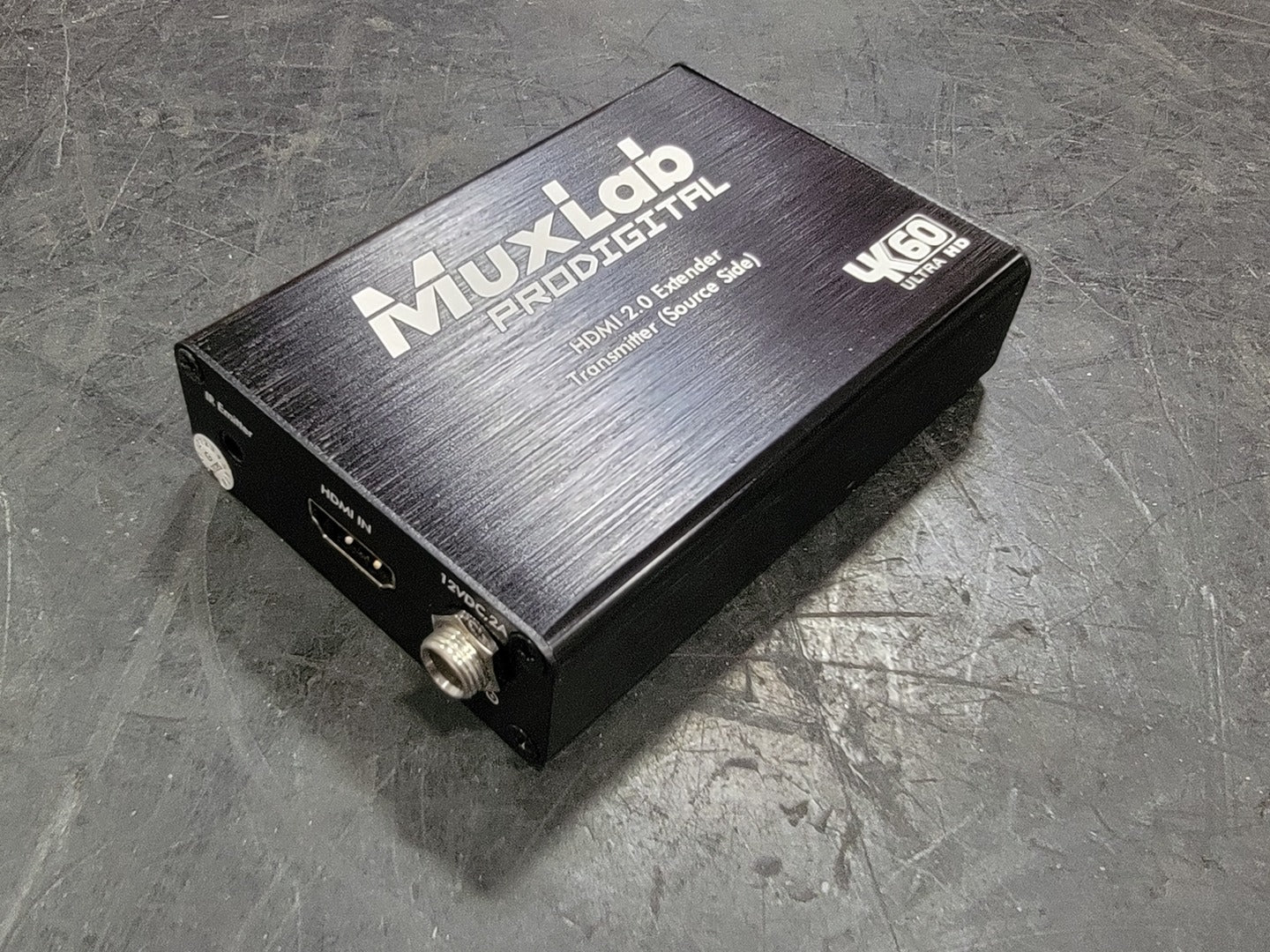

  1. One (1) HDMI receptacle
  2. One (1) RJ45S for Cat 6a/7 unshielded or shielded twisted pair.
  3. One (1) 3.5mm jacks for 1-way IR (emitter or sensor) (IR port supports carrier wave from 38 to 60KHz)

Maximum Distance (Based on a max. length of 6.6 ft. of HDMI cable per end):

  1. 30m (100 ft.) at 4K/60 (4:4:4) uncompressed over Cat 6a/7
  2. 40m (130 ft.) at 4K/30 (4:4:4) uncompressed over Cat 6a/7
  3. 45m (148 ft.) at 1080p/60 uncompressed over Cat 6a/7

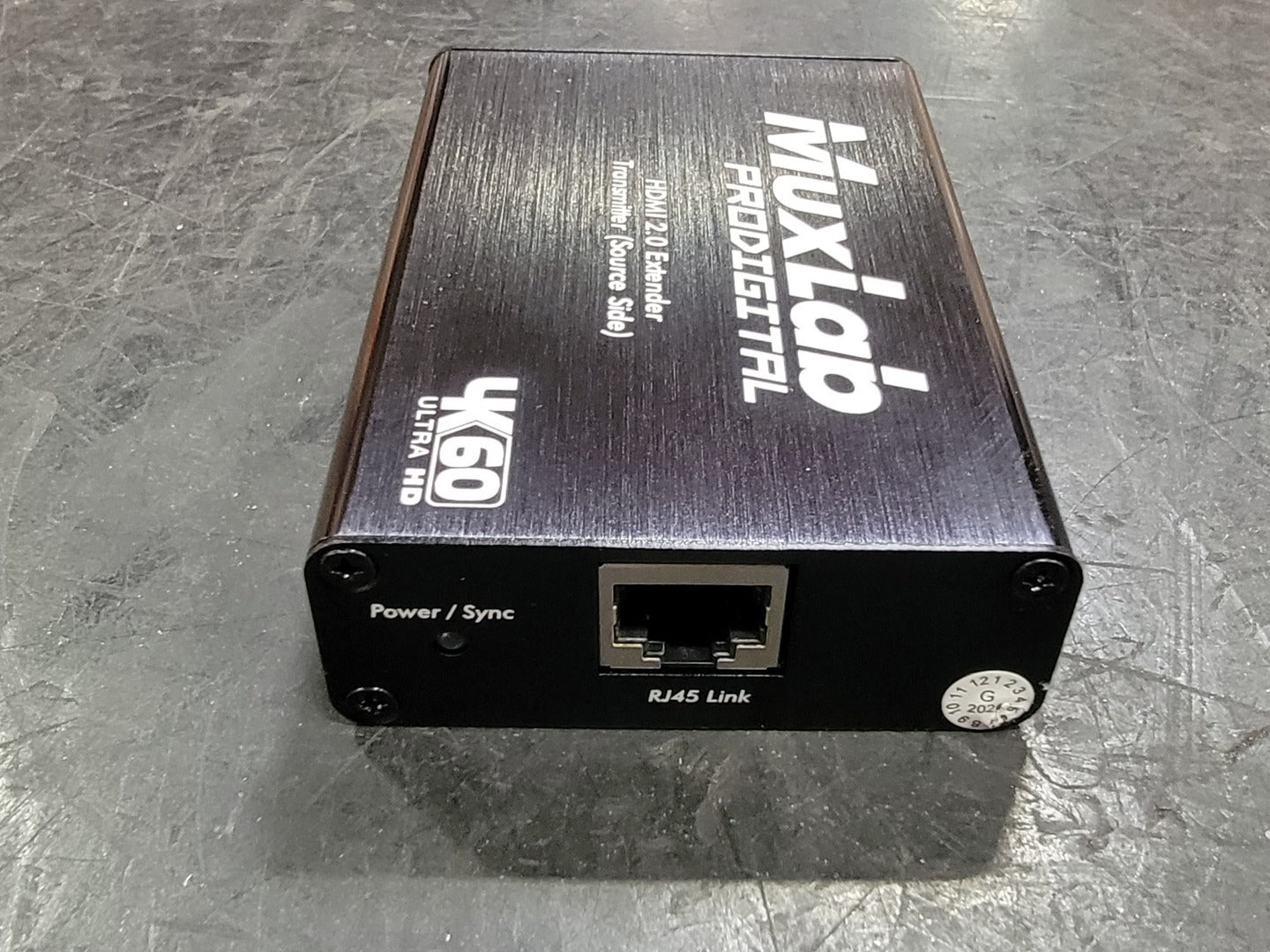

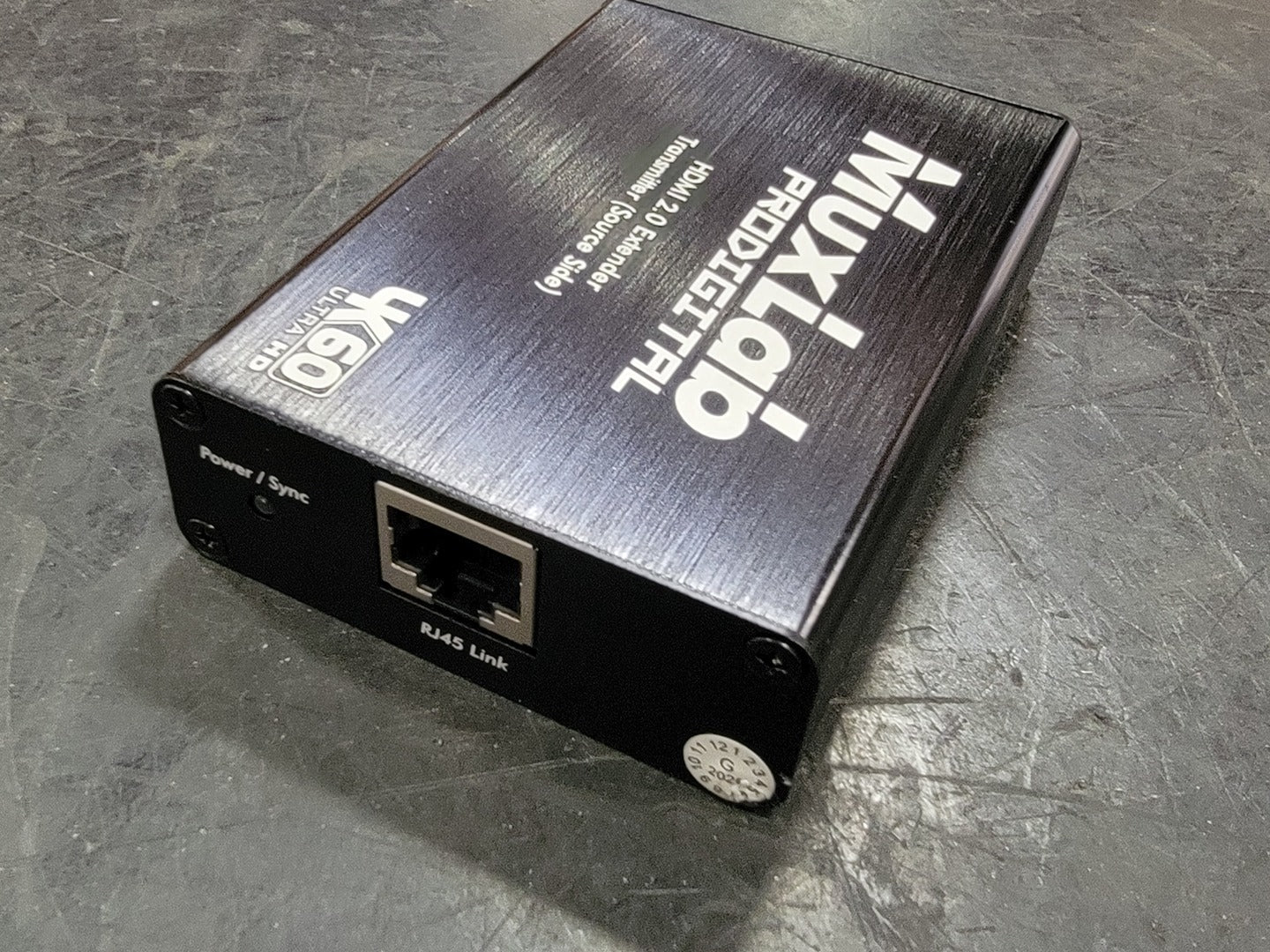

RJ45 Pin Configuration: RJ45 Link

  1. Pin 1 (R) Pin 2 (T)
  2. Pin 3 (R) Pin 6 (T)
  3. Pin 4 (R) Pin 5 (T)
  4. Pin 7 (R) Pin 8 (T)

Cable: One (1) Cat 6a/7 or better twisted pair cables required

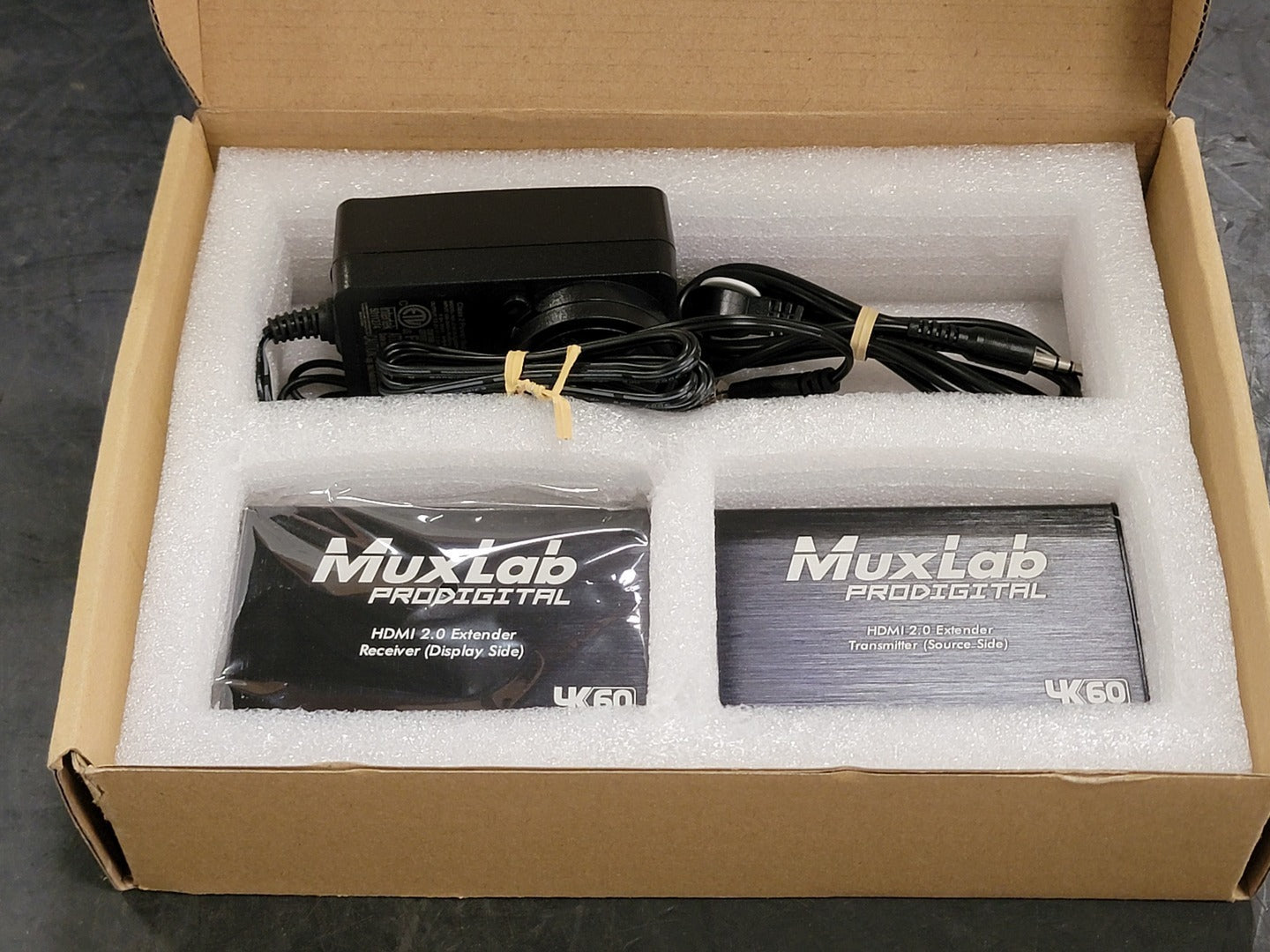

Power Supply: One (1) 110-240V/12VDC @ 2A power supplies with interchangeable blades

Power Consumption: 6 Watt (Transmitter, Receiver)

Temperature:

  1. Operating: 0 to 40 deg. C
  2. Storage: -20 to 70 deg. C
  3. Humidity: Up to 95% non-condensing

Enclosure: Metal Black
